2.Turn the 3 bolts (A) anticlockwise to remove
them. And then remove the lamp assembly.
3. Depress the tab (B) on the harness connector
and pull the harness connector (C) to remove
it.
4. Turn the entire socket and bulb assembly (D)
anticlockwise to remove it.
5. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying thoroughly.Rear fog lamp E01004100384
Type 1 (Driver’s side only)
1.Remove the screws (A) from the rear fog
lamp lens, and then remove the lens (B).
Maintenance
8-29
OKTE13E1
8

2.Remove the bulb (C) by turning it anticlock-
wise while pressing it inward.
3. To install the bulb, perform the removal
steps in reverse.
Type 2 (Driver’s side only) 1.Remove the socket and bulb assemblies by
turning it anticlockwise, and then remove the
bulb by pulling out.
2. To install the bulb, perform the removal
steps in reverse.

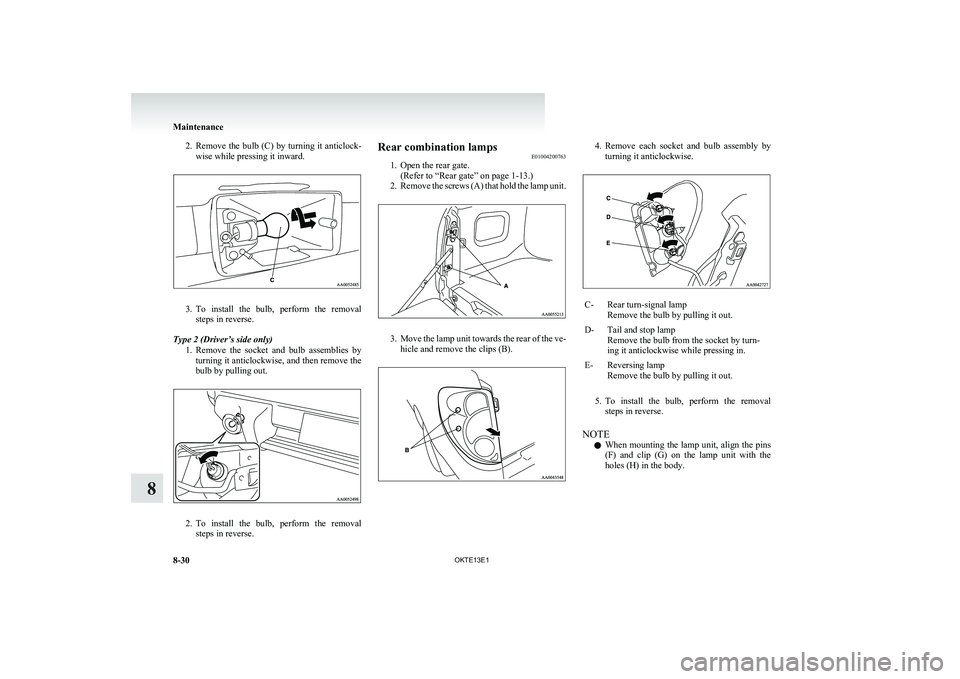

Rear combination lamps E01004200763
1. Open the rear gate.
(Refer to “Rear gate” on page 1-13.)
2. Remove the screws (A) that hold the lamp unit.
3.Move the lamp unit towards the rear of the ve-
hicle and remove the clips (B).
4. Remove each socket and bulb assembly by
turning it anticlockwise.C-Rear turn-signal lamp
Remove the bulb by pulling it out.D-Tail and stop lamp
Remove the bulb from the socket by turn-
ing it anticlockwise while pressing in.E-Reversing lamp
Remove the bulb by pulling it out.
5. To install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the lamp unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body.
Maintenance
8-30 OKTE13E1
8

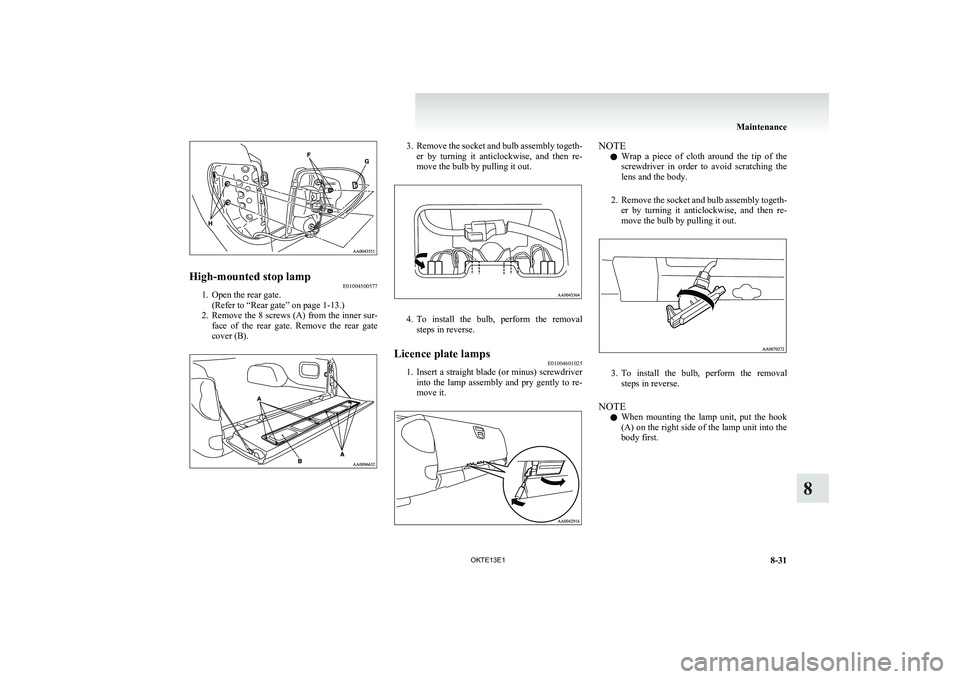

High-mounted stop lampE01004500577
1. Open the rear gate.
(Refer to “Rear gate” on page 1-13.)
2. Remove the 8 screws (A) from the inner sur-
face of the rear gate. Remove the rear gate
cover (B).
3. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling it out.
4. To install the bulb, perform the removal
steps in reverse.
Licence plate lamps E01004601025
1.Insert a straight blade (or minus) screwdriver
into the lamp assembly and pry gently to re-
move it.
NOTE
l Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body.
2. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the lamp unit, put the hook
(A) on the right side of the lamp unit into the
body first.
Maintenance
8-31
OKTE13E1
8

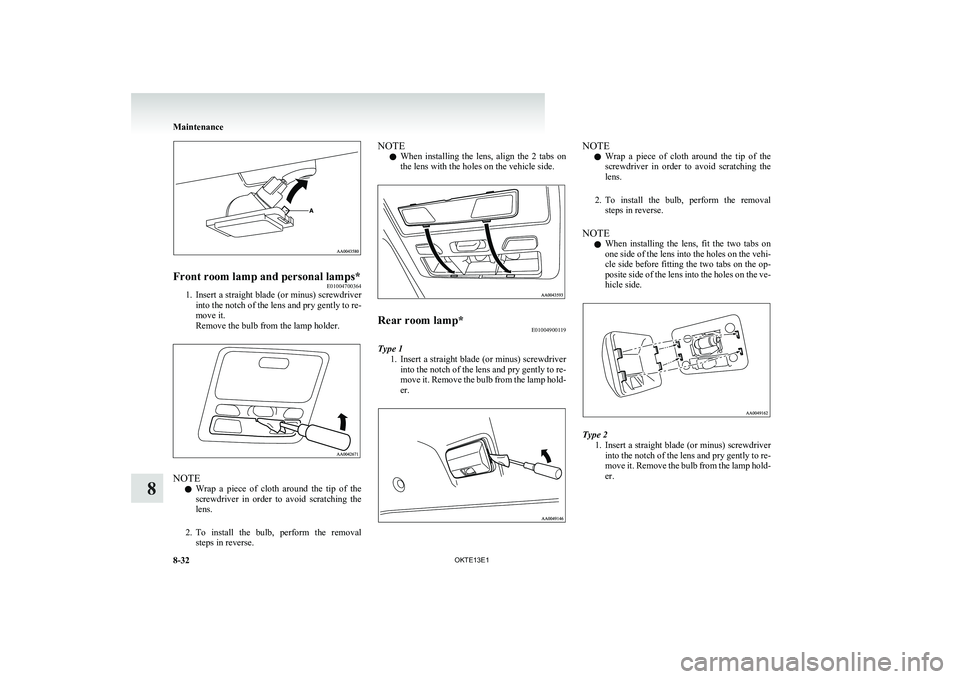

Front room lamp and personal lamps*E01004700364
1.Insert a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move it.
Remove the bulb from the lamp holder.
NOTE
l Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTE
l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.Rear room lamp* E01004900119
Type 1
1.Insert a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move it. Remove the bulb from the lamp hold-
er.
NOTE
l Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTE l When installing the lens, fit the two tabs on
one side of the lens into the holes on the vehi-
cle side before fitting the two tabs on the op-
posite side of the lens into the holes on the ve-
hicle side.
Type 2
1.Insert a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move it. Remove the bulb from the lamp hold-
er.
Maintenance
8-32 OKTE13E1
8

NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.

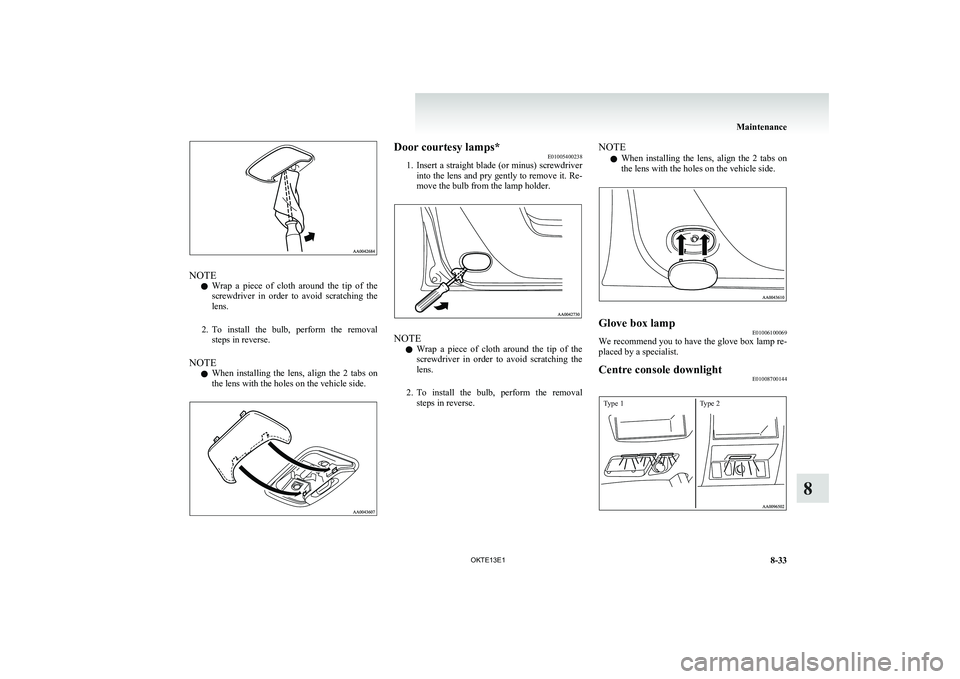

Door courtesy lamps* E01005400238
1. Insert a straight blade (or minus) screwdriver
into the lens and pry gently to remove it. Re-
move the bulb from the lamp holder.
NOTE
l Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTE
l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.Glove box lamp E01006100069
We recommend you to have the glove box lamp re-
placed by a specialist.
Centre console downlight E01008700144Type 1Type 2
Maintenance
8-33
OKTE13E1
8

Type 1
We recommend you to have the centre console
downlight replaced by a specialist.

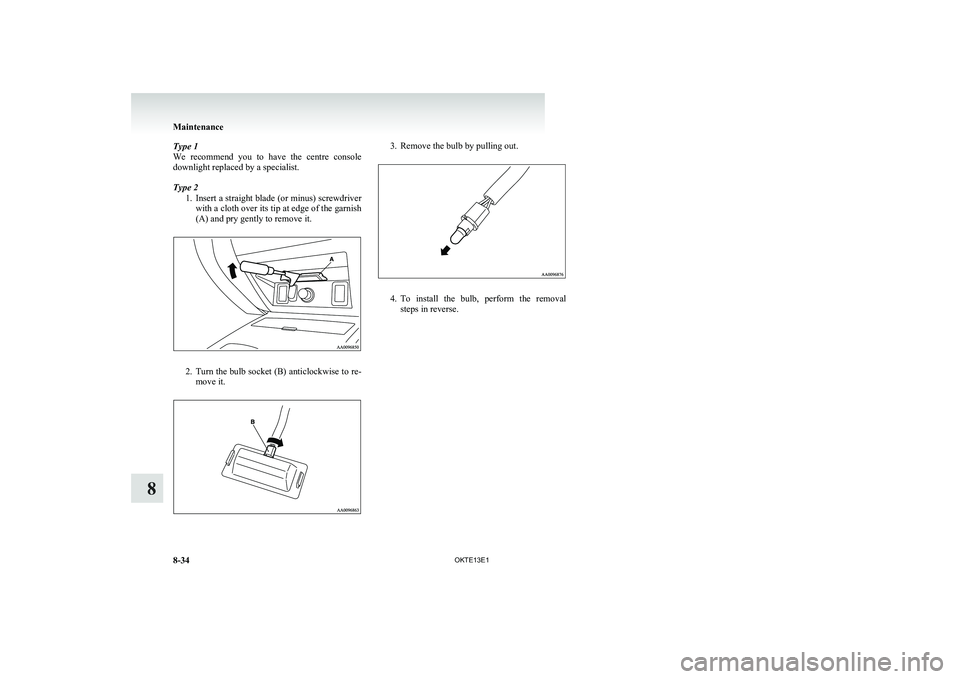

Type 2 1.Insert a straight blade (or minus) screwdriver
with a cloth over its tip at edge of the garnish
(A) and pry gently to remove it.
2. Turn the bulb socket (B) anticlockwise to re-
move it.
3. Remove the bulb by pulling out.
4. To install the bulb, perform the removal
steps in reverse.
Maintenance
8-34 OKTE13E1
8

Vehicle labeling............................................................................ 9-02
Vehicle dimensions.......................................................................9-03
Vehicle performance.....................................................................9-09
Vehicle weight .............................................................................. 9-10
Engine specifications .................................................................... 9-14
Transmission specifications .......................................................... 9-15
Electrical system ........................................................................... 9-16
Tyres and wheels .......................................................................... 9-17
Other specifications ...................................................................... 9-18
Fuel consumption ......................................................................... 9-19
Refill capacities ............................................................................ 9-20Specifications
OKTE13E1
9

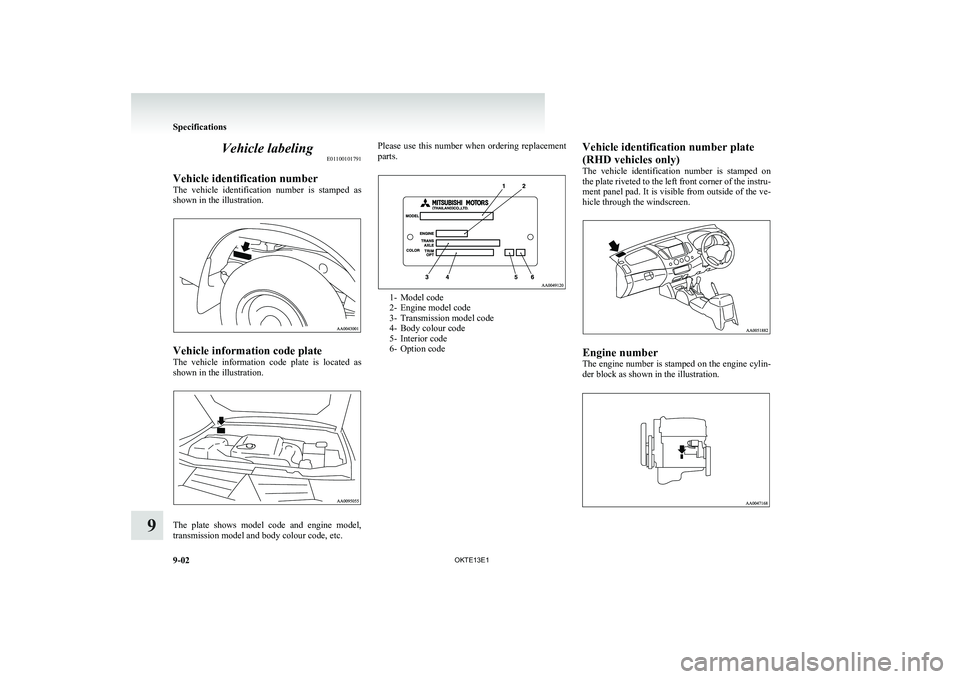

Vehicle labelingE01100101791
Vehicle identification number
The vehicle identification number is stamped as
shown in the illustration.
Vehicle information code plate
The vehicle information code plate is located as
shown in the illustration.
The plate shows model code and engine model,
transmission model and body colour code, etc.
Please use this number when ordering replacement
parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
Vehicle identification number plate
(RHD vehicles only)
The vehicle identification number is stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen.
Engine number
The engine number is stamped on the engine cylin-
der block as shown in the illustration.
Specifications
9-02 OKTE13E1
9

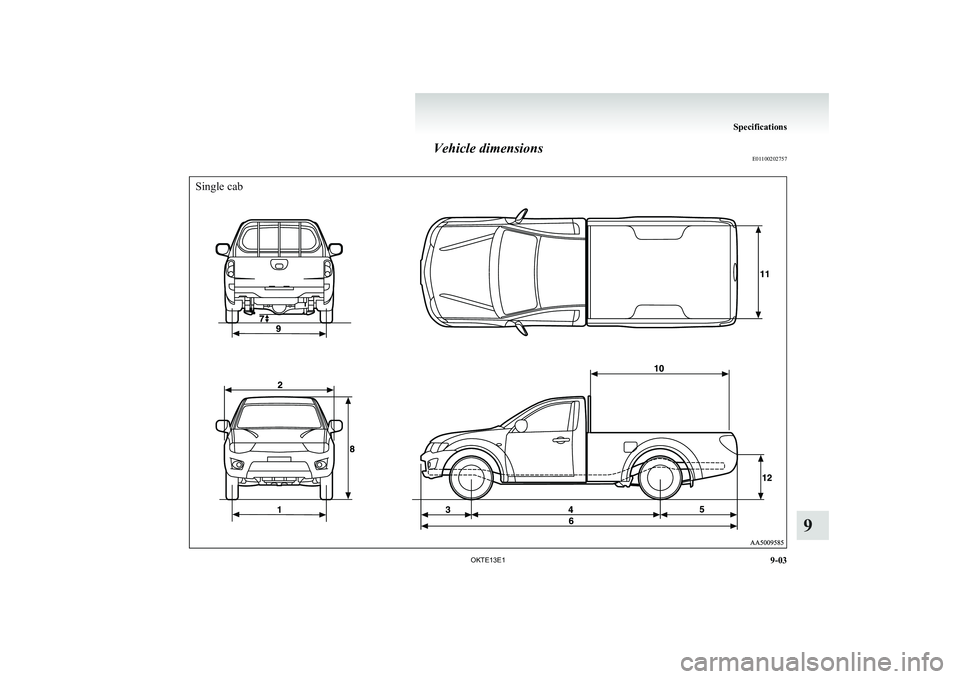

Vehicle dimensionsE01100202757
Single cab
Specifications
9-03
OKTE13E1
9

Single cabItem2WD4WD1Front track1,505 mm2Overall width1,750 mm3Front overhang830 mm4Wheel base3,000 mm5Rear overhang1,210 mm6Overall length5,040 mm7Ground clearance (unladen)200 mm8Overall height (unladen)1,655 mm1,775 mm9Rear track1,500 mm10Cargo bed length2,220 mm11Cargo bed width1,470 mm12Cargo bed height715 mm845 mm
