WARNINGlWhen the child restraint system is not in
use, keep your child restraint system se-
cured with the seat belt or remove it from
the vehicle in order to prevent it from be-
ing thrown around inside the vehicle dur-
ing an accident.
NOTE
l Depending on the seating position in the ve-
hicle and the child restraint system that you
have, the child restraint can be attached us-
ing one of the following two locations: •To the lower anchorage in the rear seat
ONLY if the child restraint has ISOFIX
mountings (Double cab, See page 2-25).
• To the seat belt (See page 2-26).
Older children E00406700235
Children who have outgrown the child restraint sys-
tem should be seated in the rear seat and wear com-
bination lap shoulder belt.
The lap portion of the belt should be snug and posi-
tioned low on the abdomen so that it is below the
top of the hip-bone. Otherwise, the belt could in-
trude into the child’s abdomen during an accident
and cause injury.
WARNINGl Children who are not buckled up can be
thrown out of the vehicle in an accident.WARNINGl Children who are not buckled up can
strike other people in the vehicle in an ac-
cident.
l A child should never be left unattended
in your vehicle. When you leave the vehi-
cle, take the child with you.
Seat and seat belts
2-15
OKTE13E1
2

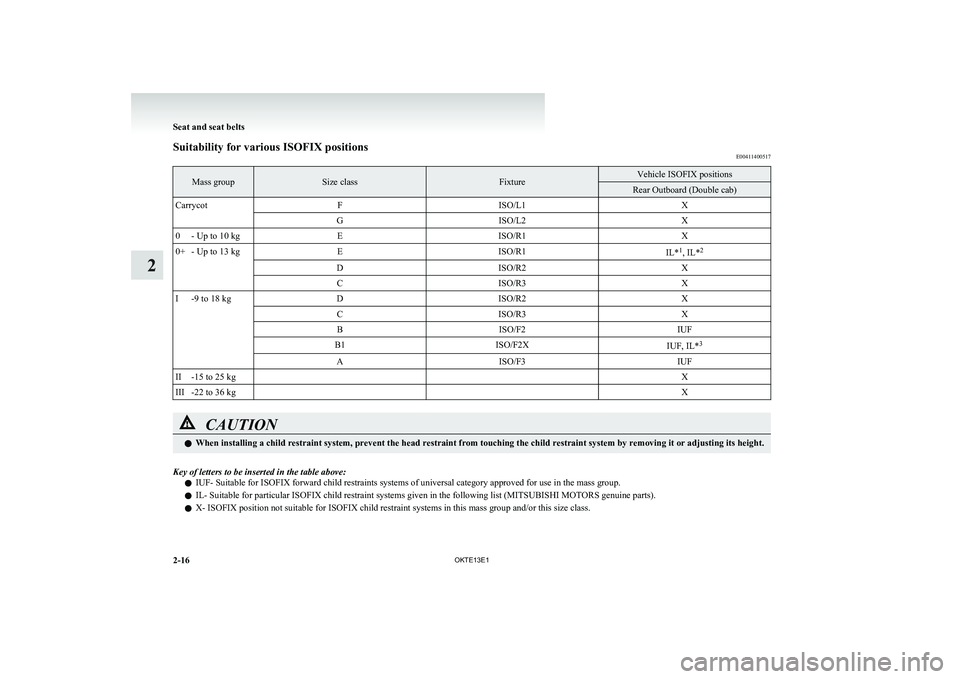

Suitability for various ISOFIX positionsE00411400517Mass groupSize classFixtureVehicle ISOFIX positionsRear Outboard (Double cab)CarrycotFISO/L1XGISO/L2X0- Up to 10 kgEISO/R1X0+- Up to 13 kgEISO/R1IL*1
, IL* 2DISO/R2XCISO/R3XI-9 to 18 kgDISO/R2XCISO/R3XBISO/F2IUFB1ISO/F2XIUF, IL* 3AISO/F3IUFII-15 to 25 kg XIII-22 to 36 kg XCAUTIONl
When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.Key of letters to be inserted in the table above:
lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
Seat and seat belts
2-16
OKTE13E1
2

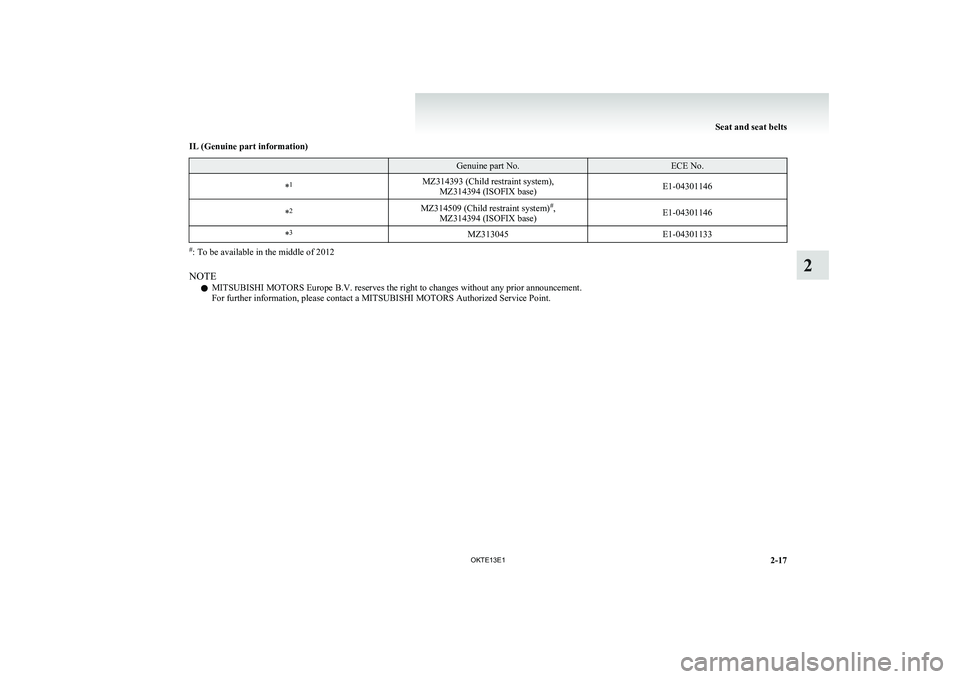

IL (Genuine part information) Genuine part No.ECE No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146*2MZ314509 (Child restraint system) #
,
MZ314394 (ISOFIX base)E1-04301146* 3MZ313045E1-04301133
#
: To be available in the middle of 2012
NOTE l MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Seat and seat belts
2-17
OKTE13E1
2

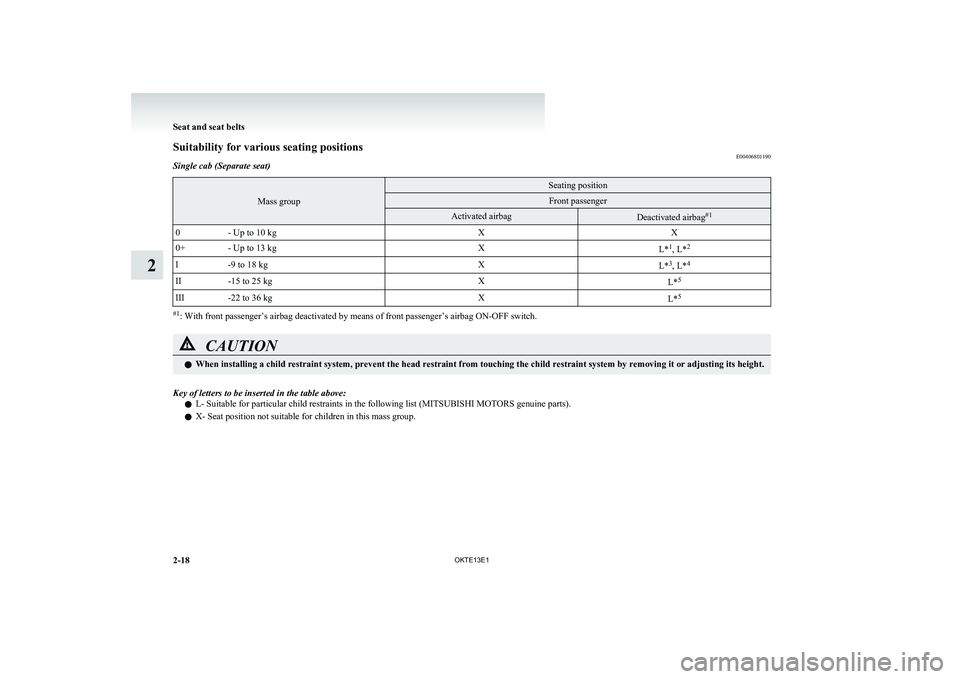

Suitability for various seating positionsE00406801190Single cab (Separate seat)
Mass group
Seating positionFront passengerActivated airbagDeactivated airbag#10- Up to 10 kgXX0+- Up to 13 kgXL*1
, L* 2I-9 to 18 kgXL*3
, L* 4II-15 to 25 kgXL*5III-22 to 36 kgXL*5
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
CAUTIONl When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.Key of letters to be inserted in the table above:
lL- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
Seat and seat belts
2-18
OKTE13E1
2

L (Genuine part information) Genuine parts No.ECE No.*1MZ314393E1-04301146*2MZ314509 #2E1-04301146*3MZ313045E1-04301133*4MZ314451E1-04301203*5MZ314250E1-04301169
#2
: To be available in the middle of 2012
NOTE l There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

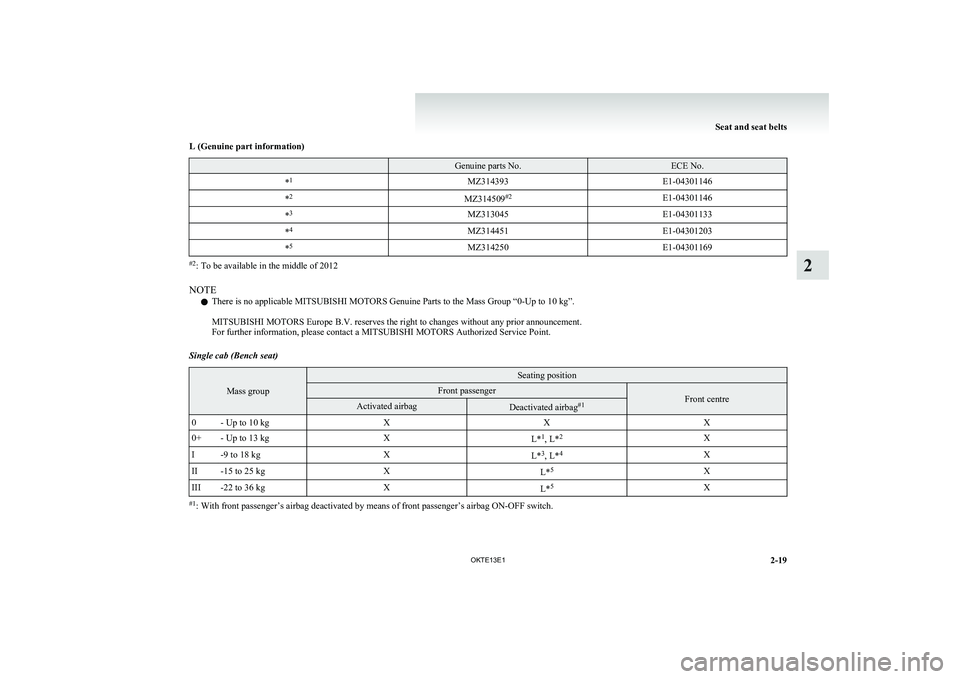

Single cab (Bench seat)
Mass group
Seating positionFront passengerFront centreActivated airbagDeactivated airbag #10- Up to 10 kgXXX0+- Up to 13 kgXL*1
, L* 2XI-9 to 18 kgXL*3
, L* 4XII-15 to 25 kgXL*5XIII-22 to 36 kgXL*5X
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Seat and seat belts
2-19
OKTE13E1
2

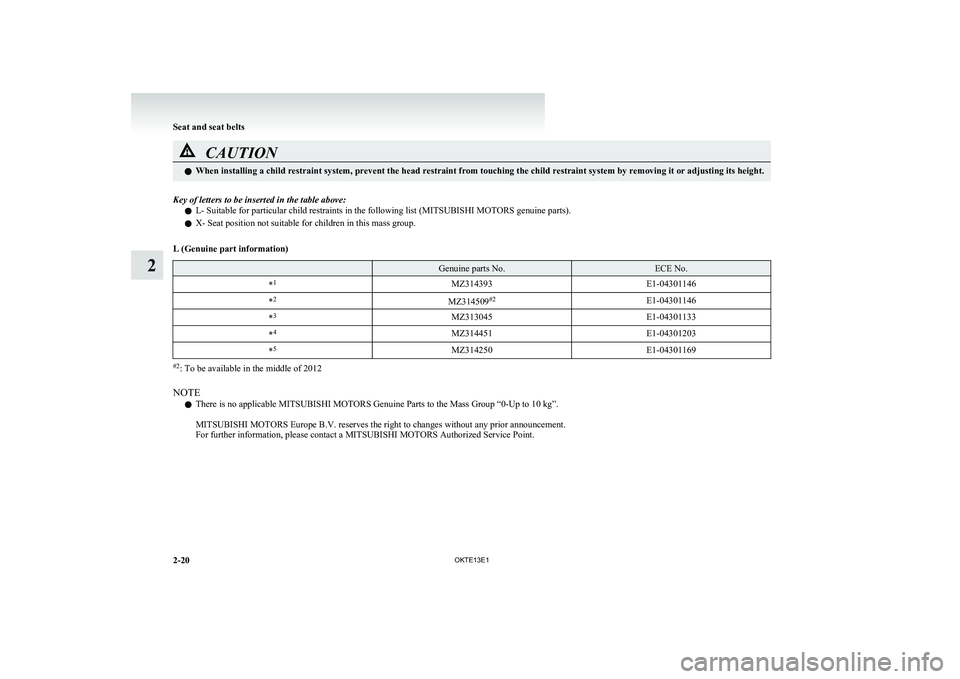

CAUTIONlWhen installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.Key of letters to be inserted in the table above:
lL- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No.ECE No.*1MZ314393E1-04301146*2MZ314509 #2E1-04301146*3MZ313045E1-04301133*4MZ314451E1-04301203*5MZ314250E1-04301169
#2
: To be available in the middle of 2012
NOTE l There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Seat and seat belts
2-20 OKTE13E1
2

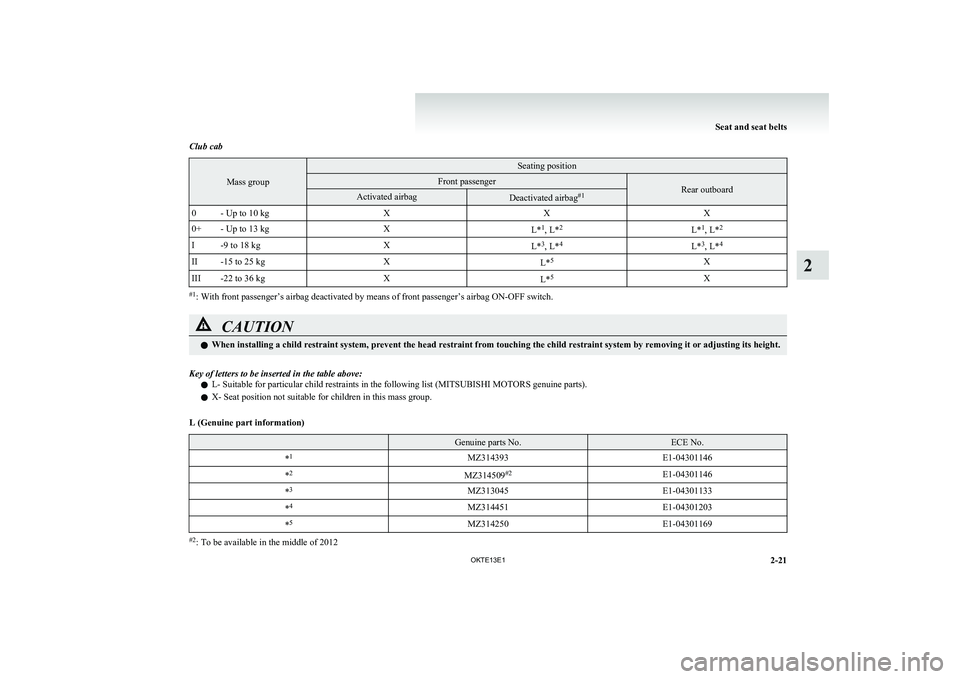

Club cab
Mass group
Seating positionFront passengerRear outboardActivated airbagDeactivated airbag#10- Up to 10 kgXXX0+- Up to 13 kgXL*1
, L* 2L*1
, L* 2I-9 to 18 kgXL*3
, L* 4L*3
, L* 4II-15 to 25 kgXL*5XIII-22 to 36 kgXL*5X
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
CAUTIONl When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.Key of letters to be inserted in the table above:
lL- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
L (Genuine part information) Genuine parts No.ECE No.*1MZ314393E1-04301146*2MZ314509 #2E1-04301146*3MZ313045E1-04301133*4MZ314451E1-04301203*5MZ314250E1-04301169
#2
: To be available in the middle of 2012
Seat and seat belts
2-21
OKTE13E1
2

NOTEl There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.

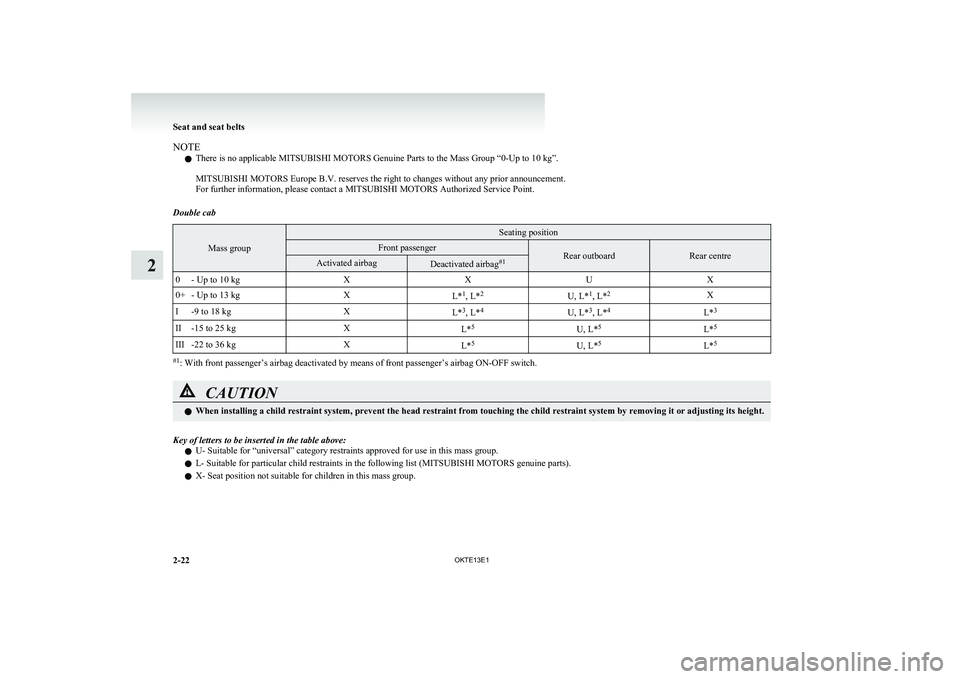

For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.Double cab
Mass group
Seating positionFront passengerRear outboardRear centreActivated airbagDeactivated airbag #10- Up to 10 kgXXUX0+- Up to 13 kgXL*1
, L* 2U, L* 1
, L* 2XI-9 to 18 kgXL*3
, L* 4U, L* 3
, L* 4L*3II-15 to 25 kgXL*5U, L* 5L*5III-22 to 36 kgXL*5U, L* 5L*5
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
CAUTIONl When installing a child restraint system, prevent the head restraint from touching the child restraint system by removing it or adjusting its height.Key of letters to be inserted in the table above:
lU- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
Seat and seat belts
2-22
OKTE13E1
2

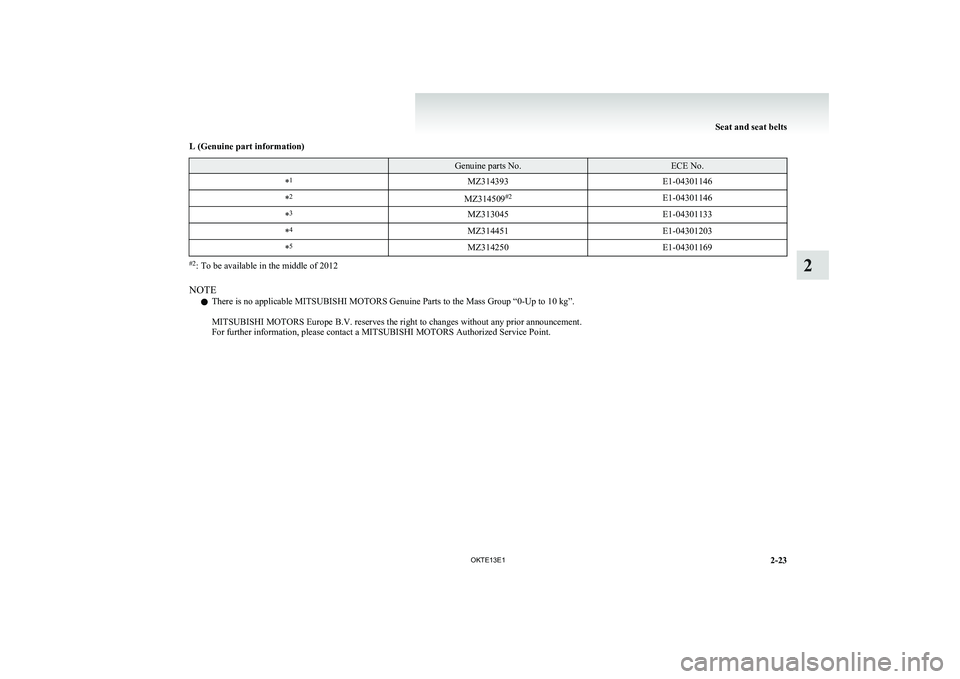

L (Genuine part information) Genuine parts No.ECE No.*1MZ314393E1-04301146*2MZ314509 #2E1-04301146*3MZ313045E1-04301133*4MZ314451E1-04301203*5MZ314250E1-04301169
#2
: To be available in the middle of 2012
NOTE l There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Seat and seat belts
2-23
OKTE13E1
2

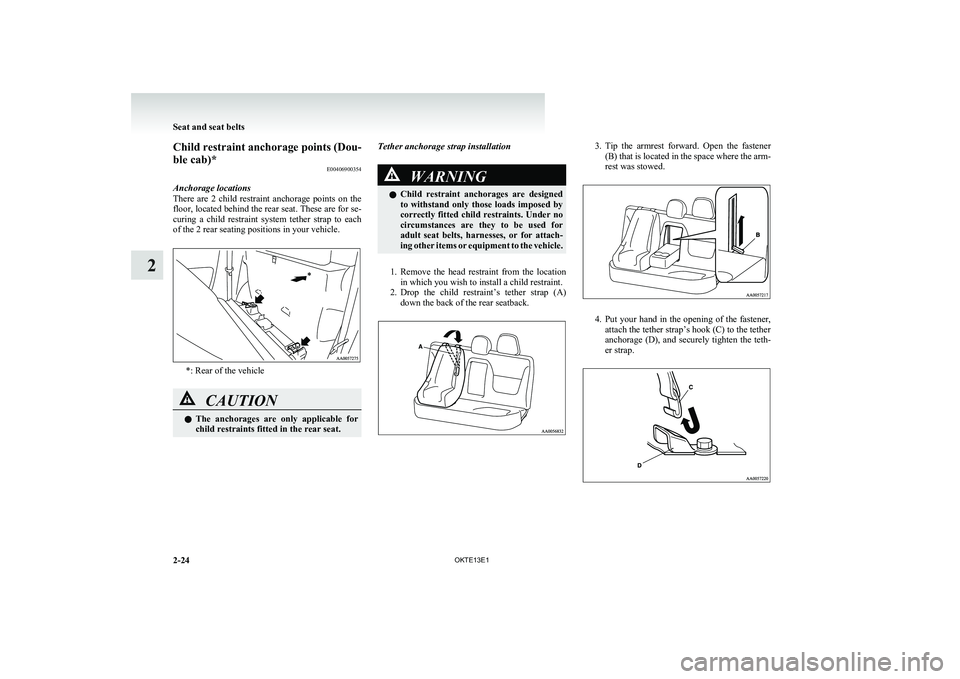

Child restraint anchorage points (Dou-
ble cab)* E00406900354
Anchorage locations
There are 2 child restraint anchorage points on the
floor, located behind the rear seat. These are for se-
curing a child restraint system tether strap to each
of the 2 rear seating positions in your vehicle.
*: Rear of the vehicle
CAUTIONl The anchorages are only applicable for
child restraints fitted in the rear seat.Tether anchorage strap installationWARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehicle.
1. Remove the head restraint from the location
in which you wish to install a child restraint.
2. Drop the child restraint’s tether strap (A)
down the back of the rear seatback.
3. Tip the armrest forward. Open the fastener
(B) that is located in the space where the arm-
rest was stowed.
4. Put your hand in the opening of the fastener,
attach the tether strap’s hook (C) to the tether
anchorage (D), and securely tighten the teth-
er strap.
Seat and seat belts
2-24 OKTE13E1
2
