MITSUBISHI L200 2014 Owner's Manual (in English)

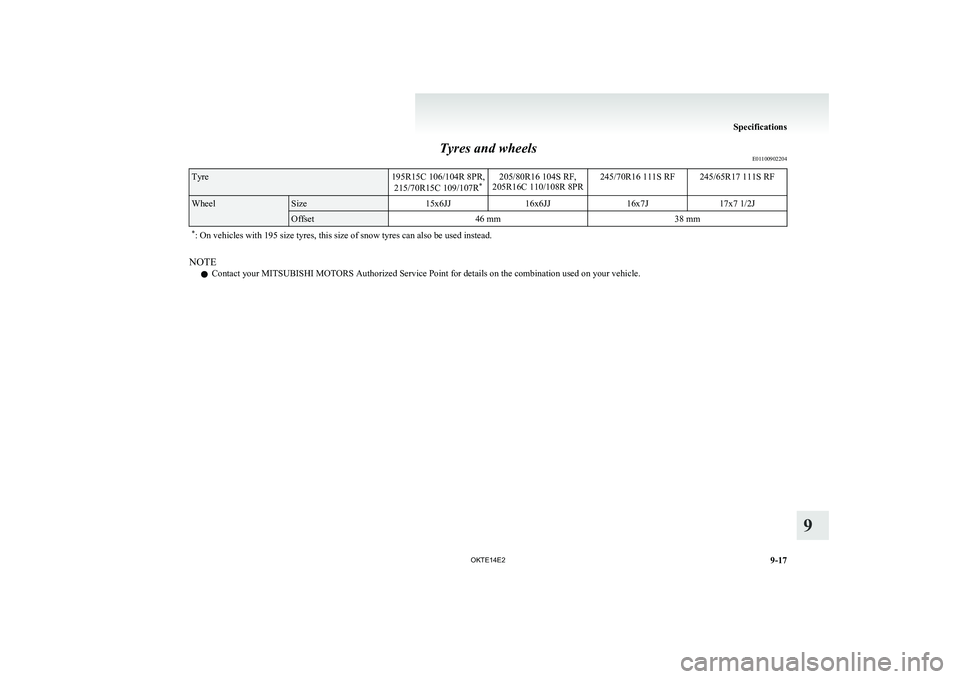

Tyres and wheelsE01100902204Tyre195R15C 106/104R 8PR,
215/70R15C 109/107R *205/80R16 104S RF,
205R16C 110/108R 8PR245/70R16 111S RF245/65R17 111S RFWheelSize15x6JJ16x6JJ16x7J17x7 1/2JOffset46 mm38 mm* : On vehicles with 195 size tyres, this size of snow tyres can also be used instead.
NOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.
Specifications
9-17
OKTE14E2
9

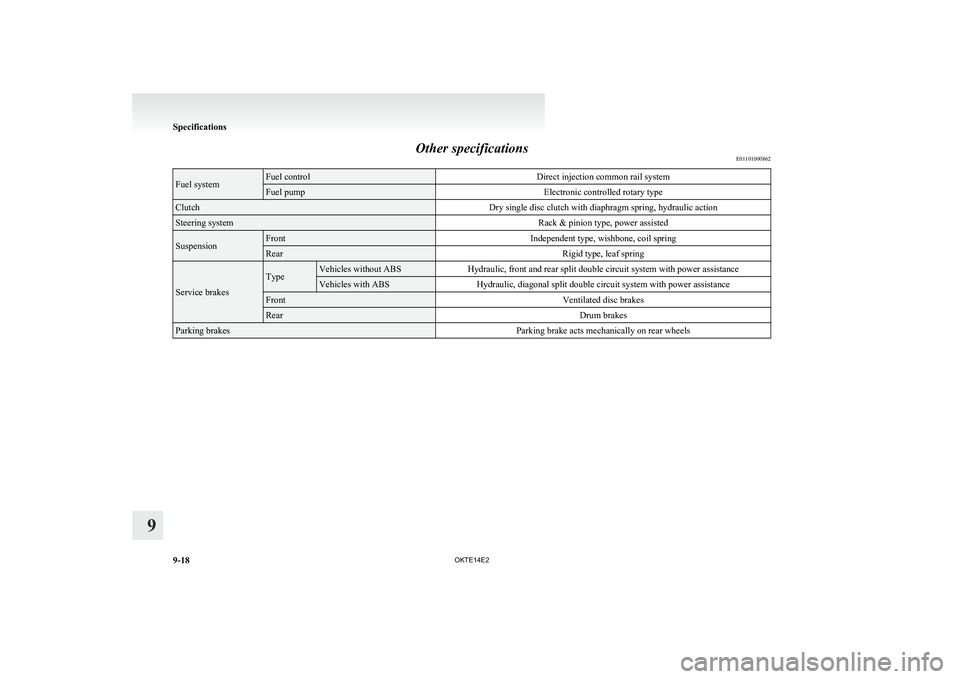

Other specificationsE01101000862Fuel systemFuel controlDirect injection common rail systemFuel pumpElectronic controlled rotary typeClutchDry single disc clutch with diaphragm spring, hydraulic actionSteering systemRack & pinion type, power assistedSuspensionFrontIndependent type, wishbone, coil springRearRigid type, leaf spring
Service brakes
TypeVehicles without ABSHydraulic, front and rear split double circuit system with power assistanceVehicles with ABSHydraulic, diagonal split double circuit system with power assistanceFrontVentilated disc brakesRearDrum brakesParking brakesParking brake acts mechanically on rear wheels
Specifications
9-18OKTE14E2
9

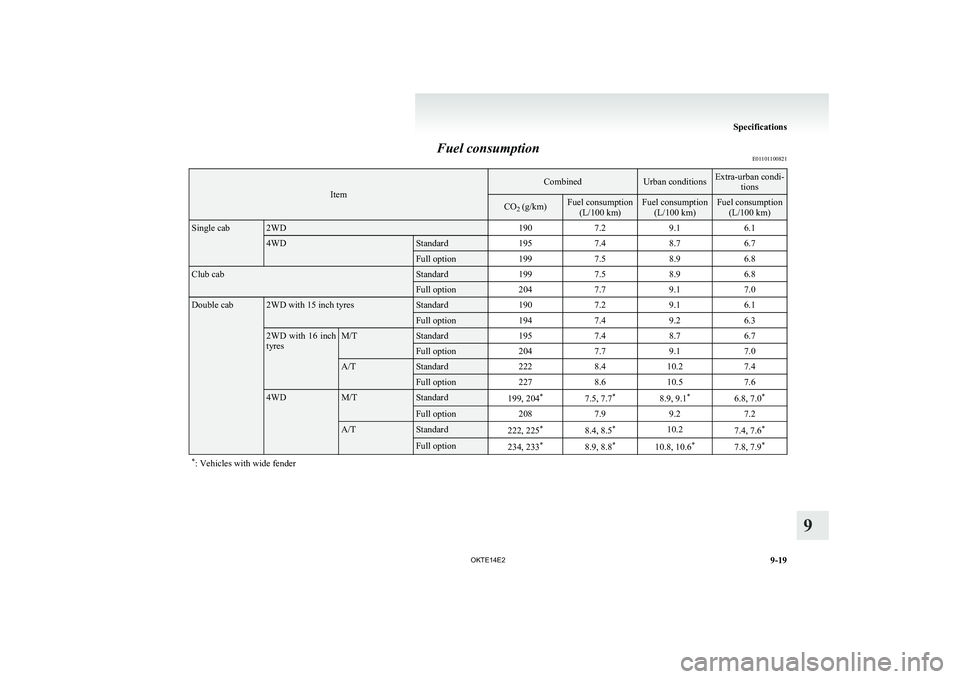

Fuel consumptionE01101100821
Item
CombinedUrban conditionsExtra-urban condi-
tionsCO2 (g/km)Fuel consumption
(L/100 km)Fuel consumption(L/100 km)Fuel consumption(L/100 km)Single cab2WD1907.29.16.14WDStandard1957.48.76.7Full option1997.58.96.8Club cabStandard1997.58.96.8Full option2047.79.17.0Double cab2WD with 15 inch tyresStandard1907.29.16.1Full option1947.49.26.32WD with 16 inch
tyresM/TStandard1957.48.76.7Full option2047.79.17.0A/TStandard2228.410.27.4Full option2278.610.57.64WDM/TStandard199, 204 *7.5, 7.7*8.9, 9.1*6.8, 7.0*Full option2087.99.27.2A/TStandard222, 225 *8.4, 8.5*10.27.4, 7.6*Full option234, 233 *8.9, 8.8*10.8, 10.6 *7.8, 7.9**
: Vehicles with wide fender
Specifications
9-19
OKTE14E2
9

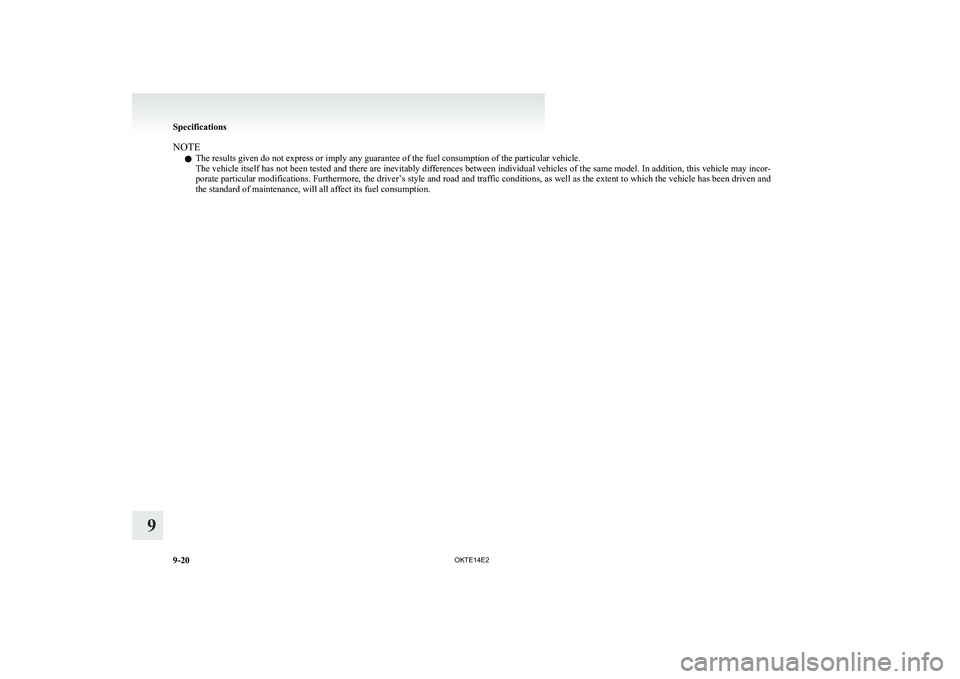

NOTEl The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its fuel consumption.
Specifications
9-20 OKTE14E2
9

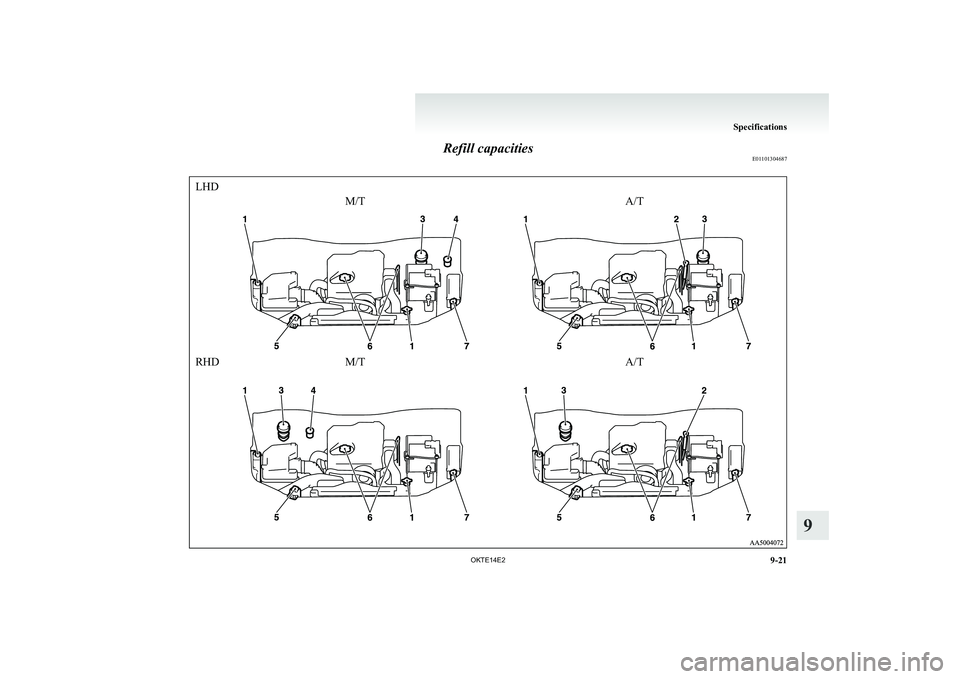

Refill capacitiesE01101304687
LHDRHDM/TA/TM/TA/T
Specifications
9-21
OKTE14E2
9

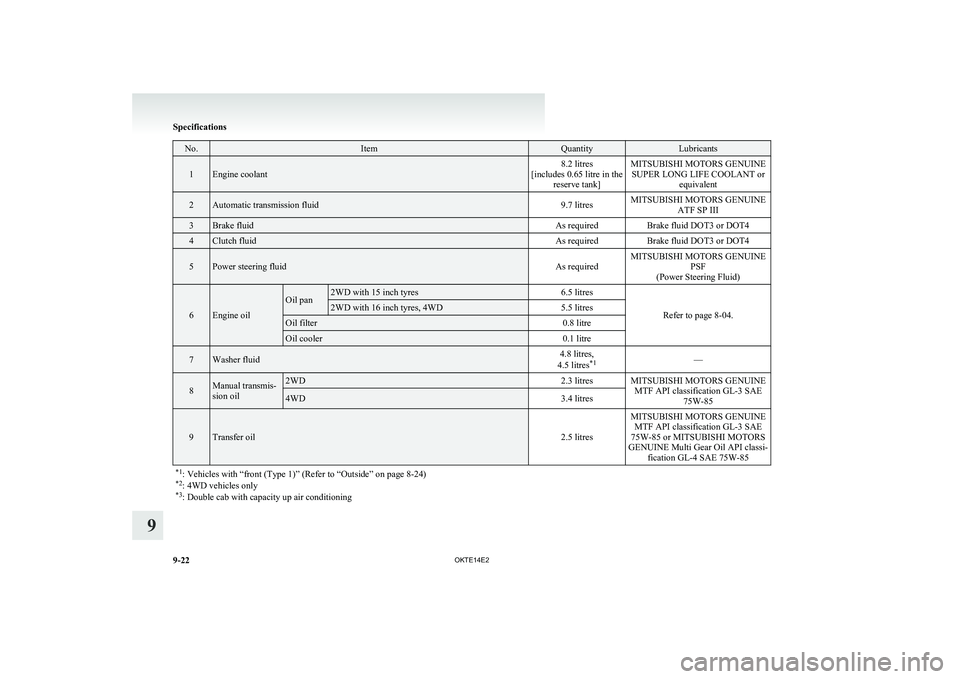

No.ItemQuantityLubricants1Engine coolant8.2 litres
[includes 0.65 litre in the reserve tank]MITSUBISHI MOTORS GENUINESUPER LONG LIFE COOLANT or equivalent2Automatic transmission fluid9.7 litresMITSUBISHI MOTORS GENUINEATF SP III3Brake fluidAs requiredBrake fluid DOT3 or DOT44Clutch fluidAs requiredBrake fluid DOT3 or DOT45Power steering fluidAs requiredMITSUBISHI MOTORS GENUINE PSF
(Power Steering Fluid)
6Engine oil
Oil pan2WD with 15 inch tyres6.5 litres
Refer to page 8-04.
2WD with 16 inch tyres, 4WD5.5 litresOil filter0.8 litreOil cooler0.1 litre7Washer fluid4.8 litres,
4.5 litres *1—8Manual transmis-
sion oil2WD2.3 litresMITSUBISHI MOTORS GENUINE MTF API classification GL-3 SAE 75W-854WD3.4 litres
9Transfer oil2.5 litres
MITSUBISHI MOTORS GENUINEMTF API classification GL-3 SAE
75W-85 or MITSUBISHI MOTORS
GENUINE Multi Gear Oil API classi- fication GL-4 SAE 75W-85*1: Vehicles with “front (Type 1)” (Refer to “Outside” on page 8-24)
*2 : 4WD vehicles only
*3 : Double cab with capacity up air conditioning
Specifications
9-22 OKTE14E2
9

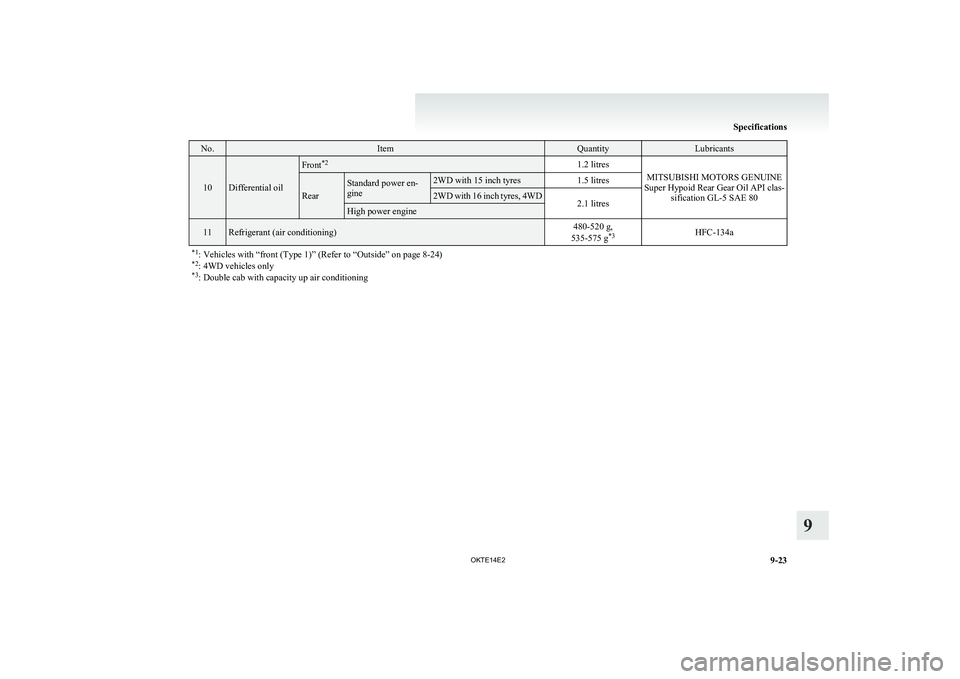

No.ItemQuantityLubricants
10Differential oil
Front*21.2 litres
MITSUBISHI MOTORS GENUINE
Super Hypoid Rear Gear Oil API clas- sification GL-5 SAE 80Rear
Standard power en-
gine2WD with 15 inch tyres1.5 litres2WD with 16 inch tyres, 4WD2.1 litresHigh power engine11Refrigerant (air conditioning)480-520 g,
535-575 g *3HFC-134a*1
: Vehicles with “front (Type 1)” (Refer to “Outside” on page 8-24)
*2 : 4WD vehicles only
*3 : Double cab with capacity up air conditioning
Specifications
9-23
OKTE14E2
9
