MITSUBISHI L200 2014 Owner's Manual (in English)

Double cab
Specifications
9-07
OKTE14E2
9

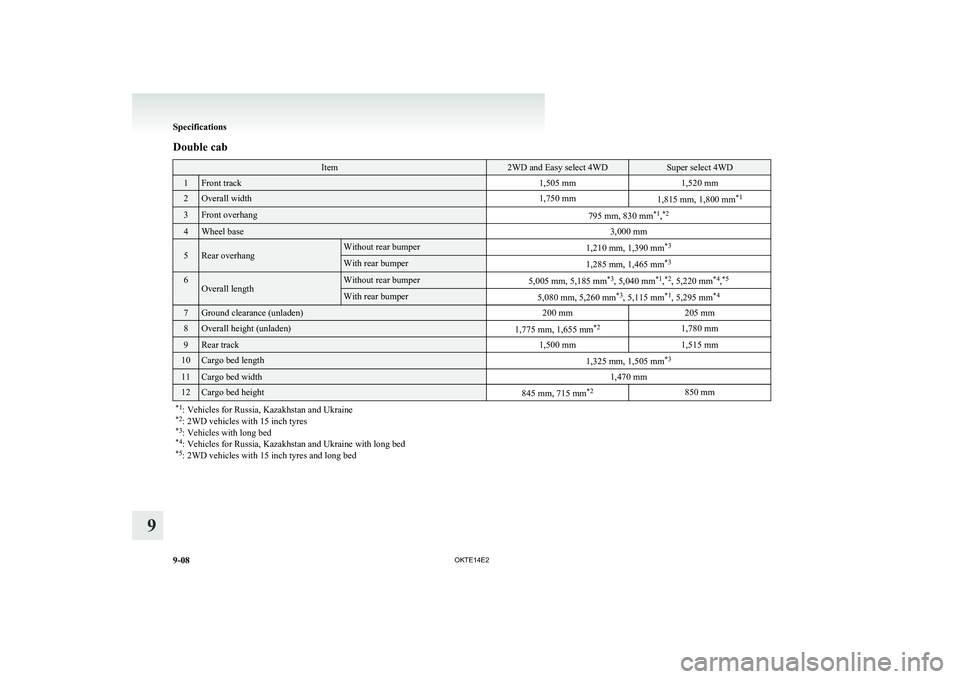

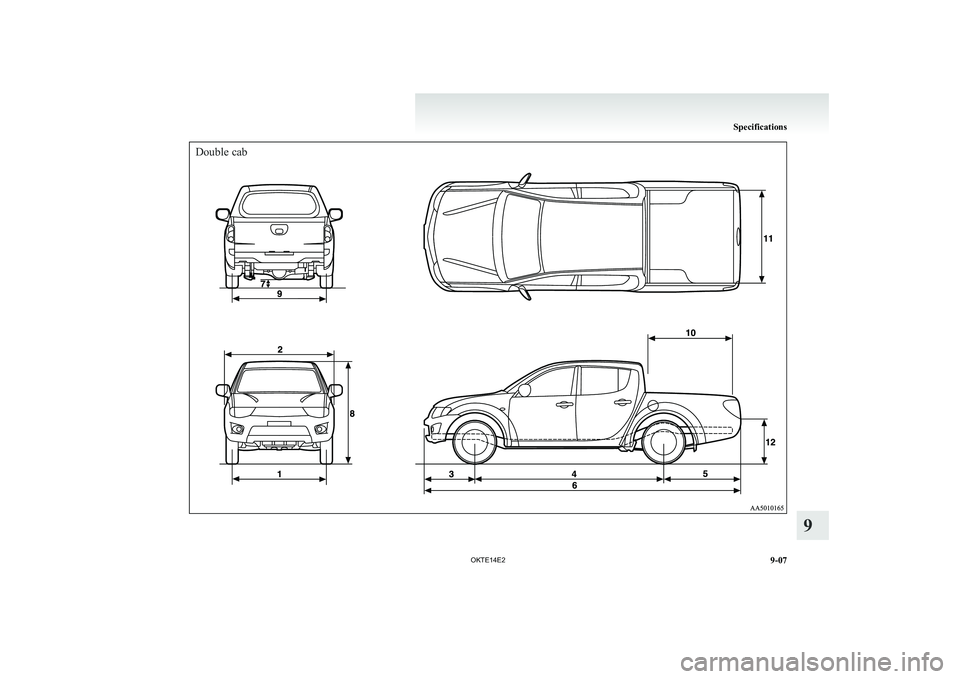

Double cabItem2WD and Easy select 4WDSuper select 4WD1Front track1,505 mm1,520 mm2Overall width1,750 mm1,815 mm, 1,800 mm*13Front overhang795 mm, 830 mm*1
,*24Wheel base3,000 mm5Rear overhangWithout rear bumper1,210 mm, 1,390 mm *3With rear bumper1,285 mm, 1,465 mm*36Overall lengthWithout rear bumper5,005 mm, 5,185 mm*3
, 5,040 mm *1
,*2
, 5,220 mm *4
,*5With rear bumper5,080 mm, 5,260 mm *3
, 5,115 mm *1
, 5,295 mm *47Ground clearance (unladen)200 mm205 mm8Overall height (unladen)1,775 mm, 1,655 mm *21,780 mm9Rear track1,500 mm1,515 mm10Cargo bed length1,325 mm, 1,505 mm*311Cargo bed width1,470 mm12Cargo bed height845 mm, 715 mm*2850 mm*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : 2WD vehicles with 15 inch tyres
*3 : Vehicles with long bed
*4 : Vehicles for Russia, Kazakhstan and Ukraine with long bed
*5 : 2WD vehicles with 15 inch tyres and long bed
Specifications
9-08 OKTE14E2
9

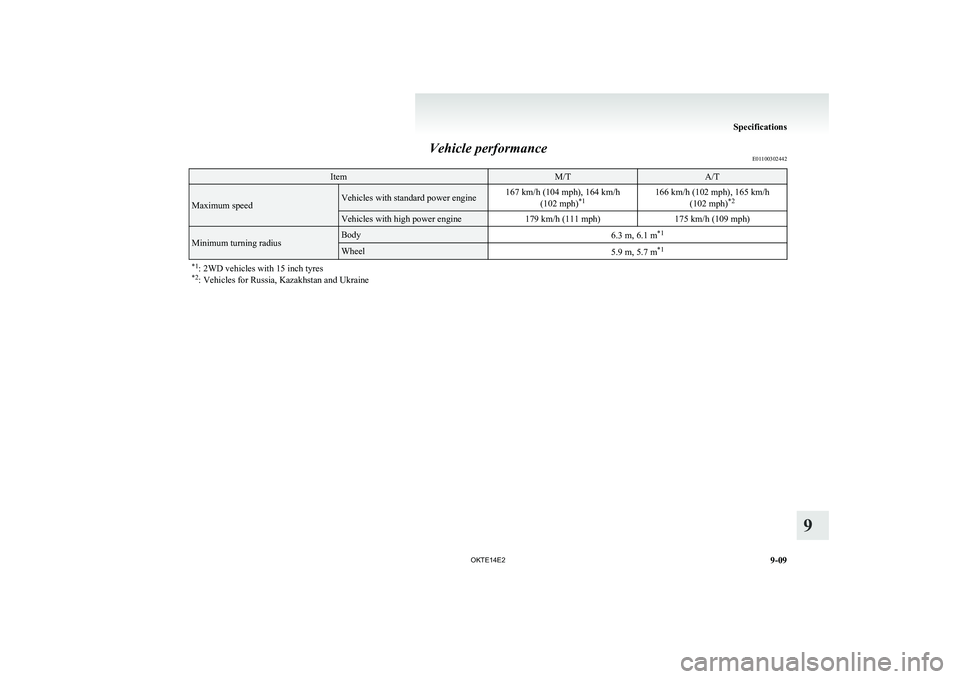

Vehicle performanceE01100302442ItemM/TA/T
Maximum speedVehicles with standard power engine167 km/h (104 mph), 164 km/h
(102 mph) *1166 km/h (102 mph), 165 km/h
(102 mph) *2Vehicles with high power engine179 km/h (111 mph)175 km/h (109 mph)Minimum turning radiusBody6.3 m, 6.1 m *1Wheel5.9 m, 5.7 m*1*1
: 2WD vehicles with 15 inch tyres
*2 : Vehicles for Russia, Kazakhstan and Ukraine
Specifications
9-09
OKTE14E2
9

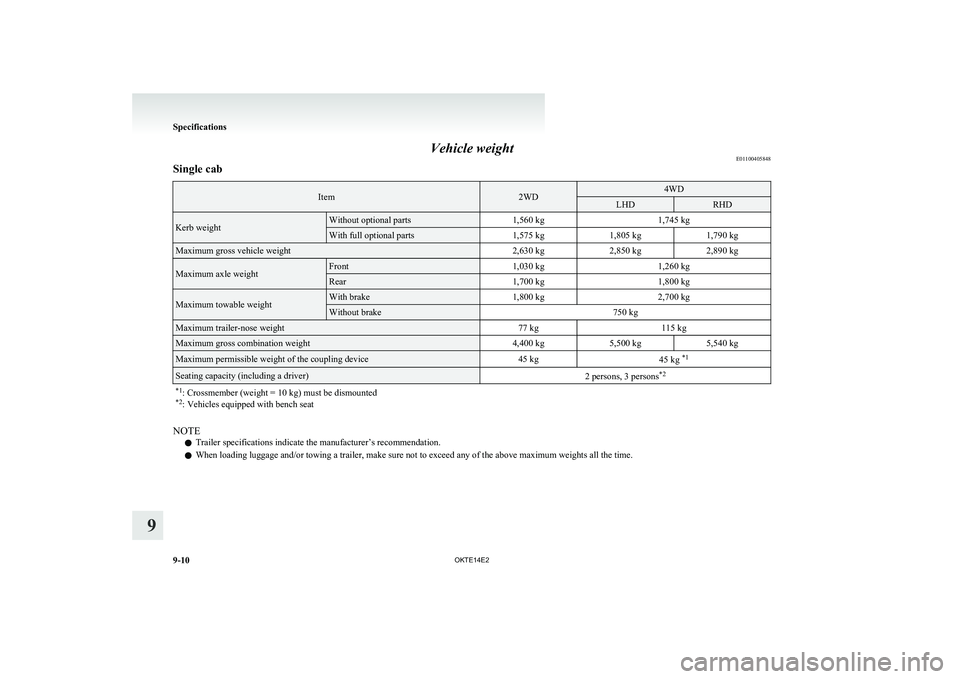

Vehicle weightE01100405848Single cabItem2WD4WDLHDRHDKerb weightWithout optional parts1,560 kg1,745 kgWith full optional parts1,575 kg1,805 kg1,790 kgMaximum gross vehicle weight2,630 kg2,850 kg2,890 kgMaximum axle weightFront1,030 kg1,260 kgRear1,700 kg1,800 kgMaximum towable weightWith brake1,800 kg2,700 kgWithout brake750 kgMaximum trailer-nose weight77 kg115 kgMaximum gross combination weight4,400 kg5,500 kg5,540 kgMaximum permissible weight of the coupling device45 kg45 kg *1Seating capacity (including a driver)2 persons, 3 persons *2*1
: Crossmember (weight = 10 kg) must be dismounted
*2 : Vehicles equipped with bench seat
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Specifications
9-10
OKTE14E2
9

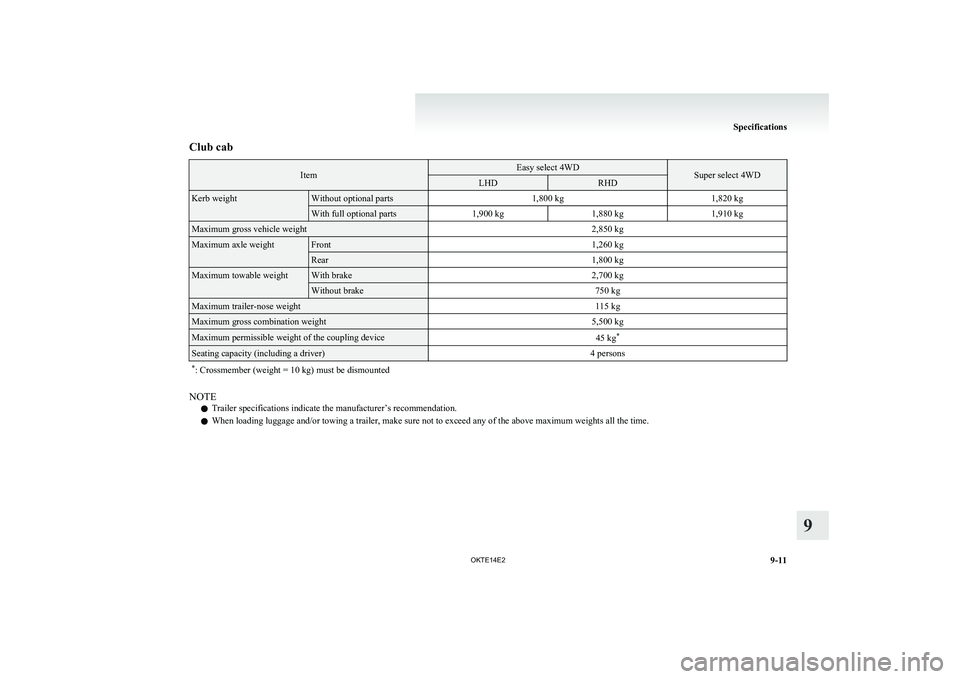

Club cabItemEasy select 4WDSuper select 4WDLHDRHDKerb weightWithout optional parts1,800 kg1,820 kgWith full optional parts1,900 kg1,880 kg1,910 kgMaximum gross vehicle weight2,850 kgMaximum axle weightFront1,260 kgRear1,800 kgMaximum towable weightWith brake2,700 kgWithout brake750 kgMaximum trailer-nose weight115 kgMaximum gross combination weight5,500 kgMaximum permissible weight of the coupling device45 kg*Seating capacity (including a driver)4 persons*
: Crossmember (weight = 10 kg) must be dismounted
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Specifications
9-11
OKTE14E2
9

Double cab
Item
2WDM/T
A/T

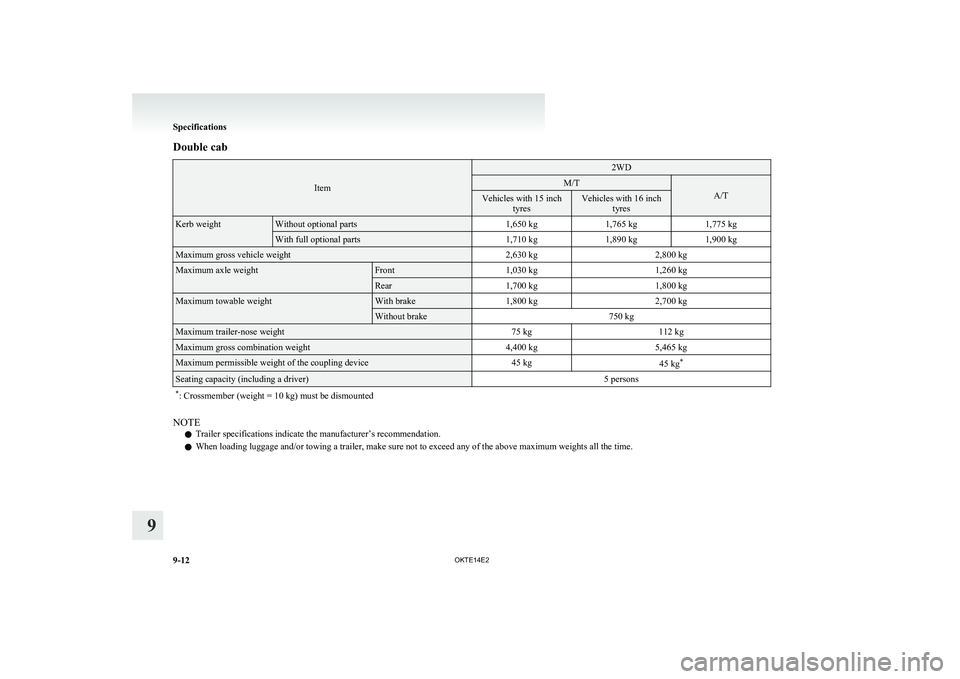

Vehicles with 15 inchtyresVehicles with 16 inchtyresKerb weightWithout optional parts1,650 kg1,765 kg1,775 kgWith full optional parts1,710 kg1,890 kg1,900 kgMaximum gross vehicle weight2,630 kg2,800 kgMaximum axle weightFront1,030 kg1,260 kgRear1,700 kg1,800 kgMaximum towable weightWith brake1,800 kg2,700 kgWithout brake750 kgMaximum trailer-nose weight75 kg112 kgMaximum gross combination weight4,400 kg5,465 kgMaximum permissible weight of the coupling device45 kg45 kg*Seating capacity (including a driver)5 persons*
: Crossmember (weight = 10 kg) must be dismounted
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Specifications
9-12
OKTE14E2
9

Item

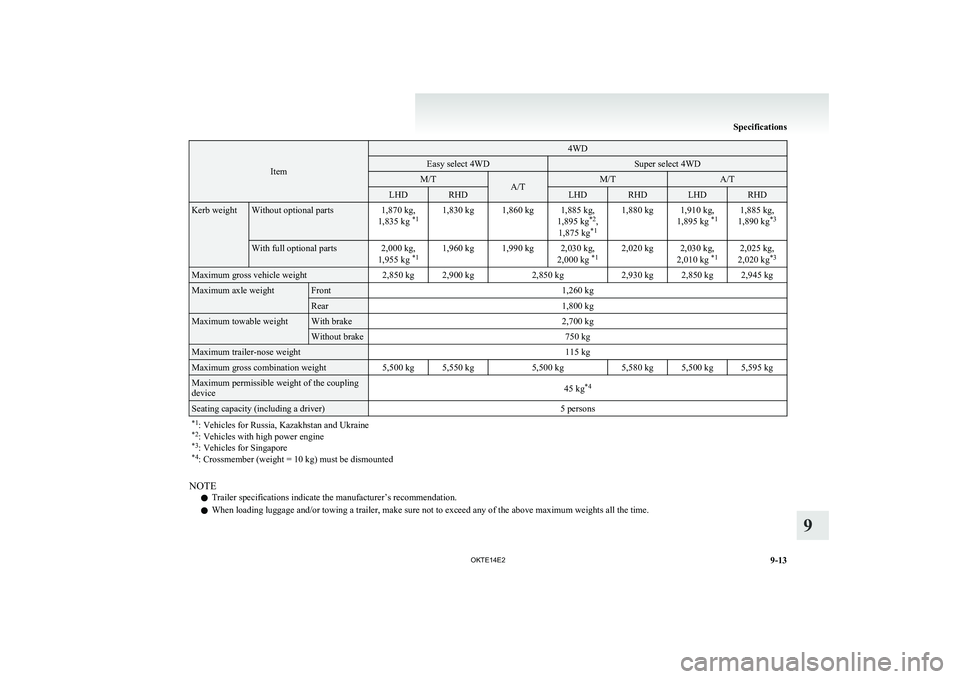

4WDEasy select 4WDSuper select 4WDM/TA/TM/TA/TLHDRHDLHDRHDLHDRHDKerb weightWithout optional parts1,870 kg,
1,835 kg *11,830 kg1,860 kg1,885 kg,
1,895 kg *2
,
1,875 kg *11,880 kg1,910 kg,
1,895 kg *11,885 kg,
1,890 kg *3With full optional parts2,000 kg,
1,955 kg *11,960 kg1,990 kg2,030 kg,
2,000 kg *12,020 kg2,030 kg,
2,010 kg *12,025 kg,
2,020 kg *3Maximum gross vehicle weight2,850 kg2,900 kg2,850 kg2,930 kg2,850 kg2,945 kgMaximum axle weightFront1,260 kgRear1,800 kgMaximum towable weightWith brake2,700 kgWithout brake750 kgMaximum trailer-nose weight115 kgMaximum gross combination weight5,500 kg5,550 kg5,500 kg5,580 kg5,500 kg5,595 kgMaximum permissible weight of the coupling
device45 kg *4Seating capacity (including a driver)5 persons*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles with high power engine
*3 : Vehicles for Singapore
*4 : Crossmember (weight = 10 kg) must be dismounted
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
l When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
Specifications
9-13
OKTE14E2
9

Engine specificationsE01100602979Item
Standard power engineHigh power engine2WD with 15 inch tyres2WD with 16 inch tyres,
4WDM/TA/TEngine typeFour-cylinder, in line, wa-
ter cooled four-cycle, dou- ble overhead camshaft
with small-sized inter-
cooler and turbochargerFour-cylinder, in line, water cooled four-cycle, double overhead camshaft with intercooler and turbochargerEngine models4D56Total displacement2,477 ccBore91.1 mmStroke95.0 mmCompression ratio16.5:1, 17.0:1 *116.5:1Valve clearanceIntake0.09 mm (cold)Exhaust0.14 mm (cold)Maximum output (EEC net)94 kW/4,000 r/min100 kW/4,000 r/min, 100
kW/3,500 r/min *2131 kW/3,750 r/minMaximum torque (EEC net)240 Nm/1,250 to
3,750 r/min314 Nm/1,500 to2,680 r/min,
314 Nm/2,000 r/min *2400 Nm/2,000 to
2,850 r/min350 Nm/1,800 to3,500 r/min*1: Vehicles to comply with the Euro 3 or Euro 4 regulation
*2 : Vehicles for Russia, Kazakhstan and Ukraine
Specifications
9-14 OKTE14E2
9

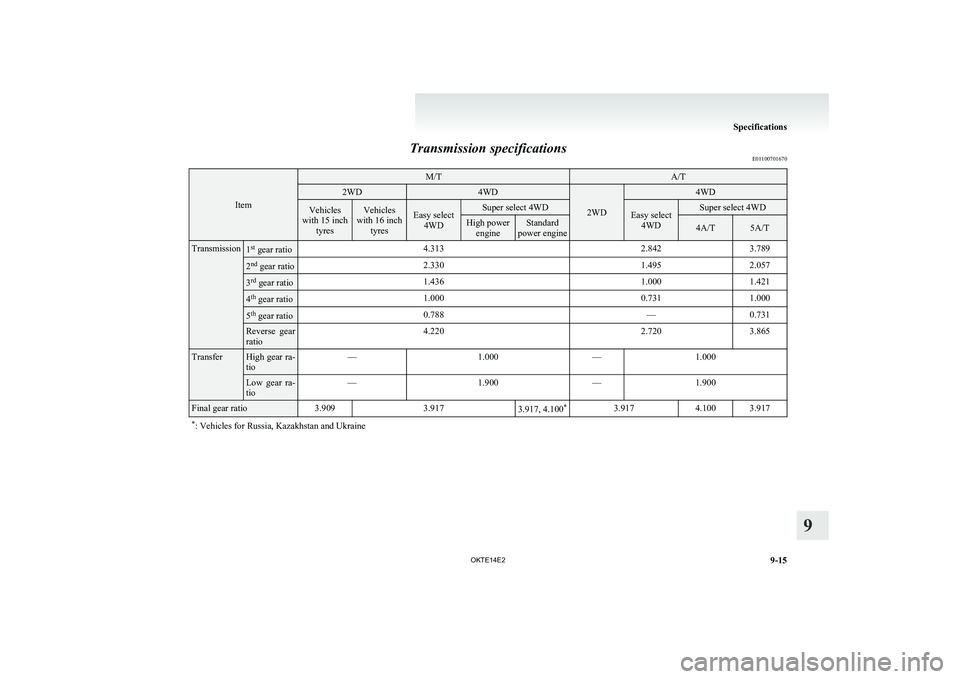

Transmission specificationsE01100701670
Item
M/TA/T2WD4WD
2WD
4WDVehicles
with 15 inch tyresVehicles
with 16 inch tyresEasy select4WDSuper select 4WDEasy select4WDSuper select 4WDHigh powerengineStandard
power engine4A/T5A/TTransmission1 st
gear ratio4.3132.8423.7892nd
gear ratio2.3301.4952.0573rd
gear ratio1.4361.0001.4214th
gear ratio1.0000.7311.0005th
gear ratio0.788—0.731Reverse gear
ratio4.2202.7203.865TransferHigh gear ra-
tio—1.000—1.000Low gear ra-
tio—1.900—1.900Final gear ratio3.9093.9173.917, 4.100 *3.9174.1003.917*
: Vehicles for Russia, Kazakhstan and Ukraine
Specifications
9-15
OKTE14E2
9

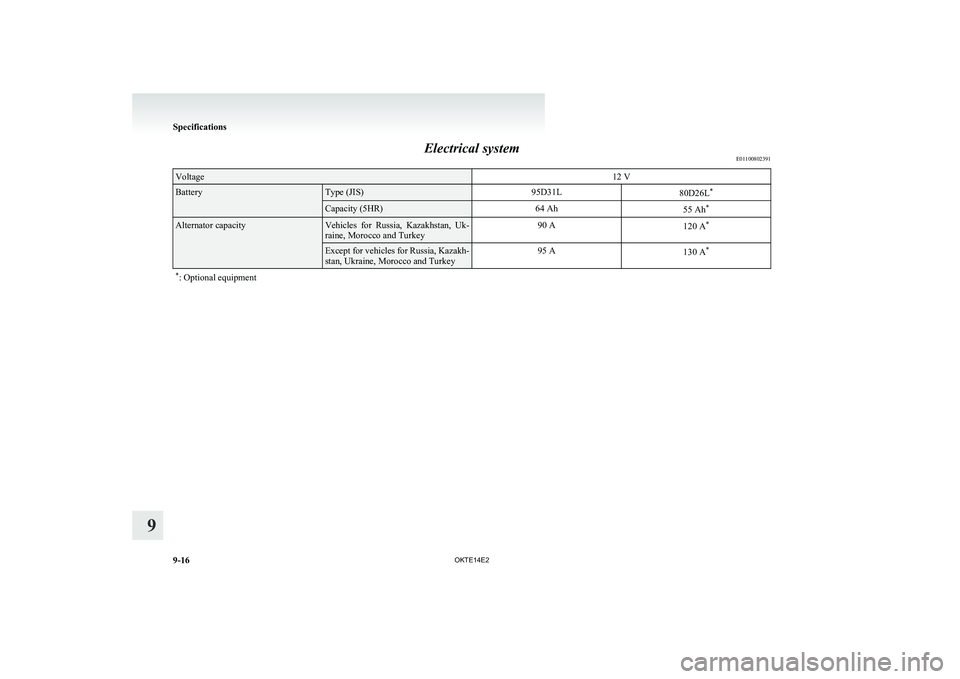

Electrical systemE01100802391Voltage12 VBatteryType (JIS)95D31L80D26L*Capacity (5HR)64 Ah55 Ah*Alternator capacityVehicles for Russia, Kazakhstan, Uk-
raine, Morocco and Turkey90 A120 A *Except for vehicles for Russia, Kazakh-
stan, Ukraine, Morocco and Turkey95 A130 A **
: Optional equipment
