Keys.............................................................................................. 1-02
Electronic immobilizer (Anti-theft starting system) .....................1-03
Keyless entry system* .................................................................. 1-04
Doors ............................................................................................ 1-06
Central door locks* ....................................................................... 1-07
“Child-protection” rear doors (Double cab) .................................1-08
Manual window control* .............................................................. 1-08
Electric window control*..............................................................1-08
Quarter window (Club cab) .......................................................... 1-12
Rear gate ....................................................................................... 1-13
Sunroof* ....................................................................................... 1-13Locking and unlocking
OKTE14E2
1
Page 32 of 362

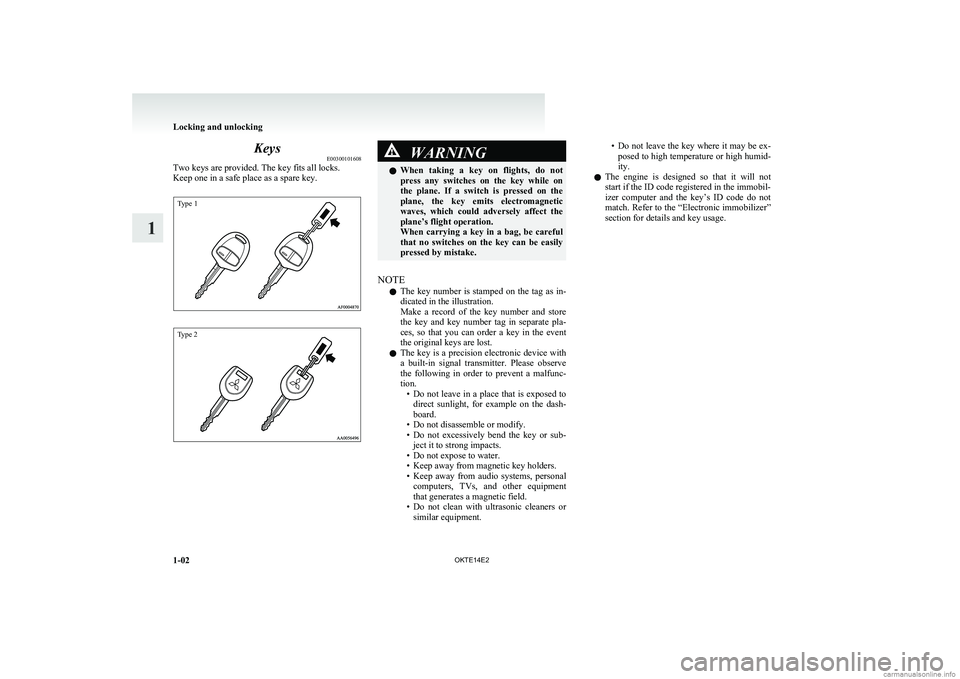

KeysE00300101608
Two keys are provided. The key fits all locks.
Keep one in a safe place as a spare key.
Type 1Type 2
WARNINGl When taking a key on flights, do not
press any switches on the key while on
the plane. If a switch is pressed on the
plane, the key emits electromagnetic
waves, which could adversely affect the
plane’s flight operation.
When carrying a key in a bag, be careful
that no switches on the key can be easily
pressed by mistake.
NOTE
l The key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla-
ces, so that you can order a key in the event
the original keys are lost.
l The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc-
tion. •Do not leave in a place that is exposed to
direct sunlight, for example on the dash-
board.
• Do not disassemble or modify.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key holders.
• Keep away from audio systems, personal
computers, TVs, and other equipment
that generates a magnetic field.
• Do not clean with ultrasonic cleaners or
similar equipment.
• Do not leave the key where it may be ex-
posed to high temperature or high humid-
ity.
l The engine is designed so that it will not
start if the ID code registered in the immobil-
izer computer and the key’s ID code do not
match. Refer to the “Electronic immobilizer”
section for details and key usage.
Locking and unlocking
1-02 OKTE14E2
1
Page 33 of 362

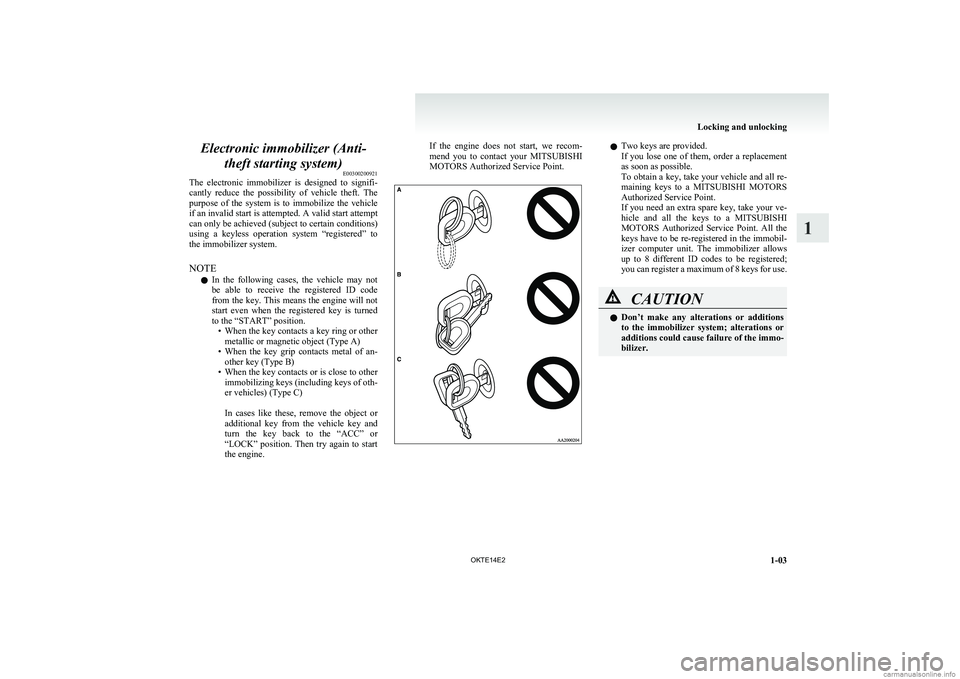

Electronic immobilizer (Anti-theft starting system) E00300200921
The electronic immobilizer is designed to signifi-
cantly reduce the possibility of vehicle theft. The
purpose of the system is to immobilize the vehicle
if an invalid start is attempted. A valid start attempt
can only be achieved (subject to certain conditions)
using a keyless operation system “registered” to
the immobilizer system.
NOTE l In the following cases, the vehicle may not
be able to receive the registered ID code
from the key. This means the engine will not
start even when the registered key is turned
to the “START” position. •When the key contacts a key ring or other
metallic or magnetic object (Type A)
• When the key grip contacts metal of an-
other key (Type B)
• When the key contacts or is close to other
immobilizing keys (including keys of oth-
er vehicles) (Type C)
In cases like these, remove the object or
additional key from the vehicle key and
turn the key back to the “ACC” or
“LOCK” position. Then try again to start
the engine.If the engine does not start, we recom-
mend you to contact your MITSUBISHI
MOTORS Authorized Service Point.l Two keys are provided.
If you lose one of them, order a replacement
as soon as possible.
To obtain a key, take your vehicle and all re-
maining keys to a MITSUBISHI MOTORS
Authorized Service Point.
If you need an extra spare key, take your ve-
hicle and all the keys to a MITSUBISHI
MOTORS Authorized Service Point. All the
keys have to be re-registered in the immobil-
izer computer unit. The immobilizer allows
up to 8 different ID codes to be registered;
you can register a maximum of 8 keys for use.CAUTIONl Don’t make any alterations or additions
to the immobilizer system; alterations or
additions could cause failure of the immo-
bilizer.
Locking and unlocking
1-03
OKTE14E2
1
Page 34 of 362

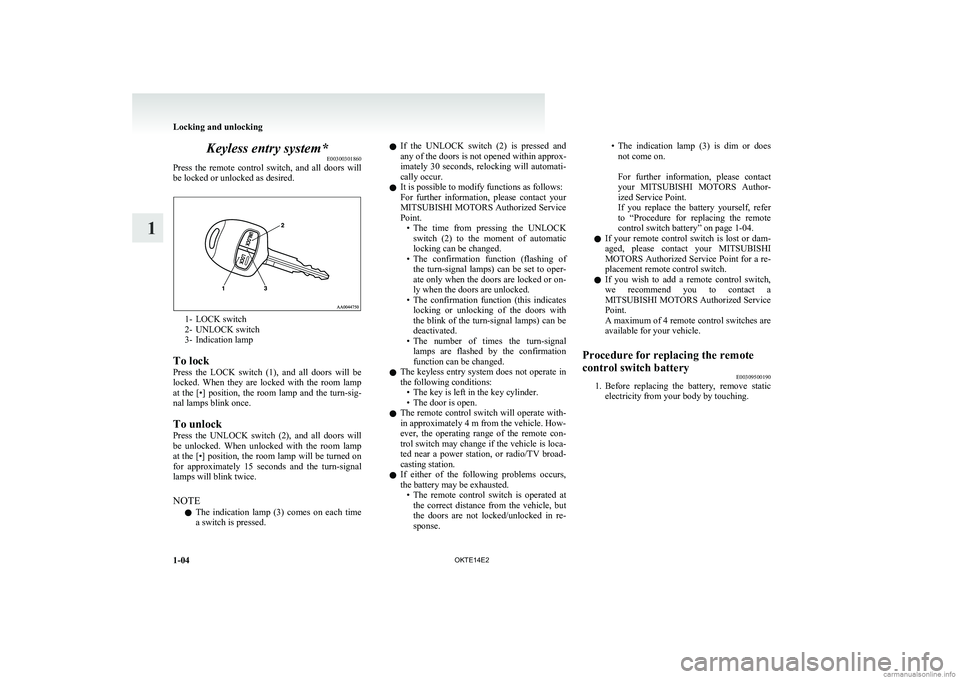

Keyless entry system*E00300301860
Press the remote control switch, and all doors will
be locked or unlocked as desired.
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
To lock
Press the LOCK switch (1), and all doors will be
locked. When they are locked with the room lamp
at the [•] position, the room lamp and the turn-sig-
nal lamps blink once.
To unlock
Press the UNLOCK switch (2), and all doors will
be unlocked. When unlocked with the room lamp
at the [•] position, the room lamp will be turned on
for approximately 15 seconds and the turn-signal
lamps will blink twice.
NOTE l The indication lamp (3) comes on each time
a switch is pressed.
l If the UNLOCK switch (2) is pressed and
any of the doors is not opened within approx-
imately 30 seconds, relocking will automati-
cally occur.
l It is possible to modify functions as follows:
For further information, please contact your
MITSUBISHI MOTORS Authorized Service
Point. •The time from pressing the UNLOCK
switch (2) to the moment of automatic
locking can be changed.
• The confirmation function (flashing of
the turn-signal lamps) can be set to oper-
ate only when the doors are locked or on-
ly when the doors are unlocked.
• The confirmation function (this indicates
locking or unlocking of the doors with
the blink of the turn-signal lamps) can be
deactivated.
• The number of times the turn-signal
lamps are flashed by the confirmation
function can be changed.
l The keyless entry system does not operate in
the following conditions: • The key is left in the key cylinder.
• The door is open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle. How-
ever, the operating range of the remote con-
trol switch may change if the vehicle is loca-
ted near a power station, or radio/TV broad-
casting station.
l If either of the following problems occurs,
the battery may be exhausted. •The remote control switch is operated at
the correct distance from the vehicle, but
the doors are not locked/unlocked in re-
sponse.• The indication lamp (3) is dim or does
not come on.
For further information, please contact
your MITSUBISHI MOTORS Author-
ized Service Point.
If you replace the battery yourself, refer
to “Procedure for replacing the remote
control switch battery” on page 1-04.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.
l If you wish to add a remote control switch,
we recommend you to contact a
MITSUBISHI MOTORS Authorized Service
Point.
A maximum of 4 remote control switches are
available for your vehicle.Procedure for replacing the remote
control switch battery E00309500190
1.Before replacing the battery, remove static
electricity from your body by touching.
Locking and unlocking
1-04 OKTE14E2
1
Page 35 of 362

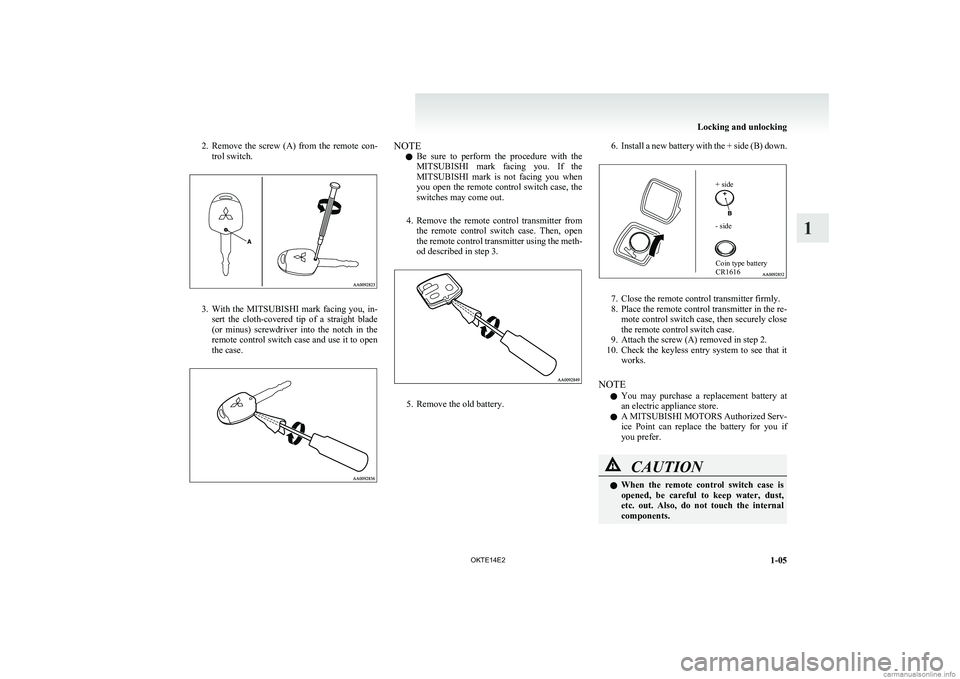

2.Remove the screw (A) from the remote con-
trol switch.
3. With the MITSUBISHI mark facing you, in-
sert the cloth-covered tip of a straight blade
(or minus) screwdriver into the notch in the
remote control switch case and use it to open
the case.
NOTE
l Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the
switches may come out.
4. Remove the remote control transmitter from
the remote control switch case. Then, open
the remote control transmitter using the meth-
od described in step 3.
5. Remove the old battery.
6. Install a new battery with the + side (B) down.+ side- sideCoin type battery
CR1616
7. Close the remote control transmitter firmly.
8. Place the remote control transmitter in the re- mote control switch case, then securely close
the remote control switch case.
9. Attach the screw (A) removed in step 2.
10. Check the keyless entry system to see that it
works.
NOTE l You may purchase a replacement battery at
an electric appliance store.
l A MITSUBISHI MOTORS
Authorized Serv-
ice Point can replace the battery for you if
you prefer.
CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust,
etc. out. Also, do not touch the internal
components.
Locking and unlocking
1-05
OKTE14E2
1
Page 36 of 362

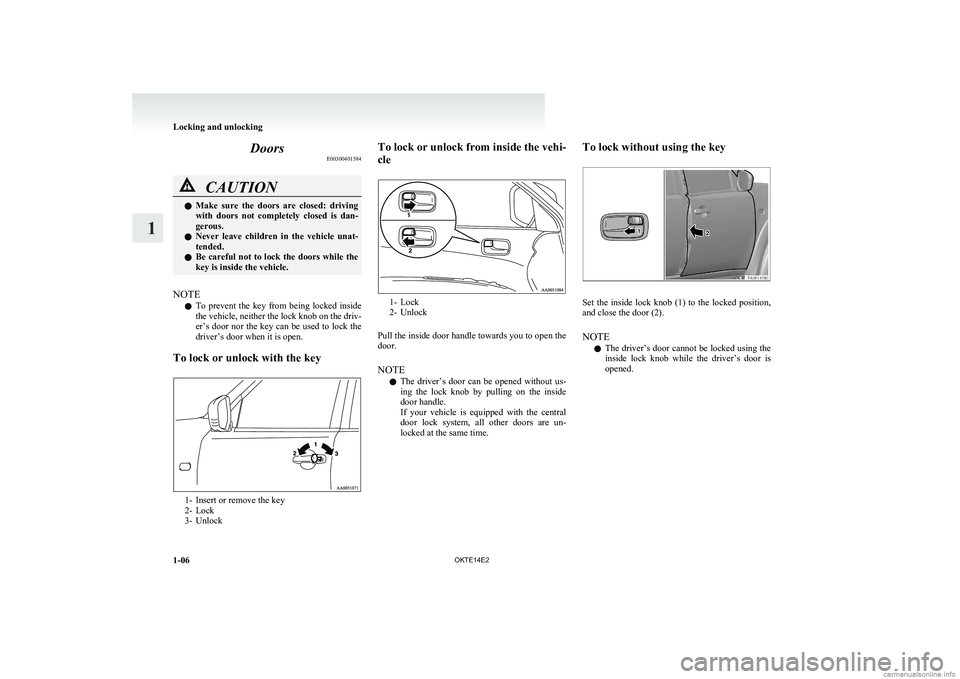

DoorsE00300401584CAUTIONlMake sure the doors are closed: driving
with doors not completely closed is dan-
gerous.
l Never leave children in the vehicle unat-
tended.
l Be careful not to lock the doors while the
key is inside the vehicle.
NOTE
l To prevent the key from being locked inside
the vehicle, neither the lock knob on the driv-
er’s door nor the key can be used to lock the
driver’s door when it is open.
To lock or unlock with the key
1- Insert or remove the key
2- Lock
3- Unlock
To lock or unlock from inside the vehi-
cle
1- Lock
2- Unlock
Pull the inside door handle towards you to open the
door.
NOTE l The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
If your vehicle is equipped with the central
door lock system, all other doors are un-
locked at the same time.
To lock without using the key
Set the inside lock knob (1) to the locked position,
and close the door (2).
NOTE l The driver’s door cannot be locked using the
inside lock knob while the driver’s door is
opened.
Locking and unlocking
1-06 OKTE14E2
1
Page 37 of 362

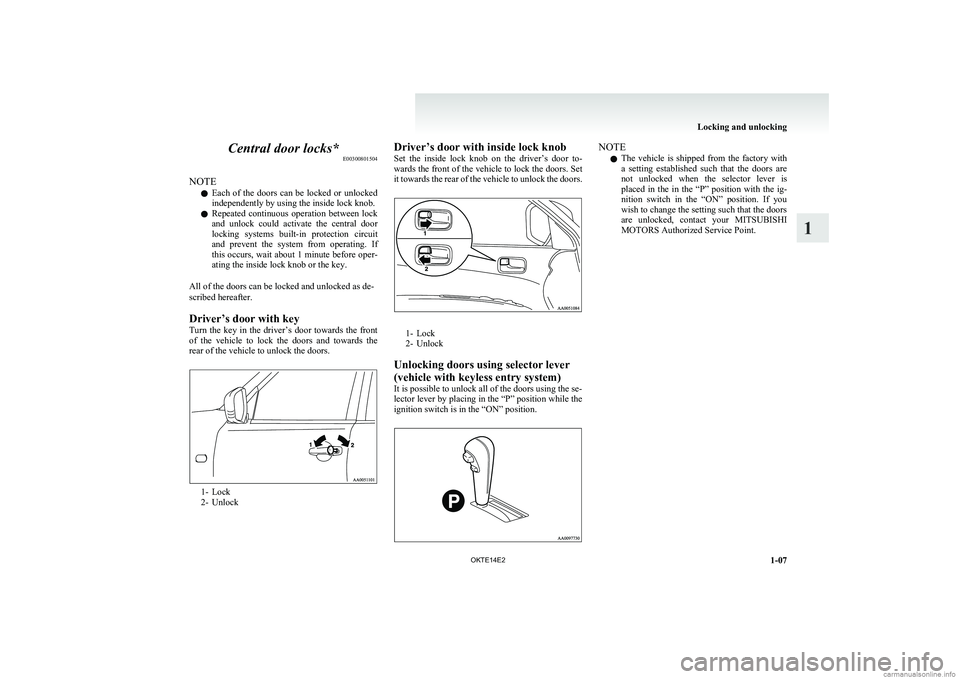

Central door locks*E00300801504
NOTE l Each of the doors can be locked or unlocked
independently by using the inside lock knob.
l Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating. If
this occurs, wait about 1 minute before oper-
ating the inside lock knob or the key.
All of the doors can be locked and unlocked as de-
scribed hereafter.
Driver’s door with key
Turn the key in the driver’s door towards the front
of the vehicle to lock the doors and towards the
rear of the vehicle to unlock the doors.
1- Lock
2- Unlock
Driver’s door with inside lock knob
Set the inside lock knob on the driver’s door to-
wards the front of the vehicle to lock the doors. Set
it towards the rear of the vehicle to unlock the doors.
1- Lock
2- Unlock
Unlocking doors using selector lever
(vehicle with keyless entry system)
It is possible to unlock all of the doors using the se-
lector lever by placing in the “P” position while the
ignition switch is in the “ON” position.
NOTE
l The vehicle is shipped from the factory with
a setting established such that the doors are
not unlocked when the selector lever is
placed in the in the “P” position with the ig-
nition switch in the “ON” position. If you
wish to change the setting such that the doors
are unlocked, contact your MITSUBISHI
MOTORS Authorized Service Point.
Locking and unlocking
1-07
OKTE14E2
1
Page 38 of 362

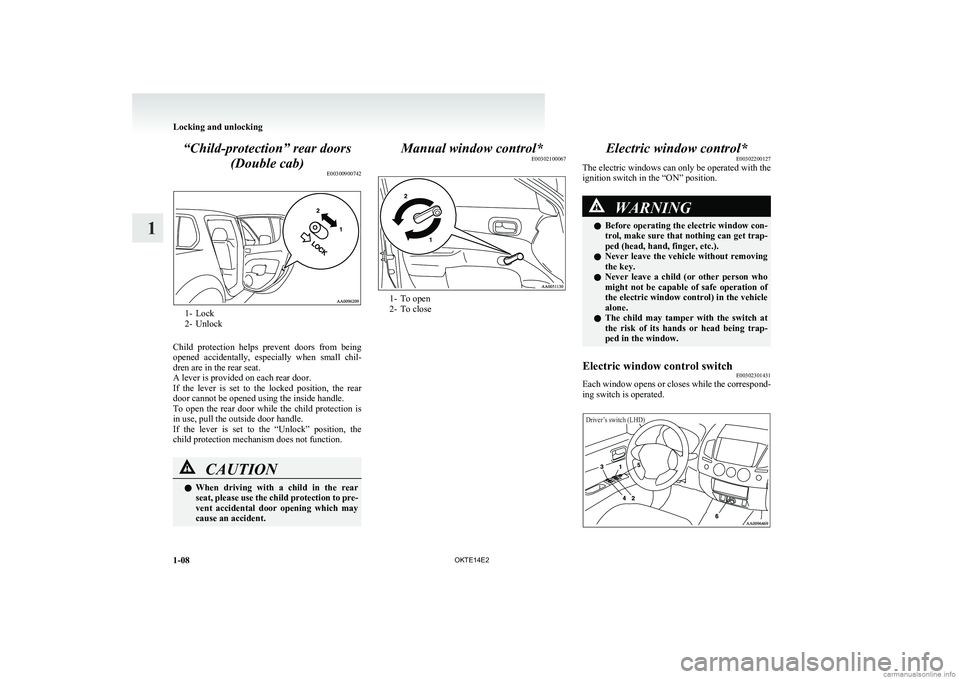

“Child-protection” rear doors(Double cab) E00300900742
1- Lock
2- Unlock
Child protection helps prevent doors from being
opened accidentally, especially when small chil-
dren are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the rear
door cannot be opened using the inside handle.
To open the rear door while the child protection is
in use, pull the outside door handle.
If the lever is set to the “Unlock” position, the
child protection mechanism does not function.
CAUTIONl When driving with a child in the rear
seat, please use the child protection to pre-
vent accidental door opening which may
cause an accident.Manual window control* E00302100067
1- To open
2- To close
Electric window control* E00302200127
The electric windows can only be operated with the
ignition switch in the “ON” position.WARNINGl Before operating the electric window con-
trol, make sure that nothing can get trap-
ped (head, hand, finger, etc.).
l Never leave the vehicle without removing
the key.
l Never leave a child (or other person who
might not be capable of safe operation of
the electric window control) in the vehicle
alone.
l The child may tamper with the switch at
the risk of its hands or head being trap-
ped in the window.Electric window control switch E00302301431
Each window opens or closes while the correspond-
ing switch is operated.
Driver’s switch (LHD)
Locking and unlocking
1-08 OKTE14E2
1
Page 39 of 362
Driver’s switch (RHD)
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (Double cab)
4- Rear right door window (Double cab)
5- Lock switch
6- Rear retractable power window (Double cab)*
The switches can be used to operate all door win-
dows. A window can be opened or closed by oper-
ating the corresponding switch.
Press the switch down to open the window, and
pull up the switch to close it.
If the switch is fully pressed down/pulled up, the
door window automatically opens/closes complete-
ly.
If you want to stop the window movement, operate
the switch lightly in the reverse direction.
NOTE l Repeated operation with the engine stopped
will run down the battery. Operate the win-
dow switches only while the engine is running.
l The rear door windows only open halfway.
Rear retractable power window switch (Double
cab)*
The rear retractable power window switch can be
used to operate the rear retractable power window.
The rear retractable power window stops in three
positions: the fully closed position, a ventilation po-
sition, and the fully open position.
1- Close
2- Open
NOTE
l It is not possible to stop the rear retractable
power window in any position other than the
fully closed position, ventilation position,
and fully open position.
If the rear retractable power window is
opened while the rear window demister is op-
erating, the rear window demister automati-
cally stops. When the rear retractable power
window is subsequently fully closed, the be-
haviour of the rear window demister depends
upon the elapsed time of the rear window de-
mister’s timer. (The timer runs for about 20
minutes in total.) •If the rear window demister’s timer is run-
ning, the rear window demister restarts
for the remaining time.
• If the rear window demister’s timer has
finished, the rear window demister does
not operate. If you wish to activate the
rear window demister, press the rear win-
dow demister switch again.
Locking and unlocking
1-09
OKTE14E2
1
Page 40 of 362
A- Fully closed positionIn this position, the rear retractable power win-
dow is fully closed.
To place the rear retractable power window
in the fully closed position, firmly press the
rear retractable power window switch (1).
B- Ventilation position In this position, the rear retractable power win-
dow is slightly open.
To place the rear retractable power window
in the ventilation position, lightly press the
rear retractable power window switch (1) or
(2).WARNINGl In each of the following circumstances,
the operating direction of the rear retract-
able power window switch and the operat-
ing direction of the rear retractable pow-
er window do not match each other. Exer-
cise caution to avoid the risk of accidental-
ly trapping a hand or your head when op-
erating the rear retractable power win-
dow. •Even if the rear retractable power win-
dow switch (1) is lightly pressed while
the rear retractable power window is
moving from the fully closed position
towards the ventilation position, the
rear retractable power window does
not return to the fully closed position.WARNING• Even if the rear retractable power win-
dow switch (2) is lightly pressed while
the rear retractable power window is
moving from the fully open position to-
wards the ventilation position, the
rear retractable power window does
not return to the fully open position.
C- Fully open position In this position, the rear retractable power win-
dow is fully open.
To place the rear retractable power window
in the fully open position, firmly press the
rear retractable power window switch (2).
WARNINGl If the rear retractable power window
switch (1) is lightly pressed while the rear
retractable power window is moving
from the fully closed position towards the
fully open position, the rear retractable
power window will come up to the ventila-
tion position. To avoid the risk of acciden-
tally trapping a hand or your head, do
not operate the switch while the rear re-
tractable power window is moving.
NOTE
l The rear retractable power window only
opens halfway.

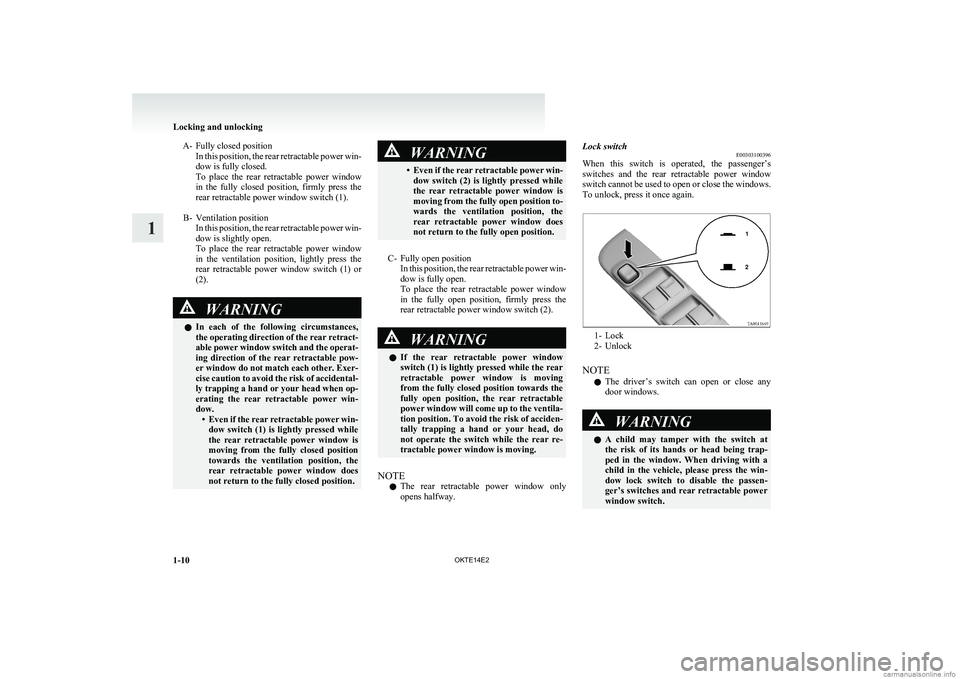

Lock switch E00303100396
When this switch is operated, the passenger’s
switches and the rear retractable power window
switch cannot be used to open or close the windows.
To unlock, press it once again.
1- Lock
2- Unlock
NOTE l The driver’s switch can open or close any
door windows.
WARNINGl A child may tamper with the switch at
the risk of its hands or head being trap-
ped in the window. When driving with a
child in the vehicle, please press the win-
dow lock switch to disable the passen-
ger’s switches and rear retractable power
window switch.
Locking and unlocking
1-10 OKTE14E2
1
