MITSUBISHI L200 2014 (in English) Service Manual
Manufacturer: MITSUBISHI, Model Year: 2014, Model line: L200, Model: MITSUBISHI L200 2014Pages: 362, PDF Size: 20.97 MB
Page 41 of 362

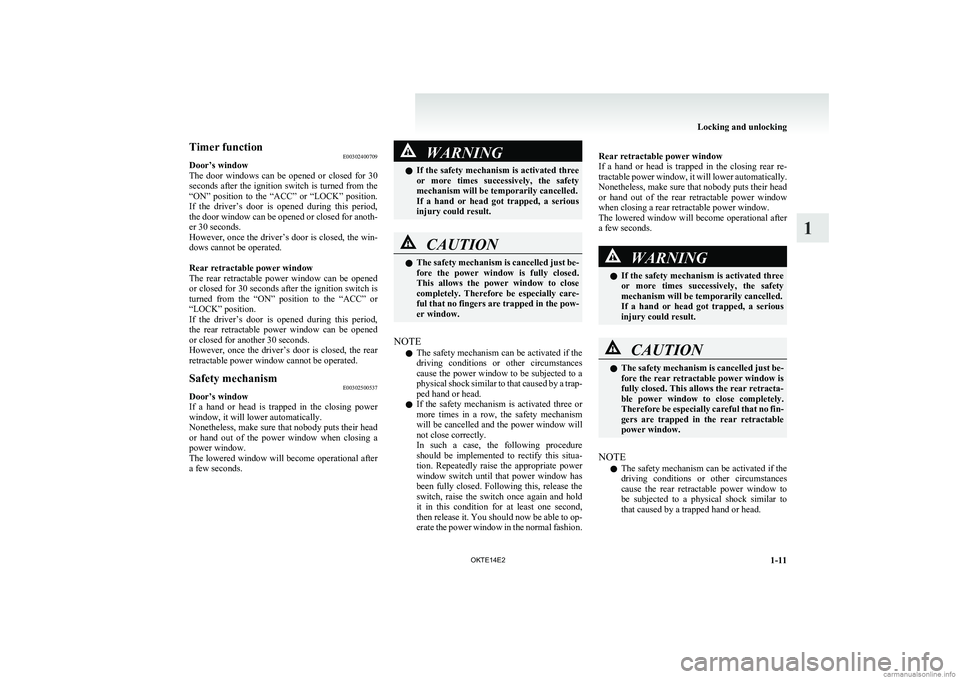

Timer functionE00302400709
Door’s window
The door windows can be opened or closed for 30
seconds after the ignition switch is turned from the
“ON” position to the “ACC” or “LOCK” position.
If the driver’s door is opened during this period,
the door window can be opened or closed for anoth-
er 30 seconds.
However, once the driver’s door is closed, the win-
dows cannot be operated.
Rear retractable power window
The rear retractable power window can be opened
or closed for 30 seconds after the ignition switch is
turned from the “ON” position to the “ACC” or
“LOCK” position.
If the driver’s door is opened during this period,
the rear retractable power window can be opened
or closed for another 30 seconds.
However, once the driver’s door is closed, the rear
retractable power window cannot be operated.Safety mechanism E00302500537
Door’s window
If a hand or head is trapped in the closing power
window, it will lower automatically.
Nonetheless, make sure that nobody puts their head
or hand out of the power window when closing a
power window.
The lowered window will become operational after
a few seconds.
WARNINGl If the safety mechanism is activated three
or more times successively, the safety
mechanism will be temporarily cancelled.
If a hand or head got trapped, a serious
injury could result.CAUTIONl The safety mechanism is cancelled just be-
fore the power window is fully closed.
This allows the power window to close
completely. Therefore be especially care-
ful that no fingers are trapped in the pow-
er window.
NOTE
l The safety mechanism can be activated if the
driving conditions or other circumstances
cause the power window to be subjected to a
physical shock similar to that caused by a trap-
ped hand or head.
l If the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the power window will
not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa-
tion. Repeatedly raise the appropriate power
window switch until that power window has
been fully closed. Following this, release the
switch, raise the switch once again and hold
it in this condition for at least one second,
then release it. You should now be able to op-
erate the power window in the normal fashion.
Rear retractable power window
If a hand or head is trapped in the closing rear re-
tractable power window, it will lower automatically.
Nonetheless, make sure that nobody puts their head
or hand out of the rear retractable power window
when closing a rear retractable power window.
The lowered window will become operational after
a few seconds.WARNINGl If the safety mechanism is activated three
or more times successively, the safety
mechanism will be temporarily cancelled.
If a hand or head got trapped, a serious
injury could result.CAUTIONl The safety mechanism is cancelled just be-
fore the rear retractable power window is
fully closed. This allows the rear retracta-
ble power window to close completely.
Therefore be especially careful that no fin-
gers are trapped in the rear retractable
power window.
NOTE
l The safety mechanism can be activated if the
driving conditions or other circumstances
cause the rear retractable power window to
be subjected to a physical shock similar to
that caused by a trapped hand or head.
Locking and unlocking
1-11
OKTE14E2
1

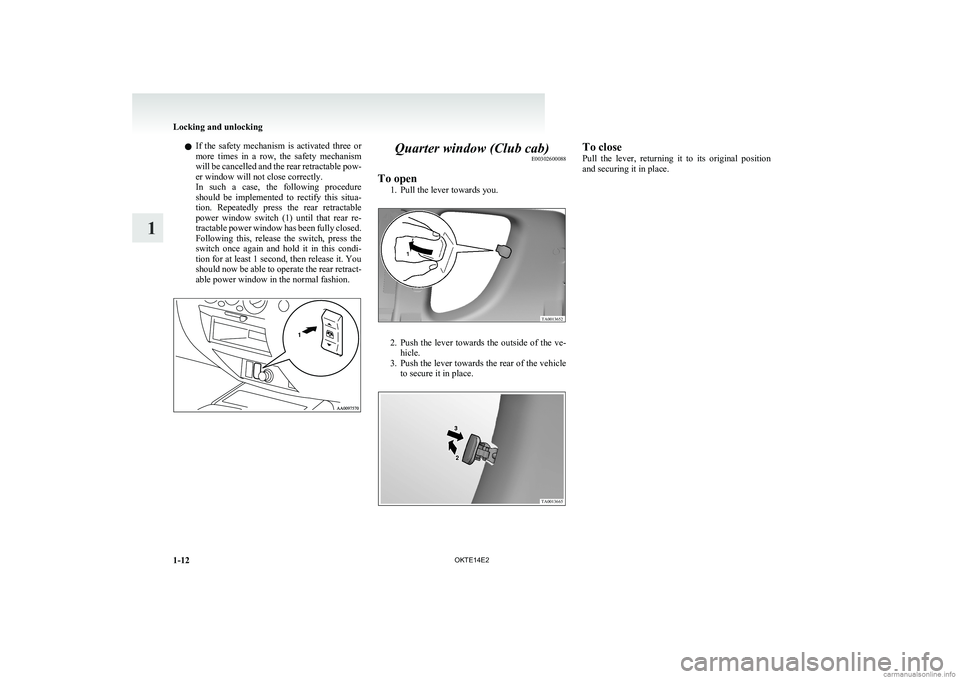

Page 42 of 362
lIf the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the rear retractable pow-
er window will not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa-
tion. Repeatedly press the rear retractable
power window switch (1) until that rear re-
tractable power window has been fully closed.
Following this, release the switch, press the
switch once again and hold it in this condi-
tion for at least 1 second, then release it. You
should now be able to operate the rear retract-
able power window in the normal fashion.Quarter window (Club cab) E00302600088
To open 1. Pull the lever towards you.
2.Push the lever towards the outside of the ve-
hicle.
3. Push the lever towards the rear of the vehicle
to secure it in place.
To close
Pull the lever, returning it to its original position
and securing it in place.
Locking and unlocking
1-12 OKTE14E2
1 TA0013652 TA0013665
Page 43 of 362

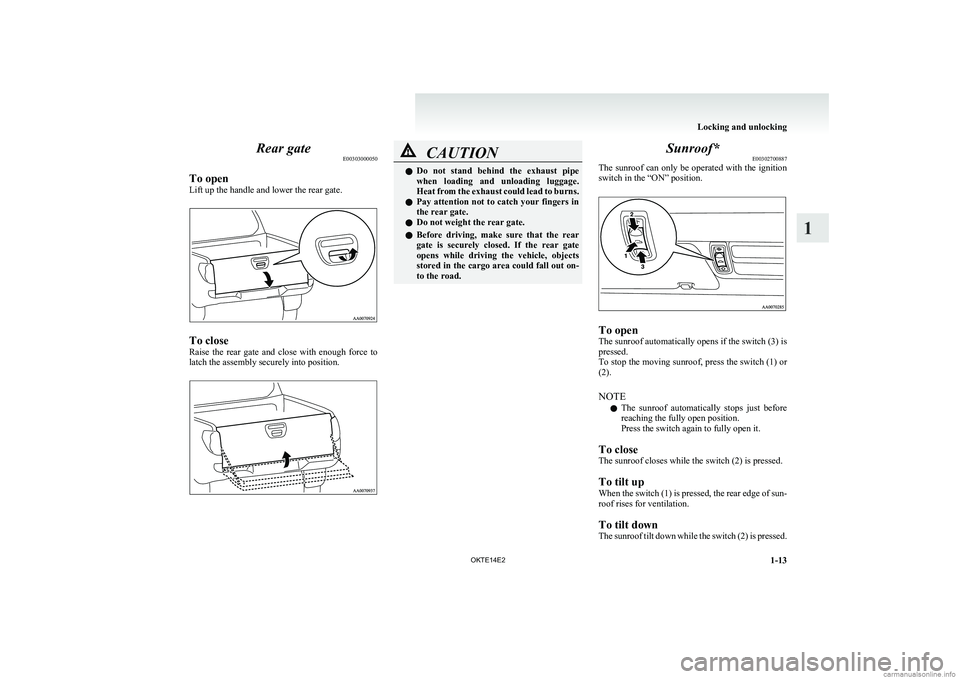

Rear gateE00303000050
To open
Lift up the handle and lower the rear gate.
To close
Raise the rear gate and close with enough force to
latch the assembly securely into position.
CAUTIONl Do not stand behind the exhaust pipe
when loading and unloading luggage.
Heat from the exhaust could lead to burns.
l Pay attention not to catch your fingers in
the rear gate.
l Do not weight the rear gate.
l Before driving, make sure that the rear
gate is securely closed. If the rear gate
opens while driving the vehicle, objects
stored in the cargo area could fall out on-
to the road.Sunroof* E00302700887
The sunroof can only be operated with the ignition
switch in the “ON” position.
To open
The sunroof automatically opens if the switch (3) is
pressed.
To stop the moving sunroof, press the switch (1) or
(2).
NOTE l The sunroof automatically stops just before
reaching the fully open position.
Press the switch again to fully open it.
To close
The sunroof closes while the switch (2) is pressed.
To tilt up
When the switch (1) is pressed, the rear edge of sun-
roof rises for ventilation.
To tilt down
The sunroof tilt down while the switch (2) is pressed.
Locking and unlocking
1-13
OKTE14E2
1
Page 44 of 362

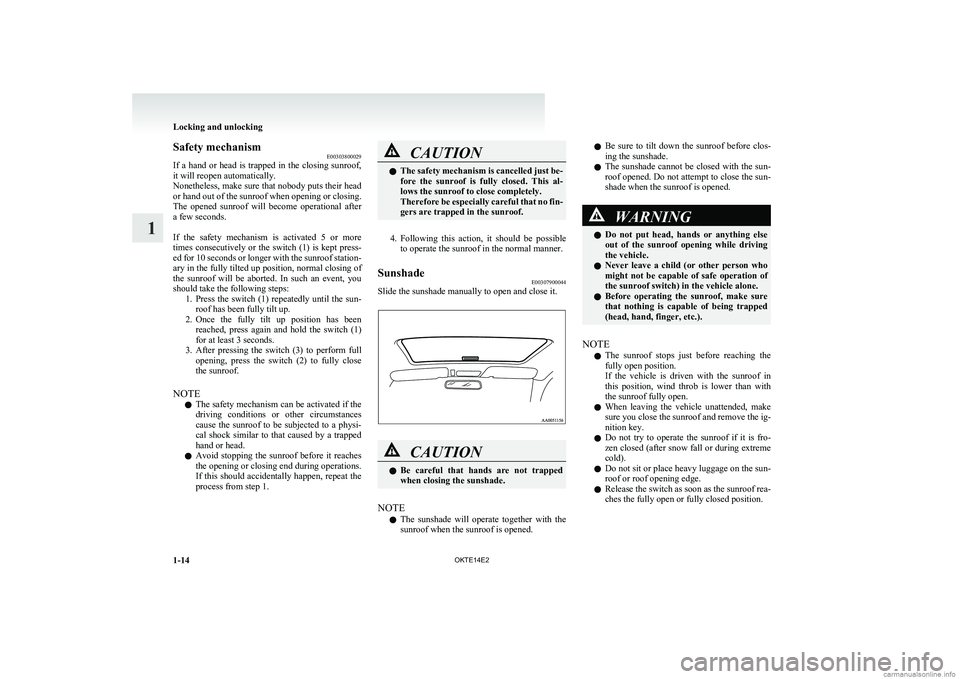

Safety mechanismE00303800029
If a hand or head is trapped in the closing sunroof,
it will reopen automatically.
Nonetheless, make sure that nobody puts their head
or hand out of the sunroof when opening or closing.
The opened sunroof will become operational after
a few seconds.
If the safety mechanism is activated 5 or more
times consecutively or the switch (1) is kept press-
ed for 10 seconds or longer with the sunroof station-
ary in the fully tilted up position, normal closing of
the sunroof will be aborted. In such an event, you
should take the following steps: 1.Press the switch (1) repeatedly until the sun-
roof has been fully tilt up.
2. Once the fully tilt up position has been
reached, press again and hold the switch (1)
for at least 3 seconds.
3. After pressing the switch (3) to perform full
opening, press the switch (2) to fully close
the sunroof.
NOTE l The safety mechanism can be activated if the
driving conditions or other circumstances
cause the sunroof to be subjected to a physi-
cal shock similar to that caused by a trapped
hand or head.
l Avoid stopping the sunroof before it reaches
the opening or closing end during operations.
If this should accidentally happen, repeat the
process from step 1.CAUTIONl The safety mechanism is cancelled just be-
fore the sunroof is fully closed. This al-
lows the sunroof to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunroof.
4. Following this action, it should be possible
to operate the sunroof in the normal manner.
Sunshade E00307900044
Slide the sunshade manually to open and close it.
CAUTIONlBe careful that hands are not trapped
when closing the sunshade.
NOTE
l The sunshade will operate together with the
sunroof when the sunroof is opened.
l Be sure to tilt down the sunroof before clos-
ing the sunshade.
l The sunshade cannot be closed with the sun-
roof opened. Do not attempt to close the sun-
shade when the sunroof is opened.WARNINGl Do not put head, hands or anything else
out of the sunroof opening while driving
the vehicle.
l Never leave a child (or other person who
might not be capable of safe operation of
the sunroof switch) in the vehicle alone.
l Before operating the sunroof, make sure
that nothing is capable of being trapped
(head, hand, finger, etc.).
NOTE
l The sunroof stops just before reaching the
fully open position.
If the vehicle is driven with the sunroof in
this position, wind throb is lower than with
the sunroof fully open.
l When leaving the vehicle unattended, make
sure you close the sunroof and remove the ig-
nition key.
l Do not try to operate the sunroof if it is fro-
zen closed (after snow fall or during extreme
cold).
l Do not sit or place heavy luggage on the sun-
roof or roof opening edge.
l Release the switch as soon as the sunroof rea-
ches the fully open or fully closed position.
Locking and unlocking
1-14 OKTE14E2
1
Page 45 of 362
lIf the sunroof does not operate when the sun-
roof switch is operated, release the switch
and check whether something is trapped by
the sunroof. If nothing is trapped, we recom-
mend you to have the sunroof checked.
l Depending on the model of ski carriers or
roof carriers, the sunroof may make contact
with the carrier when the sunroof is tilted up.
Be careful when tilting up the sunroof if such
a ski carrier or a roof carrier is installed.
l Be sure to close the sunroof completely
when washing the vehicle or when leaving
the vehicle.
l Be careful, not to put any wax on the weath-
erstrip (black rubber) around the sunroof
opening. If stained with wax, the weather-
strip cannot maintain a weatherproof seal
with the sunroof.
l After washing the vehicle or after it has
rained, wipe off any water that is on the sun-
roof before operating it.
l Operating the sunroof repeatedly with the en-
gine stationary will run down the battery. Op-
erate the sunroof while the engine is running.
Locking and unlocking
1-15
OKTE14E2
1

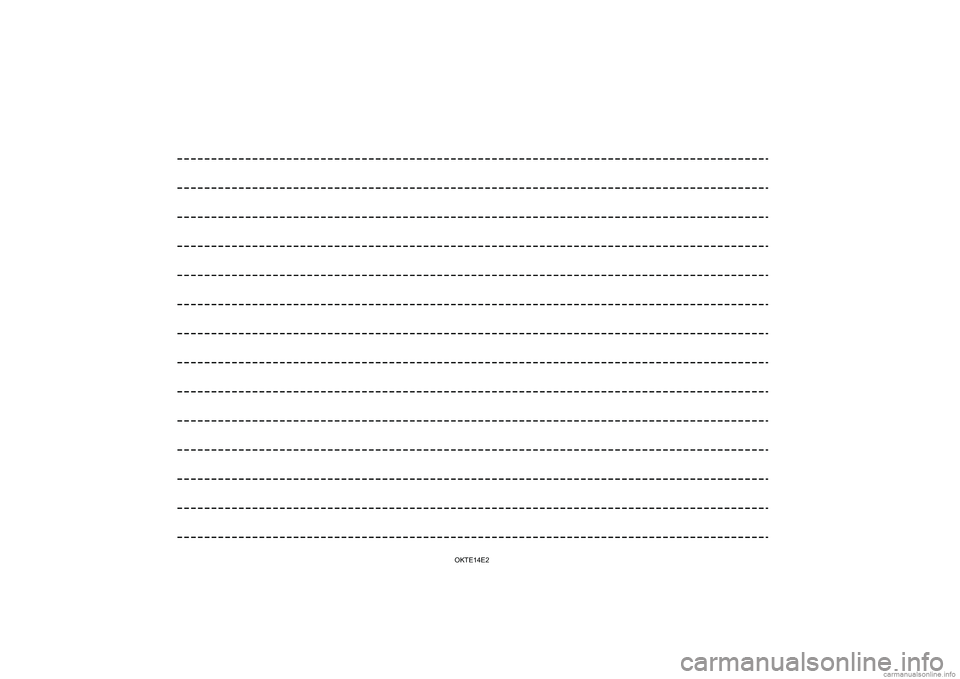

Page 46 of 362
OKTE14E2

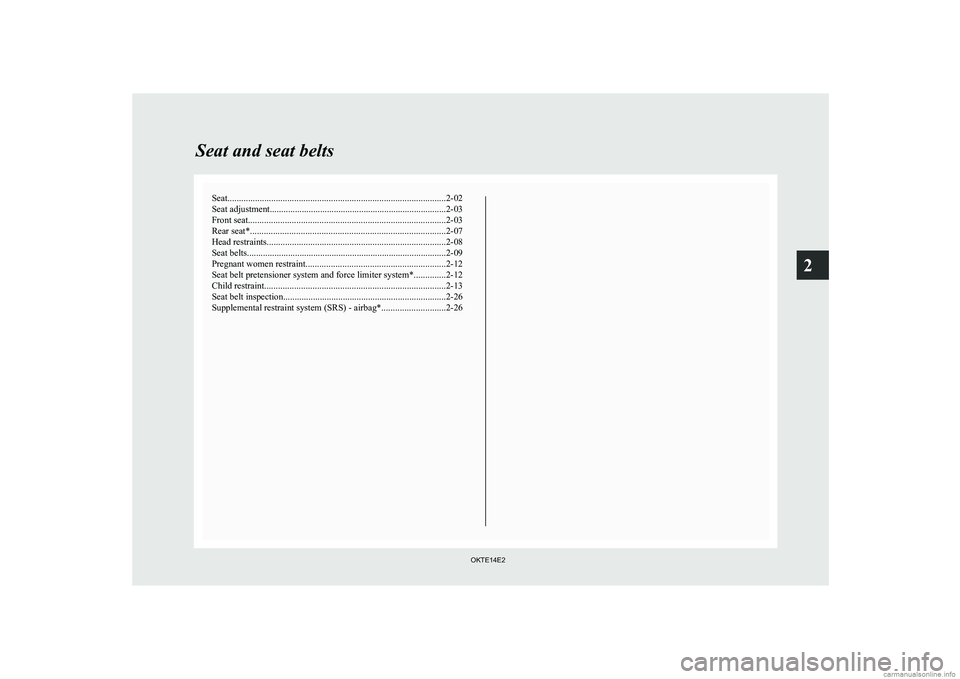

Page 47 of 362
Seat............................................................................................... 2-02
Seat adjustment ............................................................................. 2-03
Front seat ...................................................................................... 2-03
Rear seat* ..................................................................................... 2-07
Head restraints .............................................................................. 2-08
Seat belts ....................................................................................... 2-09
Pregnant women restraint ............................................................. 2-12
Seat belt pretensioner system and force limiter system* ..............2-12
Child restraint ............................................................................... 2-13
Seat belt inspection ....................................................................... 2-26
Supplemental restraint system (SRS) - airbag* ............................2-26Seat and seat belts
OKTE14E2
2
Page 48 of 362

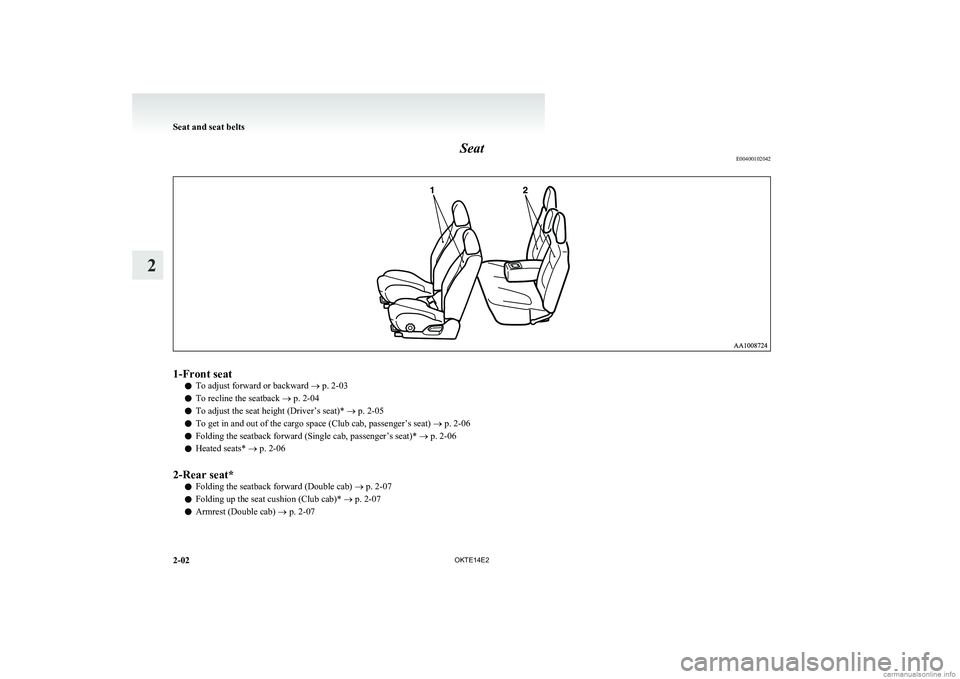

SeatE004001020421-Front seat
lTo adjust forward or backward
® p. 2-03
l To recline the seatback
® p. 2-04
l To adjust the seat height (Driver’s seat)*
® p. 2-05
l To get in and out of the cargo space (Club cab, passenger’s seat)
® p. 2-06
l Folding the seatback forward (Single cab, passenger’s seat)*
® p. 2-06
l Heated seats*
® p. 2-06
2-Rear seat*
l Folding the seatback forward (Double cab)
® p. 2-07
l Folding up the seat cushion (Club cab)*
® p. 2-07
l Armrest (Double cab)
® p. 2-07
Seat and seat belts
2-02 OKTE14E2
2
Page 49 of 362

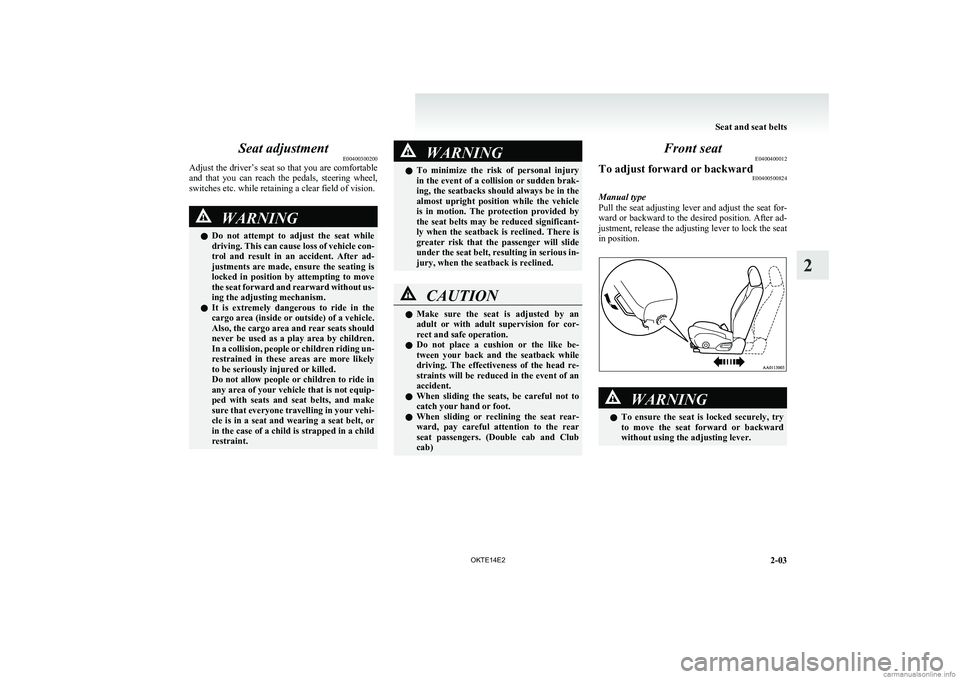

Seat adjustmentE00400300200
Adjust the driver’s seat so that you are comfortable
and that you can reach the pedals, steering wheel,
switches etc. while retaining a clear field of vision.WARNINGl Do not attempt to adjust the seat while
driving. This can cause loss of vehicle con-
trol and result in an accident. After ad-
justments are made, ensure the seating is
locked in position by attempting to move
the seat forward and rearward without us-
ing the adjusting mechanism.
l It is extremely dangerous to ride in the
cargo area (inside or outside) of a vehicle.
Also, the cargo area and rear seats should
never be used as a play area by children.
In a collision, people or children riding un-
restrained in these areas are more likely
to be seriously injured or killed.
Do not allow people or children to ride in
any area of your vehicle that is not equip-
ped with seats and seat belts, and make
sure that everyone travelling in your vehi-
cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child
restraint.WARNINGl To minimize the risk of personal injury
in the event of a collision or sudden brak-
ing, the seatbacks should always be in the
almost upright position while the vehicle
is in motion. The protection provided by
the seat belts may be reduced significant-
ly when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious in-
jury, when the seatback is reclined.CAUTIONl Make sure the seat is adjusted by an
adult or with adult supervision for cor-
rect and safe operation.
l Do not place a cushion or the like be-
tween your back and the seatback while
driving. The effectiveness of the head re-
straints will be reduced in the event of an
accident.
l When sliding the seats, be careful not to
catch your hand or foot.
l When sliding or reclining the seat rear-
ward, pay careful attention to the rear
seat passengers. (Double cab and Club
cab)Front seat E0400400012To adjust forward or backward E00400500824
Manual type
Pull the seat adjusting lever and adjust the seat for-
ward or backward to the desired position. After ad-
justment, release the adjusting lever to lock the seat
in position.
WARNINGl To ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever.
Seat and seat belts
2-03
OKTE14E2
2
Page 50 of 362
Power type
Adjust the seat by operating the switch as indicated
by the arrows.
1- Adjustment forward
2- Adjustment backward
NOTE l To prevent the battery from running down,
operate the power type seat with the engine
running.
To recline the seatback E00400601037
Manual type
In order to recline the seatback, lean forward slight-
ly, pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position.CAUTIONl The reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When operating the lever, sit
close to the seatback or hold it with your
hand to control its return motion.Power type
Adjust the seatback angle by operating the switch
as indicated by the arrows.
1- To move to forward direction
2- To recline rearward
NOTE l To prevent the battery from running down,
operate the power type seat with the engine
running.
Seat and seat belts
2-04 OKTE14E2
2
