MITSUBISHI L200 2017 Owner's Manual (in English)

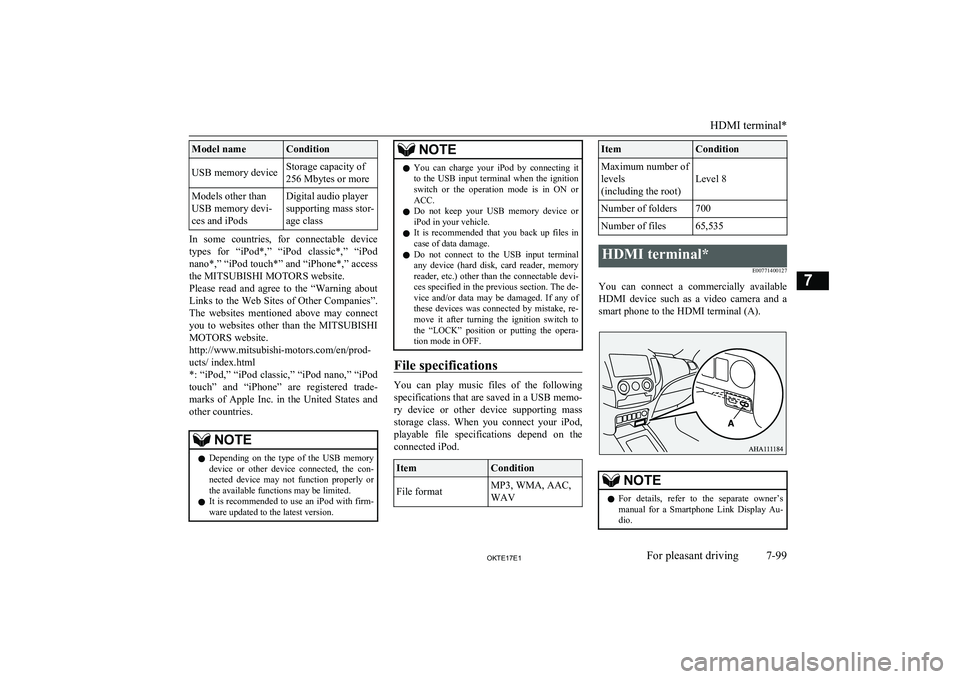

Model nameConditionUSB memory deviceStorage capacity of
256 Mbytes or moreModels other than
USB memory devi-
ces and iPodsDigital audio player
supporting mass stor-
age class
In some countries, for connectable device types for “iPod*,” “iPod classic*,” “iPod nano*,” “iPod touch*” and “iPhone*,” access
the MITSUBISHI MOTORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/ index.html
*: “iPod,” “iPod classic,” “iPod nano,” “iPod
touch” and “iPhone” are registered trade- marks of Apple Inc. in the United States and other countries.
NOTEl Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.
l It is recommended to use an iPod with firm-
ware updated to the latest version.NOTEl You can charge your iPod by connecting it
to the USB input terminal when the ignition
switch or the operation mode is in ON or ACC.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.
l Do not connect to the USB input terminal
any device (hard disk, card reader, memory
reader, etc.) other than the connectable devi- ces specified in the previous section. The de- vice and/or data may be damaged. If any of
these devices was connected by mistake, re- move it after turning the ignition switch to the “LOCK” position or putting the opera-
tion mode in OFF.
File specifications
You can play music files of the following
specifications that are saved in a USB memo-
ry device or other device supporting mass storage class. When you connect your iPod,playable file specifications depend on the
connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVItemConditionMaximum number of
levels
(including the root)
Level 8
Number of folders700Number of files65,535HDMI terminal*
E00771400127
You can connect a commercially availableHDMI device such as a video camera and a smart phone to the HDMI terminal (A).
NOTEl For details, refer to the separate owner’s
manual for a Smartphone Link Display Au-
dio.
HDMI terminal*
7-99OKTE17E1For pleasant driving7

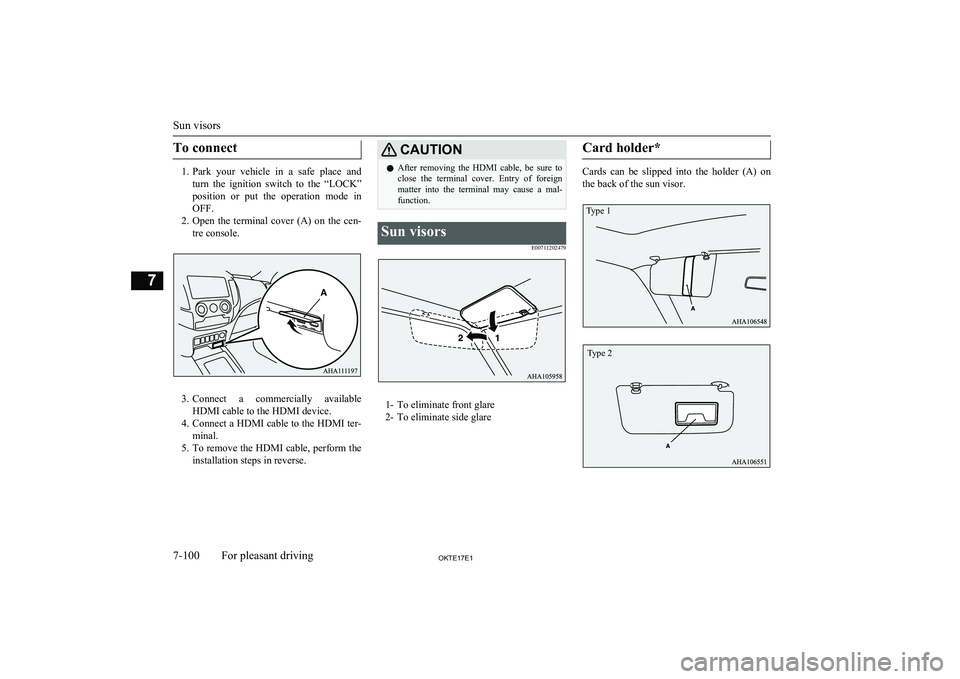

To connect
1.Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF.
2. Open the terminal cover (A) on the cen-
tre console.
3. Connect a commercially available
HDMI cable to the HDMI device.
4. Connect a HDMI cable to the HDMI ter-
minal.
5. To remove the HDMI cable, perform the
installation steps in reverse.
CAUTIONl After removing the HDMI cable, be sure to
close the terminal cover. Entry of foreign
matter into the terminal may cause a mal- function.Sun visors
E00711202479
1- To eliminate front glare2- To eliminate side glare
Card holder*
Cards can be slipped into the holder (A) on
the back of the sun visor.Sun visors
7-100OKTE17E1For pleasant driving7 Type 1 Type 2

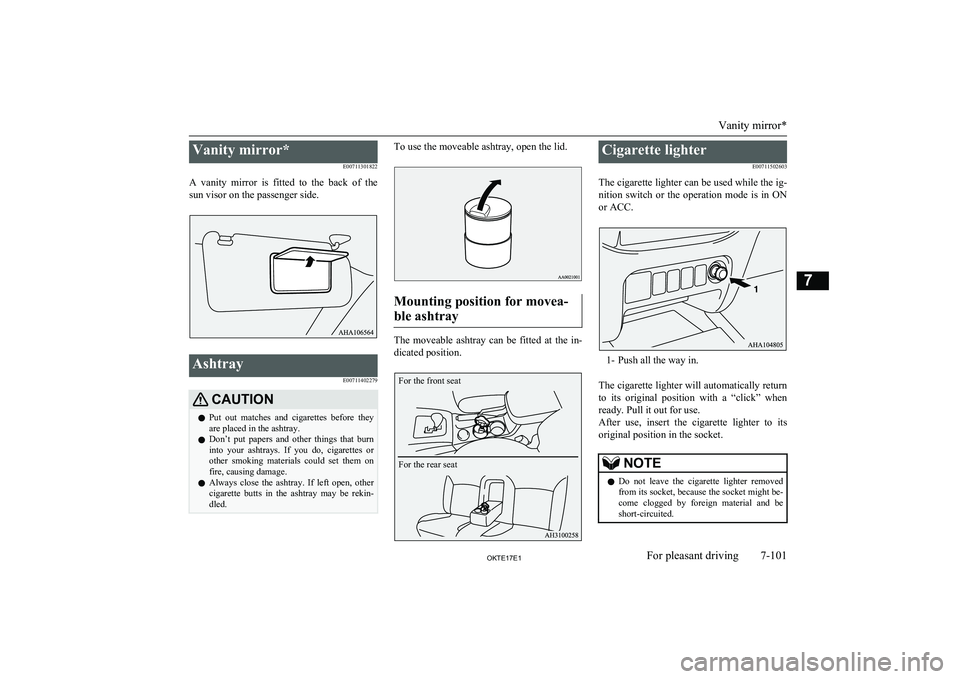

Vanity mirror*E00711301822
A vanity mirror is fitted to the back of the sun visor on the passenger side.Ashtray
E00711402279CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the moveable ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Cigarette lighter
E00711502603
The cigarette lighter can be used while the ig- nition switch or the operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.
Vanity mirror*
7-101OKTE17E1For pleasant driving7 For the front seat
For the rear seat

CAUTIONlDo not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance without running the engine may
run down the battery.Accessory socket
E00711602620
The accessory socket can be used while theignition switch or the operation mode is in
ON or ACC.
To use a plug-in type accessory, open the lid,
and insert the plug in the accessory socket.CAUTIONl Be sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac-
cessories are 12 V accessories and that the total power consumption does not exceed
120 W.
l Long use of the electric appliance without
running the engine may run down the bat- tery.
l When the accessory socket is not in use, be
sure to close the lid, because the socketmight become clogged by foreign materialand be short-circuited.Digital clock*
E00711801540
The digital clock indicates the time with the
ignition switch or the operation mode is in
ON or ACC.
To set the time
Set the time by pressing the various buttons
as described below.
1- To adjust the hour
2- To adjust the minutes
3- To reset the minutes to zero

10:30 - 11:29...... Changes to 11:00
11:30 - 12:29...... Changes to 12:00
Accessory socket
7-102OKTE17E1For pleasant driving7

NOTElIf the battery cables are disconnected during
repairs or for any other reason, reset the
clock to the correct time after they are recon-
nected.Interior lamps
E00712002399
1- Front room & map lamps*
2- Rear room lamp
NOTEl If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure that
all the lamps are off.Room lamps
E00712102563
Position of
lamp switchOn/off control1-ON
(
)
The lamp illuminates re-
gardless of whether a door
is open or closed.
Interior lamps
7-103OKTE17E1For pleasant driving7 Front* Rear (Type 1)* Rear (Type 2)*

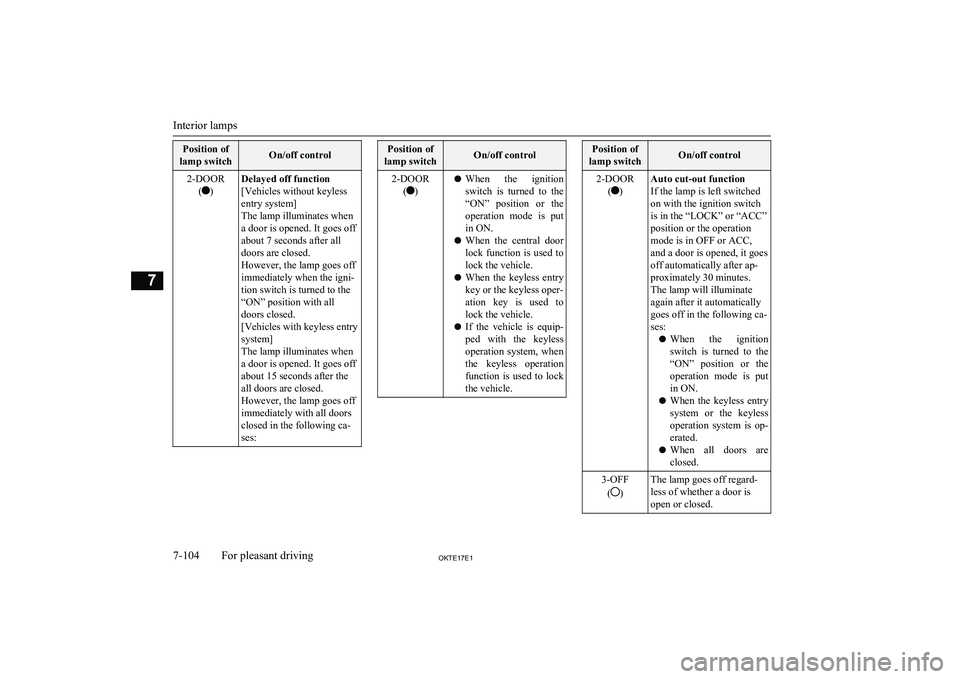

Position of
lamp switchOn/off control2-DOOR
(
)
Delayed off function[Vehicles without keyless
entry system]
The lamp illuminates when
a door is opened. It goes off
about 7 seconds after all
doors are closed.
However, the lamp goes off
immediately when the igni-
tion switch is turned to the
“ON” position with all
doors closed.
[Vehicles with keyless entry
system]
The lamp illuminates when
a door is opened. It goes off
about 15 seconds after the
all doors are closed.
However, the lamp goes off
immediately with all doors
closed in the following ca-
ses:Position of
lamp switchOn/off control2-DOOR
(
)l When the ignition
switch is turned to the
“ON” position or the
operation mode is put in ON.
l When the central door
lock function is used to
lock the vehicle.
l When the keyless entry
key or the keyless oper-
ation key is used to lock the vehicle.
l If the vehicle is equip-
ped with the keyless
operation system, when
the keyless operation function is used to lock
the vehicle.Position of
lamp switchOn/off control2-DOOR
(
)
Auto cut-out function
If the lamp is left switched
on with the ignition switch
is in the “LOCK” or “ACC”
position or the operation
mode is in OFF or ACC,
and a door is opened, it goes
off automatically after ap-
proximately 30 minutes.
The lamp will illuminate
again after it automatically
goes off in the following ca-
ses:
l When the ignition
switch is turned to the
“ON” position or the
operation mode is put in ON.
l When the keyless entry
system or the keyless
operation system is op- erated.
l When all doors are
closed.3-OFF
(
)
The lamp goes off regard-
less of whether a door is
open or closed.
Interior lamps
7-104OKTE17E1For pleasant driving7

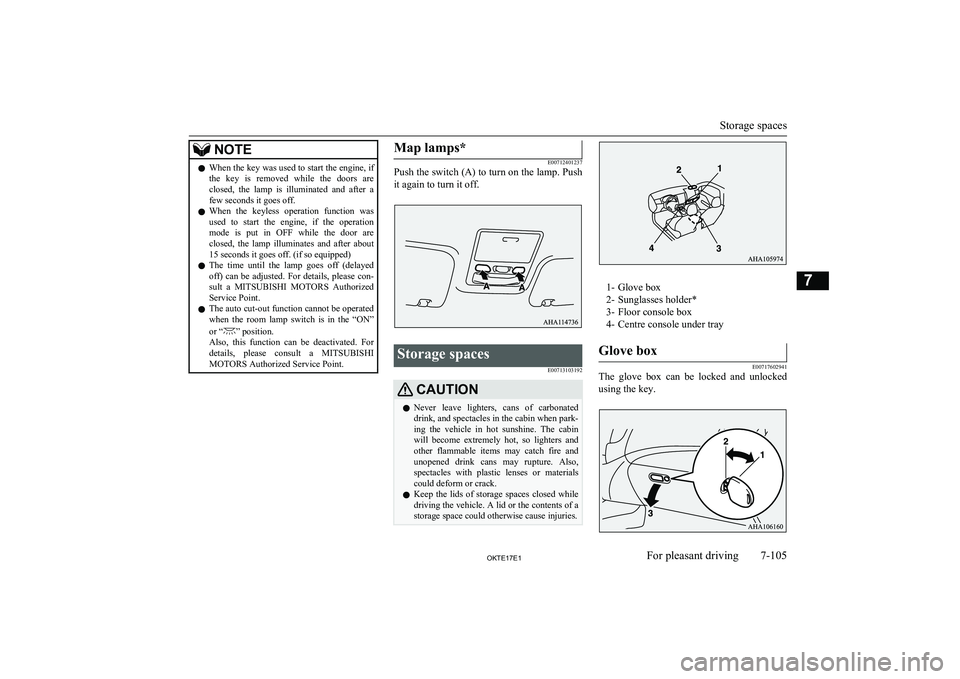

NOTElWhen the key was used to start the engine, if
the key is removed while the doors are closed, the lamp is illuminated and after afew seconds it goes off.
l When the keyless operation function was
used to start the engine, if the operation
mode is put in OFF while the door are closed, the lamp illuminates and after about 15 seconds it goes off. (if so equipped)
l The time until the lamp goes off (delayed
off) can be adjusted. For details, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
l The auto cut-out function cannot be operated
when the room lamp switch is in the “ON”
or “
” position.
Also, this function can be deactivated. For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
Map lamps*
E00712401237
Push the switch (A) to turn on the lamp. Push
it again to turn it off.Storage spaces
E00713103192CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans may rupture. Also,spectacles with plastic lenses or materials
could deform or crack.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.
1- Glove box
2- Sunglasses holder*
3- Floor console box
4- Centre console under tray
Glove box
E00717602941
The glove box can be locked and unlocked
using the key.
Storage spaces
7-105OKTE17E1For pleasant driving7

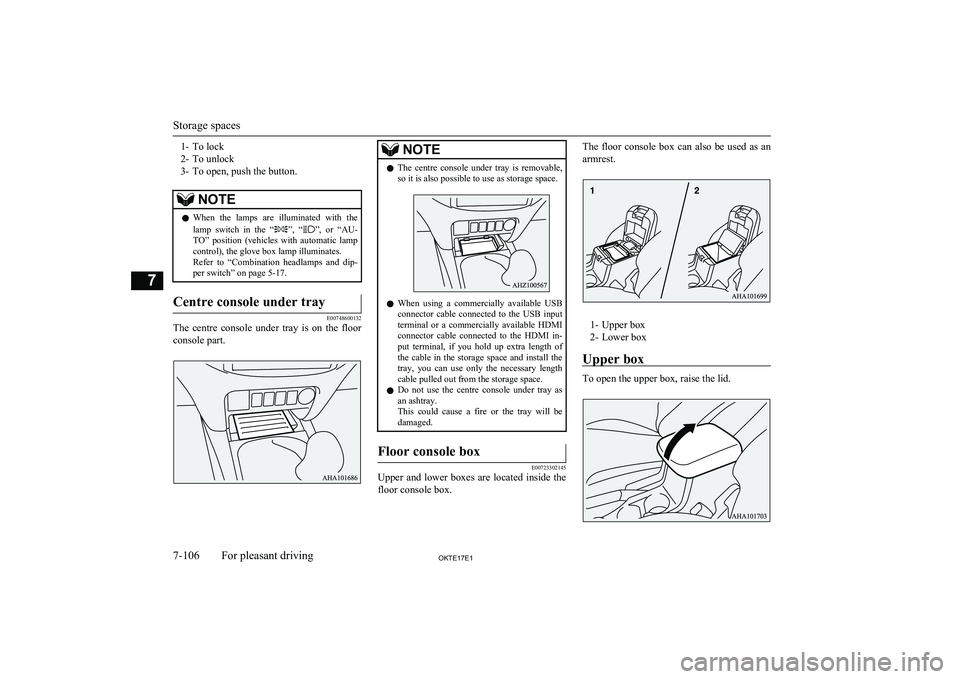

1- To lock
2- To unlock
3- To open, push the button.NOTEl When the lamps are illuminated with the
lamp switch in the “”, “”, or “AU-
TO” position (vehicles with automatic lamp control), the glove box lamp illuminates.
Refer to “Combination headlamps and dip-
per switch” on page 5-17.Centre console under tray
E00748600132
The centre console under tray is on the floor
console part.
NOTEl The centre console under tray is removable,
so it is also possible to use as storage space.
l When using a commercially available USB
connector cable connected to the USB input
terminal or a commercially available HDMI connector cable connected to the HDMI in-put terminal, if you hold up extra length of the cable in the storage space and install the
tray, you can use only the necessary length cable pulled out from the storage space.
l Do not use the centre console under tray as
an ashtray.
This could cause a fire or the tray will be damaged.
Floor console box
E00723302145
Upper and lower boxes are located inside the
floor console box.
The floor console box can also be used as an
armrest.
1- Upper box
2- Lower box
Upper box
To open the upper box, raise the lid.
Storage spaces
7-106OKTE17E1For pleasant driving7

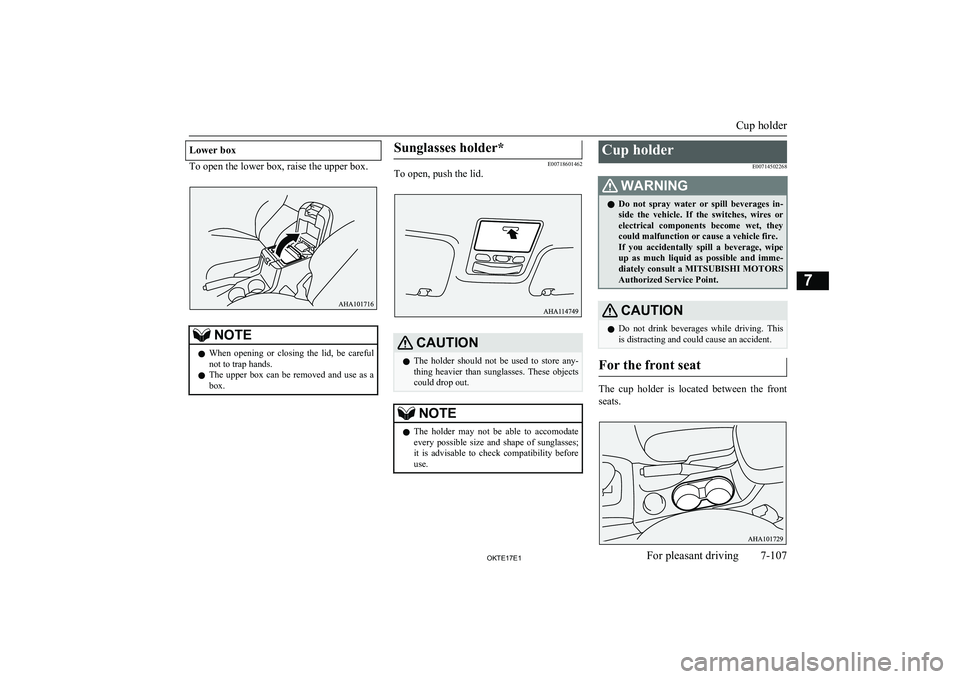

Lower box
To open the lower box, raise the upper box.
NOTElWhen opening or closing the lid, be careful
not to trap hands.
l The upper box can be removed and use as a
box.Sunglasses holder*
E00718601462
To open, push the lid.
CAUTIONl The holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEl The holder may not be able to accomodate
every possible size and shape of sunglasses;
it is advisable to check compatibility before use.Cup holder
E00714502268WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.
For the front seat
The cup holder is located between the front
seats.
Cup holder
7-107OKTE17E1For pleasant driving7

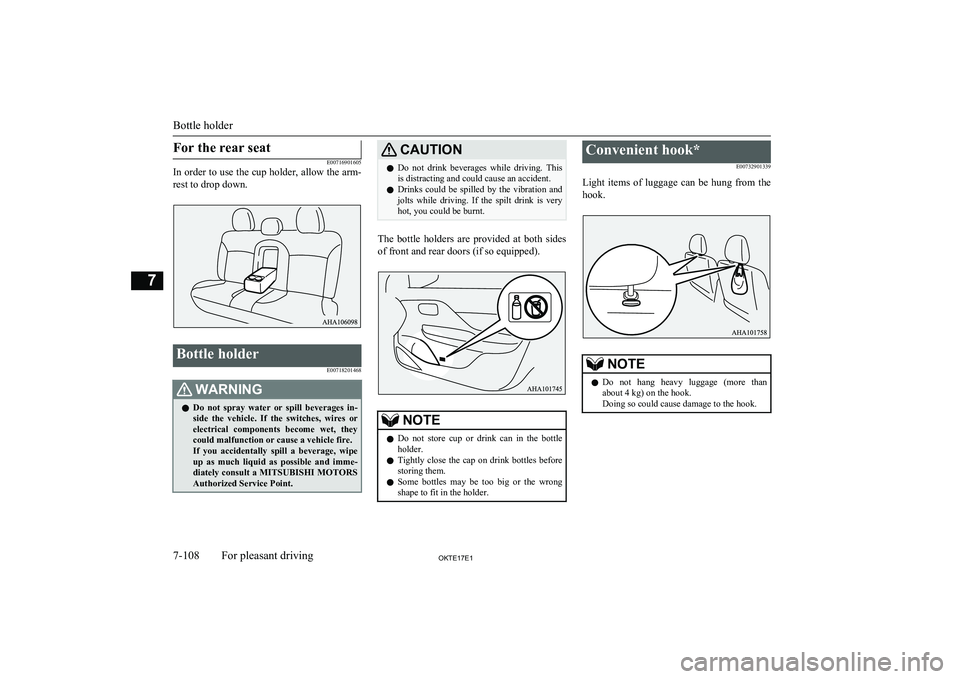

For the rear seat
E00716901605
In order to use the cup holder, allow the arm-
rest to drop down.Bottle holder
E00718201468WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire.
If you accidentally spill a beverage, wipe up as much liquid as possible and imme-
diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.
l Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
The bottle holders are provided at both sides
of front and rear doors (if so equipped).
NOTEl Do not store cup or drink can in the bottle
holder.
l Tightly close the cap on drink bottles before
storing them.
l Some bottles may be too big or the wrong
shape to fit in the holder.Convenient hook*
E00732901339
Light items of luggage can be hung from the hook.NOTEl Do not hang heavy luggage (more than
about 4 kg) on the hook.
Doing so could cause damage to the hook.
Bottle holder
7-108OKTE17E1For pleasant driving7
