NOTElWhen luggage is placed on the front passen-
ger seat, a sensor in the seat cushion may,
depending on the weight and position of the
luggage, cause the warning tone to sound and the warning lamp to come on. (Club cab
and Double cab)For the rear passenger’s seats*
E00415501047
*-This warning lamp shows the
case of the 5-passenger vehicles.

If the ignition switch is turned to the “ON”
position or the operation mode is put in ON while a seat belt is not fastened, the warning
lamp comes on for approximately 30 seconds to remind the rear passenger to fasten the seatbelt.
If the vehicle is driven with the seat belt still
unfastened, the warning lamps come on for
approximately another 30 seconds. (This illu-
mination happens only the first time the vehi- cle starts moving with the seat belt still un-
fastened.)
The warning lamps go off when the seat belt is fastened.WARNINGl Do not install any accessory or sticker
that makes the lamp difficult to see.NOTEl The warning lamp comes on even if no one
is sitting on the rear seats.
l If a seat belt is unfastened while the vehicle
is being driven, the tone sounds for approxi- mately 1 second and the warning lampcomes on for approximately 30 seconds. At the same time, the warning lamp for the seat
where the seat belt is not fastened comes on.
l If the seat belts are initially fastened but a
seat belt is unfastened while the vehicle is
stationary and the vehicle is then driven with the seat belt still unfastened, the warning
lamp comes on again for approximately 30 seconds.Adjustable seat belt anchor
(front seats of Club cab andDouble cab)
E00405001720
The seat belt anchor height can be adjusted.
To move the anchor, pull the lock knob (A) and slide the anchor to the desired position.
Release the lock knob to lock the anchor into
position.
WARNINGl When adjusting the seat belt anchor, set it
at a position that is sufficiently high so
that the belt will make full contact with your shoulder but will not touch your
neck.
Seat belts
4-09OKTE17E1Seat and seat belts4

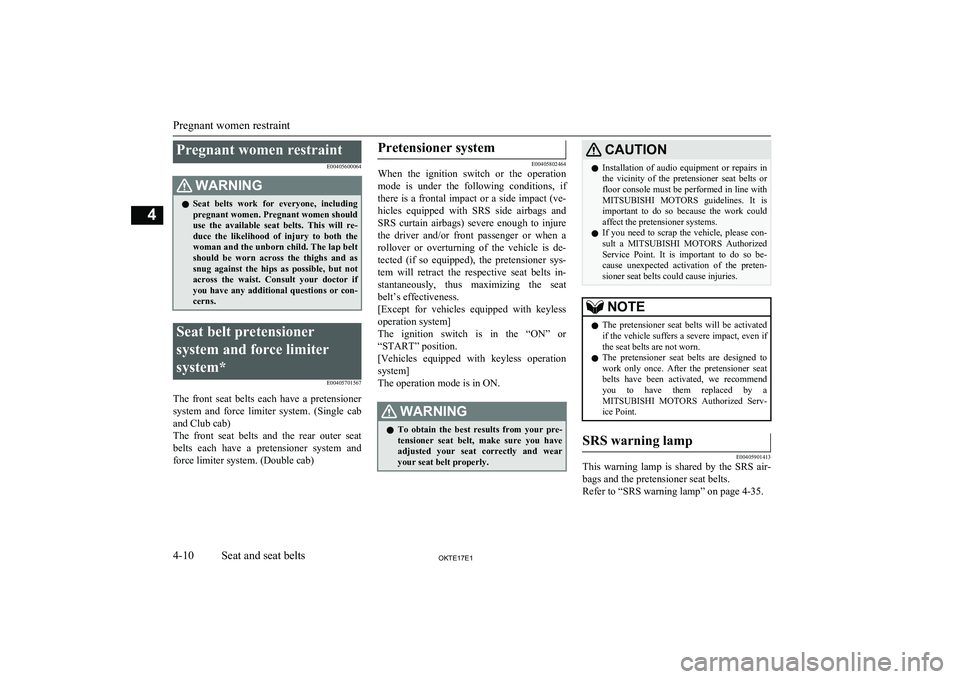

Pregnant women restraintE00405600064WARNINGlSeat belts work for everyone, including
pregnant women. Pregnant women should
use the available seat belts. This will re- duce the likelihood of injury to both thewoman and the unborn child. The lap belt
should be worn across the thighs and as snug against the hips as possible, but not
across the waist. Consult your doctor if you have any additional questions or con-
cerns.Seat belt pretensioner
system and force limiter
system* E00405701567
The front seat belts each have a pretensionersystem and force limiter system. (Single caband Club cab)
The front seat belts and the rear outer seat belts each have a pretensioner system and
force limiter system. (Double cab)
Pretensioner system
E00405802464
When the ignition switch or the operation
mode is under the following conditions, if there is a frontal impact or a side impact (ve-
hicles equipped with SRS side airbags and SRS curtain airbags) severe enough to injure
the driver and/or front passenger or when a rollover or overturning of the vehicle is de-
tected (if so equipped), the pretensioner sys- tem will retract the respective seat belts in-
stantaneously, thus maximizing the seat belt’s effectiveness.
[Except for vehicles equipped with keyless operation system]
The ignition switch is in the “ON” or
“START” position.
[Vehicles equipped with keyless operation system]
The operation mode is in ON.
WARNINGl To obtain the best results from your pre-
tensioner seat belt, make sure you have adjusted your seat correctly and wear your seat belt properly.CAUTIONl Installation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.
l If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point. It is important to do so be-
cause unexpected activation of the preten-
sioner seat belts could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe impact, even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat
belts have been activated, we recommend you to have them replaced by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.SRS warning lamp
E00405901413
This warning lamp is shared by the SRS air-
bags and the pretensioner seat belts.
Refer to “SRS warning lamp” on page 4-35.
Pregnant women restraint
4-10OKTE17E1Seat and seat belts4

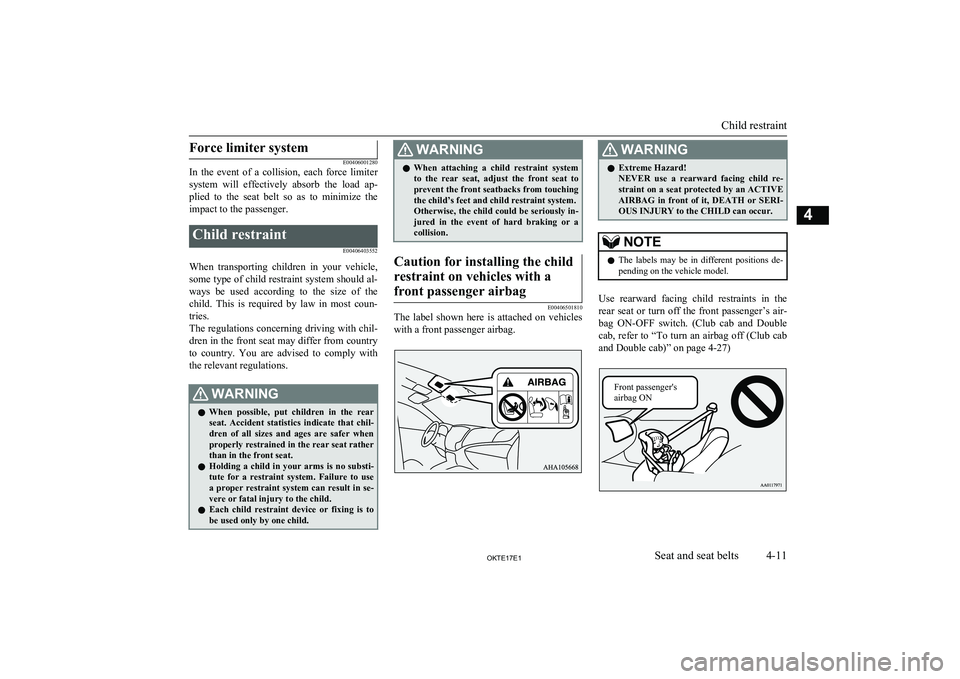

Force limiter system
E00406001280
In the event of a collision, each force limiter
system will effectively absorb the load ap- plied to the seat belt so as to minimize the
impact to the passenger.Child restraint
E00406403552
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.WARNINGl When attaching a child restraint system
to the rear seat, adjust the front seat to
prevent the front seatbacks from touching the child’s feet and child restraint system.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.Caution for installing the child
restraint on vehicles with a front passenger airbag
E00406501810
The label shown here is attached on vehicles with a front passenger airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.
Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch. (Club cab and Double
cab, refer to “To turn an airbag off (Club cab and Double cab)” on page 4-27)
Child restraint

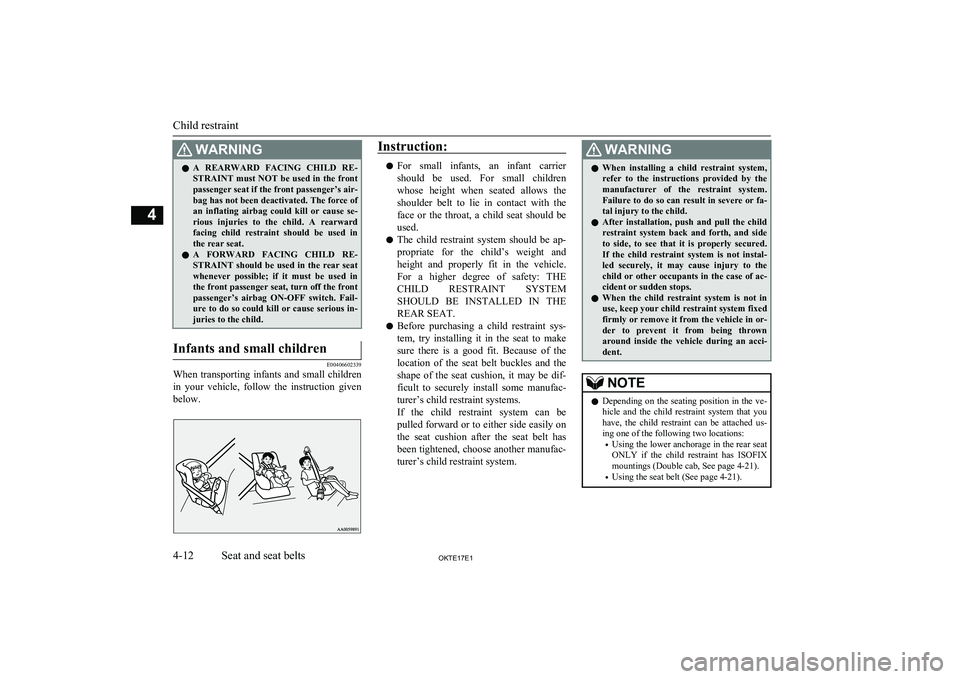

4-11OKTE17E1Seat and seat belts4 Front passenger's airbag ON

WARNINGlA REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint should be used in
the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if it must be used in the front passenger seat, turn off the front
passenger’s airbag ON-OFF switch. Fail- ure to do so could kill or cause serious in-
juries to the child.Infants and small children
E00406602339
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle. For a higher degree of safety: THE
CHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.
l Before purchasing a child restraint sys-
tem, try installing it in the seat to make sure there is a good fit. Because of the location of the seat belt buckles and the
shape of the seat cushion, it may be dif-
ficult to securely install some manufac- turer’s child restraint systems.
If the child restraint system can be
pulled forward or to either side easily on
the seat cushion after the seat belt has
been tightened, choose another manufac- turer’s child restraint system.
WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side to side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system fixed
firmly or remove it from the vehicle in or- der to prevent it from being thrown around inside the vehicle during an acci-
dent.NOTEl Depending on the seating position in the ve-
hicle and the child restraint system that you have, the child restraint can be attached us-
ing one of the following two locations:
• Using the lower anchorage in the rear seat
ONLY if the child restraint has ISOFIX mountings (Double cab, See page 4-21).
• Using the seat belt (See page 4-21).
Child restraint
4-12OKTE17E1Seat and seat belts4

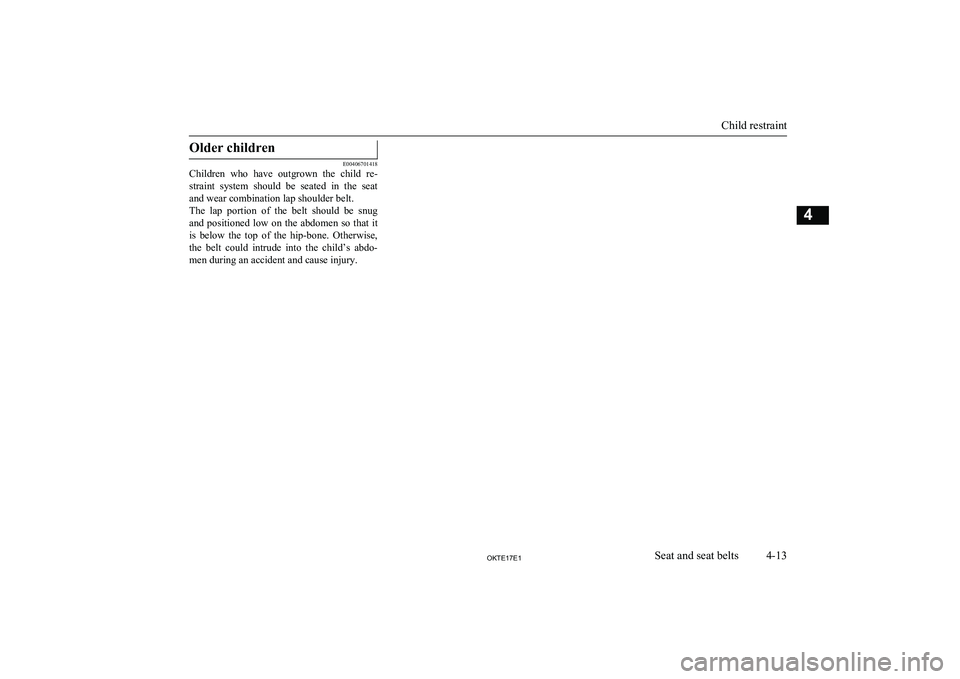

Older children
E00406701418
Children who have outgrown the child re-
straint system should be seated in the seat
and wear combination lap shoulder belt.
The lap portion of the belt should be snug
and positioned low on the abdomen so that it is below the top of the hip-bone. Otherwise,the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-13OKTE17E1Seat and seat belts4

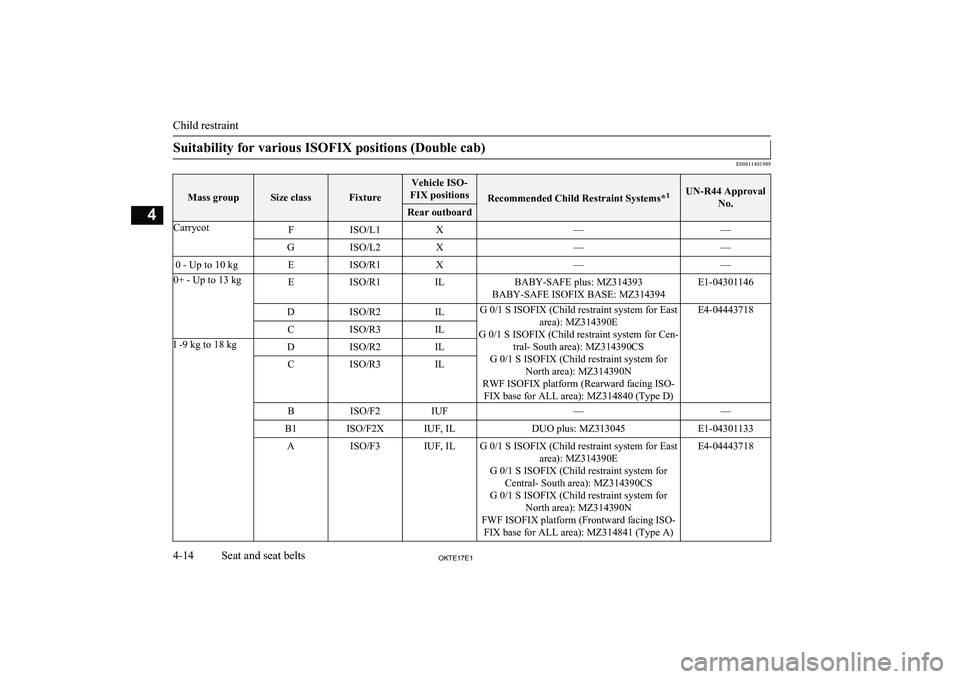

Suitability for various ISOFIX positions (Double cab)
E00411401989Mass groupSize classFixture
Vehicle ISO-
FIX positions
Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardCarrycotFISO/L1X——GISO/L2X——0 - Up to 10 kgEISO/R1X——0+ - Up to 13 kgEISO/R1ILBABY-SAFE plus: MZ314393
BABY-SAFE ISOFIX BASE: MZ314394E1-04301146DISO/R2ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Cen- tral- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
RWF ISOFIX platform (Rearward facing ISO- FIX base for ALL area): MZ314840 (Type D)E4-04443718CISO/R3ILI -9 kg to 18 kgDISO/R2ILCISO/R3ILBISO/F2IUF——B1ISO/F2XIUF, ILDUO plus: MZ313045E1-04301133AISO/F3IUF, ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
FWF ISOFIX platform (Frontward facing ISO- FIX base for ALL area): MZ314841 (Type A)E4-04443718
Child restraint
4-14OKTE17E1Seat and seat belts4

Mass groupSize classFixture
Vehicle ISO-
FIX positions

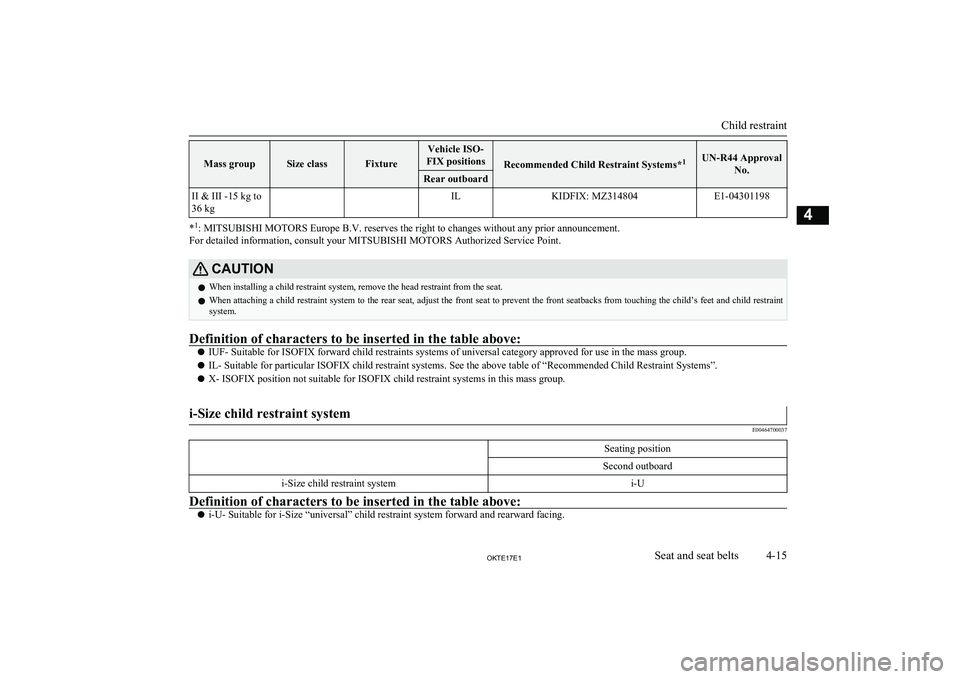

Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardII & III -15 kg to
36 kg ILKIDFIX: MZ314804E1-04301198
* 1
: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When attaching a child restraint system to the rear seat, adjust the front seat to prevent the front seatbacks from touching the child’s feet and child restraint
system.Definition of characters to be inserted in the table above:
l IUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.

i-Size child restraint system
E00464700037
Seating positionSecond outboardi-Size child restraint systemi-UDefinition of characters to be inserted in the table above:
l i-U- Suitable for i-Size “universal” child restraint system forward and rearward facing.

Child restraint
4-15OKTE17E1Seat and seat belts4

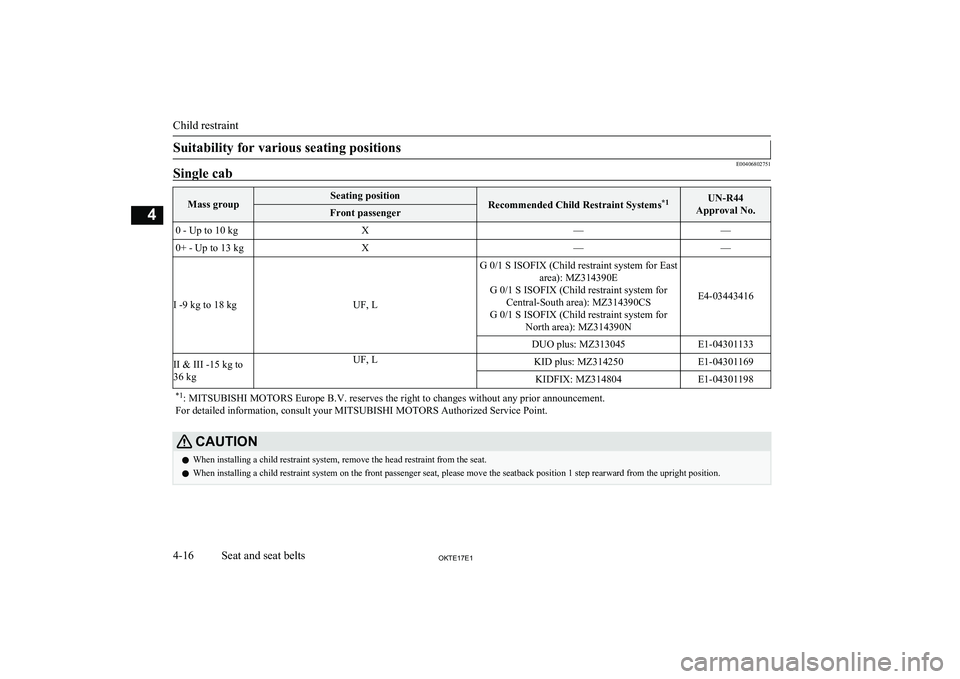

Suitability for various seating positions
E00406802751
Single cabMass groupSeating positionRecommended Child Restraint Systems*1UN-R44
Approval No.Front passenger0 - Up to 10 kgX——0+ - Up to 13 kgX——
I -9 kg to 18 kgUF, L
G 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgUF, LKID plus: MZ314250E1-04301169KIDFIX: MZ314804E1-04301198*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system on the front passenger seat, please move the seatback position 1 step rearward from the upright position.
Child restraint
4-16OKTE17E1Seat and seat belts4

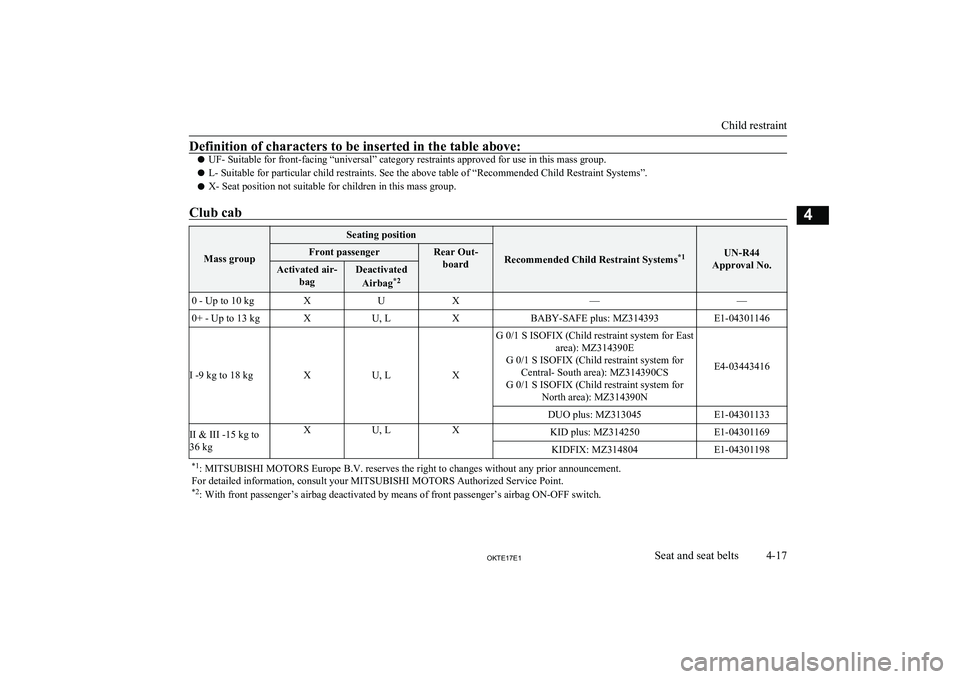

Definition of characters to be inserted in the table above:
lUF- Suitable for front-facing “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Club cab
Mass group
Seating position
Recommended Child Restraint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardActivated air- bagDeactivated
Airbag *20 - Up to 10 kgXUX——0+ - Up to 13 kgXU, LXBABY-SAFE plus: MZ314393E1-04301146
I -9 kg to 18 kgXU, LX
G 0/1 S ISOFIX (Child restraint system for East
area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgXU, LXKID plus: MZ314250E1-04301169KIDFIX: MZ314804E1-04301198*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *2 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Child restraint
4-17OKTE17E1Seat and seat belts4

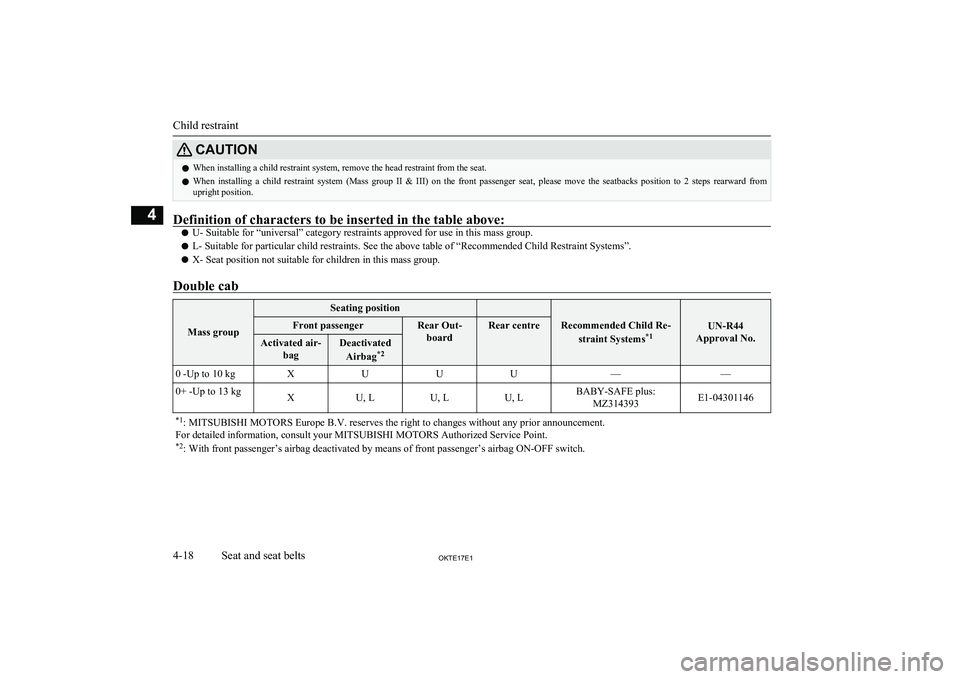

CAUTIONlWhen installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system (Mass group II & III) on the front passenger seat, please move the seatbacks position to 2 steps rearward from
upright position.Definition of characters to be inserted in the table above:
l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Double cab
Mass group
Seating position
Recommended Child Re-
straint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardRear centreActivated air- bagDeactivated
Airbag *20 -Up to 10 kgXUUU——0+ -Up to 13 kgXU, LU, LU, LBABY-SAFE plus:
MZ314393E1-04301146*1: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. *2 : With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch.
Child restraint
4-18OKTE17E1Seat and seat belts4
