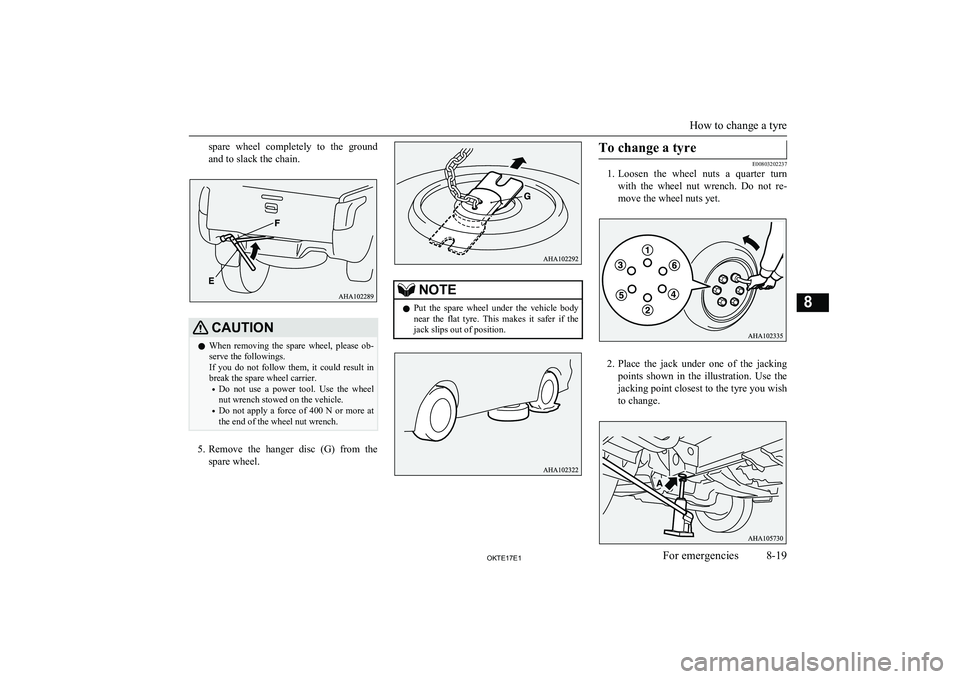

spare wheel completely to the ground
and to slack the chain.CAUTIONl When removing the spare wheel, please ob-
serve the followings.
If you do not follow them, it could result in
break the spare wheel carrier.
• Do not use a power tool. Use the wheel
nut wrench stowed on the vehicle.
• Do not apply a force of 400 N or more at
the end of the wheel nut wrench.
5. Remove the hanger disc (G) from the
spare wheel.
NOTEl Put the spare wheel under the vehicle body
near the flat tyre. This makes it safer if the jack slips out of position.To change a tyre
E00803202237
1. Loosen the wheel nuts a quarter turn
with the wheel nut wrench. Do not re- move the wheel nuts yet.
2. Place the jack under one of the jacking
points shown in the illustration. Use the jacking point closest to the tyre you wish
to change.
How to change a tyre
8-19OKTE17E1For emergencies8
