Instruments and ControlsE085001021821. Audio* p. 7-39Digital clock* p. 7-101
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem (MMCS)*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Heater*/Air conditioning* p. 7-04
4. Front passenger’s airbag indicator p. 4-25, 4-27
5. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
6. Side ventilators p. 7-02
7. Glove box p. 7-104
8. Cigarette lighter p. 7-100
9. USB input terminal* p. 7-95 HDMI terminal* p. 7-98
10. Key slot* p. 6-21
11. Centre console under tray p. 7-104, 7-105
12. Gearshift lever* p. 6-27 Selector lever* p. 6-29
13. Parking brake lever p. 6-05
14. Cup holder p. 7-106
15. Floor console box p. 7-104, 7-105 Accessory socket p. 7-101
16. Easy Select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
17. Auto Stop & Go (AS&G) OFF switch* p. 6-23
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Hazard warning flasher switch p. 5-21
21. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
22. Bluetooth ®
2.0 interface* p. 7-76
23. Audio remote control switches* p. 7-51
24. Cruise control switch* p. 6-63
25. Rear window demister switch p. 5-27
Instruments and Controls
1-03OKTE18E1Overview/Quick guide1

1. Front passenger’s airbag indicator* p. 4-25, 4-27
2. Steering wheel height and reach adjustment lever p. 6-07
3. Audio remote control switches* p. 7-28, 7-51
4. Cruise control switch* p. 6-63
5. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
6. Bluetooth ®
2.0 interface* p. 7-76
7. Hazard warning flasher switch p. 5-21
8. Cigarette lighter p. 7-100
9. USB input terminal* p. 7-95 HDMI terminal* p. 7-98
10. Auto Stop & Go (AS&G) OFF switch* p. 6-23
11. Parking brake lever p. 6-05
12. Floor console box p. 7-104, 7-105 Accessory socket p. 7-101
13. Cup holder p. 7-106
14. Easy Select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
15. Gearshift lever* p. 6-27 Selector lever* p. 6-29
16. Centre console under tray p. 7-104, 7-105
17. Key slot* p. 6-21
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Fuses p. 10-17
21. Glove box p. 7-104
22. Side ventilators p. 7-02
23. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
24. Heater*/Air conditioning* p. 7-04
25. Centre ventilators p. 7-02
26. Rear window demister switch p. 5-27
Instruments and Controls
1-04OKTE18E1Overview/Quick guide1

23- Seat belt reminder/warning lamp® p. 4-08
24- Anti-lock brake system (ABS) warning lamp ® p. 6-57
25- Active Stability & Traction Control (ASTC) indication lamp ® p. 6-61
26- Active Stability & Traction Control (ASTC) OFF indication lamp
® p. 6-6127- Supplement Restraint System (SRS)
warning lamp ® p. 4-34
28- Brake warning lamp ® p. 5-15
29. Rear differential lock indication lamp* ® p. 6-45
30. 2WD/4WD operation indication lamp* ® p. 6-38
31. Low-range indication lamp* ® p. 6-3832- 2WD/4WD operation indication lamp*
® p. 6-42
33- Low-range indication lamp* ® p. 6-42

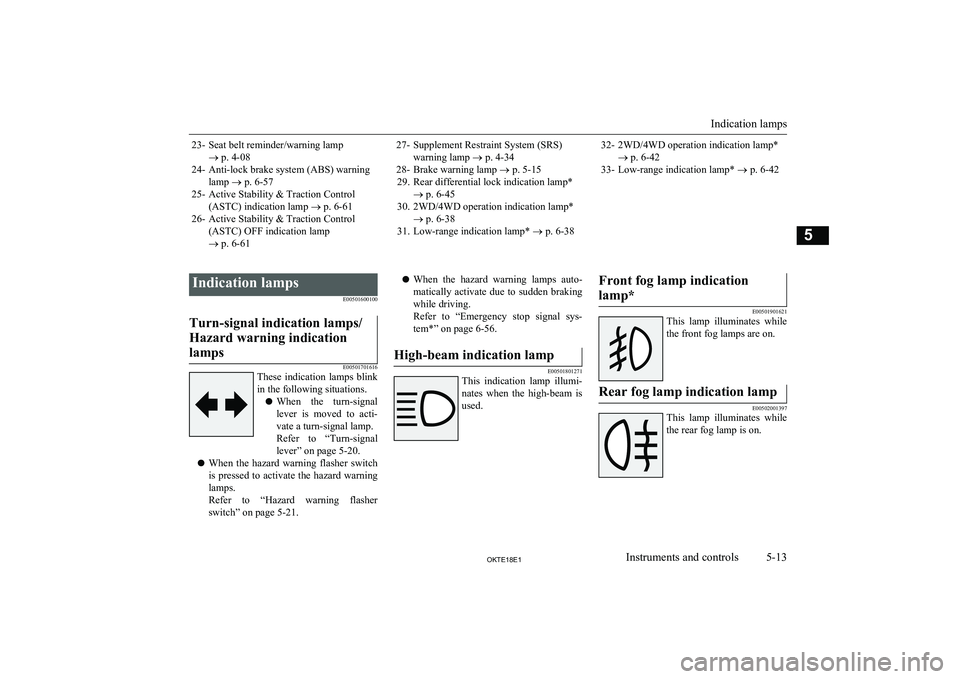

Indication lamps
E00501600100Turn-signal indication lamps/
Hazard warning indication lamps
E00501701616
These indication lamps blink
in the following situations.
l When the turn-signal
lever is moved to acti-
vate a turn-signal lamp.
Refer to “Turn-signal
lever” on page 5-20.
l When the hazard warning flasher switch
is pressed to activate the hazard warning lamps.
Refer to “Hazard warning flasher switch” on page 5-21.
l When the hazard warning lamps auto-
matically activate due to sudden braking
while driving.
Refer to “Emergency stop signal sys- tem*” on page 6-56.High-beam indication lamp
E00501801271
This indication lamp illumi-
nates when the high-beam is used.
Front fog lamp indication
lamp*
E00501901621
This lamp illuminates while
the front fog lamps are on.
Rear fog lamp indication lamp
E00502001397
This lamp illuminates while the rear fog lamp is on.
Indication lamps
5-13OKTE18E1Instruments and controls5

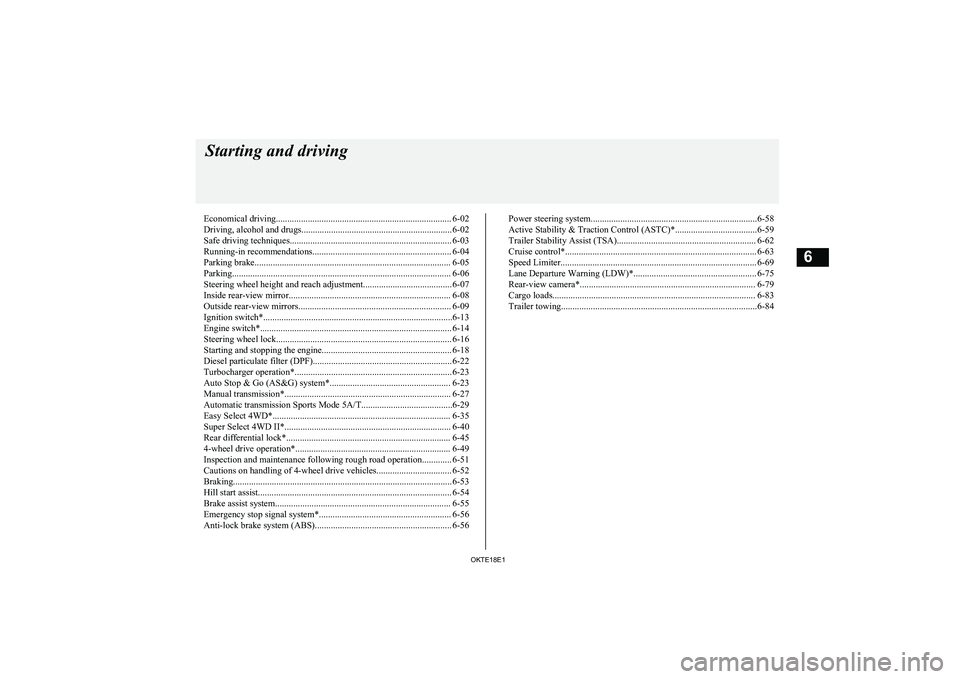

Economical driving............................................................................. 6-02
Driving, alcohol and drugs.................................................................. 6-02
Safe driving techniques....................................................................... 6-03
Running-in recommendations............................................................. 6-04 Parking brake...................................................................................... 6-05
Parking................................................................................................ 6-06
Steering wheel height and reach adjustment....................................... 6-07
Inside rear-view mirror....................................................................... 6-08 Outside rear-view mirrors................................................................... 6-09
Ignition switch*...................................................................................6-13 Engine switch*.................................................................................... 6-14
Steering wheel lock............................................................................. 6-16
Starting and stopping the engine......................................................... 6-18
Diesel particulate filter (DPF)............................................................. 6-22 Turbocharger operation*..................................................................... 6-23Auto Stop & Go (AS&G) system*..................................................... 6-23
Manual transmission*......................................................................... 6-27 Automatic transmission Sports Mode 5A/T........................................6-29Easy Select 4WD*.............................................................................. 6-35
Super Select 4WD II*......................................................................... 6-40
Rear differential lock*........................................................................ 6-45 4-wheel drive operation*.................................................................... 6-49
Inspection and maintenance following rough road operation............. 6-51
Cautions on handling of 4-wheel drive vehicles................................. 6-52
Braking................................................................................................ 6-53
Hill start assist..................................................................................... 6-54
Brake assist system............................................................................. 6-55
Emergency stop signal system*.......................................................... 6-56
Anti-lock brake system (ABS)............................................................ 6-56Power steering system.........................................................................6-58
Active Stability & Traction Control (ASTC)*....................................6-59
Trailer Stability Assist (TSA)............................................................. 6-62 Cruise control*.................................................................................... 6-63
Speed Limiter...................................................................................... 6-69
Lane Departure Warning (LDW)*...................................................... 6-75
Rear-view camera*............................................................................. 6-79
Cargo loads......................................................................................... 6-83Trailer towing......................................................................................6-84Starting and driving
OKTE18E16

Economical drivingE00600102608
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Accelerating and decelerating
Drive according to the traffic conditions andavoid sudden starts, sudden acceleration and
sudden braking, as they will increase fuel
consumption.
Shifting
Shift only at an appropriate speed and engine speed. Always use the highest shift position
possible.
The transfer shift lever or the drive mode-se-
lector should be set to “2H” when driving 4WD vehicles on normal roads and express
ways to obtain best possible fuel economy.
City traffic
Frequent starting and stopping increases the
average fuel consumption. Use roads with smooth traffic flow whenever possible. When driving on congested roads, avoid use of a
low shift position at high engine speeds.
Idling
The vehicle consumes fuel even during idling. Avoid extended idling whenever pos-
sible.
Speed
At higher vehicle speed, more fuel is con-
sumed. Avoid driving at full speed. Even a slight release of the accelerator pedal willsave a significant amount of fuel.
Tyre inflation pressure
Check the tyre inflation pressures at regular intervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In addition, low tyre pressures adversely affect
tyre wear and driving stability.
Cargo loads
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the ve-
hicle will greatly affect fuel consumption. Al- so avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Cold engine starting
Starting of a cold engine consumes more fuel. Unnecessary fuel consumption is alsocaused by keeping a hot engine running. Af-
ter the engine is started, commence driving as soon as possible.
Cooler or air conditioning
The use of the air conditioner will increase the fuel consumption.
Driving, alcohol and drugs
E00600200070
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Economical driving
6-02OKTE18E1Starting and driving6

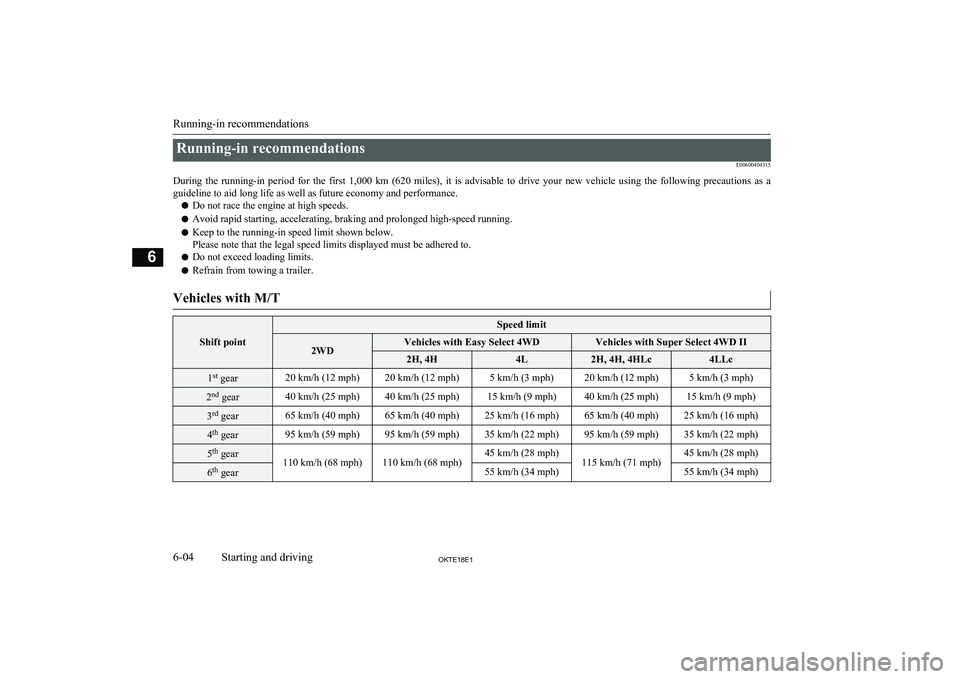

Running-in recommendationsE00600404315
During the running-in period for the first 1,000 km (620 miles), it is advisable to drive your new vehicle using the following precautions as a guideline to aid long life as well as future economy and performance.
l Do not race the engine at high speeds.
l Avoid rapid starting, accelerating, braking and prolonged high-speed running.
l Keep to the running-in speed limit shown below.
Please note that the legal speed limits displayed must be adhered to.
l Do not exceed loading limits.
l Refrain from towing a trailer.Vehicles with M/T
Shift point
Speed limit2WDVehicles with Easy Select 4WDVehicles with Super Select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear20 km/h (12 mph)20 km/h (12 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear40 km/h (25 mph)40 km/h (25 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear65 km/h (40 mph)65 km/h (40 mph)25 km/h (16 mph)65 km/h (40 mph)25 km/h (16 mph)4th
gear95 km/h (59 mph)95 km/h (59 mph)35 km/h (22 mph)95 km/h (59 mph)35 km/h (22 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)
45 km/h (28 mph)
115 km/h (71 mph)
45 km/h (28 mph)6th
gear55 km/h (34 mph)55 km/h (34 mph)
Running-in recommendations
6-04OKTE18E1Starting and driving6

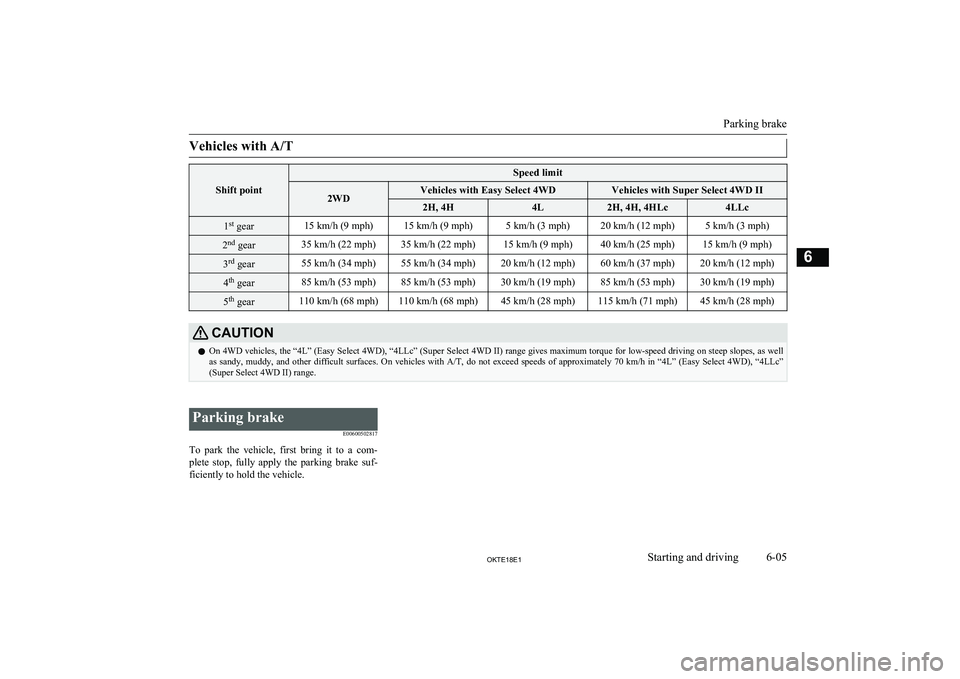

Vehicles with A/T
Shift point
Speed limit2WDVehicles with Easy Select 4WDVehicles with Super Select 4WD II2H, 4H4L2H, 4H, 4HLc4LLc1st
gear15 km/h (9 mph)15 km/h (9 mph)5 km/h (3 mph)20 km/h (12 mph)5 km/h (3 mph)2nd
gear35 km/h (22 mph)35 km/h (22 mph)15 km/h (9 mph)40 km/h (25 mph)15 km/h (9 mph)3rd
gear55 km/h (34 mph)55 km/h (34 mph)20 km/h (12 mph)60 km/h (37 mph)20 km/h (12 mph)4th
gear85 km/h (53 mph)85 km/h (53 mph)30 km/h (19 mph)85 km/h (53 mph)30 km/h (19 mph)5th
gear110 km/h (68 mph)110 km/h (68 mph)45 km/h (28 mph)115 km/h (71 mph)45 km/h (28 mph)CAUTIONl On 4WD vehicles, the “4L” (Easy Select 4WD), “4LLc” (Super Select 4WD II) range gives maximum torque for low-speed driving on steep slopes, as well
as sandy, muddy, and other difficult surfaces. On vehicles with A/T, do not exceed speeds of approximately 70 km/h in “4L” (Easy Select 4WD), “4LLc”
(Super Select 4WD II) range.

Parking brake
E00600502817
To park the vehicle, first bring it to a com- plete stop, fully apply the parking brake suf-
ficiently to hold the vehicle.
Parking brake
6-05OKTE18E1Starting and driving6

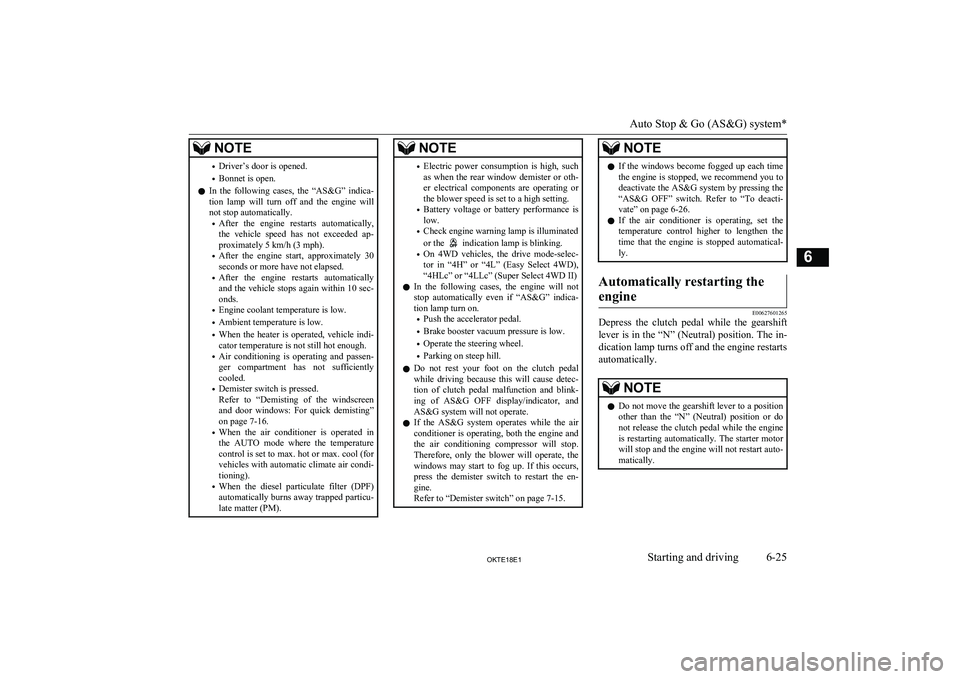

NOTE•Driver’s door is opened.
• Bonnet is open.
l In the following cases, the “AS&G” indica-
tion lamp will turn off and the engine will
not stop automatically.
• After the engine restarts automatically,
the vehicle speed has not exceeded ap- proximately 5 km/h (3 mph).
• After the engine start, approximately 30
seconds or more have not elapsed.
• After the engine restarts automatically
and the vehicle stops again within 10 sec- onds.
• Engine coolant temperature is low.
• Ambient temperature is low.
• When the heater is operated, vehicle indi-
cator temperature is not still hot enough.
• Air conditioning is operating and passen-
ger compartment has not sufficientlycooled.
• Demister switch is pressed.
Refer to “Demisting of the windscreen
and door windows: For quick demisting”
on page 7-16.
• When the air conditioner is operated in
the AUTO mode where the temperature
control is set to max. hot or max. cool (for
vehicles with automatic climate air condi- tioning).
• When the diesel particulate filter (DPF)
automatically burns away trapped particu- late matter (PM).NOTE• Electric power consumption is high, such
as when the rear window demister or oth- er electrical components are operating or
the blower speed is set to a high setting.
• Battery voltage or battery performance is
low.
• Check engine warning lamp is illuminated
or the
indication lamp is blinking.
• On 4WD vehicles, the drive mode-selec-
tor in “4H” or “4L” (Easy Select 4WD),
“4HLc” or “4LLc” (Super Select 4WD II)
l In the following cases, the engine will not
stop automatically even if “AS&G” indica-
tion lamp turn on.
• Push the accelerator pedal.
• Brake booster vacuum pressure is low.
• Operate the steering wheel.
• Parking on steep hill.
l Do not rest your foot on the clutch pedal
while driving because this will cause detec-
tion of clutch pedal malfunction and blink-
ing of AS&G OFF display/indicator, and
AS&G system will not operate.
l If the AS&G system operates while the air
conditioner is operating, both the engine and the air conditioning compressor will stop.
Therefore, only the blower will operate, the
windows may start to fog up. If this occurs,
press the demister switch to restart the en- gine.
Refer to “Demister switch” on page 7-15.
NOTEl If the windows become fogged up each time
the engine is stopped, we recommend you to
deactivate the AS&G system by pressing the
“AS&G OFF” switch. Refer to “To deacti- vate” on page 6-26.
l If the air conditioner is operating, set the
temperature control higher to lengthen the
time that the engine is stopped automatical- ly.Automatically restarting the
engine
E00627601265
Depress the clutch pedal while the gearshift lever is in the “N” (Neutral) position. The in- dication lamp turns off and the engine restarts
automatically.
NOTEl Do not move the gearshift lever to a position
other than the “N” (Neutral) position or do
not release the clutch pedal while the engine is restarting automatically. The starter motor will stop and the engine will not restart auto-
matically.
Auto Stop & Go (AS&G) system*
6-25OKTE18E1Starting and driving6

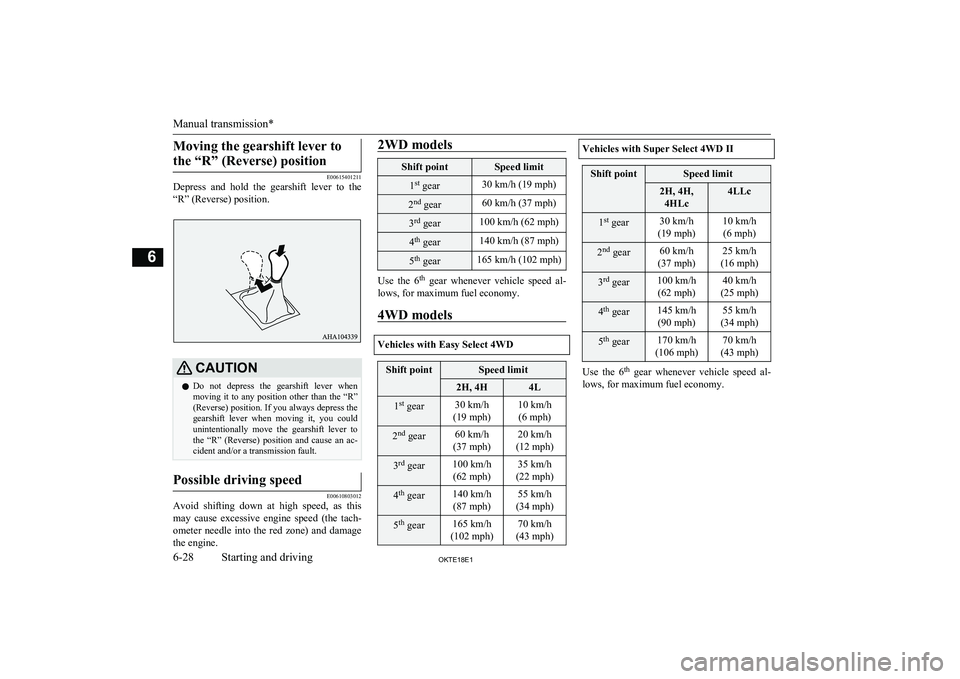

Moving the gearshift lever tothe “R” (Reverse) position
E00615401211
Depress and hold the gearshift lever to the
“R” (Reverse) position.
CAUTIONl Do not depress the gearshift lever when
moving it to any position other than the “R”
(Reverse) position. If you always depress the gearshift lever when moving it, you could unintentionally move the gearshift lever tothe “R” (Reverse) position and cause an ac-
cident and/or a transmission fault.Possible driving speed
E00610803012
Avoid shifting down at high speed, as this
may cause excessive engine speed (the tach-
ometer needle into the red zone) and damage the engine.
2WD modelsShift pointSpeed limit1 st
gear30 km/h (19 mph)2nd
gear60 km/h (37 mph)3rd
gear100 km/h (62 mph)4th
gear140 km/h (87 mph)5th
gear165 km/h (102 mph)
Use the 6 th
gear whenever vehicle speed al-
lows, for maximum fuel economy.
4WD models
Vehicles with Easy Select 4WD
Shift pointSpeed limit2H, 4H4L1 st
gear30 km/h
(19 mph)10 km/h (6 mph)2 nd
gear60 km/h
(37 mph)20 km/h
(12 mph)3 rd
gear100 km/h
(62 mph)35 km/h
(22 mph)4 th
gear140 km/h
(87 mph)55 km/h
(34 mph)5 th
gear165 km/h
(102 mph)70 km/h
(43 mph)Vehicles with Super Select 4WD IIShift pointSpeed limit2H, 4H, 4HLc4LLc1 st
gear30 km/h
(19 mph)10 km/h (6 mph)2 nd
gear60 km/h
(37 mph)25 km/h
(16 mph)3 rd
gear100 km/h
(62 mph)40 km/h
(25 mph)4 th
gear145 km/h
(90 mph)55 km/h
(34 mph)5 th
gear170 km/h
(106 mph)70 km/h
(43 mph)
Use the 6 th
gear whenever vehicle speed al-
lows, for maximum fuel economy.
Manual transmission*
6-28OKTE18E1Starting and driving6

NOTElIn sports mode, downshifts do not take place

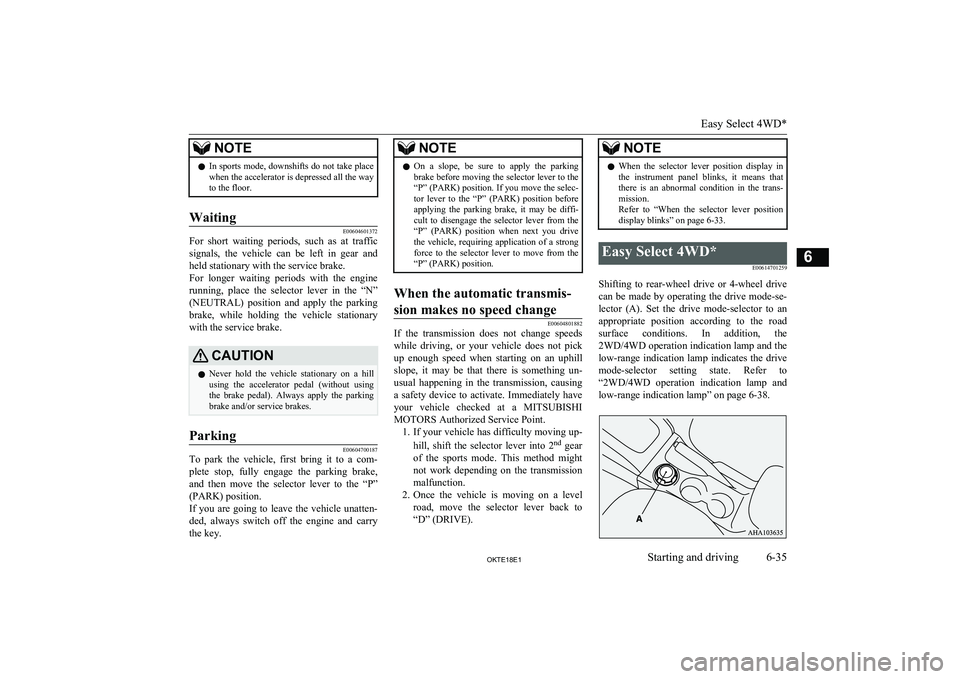

when the accelerator is depressed all the way to the floor.Waiting
E00604601372
For short waiting periods, such as at traffic
signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
CAUTIONl Never hold the vehicle stationary on a hill
using the accelerator pedal (without using
the brake pedal). Always apply the parking brake and/or service brakes.Parking
E00604700187
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and carry the key.
NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the automatic transmis-
sion makes no speed change
E00604801882
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. Immediately have
your vehicle checked at a MITSUBISHI
MOTORS Authorized Service Point. 1. If your vehicle has difficulty moving up-
hill, shift the selector lever into 2 nd
gear
of the sports mode. This method might
not work depending on the transmission malfunction.
2. Once the vehicle is moving on a level
road, move the selector lever back to“D” (DRIVE).
NOTEl When the selector lever position display in
the instrument panel blinks, it means that
there is an abnormal condition in the trans- mission.
Refer to “When the selector lever position
display blinks” on page 6-33.Easy Select 4WD*
E00614701259
Shifting to rear-wheel drive or 4-wheel drivecan be made by operating the drive mode-se-
lector (A). Set the drive mode-selector to an appropriate position according to the roadsurface conditions. In addition, the 2WD/4WD operation indication lamp and the
low-range indication lamp indicates the drive
mode-selector setting state. Refer to “2WD/4WD operation indication lamp and low-range indication lamp” on page 6-38.
Easy Select 4WD*
6-35OKTE18E1Starting and driving6
