MITSUBISHI L200 2018 Owner's Manual (in English)

L200
OWNER’S MANUAL
L200 - ENGLISH - OKTE18E1
L200 - ENGLISH - OKTE18E1

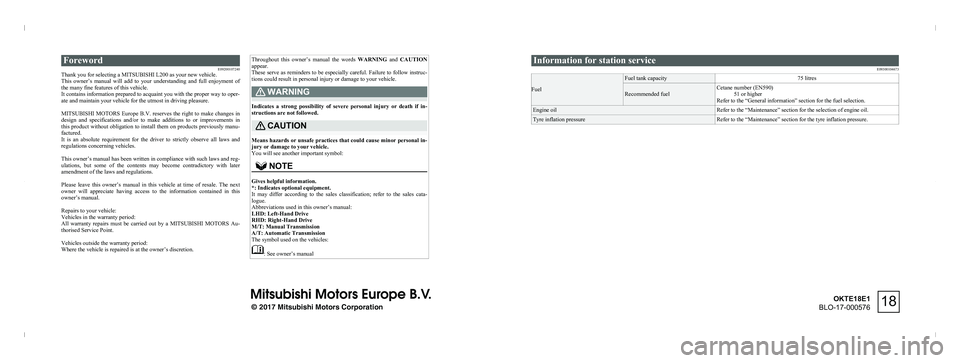

ForewordE09200107240
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.

MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.

This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.

Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.

Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorised Service Point.

Vehicles outside the warranty period:
Where the vehicle is repaired is at the owner’s discretion.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in- jury or damage to your vehicle.
You will see another important symbol:
NOTE
Gives helpful information.
*: Indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata- logue.
Abbreviations used in this owner’s manual: LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104673
Fuel
Fuel tank capacity75 litresRecommended fuelCetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2017 Mitsubishi Motors Corporation18
OKTE18E1
BLO-17-000576

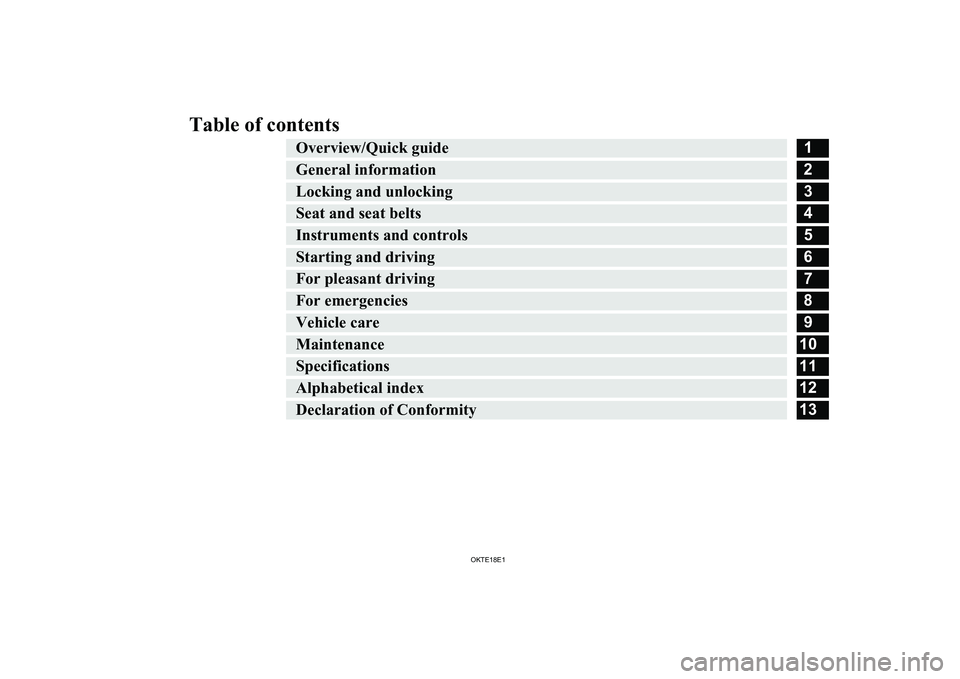

Table of contentsOverview/Quick guide1General information2Locking and unlocking3Seat and seat belts4Instruments and controls5Starting and driving6For pleasant driving7For emergencies8Vehicle care9Maintenance10Specifications11Alphabetical index12Declaration of Conformity13
OKTE18E1

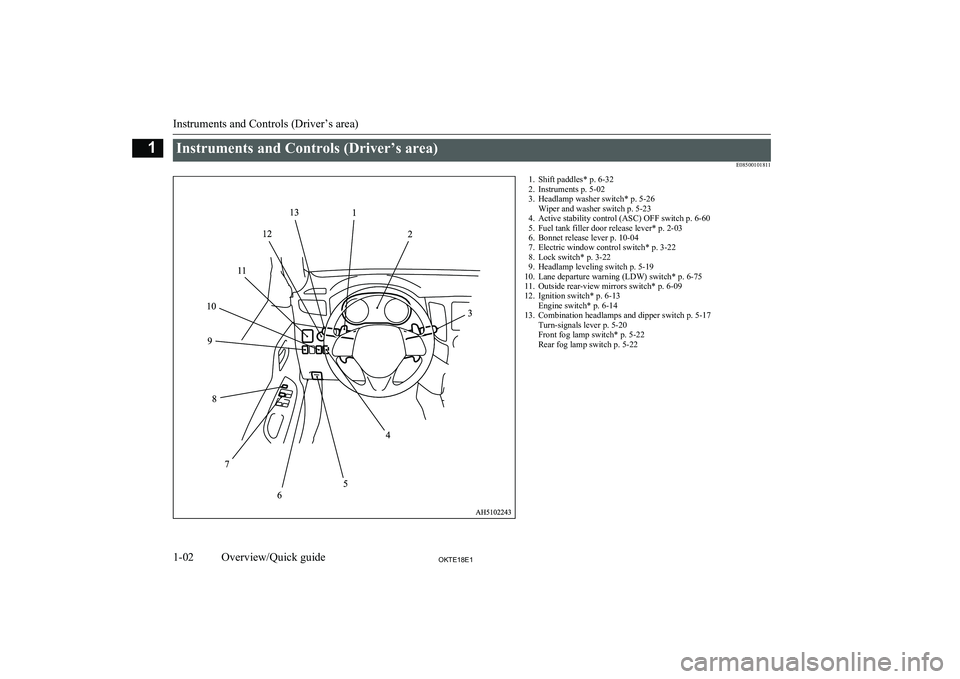

Instruments and Controls (Driver’s area)E085001018111. Shift paddles* p. 6-322. Instruments p. 5-02
3. Headlamp washer switch* p. 5-26 Wiper and washer switch p. 5-23
4. Active stability control (ASC) OFF switch p. 6-60
5. Fuel tank filler door release lever* p. 2-03
6. Bonnet release lever p. 10-04
7. Electric window control switch* p. 3-22
8. Lock switch* p. 3-22
9. Headlamp leveling switch p. 5-19
10. Lane departure warning (LDW) switch* p. 6-75
11. Outside rear-view mirrors switch* p. 6-09
12. Ignition switch* p. 6-13 Engine switch* p. 6-14
13. Combination headlamps and dipper switch p. 5-17 Turn-signals lever p. 5-20
Front fog lamp switch* p. 5-22
Rear fog lamp switch p. 5-22
Instruments and Controls (Driver’s area)
1-02OKTE18E1Overview/Quick guide1

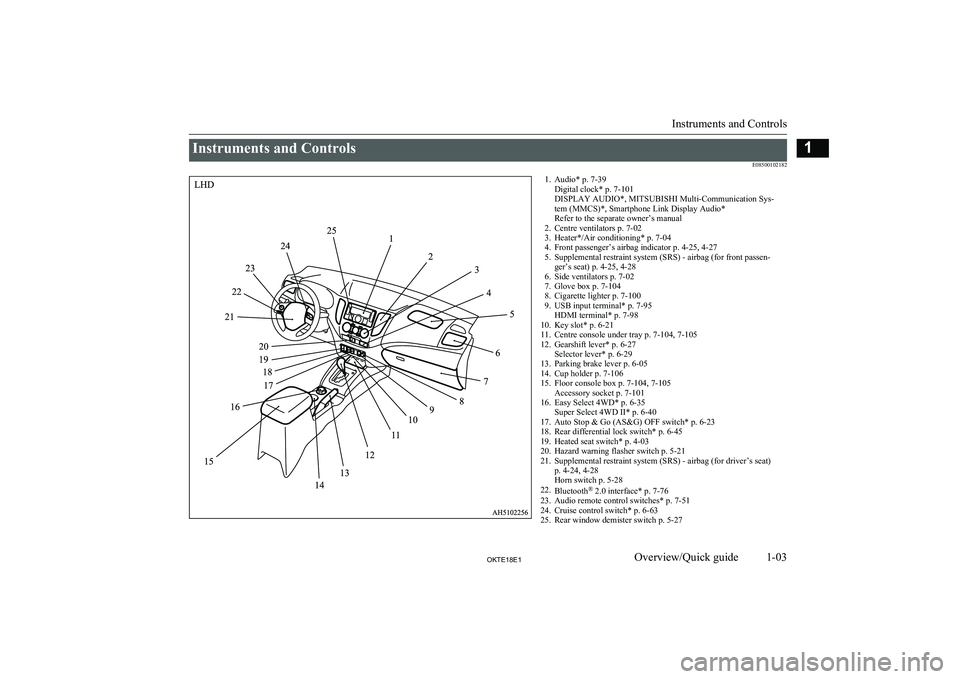

Instruments and ControlsE085001021821. Audio* p. 7-39Digital clock* p. 7-101
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem (MMCS)*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Heater*/Air conditioning* p. 7-04
4. Front passenger’s airbag indicator p. 4-25, 4-27
5. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
6. Side ventilators p. 7-02
7. Glove box p. 7-104
8. Cigarette lighter p. 7-100
9. USB input terminal* p. 7-95 HDMI terminal* p. 7-98
10. Key slot* p. 6-21
11. Centre console under tray p. 7-104, 7-105
12. Gearshift lever* p. 6-27 Selector lever* p. 6-29
13. Parking brake lever p. 6-05
14. Cup holder p. 7-106
15. Floor console box p. 7-104, 7-105 Accessory socket p. 7-101
16. Easy Select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
17. Auto Stop & Go (AS&G) OFF switch* p. 6-23
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Hazard warning flasher switch p. 5-21
21. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
22. Bluetooth ®
2.0 interface* p. 7-76
23. Audio remote control switches* p. 7-51
24. Cruise control switch* p. 6-63
25. Rear window demister switch p. 5-27
Instruments and Controls
1-03OKTE18E1Overview/Quick guide1

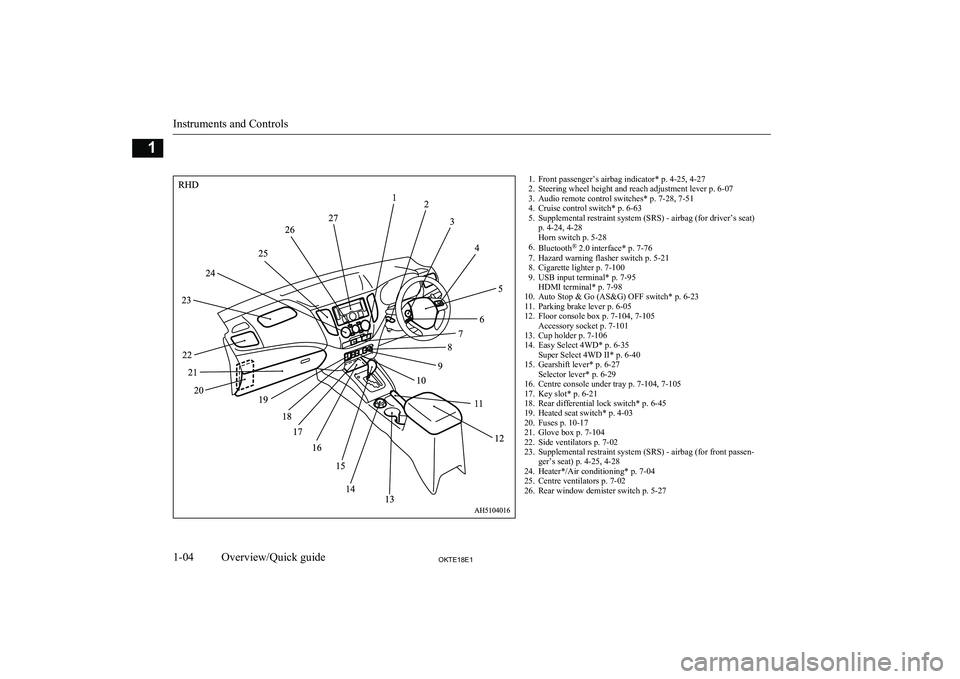

1. Front passenger’s airbag indicator* p. 4-25, 4-27
2. Steering wheel height and reach adjustment lever p. 6-07
3. Audio remote control switches* p. 7-28, 7-51
4. Cruise control switch* p. 6-63
5. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
6. Bluetooth ®
2.0 interface* p. 7-76
7. Hazard warning flasher switch p. 5-21
8. Cigarette lighter p. 7-100
9. USB input terminal* p. 7-95 HDMI terminal* p. 7-98
10. Auto Stop & Go (AS&G) OFF switch* p. 6-23
11. Parking brake lever p. 6-05
12. Floor console box p. 7-104, 7-105 Accessory socket p. 7-101
13. Cup holder p. 7-106
14. Easy Select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
15. Gearshift lever* p. 6-27 Selector lever* p. 6-29
16. Centre console under tray p. 7-104, 7-105
17. Key slot* p. 6-21
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Fuses p. 10-17
21. Glove box p. 7-104
22. Side ventilators p. 7-02
23. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
24. Heater*/Air conditioning* p. 7-04
25. Centre ventilators p. 7-02
26. Rear window demister switch p. 5-27
Instruments and Controls
1-04OKTE18E1Overview/Quick guide1

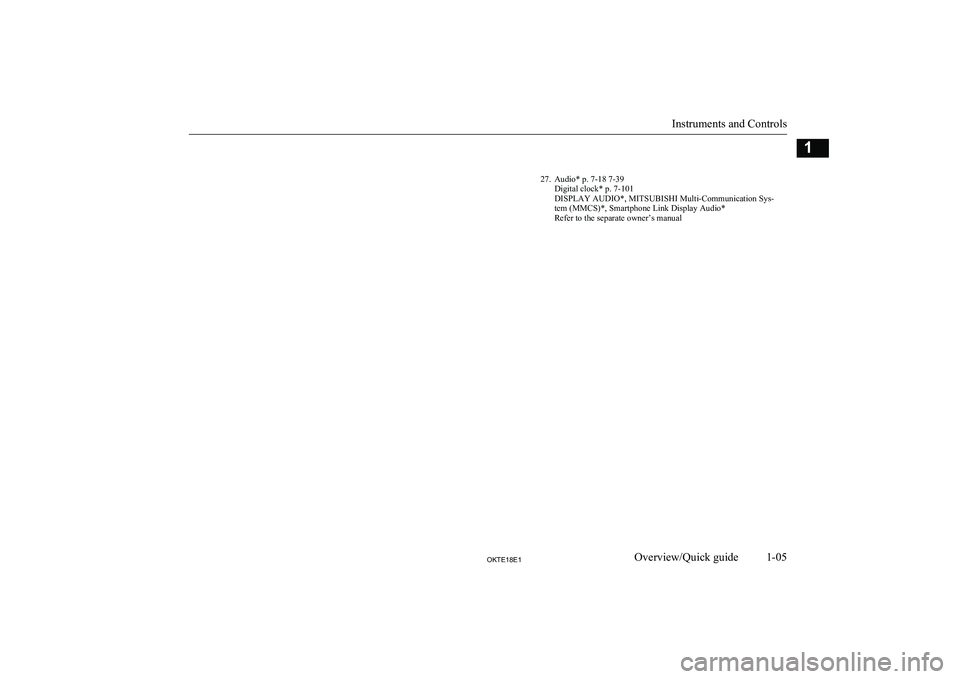

27. Audio* p. 7-18 7-39Digital clock* p. 7-101
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem (MMCS)*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
Instruments and Controls
1-05OKTE18E1Overview/Quick guide1

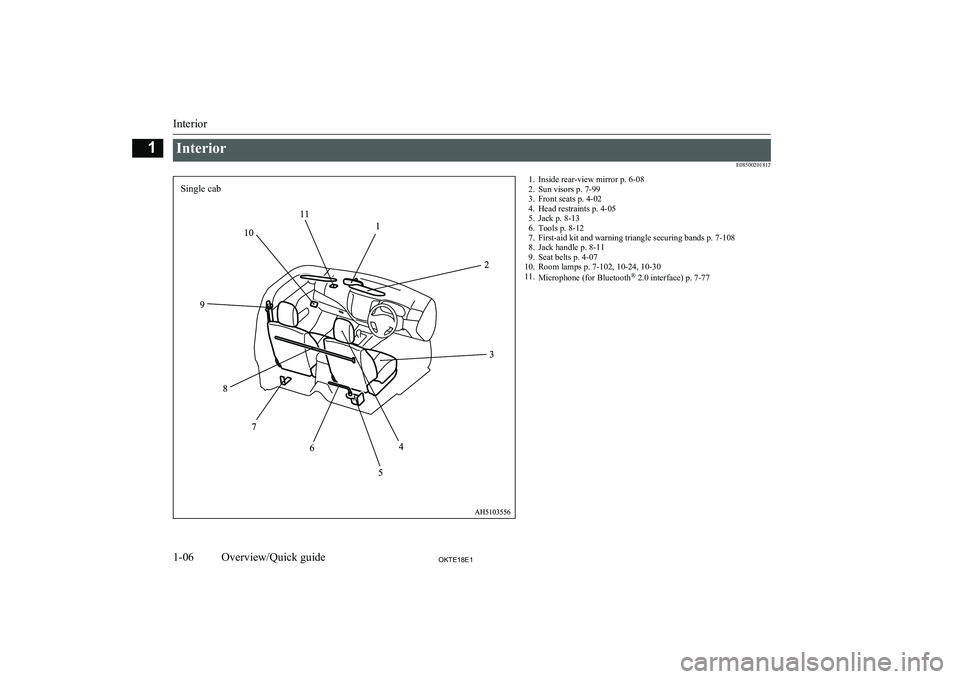

Interior E085002018121. Inside rear-view mirror p. 6-082. Sun visors p. 7-99
3. Front seats p. 4-02
4. Head restraints p. 4-05
5. Jack p. 8-13
6. Tools p. 8-12
7. First-aid kit and warning triangle securing bands p. 7-108
8. Jack handle p. 8-11
9. Seat belts p. 4-07
10. Room lamps p. 7-102, 10-24, 10-30
11. Microphone (for Bluetooth ®
2.0 interface) p. 7-77
Interior
1-06OKTE18E1Overview/Quick guide1Single cab

1. Inside rear-view mirror p. 6-08
2. Room lamp (front)* p. 7-102, 10-24, 10-30 Map lamps* p. 7-102, 10-24, 10-30
Sunglasses holder* p. 7-104, 7-106
3. Microphone (for Bluetooth ®
2.0 interface)* p. 7-77
4. Room lamp (rear) p. 7-102, 10-24, 10-30
5. Supplemental restraint system (SRS) - curtain airbag* p. 4-24, 4-32
6. Seat belts p. 4-07 Adjustable seat belt anchor p. 4-09
7. First-aid kit and warning triangle securing bands* p. 7-108
8. Jack p. 8-11
9. Jack handle p. 8-11
10. Rear seats* p. 4-04
11. Tools p. 8-12
12. First-aid kit and warning triangle securing bands* p. 7-108
13. Head restraints p. 4-05
14. Supplemental restraint system (SRS) - side airbag* p. 4-24, 4-31
15. Front seats p. 4-02
16. Supplemental restraint system (SRS) - front knee airbag (for driv- er’s seat)* p. 4-24, 4-28
17. Fuses p. 10-17
18. Steering wheel height and reach adjustment lever p. 6-07
19. Sun visors p. 7-99 Card holder p. 7-99
Vanity mirror p. 7-100
Interior
1-07OKTE18E1Overview/Quick guide1Club cab

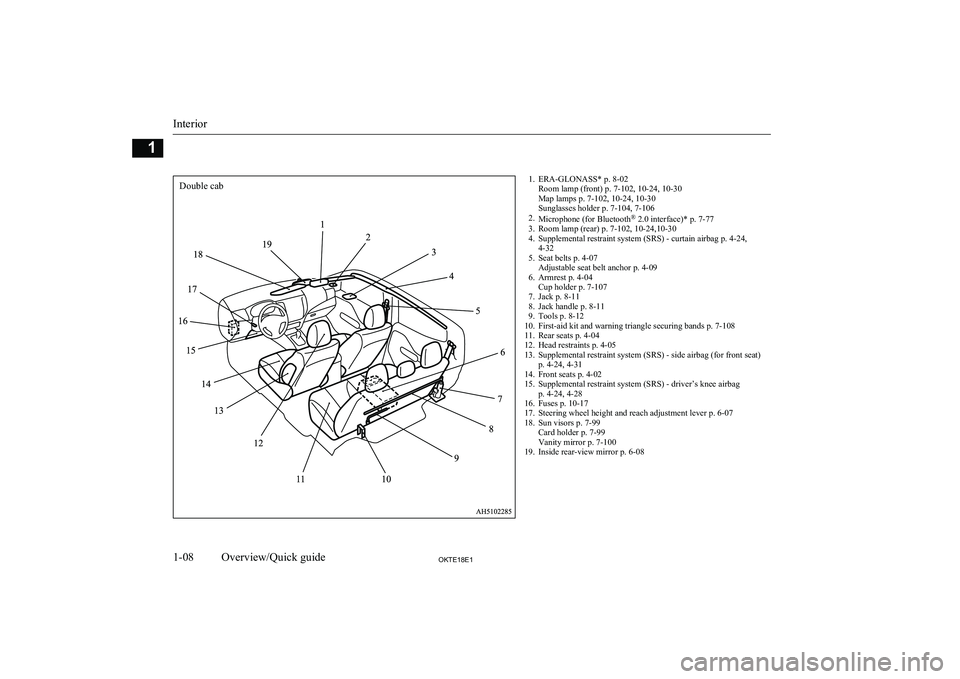

1. ERA-GLONASS* p. 8-02Room lamp (front) p. 7-102, 10-24, 10-30
Map lamps p. 7-102, 10-24, 10-30
Sunglasses holder p. 7-104, 7-106
2. Microphone (for Bluetooth ®
2.0 interface)* p. 7-77
3. Room lamp (rear) p. 7-102, 10-24,10-30
4. Supplemental restraint system (SRS) - curtain airbag p. 4-24, 4-32
5. Seat belts p. 4-07 Adjustable seat belt anchor p. 4-09
6. Armrest p. 4-04 Cup holder p. 7-107
7. Jack p. 8-11
8. Jack handle p. 8-11
9. Tools p. 8-12
10. First-aid kit and warning triangle securing bands p. 7-108
11. Rear seats p. 4-04
12. Head restraints p. 4-05
13. Supplemental restraint system (SRS) - side airbag (for front seat) p. 4-24, 4-31
14. Front seats p. 4-02
15. Supplemental restraint system (SRS) - driver’s knee airbag p. 4-24, 4-28
16. Fuses p. 10-17
17. Steering wheel height and reach adjustment lever p. 6-07
18. Sun visors p. 7-99 Card holder p. 7-99
Vanity mirror p. 7-100
19. Inside rear-view mirror p. 6-08
Interior
1-08OKTE18E1Overview/Quick guide1Double cab
