ForewordE09200107240
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorised Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the owner’s discretion.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in- jury or damage to your vehicle.
You will see another important symbol:
NOTE
Gives helpful information.
*: Indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata- logue.
Abbreviations used in this owner’s manual: LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104673
Fuel
Fuel tank capacity75 litresRecommended fuelCetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2017 Mitsubishi Motors Corporation18
OKTE18E1
BLO-17-000576
Page 23 of 466
Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-03Entering or leaving the vehicle........................................................... 2-05Installation of accessories................................................................... 2-05
Modification/alterations to the electrical or fuel systems................... 2-06
Genuine parts...................................................................................... 2-06
Safety and disposal information for used engine oil........................... 2-06
Disposal information for used batteries.............................................. 2-07General information
OKTE18E12
Page 28 of 466
Even when such parts are officially Author-ized, for example by a “general operators
permit” (an appraisal for the part) or through the execution of the part in an officially ap- proved manner of construction, or when a
single operation permit following the attach- ment or installation of such parts, it cannot be
deduced from that alone, that the driving safety of your vehicles has not been affected.
Consider also that there basically exists no li- ability on the part of the appraiser or the offi-
cial. Maximum safety can only be ensured
with parts recommended, sold and fitted or installed by a MITSUBISHI MOTORS Au-
thorized Service Point ( MITSUBISHI
MOTORS GENUINE replacement parts and
MITSUBISHI MOTORS accessories). The
same also pertains to modifications of vehi- cles with respect to the production specifica- tions. For safety reasons, do not attempt any
modifications other than those that follow the recommendations of a MITSUBISHI
MOTORS Authorized Service Point.Modification/alterations to
the electrical or fuel systems E00200401525
MITSUBISHI MOTORS has always manu-
factured safe, high quality vehicles. In order to maintain this safety and quality, it is im-
portant that any accessory that is to be fitted, or any modifications carried out which in-
volve the electrical or fuel systems, should be carried out in accordance with MITSUBISHI
MOTORS guidelines.CAUTIONl If the wires interferes with the vehicle body
or improper installation methods are used (protective fuses not included, etc.), elec-
tronic devices may be adversely affected, re-
sulting in a fire or other accident.Genuine parts
E00200501715
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted vehi-
cle offering the highest quality and dependa- bility.
Use MITSUBISHI MOTORS GENUINE
Parts, designed and manufactured to maintain your MITSUBISHI MOTORS vehicle at top
performance. MITSUBISHI MOTORS GEN- UINE Parts are identified by this mark and
are available at all MITSUBISHI MOTORS
Authorized Service Points.Safety and disposal
information for used engine
oil E00200601426WARNINGlProlonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
l Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con- tact.
l Keep used engine oils out of reach of chil-
dren.
Modification/alterations to the electrical or fuel systems
2-06OKTE18E1General information2
Page 102 of 466
Indication and warning lamps (multi information display)E005015040931. Front fog lamp indication lamp*® p. 5-13
2. Turn-signal indication lamps/Hazard warning indication lamps ® p. 5-13
3. High-beam indication lamp ® p. 5-13
4. Auto Stop & Go (AS&G) indication lamp* ® p. 6-23
5. Lane departure warning (LDW) standby indication lamp (green)* ® p. 6-75
Lane departure warning (LDW) lamp
(amber)* ® p. 6-75
6. Position lamp indication lamp* ® p. 5-147. Lane departure warning (LDW) system
ON indication lamp* ® p. 6-75
8. Rear fog lamp indication lamp ® p. 5-13
9. Cruise control indication lamp* ® p. 6-63
10. Diesel particulate filter (DPF) warning lamp ® p. 6-22
11. Diesel preheat indication lamp ® p. 5-14
12. Charge warning lamp ® p. 5-16
13. Check engine warning lamp ® p. 5-15
14. Fuel filter indication lamp ® p. 5-1415. A/T (automatic transmission) fluid tem-
perature warning lamp (vehicles with
A/T) ® p. 6-34
16. Oil pressure warning lamp ® p. 5-16
17. Auto Stop & Go (AS&G) OFF indica- tion lamp* ® p. 6-26
18. Washer fluid level warning lamp* ® p. 5-16
19. Multi-information display ® p. 5-02
20- For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
21. For details, refer to “Warning activa- tion” on page 3-12 (if so equipped).
22- Door ajar warning lamp ® p. 5-16
Indication and warning lamps (multi information display)
5-12OKTE18E1Instruments and controls5Type 1
Type 2
Page 106 of 466
CAUTIONlIf the lamp illuminates while the engine is
running, avoid driving at high speeds and have the system inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
Accelerator pedal and brake pedal response may be negatively influenced under these
conditions.NOTEl The engine electronic control module ac-
commodating the onboard diagnostic system has various fault data (especially about the
exhaust emission) stored.
This data will be erased if a battery cable is
disconnected which will make a rapid diag- nosis difficult. Do not disconnect a battery
cable when the check engine warning lamp is ON.
Charge warning lamp
E00502702304
This lamp illuminates when the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and goes off after the engine
has started.
CAUTIONl If it illuminates while the engine is running,
there is a problem in the charging system.
Immediately park your vehicle in a safe place and we recommend you to have it
checked.Oil pressure warning lamp
E00502801816
This lamp illuminates when
the ignition switch is turnedto the “ON” position or the
operation mode is put in ON, and the lamp goes off after
the engine has started. If it il-
luminates while the engine is running, the oil
pressure is too low.
If the warning lamp illuminates while the en- gine is running, turn the engine off and have
it inspected.
CAUTIONl If this lamp illuminates when the engine oil
level is not low, have it inspected.
l This warning lamp does not indicate the
amount of oil in the crankcase. This must be determined by checking the oil level on the
dipstick, while the engine is switched off.
l If you continue driving with low engine oil
level or with this warning lamp illuminated,
engine seizure may occur.NOTEl The oil pressure warning lamp should not be
treated as an indication of the engine’s oil
level. The oil level must be checked using
the dipstick.Door ajar warning lamp
E00503302020
This lamp illuminates when
a door is either open or not
completely closed.
If the vehicle speed reaches approximately 8 km/h
(5 mph) with a door open or
incompletely closed, a buzzer sounds 4 times as a warning.
CAUTIONl Before moving your vehicle, check that the
warning lamp is OFF.Washer fluid level warning
lamp*
E00569300042
This lamp comes on when
the washer fluid is running low.
If the lamp comes on, re-
plenish the container with washer fluid.
Refer to “Washer fluid” on page 10-08.
Warning lamps
5-16OKTE18E1Instruments and controls5
Page 140 of 466
Diesel particulate filter(DPF) E00619801457
The diesel particulate filter (DPF) is a device that captures most of the particulate matter
(PM) in the exhaust emissions of the diesel engine. The DPF automatically burns away trapped PM during vehicle operation. Under
certain driving conditions, however, the DPF is not able to burn away all of the trapped PM
and, as a result, an excessive amount of PM accumulates inside it.WARNINGl The DPF reaches very high temperatures.
Do not park your vehicle in areas where combustible materials such as dry grass
or leaves can come in contact with a hot exhaust system since a fire could occur.CAUTIONl Do not use any type of fuel or engine oil that
is not specified for your vehicle. Also, do not use any moisture-removing agent or oth-
er fuel additive. Such substances could have a detrimental effect on the DPF.
Refer to “Fuel selection” on page 2-02 and
“Engine oil” on page 10-05.NOTEl To minimize the likelihood of excessive ac-
cumulation of PM, try to avoid driving for long periods at low speeds and repeatedly
driving short distances, and try to keep high
engine speed driving as much as possible.
l The engine sounds slightly different than
usual while the DPF automatically burns
away trapped PM. The change in the engine
sound does not indicate a fault.
DPF warning lamp
The DPF warning lamp comes on in the
event of an abnormality in the DPF system.
If the DPF warning lamp
comes on during vehicle opera- tion
Steady illumination of the DPF warning lamp shows that the DPF has not been able to burn
away all of the trapped PM and that, as a re-
sult, an excessive amount of PM has accumu- lated inside it. To enable the DPF to burn
away the PM, try to drive the vehicle as fol-
lows:
l With the bar graph of engine coolant
temperature display stabilized in roughly
the middle of the scale, drive for approx- imately 20 minutes at a speed of at least
40 km/h (25 mph).
If the DPF warning lamp subsequently stays
on, contact your MITSUBISHI MOTORS
Authorized Service Point.
CAUTIONl You do not have to continuously drive ex-
actly as indicated above. Always strive to
drive safely in accordance with road condi- tions.
Diesel particulate filter (DPF)
6-22OKTE18E1Starting and driving6
Page 141 of 466
If the DPF warning lamp flash-es during vehicle operation
Flashing of the DPF warning lamp indicates an abnormality in the DPF system. Have the system inspected by a MITSUBISHI
MOTORS Authorized Service Point.
CAUTIONl Continuing to drive with the DPF warning
lamp flashing could result in engine trouble and DPF damage.Turbocharger operation*
E00611200083CAUTIONlDo not run the engine at high speeds (for ex-
ample, by revving it or by accelerating rap-
idly) immediately after starting it.
l Do not stop the engine immediately after
high-speed or uphill driving. First allow the
engine to idle to give the turbocharger a
chance to cool down.Turbocharger
The turbocharger increases engine power by
pushing large amounts of air into the engine’s
cylinders. The finned parts inside the turbo- charger turn at extremely high speeds and aresubjected to extremely high temperatures.
They are lubricated and cooled by engine oil.
If the engine oil is not replaced at the speci- fied intervals, the bearings may seize or emit
abnormal noise.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
Auto Stop & Go (AS&G)
system* E00627401104
The Auto Stop & Go (AS&G) system auto- matically stops and restarts the engine with- out operating the ignition switch or engineswitch when the vehicle is stopped, such as at
a traffic light or in a traffic jam, to reduce ex- haust gases, increase fuel efficiency.CAUTIONl If the vehicle will be stopped for a long time
or if you will leave the vehicle unattended,
stop the engine.NOTEl The accumulated time the engine has been
stopped by the AS&G system is displayed in
the multi information display. Refer to “Au-
to Stop & Go monitor” on page 5-05.Automatically stopping the en-
gine
E00627501352
The AS&G system is automatically activated when the ignition switch is turned to the
“ON” position or the operation mode is put in
ON.
You can deactivate the system by pressing the “AS&G OFF” switch.
Turbocharger operation*
6-23OKTE18E1Starting and driving6
Page 145 of 466
NOTElThis indicator will also turn on for a few
seconds when the ignition switch is turned to
the “ON” position or the operation mode put in ON.If the indication lamp blinks
while driving
E00627801111
If the indication lamp blinks, the AS&G
system is malfunctioning and will not oper-
ate.
We recommend you to consult a MITSUBISHI MOTORS Authorized Service
Point.

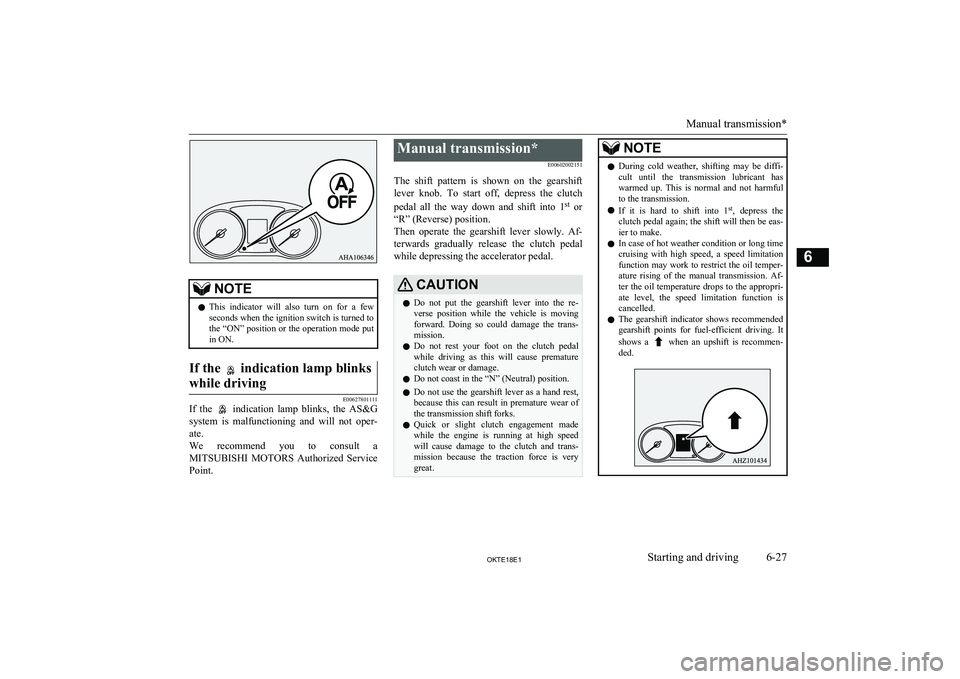

Manual transmission*
E00602002151
The shift pattern is shown on the gearshift lever knob. To start off, depress the clutch
pedal all the way down and shift into 1 st
or
“R” (Reverse) position.
Then operate the gearshift lever slowly. Af- terwards gradually release the clutch pedal
while depressing the accelerator pedal.CAUTIONl Do not put the gearshift lever into the re-
verse position while the vehicle is moving forward. Doing so could damage the trans-
mission.
l Do not rest your foot on the clutch pedal
while driving as this will cause premature
clutch wear or damage.
l Do not coast in the “N” (Neutral) position.
l Do not use the gearshift lever as a hand rest,
because this can result in premature wear of
the transmission shift forks.
l Quick or slight clutch engagement made
while the engine is running at high speed
will cause damage to the clutch and trans-
mission because the traction force is very great.NOTEl During cold weather, shifting may be diffi-
cult until the transmission lubricant has
warmed up. This is normal and not harmful
to the transmission.
l If it is hard to shift into 1 st
, depress the
clutch pedal again; the shift will then be eas-
ier to make.
l In case of hot weather condition or long time
cruising with high speed, a speed limitation
function may work to restrict the oil temper-
ature rising of the manual transmission. Af- ter the oil temperature drops to the appropri-
ate level, the speed limitation function is cancelled.
l The gearshift indicator shows recommended
gearshift points for fuel-efficient driving. It
shows a
when an upshift is recommen-
ded.
Manual transmission*
6-27OKTE18E1Starting and driving6
Page 167 of 466
4-wheel drive operation*E00606602487
By selecting 4-wheel drive, both axles of the
vehicle are rigidly connected with each other. This improves the traction characteristics. When turning sharp corners or moving for-
ward and backward repeatedly, however, the drive line is stressed, which is felt as a brak-
ing effect. A 4-wheel drive vehicle can accel-
erate more quickly and smoothly.
However, note that the braking distance is not shorter than that of a rear-wheel drive ve-hicle.
When using 4-wheel drive on rough roads
(snow, mud, sand, etc.), it is important to op- erate the vehicle correctly.NOTEl The driving posture should be more upright
and closer to the wheel than usual; adjust the
seat to a good position for easy steering and pedal operation. Be sure to wear the seatbelt.
l After driving on rough roads, check each
part of the vehicle and wash it thoroughlywith water. Refer to the “Vehicle care” sec-
tion and “Inspection and maintenance fol-
lowing rough road operation” on page 6-51.Driving on dry paved road and
highway
Select “2H” position (Easy Select 4WD),
“2H” or “4H” position (Super Select 4WD II) to drive on the dry paved road. Especially on
dry highway, never select the “4H” or “4L”
position (Easy Select 4WD), “4HLc” or “4LLc” position (Super Select 4WD II).
CAUTIONl Selecting “4H” or “4L” position (Easy Se-
lect 4WD), “4HLc” or “4LLc” position (Su-
per Select 4WD II) to drive on dry paved
road will increase the fuel consumption with possible noise generation and early tyrewear.
It may also increase the differential oil tem- perature, resulting in possible damage to the
driving system.
Further, the drive train will be subjected to excessive loading, possibly leading to oil
leakage, component seizure, or other serious faults.Driving on snowy or icy roads
Set the drive mode-selector to “4H” position
(Easy Select 4WD), “4H” or “4HLc” position in accordance with the road conditions (Su-
per Select 4WD II) and then gradually de-
press the accelerator pedal for a smooth start. Keep the pressure on the accelerator pedal asconstant as possible, and drive at low speed.
NOTEl The use of snow tyres and/or tyre chains is
recommended.
l Maintain a safe distance between vehicles,
avoid sudden braking, and use engine brak-
ing (downshifting).CAUTIONl Avoid sudden braking, sudden acceleration,
and sharp turning; such operations could
cause skidding and spinouts.
Driving on sandy or muddy
roads
Set the drive mode-selector to “4H” or “4L”
position (Easy Select 4WD), “4HLc” or “4LLc” position (Super Select 4WD II) and then gradually depress the accelerator pedal
for a smooth start. Keep the pressure on the accelerator pedal as constant as possible, and drive at low speed.
4-wheel drive operation*
6-49OKTE18E1Starting and driving6
Page 170 of 466
lRemove the insects, dried grass, etc.
clogging the radiator core and A/T oil
cooler.
l After crossing a stream, be sure to have
the following items inspected at a MITSUBISHI MOTORS Authorized
Service Point and take the necessary
measures. • Check the brake system and, if neces-
sary, have it serviced.
• Check the engine, transmission, trans-
fer, and differential oil or grease level and turbidity. If the oil or grease is
milky, it indicates water contamina-
tion. Replace it with new oil or grease.
• Grease the propeller shaft.
• Check the inside of the vehicle. If in-
gress of water is found, dry the carpetetc.
• Inspect the headlamps. If the head-
lamp bulb is flooded with water, have
the headlamp drained off.Cautions on handling of 4-
wheel drive vehicles E00606802102
Tyres and wheels
Since the driving torque can be applied to the 4 wheels, the performance of the vehiclewhen operating in 4-wheel drive is greatly af-
fected by the condition of the tyres.
Pay close attention to the tyres.
l Install specified tyres on all wheels. Re-
fer to “Tyres and wheels” on page 11-15.
l Be sure to the appropriate tyre inflation
pressure according to no cargo or cargo.
Refer to “Tyre inflation pressures” on
page 10-12.
l Be sure to fit all 4 tyres and wheels of
the same size and type.
When replacement of any of the tyres or wheels is necessary, replace all of them.
l All tyres should be rotated whenever the
wear difference between the front and
rear tyres is recognizable.
Good vehicle performance cannot be expec-
ted if there is a difference in wear between tyres. Refer to “Tyre rotation” on page 10-13.
l Check the tyre inflation pressure regular-
ly.
CAUTIONl Always use tyres of the same size, same
type, and same brand, and which have no wear differences. Using the tyres which dif-
fer in size, type, brands or the degree of wear or the inappropriate tyre inflation pres-
sure, will increase the differential oil tem- perature and may be impossible to shift the transfer, resulting in possible damage to the
driving system. Further, the drive train will be subjected to excessive loading, possibly
leading to oil leakage, component seizure, or
other serious faults.
Towing
If towing is necessary, we recommend you to
have it done by your MITSUBISHI
MOTORS Authorized Service Point or a
commercial tow truck service.
In the following cases, transport the vehicle
using a tow truck.
l The engine runs but the vehicle does not
move or abnormal noise is produced.
l Inspection of the vehicle’s underside re-
veals that oil or some other fluid is leak- ing.
Cautions on handling of 4-wheel drive vehicles
6-52OKTE18E1Starting and driving6
