MITSUBISHI L200 2019 Owner's Manual (in English)

Switching between hands-freemode and private mode
The Bluetooth

NOTEzIn the case of English, the system will recog-
nise both “zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the tele-
phone number you have just read, and
then register the number.
When the telephone number has been registered, the voice guide will say
“Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a
new location for the current entry, an-
swer “Yes”. The system will return to lo- cation selection in Step 5.
Answer “No” to end the registration process and return to the main menu.
NOTEz When the confirmation function is on, after
repeating the telephone number you have
read, the voice guide will ask “Is this cor- rect?” Answer “Yes”.
Answer “No” to return to telephone number registration in step 6.
To select and transfer one phone book en-
try from the phone book of the cellular phone
You can select 1 phone book entry from the
phone book of the cellular phone and register
it in the vehicle phone book.NOTEz Transfer is not permitted unless the vehicle
is parked. Before transferring, make sure
that the vehicle is parked in a safe location.
z All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth

NOTEzIf the Bluetooth

NOTEzIf the telephone number is already registered
in the selected location, the voice guide will
say “The current number is <current num-
ber>. New number, please.” Say a new tele- phone number to change the current number.
7. The voice guide will repeat the tele-
phone number.
When the confirmation function is on, the system will ask if the number is cor-
rect. Answer “Yes”.
Answer “No”, the system will return to the Step 3.
8. Once the telephone number is registered,
the voice guide will say “Number saved”
and then the system will return to the main menu.
NOTEz If the location where a telephone number
was already registered has been overwritten
with a new number, the voice guide will say “Number changed” and then the system will return to the main menu.
Editing a name
1. Press the SPEECH button.
2. Say “Phone book”.
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit name”.
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name you want to edit.NOTEz Say “List names” and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 7-90.
5. The voice guide will say “Changing
<name>”.
When the confirmation function is on, the system will ask if the name is cor-
rect. Answer “Yes” if you want to con-
tinue with the editing based on this in- formation. Answer “No” to return toStep 4.
6. The voice guide will say “Name please”.
Say the new name you want to register.
7. The registered name will be changed. When the change is complete, the sys-
tem will return to the main menu.
Listening to the list of registered names
1. Press the SPEECH button.
2. Say “Phone book”.
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “List names”.
4. Bluetooth

3.The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Delete”.
4. The voice guide will say “Please say the
name of the entry you would like to de- lete, or say list names”. Say the name of
the phone book entry in which the tele-
phone number you want to delete is reg- istered.NOTEz Say “List names”, and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 7-90.
5. If only one telephone number is regis-
tered in the selected phone book entry, the voice guide will say “Deleting <name> <location>”.
If multiple telephone numbers are regis- tered in the selected phone book entry,
the voice guide will say “Would you like
to delete [home@, [work@, [mobile@, [oth-
er@, or all?”
Select the location to delete, and the voice guide will say “Deleting <name> <location>”.
NOTEz To delete the telephone numbers from all lo-
cations, say “All”.
6. The system will ask if you really want to
delete the selected telephone number(s)
to go ahead with the deletion, answer
“Yes”. Answer “No”, the system will cancel deleting the telephone number(s)
and then return to step 4.
7. When the deletion of the telephone num-
ber is completed, the voice guide will say “<name> <location> deleted” and
then the system will return to the main menu.
If all locations are deleted, the system
will say “<name> and all locations de- leted” and the name will be removed
from the phone book. If numbers still re- main under the entry, the name will re-
tain the other associated numbers.
Erasing the phone book
You can delete all registered information from the vehicle phone book. 1. Press the SPEECH button.
2. Say “Phone book”.
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Erase all”.
4. For confirmation purposes, the voice
guide will ask “Are you sure you want toerase everything from your hands-free system phone book?” Answer “Yes.”
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
5. The voice guide will say “You are about
to delete everything from your hands- free system phone book. Do you want to
continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone
book” and then the system will delete all data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will
return to the main menu.Mobile phone book
All entries in the phone book stored in the cellular phone can be transferred in a batch
and registered in the mobile phone book.
Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

Bluetooth

The Bluetooth

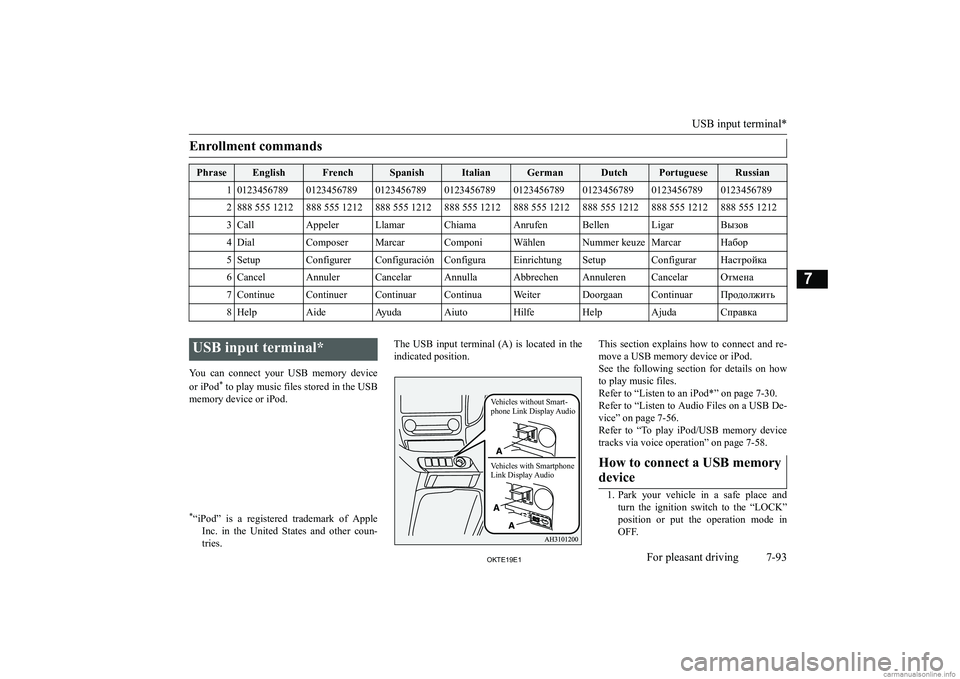

Enrollment commandsPhraseEnglishFrenchSpanishItalianGermanDutchPortugueseRussian1012345678901234567890123456789012345678901234567890123456789012345678901234567892888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 1212888 555 12123CallAppelerLlamarChiamaAnrufenBellenLigarYu~hy4DialComposerMarcarComponiWlhlenNummer keuzeMarcardwxhj5SetupConfigurerConfiguraciynConfiguraEinrichtungSetupConfigurardwkljhcdw6CancelAnnulerCancelarAnnullaAbbrechenAnnulerenCancelarelf_gw7ContinueContinuerContinuarContinuaWeiterDoorgaanContinuarfjh{he}blv8HelpAideAyudaAiutoHilfeHelpAjudahijwydw

USB input terminal*
You can connect your USB memory device or iPod *
to play music files stored in the USB
memory device or iPod.* “iPod” is a registered trademark of Apple
Inc. in the United States and other coun-tries.The USB input terminal (A) is located in theindicated position.This section explains how to connect and re-
move a USB memory device or iPod.
See the following section for details on how to play music files.
Refer to “Listen to an iPod*” on page 7-30.
Refer to “Listen to Audio Files on a USB De-
vice” on page 7-56.
Refer to “To play iPod/USB memory device tracks via voice operation” on page 7-58.How to connect a USB memory
device
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF.
USB input terminal*
7-932.7((For pleasant driving7Vehicles without Smart-
phone Link Display Audio
Vehicles with Smartphone
Link Display Audio

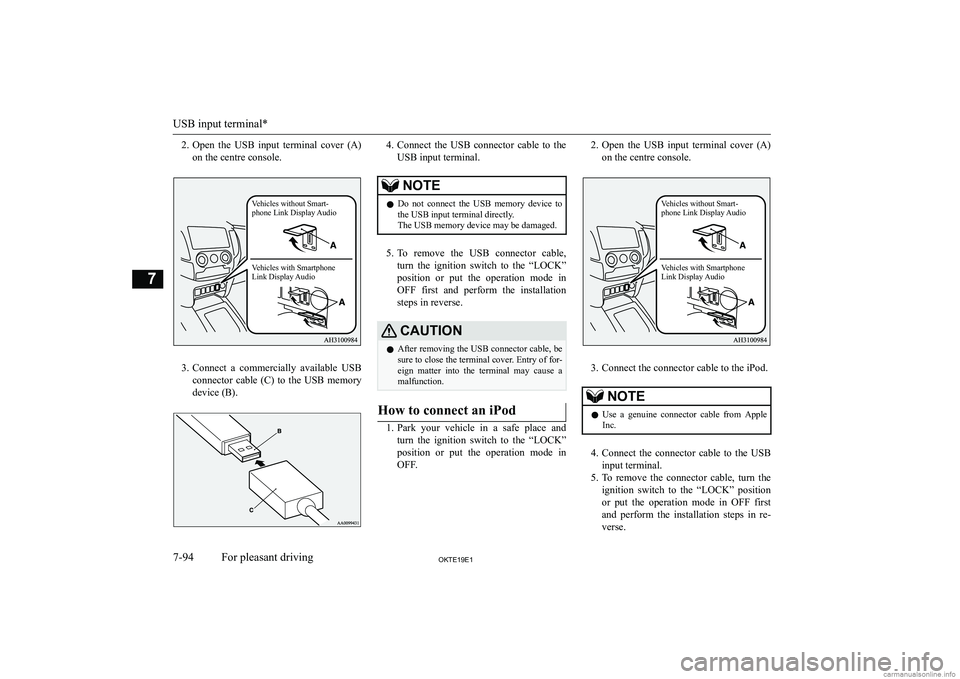

2.Open the USB input terminal cover (A)
on the centre console.
3. Connect a commercially available USB
connector cable (C) to the USB memory
device (B).
4. Connect the USB connector cable to the
USB input terminal.NOTEz Do not connect the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
5. To remove the USB connector cable,
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF first and perform the installation steps in reverse.
CAUT,ONz After removing the USB connector cable, be
sure to close the terminal cover. Entry of for- eign matter into the terminal may cause a
malfunction.How to connect an iPod
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF.
2. Open the USB input terminal cover (A)
on the centre console.
3. Connect the connector cable to the iPod.
NOTEz Use a genuine connector cable from Apple
Inc.
4. Connect the connector cable to the USB
input terminal.
5. To remove the connector cable, turn the
ignition switch to the “LOCK” position
or put the operation mode in OFF first and perform the installation steps in re-verse.
USB input terminal*
7-942.7((For pleasant driving7Vehicles without Smart-
phone Link Display Audio
Vehicles with Smartphone
Link Display Audio Vehicles without Smart-
phone Link Display Audio
Vehicles with Smartphone
Link Display Audio

CAUT,ONzAfter removing the connector cable, be sure
to close the terminal cover. Entry of foreign
matter into the terminal may cause a mal-
function.Types of connectable devices
and supported file specifica- tions
Except for vehicles equipped with the Bluetooth

NOTEzDo not connect to the USB input terminal
any device (hard disk, card reader, memory reader, etc.) other than the connectable devi- ces specified in the previous section. The de- vice and/or data may be damaged. If any of
these devices was connected by mistake, re- move it after turning the ignition switch to
the “LOCK” position or putting the opera-
tion mode in OFF.

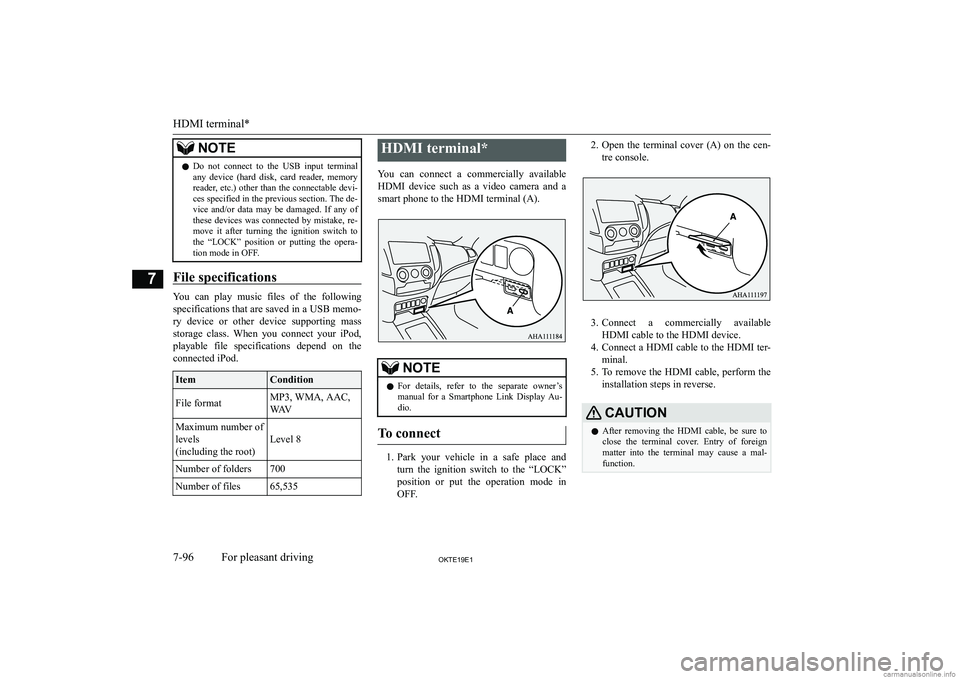

File specifications
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVMaximum number of
levels
(including the root)
Level 8
Number of folders700Number of files65,535HDMI terminal*
You can connect a commercially available HDMI device such as a video camera and a smart phone to the HDMI terminal (A).NOTEz For details, refer to the separate owner’s
manual for a Smartphone Link Display Au-
dio.
To connect
1. Park your vehicle in a safe place and
turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF.
2. Open the terminal cover (A) on the cen-
tre console.
3. Connect a commercially available
HDMI cable to the HDMI device.
4. Connect a HDMI cable to the HDMI ter-
minal.
5. To remove the HDMI cable, perform the
installation steps in reverse.
CAUT,ONz After removing the HDMI cable, be sure to
close the terminal cover. Entry of foreign
matter into the terminal may cause a mal- function.
HDMI terminal*
7-962.7((For pleasant driving7
