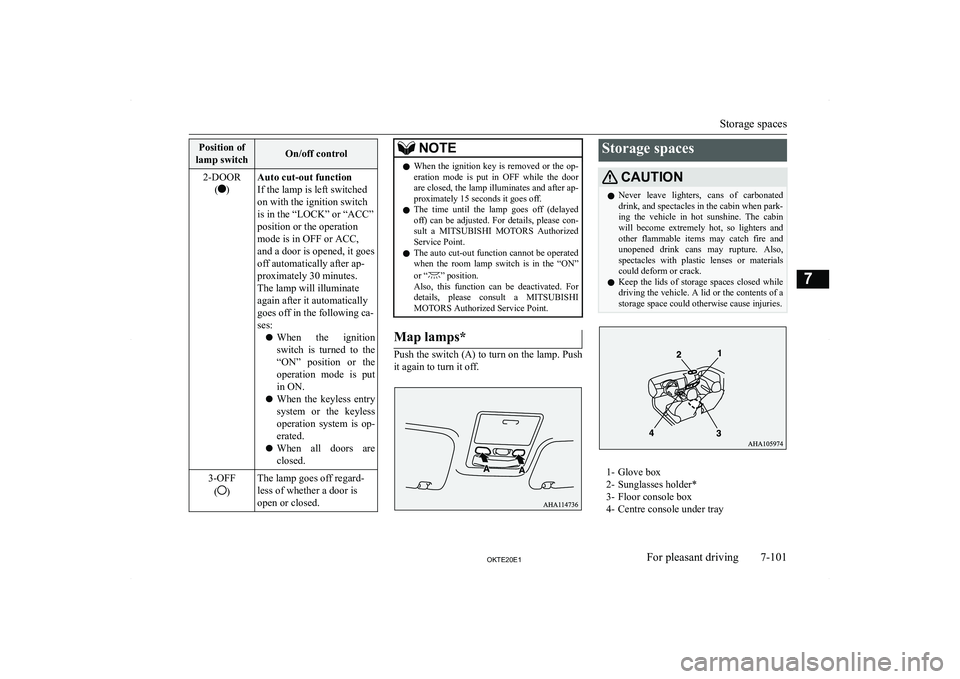

Position of
lamp switchOn/off control2-DOOR
(
)
Auto cut-out function
If the lamp is left switched
on with the ignition switch
is in the “LOCK” or “ACC”
position or the operation
mode is in OFF or ACC,
and a door is opened, it goes
off automatically after ap-
proximately 30 minutes.
The lamp will illuminate
again after it automatically
goes off in the following ca-
ses:
z When the ignition
switch is turned to the
“ON” position or the
operation mode is put in ON.
z When the keyless entry
system or the keyless
operation system is op- erated.
z When all doors are
closed.3-OFF
(
)
The lamp goes off regard-
less of whether a door is
open or closed.NOTEz When the ignition key is removed or the op-
eration mode is put in OFF while the door are closed, the lamp illuminates and after ap-proximately 15 seconds it goes off.
z The time until the lamp goes off (delayed
off) can be adjusted. For details, please con- sult a MITSUBISHI MOTORS Authorized
Service Point.
z The auto cut-out function cannot be operated
when the room lamp switch is in the “ON”
or “
” position.
Also, this function can be deactivated. For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
Map lamps*
Push the switch (A) to turn on the lamp. Push
it again to turn it off.
Storage spacesCAUT,ONz Never leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-
ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans may rupture. Also,spectacles with plastic lenses or materials
could deform or crack.
z Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.
1- Glove box
2- Sunglasses holder*
3- Floor console box
4- Centre console under tray
Storage spaces
7-1012.7(20(1For pleasant driving7

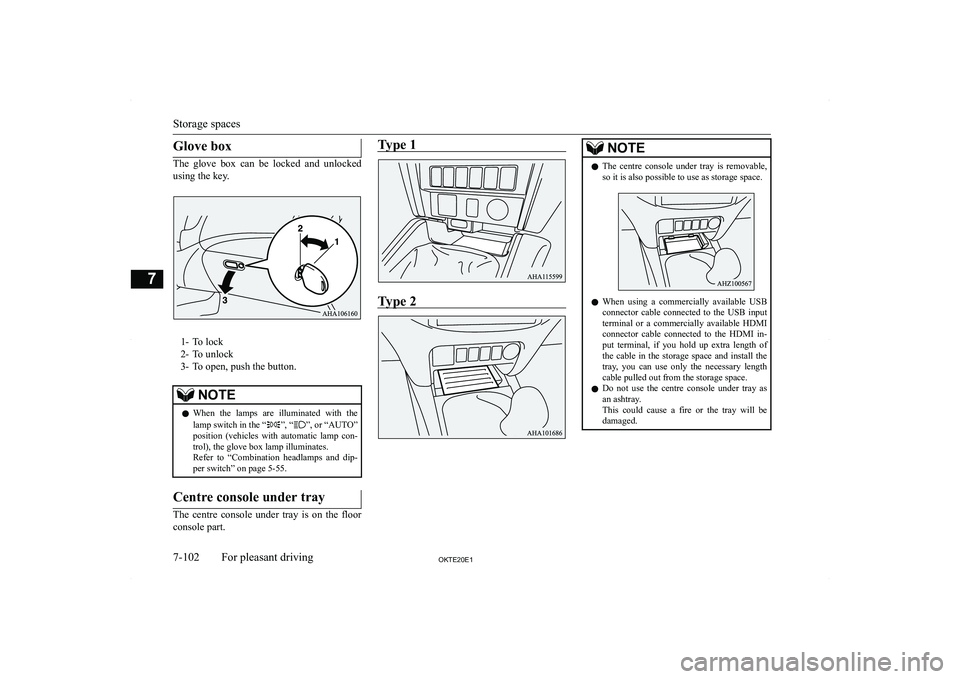

Glove box
The glove box can be locked and unlocked
using the key.
1- To lock
2- To unlock
3- To open, push the button.
NOTEz When the lamps are illuminated with the
lamp switch in the “”, “”, or “AUTO”
position (vehicles with automatic lamp con-
trol), the glove box lamp illuminates.
Refer to “Combination headlamps and dip- per switch” on page 5-55.Centre console under tray
The centre console under tray is on the floor
console part.
Type 1
Type 2
NOTEz The centre console under tray is removable,
so it is also possible to use as storage space.
z When using a commercially available USB
connector cable connected to the USB input
terminal or a commercially available HDMI connector cable connected to the HDMI in-put terminal, if you hold up extra length of the cable in the storage space and install the
tray, you can use only the necessary length cable pulled out from the storage space.
z Do not use the centre console under tray as
an ashtray.
This could cause a fire or the tray will be
damaged.
Storage spaces
7-1022.7(20(1For pleasant driving7

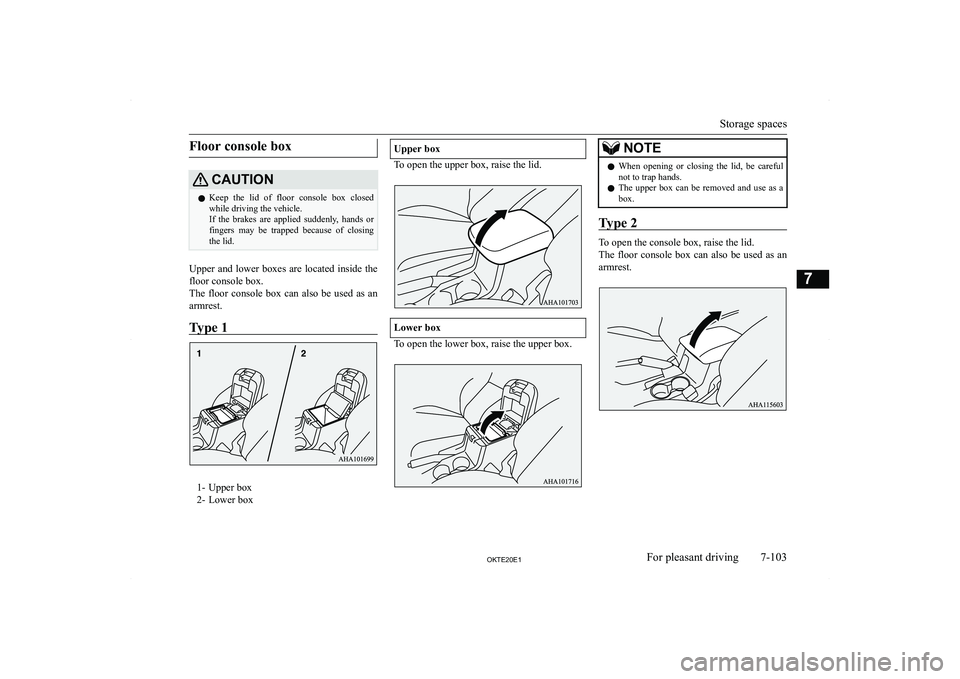

Floor console boxCAUT,ONzKeep the lid of floor console box closed
while driving the vehicle.
If the brakes are applied suddenly, hands or
fingers may be trapped because of closing
the lid.
Upper and lower boxes are located inside the
floor console box.
The floor console box can also be used as an armrest.
Type 1
1- Upper box
2- Lower box
Upper box
To open the upper box, raise the lid.
Lower box
To open the lower box, raise the upper box.
NOTEz When opening or closing the lid, be careful
not to trap hands.
z The upper box can be removed and use as a
box.
Type 2
To open the console box, raise the lid.
The floor console box can also be used as an armrest.
Storage spaces
7-1032.7(20(1For pleasant driving7

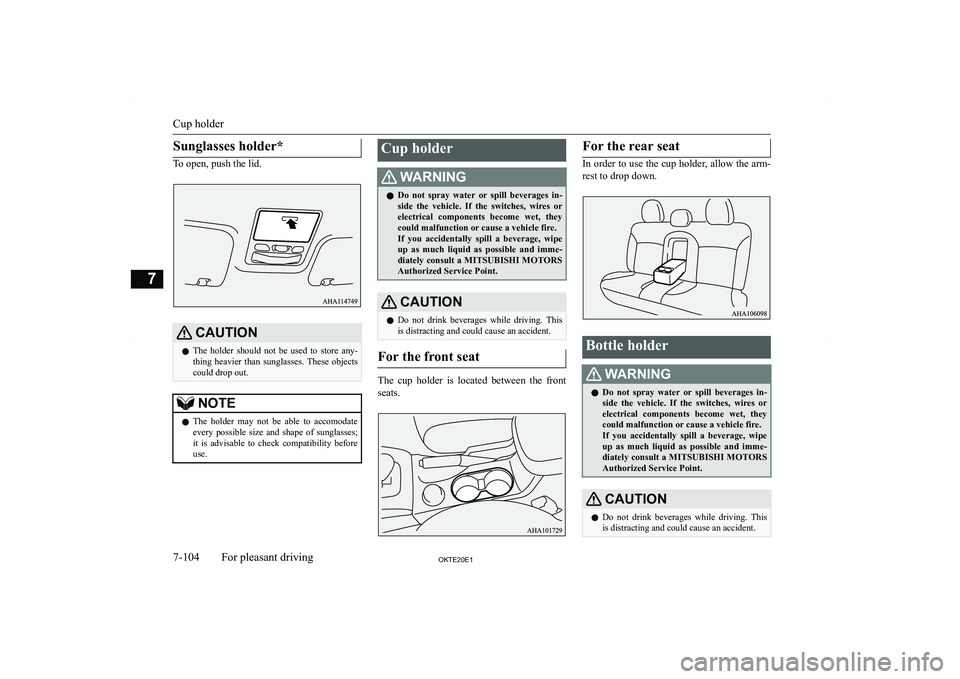

Sunglasses holder*
To open, push the lid.
CAUT,ONzThe holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEz The holder may not be able to accomodate
every possible size and shape of sunglasses;
it is advisable to check compatibility before use.Cup holder:ARN,NGz Do not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
For the front seat
The cup holder is located between the front
seats.
For the rear seat
In order to use the cup holder, allow the arm-
rest to drop down.
Bottle holder:ARN,NGz Do not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
Cup holder
7-1042.7(20(1For pleasant driving7

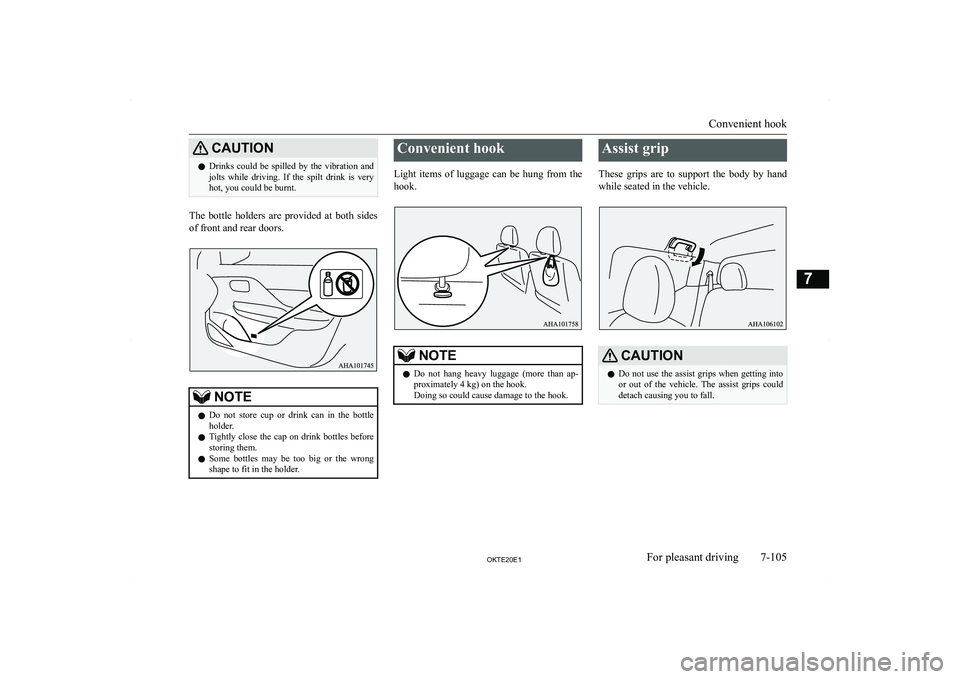

CAUT,ONzDrinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
The bottle holders are provided at both sides
of front and rear doors.
NOTEz Do not store cup or drink can in the bottle
holder.
z Tightly close the cap on drink bottles before
storing them.
z Some bottles may be too big or the wrong
shape to fit in the holder.Convenient hook
Light items of luggage can be hung from the hook.NOTEz Do not hang heavy luggage (more than ap-
proximately 4 kg) on the hook.
Doing so could cause damage to the hook.Assist grip
These grips are to support the body by hand
while seated in the vehicle.CAUT,ONz Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.
Convenient hook
7-1052.7(20(1For pleasant driving7

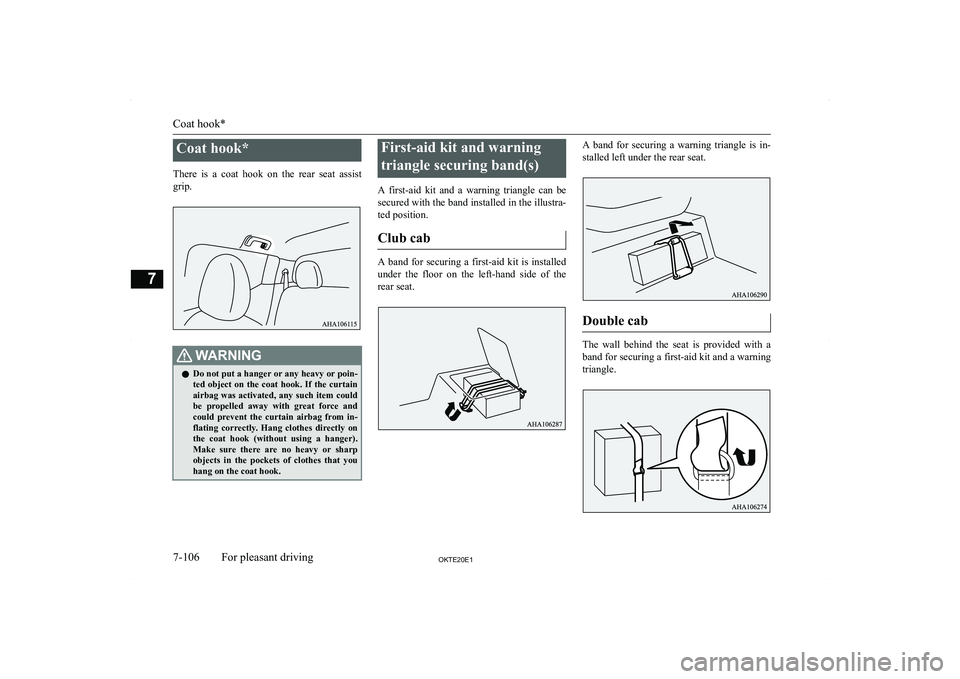

Coat hook*
There is a coat hook on the rear seat assist
grip.:ARN,NGz Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp
objects in the pockets of clothes that you hang on the coat hook.First-aid kit and warning
triangle securing band(s)
A first-aid kit and a warning triangle can be secured with the band installed in the illustra-
ted position.
Club cab
A band for securing a first-aid kit is installed
under the floor on the left-hand side of the
rear seat.
A band for securing a warning triangle is in- stalled left under the rear seat.
Double cab
The wall behind the seat is provided with a
band for securing a first-aid kit and a warning triangle.
Coat hook*
7-1062.7(20(1For pleasant driving7

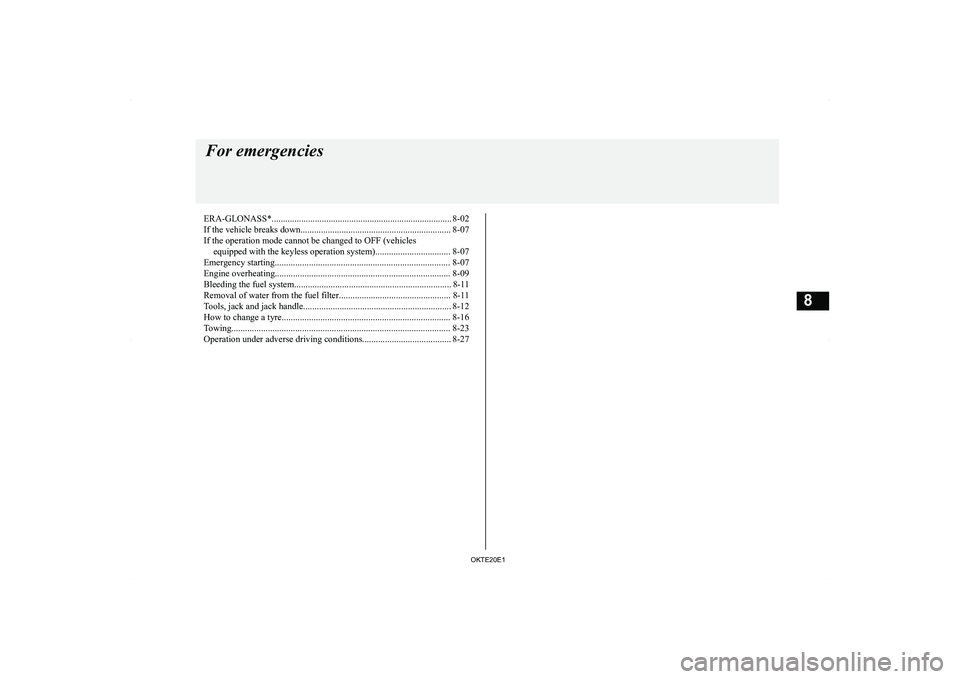

ERA-GLONASS*............................................................................... 8-02
If the vehicle breaks down.................................................................. 8-07 If the operation mode cannot be changed to OFF (vehicles equipped with the keyless operation system)................................. 8-07
Emergency starting............................................................................. 8-07
Engine overheating............................................................................. 8-09
Bleeding the fuel system..................................................................... 8-11
Removal of water from the fuel filter................................................. 8-11
Tools, jack and jack handle................................................................. 8-12 How to change a tyre.......................................................................... 8-16
Towing................................................................................................ 8-23 Operation under adverse driving conditions....................................... 8-27Foremergencies
2.7(20(18

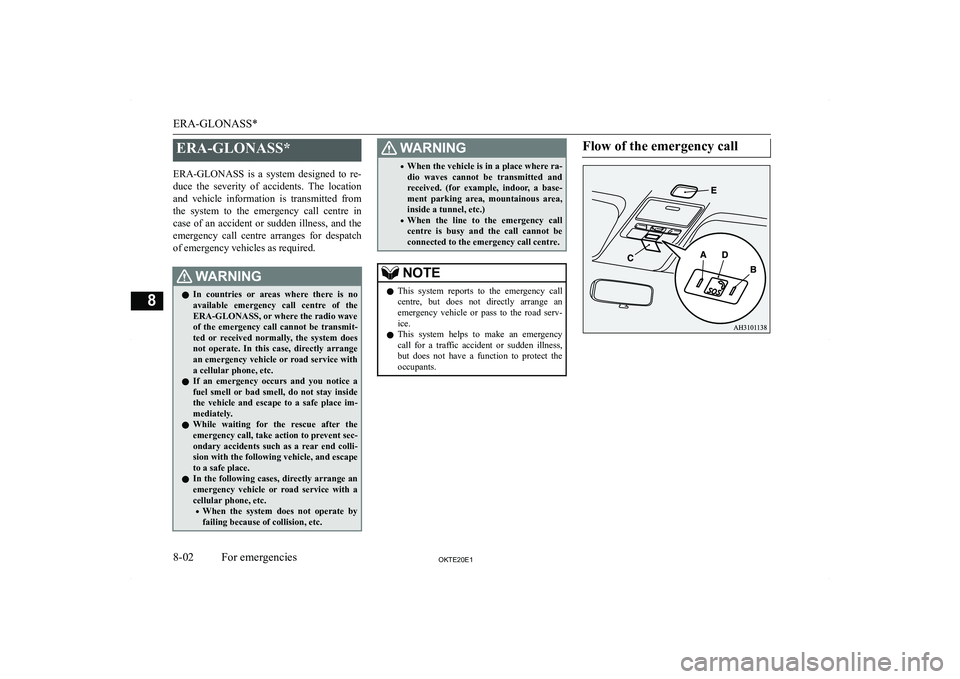

ERA-GLONASS*
ERA-GLONASS is a system designed to re-
duce the severity of accidents. The location
and vehicle information is transmitted from the system to the emergency call centre in
case of an accident or sudden illness, and the
emergency call centre arranges for despatch
of emergency vehicles as required.:ARN,NGz In countries or areas where there is no
available emergency call centre of theERA-GLONASS, or where the radio waveof the emergency call cannot be transmit-
ted or received normally, the system does not operate. In this case, directly arrange
an emergency vehicle or road service with
a cellular phone, etc.
z If an emergency occurs and you notice a
fuel smell or bad smell, do not stay inside the vehicle and escape to a safe place im-
mediately.
z While waiting for the rescue after the
emergency call, take action to prevent sec- ondary accidents such as a rear end colli-
sion with the following vehicle, and escape to a safe place.
z In the following cases, directly arrange an
emergency vehicle or road service with a
cellular phone, etc.

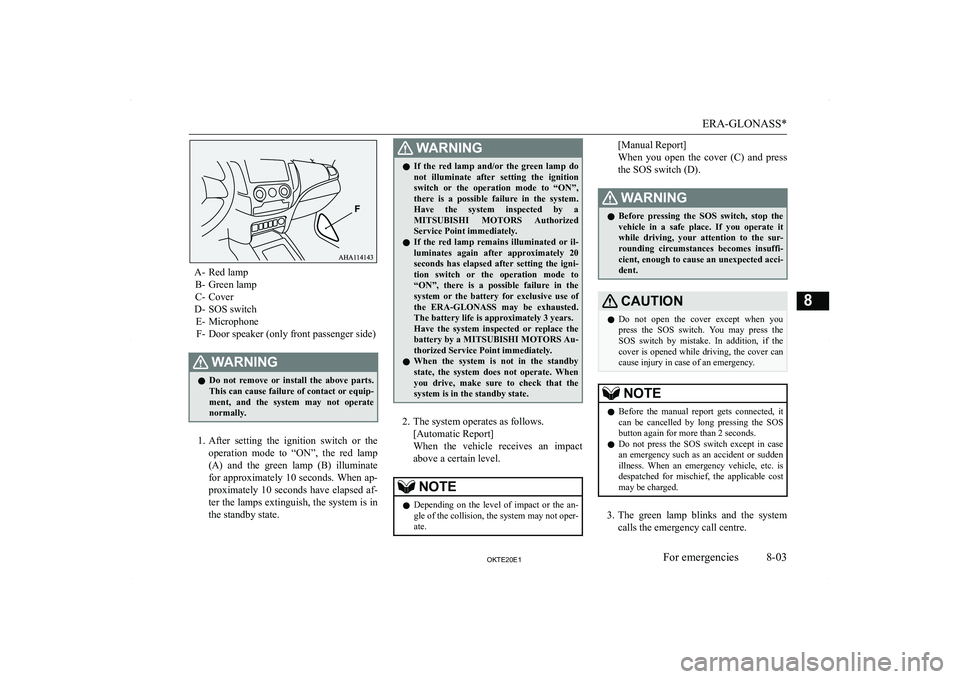

A- Red lampB- Green lamp
C- Cover
D- SOS switch E- MicrophoneF- Door speaker (only front passenger side)
:ARN,NGz Do not remove or install the above parts.
This can cause failure of contact or equip- ment, and the system may not operate
normally.
1. After setting the ignition switch or the
operation mode to “ON”, the red lamp
(A) and the green lamp (B) illuminate
for approximately 10 seconds. When ap- proximately 10 seconds have elapsed af-
ter the lamps extinguish, the system is in the standby state.
:ARN,NGz If the red lamp and/or the green lamp do
not illuminate after setting the ignition
switch or the operation mode to “ON”, there is a possible failure in the system. Have the system inspected by a
MITSUBISHI MOTORS Authorized
Service Point immediately.
z If the red lamp remains illuminated or il-
luminates again after approximately 20
seconds has elapsed after setting the igni-
tion switch or the operation mode to “ON”, there is a possible failure in the system or the battery for exclusive use of
the ERA-GLONASS may be exhausted. The battery life is approximately 3 years.
Have the system inspected or replace the
battery by a MITSUBISHI MOTORS Au-
thorized Service Point immediately.
z When the system is not in the standby
state, the system does not operate. When
you drive, make sure to check that the system is in the standby state.
2. The system operates as follows.
[Automatic Report@
When the vehicle receives an impact
above a certain level.
NOTEz Depending on the level of impact or the an-
gle of the collision, the system may not oper-
ate.[Manual Report@
When you open the cover (C) and press
the SOS switch (D).:ARN,NGz Before pressing the SOS switch, stop the
vehicle in a safe place. If you operate it while driving, your attention to the sur- rounding circumstances becomes insuffi-
cient, enough to cause an unexpected acci- dent.CAUT,ONz Do not open the cover except when you
press the SOS switch. You may press theSOS switch by mistake. In addition, if the
cover is opened while driving, the cover can cause injury in case of an emergency.NOTEz Before the manual report gets connected, it
can be cancelled by long pressing the SOS
button again for more than 2 seconds.
z Do not press the SOS switch except in case
an emergency such as an accident or sudden illness. When an emergency vehicle, etc. is
despatched for mischief, the applicable cost
may be charged.
3. The green lamp blinks and the system
calls the emergency call centre.
ERA-GLONASS*
8-032.7(20(1For emergencies8

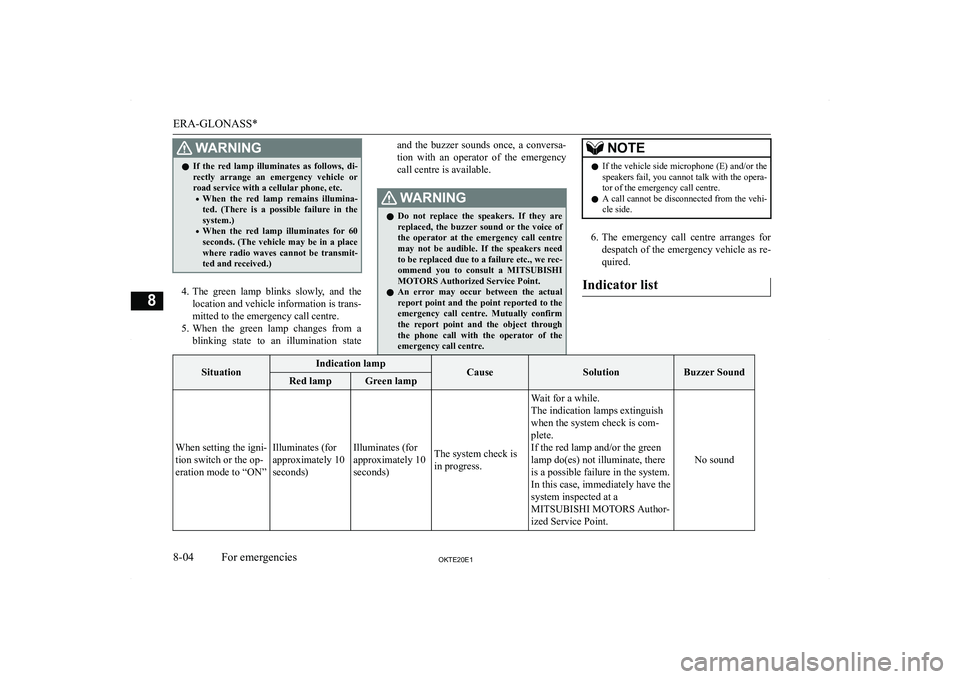

:ARN,NGzIf the red lamp illuminates as follows, di-
rectly arrange an emergency vehicle orroad service with a cellular phone, etc.
