DOOR
BODY42-39
WINDOW GLASS RUNCHANNEL AND
DOOR OPENING WEATHERSTRIP
REMOVAL AND INSTALLATION
M1423003100290

AC304409AB
Section A – A

Sealant: 3M ATD Part No.8633 or equivalent Door
: Sectional view of
clip position
: Sectional view of clip position
6
2
1
4
365
A A
1
Waterproof film removal steps
•Door trim assembly, speaker (Refer to
GROUP 52A, Trims
P.52A-13).
1.Waterproof film
Door inner opening weatherstrip
removal steps

•Scuff plate, centre pillar lower trim
and cowl side trim (Refer to GROUP
52A, Trims
P.52A-13.)
2.Door inner opening weatherstrip
(Body side)
Door outer opening weatherstrip
removal steps

•Front door check mounting bolt (Door
side) (Refer to
P.42-31.)
<>>>A<<3.Door outer opening weatherstrip
Door window glass runchannel
removal

4.Door window glass runchannel
Door beltline inner weatherstrip
removal steps

•Front door trim(Refer to GROUP 52A,
Door trim
P.52A-17.)
5.Door beltline inner weatherstrip
Door beltline moulding removal steps
•Door mirror assembly (Refer to
GROUP 51, Door mirror
P.51-50.)
•Door window glass (Refer to
P.42-32.)
6.Door beltline moulding

AC301208
7
AC

Rear seatback
hook (RH)
AC212111
7
AC

Rear
speaker
(RH)
AC212112AC
8Rear wiper motor
AC301744AB
9
Heat protector
AC301743AB
10
Rocker cover
AC300437
1112
,
1112
AD
Relay box
AC301745
13
AB
Air cleaner
assembly
AC301750AB
14
SRS-ECU
EARTH
COMPONENT LOCA TIONS70-18

AC300436AC
15
SRS-ECU
AC208871AC
Junction block16
AC301210
17
AC

Rear seatback
hook (LH)
AC300440
17
AC
Rear
speaker
(LH)

INSPECTION CONN ECT O R AND SP ARE CONNEC T OR
COMPONENT LOCATIONS70-19
IN SPECTION CONNECT OR AND SP ARE CONNECT OR
M17010002 0034 3
NameSymbolNameSymbol
Diagnosis connectorESpare connector (for front fog lamp
relay)A
Engine speed detection connectorASpare connector (for front fog lamp
switch)C
Spare connector (for front fog lamp)BSpare connector (for audio)D
AC301758ACB
ADC
E

DOOR

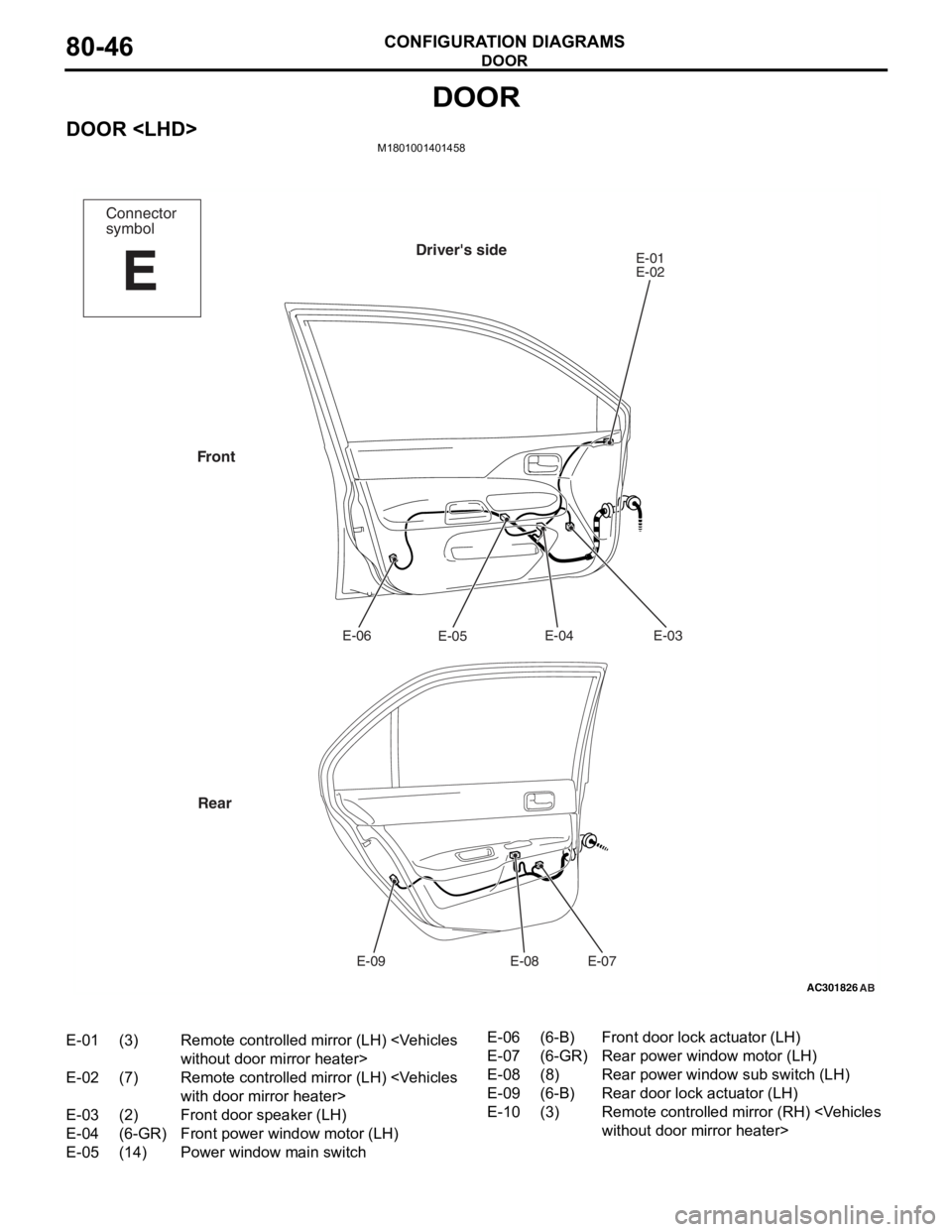

CONFIGURATION DIAGRAMS80-46
DOOR
DOOR M1801001401458
AC301826
Connector
symbol
E
Driver's sideE-01
E-02E-03
E-04
E-05
E-06
E-07
E-08
E-09
Front
Rear
AB
E-01(3)Remote controlled mirror (LH) without door mirror heater>
E-02(7)Remote controlled mirror (LH) with door mirror heater>
E-03(2)Front door speaker (LH)
E-04(6-GR)Front power window motor (LH)
E-05(14)Power window main switch
E-06(6-B)Front door lock actuator (LH)
E-07(6-GR)Rear power window motor (LH)
E-08(8)Rear power window sub switch (LH)
E-09(6-B)Rear door lock actuator (LH)
E-10(3)Remote controlled mirr or (RH) without door mirror heater>

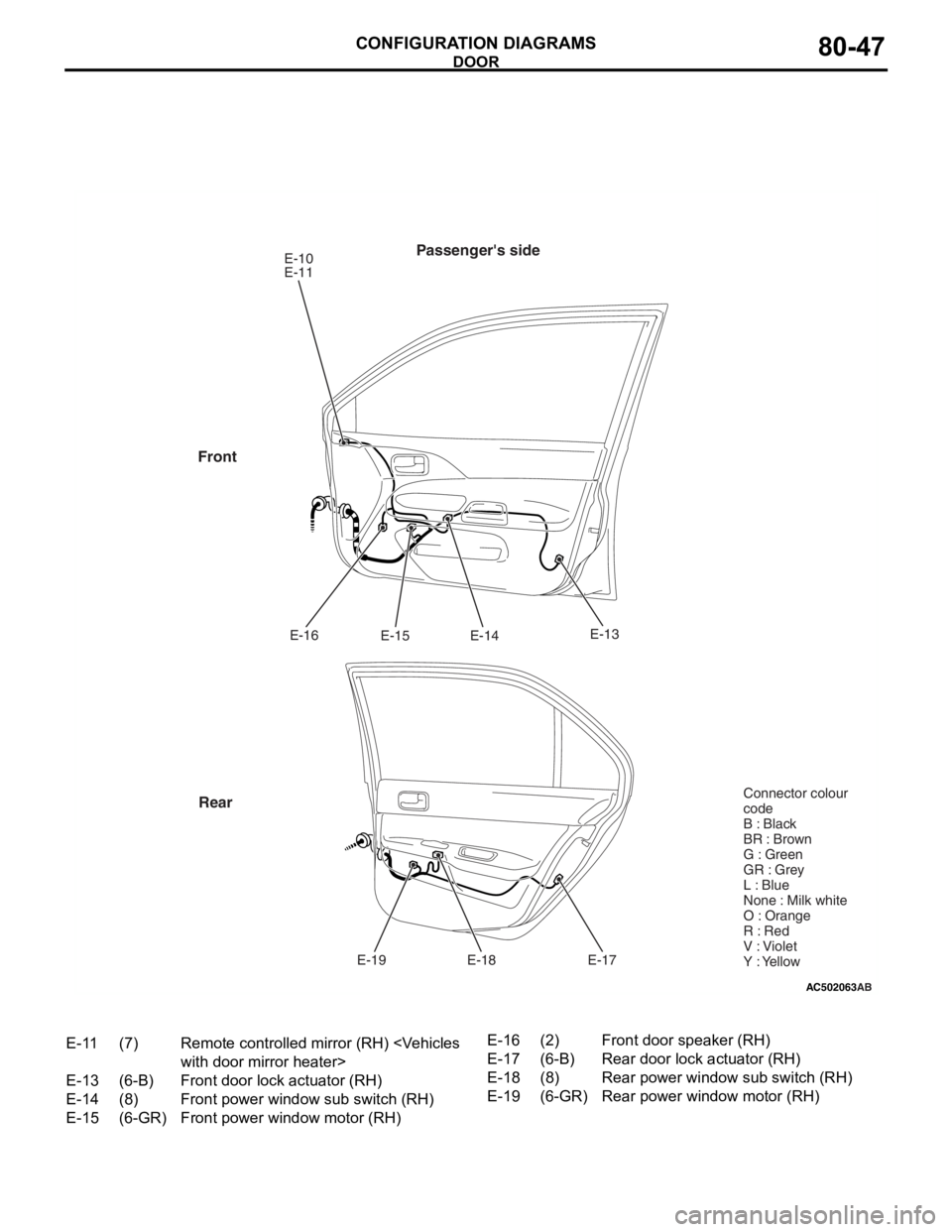

AC502063
Passenger's sideE-10
E-11E-14
E-15
E-16
E-17
E-18
E-19
Front
Rear
AB
E-13 Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
E-11(7)Remote controlled mirror (RH) with door mirror heater>
E-13(6-B)Front door lock actuator (RH)
E-14(8)Front power window sub switch (RH)
E-15(6-GR)Front power window motor (RH)
E-16(2)Front door speaker (RH)
E-17(6-B)Rear door lock actuator (RH)
E-18(8)Rear power window sub switch (RH)
E-19(6-GR)Rear power window motor (RH)
DOOR
CONF IGURA TION D I A G RA MS80-47

DOOR

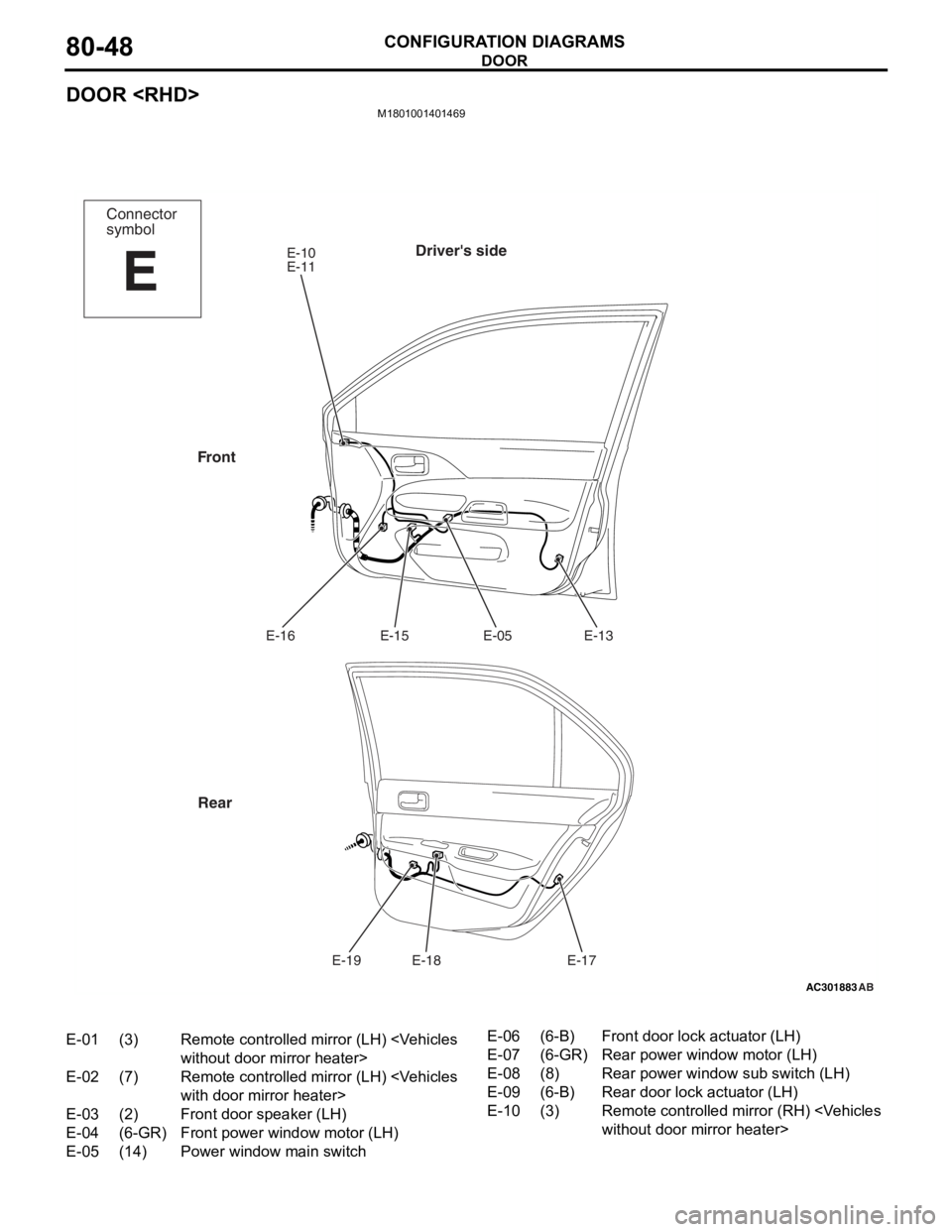

CONFIGURATION DIAGRAMS80-48
DOOR
M1801001401469
AC301883
Connector
symbol
E
Driver's sideE-10
E-11E-13
E-05
E-15
E-16
E-17
E-18
E-19
Front
Rear
AB
E-01(3)Remote controlled mirror (LH) without door mirror heater>
E-02(7)Remote controlled mirror (LH) with door mirror heater>
E-03(2)Front door speaker (LH)
E-04(6-GR)Front power window motor (LH)
E-05(14)Power window main switch
E-06(6-B)Front door lock actuator (LH)
E-07(6-GR)Rear power window motor (LH)
E-08(8)Rear power window sub switch (LH)
E-09(6-B)Rear door lock actuator (LH)
E-10(3)Remote controlled mirr or (RH) without door mirror heater>

AC502064
Passenger's sideE-01
E-02
E-03
E-04
E-20
E-06
E-07
E-08
E-09
Front
Rear
AB
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
E-11(7)Remote controlled mirror (RH) with door mirror heater>
E-13(6-B)Front door lock actuator (RH)
E-15(6-GR)Front power window motor (RH)
E-16(2)Front door speaker (RH)
E-17(6-B)Rear door lock actuator (RH)
E-18(8)Rear power window sub switch (RH)
E-19(6-GR)Rear power window motor (RH)
E-20(8)Front power window sub switch (LH)
DOOR
CON F IGURA TION D I A G RA MS80-49

TRUNK (LUGGAGE COMPARTMENT)

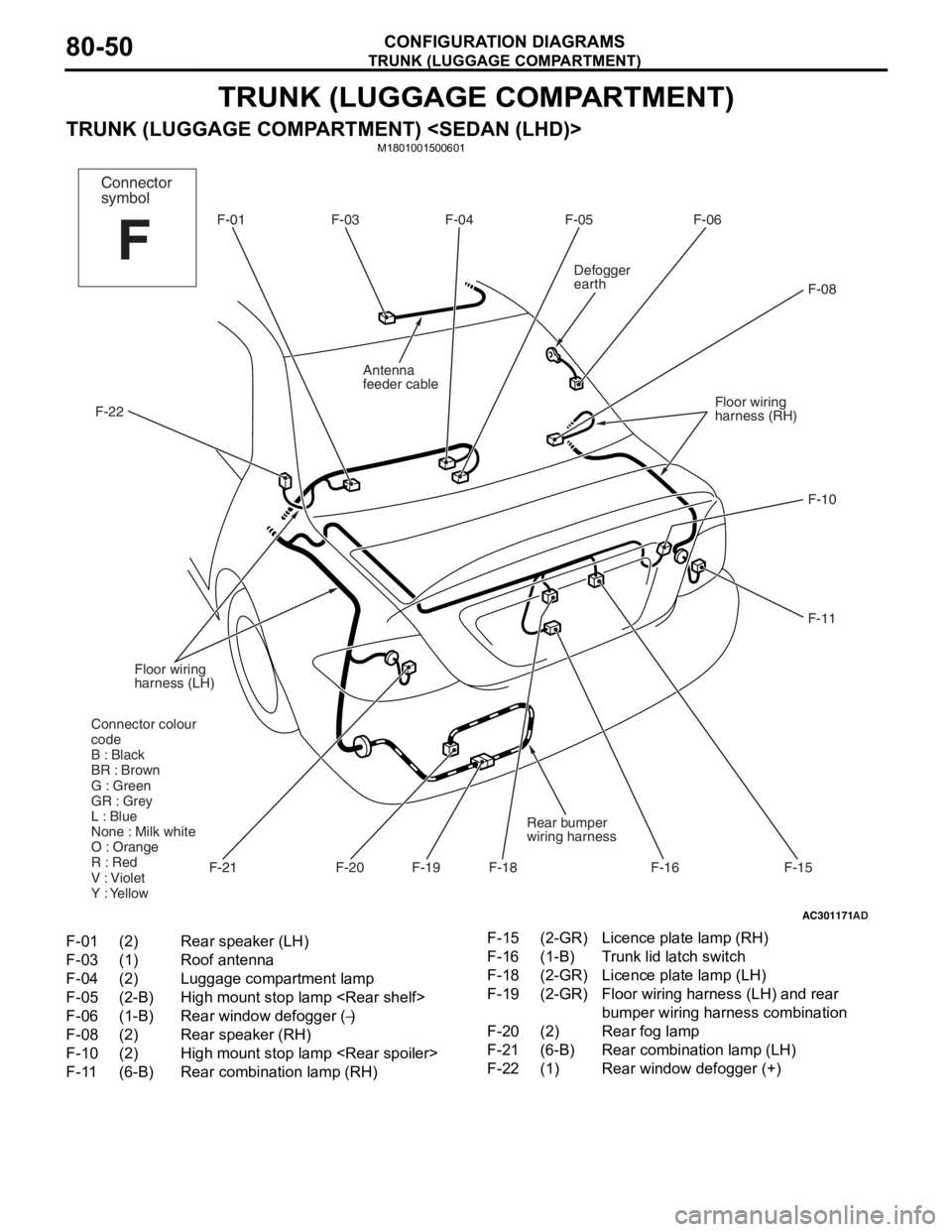

CONFIGURATION DIAGRAMS80-50
TRUNK (LUGGAGE COMPARTMENT)
TRUNK (LUGGAGE COMPARTMENT) M1801001500601
AC301171AD
F-01 F-04 F-05 F-06
F-08
F-10
F-11
F-18 F-16
F-19
Floor wiring
harness (LH)
F-22
Defogger
earth
Floor wiring
harness (RH)F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-03(1)Roof antenna
F-04(2)Luggage compartment lamp
F-05(2-B)High mount stop lamp
F-06(1-B)Rear window defogger (−)
F-08(2)Rear speaker (RH)
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-15(2-GR)Licence plate lamp (RH)
F-16(1-B)Trunk lid latch switch
F-18(2-GR)Licence plate lamp (LH)
F-19(2-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20(2)Rear fog lamp
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)

TRUNK (LUGGAGE COMPARTMENT)

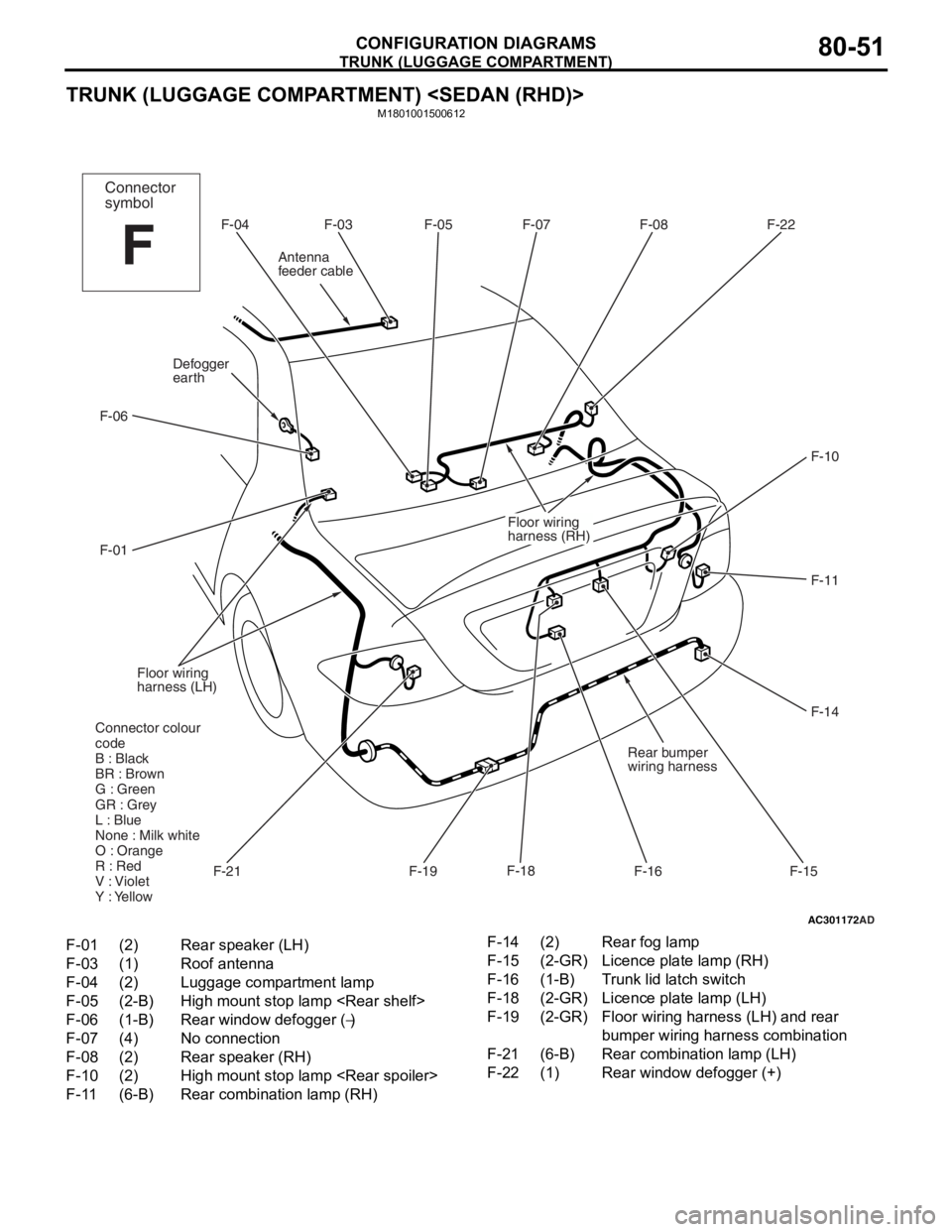

CONFIGURATION DIAGRAMS80-51
TRUNK (LUGGAGE COMPARTMENT)
M1801001500612
AC301172AD
F-04 F-05 F-07 F-08 F-22
F-10
F-11
F-14
F-18 F-16
F-19
Floor wiring
harness (LH)
F-01 F-06
Defogger
earth
Floor wiring
harness (RH)
F-03
F-15F-21
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-03(1)Roof antenna
F-04(2)Luggage compartment lamp
F-05(2-B)High mount stop lamp
F-06(1-B)Rear window defogger (−)
F-07(4)No connection
F-08(2)Rear speaker (RH)
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-14(2)Rear fog lamp
F-15(2-GR)Licence plate lamp (RH)
F-16(1-B)Trunk lid latch switch
F-18(2-GR)Licence plate lamp (LH)
F-19(2-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)

TAILGATE
CONFIGURATION DIAGRAMS80-52
TA I L G AT E
TAILGATE M1801001900654
AC301173AD
F-01 F-02F-03
F-10F-22
F-09
F-11
F-17
F-19
Floor wiring
harness (LH)
F-21 Defogger
earth
Floor wiring
harness (RH)
F-06
F-15
Rear bumper
wiring harness
Antenna
feeder cable
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
F-20
F-07
F-08
F-12
F-18
F-13
8
Tailgate wiring
harness
Connector
symbol
F
F-01(2)Rear speaker (LH)
F-02(6)Floor wiring harness (LH) and Floor
wiring harness ( RH) combination
F-03(1)Roof antenna
F-06(1)Rear window defogger (−)
F-07(4)Rear wiper motor
F-08(2)Rear speaker (RH)
F-09(2)Accessory socket
F-10(2)High mount stop lamp
F-11(6-B)Rear combination lamp (RH)
F-12(8)Floor wiring harness (RH) and tailgate
wiring harness combination
F-13(2-B)Tailgate lock actuator
F-15(2-GR)Licence plate lamp (RH)
F-17(1)Tailgate switch
F-18(2-GR)Licence plate lamp (LH)
F-19(4-GR)Floor wiring harness (LH) and rear
bumper wiring harness combination
F-20(2)Rear fog lamp
F-21(6-B)Rear combination lamp (LH)
F-22(1)Rear window defogger (+)
