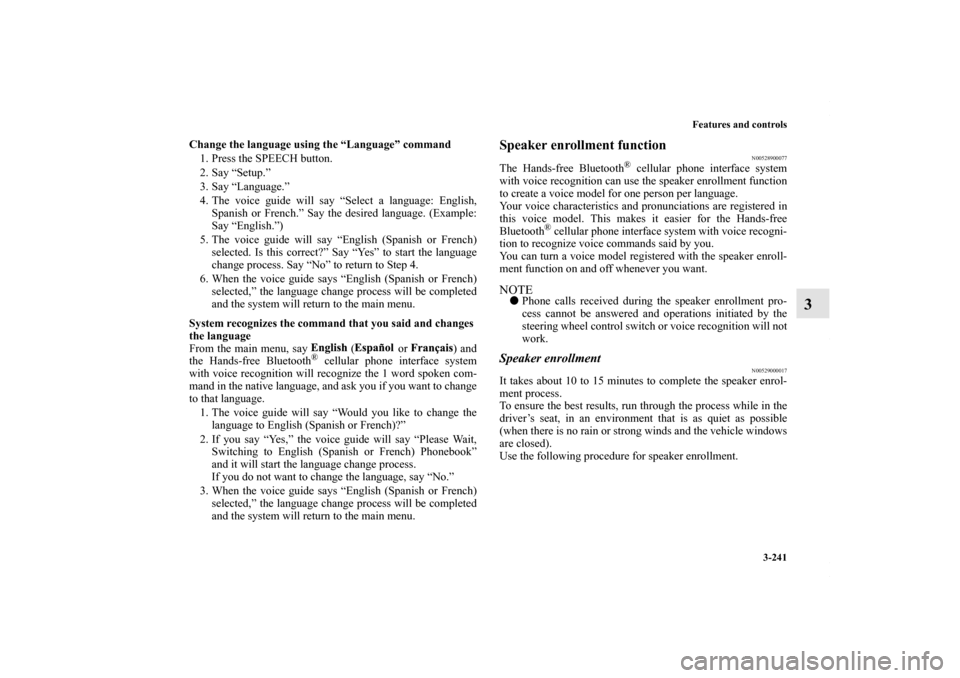

Features and controls
3-241
3
Change the language using the “Language” command
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish or French.” Say the desired language. (Example:
Say “English.”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes” to start the language
change process. Say “No” to return to Step 4.
6. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
System recognizes the command that you said and changes
the language
From the main menu, say ( or ) and
the Hands-free Bluetooth
® cellular phone interface system
with voice recognition will recognize the 1 word spoken com-
mand in the native language, and ask you if you want to change
to that language.
1. The voice guide will say “Would you like to change the
language to English (Spanish or French)?”
2. If you say “Yes,” the voice guide will say “Please Wait,
Switching to English (Spanish or French) Phonebook”
and it will start the language change process.
If you do not want to change the language, say “No.”
3. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
Speaker enrollment function
N00528900077
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Hands-free
Bluetooth
® cellular phone interface system with voice recogni-
tion to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE
Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
steering wheel control switch or voice recognition will not
work.Speaker enrollment
N00529000017
It takes about 10 to 15 minutes to complete the speaker enrol-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
BK0102103US.book 241 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-243
3
Enabling and disabling the voice model and retraining
N00529100018
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training”.
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
4. When enrollment is “enabled”, the voice model is on;
when enrollment is “disabled”, the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-241.)NOTE
If you say “Retrain”, you will proceed to Step 4 under
“Speaker enrollment”.
However, before saying “Retrain”, you must stop your
vehicle in a safe area, place the shift lever (manual
transaxle) in the “N” position, or the selector lever {con-
tinuously variable transmission (CVT)} or gearshift lever
(Twin Clutch SST) in the “P” position, and engage the
parking brake lever.
Otherwise, the voice guide will say “This operation must
be performed in a quiet environment while the vehicle is
stopped” and the system will return to the main menu.
Help function
N00506700020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800021
There are two cancel functions. If you are at the main menu,
say “Cancel” to exit from the Hands-free Bluetooth
® cellular
phone interface system with voice recognition. If you are any-
where else within the system, say “Cancel” to return to the
main menu.
MUTE function
N00506900019
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the MUTE function and mute the micro-
phone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.
BK0102103US.book 243 ページ ２００９年１０月２６日　月曜日　午後１時３８分

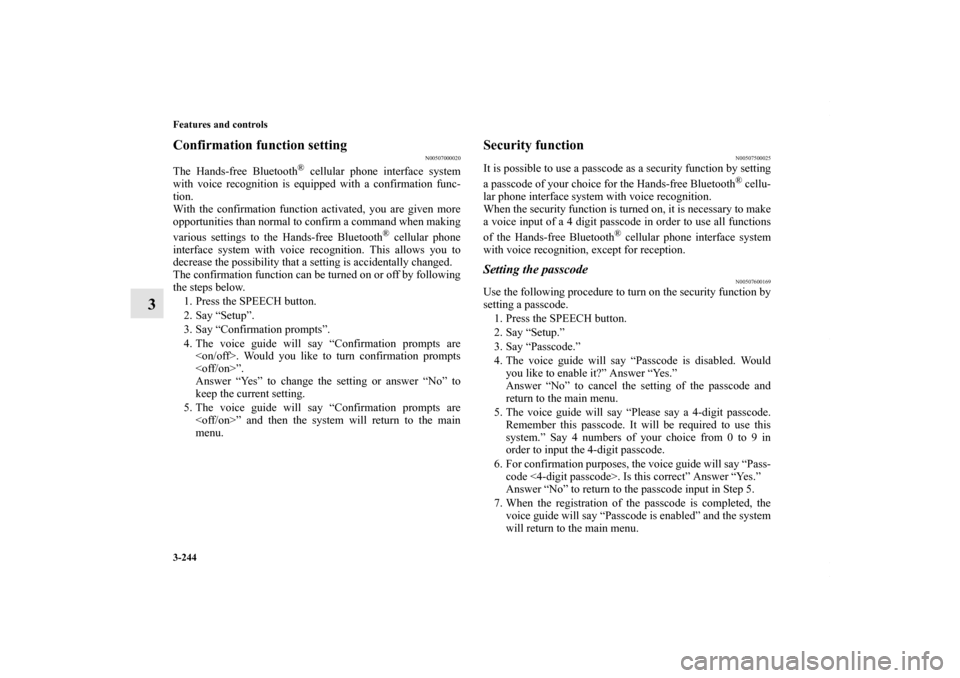

3-244 Features and controls
3
Confirmation function setting
N00507000020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a confirmation func-
tion.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition. This allows you to
decrease the possibility that a setting is accidentally changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup”.
3. Say “Confirmation prompts”.
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
”.
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00507500025
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
When the security function is turned on, it is necessary to make
a voice input of a 4 digit passcode in order to use all functions
of the Hands-free Bluetooth
® cellular phone interface system
with voice recognition, except for reception.
Setting the passcode
N00507600169
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.” Say 4 numbers of your choice from 0 to 9 in
order to input the 4-digit passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu.
BK0102103US.book 244 ページ ２００９年１０月２６日　月曜日　午後１時３８分

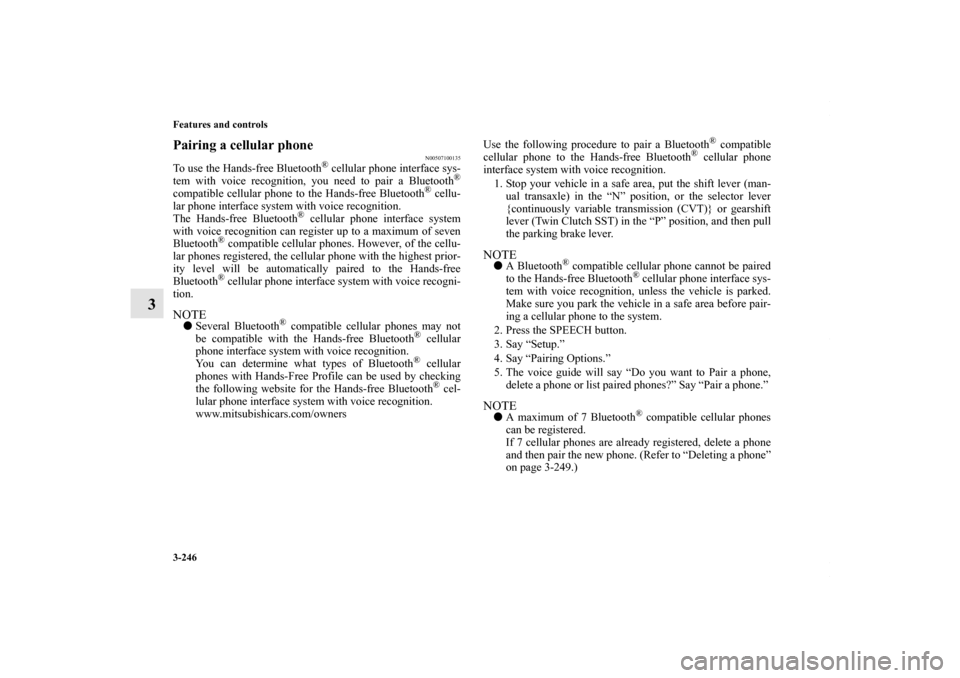

3-246 Features and controls
3
Pairing a cellular phone
N00507100135
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you need to pair a Bluetooth
®
compatible cellular phone to the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can register up to a maximum of seven
Bluetooth
® compatible cellular phones. However, of the cellu-
lar phones registered, the cellular phone with the highest prior-
ity level will be automatically paired to the Hands-free
Bluetooth® cellular phone interface system with voice recogni-
tion.
NOTE
Several Bluetooth
® compatible cellular phones may not
be compatible with the Hands-free Bluetooth
® cellular
phone interface system with voice recognition.
You can determine what types of Bluetooth® cellular
phones with Hands-Free Profile can be used by checking
the following website for the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
www.mitsubishicars.com/ownersUse the following procedure to pair a Bluetooth
® compatible
cellular phone to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
1. Stop your vehicle in a safe area, put the shift lever (man-
ual transaxle) in the “N” position, or the selector lever
{continuously variable transmission (CVT)} or gearshift
lever (Twin Clutch SST) in the “P” position, and then pull
the parking brake lever.
NOTE
A Bluetooth
® compatible cellular phone cannot be paired
to the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, unless the vehicle is parked.
Make sure you park the vehicle in a safe area before pair-
ing a cellular phone to the system.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Pair a phone.”
NOTE
A maximum of 7 Bluetooth
® compatible cellular phones
can be registered.
If 7 cellular phones are already registered, delete a phone
and then pair the new phone. (Refer to “Deleting a phone”
on page 3-249.)
BK0102103US.book 246 ページ ２００９年１０月２６日　月曜日　午後１時３８分

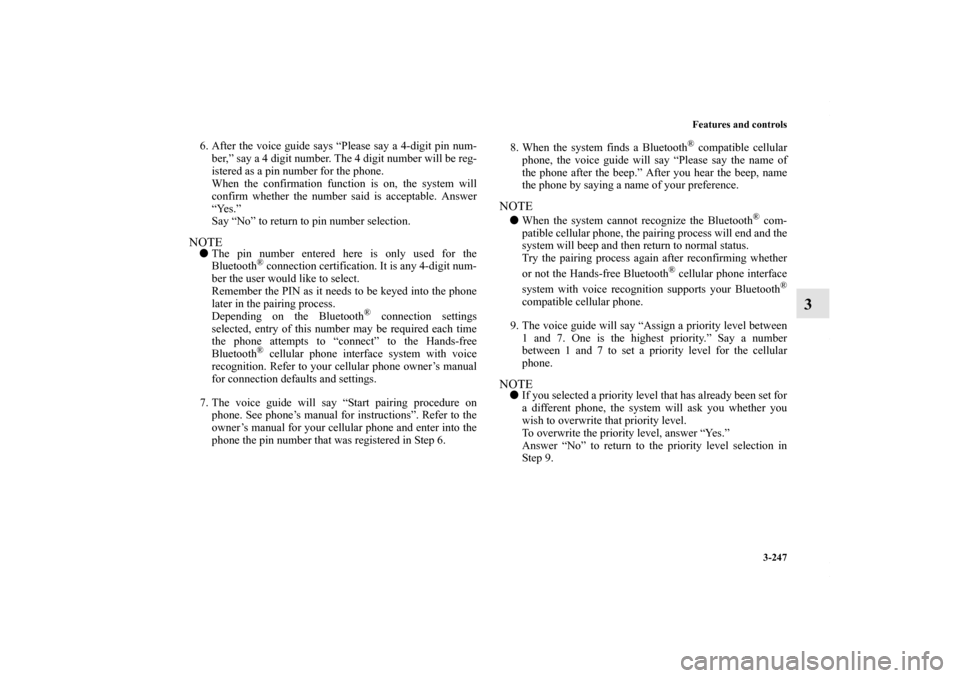

Features and controls
3-247
3
6. After the voice guide says “Please say a 4-digit pin num-
ber,” say a 4 digit number. The 4 digit number will be reg-
istered as a pin number for the phone.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Say “No” to return to pin number selection.NOTE
The pin number entered here is only used for the
Bluetooth
® connection certification. It is any 4-digit num-
ber the user would like to select.
Remember the PIN as it needs to be keyed into the phone
later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this number may be required each time
the phone attempts to “connect” to the Hands-free
Bluetooth
® cellular phone interface system with voice
recognition. Refer to your cellular phone owner’s manual
for connection defaults and settings.
7. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions”. Refer to the
owner’s manual for your cellular phone and enter into the
phone the pin number that was registered in Step 6.8. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
NOTE
When the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Hands-free Bluetooth
® cellular phone interface
system with voice recognition supports your Bluetooth
®
compatible cellular phone.
9. The voice guide will say “Assign a priority level between
1 and 7. One is the highest priority.” Say a number
between 1 and 7 to set a priority level for the cellular
phone.
NOTE
If you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to overwrite that priority level.
To overwrite the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
BK0102103US.book 247 ページ ２００９年１０月２６日　月曜日　午後１時３８分

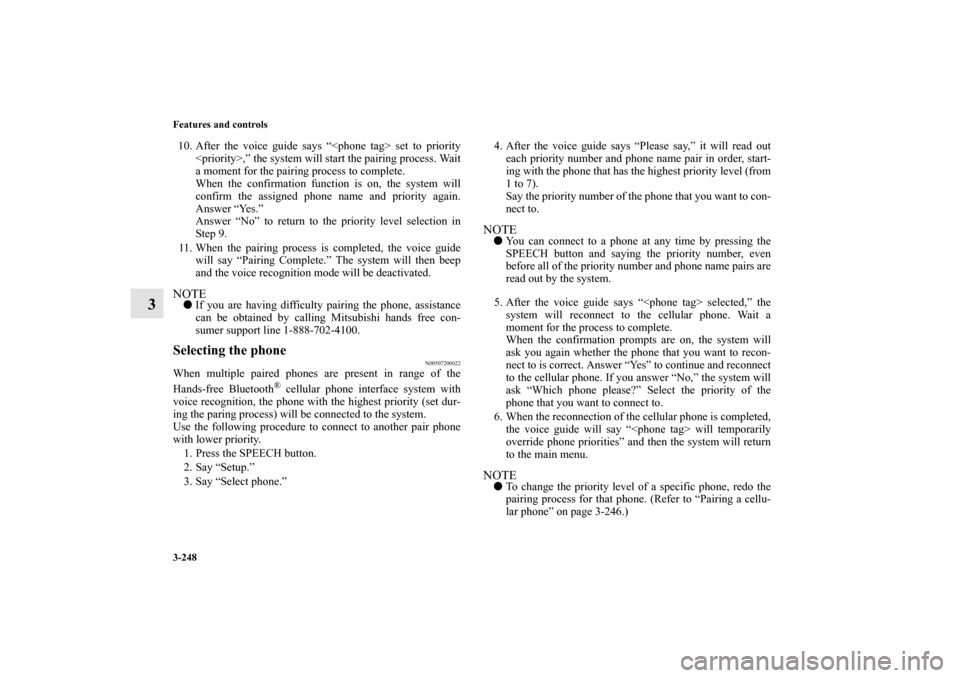

3-248 Features and controls
3
10. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
11. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be deactivated.NOTE
If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.Selecting the phone
N00507200022
When multiple paired phones are present in range of the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition, the phone with the highest priority (set dur-
ing the paring process) will be connected to the system.
Use the following procedure to connect to another pair phone
with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.NOTE
To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-246.)
BK0102103US.book 248 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls

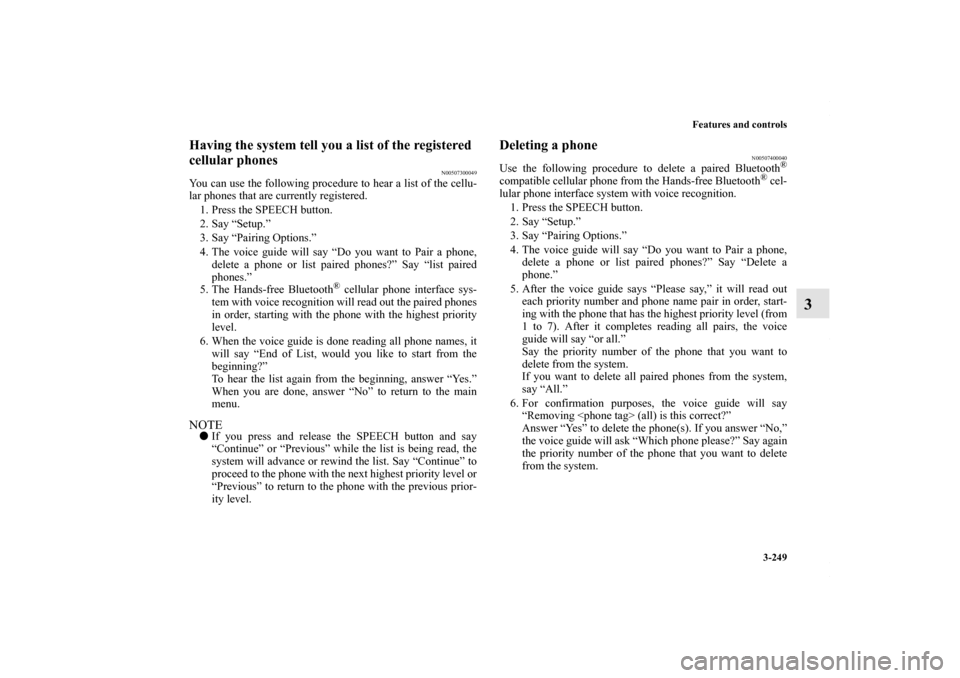

3-249
3
Having the system tell you a list of the registered
cellular phones
N00507300049
You can use the following procedure to hear a list of the cellu-
lar phones that are currently registered.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “list paired
phones.”
5. The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will read out the paired phones
in order, starting with the phone with the highest priority
level.
6. When the voice guide is done reading all phone names, it
will say “End of List, would you like to start from the
beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE
If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the phone with the next highest priority level or
“Previous” to return to the phone with the previous prior-
ity level.
Deleting a phone
N00507400040
Use the following procedure to delete a paired Bluetooth
®
compatible cellular phone from the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Delete a
phone.”
5. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7). After it completes reading all pairs, the voice
guide will say “or all.”
Say the priority number of the phone that you want to
delete from the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say
“Removing (all) is this correct?”
Answer “Yes” to delete the phone(s). If you answer “No,”
the voice guide will ask “Which phone please?” Say again
the priority number of the phone that you want to delete
from the system.
BK0102103US.book 249 ページ ２００９年１０月２６日　月曜日　午後１時３８分

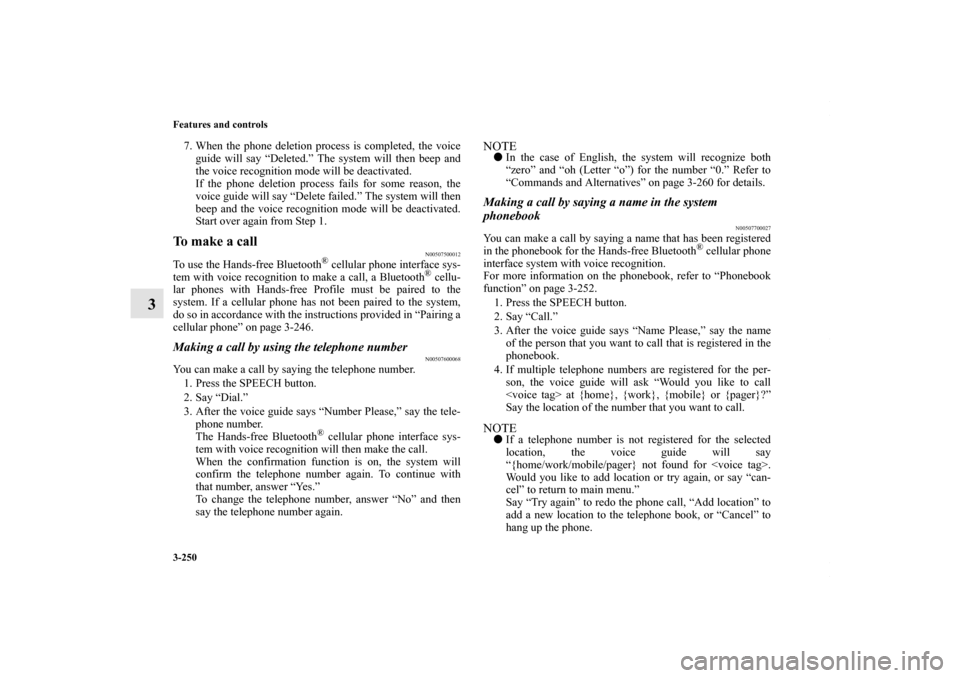

3-250 Features and controls
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be deactivated.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be deactivated.
Start over again from Step 1. To make a call
N00507500012
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the
system. If a cellular phone has not been paired to the system,
do so in accordance with the instructions provided in “Pairing a
cellular phone” on page 3-246.
Making a call by using the telephone number
N00507600068
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTE
In the case of English, the system will recognize both
“zero” and “oh (Letter “o”) for the number “0.” Refer to
“Commands and Alternatives” on page 3-260 for details.Making a call by saying a name in the system
phonebook
N00507700027
You can make a call by saying a name that has been registered
in the phonebook for the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
For more information on the phonebook, refer to “Phonebook
function” on page 3-252.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
at {home}, {work}, {mobile} or {pager}?”
Say the location of the number that you want to call.
NOTE
If a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for .
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0102103US.book 250 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls

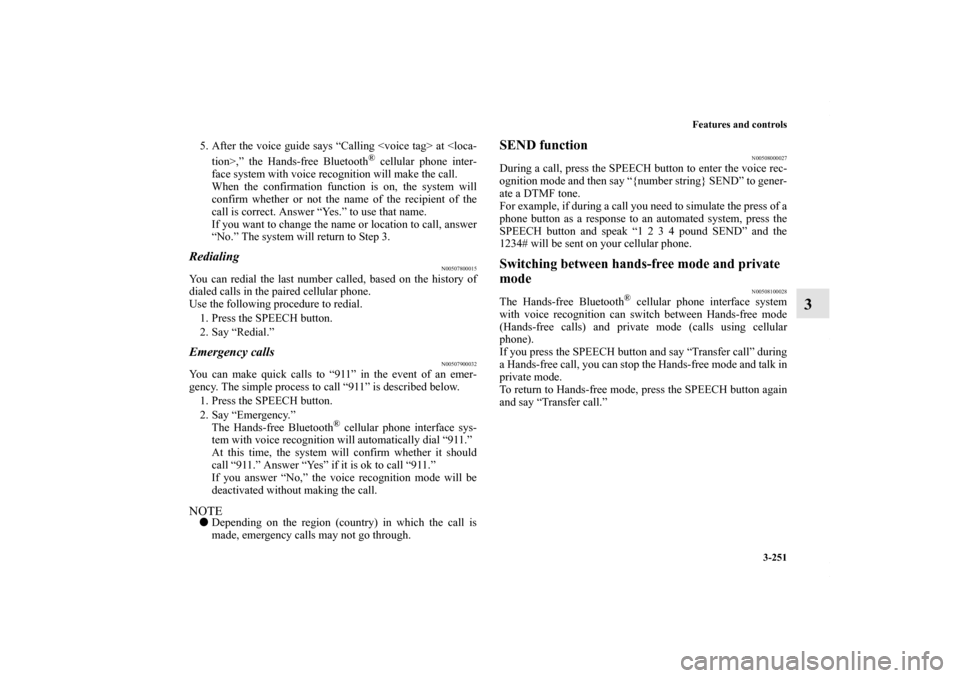

3-251
3
5. After the voice guide says “Calling at tion>,” the Hands-free Bluetooth
® cellular phone inter-
face system with voice recognition will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes.” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800015
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”Emergency calls
N00507900032
You can make quick calls to “911” in the event of an emer-
gency. The simple process to call “911” is described below.
1. Press the SPEECH button.
2. Say “Emergency.”
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will automatically dial “911.”
At this time, the system will confirm whether it should
call “911.” Answer “Yes” if it is ok to call “911.”
If you answer “No,” the voice recognition mode will be
deactivated without making the call.
NOTE
Depending on the region (country) in which the call is
made, emergency calls may not go through.
SEND function
N00508000027
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
phone button as a response to an automated system, press the
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.Switching between hands-free mode and private
mode
N00508100028
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can switch between Hands-free mode
(Hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a Hands-free call, you can stop the Hands-free mode and talk in
private mode.
To return to Hands-free mode, press the SPEECH button again
and say “Transfer call.”
BK0102103US.book 251 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-252 Features and controls
3
Receiving calls
N00508200045
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and Incoming Call will be played,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the Incoming Call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
Phonebook function
N00508300017
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition has its own phonebook separate from
the phonebook on the cellular phone.
This phonebook is used when making calls with the voice rec-
ognition function.
You can register up to 32 names for each language in the
phonebook.
Also, each entry has 4 locations associated with: HOME,
WORK, MOBILE and PAGER. You can register one telephone
number for each location.
The Phonebook Main menu is used to register or edit informa-
tion in the phonebook.
Use the following procedure to call up the Phonebook Main
menu.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit, list names, delete or erase all, or say can-
cel to return to main menu” and will wait for your com-
mand.
NOTE
Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.
BK0102103US.book 252 ページ ２００９年１０月２６日　月曜日　午後１時３８分
