Page 3 of 670

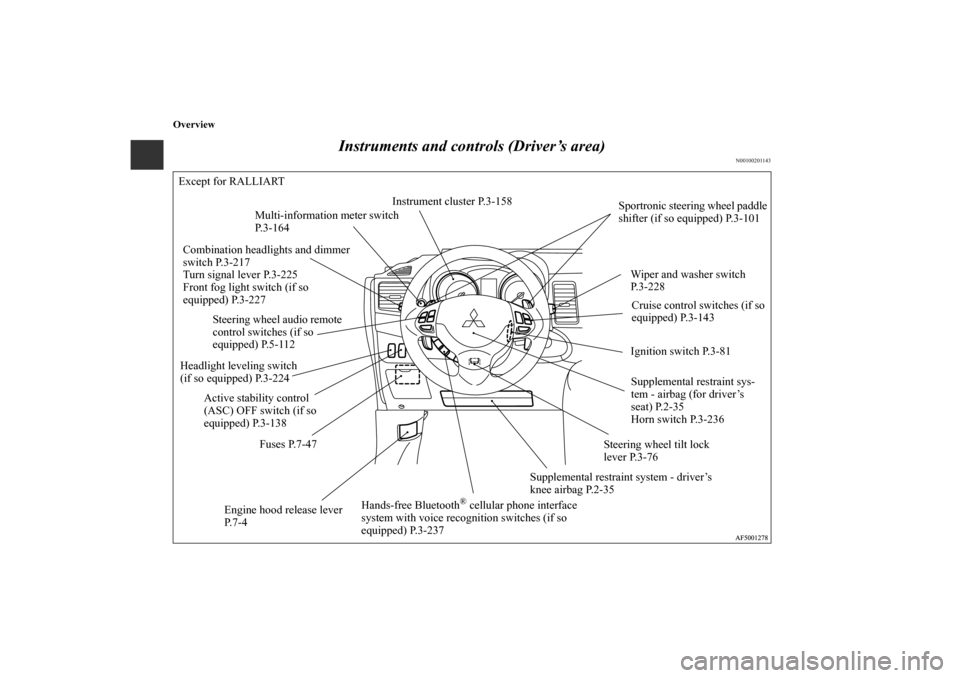

Overview
Instruments and controls (Driver’s area)
N00100201143
Combination headlights and dimmer
switch P.3-217
Turn signal lever P.3-225
Front fog light switch (if so
equipped) P.3-227
Supplemental restraint sys-
tem - airbag (for driver’s
seat) P.2-35
Horn switch P.3-236 Instrument cluster P.3-158
Cruise control switches (if so
equipped) P.3-143 Wiper and washer switch
P.3-228
Fuses P.7-47
Engine hood release lever
P.7-4Sportronic steering wheel paddle
shifter (if so equipped) P.3-101
Ignition switch P.3-81
Steering wheel tilt lock
lever P.3-76
Supplemental restraint system - driver’s
knee airbag P.2-35
Hands-free Bluetooth
® cellular phone interface
system with voice recognition switches (if so
equipped) P.3-237 Steering wheel audio remote
control switches (if so
equipped) P.5-112Multi-information meter switch
P.3-164 Except for RALLIART
Headlight leveling switch
(if so equipped) P.3-224
Active stability control
(ASC) OFF switch (if so
equipped) P.3-138
BK0102103US.book 1 ページ 2009年10月26日 月曜日 午後1時38分
Page 4 of 670

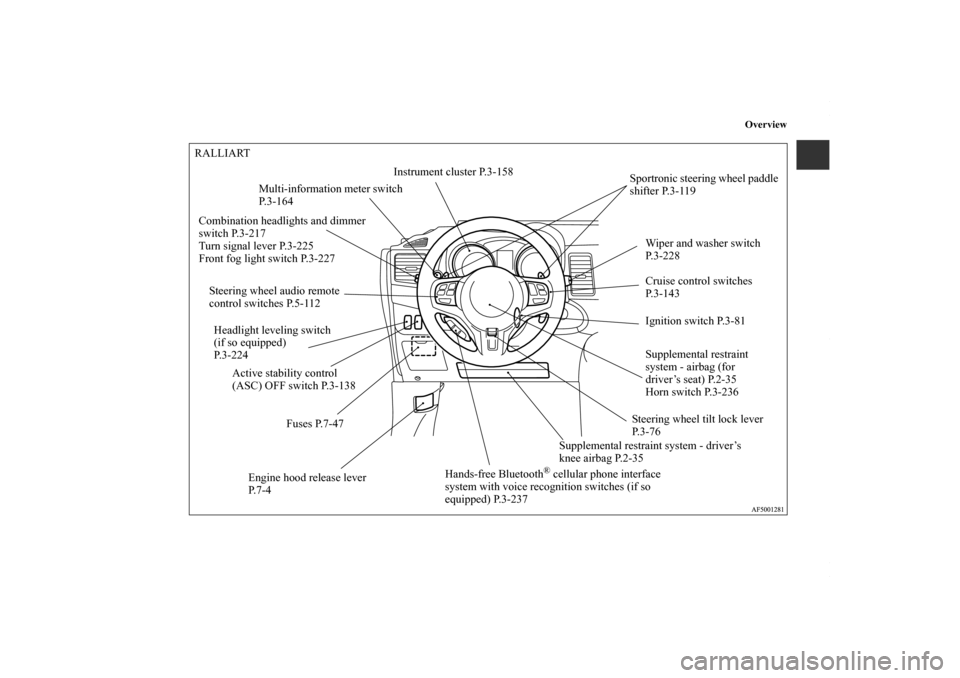

Overview
Sportronic steering wheel paddle
shifter P.3-119
Wiper and washer switch
P.3-228
Cruise control switches
P.3-143
Ignition switch P.3-81
Supplemental restraint
system - airbag (for
driver’s seat) P.2-35
Horn switch P.3-236
Steering wheel tilt lock lever
P. 3 - 7 6
Supplemental restraint system - driver’s
knee airbag P.2-35
Hands-free Bluetooth
® cellular phone interface
system with voice recognition switches (if so
equipped) P.3-237 Steering wheel audio remote
control switches P.5-112
Engine hood release lever
P.7-4Fuses P.7-47 Combination headlights and dimmer
switch P.3-217
Turn signal lever P.3-225
Front fog light switch P.3-227Multi-information meter switch
P.3-164Instrument cluster P.3-158 RALLIART
Headlight leveling switch
(if so equipped)
P.3-224
Active stability control
(ASC) OFF switch P.3-138
BK0102103US.book 2 ページ 2009年10月26日 月曜日 午後1時38分
Page 8 of 670
Overview

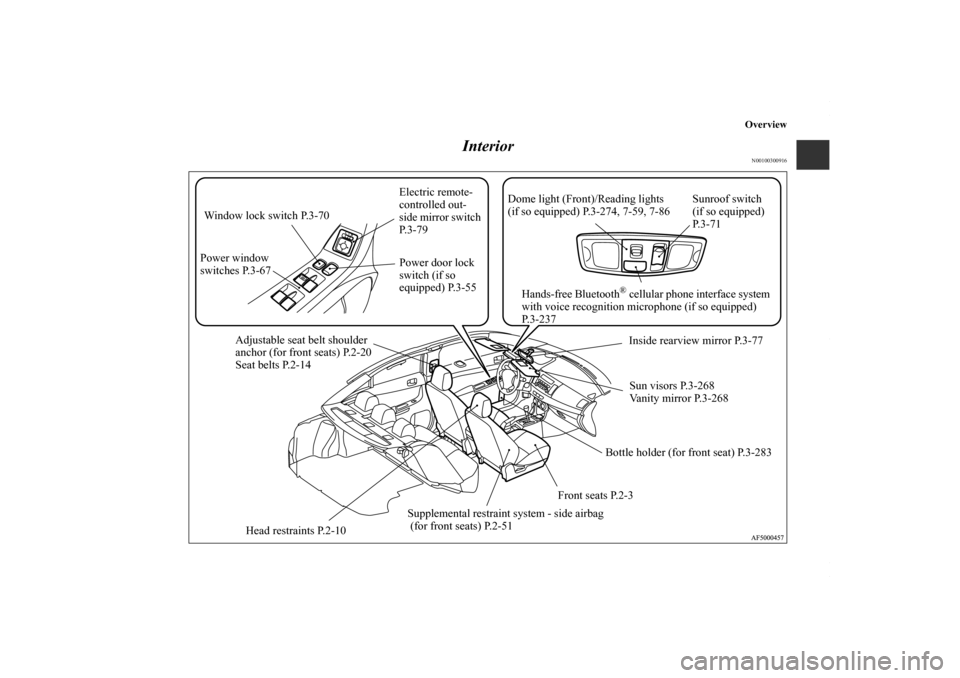

Interior
N00100300916
Adjustable seat belt shoulder
anchor (for front seats) P.2-20
Seat belts P.2-14
Supplemental restraint system - side airbag
(for front seats) P.2-51Front seats P.2-3Sun visors P.3-268
Vanity mirror P.3-268 Inside rearview mirror P.3-77
Head restraints P.2-10 Window lock switch P.3-70
Power window
switches P.3-67Power door lock
switch (if so
equipped) P.3-55 Electric remote-
controlled out-
side mirror switch
P.3-79Dome light (Front)/Reading lights
(if so equipped) P.3-274, 7-59, 7-86Sunroof switch
(if so equipped)
P. 3 - 7 1
Hands-free Bluetooth
® cellular phone interface system
with voice recognition microphone (if so equipped)
P.3-237
Bottle holder (for front seat) P.3-283
BK0102103US.book 6 ページ 2009年10月26日 月曜日 午後1時38分
Page 92 of 670
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 90
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Continuously variable transmission (CVT) (if so equipped). . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 126
ACD (Active center differential system) (if so equipped) . . . . 3- 128
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 131
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 133Anti-lock braking system (if so equipped) . . . . . . . . . . . . . . . . . 3- 134
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 138
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 152
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 217
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 224
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 226
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 227
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 235
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . . . . . . . . . . 3- 237
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 271
12 V power outlet (if so equipped). . . . . . . . . . . . . . . . . . . . . . . 3- 272
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 282
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
BK0102103US.book 1 ページ 2009年10月26日 月曜日 午後1時38分
Page 276 of 670

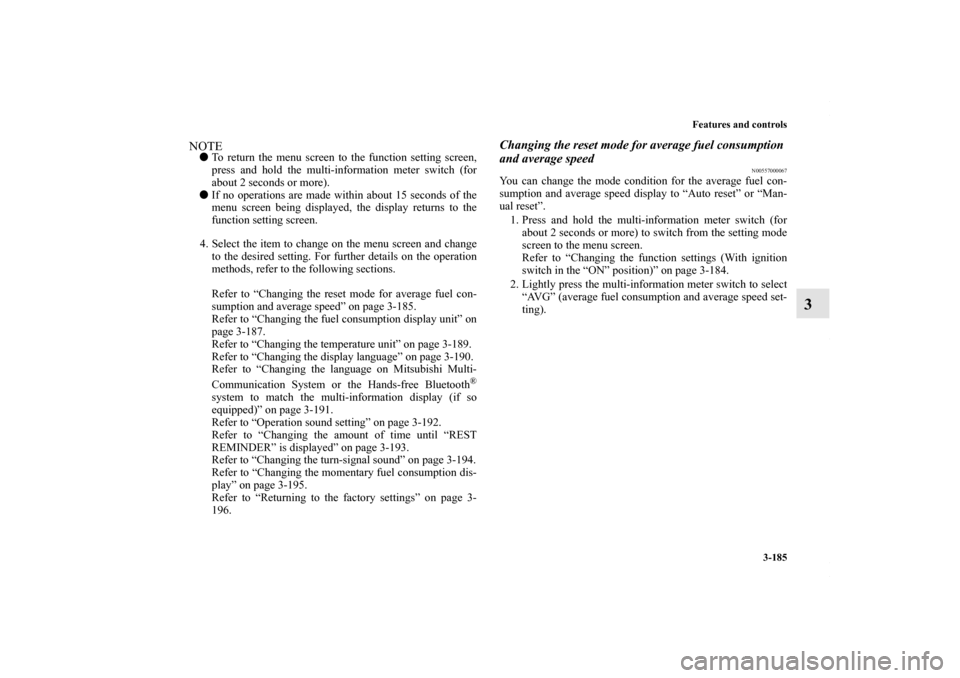

Features and controls
3-185
3
NOTETo return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).
If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-185.
Refer to “Changing the fuel consumption display unit” on
page 3-187.
Refer to “Changing the temperature unit” on page 3-189.
Refer to “Changing the display language” on page 3-190.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or the Hands-free Bluetooth
®
system to match the multi-information display (if so
equipped)” on page 3-191.
Refer to “Operation sound setting” on page 3-192.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-193.
Refer to “Changing the turn-signal sound” on page 3-194.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-195.
Refer to “Returning to the factory settings” on page 3-
196.
Changing the reset mode for average fuel consumption
and average speed
N00557000067
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0102103US.book 185 ページ 2009年10月26日 月曜日 午後1時38分

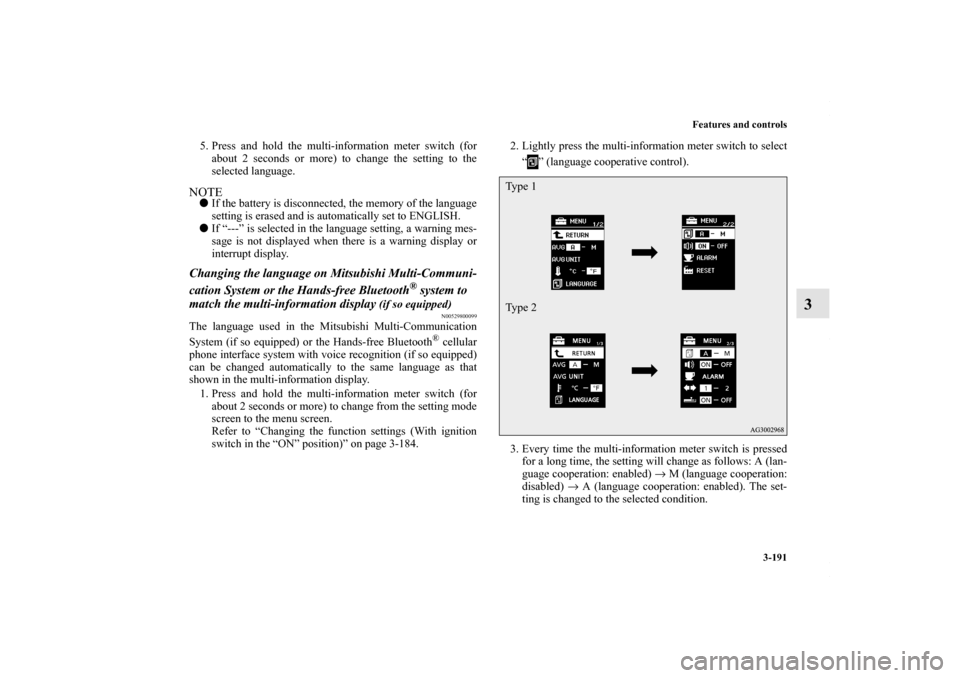

Page 282 of 670
Features and controls
3-191
3
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTEIf the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.
If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or the Hands-free Bluetooth
® system to
match the multi-information display
(if so equipped)
N00529800099
The language used in the Mitsubishi Multi-Communication
System (if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so equipped)
can be changed automatically to the same language as that
shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A (lan-
guage cooperation: enabled) → M (language cooperation:
disabled) → A (language cooperation: enabled). The set-
ting is changed to the selected condition.
Type 1
Type 2
BK0102103US.book 191 ページ 2009年10月26日 月曜日 午後1時38分
Page 283 of 670

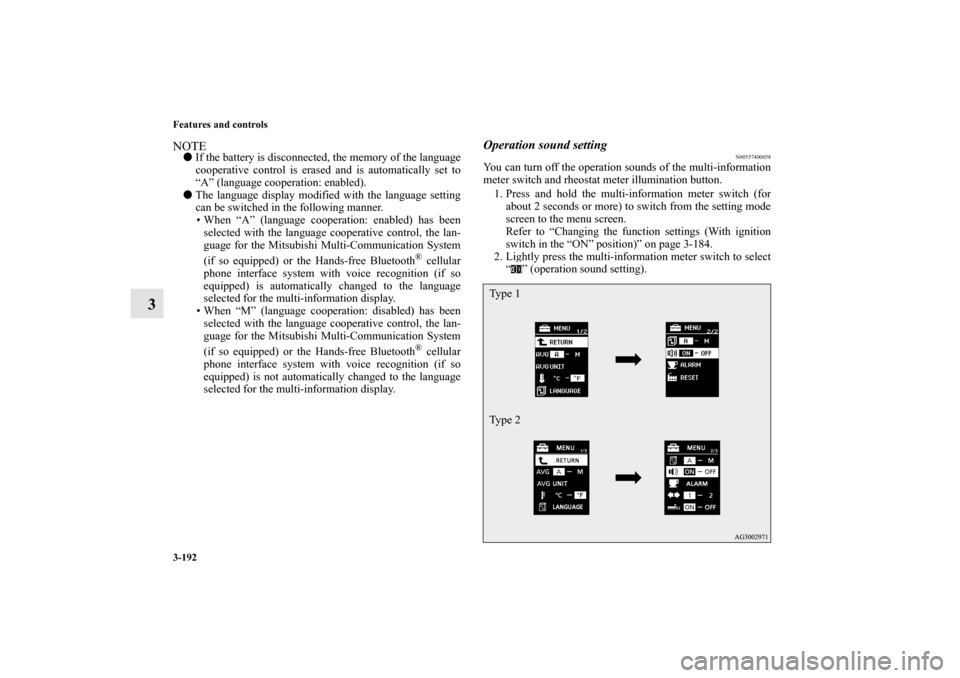

3-192 Features and controls
3
NOTEIf the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).
The language display modified with the language setting
can be switched in the following manner.
• When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth
® cellular
phone interface system with voice recognition (if so
equipped) is automatically changed to the language
selected for the multi-information display.
• When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for the Mitsubishi Multi-Communication System
(if so equipped) or the Hands-free Bluetooth® cellular
phone interface system with voice recognition (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Operation sound setting
N00557400058
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). Type 1
Type 2
BK0102103US.book 192 ページ 2009年10月26日 月曜日 午後1時38分
Page 328 of 670

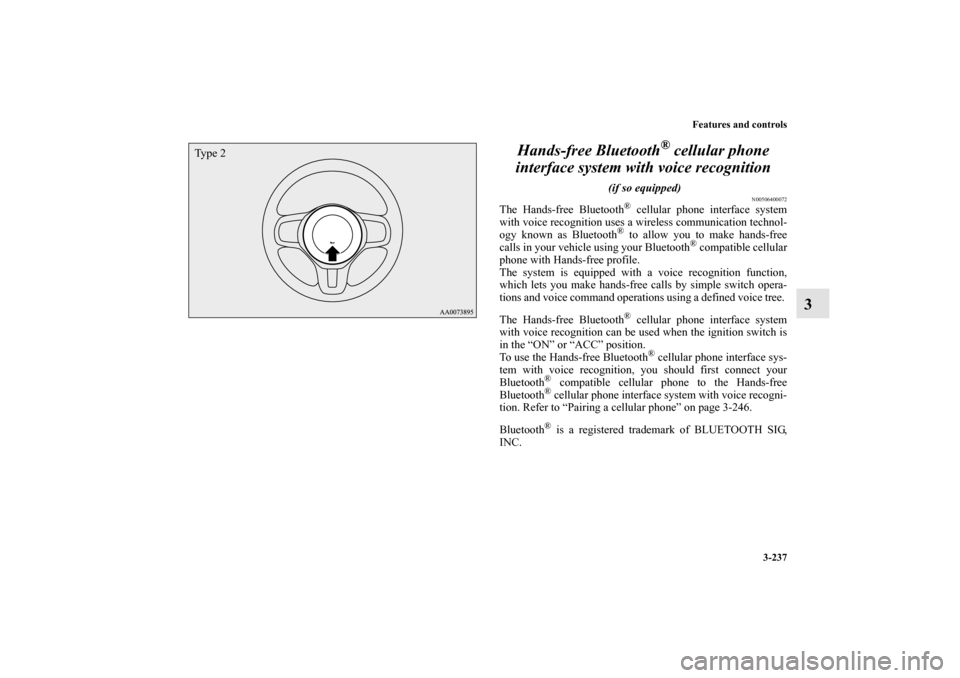

Features and controls
3-237
3 Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped)
N00506400072
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition uses a wireless communication technol-
ogy known as Bluetooth
® to allow you to make hands-free
calls in your vehicle using your Bluetooth
® compatible cellular
phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can be used when the ignition switch is
in the “ON” or “ACC” position.
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you should first connect your
Bluetooth
® compatible cellular phone to the Hands-free
Bluetooth® cellular phone interface system with voice recogni-
tion. Refer to “Pairing a cellular phone” on page 3-246.
Bluetooth® is a registered trademark of BLUETOOTH SIG,
INC.
Type 2
BK0102103US.book 237 ページ 2009年10月26日 月曜日 午後1時38分
Page 329 of 670

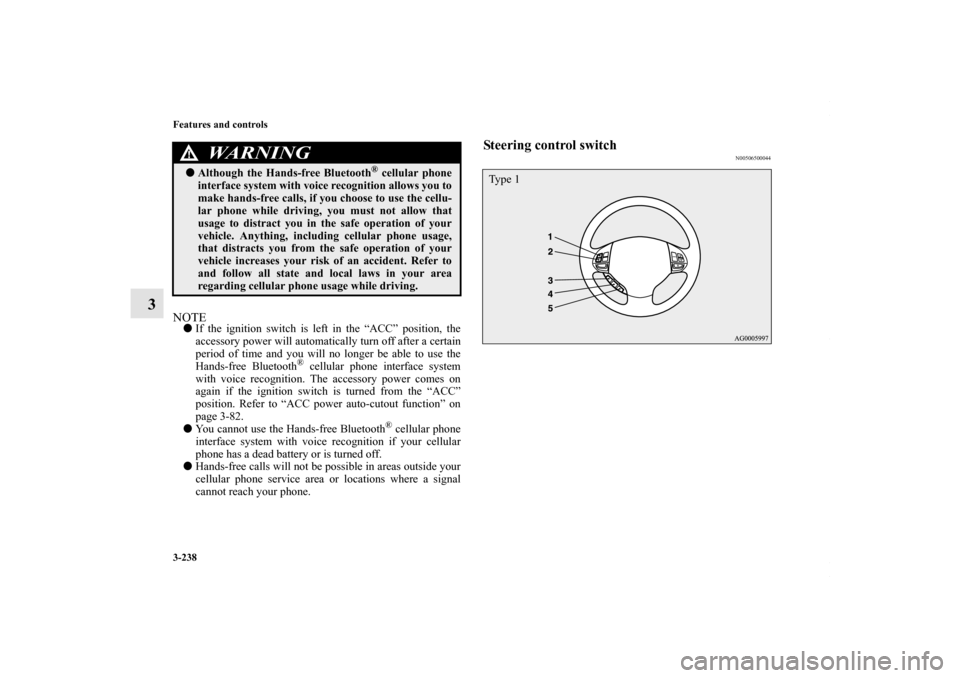

3-238 Features and controls
3
NOTEIf the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition. The accessory power comes on
again if the ignition switch is turned from the “ACC”
position. Refer to “ACC power auto-cutout function” on
page 3-82.
You cannot use the Hands-free Bluetooth
® cellular phone
interface system with voice recognition if your cellular
phone has a dead battery or is turned off.
Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
Steering control switch
N00506500044
WARNING
!Although the Hands-free Bluetooth
® cellular phone
interface system with voice recognition allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow that
usage to distract you in the safe operation of your
vehicle. Anything, including cellular phone usage,
that distracts you from the safe operation of your
vehicle increases your risk of an accident. Refer to
and follow all state and local laws in your area
regarding cellular phone usage while driving.
Type 1
BK0102103US.book 238 ページ 2009年10月26日 月曜日 午後1時38分
Page 331 of 670

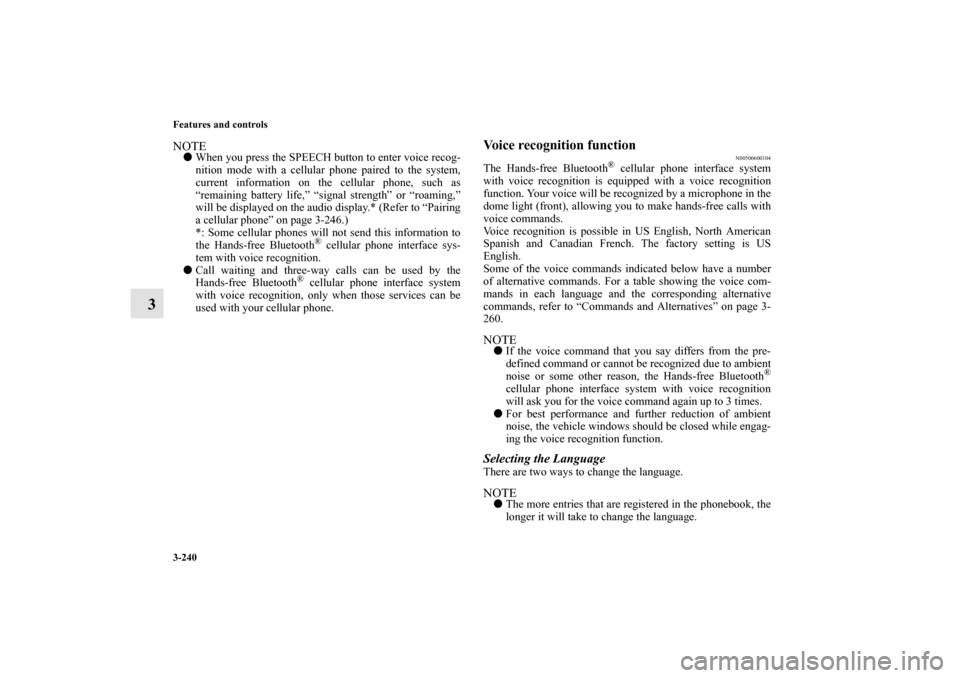

3-240 Features and controls
3
NOTEWhen you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-246.)
*: Some cellular phones will not send this information to
the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition.
Call waiting and three-way calls can be used by the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition, only when those services can be
used with your cellular phone.
Voice recognition function
N00506600104
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
dome light (front), allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
260.
NOTEIf the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Hands-free Bluetooth
®
cellular phone interface system with voice recognition
will ask you for the voice command again up to 3 times.
For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTEThe more entries that are registered in the phonebook, the
longer it will take to change the language.
BK0102103US.book 240 ページ 2009年10月26日 月曜日 午後1時38分
