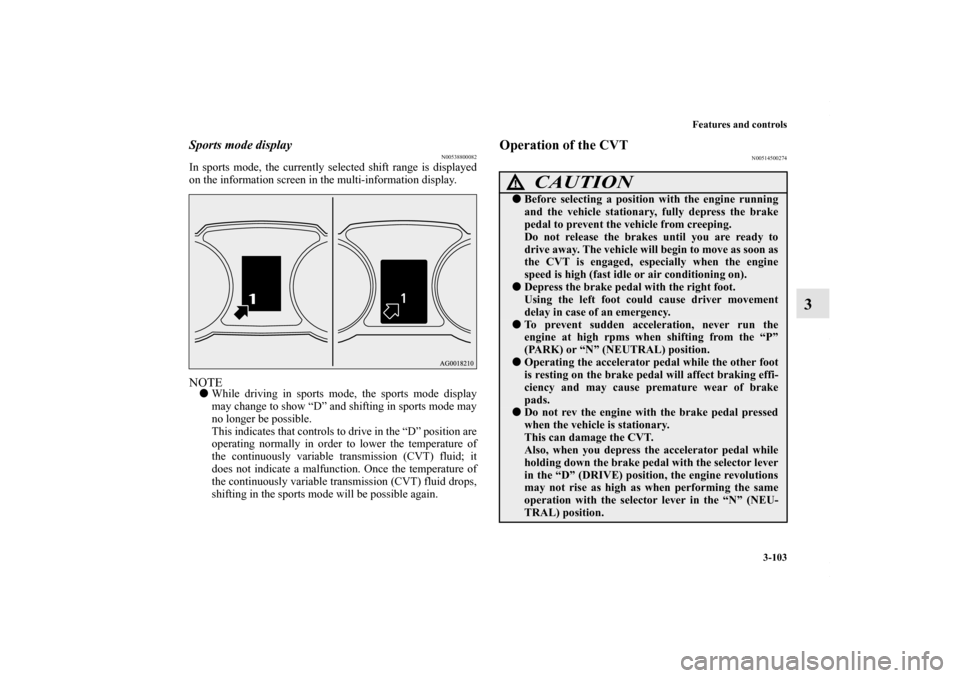

Sports mode display
N00538800082
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.NOTE
While driving in sports mode, the sports mode display
may change to show “D” and shifting in sports mode may
no longer be possible.
This indicates that controls to drive in the “D” position are
operating normally in order to lower the temperature of
the continuously variable transmission (CVT) fluid; it
does not indicate a malfunction. Once the temperature of
the continuously variable transmission (CVT) fluid drops,
shifting in the sports mode will be possible again.
Operation of the CVT
N00514500274
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the CVT is engaged, especially when the engine
speed is high (fast idle or air conditioning on).
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the selector lever
in the “D” (DRIVE) position, the engine revolutions
may not rise as high as when performing the same
operation with the selector lever in the “N” (NEU-
TRAL) position.
BK0102103US.book 103 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-105
3
When the CVT makes no speed change
N00515300194
If the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope,
there may be something unusual happening in the transmission,
causing a safety device to activate. Have your vehicle checked
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into “L” (LOW) position (except for vehi-
cles with sport mode) or 2nd shift range of the sports
mode.
This method might not work depending on the type of
transmission malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE) position.NOTE
When the warning display or the warning display
appears on the information screen in the multi-informa-
tion display, there could be a malfunction in the CVT.
Refer to “Continuously variable transmission (CVT):
Warning display” on page 3-99.
Twin Clutch SST
(Sportronic Shift Transmission)
(if so equipped)
N00539700059
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from two types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode → P. 3 - 1 1 3
Manual shift → P. 3 - 1 1 6
BK0102103US.book 105 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-108 Features and controls
3

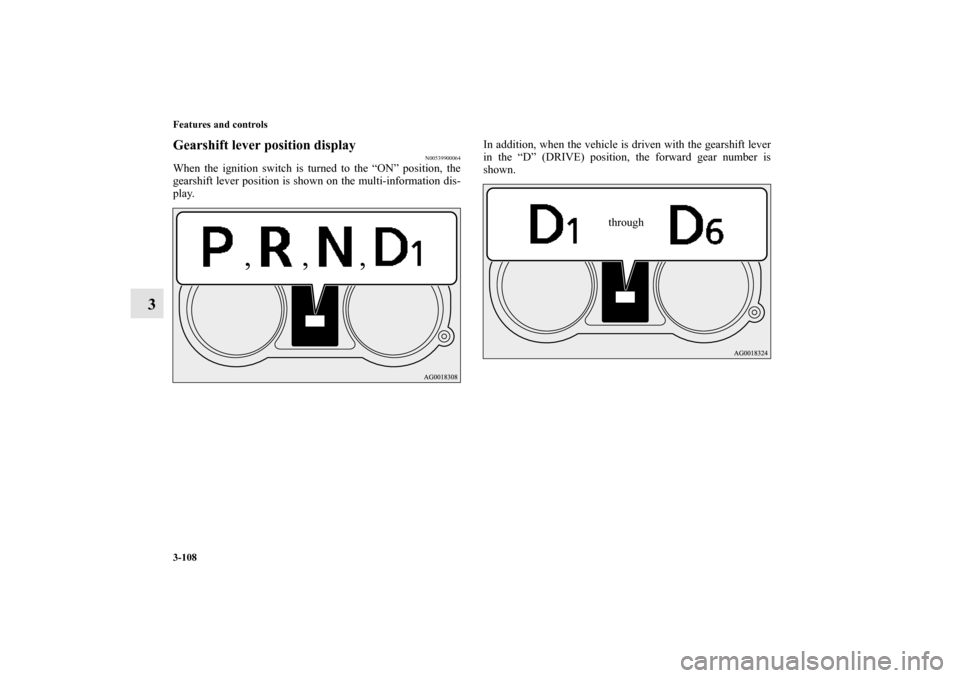

Gearshift lever position display
N00539900064
When the ignition switch is turned to the “ON” position, the
gearshift lever position is shown on the multi-information dis-
play. In addition, when the vehicle is driven with the gearshift lever
in the “D” (DRIVE) position, the forward gear number is
shown.
through
BK0102103US.book 108 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-109
3
When the gearshift lever position display blinksWhen the gearshift lever is placed in the “R” (REVERSE)
position, the gearshift lever position display on the multi-infor-
mation display may blink and the vehicle will not move
because the gears in the transmission have not engaged.
If this occurs, perform the following procedure.
1. Depress the brake pedal with your right foot and place the
gearshift lever in the “N” (NEUTRAL) position.
2. Place the gearshift lever in the “R” (REVERSE) position,
and confirm that the gearshift lever position display stops
blinking.
3. Repeat 1 and 2 above if the gearshift lever position dis-
play continues to blink.
If the gearshift lever position display is not showing
N00562500028
There may be a problem in the Twin Clutch SST.
If this occurs, the safety device operates and prevents the vehi-
cle from moving. Therefore, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the gearshift lever position display is shown and the vehicle
can move after this procedure is performed, there is no mal-
function.
If the gearshift lever position display is not shown and the
vehicle cannot move, or if this problem occurs repeatedly, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice as soon as possible.
WARNING
!
To avoid unintended vehicle movement, keep brake
pedal applied with your right foot and do not
depress the accelerator pedal, while the gearshift
lever position display is blinking.
BK0102103US.book 109 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-110 Features and controls
3
Warning display
N00540000052
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, take the following measures.
When warning display is showing
N00543100067
The temperature of the Twin Clutch SST fluid is high.
If this occurs, take one of the following measures.

Reduce the vehicle speed.

Stop the vehicle in a safe place, place the gearshift lever in
the “P” (PARK) position, and then open the engine hood
with the engine running to cool the engine.
After a while, check that the warning display has gone out.
If the display goes out, the vehicle can be driven normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.NOTE
If the vehicle is continuously driven on hilly roads or in an
aggressive manner involving high engine rpm, sudden
acceleration and/or deceleration, the vehicle transmission
may vibrate.
This vibration is to alert the driver that the Twin Clutch
SST fluid temperature has risen. It does not indicate a
malfunction.
If this occurs, perform the same measures for when the
warning appears. If the vibration stops, the vehicle can be
driven normally.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
BK0102103US.book 110 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-111
3
If vehicle is driven with warning displayed
If the vehicle continues to be driven after the warning dis-
play appears, and the temperature of the Twin Clutch SST fluid
continues to rise, the transmission protection control may oper-
ate and cause the transmission to function as if the gearshift
lever was in the “N” (NEUTRAL) position.
(At this time, the vehicle temporarily cannot be driven.)
If this occurs, take the following measures.
1. Depress the brake pedal and stop the vehicle in a safe
place.
2. Place the gearshift lever in the “P” (PARK) position, and
then open the engine hood with the engine running to cool
the engine.
3. After a while, check that the warning display has gone
out, and then stop the engine if the warning display has
gone out.
4. If the engine can be restarted, the vehicle can be driven
normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
When warning display is showing
N00543200039
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
If this occurs, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the warning display goes out, there is no abnormal condi-
tion.
However, if the warning display remains on or comes on fre-
quently, have the vehicle checked by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as pos-
sible.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
BK0102103US.book 111 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-114 Features and controls
3
NOTE
When continuously driving on closed circuit tracks or at
other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-110 and follow the appropri-
ate measures.

The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.

If you select “Sport” mode while the engine is cold, the
transmission may shift up at different speeds compared to
that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.

For slippery road surfaces, such as roads with accumu-
lated snow, “Normal” mode is recommended for smooth
shifting at low engine speeds.

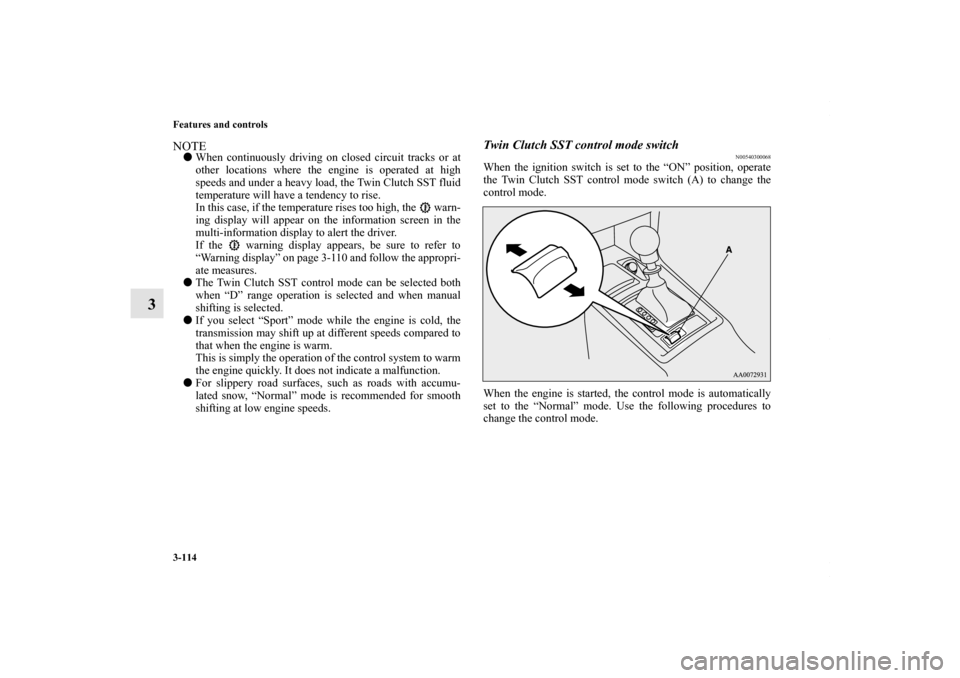

Twin Clutch SST control mode switch
N00540300068
When the ignition switch is set to the “ON” position, operate
the Twin Clutch SST control mode switch (A) to change the
control mode.
When the engine is started, the control mode is automatically
set to the “Normal” mode. Use the following procedures to
change the control mode.
BK0102103US.book 114 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-115
3
To shift from “Normal” mode to “Sport” mode
While the vehicle is stopped or being driven, push the Twin
Clutch SST control mode switch forward.
To shift from “Sport” mode to “Normal” mode
While the vehicle is stopped or being driven, push the Twin
Clutch SST control mode switch rearward.NOTE
If the Twin Clutch SST control mode switch is continu-
ously pressed after a control mode has been selected, an
erroneous operation prevention function operates and the
control mode is automatically set to the “Normal” mode.
If you would like to select a control mode again, return the
ignition switch to the “ACC” or “LOCK” position and
restart the engine. Then, push the Twin Clutch SST con-
trol mode switch.
Twin Clutch SST control mode display
N00540400043
When the ignition switch is set to the “ON” position, the cur-
rently selected control mode is displayed on the multi-informa-
tion display.
BK0102103US.book 115 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-121
3
NOTE
If manual shifting is selected using the sportronic steering
wheel shifters when the gearshift lever is in the “D”
(DRIVE) position, the transmission will automatically
return to “D” range operation before the vehicle stops.

When the transmission returns to “D” range operation
from manual shifting, it may automatically shift up or
down from the gear selected using manual shifting
depending on the vehicle speed or driving conditions.

If manual shifting is selected using the sportronic steering
wheel shifters, “D” range operation will again be selected
by moving the gearshift lever from the “D” (DRIVE)
position toward the driver’s seat, then return it toward the
front passenger’s seat.

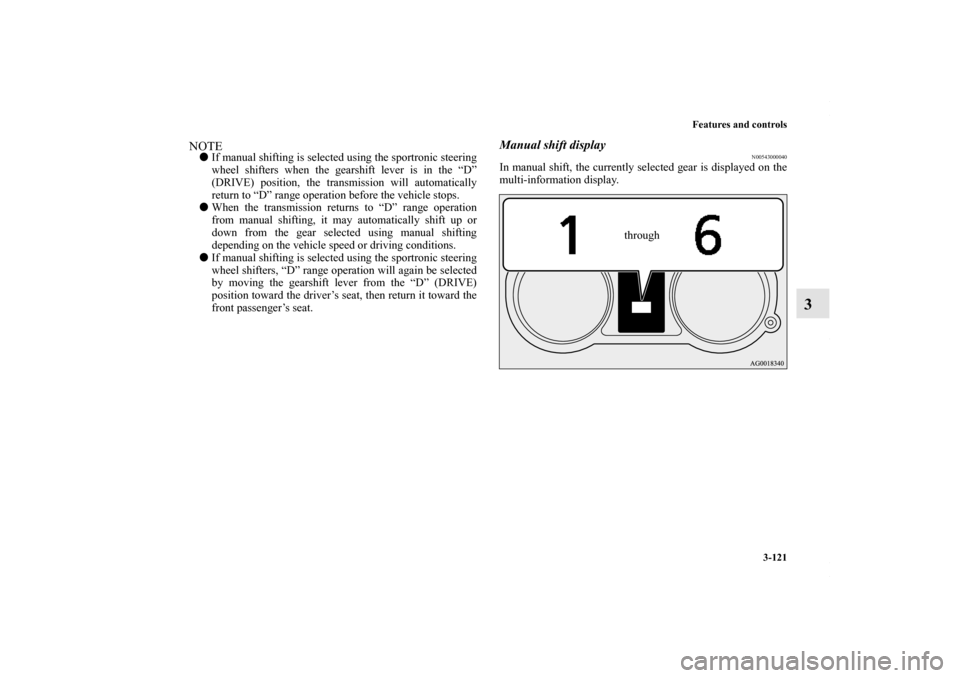

Manual shift display
N00543000040
In manual shift, the currently selected gear is displayed on the
multi-information display.
through
BK0102103US.book 121 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-123
3

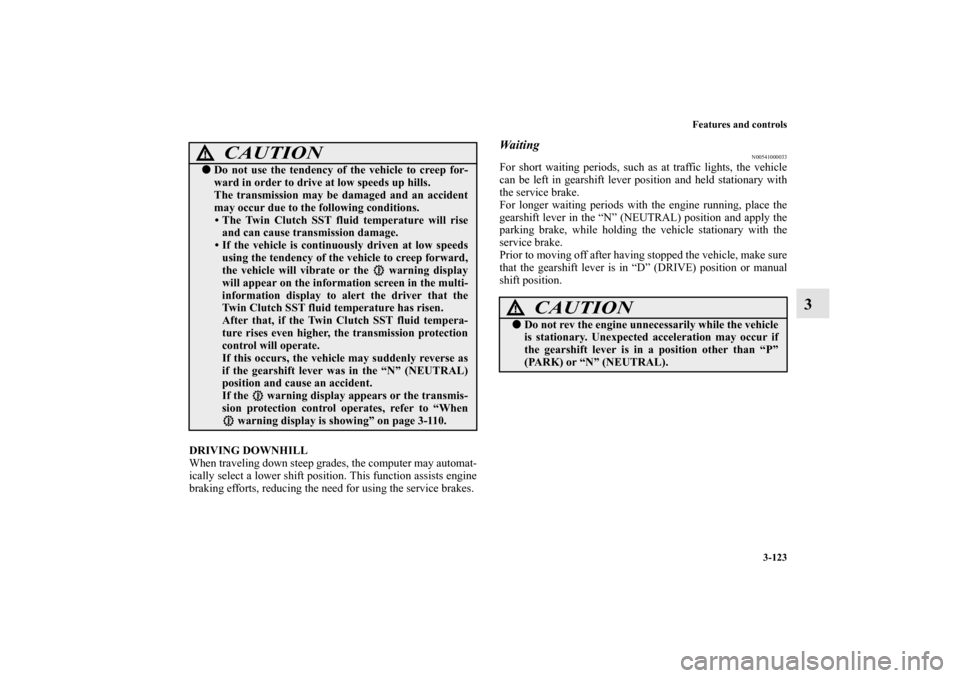

DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000033
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!
Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-110.
CAUTION
!
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0102103US.book 123 ページ ２００９年１０月２６日　月曜日　午後１時３８分
