3-124 Features and controls
3
Parking
N00541100018
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
the “P” (PARK) position.
What to do if the following occur with the Twin Clutch
SST
N00541200064
If there is a malfunction in the Twin Clutch SST or engine elec-
tronic control module, the following may occur.

Twin Clutch SST does not shift.

Vehicle cannot move.

Twin Clutch SST acceleration is slow.

Vehicle does not creep.

“Shift shock” is large.

Shifting occurs at higher engine speed.

Response is slow.
If any of these occurs, perform the following procedure.
When warning display is showing
The temperature of Twin Clutch SST fluid is high.
Refer to “Warning display” on page 3-110 and follow the
appropriate measures.
When the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) comes on or
blinking
There could be a malfunction in the engine electronic control
module.
Refer to “Engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”)” on page 3-212 and follow
the appropriate measures.

Do not keep the vehicle in a stopped position on an
uphill slope by depressing the accelerator pedal
instead of the brake pedal.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is kept in a stopped position by
depressing the accelerator pedal instead of the
brake pedal, the vehicle will vibrate or the
warning display will appear on the information
screen in the multi-information display to alert the
driver that the Twin Clutch SST fluid temperature
has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-110.CAUTION
!
BK0102103US.book 124 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-125
3
When the gearshift lever position display is not showing
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST.
Refer to “If the gearshift lever position display is not showing”
on page 3-109 and follow the appropriate measures.
When warning display is showing or when no warning is
showing in the multi-information display
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
Perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the vehicle moves and accelerates normally after this proce-
dure is performed, there is no malfunction in the transmission.
However, if the vehicle does not move or accelerate normally,
or if this problem occurs repeatedly, have the vehicle checked
by an authorized Mitsubishi Motors dealer or a repair facility
of your choice as soon as possible.
All-wheel drive system
(if so equipped)
N00516400033
All-wheel drive vehicles are propelled by engine power distrib-
uted constantly and appropriately to all four wheels.
Not only does this ensure enhanced handling on dry, paved
roads but also permits better traction when driving on slippery,
wet or snow-covered roads and when moving out of mud.
These vehicles, however, are not designed for off-road use,
and are unsuitable for driving on bumpy ground that may
cause excessive strain. All-wheel drive vehicles should be
driven only under the same conditions as are suitable for ordi-
nary front-wheel drive vehicles.
CAUTION
!
When the Twin Clutch SST fluid temperature is
high, the engine idle speed when the vehicle is
stopped may increase or the vehicle will have a weak
tendency to creep.
After that, if the Twin Clutch SST fluid temperature
rises even higher, the warning display will
appear.
BK0102103US.book 125 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-129
3
ACD control mode switchWhen the ignition switch is set to the “ON” position, operate
the AWC switch to change the control mode.
Each time the switch is pushed, the control mode changes in
the order “TARMAC” → “GRAVEL” → “SNOW” → “TAR-
MAC”.NOTE
The control mode can be changed while the vehicle is
moving.

The selected control mode is stored in memory even if the
engine is stopped.
However, if a battery terminal is disconnected, the control
mode stored in memory will be erased and the control
mode will be set to the “TARMAC” mode.
ACD control mode displayExample: “TARMAC” mode is selected.
The currently selected control mode is displayed on the multi-
information display.
In addition, when the control mode is changed, the selected
mode appears on the interrupt display screen of the information
screen in the multi-information display.
The control mode display will appear on the information
screen for a few seconds, and then the original screen will
return.
CAUTION
!
The ACD control mode display may flash under
aggressive driving conditions.
At this time, ACD control is temporarily suspended
in order to protect the ACD device, but this will not
affect normal driving.
After the vehicle is driven for a while, if the ACD
control mode display remains on, the ACD control
will start operating again.
BK0102103US.book 129 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-130 Features and controls
3
ACD warning display
N00545700041
When there is a malfunction in the system, the warning dis-
play will appear on the information screen in the multi-infor-
mation display.
In addition, the ACD control mode display in section (A) will
go out at the same time.
NOTE
If the ambient temperature drops and the viscosity of the
AWC control fluid increases, the warning may be dis-
played.
At this time, ACD control is temporarily suspended, but
this will not affect normal driving.
After the vehicle is driven for a while, if the engine is
restarted after the AWC control fluid warms up or the
ambient temperature increases, the ACD control will start
operating again if the warning display goes out.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warn-
ing display goes out.
If the warning display goes out, there is no
abnormal condition. If the warning display does
not go out or appears frequently, it is not necessary
to stop the vehicle immediately, but we recommend
you to have your vehicle inspected.
BK0102103US.book 130 ページ ２００９年１０月２６日　月曜日　午後１時３８分

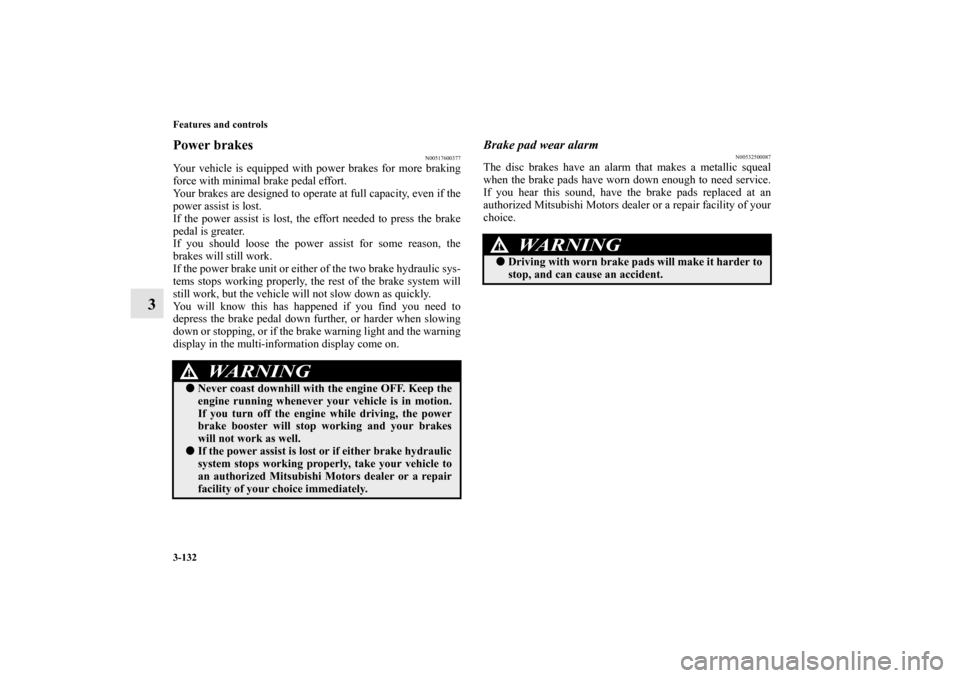

3-132 Features and controls
3
Power brakes
N00517600377
Your vehicle is equipped with power brakes for more braking
force with minimal brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is lost.
If the power assist is lost, the effort needed to press the brake
pedal is greater.
If you should loose the power assist for some reason, the
brakes will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to
depress the brake pedal down further, or harder when slowing
down or stopping, or if the brake warning light and the warning
display in the multi-information display come on.
Brake pad wear alarm
N00532500087
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WARNING
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WARNING
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
BK0102103US.book 132 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-134 Features and controls
3
Warning display
N00562800034
Warning light
Warning display
In the event of an abnormal condition in the system while driv-
ing, the warning display will be displayed.
Anti-lock braking system
(if so equipped)
N00517900266
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps you keep control of your
vehicle and its direction. Driving hints
When using the anti-lock brakes (sudden braking), steer-
ing is slightly different from normal driving conditions.
Use the steering wheel carefully.

Always keep a safe distance from the vehicle in front of
you. Even if your vehicle is equipped with the anti-lock
braking system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.

Operation of anti-lock braking system is not restricted to
situations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.

When the anti-lock braking system is in use, you may feel
the brake pedal vibrating and hear a unique sound. You
may also feel as if the pedal resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
CAUTION
!
If the warning is displayed, the hill start assist will
not operate. Start off carefully.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warning
display went out, in which case the hill start assist is
again working normally.
If the warning remains displayed or reappears fre-
quently, it is not necessary to stop the vehicle imme-
diately, but the vehicle should be inspected by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
BK0102103US.book 134 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-135
3
NOTE
After your vehicle is driven a short distance after starting
the engine, you will hear the sound coming from the
engine compartment. These are the normal sounds the
anti-lock braking system makes when performing a self-
check. It does not indicate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).
Anti-lock braking system warning light / display
N00531600573
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.
Never install a limited slip differential as the ABS
may not function normally.
Please consult an authorized Mitsubishi Motors
dealer.
BK0102103US.book 135 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-136 Features and controls
3
If the warning light / display comes on while driv-
ing
N00531700503
If only the anti-lock braking system warning light / dis-
play comes on
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light / display then remain off during driv-
ing, there is no problem.
However, if the warning light / display do not disappear,
or if they come on again when the vehicle is driven, have
the vehicle checked by an authorized Mitsubishi Motors
dealer or repair facility of your choice as soon as possible.
CAUTION
!
Any of the following warning light/display behavior
indicates that the anti-lock braking system is not
functioning and only the standard brake system is
working. (The standard brake system will still work
properly.) If this happens, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
• When the ignition switch is in the “ON” position,
the warning light does not come on or it remains
on and does not go off
• The warning light comes on while driving
• The warning display appears while driving
BK0102103US.book 136 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-137
3
If the anti-lock braking system warning light / display
and brake warning light / display come on at the same
timeWarning light

Warning display type 1

Warning display type 2

The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized Mitsubishi Motors
dealer or repair facility of your choice.NOTE
The anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200022
After driving on snow or icy roads, remove any snow and ice
which may have been left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0102103US.book 137 ページ ２００９年１０月２６日　月曜日　午後１時３８分

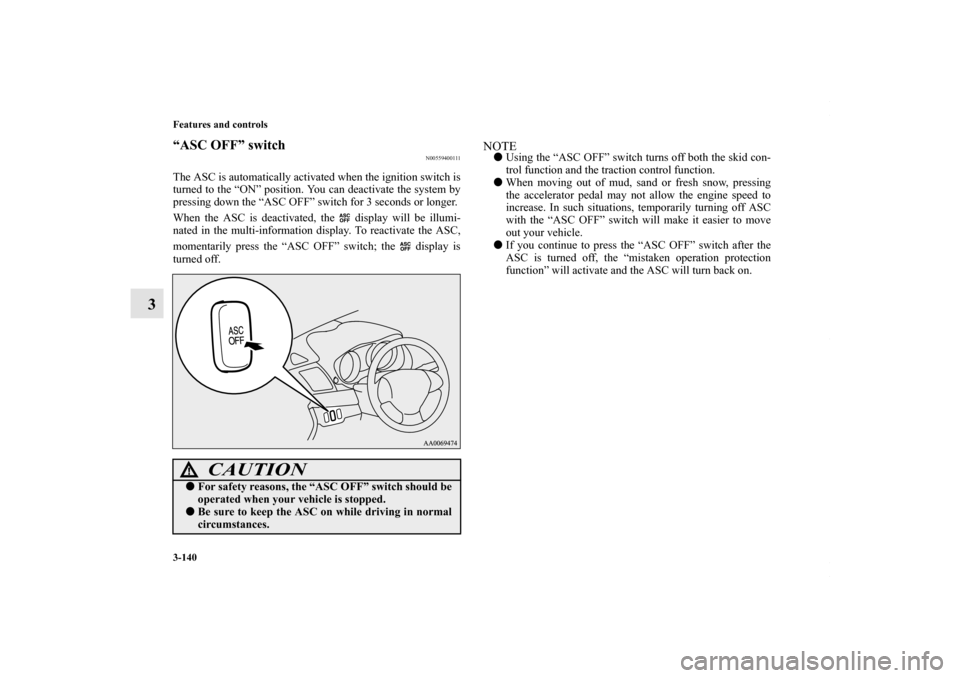

3-140 Features and controls
3
“ASC OFF” switch
N00559400111
The ASC is automatically activated when the ignition switch is
turned to the “ON” position. You can deactivate the system by
pressing down the “ASC OFF” switch for 3 seconds or longer.
When the ASC is deactivated, the display will be illumi-
nated in the multi-information display. To reactivate the ASC,
momentarily press the “ASC OFF” switch; the display is
turned off.
NOTE
Using the “ASC OFF” switch turns off both the skid con-
trol function and the traction control function.

When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off ASC
with the “ASC OFF” switch will make it easier to move
out your vehicle.

If you continue to press the “ASC OFF” switch after the
ASC is turned off, the “mistaken operation protection
function” will activate and the ASC will turn back on.
CAUTION
!
For safety reasons, the “ASC OFF” switch should be
operated when your vehicle is stopped.
Be sure to keep the ASC on while driving in normal
circumstances.
BK0102103US.book 140 ページ ２００９年１０月２６日　月曜日　午後１時３８分
