Type of coolant MITSUBISHI LANCER 2010 8.G Owners Manual

Quick index
5
Problem
Do this
Ref. page
The engine coolant temperature
display “ ” in the multi-informa-
tion display is flashing.
Steam comes out of the engine
compartment.
Type 1
Type 2The engine is overheated.
Carefully stop the vehicle in a safe place.P.6-5
The vehicle is stuck in sand, mud,
or snow.Rock your vehicle back and forth to free it. P.6-24
WARNING
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0102103US.book 5 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-162 Features and controls
3Multi-information display
N00555000122
[Except for vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
i
th
i
g
ni
ti
on

swi
t
ch
i
s
“
ON”
p
os
it
i
on

{
Con
t
in
uou
sl
y
v
ar
ia
bl
e
t
ra
ns
mi
ss
io
n
(
CVT)
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1- Warning display screen (With ignition switch in the
“OFF” position) → P. 3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3-168
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3-169
4- Warning display screen (With ignition switch in the “ON”
position) → P. 3-172
5- Active Stability Control (ASC) OFF display screen (if so
equipped) → P. 3-172
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-177
7- Fuel remaining display screen → P. 3-179
8- Outside temperature display screen → P. 3-179
9- Selector lever position display screen (CVT) → P. 3-178
BK0102103US.book 162 ページ ２００９年１０月２６日　月曜日　午後１時３８分

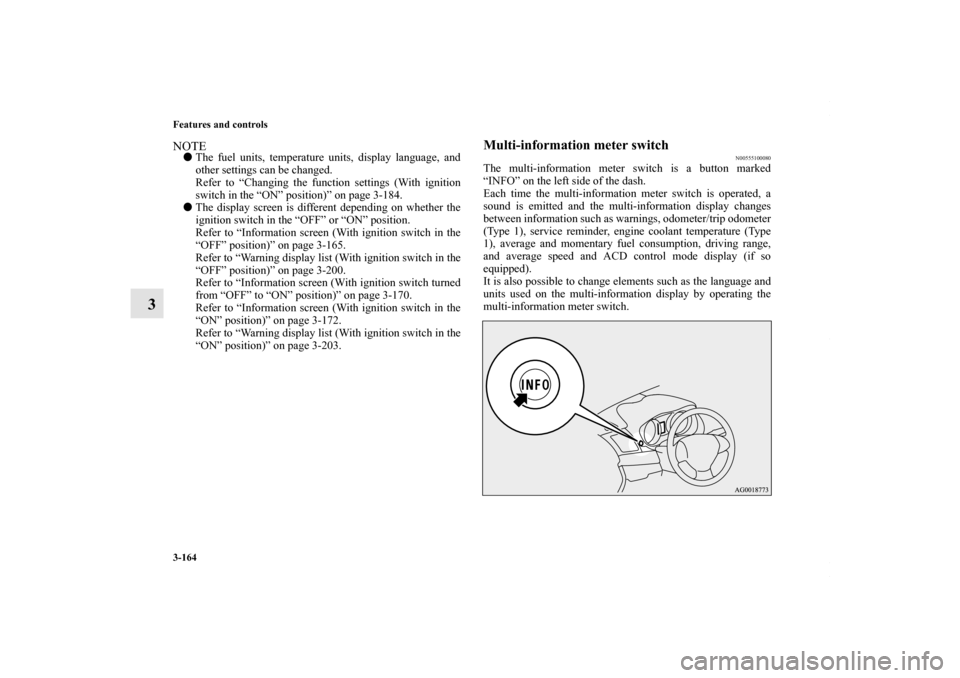

3-164 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-165.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-170.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-172.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.
Multi-information meter switch
N00555100080
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer/trip odometer
(Type 1), service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed and ACD control mode display (if so
equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
BK0102103US.book 164 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-173
3
NOTE
While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
changed.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.
When there is no warning display
When there is a
warning display Type 1
Type 2
When there is no warning display
When there is a
warning display
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- Function setting screen
11- Redisplay of a warning display screen
BK0102103US.book 173 ページ ２００９年１０月２６日　月曜日　午後１時３８分

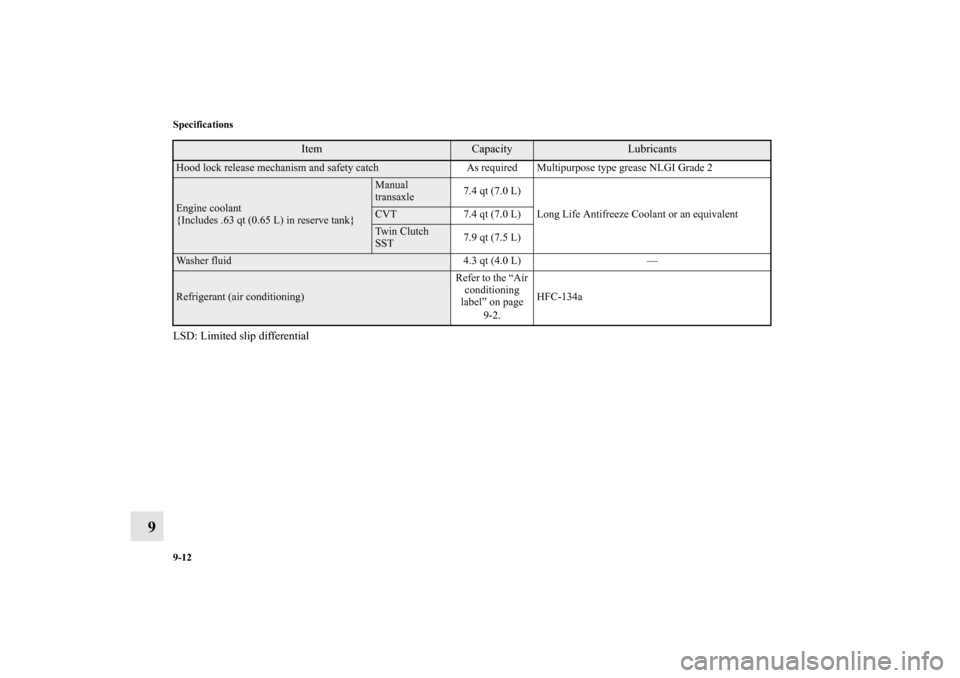

9-12 Specifications
9
LSD: Limited slip differentialHood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual
transaxle7.4 qt (7.0 L)
Long Life Antifreeze Coolant or an equivalentCVT 7.4 qt (7.0 L)Twin Clutch
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
Item
Capacity
Lubricants
