Page 11 of 670
Overview
Outside (Front)
N00100601062
[Except for vehicles with high intensity discharge
headlights type]
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
Headlights, low beam
P.3-217, 7-56, 7-59
Headlights, high beam P.3-217, 7-56, 7-62[For vehicles with high intensity discharge head-
lights type]
Headlights, low/high beam
P.3-217, 7-56
Daytime running lights P.7-56, 7-64 Except for RALLIART
Windshield wiper and washer
P.3-228
Engine compartment P.7-7
Engine hood P.7-4Sunroof (if so equipped) P.3-71
Fuel tank filler
P.1-4
Outside rearview mirrors P.3-79
Side turn-signal lights P.3-225, 7-56
Front fog lights (if so equipped) P.3-227, 7-56, 7-73Locking and unlocking P.3-52
Keyless entry system (if so equipped) P.3-9
F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-16
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
BK0102103US.book 9 ページ 2009年10月26日 月曜日 午後1時38分
Page 12 of 670
Overview
Sunroof (if so equipped) P.3-71
Windshield wiper and washer
P.3-228
Engine compartment P.7-7
Engine hood P.7-4Locking and unlocking P.3-52
Keyless entry system P.3-9
F.A.S.T.-key (Free-hand Advanced
Security Transmitter) (if so equipped) P.3-16
Fuel tank filler
P.1-4
Outside rearview mirrors P.3-79
Side turn-signal lights P.3-225, 7-56
Front fog lights P.3-227, 7-56, 7-76
[Except for vehicles with high intensity discharge
headlights type][For vehicles with high intensity discharge head-
lights type] RALLIART
Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
Headlights, low beam
P.3-217, 7-56, 7-59
Headlights, high beam P.3-217, 7-56, 7-62Headlights, low/high beam
P.3-217, 7-56
Daytime running lights P.7-56, 7-64 Front turn-signal lights P.3-225, 7-56, 7-71
Front side-marker and
parking lights P.3-217,
7-56, 7-69
BK0102103US.book 10 ページ 2009年10月26日 月曜日 午後1時38分
Page 24 of 670
General information
1-3
1
Ethanol (Gasohol) A mixture of up to 10 % ethanol (grain alcohol) and 90 %
unleaded gasoline may be used in your vehicle, provided the
octane number is at least as high as that recommended for
unleaded gasoline. Methanol Do not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle’s fuel system.Reformulated gasoline Many areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or the durability
of the engine and fuel system. MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.
Sulfur in gasoline Your vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle’s catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “CHECK ENGINE”) to come on. Illumi-
nation of this indicator while you are using high-sulfur gaso-
line does not necessarily mean the vehicle’s emission-control
system is malfunctioning. Your authorized Mitsubishi Motors
dealer may suggest you try using a different, lower-sulfur
brand of unleaded gasoline to determine whether the problem
is fuel-related.NOTEPoor-quality gasoline can cause problems such as poor
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“CHECK ENGINE”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0102103US.book 3 ページ 2009年10月26日 月曜日 午後1時38分
Page 196 of 670
Features and controls
3-105
3
When the CVT makes no speed change
N00515300194
If the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope,
there may be something unusual happening in the transmission,
causing a safety device to activate. Have your vehicle checked
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into “L” (LOW) position (except for vehi-
cles with sport mode) or 2nd shift range of the sports
mode.
This method might not work depending on the type of
transmission malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE) position.NOTEWhen the warning display or the warning display
appears on the information screen in the multi-informa-
tion display, there could be a malfunction in the CVT.
Refer to “Continuously variable transmission (CVT):
Warning display” on page 3-99.
Twin Clutch SST
(Sportronic Shift Transmission)
(if so equipped)
N00539700059
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from two types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode → P. 3 - 1 1 3
Manual shift → P. 3 - 1 1 6
BK0102103US.book 105 ページ 2009年10月26日 月曜日 午後1時38分
Page 245 of 670
3-154 Features and controls
3
NOTEIn addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Type 1
Type 2
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
BK0102103US.book 154 ページ 2009年10月26日 月曜日 午後1時38分
Page 253 of 670
3-162 Features and controls
3Multi-information display
N00555000122
[Except for vehicles equipped with the Twin Clutch SST]The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
i
th
i
g
ni
ti
on
swi
t
ch
i
s
“
ON”
p
os
it
i
on
{
Con
t
in
uou
sl
y
v
ar
ia
bl
e
t
ra
ns
mi
ss
io
n
(
CVT)
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1- Warning display screen (With ignition switch in the
“OFF” position) → P. 3-165
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-165
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3-168
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3-169
4- Warning display screen (With ignition switch in the “ON”
position) → P. 3-172
5- Active Stability Control (ASC) OFF display screen (if so
equipped) → P. 3-172
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-172
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-177
7- Fuel remaining display screen → P. 3-179
8- Outside temperature display screen → P. 3-179
9- Selector lever position display screen (CVT) → P. 3-178
BK0102103US.book 162 ページ 2009年10月26日 月曜日 午後1時38分
Page 255 of 670
3-164 Features and controls
3
NOTEThe fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-165.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-170.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-172.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.
Multi-information meter switch
N00555100080
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer/trip odometer
(Type 1), service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed and ACD control mode display (if so
equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
BK0102103US.book 164 ページ 2009年10月26日 月曜日 午後1時38分
Page 264 of 670
Features and controls
3-173
3
NOTEWhile driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
changed.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.
When there is no warning display
When there is a
warning display Type 1
Type 2
When there is no warning display
When there is a
warning display
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- Function setting screen
11- Redisplay of a warning display screen
BK0102103US.book 173 ページ 2009年10月26日 月曜日 午後1時38分
Page 266 of 670

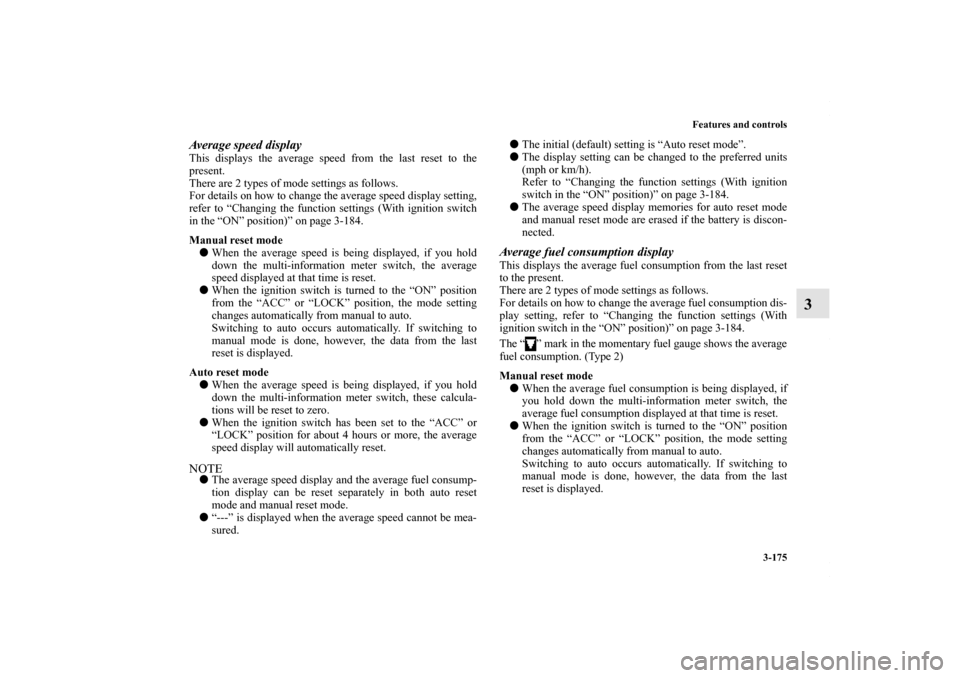

Features and controls
3-175
3
Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
in the “ON” position)” on page 3-184.
Manual reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, the average
speed displayed at that time is reset.
When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
“---” is displayed when the average speed cannot be mea-
sured.The initial (default) setting is “Auto reset mode”.
The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
The average speed display memories for auto reset mode
and manual reset mode are erased if the battery is discon-
nected.
Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch in the “ON” position)” on page 3-184.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode
When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, the
average fuel consumption displayed at that time is reset.
When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
BK0102103US.book 175 ページ 2009年10月26日 月曜日 午後1時38分
Page 267 of 670

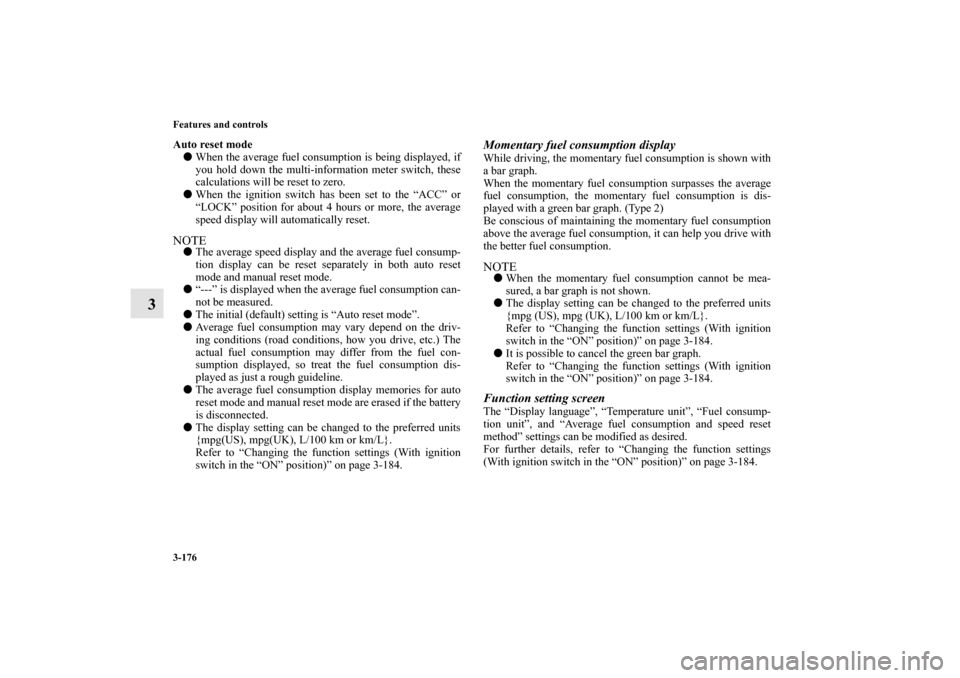

3-176 Features and controls
3
Auto reset mode
When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset. NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
“---” is displayed when the average fuel consumption can-
not be measured.
The initial (default) setting is “Auto reset mode”.
Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.
The average fuel consumption display memories for auto
reset mode and manual reset mode are erased if the battery
is disconnected.
The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph. (Type 2)
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTEWhen the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.
The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-184.
BK0102103US.book 176 ページ 2009年10月26日 月曜日 午後1時38分
