MITSUBISHI LANCER 2012 8.G MMCS Manual

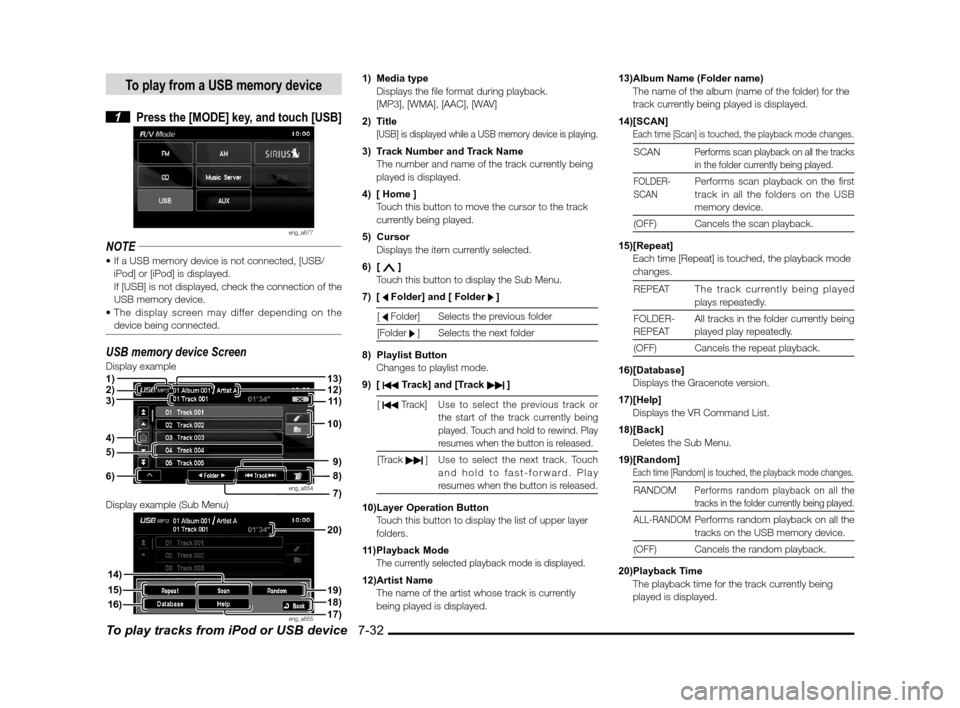

To play tracks from iPod or USB device 7-32
To play from a USB memory device
1 Press the [MODE] key, and touch [USB]
eng_a677
NOTE
iPod] or [iPod] is displayed.
If [USB] is not displayed, check the connection of the
USB memory device.
device being connected.
USB memory device ScreenDisplay example
eng_a654
Display example (Sub Menu)
eng_a655
1) Media type
Displays the le format during playback. [MP3], [WMA], [AAC], [WAV]
2) Title

[USB] is displayed while a USB memory device is playing.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [ Home ]
Touch this button to move the cursor to the track currently being played.
5) Cursor
Displays the item currently selected.
6) [ ]
Touch this button to display the Sub Menu.
7) [
Folder] and [ Folder ]
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
8) Playlist Button
Changes to playlist mode.
9) [
Track] and [Track ]
[ Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
10) Layer Operation Button
Touch this button to display the list of upper layer folders.
11) Playback Mode

The currently selected playback mode is displayed.
12) Artist Name
The name of the artist whose track is currently being played is displayed. 13) Album Name (Folder name)
The name of the album (name of the folder) for the
track currently being played is displayed.
14) [SCAN]

Each time [Scan] is touched, the playback mode changes.
SCANPerforms scan playback on all the tracks
in the folder currently being played.
FOLDER-
SCANPerforms scan playback on the rst
track in all the folders on the USB
memory device.
(OFF) Cancels the scan playback.
15) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT The track currently being played plays repeatedly.
FOLDER-
REPEAT All tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
16) [Database]
Displays the Gracenote version.
17) [Help]
Displays the VR Command List.
18) [Back]
Deletes the Sub Menu.
19) [Random]

Each time [Random] is touched, the playback mode changes.
RANDOMPerforms random playback on all the
tracks in the folder currently being played.
ALL-RANDOMPerforms random playback on all the
tracks on the USB memory device.
(OFF) Cancels the random playback.
20) Playback Time
The playback time for the track currently being played is displayed.
2)
4)
8)6)
12) 13)1)
3)
5)
7) 9)
10)
11 )
14)
15)
16)17) 19)18)
20)
\b \b
\f \

  \b \b
\f

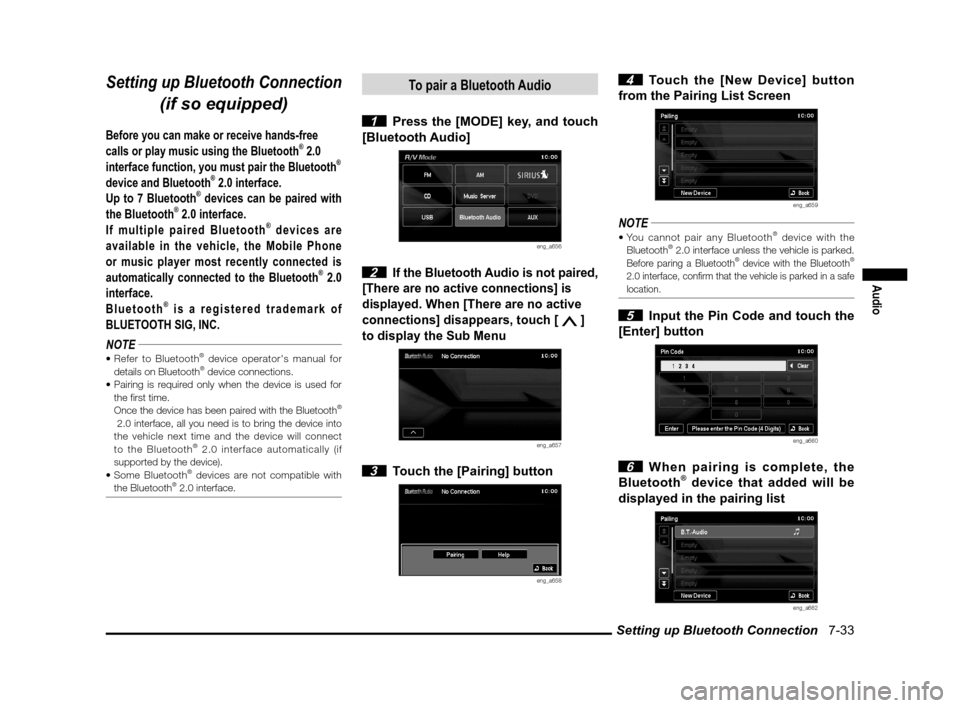

Setting up Bluetooth Connection 7-33
Audio
Setting up Bluetooth Connection
(if so equipped)
Before you can make or receive hands-free
calls or play music using the Bluetooth® 2.0
interface function, you must pair the Bluetooth®
device and Bluetooth® 2.0 interface.
Up to 7 Bluetooth® devices can be paired with
the Bluetooth® 2.0 interface.
If multiple paired Bluetooth® devices are
available in the vehicle, the Mobile Phone
or music player most recently connected is
automatically connected to the Bluetooth
® 2.0
interface.
Bluetooth
® is a registered trademark of
BLUETOOTH SIG, INC.
NOTE
® device operator's manual for
details on Bluetooth® device connections.
the rst time.

Once the device has been paired with the Bluetooth®
2.0 interface, all you need is to bring the device into
the vehicle next time and the device will connect
to the Bluetooth
® 2.0 interface automatically (if
supported by the device).
Bluetooth® devices are not compatible with
the Bluetooth® 2.0 interface.
To pair a Bluetooth Audio
1 Press the [MODE] key, and touch
[Bluetooth Audio]
eng_a656
2 If the Bluetooth Audio is not paired,
[There are no active connections] is
displayed.
When [There are no active
connections] disappears, touch [
]
to display the Sub Menu
eng_a657
3 Touch the [Pairing] button
eng_a658
4 Touch the [New Device] button
from the Pairing List Screen
eng_a659
NOTE® device with the
Bluetooth® 2.0 interface unless the vehicle is parked. Before paring a Bluetooth® device with the Bluetooth®
2.0 interface, con rm that the vehicle is parked in a safe
location.
5 Input the Pin Code and touch the
[Enter] button
eng_a660
6 When pairing is complete, the
Bluetooth® device that added will be
displayed in the pairing list
eng_a662
\b \b
\f \

  \b \b
\f

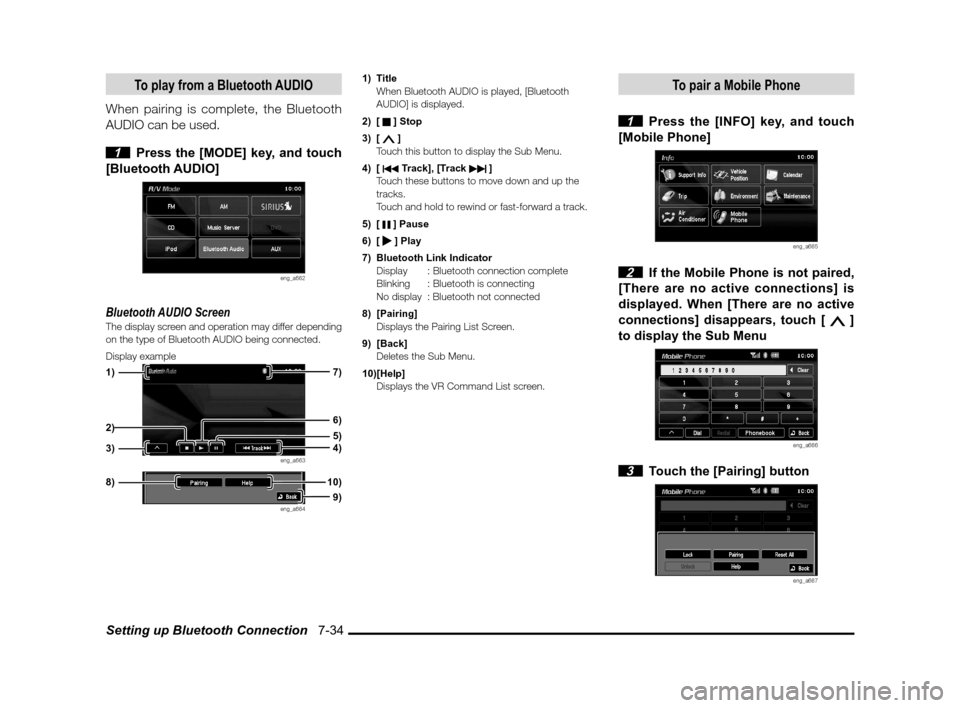

Setting up Bluetooth Connection 7-34
To play from a Bluetooth AUDIO
When pairing is complete, the Bluetooth
AUDIO can be used.

1 Press the [MODE] key, and touch
[Bluetooth AUDIO]
eng_a662
Bluetooth AUDIO ScreenThe display screen and operation may differ depending
on the type of Bluetooth AUDIO being connected.
Display example
eng_a663
eng_a664
1) Title
When Bluetooth AUDIO is played, [Bluetooth
AUDIO] is displayed.
2) [ ] Stop
3) [ ]
Touch this button to display the Sub Menu.
4) [
Track], [Track ]
Touch these buttons to move down and up the
tracks.
Touch and hold to rewind or fast-forward a track.
5) [ ] Pause
6) [
] Play
7) Bluetooth Link Indicator
Display : Bluetooth connection complete
Blinking : Bluetooth is connecting
No display : Bluetooth not connected
8) [Pairing]
Displays the Pairing List Screen.
9) [Back]
Deletes the Sub Menu.
10) [Help]
Displays the VR Command List screen.
To pair a Mobile Phone
1 Press the [INFO] key, and touch
[Mobile Phone]
eng_a665
2 If the Mobile Phone is not paired,
[There are no active connections] is
displayed. When [There are no active
connections] disappears, touch [
]
to display the Sub Menu
eng_a666
3 Touch the [Pairing] button
eng_a667
7)
1)
3) 6)
2)5)
4)
8)
9)
10)
\b \b
\f \

 \b \b \b
\f

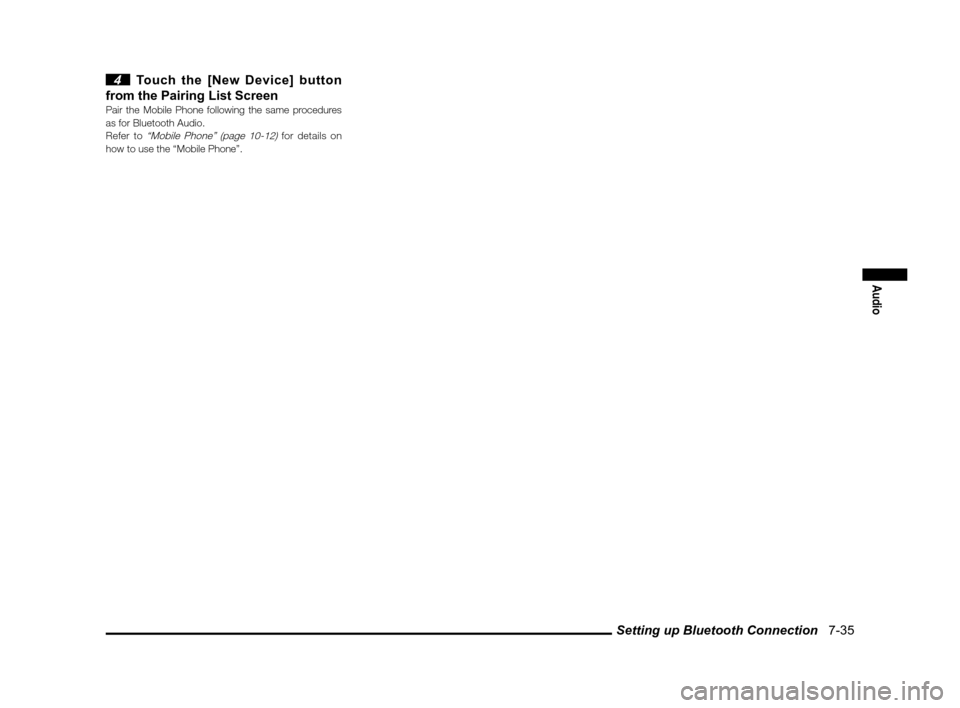

Setting up Bluetooth Connection 7-35
Audio
4 Touch the [New Device] button
from the Pairing List Screen
Pair the Mobile Phone following the same procedures
as for Bluetooth Audio.
Refer to
“Mobile Phone” (page 10-12) for details on
how to use the “Mobile Phone”.
\b \b
\f \

   \b \b


Setting up Bluetooth Connection 7-36
\b \b
\f \

  \b \b

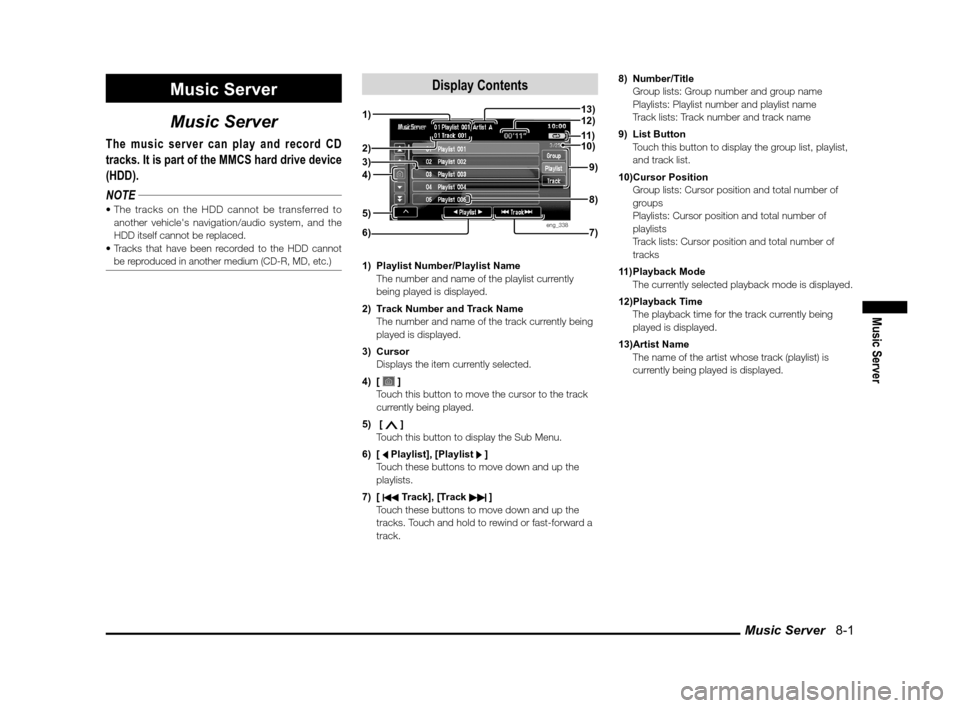

Music Server 8-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.

Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
T
ouch this button to move the cursor to the track
currently being played.
5) [
]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [
Track], [Track ]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track. 8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of groups
Playlists: Cursor position and total number of playlists
Track lists: Cursor position and total number of tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is currently being played is displayed.
4) 2)
1)
3)
6) 7) 8) 9)
10) 11 ) 13)
12)
5)
\b \b
\f \


 \b \b

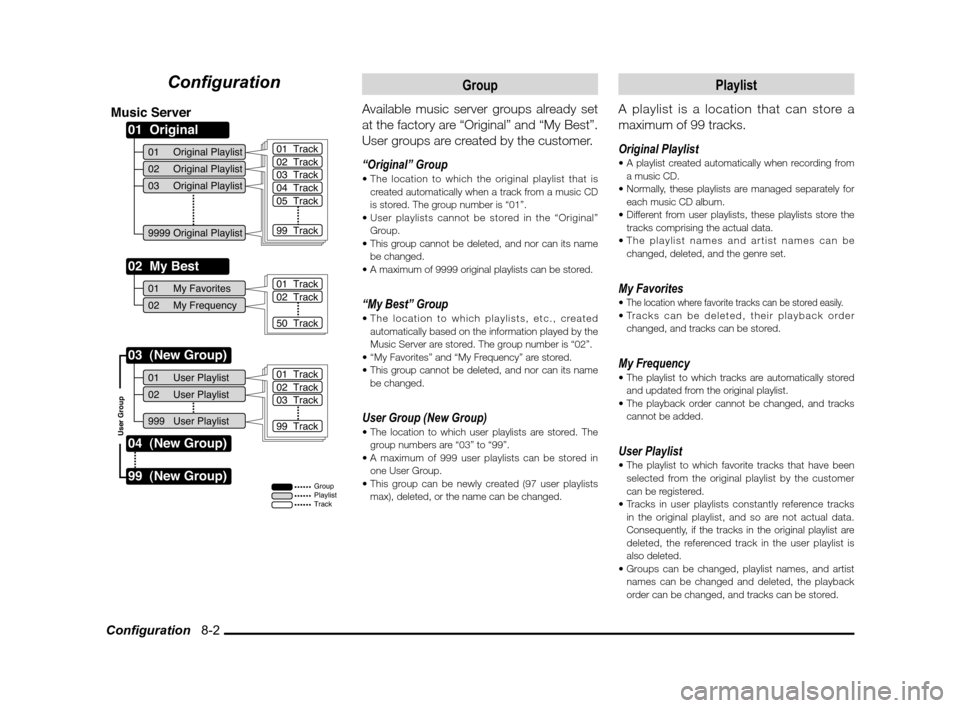

Confi guration 8-2
Confi guration
01 Original
Music Server
02 My Best
03 (New Group)
99 (New Group)
01 Original Playlist
Group
02 Original Playlist
01 My Favorites
02 My Frequency 03 Original Playlist
01 User Playlist
02 User Playlist
999 User Playlist
9999 Original Playlist
01 Track02 Track03 Track04 Track05 Track
99 Track
01 Track02 Track03 Track
99 Track
01 Track02 Track
50 Track
Playlist
Track
04 (New Group)User Group
Group
Available music server groups already set
at the factory are “Original” and “My Best”.
User groups are created by the customer.
“Original” Group

created automatically when a track from a music CD
is stored. The group number is “01”.
Group.
be changed.

“My Best” Group automatically based on the information played by the
Music Server are stored. The group number is “02”.

be changed.
User Group (New Group)group numbers are “03” to “99”.
one User Group.
max), deleted, or the name can be changed.
Playlist
A playlist is a location that can store a
maximum of 99 tracks.
Original Playlist
a music CD.
each music CD album.
tracks comprising the actual data.
changed, deleted, and the genre set.
My FavoritesThe location where favorite tracks can be stored easily.changed, and tracks can be stored.
My Frequencyand updated from the original playlist.
cannot be added.
User Playlist selected from the original playlist by the customer
can be registered.
in the original playlist, and so are not actual data.
Consequently, if the tracks in the original playlist are
deleted, the referenced track in the user playlist is
also deleted.
names can be changed and deleted, the playback
order can be changed, and tracks can be stored.
\b \b
\f \

  \b \b

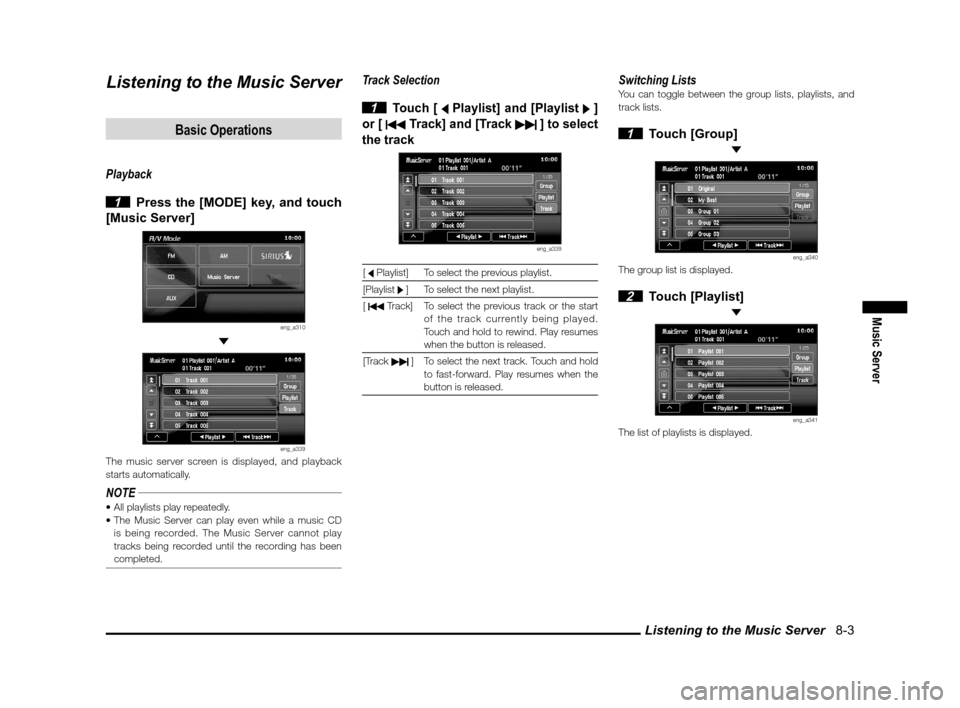

Listening to the Music Server 8-3
Music Server
Listening to the Music Server
Basic Operations
Playback

1 Press the [MODE] key, and touch
[Music Server]
eng_a310
eng_a339The music server screen is displayed, and playback
starts automatically.
NOTE

is being recorded. The Music Server cannot play
tracks being recorded until the recording has been
completed.
Track Selection

1 Touch [ Playlist] and [Playlist ]
or [
Track] and [Track ] to select
the track
eng_a339
[ Playlist] To select the previous playlist.
[Playlist ] To select the next playlist.
[
Track] To select the previous track or the start
of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] To select the next track. Touch and hold to fast-forward. Play resumes when the
button is released.
Switching ListsYou can toggle between the group lists, playlists, and
track lists.
1 Touch [Group]
eng_a340The group list is displayed.
2 Touch [Playlist]
eng_a341The list of playlists is displayed.
\b \b
\f \

  \b \b

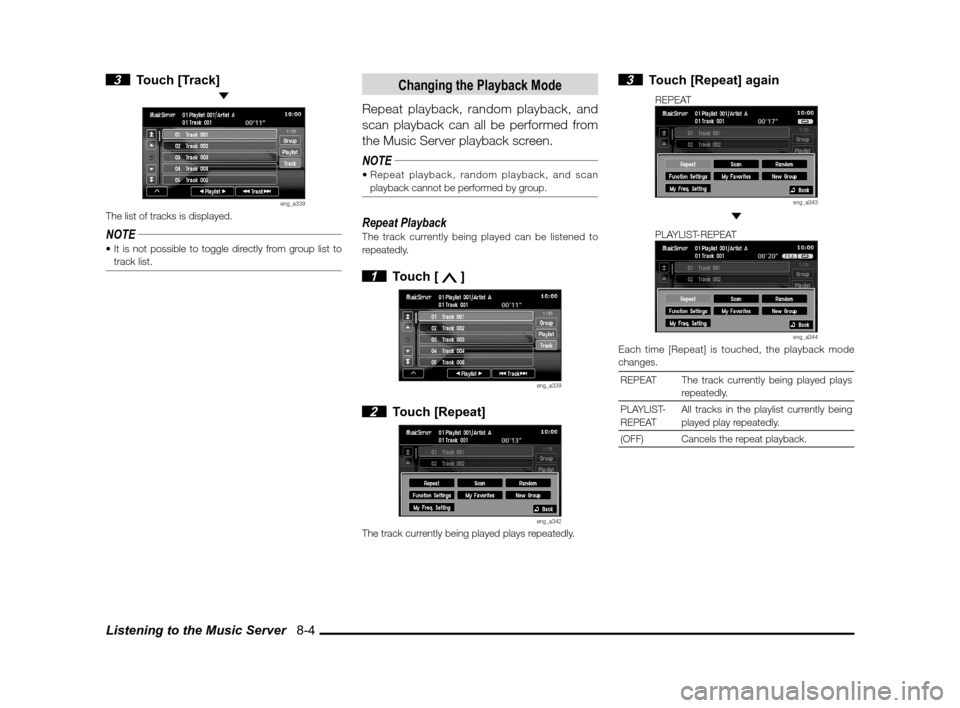

Listening to the Music Server 8-4
3 Touch [Track]
eng_a339The list of tracks is displayed.
NOTE
track list.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the Music Server playback screen.
NOTE
playback cannot be performed by group.
Repeat PlaybackThe track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a339
2 Touch [Repeat]
eng_a342The track currently being played plays repeatedly.
3 Touch [Repeat] again
REPEAT
eng_a343
PLAYLIST-REPEAT
eng_a344Each time [Repeat] is touched, the playback mode
changes.REPEAT The track currently being played plays
repeatedly.
PLAYLIST-
REPEAT All tracks in the playlist currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
\b \b
\f \

 \b \b \b

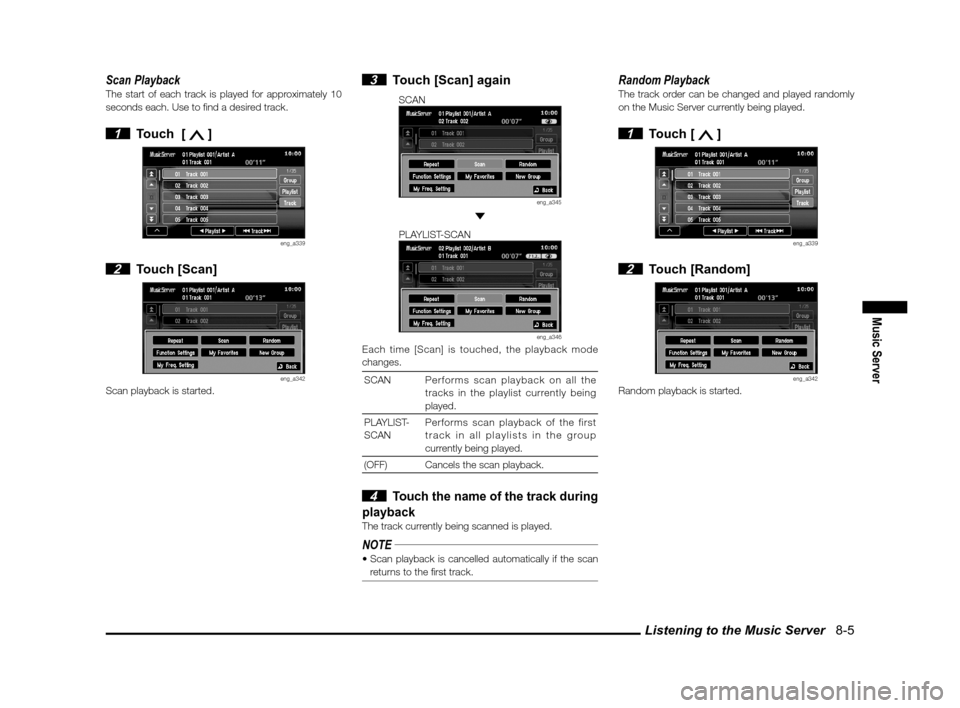

Listening to the Music Server 8-5
Music Server
Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track.
1 Touch [ ]
eng_a339
2 Touch [Scan]
eng_a342Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a345
PLAYLIST-SCAN
eng_a346Each time [Scan] is touched, the playback mode
changes.SCAN P erforms scan playback on all the
tracks in the playlist currently being
played.
PLAYLIST-
SCAN Performs scan playback of the first
track in all playlists in the group
currently being played.
(OFF) Cancels the scan playback.
4 Touch the name of the track during
playback
The track currently being scanned is played.
NOTE
returns to the rst track.
Random PlaybackThe track order can be changed and played randomly
on the Music Server currently being played.
1 Touch [ ]
eng_a339
2 Touch [Random]
eng_a342Random playback is started.
\b \b
\f \

   \b \b
