MITSUBISHI LANCER 2012 8.G MMCS Manual

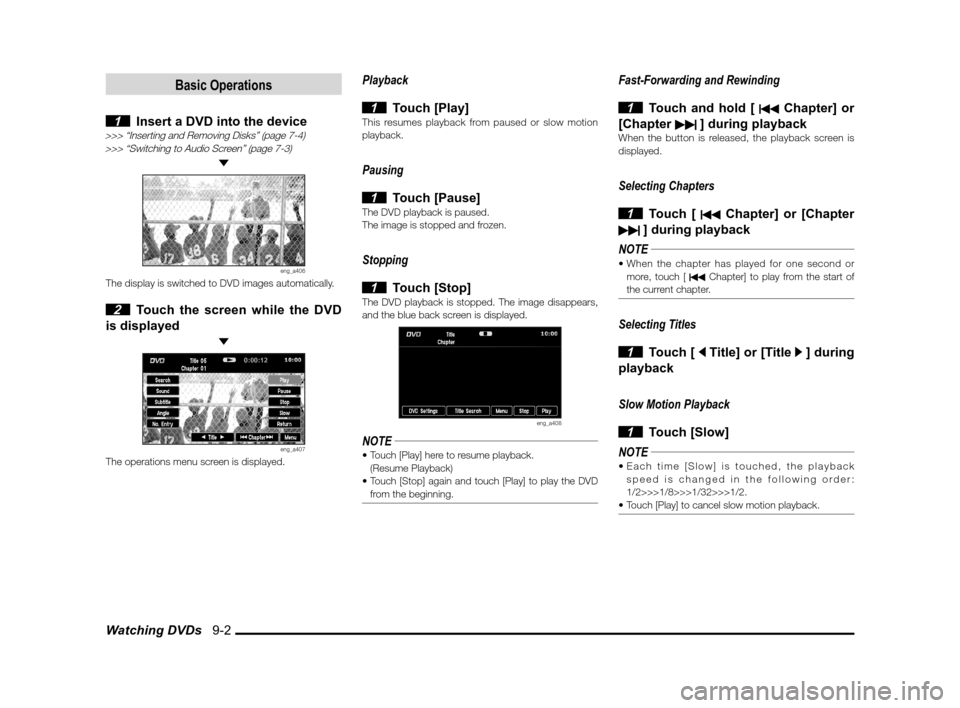

Watching DVDs 9-2
Basic Operations
1 Insert a DVD into the device>>> “Inserting and Removing Disks” (page 7-4)>>> “Switching to Audio Screen” (page 7-3)

eng_a406The display is switched to DVD images automatically.
2 Touch the screen while the DVD
is displayed

eng_a407The operations menu screen is displayed.
Playback

1 Touch [Play]This resumes playback from paused or slow motion
playback.
Pausing

1 Touch [Pause]The DVD playback is paused.
The image is stopped and frozen.
Stopping

1 Touch [Stop]The DVD playback is stopped. The image disappears,
and the blue back screen is displayed.
eng_a408
NOTE
(Resume Playback)
from the beginning.
Fast-Forwarding and Rewinding

1 Touch and hold [ Chapter] or
[Chapter
] during playbackWhen the button is released, the playback screen is
displayed.
Selecting Chapters

1 Touch [ Chapter] or [Chapter
] during playback
NOTE
more, touch [ Chapter] to play from the start of
the current chapter.
Selecting Titles

1 Touch [ Title] or [Title ] during
playback
Slow Motion Playback

1 Touch [Slow]
NOTE
speed is changed in the following order:
1/2>>>1/8>>>1/32>>>1/2.

\b \b
\f \

  \b \b
\f

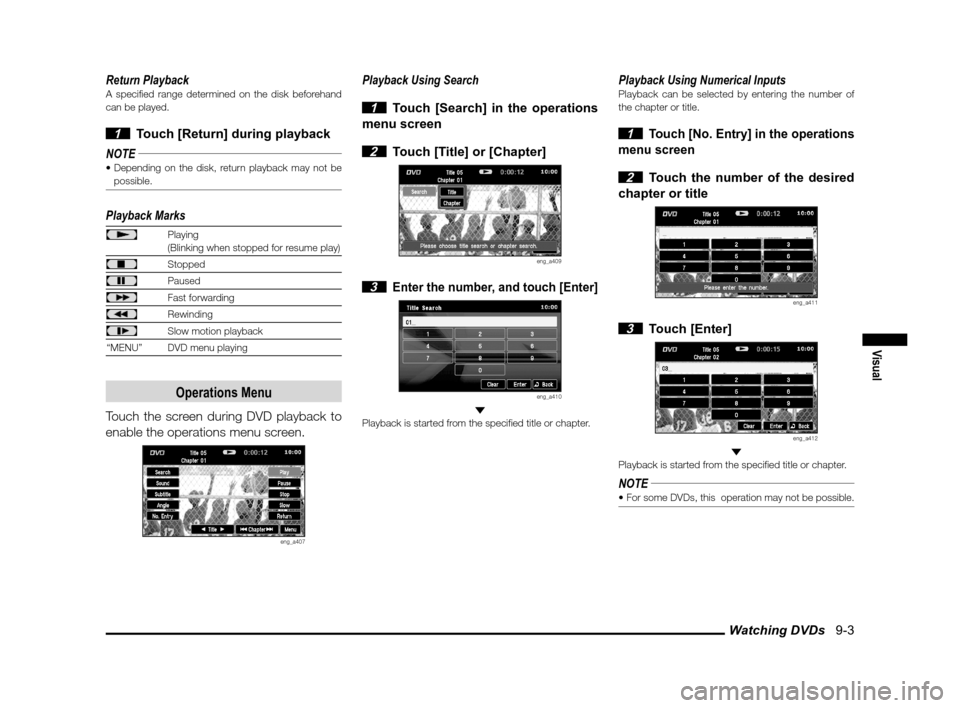

Watching DVDs 9-3
Visual
Return PlaybackA speci ed range determined on the disk beforehand
can be played.
1 Touch [Return] during playback
NOTE
possible.
Playback Marks
Playing
(Blinking when stopped for resume play)
Stopped
Paused
Fast forwarding
Rewinding
Slow motion playback
“MENU” DVD menu playing
Operations Menu
Touch the screen during DVD playback to
enable the operations menu screen.
eng_a407
Playback Using Search

1 Touch [Search] in the operations
menu screen

2 Touch [Title] or [Chapter]
eng_a409
3 Enter the number, and touch [Enter]
eng_a410
Playback is started from the speci ed title or chapter.
Playback Using Numerical InputsPlayback can be selected by entering the number of
the chapter or title.
1 Touch [No. Entry] in the operations
menu screen
2 Touch the number of the desired
chapter or title
eng_a411
3 Touch [Enter]
eng_a412
Playback is started from the speci ed title or chapter.
NOTE
\b \b
\f \

  \b \b
\f

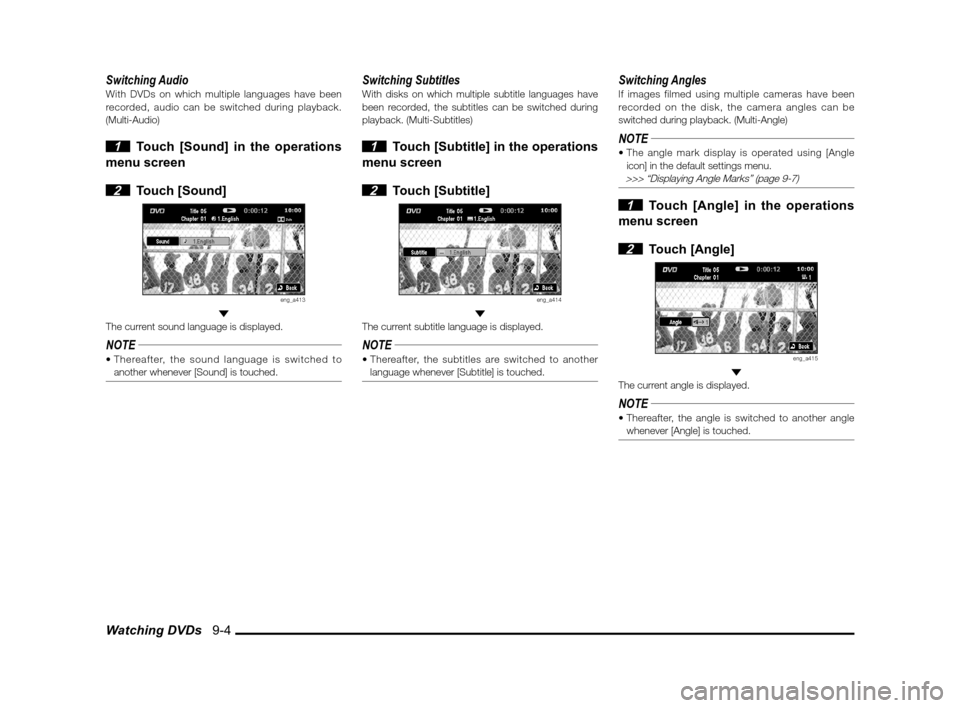

Watching DVDs 9-4
Switching AudioWith DVDs on which multiple languages have been
recorded, audio can be switched during playback.
(Multi-Audio)
1 Touch [Sound] in the operations
menu screen

2 Touch [Sound]
eng_a413
The current sound language is displayed.
NOTE
another whenever [Sound] is touched.
Switching SubtitlesWith disks on which multiple subtitle languages have
been recorded, the subtitles can be switched during
playback. (Multi-Subtitles)
1 Touch [Subtitle] in the operations
menu screen

2 Touch [Subtitle]
eng_a414
The current subtitle language is displayed.
NOTE
language whenever [Subtitle] is touched.
Switching AnglesIf images filmed using multiple cameras have been
recorded on the disk, the camera angles can be
switched during playback. (Multi-Angle)
NOTEicon] in the default settings menu.

>>> “Displaying Angle Marks” (page 9-7)
1 Touch [Angle] in the operations
menu screen

2 Touch [Angle]
eng_a415
The current angle is displayed.
NOTE
whenever [Angle] is touched.
\b \b
\f \

 \b \b \b
\f

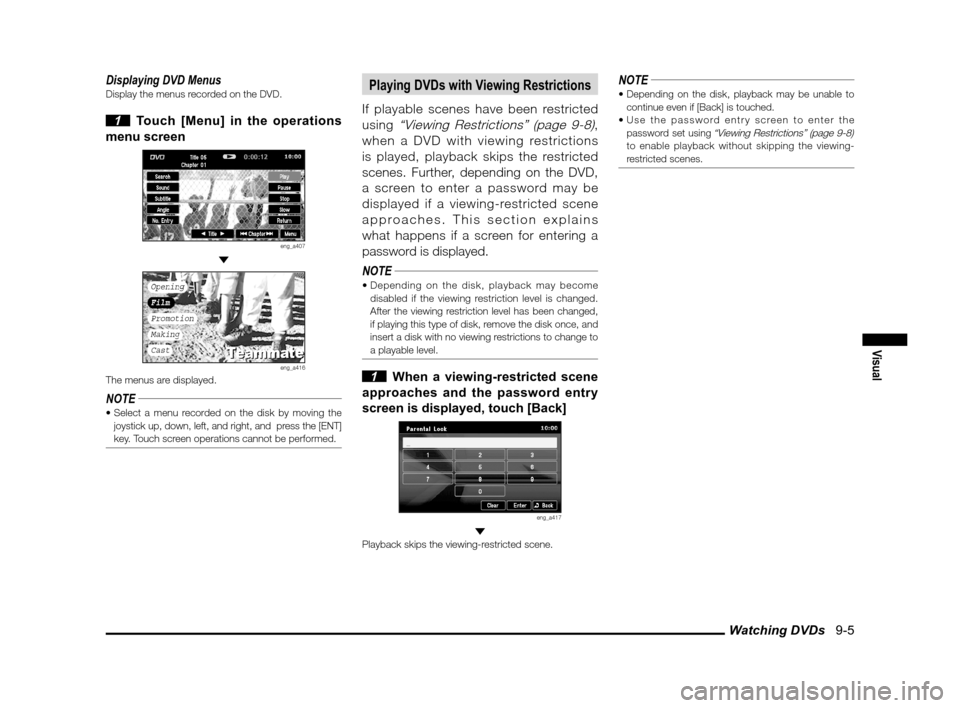

Watching DVDs 9-5
Visual
Displaying DVD MenusDisplay the menus recorded on the DVD.
1 Touch [Menu] in the operations
menu screen
eng_a407
eng_a416The menus are displayed.
NOTE
joystick up, down, left, and right, and press the [ENT]
key. Touch screen operations cannot be performed.
Playing DVDs with Viewing Restrictions
If playable scenes have been restricted
using
“Viewing Restrictions” (page 9-8),
when a DVD with viewing restrictions
is played, playback skips the restricted
scenes. Further, depending on the DVD,
a screen to enter a password may be
displayed if a viewing-restricted scene
approaches. This section explains
what happens if a screen for entering a
password is displayed.
NOTE

disabled if the viewing restriction level is changed.
After the viewing restriction level has been changed,
if playing this type of disk, remove the disk once, and
insert a disk with no viewing restrictions to change to
a playable level.
1 When a viewing-restricted scene
approaches and the password entry
screen is displayed, touch [Back]
eng_a417
Playback skips the viewing-restricted scene.
NOTE
continue even if [Back] is touched.
password set using
“Viewing Restrictions” (page 9-8) to enable playback without skipping the viewing-
restricted scenes.
\b \b
\f \

   \b \b
\f

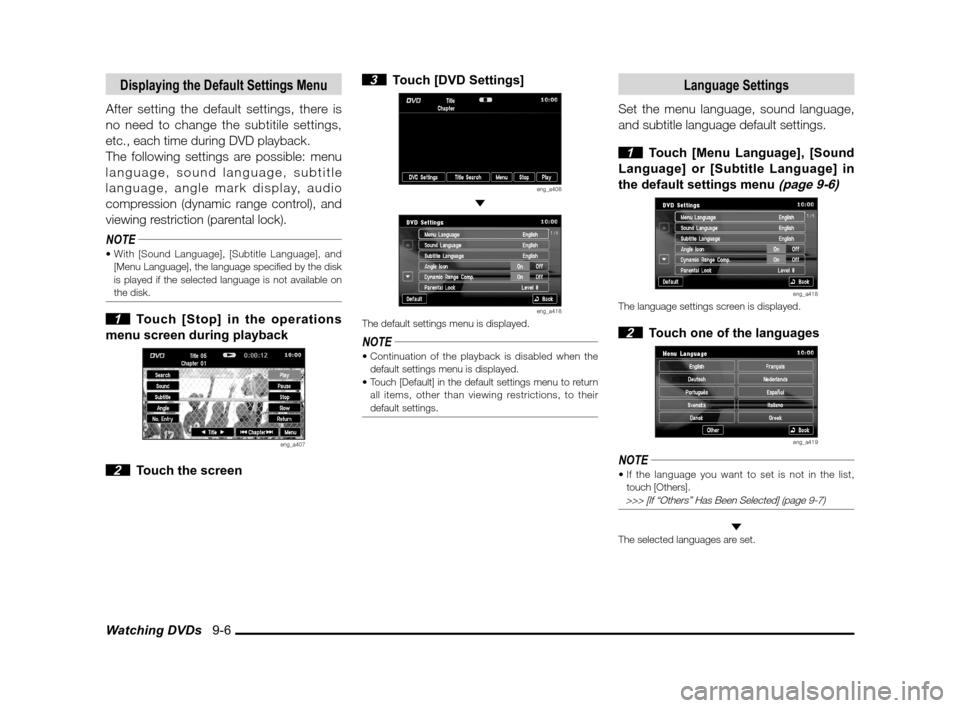

Watching DVDs 9-6
Displaying the Default Settings Menu
After setting the default settings, there is
no need to change the subtitile settings,
etc., each time during DVD playback.
The following settings are possible: menu
language, sound language, subtitle
language, angle mark display, audio
compression (dynamic range control), and
viewing restriction (parental lock).
NOTE[Menu Language], the language speci ed by the disk
is played if the selected language is not available on
the disk.
1 Touch [Stop] in the operations
menu screen during playback
eng_a407
2 Touch the screen
3 Touch [DVD Settings]
eng_a408
eng_a418The default settings menu is displayed.
NOTE
default settings menu is displayed.
all items, other than viewing restrictions, to their
default settings.
Language Settings
Set the menu language, sound language,
and subtitle language default settings.
1 Touch [Menu Language], [Sound
Language] or [Subtitle Language] in
the default settings menu
(page 9-6)
eng_a418The language settings screen is displayed.
2 Touch one of the languages
eng_a419
NOTE
touch [Others].
>>> [If “Others” Has Been Selected] (page 9-7)

The selected languages are set.
\b \b
\f \

  \b \b

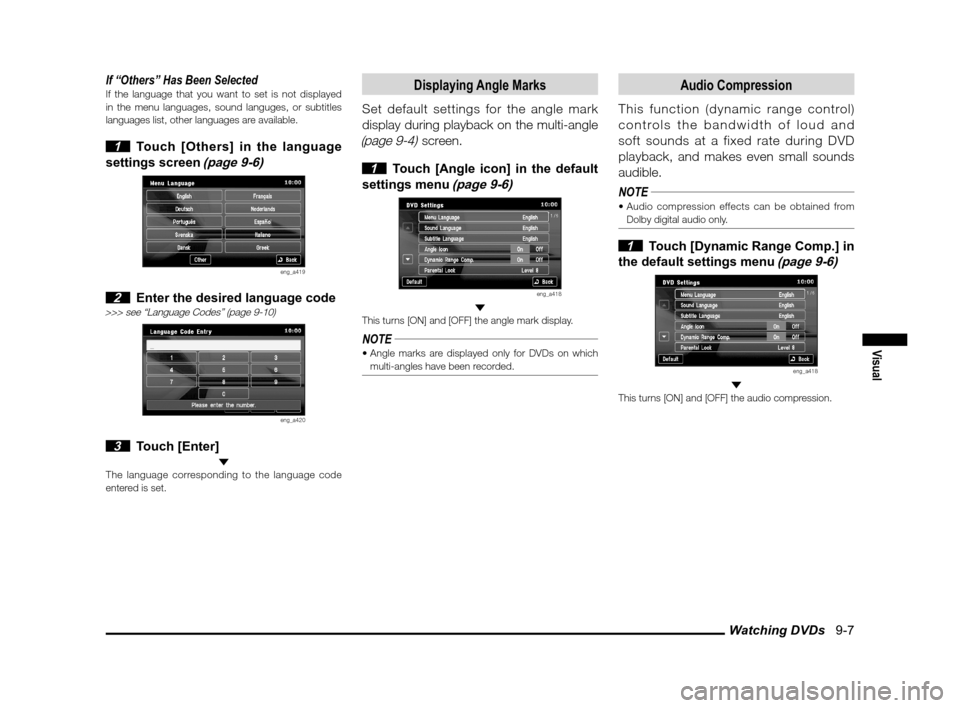

Watching DVDs 9-7
Visual
If “Others” Has Been SelectedIf the language that you want to set is not displayed
in the menu languages, sound languges, or subtitles
languages list, other languages are available.
1 Touch [Others] in the language
settings screen
(page 9-6)
eng_a419
2 Enter the desired language code>>> see “Language Codes” (page 9-10)
eng_a420
3 Touch [Enter] The language corresponding to the language code
entered is set.
Displaying Angle Marks
Set default settings for the angle mark
display during playback on the multi-angle
(page 9-4) screen.

1 Touch [Angle icon] in the default
settings menu
(page 9-6)
eng_a418
This turns [ON] and [OFF] the angle mark display.
NOTE
multi-angles have been recorded.
Audio Compression
This function (dynamic range control)
controls the bandwidth of loud and
soft sounds at a fixed rate during DVD
playback, and makes even small sounds
audible.
NOTE
Dolby digital audio only.
1 Touch [Dynamic Range Comp.] in
the default settings menu
(page 9-6)
eng_a418
This turns [ON] and [OFF] the audio compression.
\b \b
\f \

  \b \b

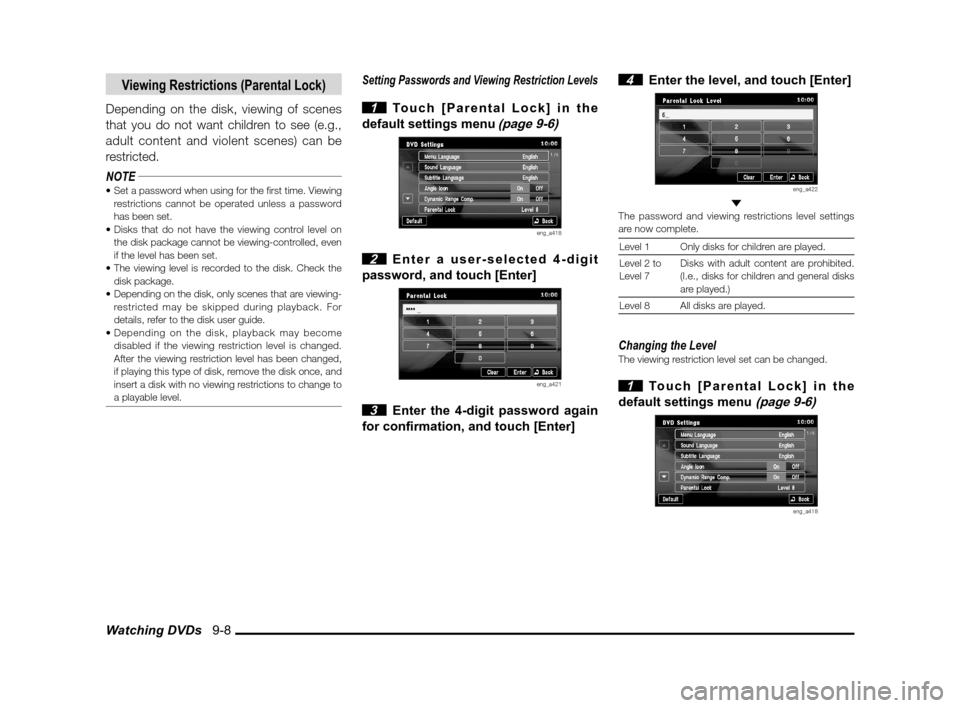

Watching DVDs 9-8
Viewing Restrictions (Parental Lock)
Depending on the disk, viewing of scenes
that you do not want children to see (e.g.,
adult content and violent scenes) can be
restricted.
NOTErestrictions cannot be operated unless a password
has been set.
the disk package cannot be viewing-controlled, even
if the level has been set.
disk package.
restricted may be skipped during playback. For
details, refer to the disk user guide.
disabled if the viewing restriction level is changed.
After the viewing restriction level has been changed,
if playing this type of disk, remove the disk once, and
insert a disk with no viewing restrictions to change to
a playable level.
Setting Passwords and Viewing Restriction Levels
1 Touch [Parental Lock] in the
default settings menu
(page 9-6)
eng_a418
2 Enter a user-selected 4-digit
password, and touch [Enter]
eng_a421
3 Enter the 4-digit password again
for confi rmation, and touch [Enter]
4 Enter the level, and touch [Enter]
eng_a422
The password and viewing restrictions level settings
are now complete.
Level 1 Only disks for children are played.
Level 2 to
Level 7 Disks with adult content are prohibited.
(I.e., disks for children and general disks
are played.)
Level 8 All disks are played.
Changing the LevelThe viewing restriction level set can be changed.
1 Touch [Parental Lock] in the
default settings menu
(page 9-6)
eng_a418
\b \b
\f \

  \b \b

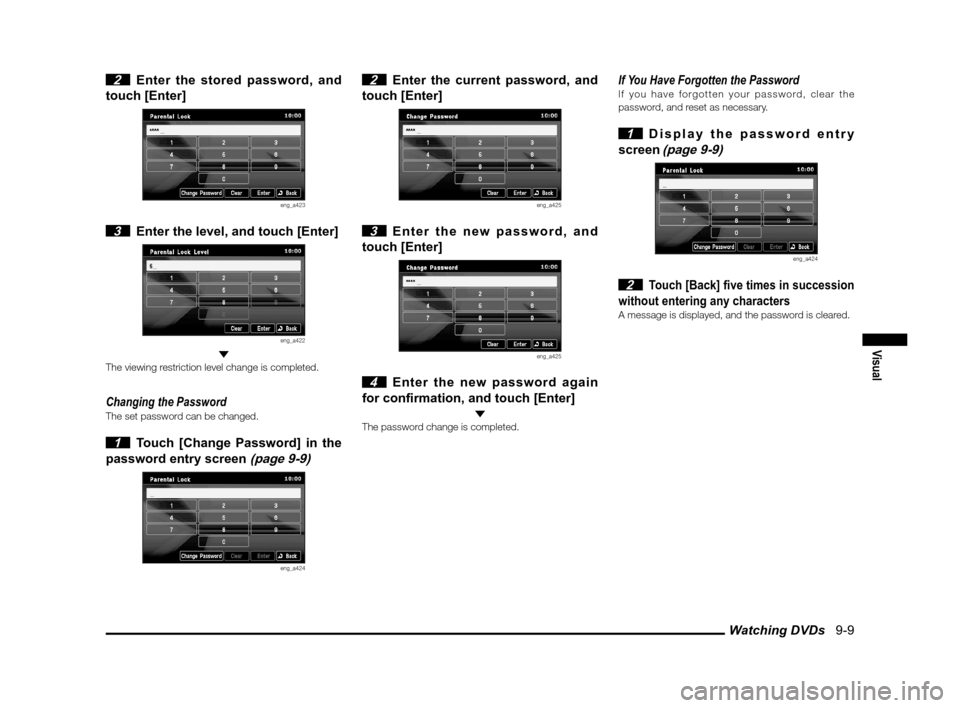

Watching DVDs 9-9
Visual
2 Enter the stored password, and
touch [Enter]
eng_a423
3 Enter the level, and touch [Enter]
eng_a422
The viewing restriction level change is completed.
Changing the PasswordThe set password can be changed.
1 Touch [Change Password] in the
password entry screen
(page 9-9)
eng_a424
2 Enter the current password, and
touch [Enter]
eng_a425
3 Enter the new password, and
touch [Enter]
eng_a425
4 Enter the new password again
for confi rmation, and touch [Enter]
The password change is completed.
If You Have Forgotten the PasswordIf you have forgotten your password, clear the
password, and reset as necessary.
1 Display the password entry
screen
(page 9-9)
eng_a424
2 Touch [Back] fi ve times in succession
without entering any characters
A message is displayed, and the password is cleared.
\b \b
\f \

  \b \b

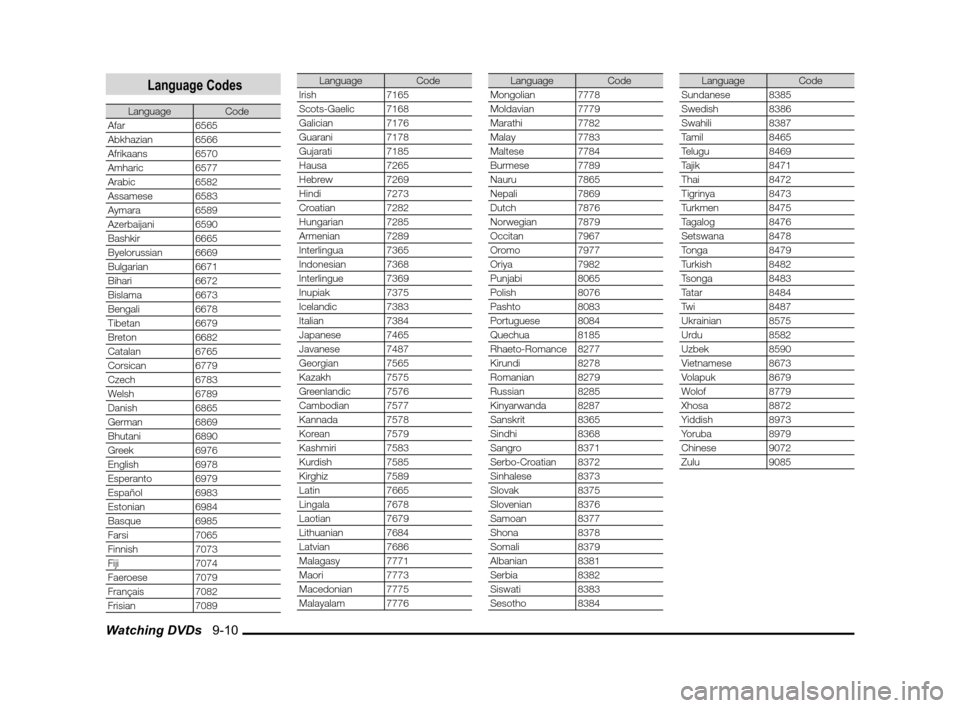

Watching DVDs 9-10
Language Codes
LanguageCode
Afar 6565
Abkhazian 6566
Afrikaans 6570
Amharic 6577
Arabic 6582
Assamese 6583
Aymara 6589
Azerbaijani 6590
Bashkir 6665
Byelorussian 6669
Bulgarian 6671
Bihari 6672
Bislama 6673
Bengali 6678
Tibetan 6679
Breton 6682
Catalan 6765
Corsican 6779
Czech 6783
Welsh 6789
Danish 6865
German 6869
Bhutani 6890
Greek 6976
English 6978
Esperanto 6979
Español 6983
Estonian 6984
Basque 6985
Farsi 7065
Finnish 7073
Fiji 7074
Faeroese 7079
Français 7082
Frisian 7089
Language Code
Irish 7165
Scots-Gaelic 7168
Galician 7176
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7269
Hindi 7273
Croatian 7282
Hungarian 7285
Armenian 7289
Interlingua 7365
Indonesian 7368
Interlingue 7369
Inupiak 7375
Icelandic 7383
Italian 7384
Japanese 7465
Javanese 7487
Georgian 7565
Kazakh 7575
Greenlandic 7576
Cambodian 7577
Kannada 7578
Korean 7579
Kashmiri 7583
Kurdish 7585
Kirghiz 7589
Latin 7665
Lingala 7678
Laotian 7679
Lithuanian 7684
Latvian 7686
Malagasy 7771
Maori 7773
Macedonian 7775
Malayalam 7776Language Code
Mongolian 7778
Moldavian 7779
Marathi 7782
Malay 7783
Maltese 7784
Burmese 7789
Nauru 7865
Nepali 7869
Dutch 7876
Norwegian 7879
Occitan 7967
Oromo 7977
Oriya 7982
Punjabi 8065
Polish 8076
Pashto 8083
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Kirundi 8278
Romanian 8279
Russian 8285
Kinyarwanda 8287
Sanskrit 8365
Sindhi 8368
Sangro 8371
Serbo-Croatian 8372
Sinhalese 8373
Slovak 8375
Slovenian 8376
Samoan 8377
Shona 8378
Somali 8379
Albanian 8381
Serbia 8382
Siswati 8383
Sesotho 8384Language Code
Sundanese 8385
Swedish 8386
Swahili 8387
Tamil 8465
Telugu 8469
Tajik 8471
Thai 8472
Tigrinya 8473
Turkmen 8475
Tagalog 8476
Setswana 8478
Tonga 8479
Turkish 8482
Tsonga 8483
Tatar 8484
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Chinese 9072
Zulu 9085
\b \b
\f \


 \b \b

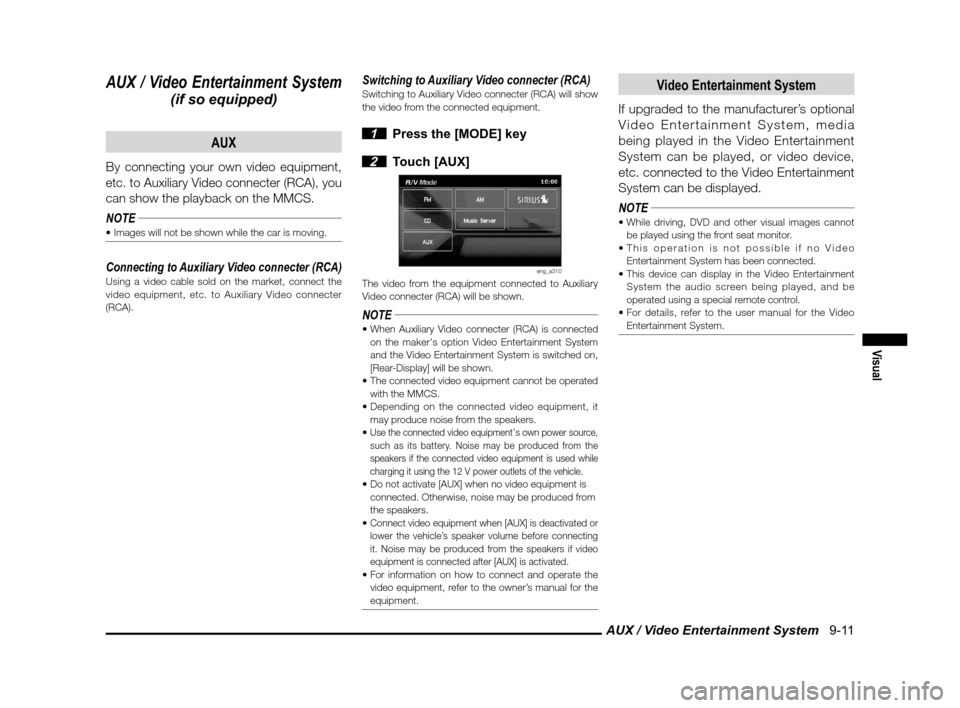

AUX / Video Entertainment System 9-11
Visual
AUX / Video Entertainment System
(if so equipped)AUX
By connecting your own video equipment,
etc. to Auxiliary Video connecter (RCA), you
can show the playback on the MMCS.
NOTE
Connecting to Auxiliary Video connecter (RCA)Using a video cable sold on the market, connect the
video equipment, etc. to Auxiliary Video connecter
(RCA).
Switching to Auxiliary Video connecter (RCA)Switching to Auxiliary Video connecter (RCA) will show
the video from the connected equipment.
1 Press the [MODE] key

2 Touch [AUX]
eng_a310The video from the equipment connected to Auxiliary
Video connecter (RCA) will be shown.
NOTE on the maker's option Video Entertainment System
and the Video Entertainment System is switched on,
[Rear-Display] will be shown.
with the MMCS.
may produce noise from the speakers.

Use the connected video equipment’s own power source,
such as its battery. Noise may be produced from the
speakers if the connected video equipment is used while
charging it using the 12 V power outlets of the vehicle.
connected. Otherwise, noise may be produced from
the speakers.

Connect video equipment when [AUX] is deactivated or
lower the vehicle’s speaker volume before connecting
it. Noise may be produced from the speakers if video
equipment is connected after [AUX] is activated.
video equipment, refer to the owner’s manual for the
equipment.
Video Entertainment System
If upgraded to the manufacturer’s optional
Video Entertainment System, media
being played in the Video Entertainment
System can be played, or video device,
etc. connected to the Video Entertainment
System can be displayed.
NOTE
be played using the front seat monitor.
Entertainment System has been connected.
System the audio screen being played, and be
operated using a special remote control.
Entertainment System.
\b \b
\f \



 \b \b
