5-114 Comfort controls
5

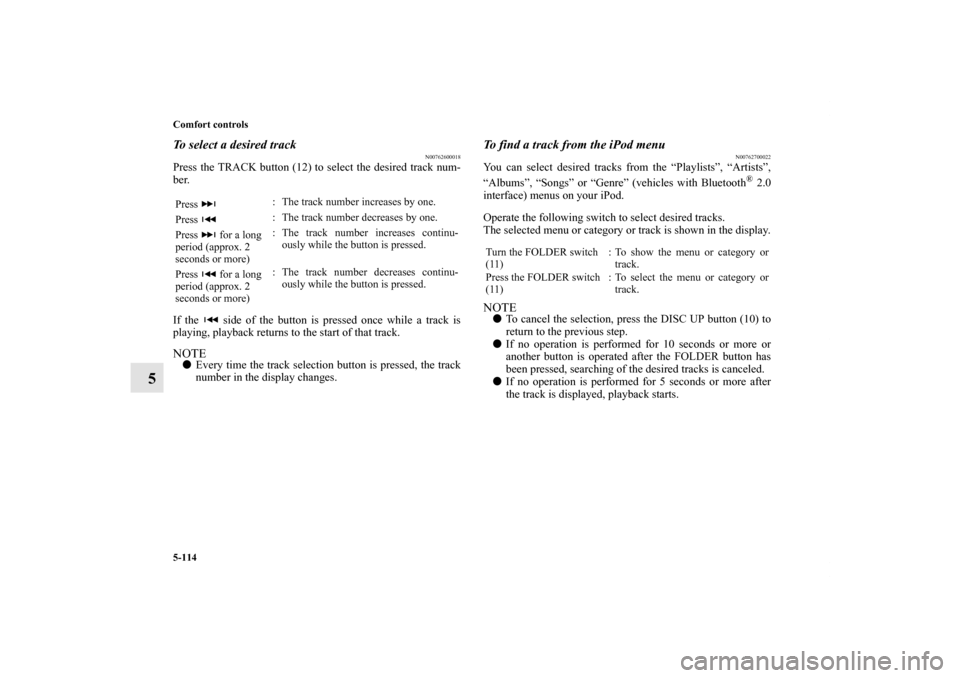

To select a desired track
N00762600018
Press the TRACK button (12) to select the desired track num-
ber.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTE
Every time the track selection button is pressed, the track
number in the display changes.
To find a track from the iPod menu
N00762700022
You can select desired tracks from the “Playlists”, “Artists”,
“Albums”, “Songs” or “Genre” (vehicles with Bluetooth
® 2.0
interface) menus on your iPod.
Operate the following switch to select desired tracks.
The selected menu or category or track is shown in the display.
NOTE
To cancel the selection, press the DISC UP button (10) to
return to the previous step.

If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER button has
been pressed, searching of the desired tracks is canceled.

If no operation is performed for 5 seconds or more after
the track is displayed, playback starts.
Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
Turn the FOLDER switch
(11): To show the menu or category or
track.
Press the FOLDER switch
(11): To select the menu or category or
track.
BK0138600US.book 114 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-115
5

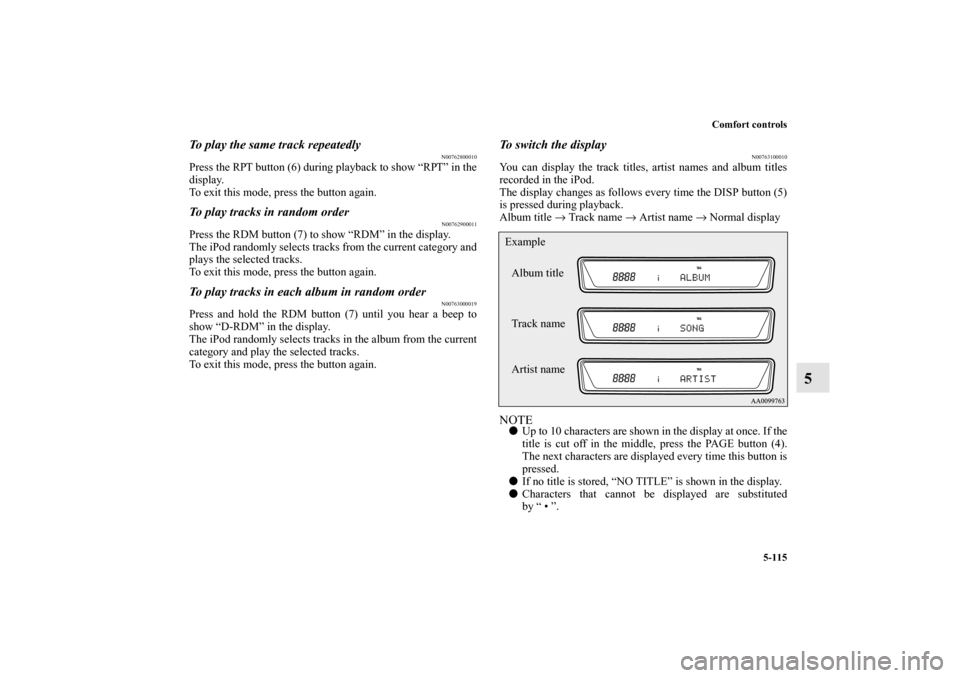

To play the same track repeatedly
N00762800010
Press the RPT button (6) during playback to show “RPT” in the
display.
To exit this mode, press the button again.To play tracks in random order
N00762900011
Press the RDM button (7) to show “RDM” in the display.
The iPod randomly selects tracks from the current category and
plays the selected tracks.
To exit this mode, press the button again.To play tracks in each album in random order
N00763000019
Press and hold the RDM button (7) until you hear a beep to
show “D-RDM” in the display.
The iPod randomly selects tracks in the album from the current
category and play the selected tracks.
To exit this mode, press the button again.
To switch the display
N00763100010
You can display the track titles, artist names and album titles
recorded in the iPod.
The display changes as follows every time the DISP button (5)
is pressed during playback.
Album title → Track name → Artist name → Normal displayNOTE
Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button (4).
The next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.Album title
Track name
Artist name Example
BK0138600US.book 115 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-121
5

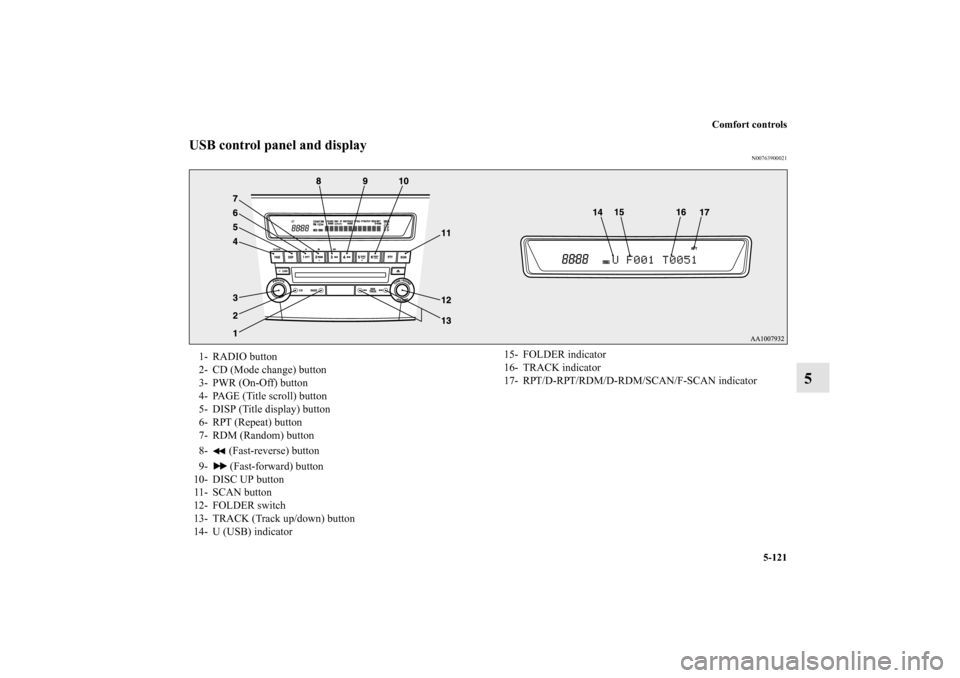

USB control panel and display
N00763900021
1- RADIO button
2- CD (Mode change) button
3- PWR (On-Off) button
4- PAGE (Title scroll) button
5- DISP (Title display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-reverse) button
9- (Fast-forward) button
10- DISC UP button
11- SCAN button
12- FOLDER switch
13- TRACK (Track up/down) button
14- U (USB) indicator
15- FOLDER indicator
16- TRACK indicator
17- RPT/D-RPT/RDM/D-RDM/SCAN/F-SCAN indicator
BK0138600US.book 121 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-122 Comfort controls
5
To play from a USB memory device
N00764000032
1. Press the PWR button (3) to turn on the audio system. The
system turns on in the last mode used.
2. Connect your USB memory device to the USB input ter-
minal.
Refer to “How to connect a USB memory device” on page
3-283.
3. Press the CD button (2) several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mode (if so
equipped)
NOTE
If your vehicle is equipped with audio/video input RCA
terminals, pressing and holding the CD button for 2 sec-
onds or more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “U”
appears on the display.NOTE
Depending on the condition of your USB device, it may
take a longer time before the playback starts.5. To stop the playback, press the RADIO button (1) or CD
button (2) to switch to a different mode.
NOTE
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-55, 5-83 and “To adjust the tone” on page
5-55, 5-83.Supported compressed music files
N00764100088
This audio can play MP3, WMA, AAC and WAV files
recorded in a USB memory device. This audio supports up to
65,535 files in 700 folders on 8 levels.
BK0138600US.book 122 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-124 Comfort controls
5
To select a file
N00764300019
Press the TRACK button (13) to select the desired file number.
If the side of the button is pressed once after a few seconds,
playback returns to the start of that track.NOTE
Every time the TRACK button (13) is pressed, the file
number in the display changes.
To find a track
N00764400078
You can select a folder to find a desired track.
1. Turn the FOLDER switch (12) to show the desired folder
in the display.NOTE
If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER switch has
been turned, the selected track becomes unselected and
the display returns to the playback display.
2. Press the FOLDER switch (12) to select the folder.NOTE
When the DISC UP button (10) is pressed, the track find
mode will be cancelled.
3. Turn the FOLDER switch (12) to show the desired track
in the display.NOTE
When the DISC UP button (10) is pressed, the selection is
cancelled and returned to the previous step.

If no operation is performed for 5 seconds or more after
the FOLDER switch (12) is turned, the displayed track is
played.
4. Press the FOLDER switch (12) to select the file.
Press : The file number increases by one.
Press : The file number decreases by one.
Press for a long
period (approx. 2
seconds or more): The file number increases continuously
while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The file number decreases continuously
while the button is pressed.BK0138600US.book 124 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-125
5

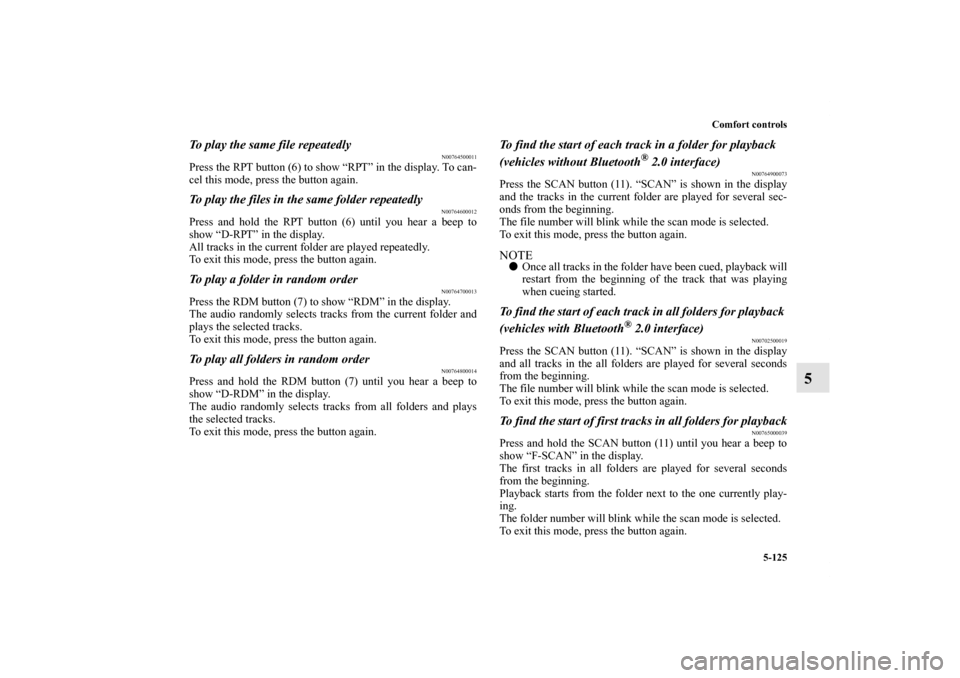

To play the same file repeatedly
N00764500011
Press the RPT button (6) to show “RPT” in the display. To can-
cel this mode, press the button again.To play the files in the same folder repeatedly
N00764600012
Press and hold the RPT button (6) until you hear a beep to
show “D-RPT” in the display.
All tracks in the current folder are played repeatedly.
To exit this mode, press the button again.To play a folder in random order
N00764700013
Press the RDM button (7) to show “RDM” in the display.
The audio randomly selects tracks from the current folder and
plays the selected tracks.
To exit this mode, press the button again.To play all folders in random order
N00764800014
Press and hold the RDM button (7) until you hear a beep to
show “D-RDM” in the display.
The audio randomly selects tracks from all folders and plays
the selected tracks.
To exit this mode, press the button again.
To find the start of each track in a folder for playback
(vehicles without Bluetooth
® 2.0 interface)
N00764900073
Press the SCAN button (11). “SCAN” is shown in the display
and the tracks in the current folder are played for several sec-
onds from the beginning.
The file number will blink while the scan mode is selected.
To exit this mode, press the button again.NOTE
Once all tracks in the folder have been cued, playback will
restart from the beginning of the track that was playing
when cueing started.To find the start of each track in all folders for playback
(vehicles with Bluetooth
® 2.0 interface)
N00702500019
Press the SCAN button (11). “SCAN” is shown in the display
and all tracks in the all folders are played for several seconds
from the beginning.
The file number will blink while the scan mode is selected.
To exit this mode, press the button again.To find the start of first tracks in all folders for playback
N00765000039
Press and hold the SCAN button (11) until you hear a beep to
show “F-SCAN” in the display.
The first tracks in all folders are played for several seconds
from the beginning.
Playback starts from the folder next to the one currently play-
ing.
The folder number will blink while the scan mode is selected.
To exit this mode, press the button again.
BK0138600US.book 125 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-126 Comfort controls
5
NOTE
Once the cueing playback ends, playback will start from
the track at the beginning of the folder next to the one that
was playing when the cueing started.
To switch the display
N00765100014
You can display titles with tag information.
Folder title
The display changes as follows every time the DISP button (5)
is pressed during playback.
Folder title → File title → Normal display
Tag information
1. Press and hold the DISP button (5) until you hear a beep
to show “TAG” in the display.
2. The display changes as follows every time the DISP but-
ton (5) is pressed briefly.
Album title → Track title → Artist name → Genre (vehi-
cles with Bluetooth
® 2.0 interface) → Normal display
Folder title
File title Example
BK0138600US.book 126 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-127
5

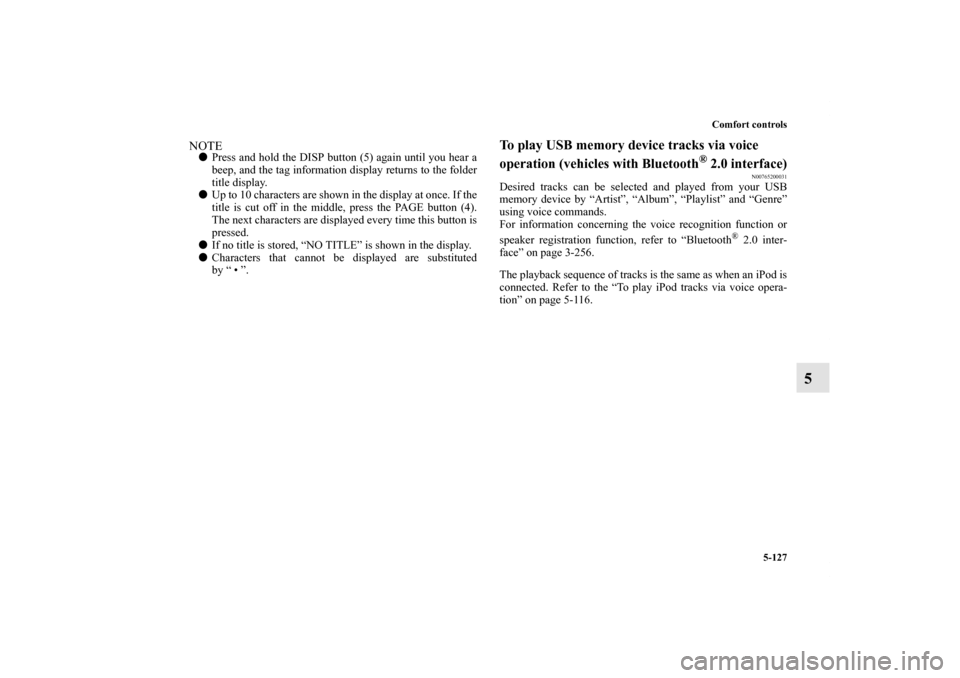

NOTE
Press and hold the DISP button (5) again until you hear a
beep, and the tag information display returns to the folder
title display.

Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button (4).
The next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.
To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200031
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-256.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-116.
BK0138600US.book 127 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-129
5

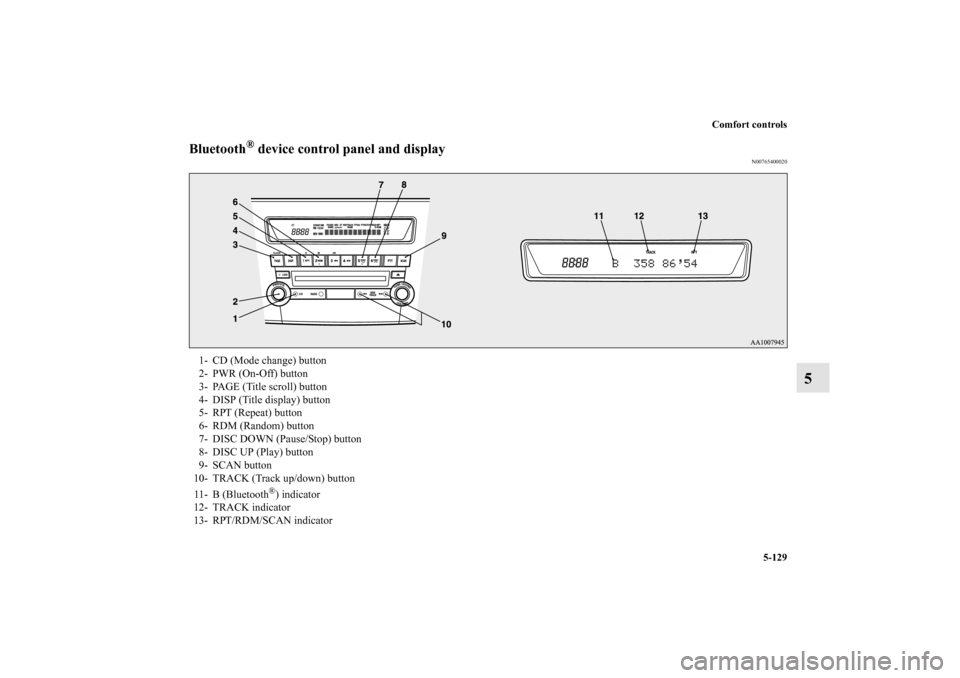

Bluetooth
® device control panel and display
N00765400020
1- CD (Mode change) button
2- PWR (On-Off) button
3- PAGE (Title scroll) button
4- DISP (Title display) button
5- RPT (Repeat) button
6- RDM (Random) button
7- DISC DOWN (Pause/Stop) button
8- DISC UP (Play) button
9- SCAN button
10- TRACK (Track up/down) button
11 - B (Blu etoo th
®) indicator
12- TRACK indicator
13- RPT/RDM/SCAN indicator
BK0138600US.book 129 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-130 Comfort controls
5
To listen to tracks from a device connected via
Bluetooth
®
N00765500034
1. Press the PWR button (2) to turn on the audio system. The
system turns on in the last mode used.
2. Press the CD button (1) several times to switch to the
B(Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed.
CD mode → USB (iPod) mode → Bluetooth
® mode
NOTE
For vehicles equipped with audio/video input RCA termi-
nals, pressing and holding the CD button for 2 seconds or
more switches the system to the AUX mode.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-264.
4. Playback starts automatically.
NOTE
Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600019
To stop the playback, press the DISC DOWN button (7).
To restart the playback, press the DISC UP button (8).
To pause the playback (if supported by the device)
N00765700010
To pause the playback, press the DISC DOWN button (7).
To restart the playback, press the DISC UP button (8).To select a track (if supported by the device)
N00765800011
Press the TRACK button (10) to select the desired track num-
ber.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTE
Every time the track selection button is pressed, the track
number in the display changes.To play the same track repeatedly (if supported by the
device)
N00765900012
Press the RPT button (5) during playback to show “RPT” in the
display.
To exit this mode, press the button again.Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
BK0138600US.book 130 ページ ２０１１年７月１７日　日曜日　午後２時３２分
