Comfort controls
5-69
5

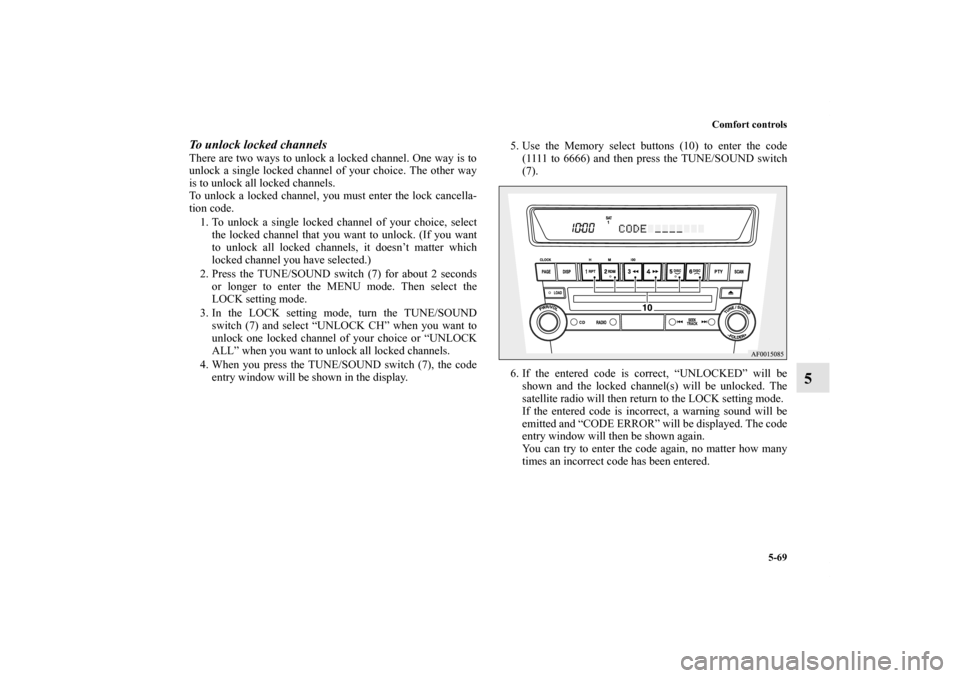

To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.
1. To unlock a single locked channel of your choice, select
the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn’t matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch (7), the code
entry window will be shown in the display.5. Use the Memory select buttons (10) to enter the code
(1111 to 6666) and then press the TUNE/SOUND switch
(7).
6. If the entered code is correct, “UNLOCKED” will be
shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
BK0138600US.book 69 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-70 Comfort controls
5

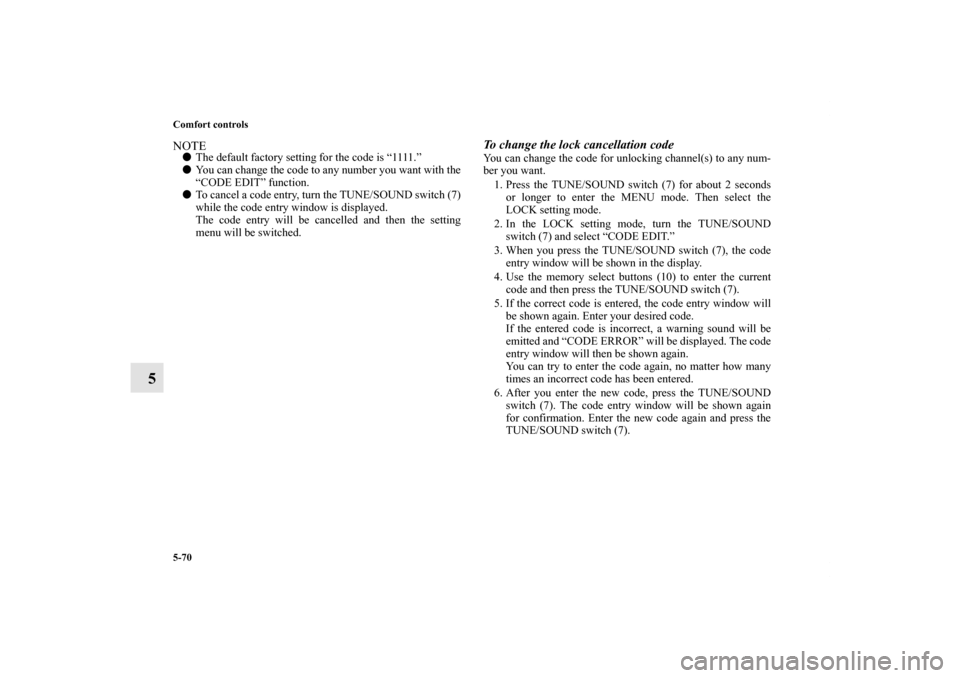

NOTE
The default factory setting for the code is “1111.”

You can change the code to any number you want with the
“CODE EDIT” function.

To cancel a code entry, turn the TUNE/SOUND switch (7)
while the code entry window is displayed.
The code entry will be cancelled and then the setting
menu will be switched.
To change the lock cancellation codeYou can change the code for unlocking channel(s) to any num-
ber you want.
1. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “CODE EDIT.”
3. When you press the TUNE/SOUND switch (7), the code
entry window will be shown in the display.
4. Use the memory select buttons (10) to enter the current
code and then press the TUNE/SOUND switch (7).
5. If the correct code is entered, the code entry window will
be shown again. Enter your desired code.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
6. After you enter the new code, press the TUNE/SOUND
switch (7). The code entry window will be shown again
for confirmation. Enter the new code again and press the
TUNE/SOUND switch (7).
BK0138600US.book 70 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-71
5

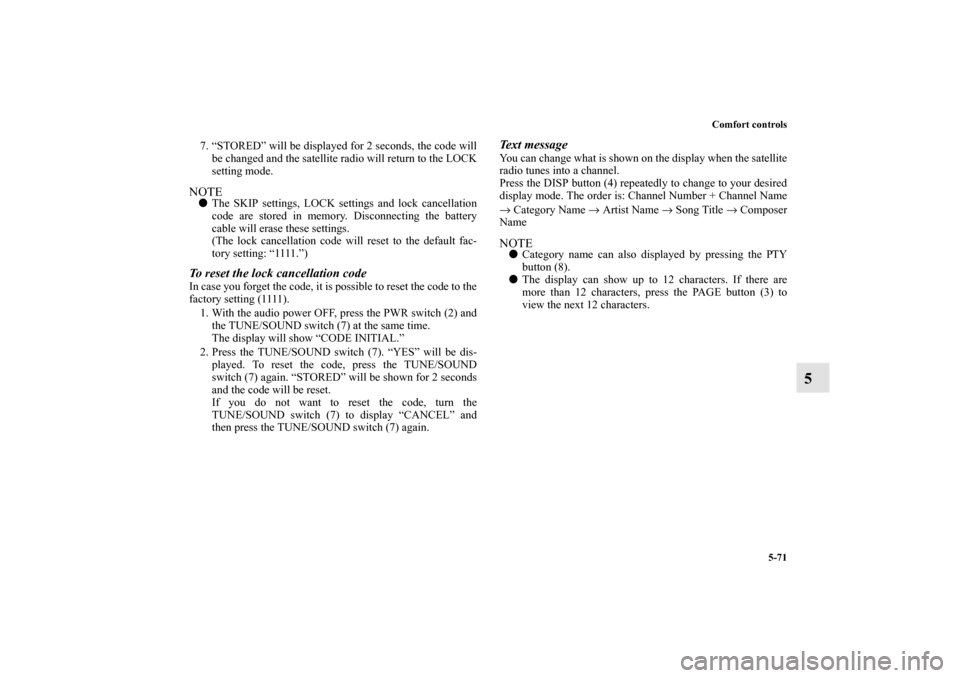

7. “STORED” will be displayed for 2 seconds, the code will
be changed and the satellite radio will return to the LOCK
setting mode.NOTE
The SKIP settings, LOCK settings and lock cancellation
code are stored in memory. Disconnecting the battery
cable will erase these settings.
(The lock cancellation code will reset to the default fac-
tory setting: “1111.”)To reset the lock cancellation codeIn case you forget the code, it is possible to reset the code to the
factory setting (1111).
1. With the audio power OFF, press the PWR switch (2) and
the TUNE/SOUND switch (7) at the same time.
The display will show “CODE INITIAL.”
2. Press the TUNE/SOUND switch (7). “YES” will be dis-
played. To reset the code, press the TUNE/SOUND
switch (7) again. “STORED” will be shown for 2 seconds
and the code will be reset.
If you do not want to reset the code, turn the
TUNE/SOUND switch (7) to display “CANCEL” and
then press the TUNE/SOUND switch (7) again.
Text messageYou can change what is shown on the display when the satellite
radio tunes into a channel.
Press the DISP button (4) repeatedly to change to your desired
display mode. The order is: Channel Number + Channel Name
→ Category Name → Artist Name → Song Title → Composer
NameNOTE
Category name can also displayed by pressing the PTY
button (8).

The display can show up to 12 characters. If there are
more than 12 characters, press the PAGE button (3) to
view the next 12 characters.
BK0138600US.book 71 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-72 Comfort controls
5

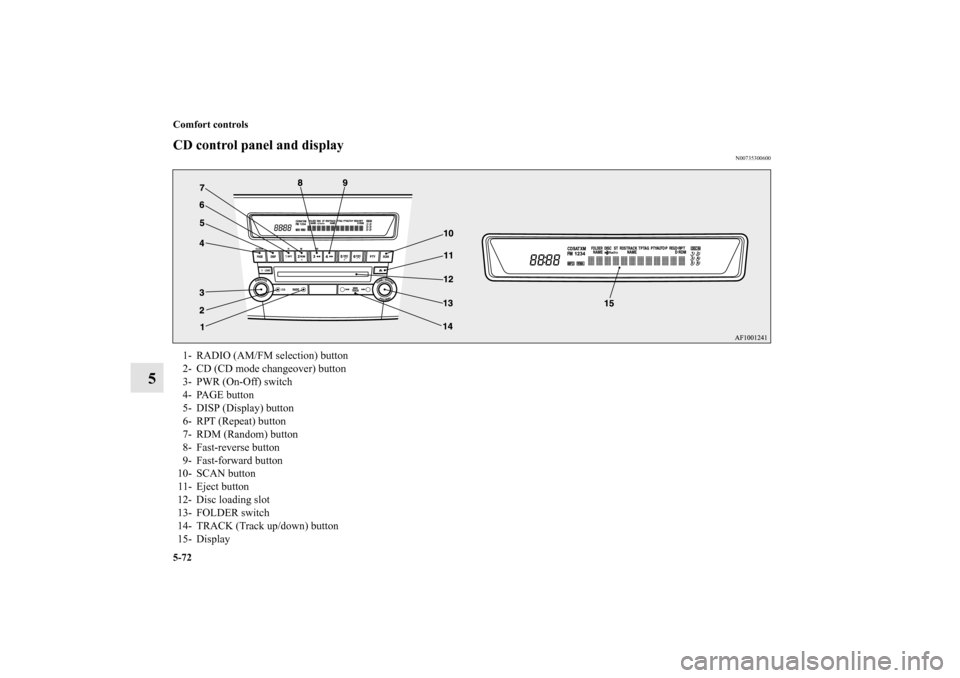

CD control panel and display
N00735300600
1- RADIO (AM/FM selection) button
2- CD (CD mode changeover) button
3- PWR (On-Off) switch
4- PAGE button
5- DISP (Display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- Fast-reverse button
9- Fast-forward button
10- SCAN button
11- Eject button
12- Disc loading slot
13- FOLDER switch
14- TRACK (Track up/down) button
15- Display
BK0138600US.book 72 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-73
5
To listen to a CD
N00735501045
To set discs1. Press the PWR switch (3) to turn the audio system ON and
OFF. The system turns on in the last mode used.
2. Insert the disc with the label facing up.
When a disc is inserted, the CD player will begin playing
even if the radio is being used. The CD player will also
begin playing when the CD button (2) is pressed with a
disc set in the CD player or in the disc loading slot (12),
even if the radio is being used.NOTE
For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-55 and
“To adjust the tone” on page 5-55.

For information concerning the handing of the compact
discs, refer to “Handling of compact discs” on page 5-145.To eject discsWhen the eject button (11) is pressed, the disc automatically
stops and is ejected. The system automatically switches to
radio mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded.
To listen to a music CDPush the CD button (2) if the discs are already in the CD
player. The audio system will enter CD mode and start play-
back. The track number and the playing-time will appear on the
display. The discs in the unit will be played consecutively and
continuously.
BK0138600US.book 73 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-74 Comfort controls
5

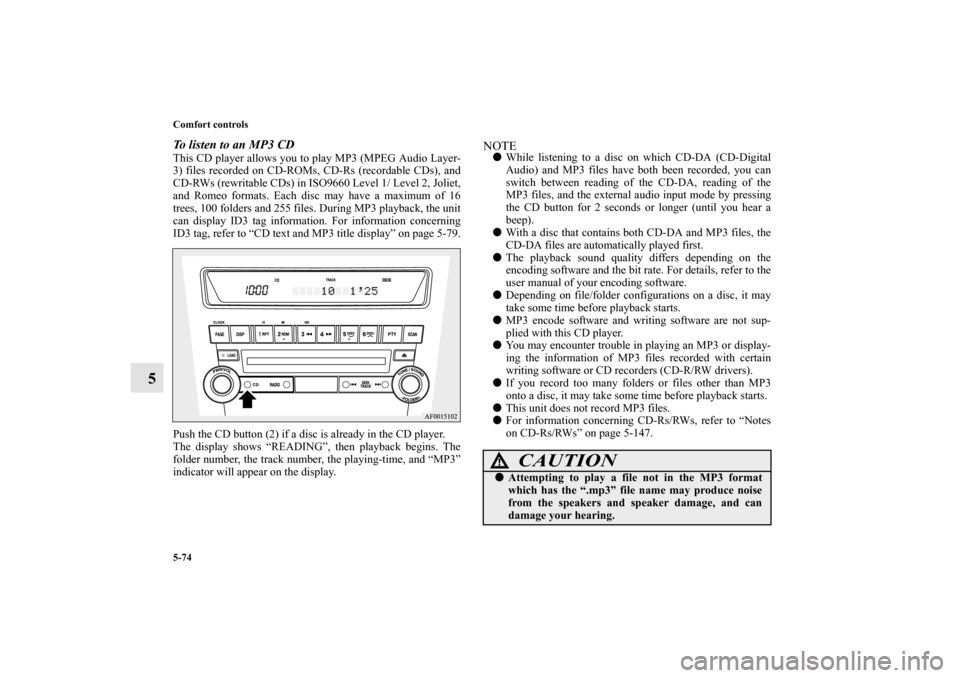

To listen to an MP3 CDThis CD player allows you to play MP3 (MPEG Audio Layer-
3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/ Level 2, Joliet,
and Romeo formats. Each disc may have a maximum of 16
trees, 100 folders and 255 files. During MP3 playback, the unit
can display ID3 tag information. For information concerning
ID3 tag, refer to “CD text and MP3 title display” on page 5-79.
Push the CD button (2) if a disc is already in the CD player.
The display shows “READING”, then playback begins. The
folder number, the track number, the playing-time, and “MP3”
indicator will appear on the display.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied with this CD player.

You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-147.
CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
BK0138600US.book 74 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-76 Comfort controls
5

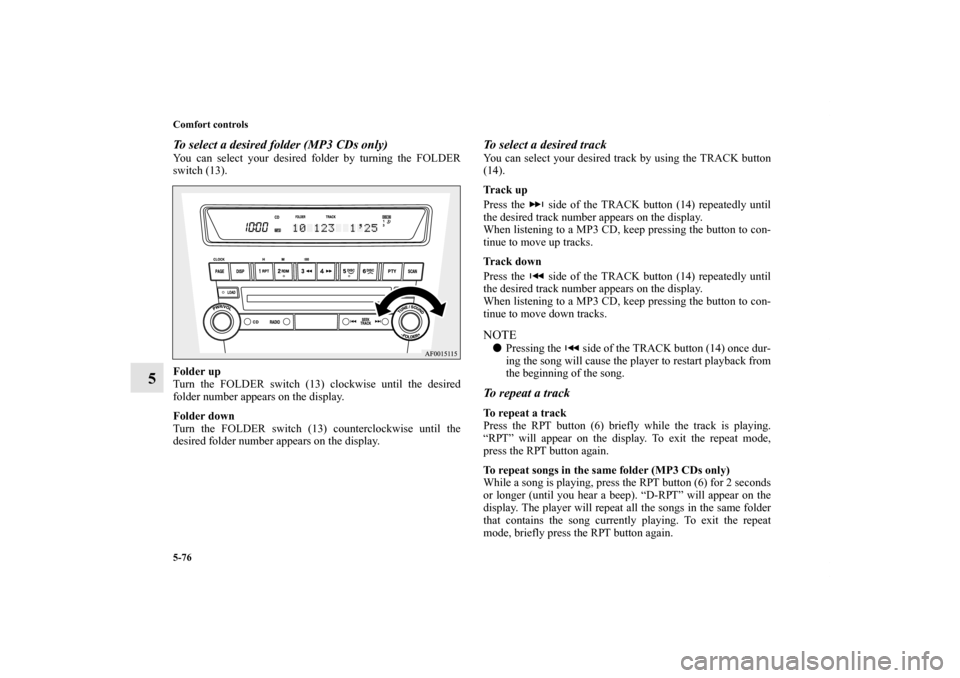

To select a desired folder (MP3 CDs only)You can select your desired folder by turning the FOLDER
switch (13).
Folder up
Turn the FOLDER switch (13) clockwise until the desired
folder number appears on the display.
Folder down
Turn the FOLDER switch (13) counterclockwise until the
desired folder number appears on the display.
To select a desired trackYou can select your desired track by using the TRACK button
(14).
Track up
Press the side of the TRACK button (14) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move up tracks.
Track down
Press the side of the TRACK button (14) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move down tracks.NOTE
Pressing the side of the TRACK button (14) once dur-
ing the song will cause the player to restart playback from
the beginning of the song.To repeat a trackTo repeat a track
Press the RPT button (6) briefly while the track is playing.
“RPT” will appear on the display. To exit the repeat mode,
press the RPT button again.
To repeat songs in the same folder (MP3 CDs only)
While a song is playing, press the RPT button (6) for 2 seconds
or longer (until you hear a beep). “D-RPT” will appear on the
display. The player will repeat all the songs in the same folder
that contains the song currently playing. To exit the repeat
mode, briefly press the RPT button again.
BK0138600US.book 76 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-77
5

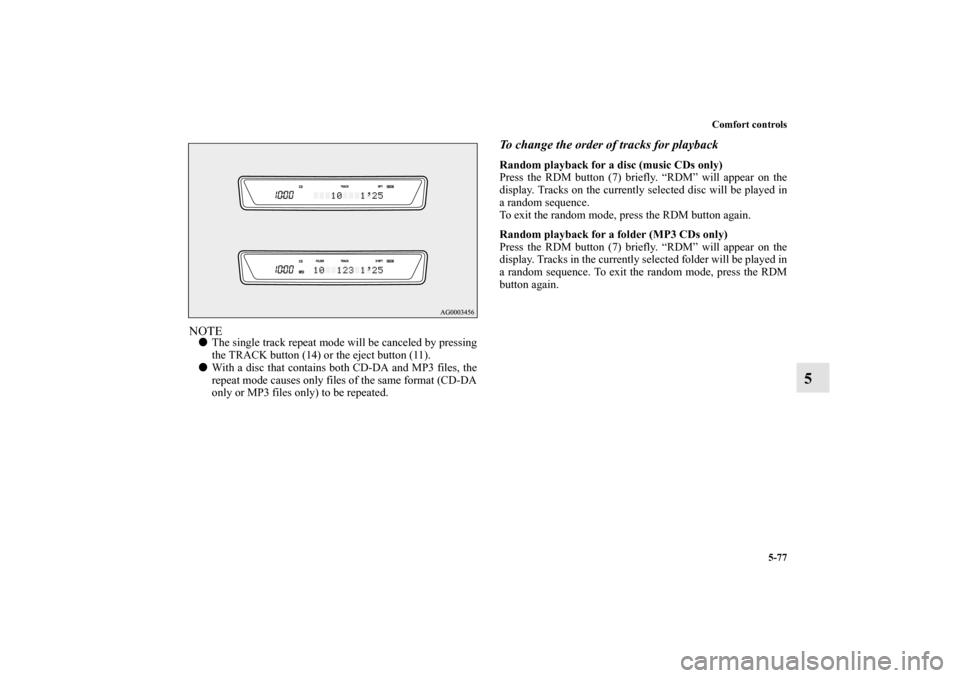

NOTE
The single track repeat mode will be canceled by pressing
the TRACK button (14) or the eject button (11).

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated.
To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Press the RDM button (7) briefly. “RDM” will appear on the
display. Tracks on the currently selected disc will be played in
a random sequence.
To exit the random mode, press the RDM button again.
Random playback for a folder (MP3 CDs only)
Press the RDM button (7) briefly. “RDM” will appear on the
display. Tracks in the currently selected folder will be played in
a random sequence. To exit the random mode, press the RDM
button again.
BK0138600US.book 77 ページ ２０１１年７月１７日　日曜日　午後２時３２分

5-78 Comfort controls
5
Random playback for all folders on a disc (MP3 CDs only)
Press the RDM button (7) for 2 seconds or longer (until you
hear a beep). “D-RDM” will appear on the display. Tracks
from all the folders on the currently selected disc will be
played in a random sequence. To exit the random mode, briefly
press the RDM button again.NOTE
With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
To find the start of each track on a disc for playbackPress the SCAN button (10). “SCAN” will appear on the dis-
play and the autochanger will play back the first 10 seconds of
each track on the selected disc.
The track number will blink while the scan mode is selected.
To stop the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.
BK0138600US.book 78 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Comfort controls
5-79
5
CD text and MP3 title display
N00752100137
This CD player can display CD text and MP3 titles including
ID3 tag information.
CD text
The CD player can display disc and track titles for discs
encoded with disc and track title information. Press the DISP
button (5) repeatedly to make selections in the following
sequence: disc name → track name → normal display mode.NOTE
The display can show up to 12 characters. If a disc name
or track name has more than 12 characters, press the
PAGE button (4) to view the next 12 characters.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

Characters that the CD player cannot display are shown as
“•”.MP3 title
The CD player can display folder and track titles for discs
encoded with folder and track information. Press the DISP but-
ton (5) repeatedly to make selections in the following
sequence: folder name → track name → normal display mode.
BK0138600US.book 79 ページ ２０１１年７月１７日　日曜日　午後２時３２分
