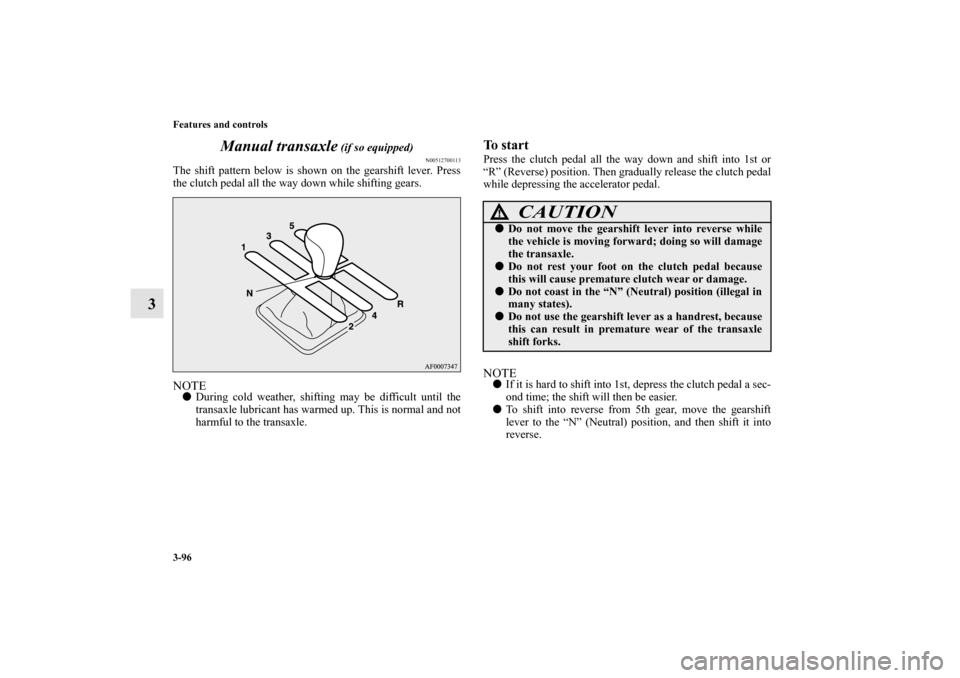

3-96 Features and controls
3Manual transaxle
(if so equipped)
N00512700113
The shift pattern below is shown on the gearshift lever. Press
the clutch pedal all the way down while shifting gears.NOTE
During cold weather, shifting may be difficult until the
transaxle lubricant has warmed up. This is normal and not
harmful to the transaxle.
To startPress the clutch pedal all the way down and shift into 1st or
“R” (Reverse) position. Then gradually release the clutch pedal
while depressing the accelerator pedal.NOTE
If it is hard to shift into 1st, depress the clutch pedal a sec-
ond time; the shift will then be easier.

To shift into reverse from 5th gear, move the gearshift
lever to the “N” (Neutral) position, and then shift it into
reverse.
CAUTION
!
Do not move the gearshift lever into reverse while
the vehicle is moving forward; doing so will damage
the transaxle.
Do not rest your foot on the clutch pedal because
this will cause premature clutch wear or damage.
Do not coast in the “N” (Neutral) position (illegal in
many states).
Do not use the gearshift lever as a handrest, because
this can result in premature wear of the transaxle
shift forks.
BK0150800US.book 96 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-97
3

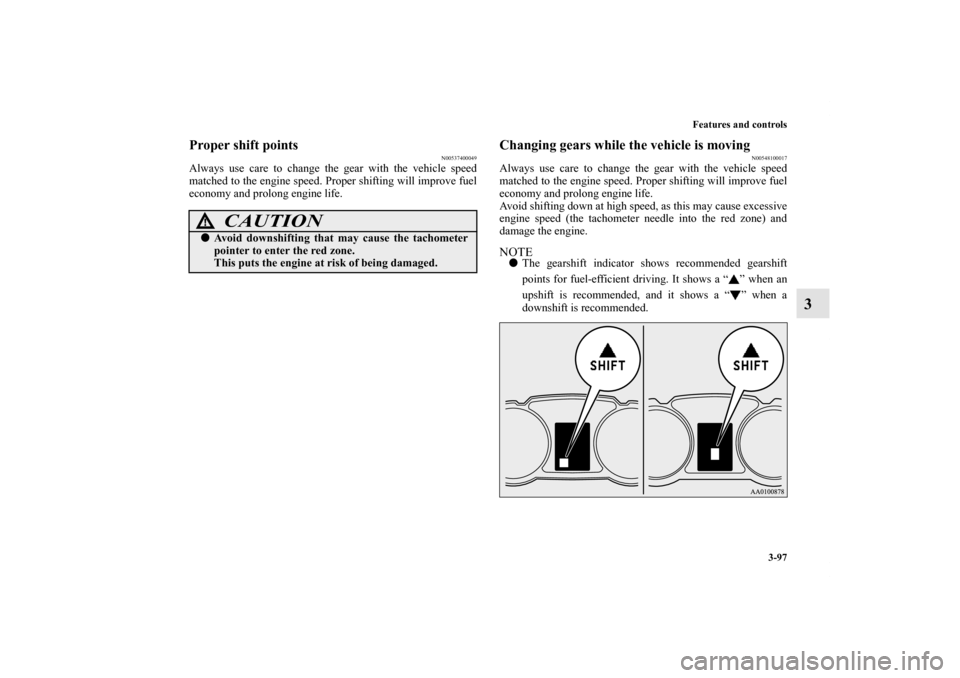

Proper shift points
N00537400049
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
Changing gears while the vehicle is moving
N00548100017
Always use care to change the gear with the vehicle speed
matched to the engine speed. Proper shifting will improve fuel
economy and prolong engine life.
Avoid shifting down at high speed, as this may cause excessive
engine speed (the tachometer needle into the red zone) and
damage the engine.NOTE
The gearshift indicator shows recommended gearshift
points for fuel-efficient driving. It shows a “ ” when an
upshift is recommended, and it shows a “ ” when a
downshift is recommended.
CAUTION
!
Avoid downshifting that may cause the tachometer
pointer to enter the red zone.
This puts the engine at risk of being damaged.
BK0150800US.book 97 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-98 Features and controls
3

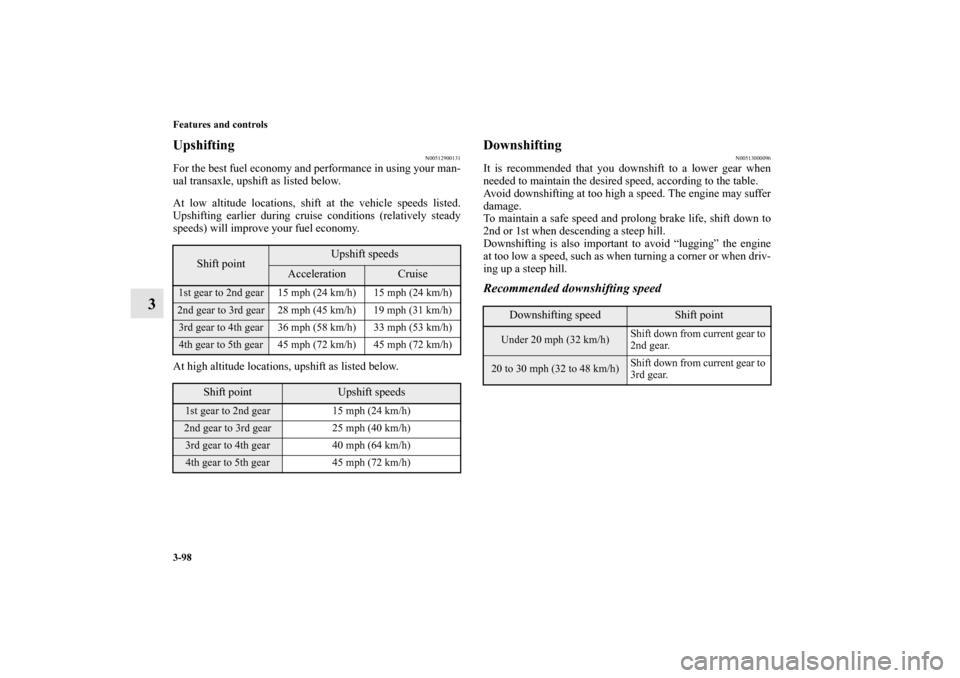

Upshifting
N00512900131
For the best fuel economy and performance in using your man-
ual transaxle, upshift as listed below.
At low altitude locations, shift at the vehicle speeds listed.
Upshifting earlier during cruise conditions (relatively steady
speeds) will improve your fuel economy.
At high altitude locations, upshift as listed below.
Downshifting
N00513000096
It is recommended that you downshift to a lower gear when
needed to maintain the desired speed, according to the table.
Avoid downshifting at too high a speed. The engine may suffer
damage.
To maintain a safe speed and prolong brake life, shift down to
2nd or 1st when descending a steep hill.
Downshifting is also important to avoid “lugging” the engine
at too low a speed, such as when turning a corner or when driv-
ing up a steep hill.Recommended downshifting speed
Shift point
Upshift speeds
Acceleration
Cruise
1st gear to 2nd gear 15 mph (24 km/h) 15 mph (24 km/h)2nd gear to 3rd gear 28 mph (45 km/h) 19 mph (31 km/h)3rd gear to 4th gear 36 mph (58 km/h) 33 mph (53 km/h)4th gear to 5th gear 45 mph (72 km/h) 45 mph (72 km/h)
Shift point
Upshift speeds
1st gear to 2nd gear 15 mph (24 km/h)2nd gear to 3rd gear 25 mph (40 km/h)3rd gear to 4th gear 40 mph (64 km/h)4th gear to 5th gear 45 mph (72 km/h)
Downshifting speed
Shift point
Under 20 mph (32 km/h)Shift down from current gear to
2nd gear.20 to 30 mph (32 to 48 km/h)Shift down from current gear to
3rd gear.
BK0150800US.book 98 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-99
3

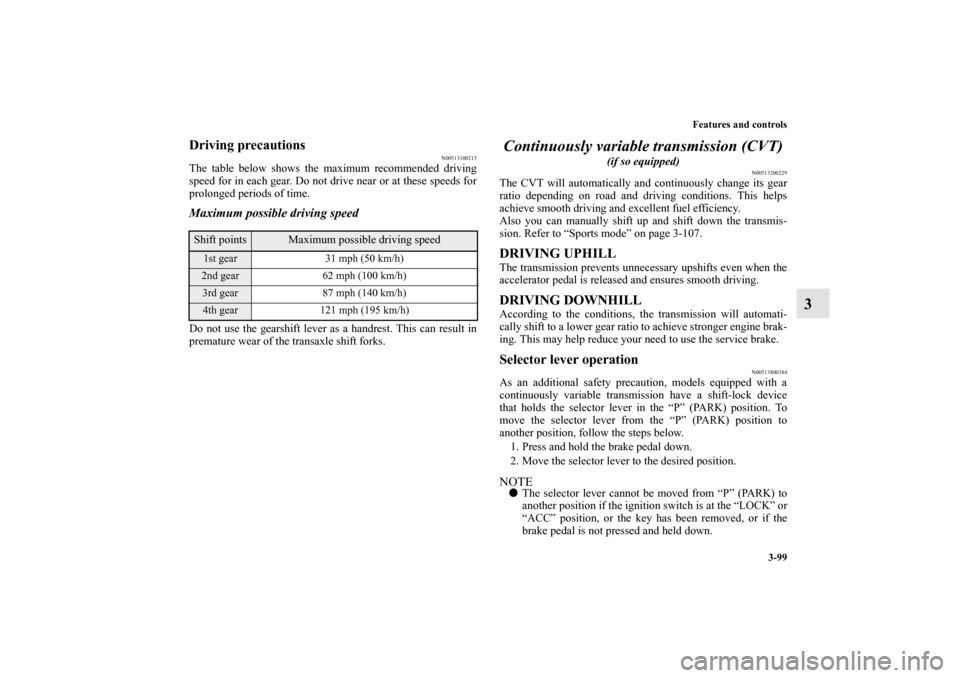

Driving precautions
N00513100215
The table below shows the maximum recommended driving
speed for in each gear. Do not drive near or at these speeds for
prolonged periods of time.Maximum possible driving speedDo not use the gearshift lever as a handrest. This can result in
premature wear of the transaxle shift forks.
Continuously variable transmission (CVT)

(if so equipped)
N00513200229
The CVT will automatically and continuously change its gear
ratio depending on road and driving conditions. This helps
achieve smooth driving and excellent fuel efficiency.
Also you can manually shift up and shift down the transmis-
sion. Refer to “Sports mode” on page 3-107.DRIVING UPHILLThe transmission prevents unnecessary upshifts even when the
accelerator pedal is released and ensures smooth driving.DRIVING DOWNHILLAccording to the conditions, the transmission will automati-
cally shift to a lower gear ratio to achieve stronger engine brak-
ing. This may help reduce your need to use the service brake.Selector lever operation
N00513800384
As an additional safety precaution, models equipped with a
continuously variable transmission have a shift-lock device
that holds the selector lever in the “P” (PARK) position. To
move the selector lever from the “P” (PARK) position to
another position, follow the steps below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.
Shift points
Maximum possible driving speed
1st gear 31 mph (50 km/h)2nd gear 62 mph (100 km/h)3rd gear 87 mph (140 km/h)4th gear 121 mph (195 km/h)
BK0150800US.book 99 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-100 Features and controls
3

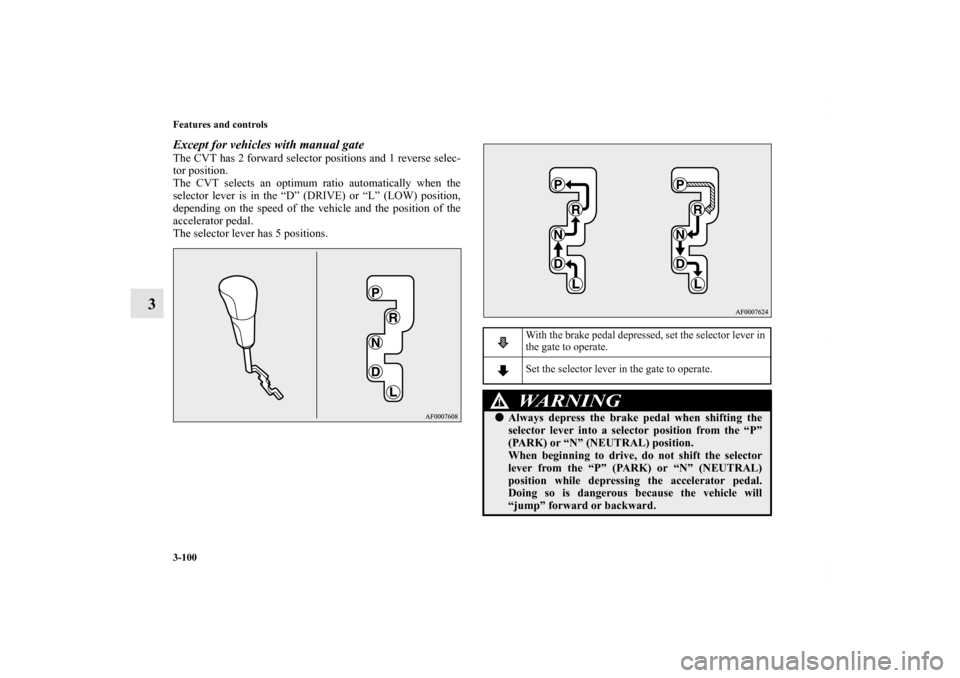

Except for vehicles with manual gateThe CVT has 2 forward selector positions and 1 reverse selec-
tor position.
The CVT selects an optimum ratio automatically when the
selector lever is in the “D” (DRIVE) or “L” (LOW) position,
depending on the speed of the vehicle and the position of the
accelerator pedal.
The selector lever has 5 positions.
With the brake pedal depressed, set the selector lever in
the gate to operate.
Set the selector lever in the gate to operate.WA R N I N G
!
Always depress the brake pedal when shifting the
selector lever into a selector position from the “P”
(PARK) or “N” (NEUTRAL) position.
When beginning to drive, do not shift the selector
lever from the “P” (PARK) or “N” (NEUTRAL)
position while depressing the accelerator pedal.
Doing so is dangerous because the vehicle will
“jump” forward or backward.
BK0150800US.book 100 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-101
3
NOTE
To ensure proper transmission operation, stop at each
detent position when shifting. After shifting, check the
position in the multi-information display.

If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.

For a shift indicated by in the illustration, depress the
brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever will be immovable.

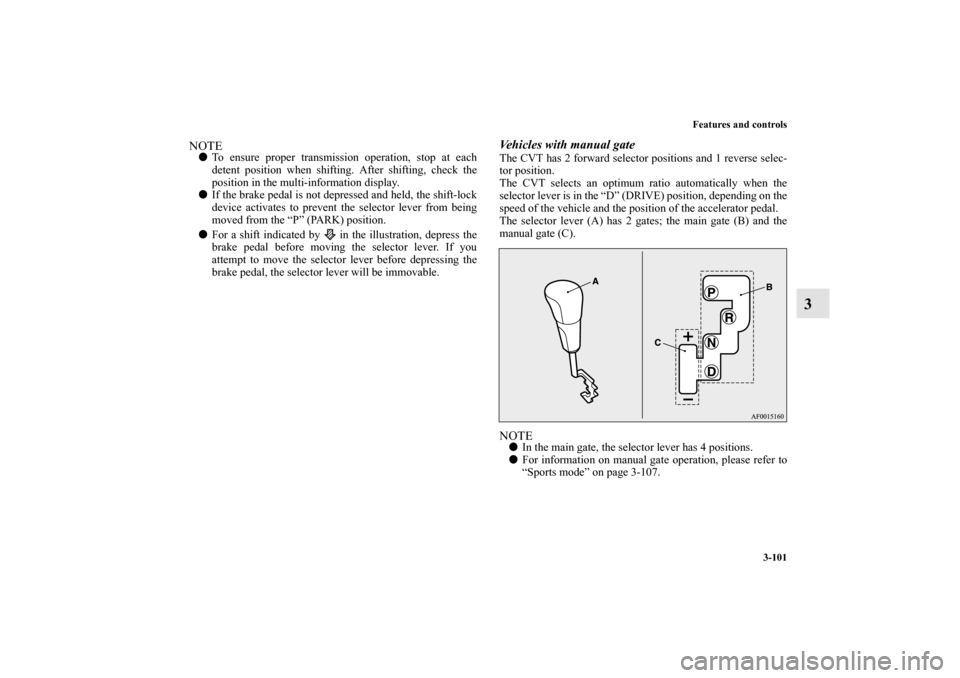

Vehicles with manual gateThe CVT has 2 forward selector positions and 1 reverse selec-
tor position.
The CVT selects an optimum ratio automatically when the
selector lever is in the “D” (DRIVE) position, depending on the
speed of the vehicle and the position of the accelerator pedal.
The selector lever (A) has 2 gates; the main gate (B) and the
manual gate (C).NOTE
In the main gate, the selector lever has 4 positions.

For information on manual gate operation, please refer to
“Sports mode” on page 3-107.
BK0150800US.book 101 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-102 Features and controls
3
NOTE
To ensure proper transmission operation, stop at each
detent position when shifting. After shifting, check the
position in the multi-information display.

If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.

For a shift indicated by in the illustration, depress the
brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever will be immovable.

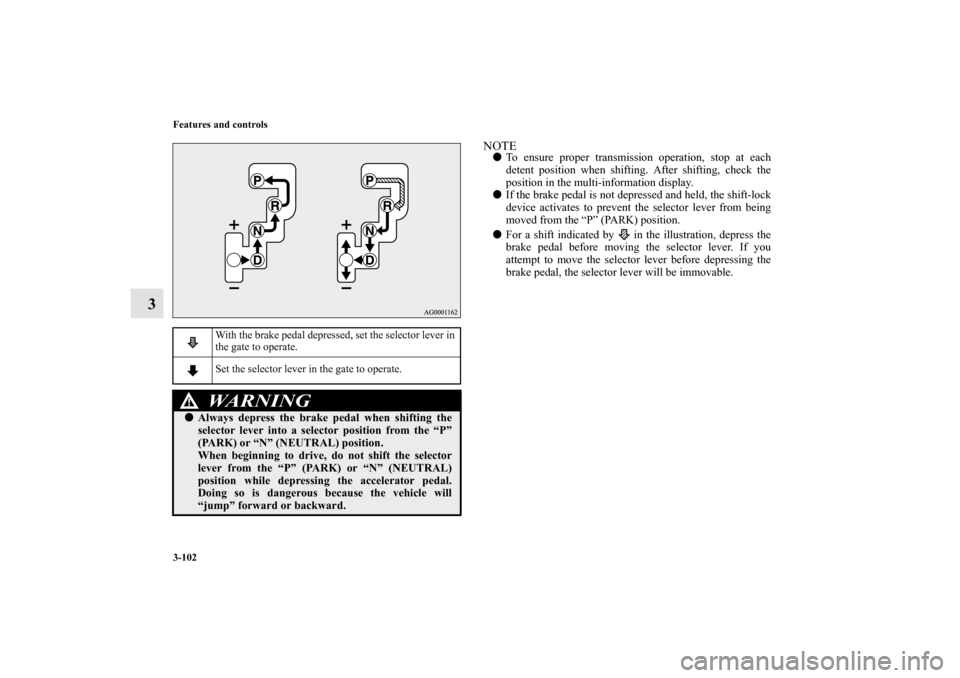

With the brake pedal depressed, set the selector lever in
the gate to operate.
Set the selector lever in the gate to operate.WA R N I N G
!
Always depress the brake pedal when shifting the
selector lever into a selector position from the “P”
(PARK) or “N” (NEUTRAL) position.
When beginning to drive, do not shift the selector
lever from the “P” (PARK) or “N” (NEUTRAL)
position while depressing the accelerator pedal.
Doing so is dangerous because the vehicle will
“jump” forward or backward.
BK0150800US.book 102 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-103
3

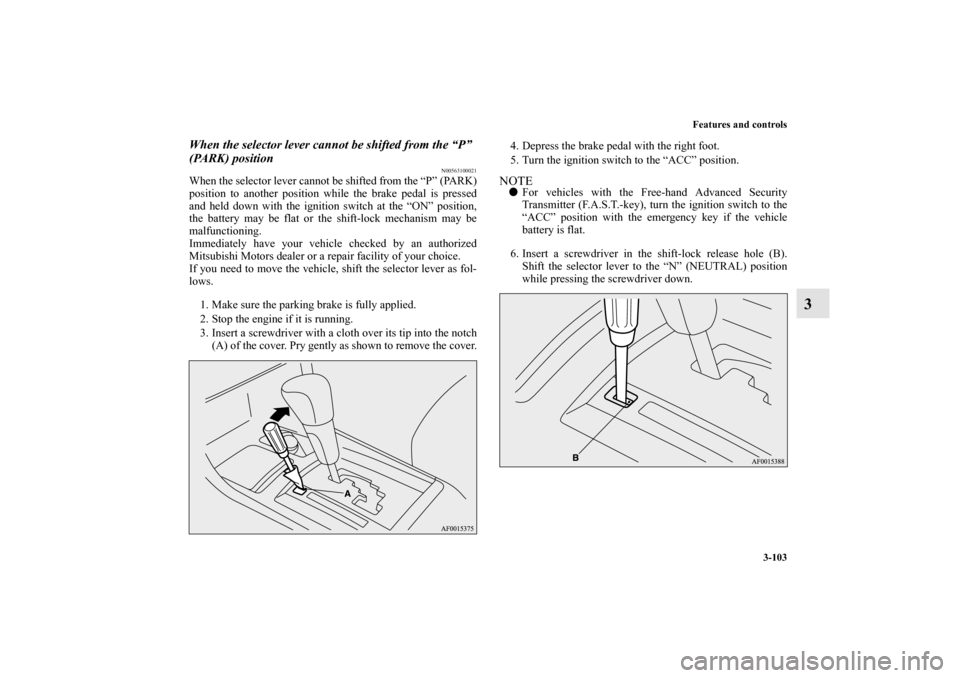

When the selector lever cannot be shifted from the “P”
(PARK) position
N00563100021
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch at the “ON” position,
the battery may be flat or the shift-lock mechanism may be
malfunctioning.
Immediately have your vehicle checked by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.
1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch
(A) of the cover. Pry gently as shown to remove the cover.4. Depress the brake pedal with the right foot.
5. Turn the ignition switch to the “ACC” position.
NOTE
For vehicles with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key), turn the ignition switch to the
“ACC” position with the emergency key if the vehicle
battery is flat.
6. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
BK0150800US.book 103 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-104 Features and controls
3

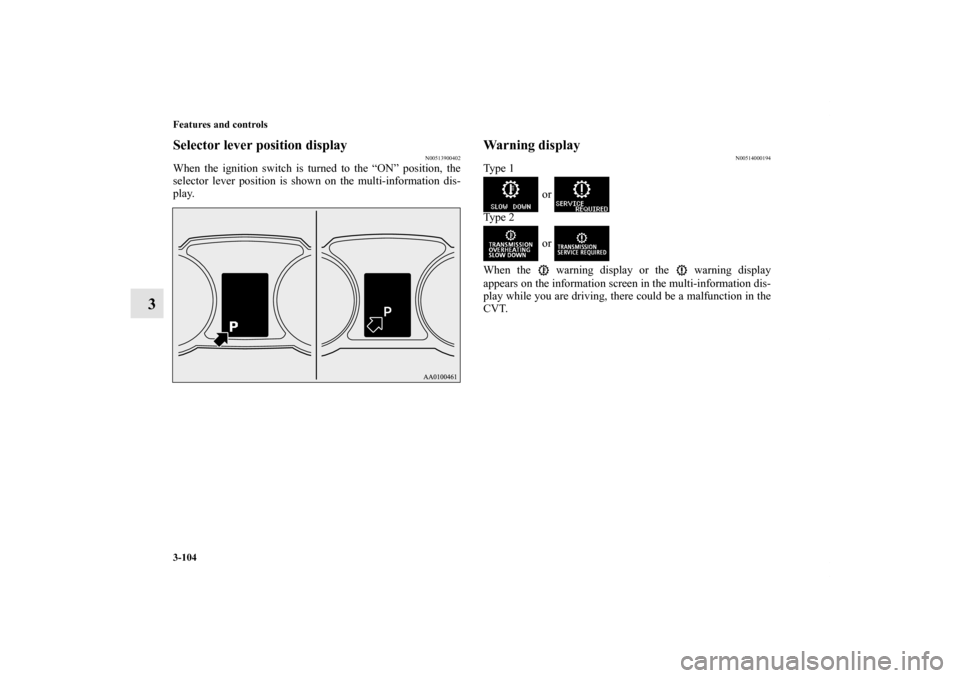

Selector lever position display
N00513900402
When the ignition switch is turned to the “ON” position, the
selector lever position is shown on the multi-information dis-
play.
Warning display
N00514000194
Ty p e 1
or
Ty p e 2
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, there could be a malfunction in the
CVT.
BK0150800US.book 104 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-105
3

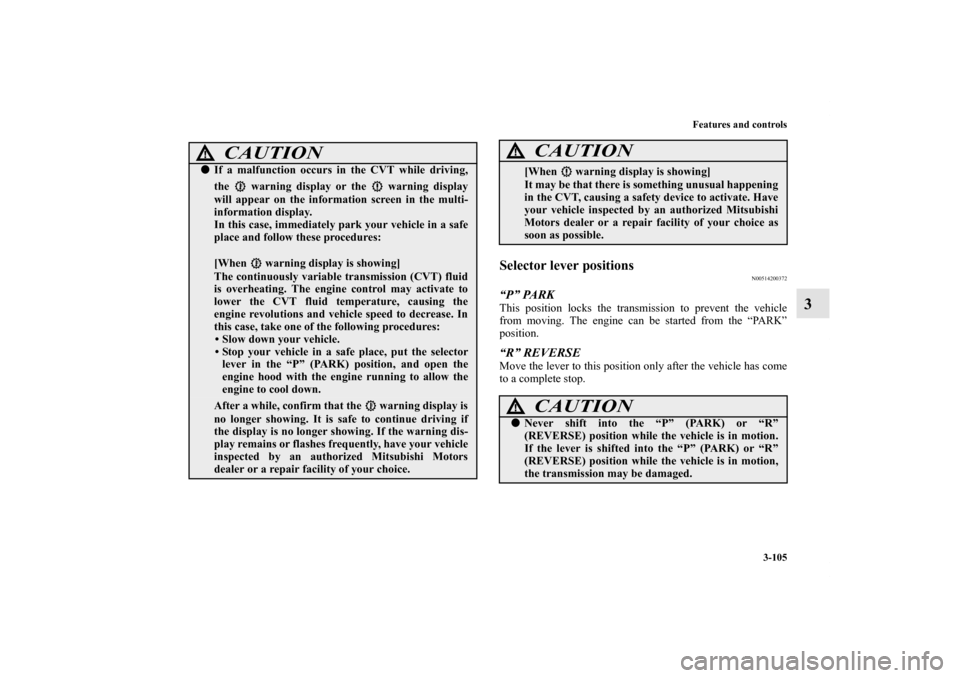

Selector lever positions
N00514200372
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “PARK”
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!
If a malfunction occurs in the CVT while driving,
the warning display or the warning display
will appear on the information screen in the multi-
information display.
In this case, immediately park your vehicle in a safe
place and follow these procedures:
[When warning display is showing]
The continuously variable transmission (CVT) fluid
is overheating. The engine control may activate to
lower the CVT fluid temperature, causing the
engine revolutions and vehicle speed to decrease. In
this case, take one of the following procedures:
• Slow down your vehicle.
• Stop your vehicle in a safe place, put the selector
lever in the “P” (PARK) position, and open the
engine hood with the engine running to allow the
engine to cool down.After a while, confirm that the warning display is
no longer showing. It is safe to continue driving if
the display is no longer showing. If the warning dis-
play remains or flashes frequently, have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
[When warning display is showing]
It may be that there is something unusual happening
in the CVT, causing a safety device to activate. Have
your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible. CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged.
CAUTION
!
BK0150800US.book 105 ページ ２０１２年３月２９日　木曜日　午後２時３８分
