Bluetooth® 2.0 interface (if so equipped) 5-146 Features and controls
5
Say “Retrain” to start the speaker enroll- ment process and recreate a new voice model. (Refer to “Speaker enrollment” on page 5-144.)
N00565001379
Before you can make or receive hands-free calls or play music using the Bluetooth
® 2.0
interface function, you must pair the Blue- tooth
® device and Bluetooth
® 2.0 interface.
Up to 7 Bluetooth
® devices can be paired
with the Bluetooth
® 2.0 interface.
If multiple paired Bluetooth
® devices are
available in the vehicle, the cellular phone or music player most recently connected is auto- matically connected to the Bluetooth
® 2.0
interface.
You can also change a Bluetooth
® device to
be connected. To pair a Bluetooth
® device with the Blue-
tooth
® 2.0 interface, follow the steps below.
1. Stop your vehicle in a safe area, put the shift lever (manual transaxle) in the “N” (Neutral) position, or the selector lever{continuously variable transmission(CVT)} in the “P” (PARK) position and pull the parking brake lever. 2. Press the SPEECH button. 3. Say “Pair Device.”
4. The voice guide will say “Start pairing procedure on the device. See the device manual for instructions.” and then willsay “The pairing code is .”
Connecting the Bluetooth
® 2.0
interface and Bluetooth
® device

NOTE
 Pairing is required only when the device is used for the first time. Once the device has been paired with the Bluetooth
® 2.0 inter-
face, all you need is
to bring the device into
the vehicle next time and the device will connect to the Bluetooth
® 2.0 interface auto-
matically (if supported by the device).
To p a i r

NOTE
 You cannot pair any Bluetooth
® device with
the Bluetooth
® 2.0 interface unless the vehi-
cle is parked. Before pairing a Bluetooth
®
device with the Bluetooth
® 2.0 interface,
confirm that the vehicle is parked in a safelocation.
NOTE
 The following procedure ( to ) can also be used instead of saying “Pair Device.” Replace this step 3 with the following proce- dure if you prefer. Say “Setup.” Say “Pairing Options.” The voice guide will say “Select one of the following: pair, edit, delete, list or set code.”Say “Pair.” voice guide will say “Maximum devices paired” and then the system will end the pairing process. To register a new device, delete one device and then repeat the pairing process.(Refer to “Selecting a device: Deleting a device” on page 5-148.)NOTE
 Some Bluetooth
® devices require a specific
pairing code. Please refer to the device man- ual for pairing code requirements and read the next section “If your device requires aspecific pairing code” on page 5-147 to set the pairing code.
BK0237700US.book
146 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

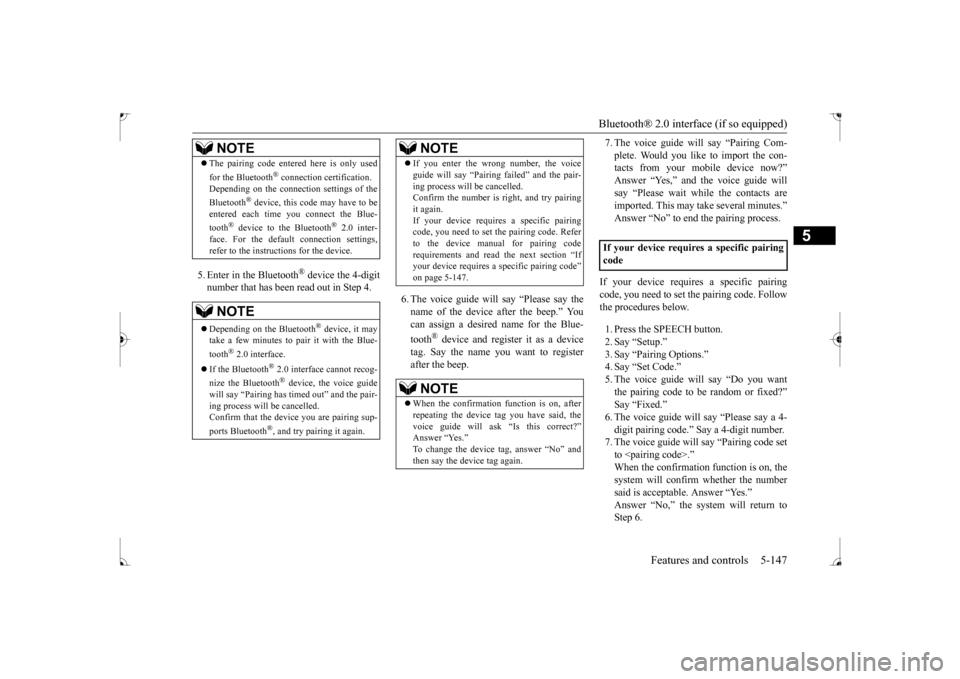

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-147
5
5. Enter in the Bluetooth
® device the 4-digit
number that has been read out in Step 4.
6. The voice guide will say “Please say the name of the device after the beep.” You can assign a desired name for the Blue- tooth
® device and register it as a device
tag. Say the name you want to register after the beep.
7. The voice guide will say “Pairing Com- plete. Would you like to import the con- tacts from your mobile device now?” Answer “Yes,” and the voice guide willsay “Please wait while the contacts are imported. This may take several minutes.” Answer “No” to end the pairing process.
If your device requires a specific pairing code, you need to set the pairing code. Follow the procedures below. 1. Press the SPEECH button. 2. Say “Setup.”3. Say “Pairing Options.” 4. Say “Set Code.” 5. The voice guide will say “Do you wantthe pairing code to be random or fixed?” Say “Fixed.” 6. The voice guide will say “Please say a 4-digit pairing code.” Say a 4-digit number. 7. The voice guide will say “Pairing code set to .”When the confirmation function is on, the system will confirm whether the number said is acceptable. Answer “Yes.”Answer “No,” the system will return to Step 6.
 The pairing code entered here is only used for the Bluetooth
® connection certification.
Depending on the connection settings of the Bluetooth
® device, this code may have to be
entered each time you connect the Blue- tooth
® device to the Bluetooth
® 2.0 inter-
face. For the default connection settings,refer to the instructions for the device.NOTE
 Depending on the Bluetooth
® device, it may
take a few minutes to pair it with the Blue- tooth
® 2.0 interface.
 If the Bluetooth
® 2.0 interface cannot recog-
nize the Bluetooth
® device, the voice guide
will say “Pairing has timed out” and the pair- ing process will be cancelled. Confirm that the device you are pairing sup- ports Bluetooth
®, and try pairing it again.
NOTE
 If you enter the wrong number, the voice guide will say “Pairing failed” and the pair- ing process will be cancelled. Confirm the number is right, and try pairing it again.If your device requires a specific pairing code, you need to set the pairing code. Refer to the device manual for pairing coderequirements and read the next section “If your device requires a specific pairing code” on page 5-147.NOTE
 When the confirmation function is on, after repeating the device tag you have said, the voice guide will ask “Is this correct?” Answer “Yes.”To change the device tag, answer “No” and then say the device tag again.NOTE
If your device requires a specific pairing code
BK0237700US.book
147 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

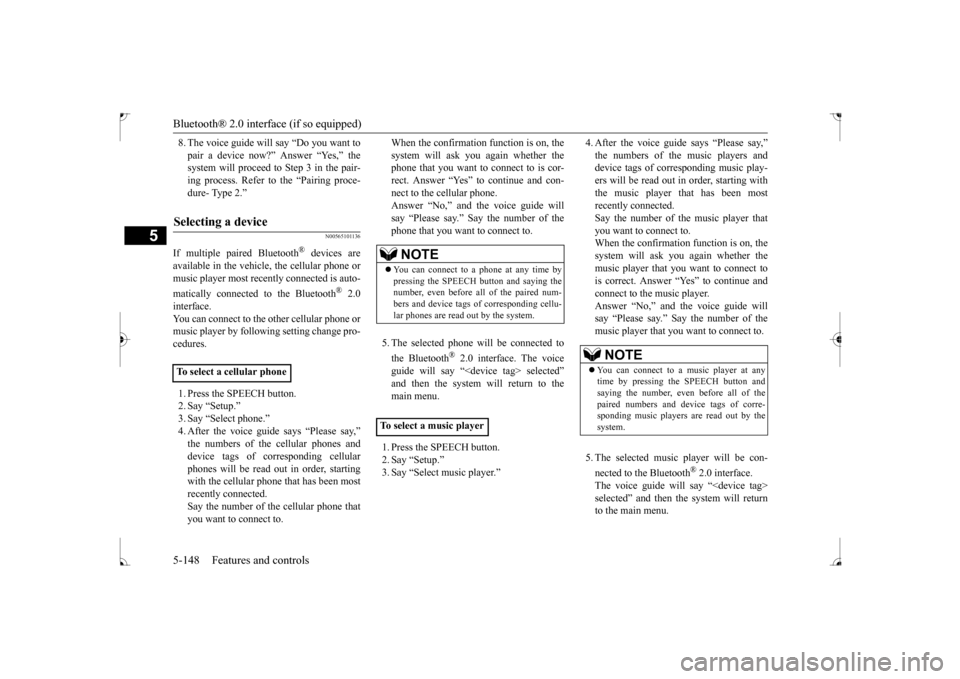

Bluetooth® 2.0 interface (if so equipped) 5-148 Features and controls
5
8. The voice guide will say “Do you want to pair a device now?” Answer “Yes,” the system will proceed to Step 3 in the pair- ing process. Refer to the “Pairing proce-dure- Type 2.”
N00565101136
If multiple paired Bluetooth
® devices are
available in the vehicle, the cellular phone ormusic player most recently connected is auto- matically connected to the Bluetooth
® 2.0
interface.You can connect to the other cellular phone or music player by following setting change pro- cedures. 1. Press the SPEECH button. 2. Say “Setup.” 3. Say “Select phone.” 4. After the voice guide says “Please say,” device tags of corresponding cellular phones will be read out in order, startingwith the cellular phone that has been most recently connected. Say the number of the cellular phone thatyou want to connect to.
When the confirmation function is on, the system will ask you again whether the phone that you want to connect to is cor- rect. Answer “Yes” to continue and con-nect to the cellular phone. Answer “No,” and the voice guide will say “Please say.” Say the number of thephone that you want to connect to. 5. The selected phone will be connected to the Bluetooth
® 2.0 interface. The voice
guide will say “ selected” and then the system will return to the main menu. 1. Press the SPEECH button. 2. Say “Setup.” 3. Say “Select music player.”
device tags of corresponding music play- ers will be read out in order, starting withthe music player that has been most recently connected. Say the number of the music player thatyou want to connect to. When the confirmation function is on, the system will ask you again whether themusic player that you want to connect tois correct. Answer “Yes” to continue and connect to the music player. Answer “No,” and the voice guide willsay “Please say.” Say the number of the music player that you want to connect to. 5. The selected music player will be con- nected to the Bluetooth
® 2.0 interface.
The voice guide will say “ selected” and then the system will return to the main menu.
Selecting a device

To select a cellular phone
NOTE
 You can connect to a phone at any time by pressing the SPEECH button and saying thenumber, even before all of the paired num- bers and device tags of corresponding cellu- lar phones are read out by the system.
To select a music player
NOTE
 You can connect to a music player at any time by pressing the SPEECH button and saying the number, even before all of the paired numbers and device tags of corre-sponding music players are read out by the system.
BK0237700US.book
148 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

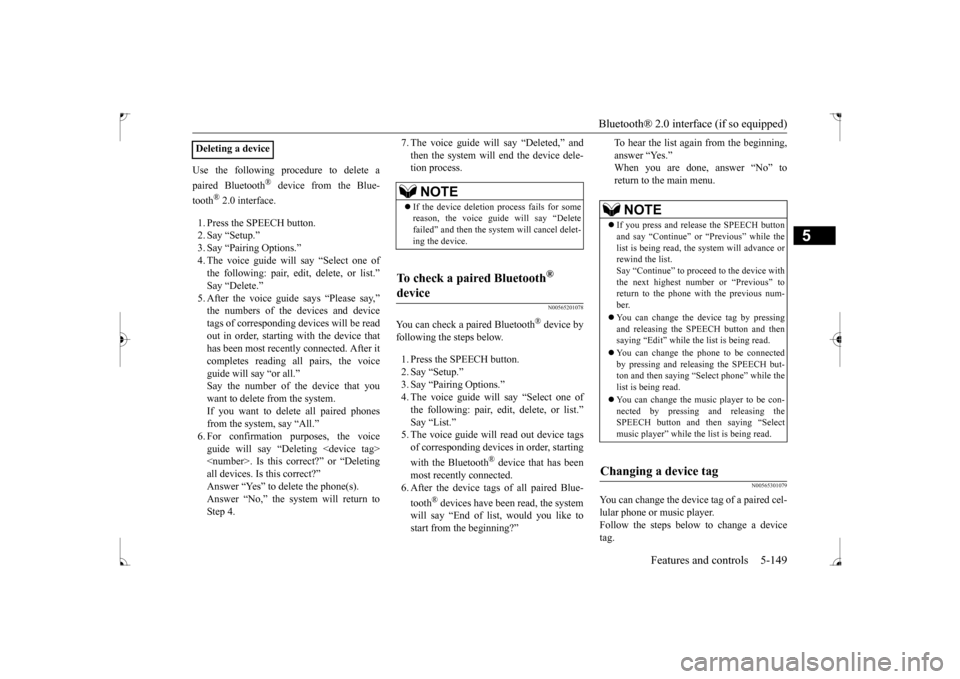

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-149
5
Use the following procedure to delete a paired Bluetooth
® device from the Blue-
tooth
® 2.0 interface.
1. Press the SPEECH button. 2. Say “Setup.”3. Say “Pairing Options.” 4. The voice guide will say “Select one of the following: pair, edit, delete, or list.”Say “Delete.”5. After the voice guide says “Please say,” tags of corresponding devices will be readout in order, starting with the device that has been most recently connected. After it completes reading all pairs, the voiceguide will say “or all.” Say the number of the device that you want to delete from the system.If you want to delete all paired phones from the system, say “All.” 6. For confirmation purposes, the voiceguide will say “Deleting . Is this correct?” or “Deleting all devices. Is this correct?”Answer “Yes” to delete the phone(s). Answer “No,” the system will return to Step 4.
7. The voice guide will say “Deleted,” and then the system will end the device dele- tion process.
N00565201078
You can check a paired Bluetooth
® device by
following the steps below. 1. Press the SPEECH button. 2. Say “Setup.”3. Say “Pairing Options.” 4. The voice guide will say “Select one of the following: pair, edit, delete, or list.”Say “List.” 5. The voice guide will read out device tags of corresponding devices in order, starting with the Bluetooth
® device that has been
most recently connected. 6. After the device tags of all paired Blue- tooth
® devices have been read, the system
will say “End of list, would you like to start from the beginning?”
To hear the list again from the beginning, answer “Yes.” When you are done, answer “No” to return to the main menu.
N00565301079
You can change the device tag of a paired cel- lular phone or music player. Follow the steps below to change a devicetag.
Deleting a device
NOTE
 If the device deletion process fails for some reason, the voice guide will say “Delete failed” and then the system will cancel delet-ing the device.
To check a paired Bluetooth
®
device

NOTE
 If you press and release the SPEECH button and say “Continue” or “Previous” while thelist is being read, the system will advance or rewind the list. Say “Continue” to proceed to the device withthe next highest number or “Previous” to return to the phone with the previous num- ber.  You can change the device tag by pressing and releasing the SPEECH button and thensaying “Edit” while the list is being read.  You can change the phone to be connected by pressing and releasing the SPEECH but- ton and then saying “Select phone” while the list is being read.  You can change the music player to be con- nected by pressing and releasing theSPEECH button and then saying “Select music player” while the list is being read.
Changing a device tag

BK0237700US.book
149 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

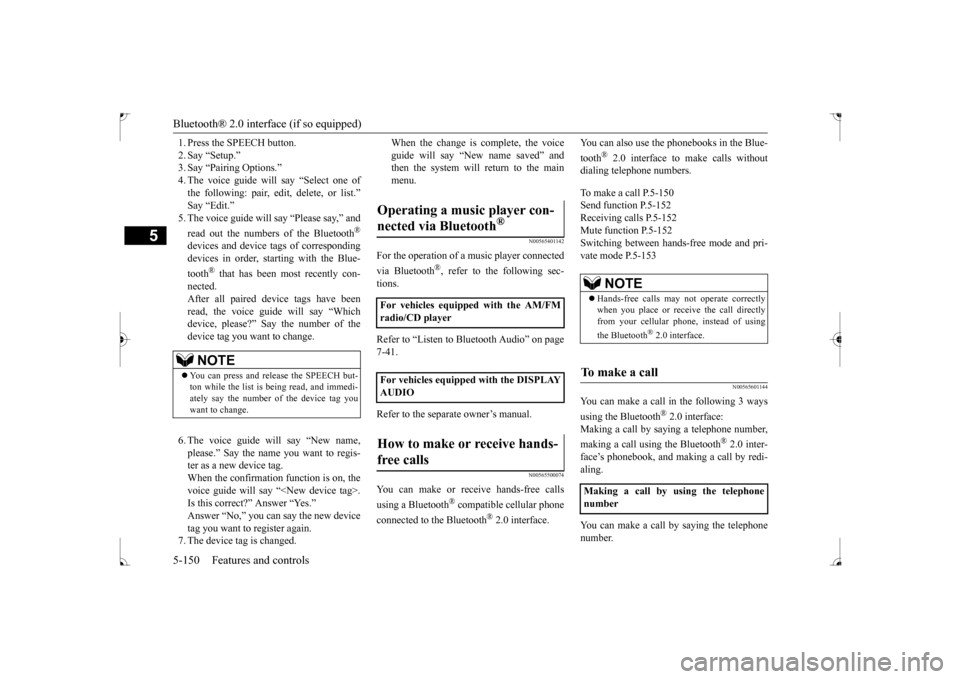

Bluetooth® 2.0 interface (if so equipped) 5-150 Features and controls
5
1. Press the SPEECH button. 2. Say “Setup.” 3. Say “Pairing Options.” 4. The voice guide will say “Select one ofthe following: pair, edit, delete, or list.” Say “Edit.” 5. The voice guide will say “Please say,” and read out the numbers of the Bluetooth
®
devices and device tags of corresponding devices in order, starting with the Blue- tooth
® that has been most recently con-
nected. After all paired device tags have been read, the voice guide will say “Whichdevice, please?” Say the number of the device tag you want to change. 6. The voice guide will say “New name, please.” Say the name you want to regis- ter as a new device tag.When the confirmation function is on, the voice guide will say “. Is this correct?” Answer “Yes.”Answer “No,” you can say the new device tag you want to register again. 7. The device tag is changed.
When the change is complete, the voice guide will say “New name saved” and then the system will return to the main menu.
N00565401142
For the operation of a music player connected via Bluetooth
®, refer to the following sec-
tions. Refer to “Listen to Bluetooth Audio” on page 7-41. Refer to the separate owner’s manual.
N00565500074
You can make or receive hands-free calls using a Bluetooth
® compatible cellular phone
connected to the Bluetooth
® 2.0 interface.
You can also use the phonebooks in the Blue- tooth
® 2.0 interface to make calls without
dialing telephone numbers. To make a call P.5-150 Send function P.5-152Receiving calls P.5-152 Mute function P.5-152 Switching between hands-free mode and pri-vate mode P.5-153
N00565601144
You can make a call in the following 3 ways using the Bluetooth
® 2.0 interface:
Making a call by saying a telephone number, making a call using the Bluetooth
® 2.0 inter-
face’s phonebook, and making a call by redi-aling. You can make a call by saying the telephone number.
NOTE
 You can press and release the SPEECH but- ton while the list is being read, and immedi- ately say the number of the device tag you want to change.
Operating a music player con- nected via Bluetooth
®
For vehicles equipped with the AM/FM radio/CD player For vehicles equipped with the DISPLAY AUDIOHow to make or receive hands- free calls

NOTE
 Hands-free calls may not operate correctly when you place or receive the call directly from your cellular phone, instead of using the Bluetooth
® 2.0 interface.
To m a k e a c a l l

Making a call by using the telephone number
BK0237700US.book
150 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

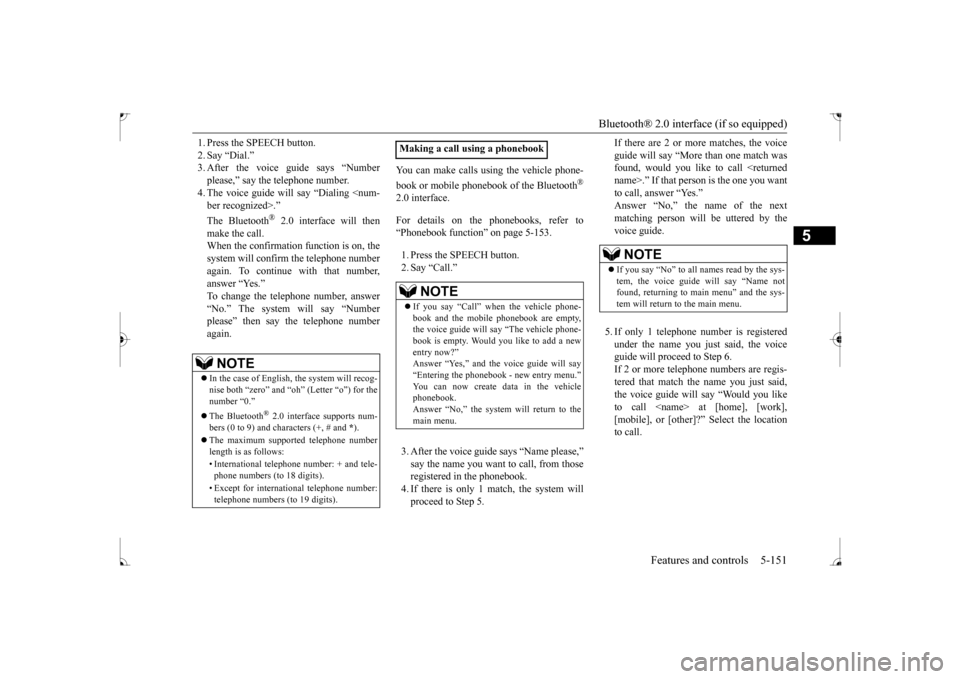

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-151
5
1. Press the SPEECH button. 2. Say “Dial.” 3. After the voice guide says “Number please,” say the telephone number.4. The voice guide will say “Dialing .” The Bluetooth
® 2.0 interface will then
make the call. When the confirmation function is on, the system will confirm the telephone numberagain. To continue with that number,answer “Yes.” To change the telephone number, answer “No.” The system will say “Numberplease” then say the telephone number again.
You can make calls using the vehicle phone- book or mobile phonebook of the Bluetooth
®
2.0 interface. For details on the phonebooks, refer to “Phonebook function” on page 5-153. 1. Press the SPEECH button. 2. Say “Call.” 3. After the voice guide says “Name please,” say the name you want to call, from those registered in the phonebook.4. If there is only 1 match, the system will proceed to Step 5.
If there are 2 or more matches, the voice guide will say “More than one match was found, would you like to call .” If that person is the one you wantto call, answer “Yes.” Answer “No,” the name of the next matching person will be uttered by thevoice guide. 5. If only 1 telephone number is registered under the name you just said, the voice guide will proceed to Step 6. If 2 or more telephone numbers are regis-tered that match the name you just said, the voice guide will say “Would you like to call at [home], [work],[mobile], or [other]?” Select the location to call.
NOTE
 In the case of English, the system will recog- nise both “zero” and “oh” (Letter “o”) for thenumber “0.”  The Bluetooth
® 2.0 interface supports num-
bers (0 to 9) and characters (+, # and
*).
 The maximum supported telephone number length is as follows: • International telephone number: + and tele- phone numbers (to 18 digits). • Except for international telephone number: telephone numbers (to 19 digits).
Making a call using a phonebook
NOTE
 If you say “Call” when the vehicle phone- book and the mobile phonebook are empty,the voice guide will say “The vehicle phone- book is empty. Would you like to add a new entry now?”Answer “Yes,” and the voice guide will say “Entering the phonebook - new entry menu.” You can now create data in the vehiclephonebook. Answer “No,” the system will return to the main menu.
NOTE
 If you say “No” to all names read by the sys- tem, the voice guide will say “Name notfound, returning to main menu” and the sys- tem will return to the main menu.
BK0237700US.book
151 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

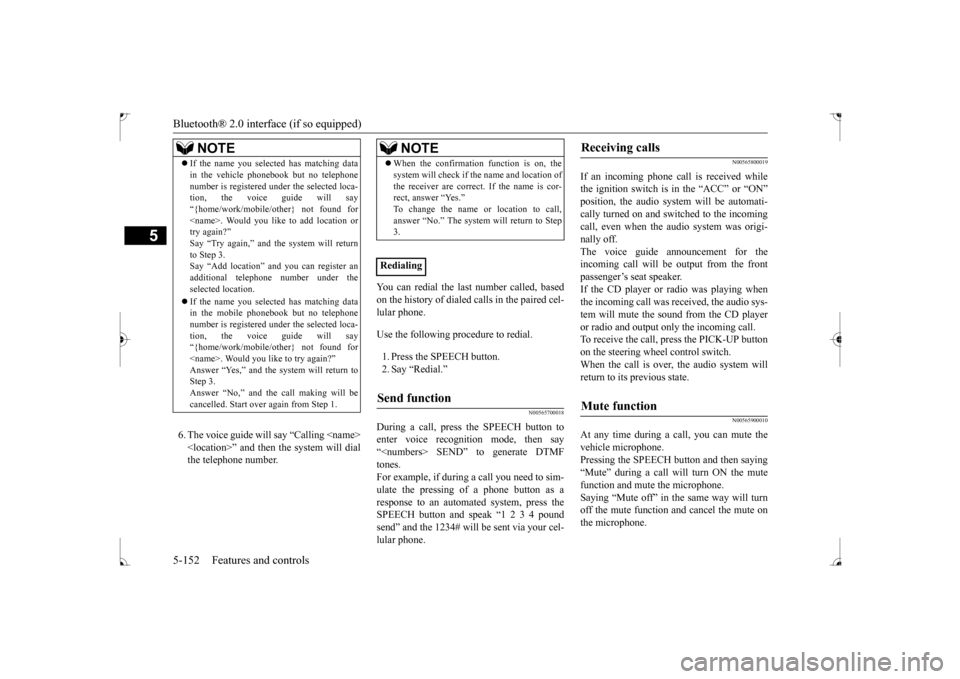

Bluetooth® 2.0 interface (if so equipped) 5-152 Features and controls
5
6. The voice guide will say “Calling ” and then the system will dial the telephone number.
You can redial the last number called, based on the history of dialed calls in the paired cel- lular phone. Use the following procedure to redial. 1. Press the SPEECH button. 2. Say “Redial.”
N00565700018
During a call, press the SPEECH button toenter voice recognition mode, then say“ SEND” to generate DTMF tones. For example, if during a call you need to sim-ulate the pressing of a phone button as a response to an automated system, press the SPEECH button and speak “1 2 3 4 poundsend” and the 1234# will be sent via your cel- lular phone.
N00565800019
If an incoming phone call is received while the ignition switch is in the “ACC” or “ON”position, the audio system will be automati- cally turned on and switched to the incoming call, even when the audio system was origi-nally off. The voice guide announcement for the incoming call will be output from the frontpassenger’s seat speaker.If the CD player or radio was playing when the incoming call was received, the audio sys- tem will mute the sound from the CD playeror radio and output only
the incoming call.
To receive the call, press the PICK-UP button on the steering wheel control switch.When the call is over,
the audio system will
return to its previous state.
N00565900010
At any time during a call, you can mute thevehicle microphone. Pressing the SPEECH button and then saying“Mute” during a call will turn ON the mute function and mute the microphone. Saying “Mute off” in the same way will turnoff the mute function and cancel the mute on the microphone.
NOTE
 If the name you selected has matching data in the vehicle phonebook but no telephone number is registered under the selected loca- tion, the voice guide will say “{home/work/mobile/other} not found for. Would you like to add location or try again?” Say “Try again,” and the system will returnto Step 3. Say “Add location” and you can register an additional telephone number under theselected location.  If the name you selected has matching data in the mobile phonebook but no telephone number is registered under the selected loca- tion, the voice guide will say“{home/work/mobile/other} not found for . Would you like to try again?” Answer “Yes,” and the system will return toStep 3. Answer “No,” and the call making will be cancelled. Start over again from Step 1.
NOTE
 When the confirmation function is on, the system will check if the name and location of the receiver are correct. If the name is cor- rect, answer “Yes.” To change the name or location to call,answer “No.” The system will return to Step 3.
RedialingSend function

Receiving calls

Mute function

BK0237700US.book
152 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

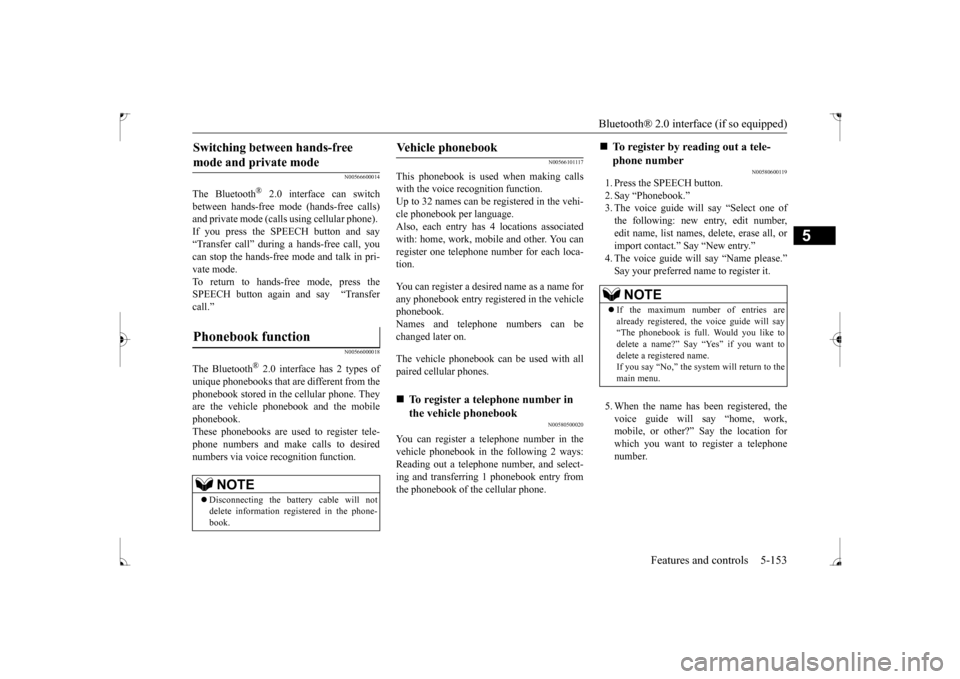

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-153
5
N00566600014
The Bluetooth
® 2.0 interface can switch
between hands-free mode (hands-free calls) and private mode (calls using cellular phone). If you press the SPEECH button and say “Transfer call” during a hands-free call, you can stop the hands-free mode and talk in pri-vate mode. To return to hands-free mode, press the SPEECH button again and say “Transfer call.”
N00566000018
The Bluetooth
® 2.0 interface has 2 types of
unique phonebooks that are different from thephonebook stored in the cellular phone. They are the vehicle phonebook and the mobile phonebook.These phonebooks are used to register tele- phone numbers and make calls to desired numbers via voice recognition function.
N00566101117
This phonebook is us
ed when making calls
with the voice recognition function.Up to 32 names can be registered in the vehi- cle phonebook per language. Also, each entry has 4 locations associatedwith: home, work, mobile and other. You can register one telephone number for each loca- tion. You can register a desired name as a name for any phonebook entry registered in the vehiclephonebook. Names and telephone numbers can be changed later on. The vehicle phonebook can be used with all paired cellular phones.
N00580500020
You can register a telephone number in thevehicle phonebook in the following 2 ways:Reading out a telephone number, and select- ing and transferring 1 phonebook entry from the phonebook of the cellular phone.
N00580600119
1. Press the SPEECH button. 2. Say “Phonebook.” 3. The voice guide will say “Select one ofthe following: new entry, edit number, edit name, list names, delete, erase all, or import contact.” Say “New entry.” Say your preferred name to register it. 5. When the name has been registered, the voice guide will say “home, work, mobile, or other?” Say the location forwhich you want to register a telephone number.
Switching between hands-free mode and private mode

Phonebook function

NOTE
 Disconnecting the battery cable will not delete information registered in the phone-book.
Vehicle phonebook


To register a telephone number in the vehicle phonebook

To register by reading out a tele- phone number NOTE
 If the maximum number of entries are already registered, the voice guide will say “The phonebook is full. Would you like todelete a name?” Say “Yes” if you want to delete a registered name. If you say “No,” the system will return to themain menu.
BK0237700US.book
153 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

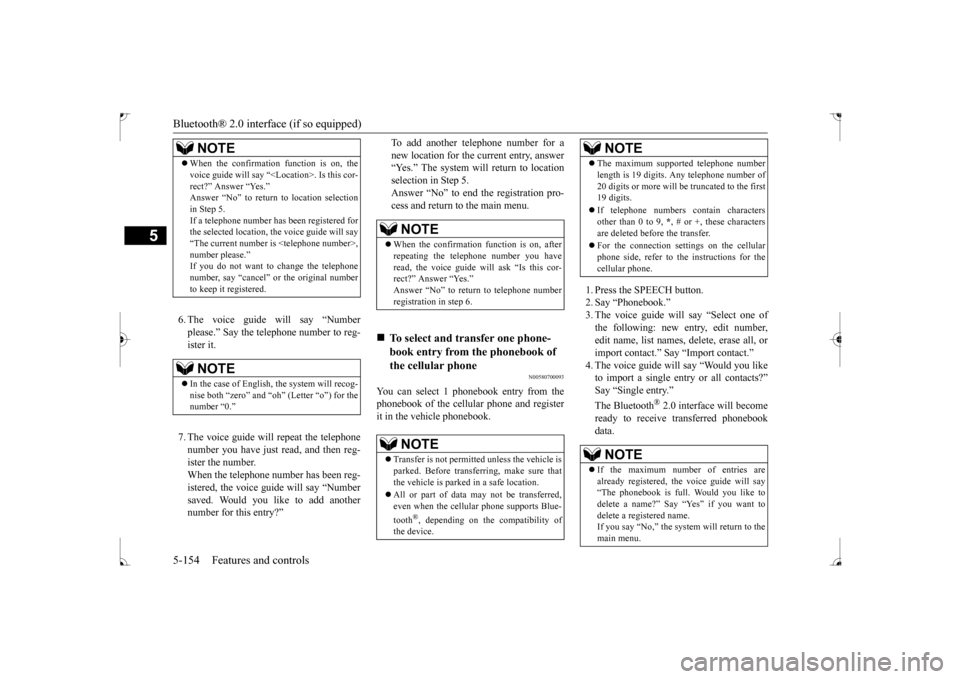

Bluetooth® 2.0 interface (if so equipped) 5-154 Features and controls
5
6. The voice guide will say “Number please.” Say the telephone number to reg- ister it. 7. The voice guide will repeat the telephone number you have just read, and then reg-ister the number. When the telephone number has been reg- istered, the voice guide will say “Numbersaved. Would you like to add another number for this entry?”
To add another telephone number for a new location for the current entry, answer “Yes.” The system will return to location selection in Step 5.Answer “No” to end the registration pro- cess and return to the main menu.
N00580700093
You can select 1 phonebook entry from the phonebook of the cellular phone and registerit in the vehicle phonebook.
1. Press the SPEECH button. 2. Say “Phonebook.”3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete, erase all, orimport contact.” Say “Import contact.” 4. The voice guide will say “Would you like to import a single entry or all contacts?”Say “Single entry.”
® 2.0 interface will become
ready to receive transferred phonebookdata.
NOTE
 When the confirmation function is on, the voice guide will say “. Is this cor- rect?” Answer “Yes.” Answer “No” to return to location selection in Step 5.If a telephone number has been registered for the selected location, the voice guide will say “The current number is ,number please.” If you do not want to change the telephone number, say “cancel” or the original numberto keep it registered.NOTE
 In the case of English, the system will recog- nise both “zero” and “oh” (Letter “o”) for the number “0.”
NOTE
 When the confirmation function is on, after repeating the telephone number you have read, the voice guide will ask “Is this cor-rect?” Answer “Yes.” Answer “No” to return to telephone number registration in step 6.

To select and transfer one phone- book entry from the phonebook of the cellular phone NOTE
 Transfer is not permitted unless the vehicle is parked. Before transferring, make sure that the vehicle is parked in a safe location.  All or part of data may not be transferred, even when the cellular phone supports Blue- tooth
®, depending on the compatibility of
the device.
 The maximum supported telephone number length is 19 digits. Any telephone number of 20 digits or more will be truncated to the first 19 digits.  If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters
are deleted before the transfer.  For the connection settings on the cellular phone side, refer to the instructions for thecellular phone.NOTE
 If the maximum number of entries are already registered, the voice guide will say“The phonebook is full. Would you like to delete a name?” Say “Yes” if you want to delete a registered name.If you say “No,” the system will return to the main menu.NOTE
BK0237700US.book
154 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

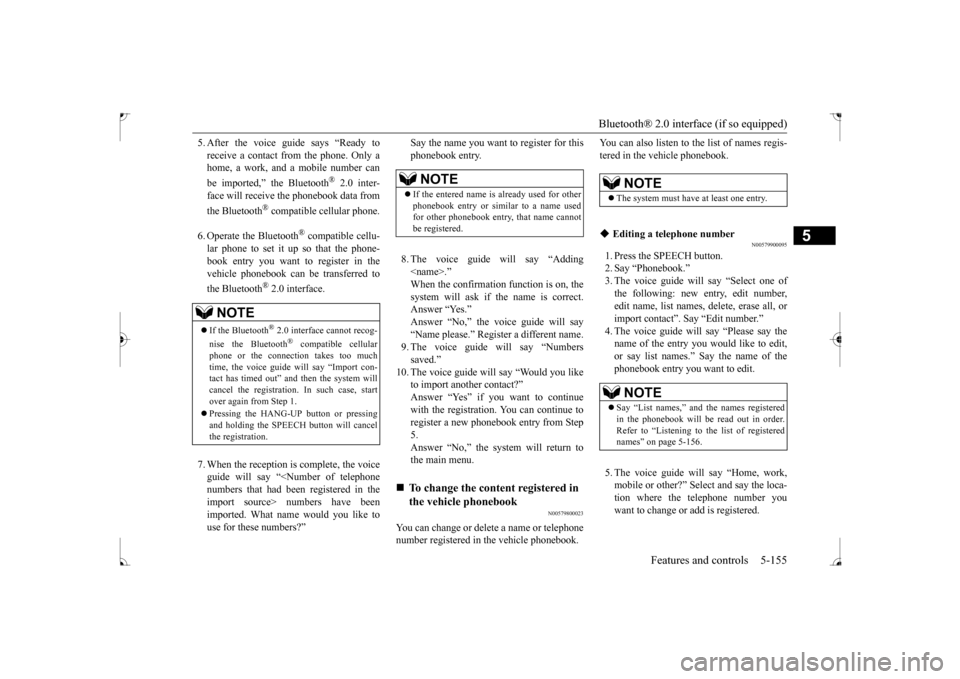

Bluetooth® 2.0 interface (if so equipped)
Features and controls 5-155
5
5. After the voice guide says “Ready to receive a contact from the phone. Only a home, a work, and a mobile number can be imported,” the Bluetooth
® 2.0 inter-
face will receive the phonebook data from the Bluetooth
® compatible cellular phone.
6. Operate the Bluetooth
® compatible cellu-
lar phone to set it up so that the phone-book entry you want to register in the vehicle phonebook can be transferred to the Bluetooth
® 2.0 interface.
7. When the reception is complete, the voice guide will say “ numbers have beenimported. What name would you like to use for these numbers?”
Say the name you want to register for this phonebook entry. 8. The voice guide will say “Adding .”When the confirmation function is on, the system will ask if the name is correct. Answer “Yes.”Answer “No,” the voice guide will say “Name please.” Register a different name. 9. The voice guide will say “Numberssaved.”
10. The voice guide will say “Would you like
to import another contact?”Answer “Yes” if you want to continue with the registration. You can continue to register a new phonebook entry from Step5. Answer “No,” the system will return to the main menu.
N00579800023
You can change or delete a name or telephone number registered in the vehicle phonebook.
You can also listen to the list of names regis- tered in the vehicle phonebook.
N00579900095
1. Press the SPEECH button.2. Say “Phonebook.”3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete, erase all, orimport contact”. Say “Edit number.” name of the entry you would like to edit,or say list names.” Say the name of the phonebook entry you want to edit. 5. The voice guide will say “Home, work, mobile or other?” Select and say the loca- tion where the telephone number youwant to change or add is registered.
NOTE
 If the Bluetooth
® 2.0 interface cannot recog-
nise the Bluetooth
® compatible cellular
phone or the connection takes too muchtime, the voice guide will say “Import con- tact has timed out” and then the system will cancel the registration. In such case, startover again from Step 1.  Pressing the HANG-UP button or pressing and holding the SPEECH button will cancel the registration.
NOTE
 If the entered name is already used for other phonebook entry or similar to a name usedfor other phonebook entry, that name cannot be registered.

To change the content registered in the vehicle phonebook
NOTE
 The system must have at least one entry.

Editing a telephone number

NOTE
Say “List names,” and the names registered in the phonebook will be read out in order. Refer to “Listening to the list of registered names” on page 5-156.
BK0237700US.book
155 ページ ２０１６年４月１５日　金曜日　午前１１時２８分
