11

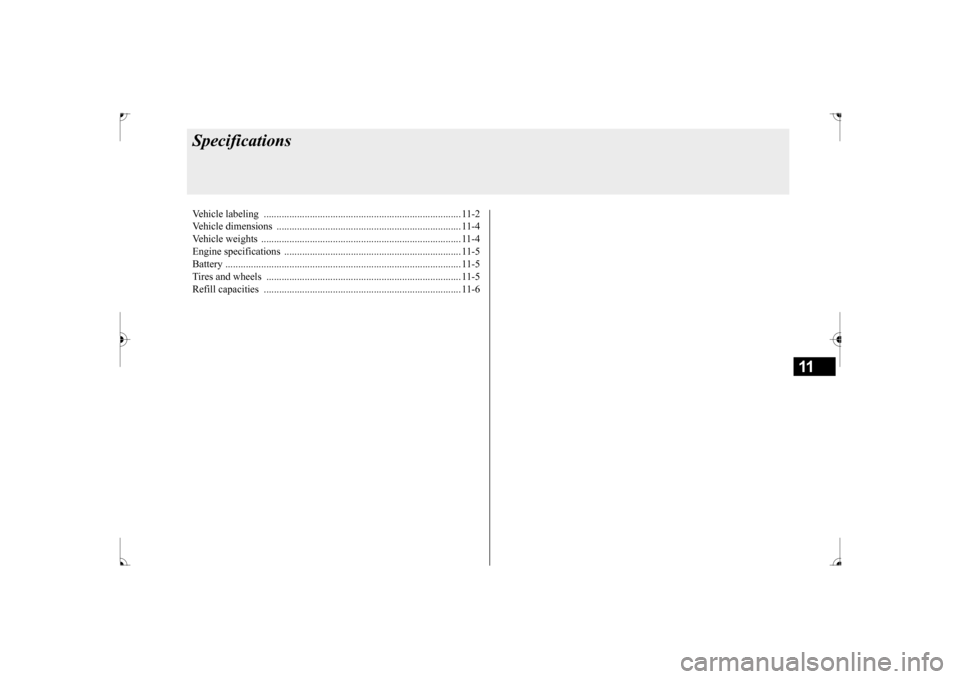

SpecificationsVehicle labeling ....
.................................................
........................ 11-2
Vehicle dimensions
................................................
........................ 11-4
Vehicle weights ...............
............................................................... 11-4
Engine specifications
.............................................
........................ 11-5
Battery .......................................
..................................................... 11-5
Tires and wheels .............
............................................................... 11-5
Refill capacities ..............
............................................................... 11-6
BK0237700US.bo
ok 1 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

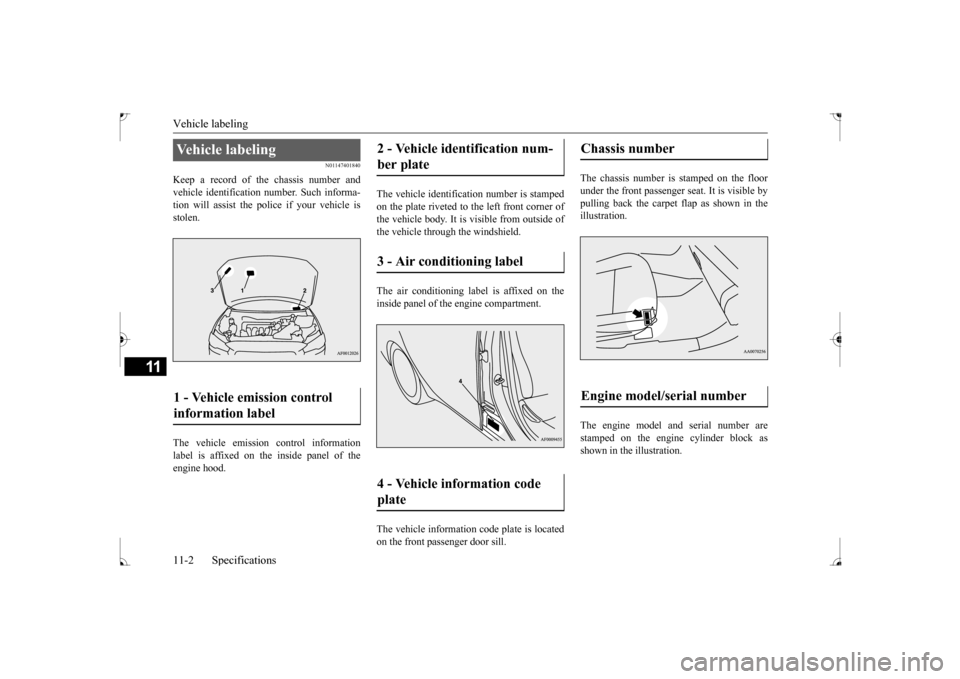

Vehicle labeling 11-2 Specifications
11
N01147401840
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist the police if your vehicle is stolen. The vehicle emission control information label is affixed on the inside panel of theengine hood.
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine compartment. The vehicle information code plate is located on the front passenger door sill.
The chassis number is stamped on the floor under the front passenger
seat. It is visible by
pulling back the carpet flap as shown in the illustration. The engine model and serial number are stamped on the engine cylinder block as shown in the illustration.
Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num-ber plate 3 - Air conditioning label 4 - Vehicle information code plate
Chassis number Engine model/serial number
BK0237700US.bo
ok 2 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Vehicle labeling
Specifications 11-3
11
N01148100528

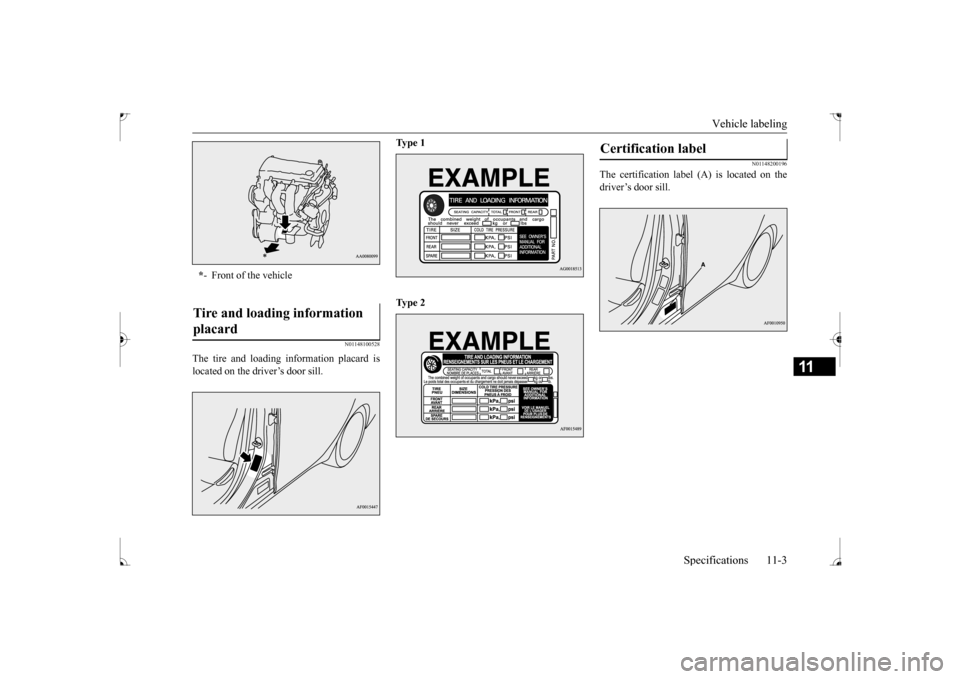

The tire and loading information placard is located on the driver’s door sill.
Ty p e 1 Ty p e 2
N01148200196
The certification label (A) is located on the driver’s door sill.
* - Front of the vehicleTire and loading information placard
Certification label
BK0237700US.bo
ok 3 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Vehicle dimensions 11-4 Specifications
11
N01147501607 N01147601956
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the number of maximum occupantsVehicle dimensions
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 182.1 in (4,625 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) Vehicle weights
Item
2.0 liter
2.4 liter
Front-wheel drive vehicles
All-wheel drive vehicles
Gross vehicle weight rating (GVWR) 3,969 lb
(1,800 kg) 4,079 lb (1,850
kg) 4,190 lb (1,900 kg)
Gross axle weight rating (GAWR)
Front 2,227 lb (1,010 kg) 2,227 lb
(1,010 kg) 2,227 lb (1,010 kg)
Rear 2,007 lb (910 kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
NOTE
Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-10.
BK0237700US.bo
ok 4 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Engine specifications Specifications 11-5
11
N01147701582
N01147800182
Battery is a 12 volt type.
N01147901799
PCD: Pitch Circle Diameter (installation holes)
Engine specifications
Item
2.0 liter
2.4 liter
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DIFR5C11
Spark plug gap .040 to .043 in (1.0 to
1.1 mm) .040 to .043 in (1.0 to 1.1 mm)
Firing order 1-3-4-2Battery
75D23L
Tires and wheels Tire
Size
P205/60R16
91H
P215/45R18
89V
Wheel
Size
16 x 6 1/2J, 16 x 6 1/2JJ
18 x 7J
PC D
4.5 in (114.3 mm)
Off- set
1.81 in (46 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.  These tires satisfy vehicle loading conditions described in this owner’s manual.
BK0237700US.bo
ok 5 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Refill capacities 11-6 Specifications
11
N01148002231

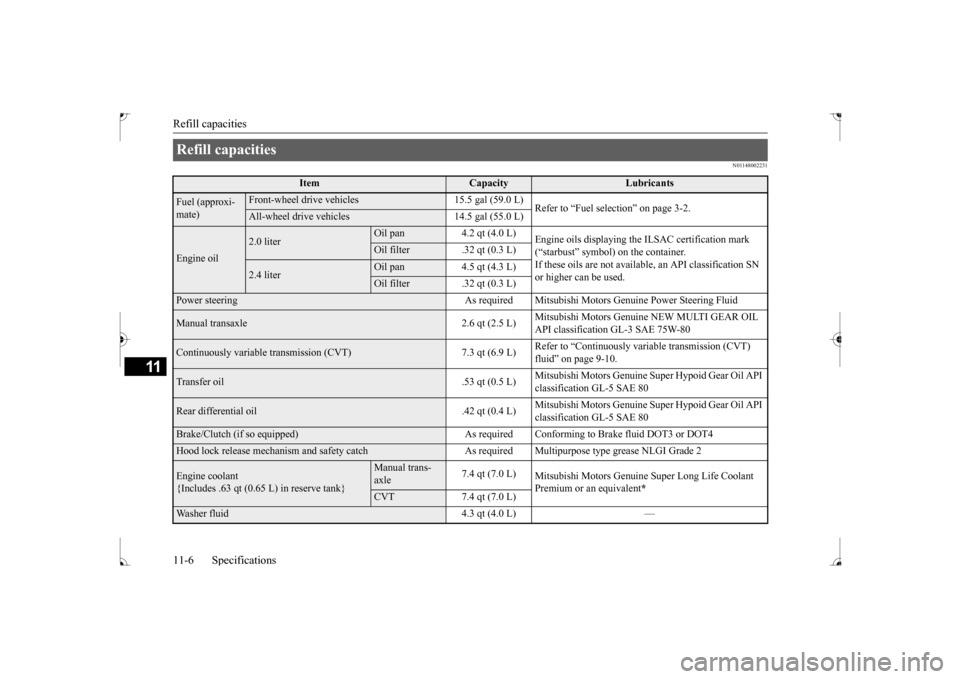

Refill capacities
Item
Capacity
Lubricants
Fuel (approxi- mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starbust” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.3 qt (6.9 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-10.
Transfer oil .53 qt (0.5 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Rear differential oil .42 qt (0.4 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .63 qt (0.65 L) in reserve tank}
Manual trans- axle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
CVT 7.4 qt (7.0 L)
Washer fluid 4.3 qt (4.0 L) — BK0237700US.bo
ok 6 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Refill capacities
Specifications 11-7
11
Refrigerant (air conditioning)
Refer to the “Air conditioning label”
on page 11-2.
HFC-134a
* : similar high quality ethylene glycol base
d non-silicate, non-amine, non-nitrate a
nd non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0237700US.bo
ok 7 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

BK0237700US.bo
ok 8 ページ ２０１６年４月１５日　金曜日　午前１１時２８分
