Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below. If you choose to have your authorized Mit-subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.
N00562201152
You can program new keys to the system ifyou have two valid (already registered) keysand blank (not registered) immobilizer key (specially cut for your vehicle at your Mit- subishi Motors dealer) by doing the follow-ing: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds.2. Turn the key to the “LOCK” position and remove the first key.
3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it to the “ON” position. About 10 secondslater, the immobilizer display will start to blink. 4. When the immobilizer display startsblinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switchand turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer display starts blink-ing. When registration of the ID code is complete, the immobilizer display will come on for 30 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
Your electronic immobilizer operates on a radio frequency subject to Federal Communi-cations Commission (FCC) Rules (For vehi-
NOTE
 You are provided with two keys, but you may register up to eight keys.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.
 It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blankimmobilizer key
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key is turned to the “LOCK” position to the moment when the second key is turned tothe “ON” position • a period of 30 seconds or longer elapses from the moment when the second key is turned to the “LOCK” position to the moment when the blank immobilizer key isturned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys- tem.Also refer to “Keyless entry system: Cus- tomer remote control transmitter program- ming” on page 5-9.
General information
NOTE
BK0237700US.bo
ok 6 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

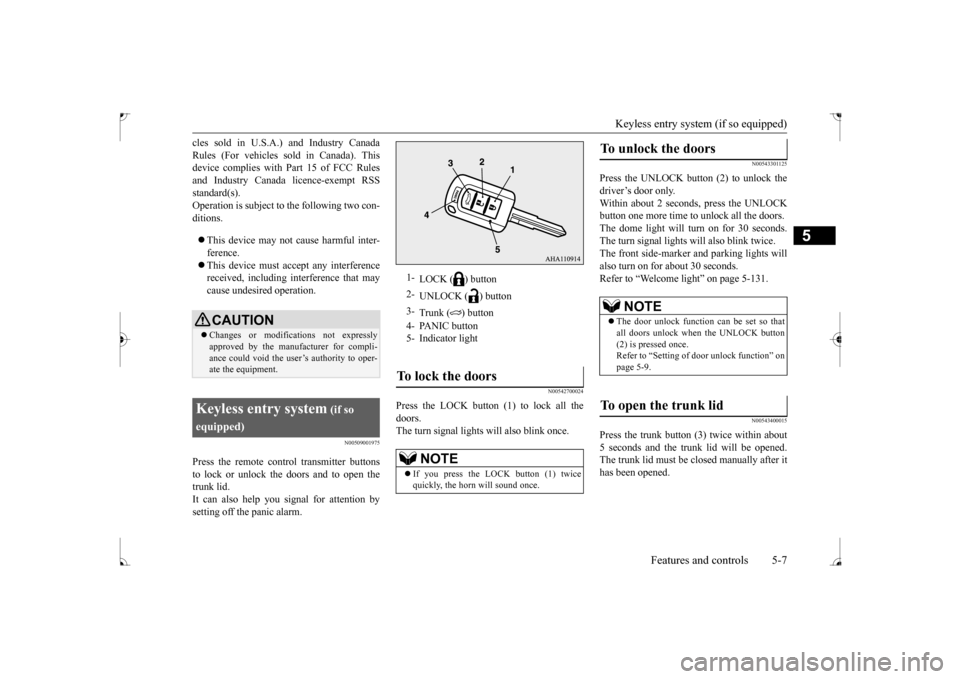

Keyless entry system (if so equipped)
Features and controls 5-7
5
cles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSSstandard(s). Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that maycause undesired operation.
N00509001975
Press the remote control transmitter buttonsto lock or unlock the doors and to open the trunk lid. It can also help you signal for attention bysetting off the panic alarm.
N00542700024
Press the LOCK button (1) to lock all thedoors.The turn signal lights will also blink once.
N00543301125
Press the UNLOCK button (2) to unlock thedriver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to “Welcome light” on page 5-131.
N00543400015
Press the trunk button (3) twice within about 5 seconds and the trunk lid will be opened. The trunk lid must be closed manually after ithas been opened.
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Keyless entry system
(if so
equipped)
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button 5- Indicator lightTo lock the doors

NOTE
 If you press the LOCK button (1) twice quickly, the horn will sound once.
To unlock the doors

NOTE
 The door unlock function can be set so that all doors unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of door unlock function” on page 5-9.
To open the trunk lid

BK0237700US.bo
ok 7 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

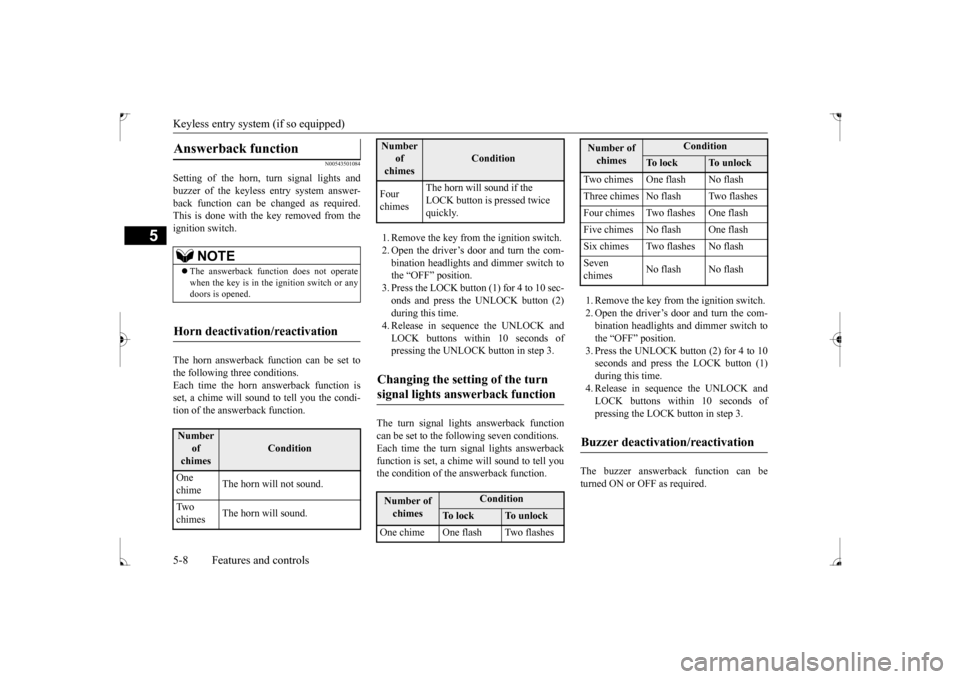

Keyless entry system (if so equipped) 5-8 Features and controls
5
N00543501084
Setting of the horn, turn signal lights and buzzer of the keyless entry system answer-back function can be changed as required. This is done with the key removed from the ignition switch. The horn answerback function can be set to the following three conditions.Each time the horn answerback function is set, a chime will sound to tell you the condi- tion of the answerback function.
1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerback function is set, a chime will sound to tell youthe condition of the answerback function.
1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.
The buzzer answerback function can be turned ON or OFF as required.
Answerback function

NOTE
 The answerback function does not operate when the key is in the ignition switch or anydoors is opened.
Horn deactivation/reactivation

Number
of chimes
Condition
One chime
The horn will not sound.
Tw o chimes
The horn will sound.
Four chimes
The horn will sound if the LOCK button is pressed twice quickly.
Changing the setting of the turn signal lights answerback function

Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashesNumber
of chimes
Condition
Two chimes One flash No flash Three chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Buzzer deactivation/reactivation

Number of chimes
Condition
To l o c k
To u n l o c k
BK0237700US.bo
ok 8 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

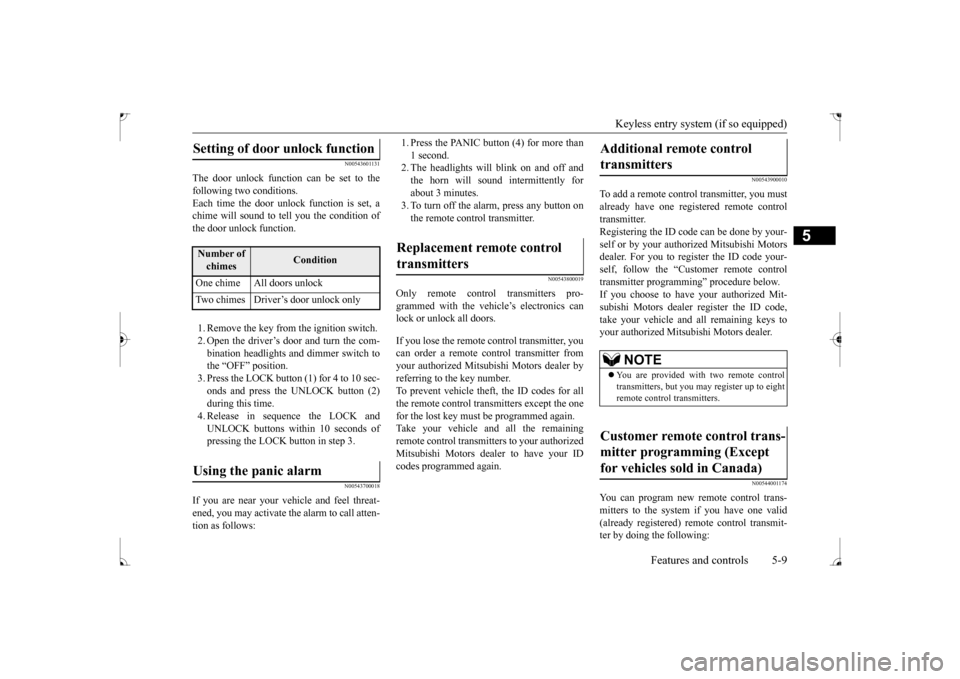

Keyless entry system (if so equipped)
Features and controls 5-9
5
N00543601131
The door unlock function
can be set to the
following two conditions.Each time the door unlock function is set, a chime will sound to te
ll you the condition of
the door unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543700018
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten- tion as follows:
1. Press the PANIC button (4) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
N00543800019
Only remote control transmitters pro-grammed with the vehicle’s electronics canlock or unlock all doors. If you lose the remote control transmitter, you can order a remote control transmitter from your authorized Mitsubishi Motors dealer byreferring to the key number. To prevent vehicle theft, the ID codes for all the remote control transmitters except the onefor the lost key must be programmed again. Take your vehicle and all the remaining remote control transmitters to your authorizedMitsubishi Motors dealer to have your ID codes programmed again.
N00543900010
To add a remote control transmitter, you must already have one registered remote control transmitter. Registering the ID code can be done by your-self or by your authorized Mitsubishi Motors dealer. For you to register the ID code your- self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys toyour authorized Mitsubishi Motors dealer.
N00544001174
You can program new remote control trans-mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following:
Setting of door unlock function

Number of chimes
Condition
One chime All doors unlock Two chimes Driver’s door unlock onlyUsing the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
 You are provided with two remote control transmitters, but you may register up to eight remote control transmitters.
Customer remote control trans- mitter programming (Except for vehicles sold in Canada)

BK0237700US.bo
ok 9 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Keyless entry system (if so equipped) 5-10 Features and controls
5
1. Have available all (current and new) remote control transmitters you wish to register. 2. With a valid (already registered) remotecontrol transmitter, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.At this time, ID codes for all remote con-trol transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door is locked andunlocked) informs you that the registra- tion mode has been activated. 4. Within 60 seconds after step 3, completethe following ID code registration opera- tion using the next remote control trans- mitter you wish to register within4 seconds. i. Press both the LOCK and UNLOCK buttons for 2 seconds.ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code registration of the transmitter is completed.
5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4.
6. If no ID code of a remote control trans- mitter is registered within 60 seconds after step 4, the registration mode is can- celed and the normal mode returns.
N0054610
1111
Your keyless entry system operates on a radio frequency subject to Federal Communica-tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s).Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.
NOTE
 For verification purposes, try to lock and unlock the doors after the registration iscompleted.  The indicator light (5) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power sta-tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors are locked and no doors are opened within about 30 seconds, the doors will auto- matically re-lock.  If the following conditions are observed after pressing the buttons on the remote controltransmitter, the battery in the remote control transmitter may need to be replaced. • The doors cannot be locked or unlocked. • The trunk lid cannot be opened.• The panic alarm cannot be operated.• The indicator light (5) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho- rized Mitsubishi Motors dealer. A maximum of eight remote control transmitters can beprogrammed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys- tem.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-6.
General information

NOTE
BK0237700US.bo
ok 10 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

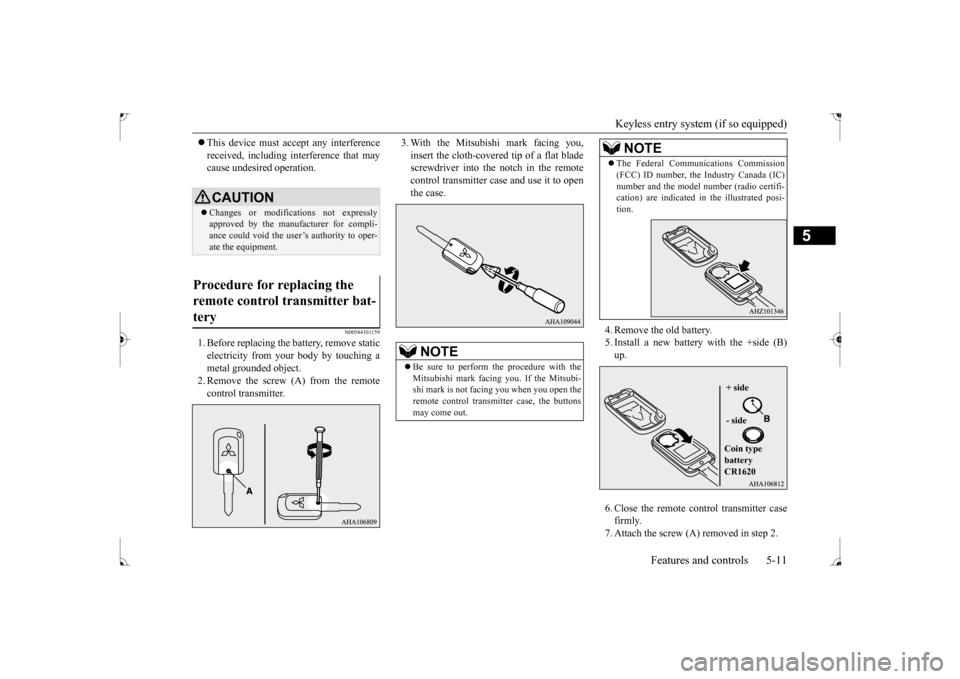

Keyless entry system (if so equipped)
Features and controls 5-11
5
 This device must accept any interference received, including interference that may cause undesired operation.
N00544101159
1. Before replacing the battery, remove static electricity from your body by touching ametal grounded object. 2. Remove the screw (A) from the remote control transmitter.
3. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to openthe case.
4. Remove the old battery. 5. Install a new battery with the +side (B) up. 6. Close the remote control transmitter case firmly.7. Attach the screw (A) removed in step 2.
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat- tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open the remote control transmitter case, the buttons may come out.
 The Federal Communications Commission (FCC) ID number, the Industry Canada (IC) number and the model number (radio certifi- cation) are indicated in the illustrated posi- tion.NOTE
+ side - side Coin type battery CR1620
BK0237700US.bo
ok 11 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-12 Features and controls
5
8. Check the keyless entry system to see that it works.
N00503100052
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors to belocked and unlocked, the trunk lid to be opened, and the engine to be started simply by carrying it.The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Keyless entry
system” on page 5-30.
NOTE
 You may purchase a replacement battery at an electric appliance store.  Your authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc.out. Also, do not touch the internal compo- nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors, opening the trunk lid, and starting the engine. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lock the vehi- cle.
WA R N I N G Individuals who use implantable pace- makers or implantable cardioverter-defi-brillators should keep away from the external and internal
transmitters. The
electromagnetic waves used in theF.A.S.T.-key may affect the operation of implantable pacemakers and implantable cardioverter-defibrillators.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using other electrical medical apparatuses besides implantable pace-makers and implantable cardioverter- defibrillators should check with the manu- facturer of the apparatus to confirm the effect of the electromagnetic waves used by the F.A.S.T.-key. The electromagneticwaves may affect the operations of the electro-medical apparatus.
BK0237700US.bo
ok 12 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

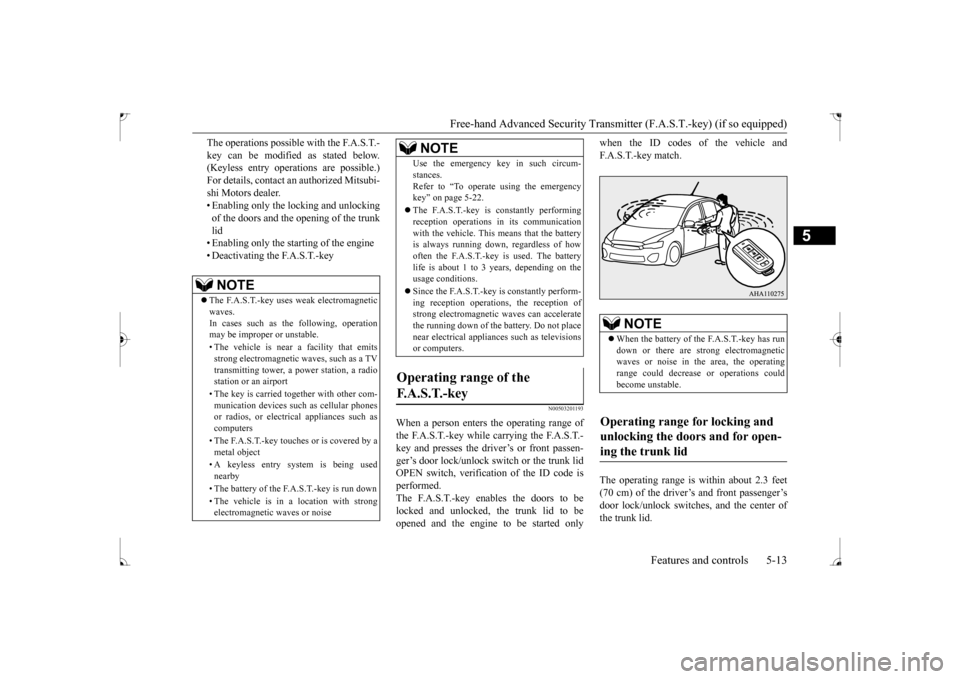

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorized Mitsubi-shi Motors dealer. • Enabling only the locking and unlocking of the doors and the opening of the trunklid • Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
N00503201193
When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.- key and presses the driver’s or front passen-ger’s door lock/unlock switch or the trunk lid OPEN switch, verification of the ID code is performed.The F.A.S.T.-key enables the doors to be locked and unlocked, the trunk lid to be opened and the engine to be started only
when the ID codes of the vehicle and F.A.S.T.-key match. The operating range is within about 2.3 feet (70 cm) of the driver’s and front passenger’s door lock/unlock switches, and the center of the trunk lid.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves.In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic waves, such as a TV transmitting tower, a power station, a radiostation or an airport • The key is carried together with other com- munication devices such as cellular phones or radios, or electrical appliances such as computers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down• The vehicle is in a location with strong electromagnetic waves or noise
Use the emergency key in such circum- stances. Refer to “To operate using the emergency key” on page 5-22.  The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 3 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not placenear electrical appliances such as televisions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
NOTE
 When the battery of the F.A.S.T.-key has run down or there are strong electromagnetic waves or noise in the area, the operating range could decrease or operations couldbecome unstable.
Operating range for locking and unlocking the doors and for open- ing the trunk lid

BK0237700US.bo
ok 13 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

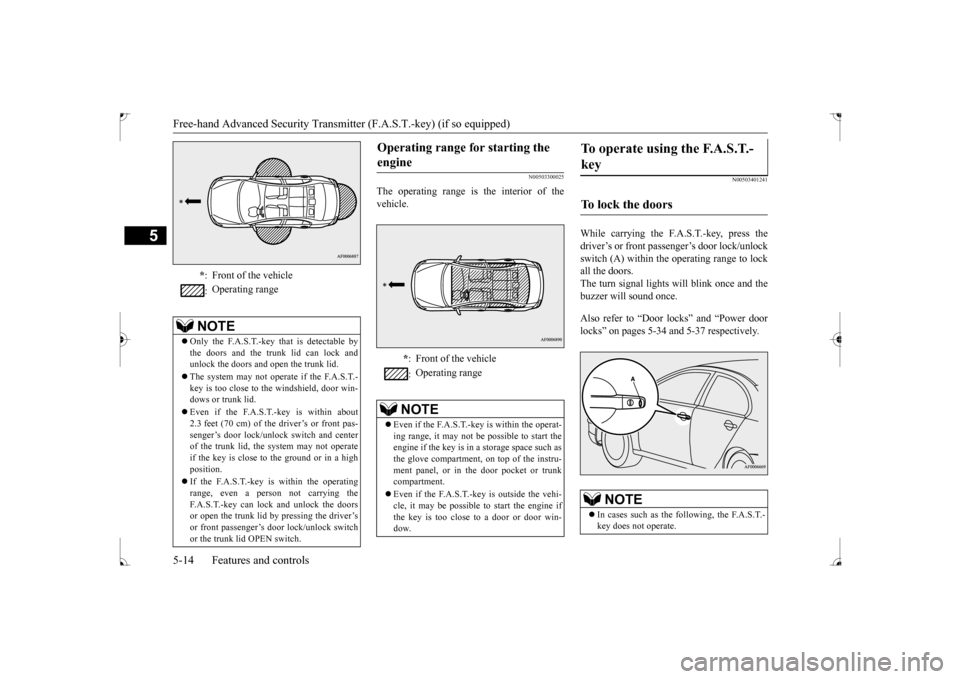

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-14 Features and controls
5
N00503300025
The operating range is the interior of the vehicle.
N00503401241
While carrying the F.A.S.T.-key, press the driver’s or front passenger’s door lock/unlock switch (A) within the operating range to lock all the doors.The turn signal lights will blink once and thebuzzer will sound once. Also refer to “Door locks” and “Power door locks” on pages 5-34 and 5-37 respectively.
* : Front of the vehicle : Operating range
NOTE
 Only the F.A.S.T.-key that is detectable by the doors and the trunk lid can lock and unlock the doors and open the trunk lid.  The system may not operate if the F.A.S.T.- key is too close to the windshield, door win- dows or trunk lid.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the driver’s or front pas-senger’s door lock/unlock switch and center of the trunk lid, the system may not operate if the key is close to the ground or in a highposition.  If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doors or open the trunk lid by pressing the driver’sor front passenger’s door lock/unlock switch or the trunk lid OPEN switch.
Operating range for starting the engine
* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start the engine if the key is in a storage space such asthe glove compartment, on top of the instru- ment panel, or in the door pocket or trunk compartment.  Even if the F.A.S.T.-key is outside the vehi- cle, it may be possible to start the engine ifthe key is too close to a door or door win- dow.
To operate using the F.A.S.T.- key

To lock the doors

NOTE
 In cases such as the following, the F.A.S.T.- key does not operate.
BK0237700US.bo
ok 14 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

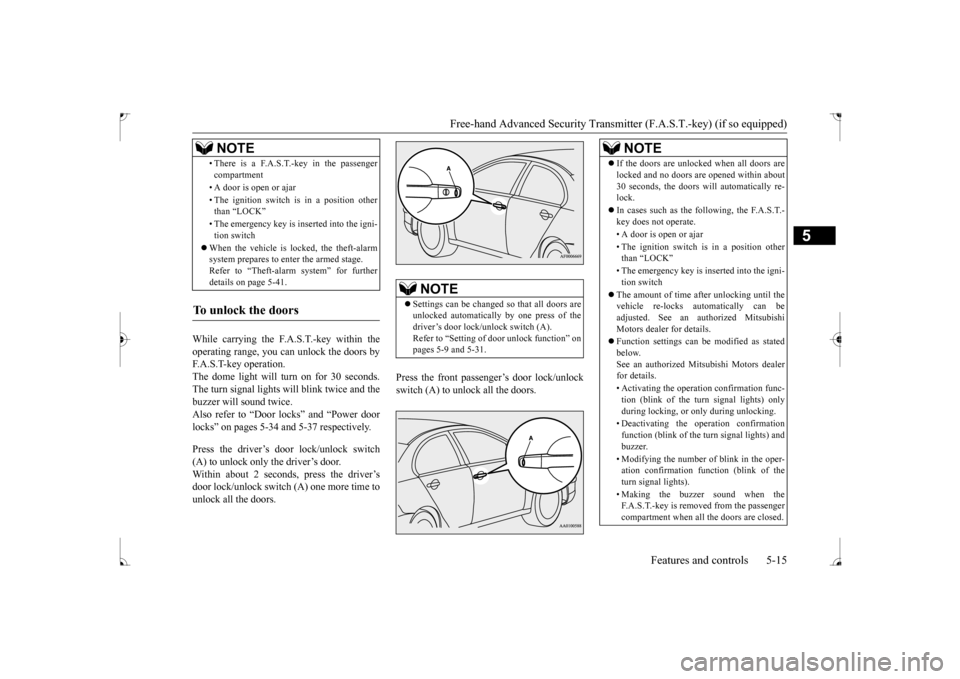

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors by F.A.S.T-key operation.The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will sound twice.Also refer to “Door locks” and “Power door locks” on pages 5-34 and 5-37 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch (A) one more time to unlock all the doors.
Press the front passenger’s door lock/unlock switch (A) to unlock all the doors.
• There is a F.A.S.T.-key in the passenger compartment • A door is open or ajar • The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
 When the vehicle is locked, the theft-alarm system prepares to enter the armed stage. Refer to “Theft-alarm system” for furtherdetails on page 5-41.
To unlock the doors

NOTE
NOTE
 Settings can be changed so that all doors are unlocked automatically by one press of the driver’s door lock/unlock switch (A). Refer to “Setting of door unlock function” onpages 5-9 and 5-31.
NOTE
 If the doors are unlocked when all doors are locked and no doors are opened within about 30 seconds, the doors will automatically re- lock.  In cases such as the following, the F.A.S.T.- key does not operate. • A door is open or ajar • The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
 The amount of time after unlocking until the vehicle re-locks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details.  Function settings can be modified as stated below.See an authorized Mitsubishi Motors dealer for details. • Activating the operation confirmation func- tion (blink of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blink of the turn signal lights) andbuzzer. • Modifying the number of blink in the oper- ation confirmation function (blink of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passengercompartment when all the doors are closed.
