Features and control MITSUBISHI LANCER EVOLUTION 2010 10.G Owners Manual

Features and controls
3-189
3

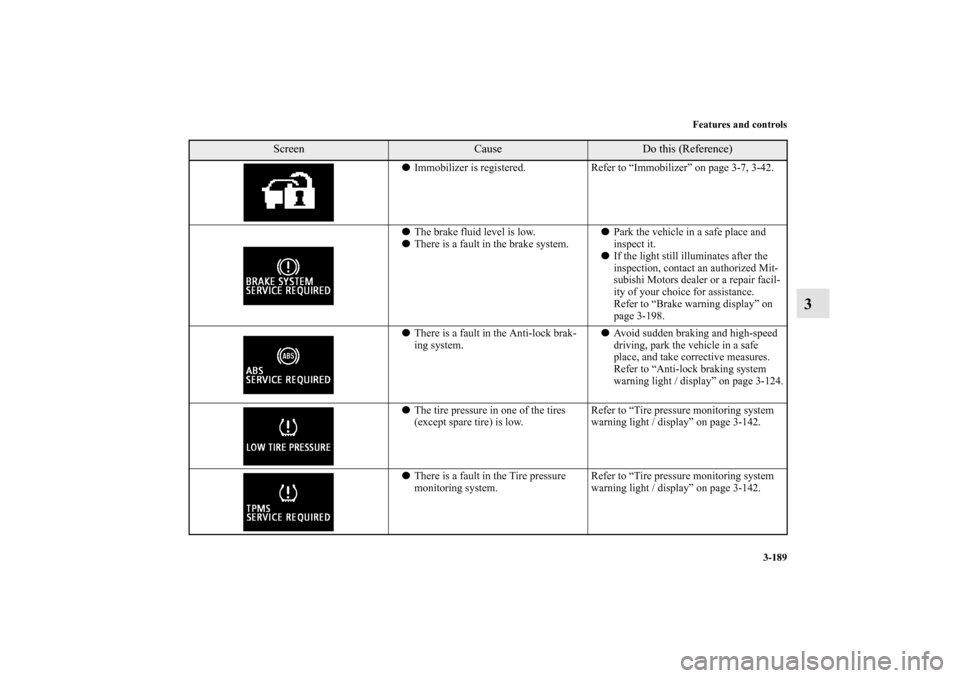

Immobilizer is registered. Refer to “Immobilizer” on page 3-7, 3-42.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-198.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light / display” on page 3-124.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire pressure monitoring system
warning light / display” on page 3-142.

There is a fault in the Tire pressure
monitoring system.Refer to “Tire pressure monitoring system
warning light / display” on page 3-142.
Screen
Cause
Do this (Reference)
BK0105501US.book 189 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-190 Features and controls
3

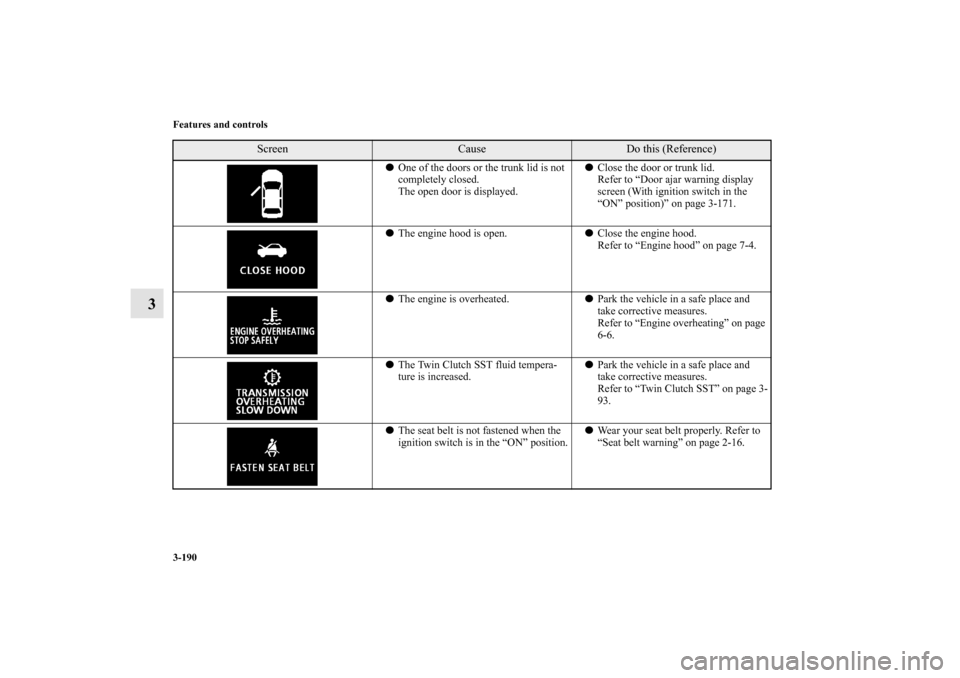

One of the doors or the trunk lid is not
completely closed.
The open door is displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-171.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-6.

The Twin Clutch SST fluid tempera-
ture is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Twin Clutch SST” on page 3-
93.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly. Refer to
“Seat belt warning” on page 2-16.
Screen
Cause
Do this (Reference)
BK0105501US.book 190 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-191
3

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
198.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning” on
page 3-200.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
display” on page 3-197.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-42.
Screen
Cause
Do this (Reference)
BK0105501US.book 191 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-192 Features and controls
3

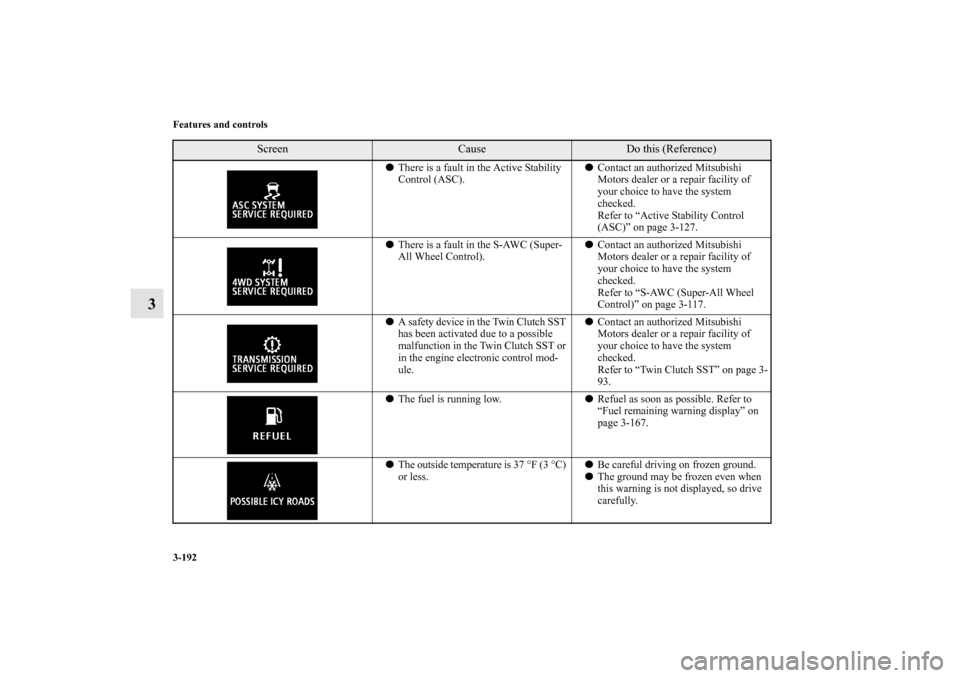

There is a fault in the Active Stability
Control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active Stability Control
(ASC)” on page 3-127.

There is a fault in the S-AWC (Super-
All Wheel Control).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “S-AWC (Super-All Wheel
Control)” on page 3-117.

A safety device in the Twin Clutch SST
has been activated due to a possible
malfunction in the Twin Clutch SST or
in the engine electronic control mod-
ule.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Twin Clutch SST” on page 3-
93.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining warning display” on
page 3-167.

The outside temperature is 37°F (3°C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen
Cause
Do this (Reference)
BK0105501US.book 192 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-193
3
Other interrupt displays (With ignition switch in the “ON” position)
N00558200141
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Alerts the driver of the time for periodic inspection.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen
System operation status
Reference

When the Active Stability Control
(ASC) is operating.Refer to “Active Stability Control (ASC)”
on page 3-127.
Screen
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-168.
Screen
Cause
Do this (Reference)
BK0105501US.book 193 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-194 Features and controls
3

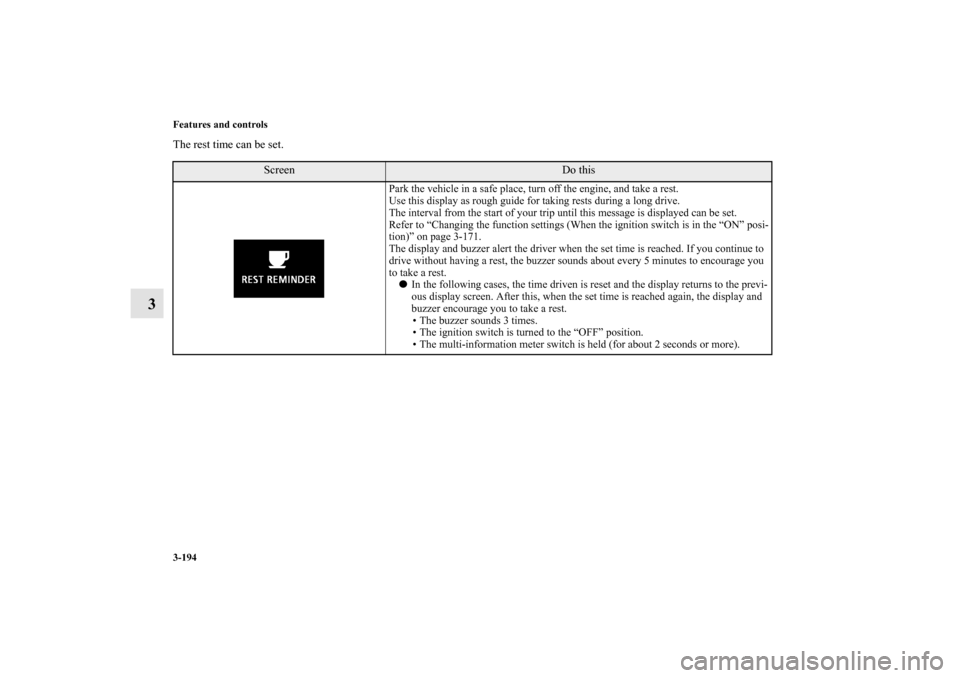

The rest time can be set.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (When the ignition switch is in the “ON” posi-
tion)” on page 3-171.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.

In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
 The buzzer sounds 3 times.
 The ignition switch is turned to the “OFF” position.
 The multi-information meter switch is held (for about 2 seconds or more).
BK0105501US.book 194 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-195

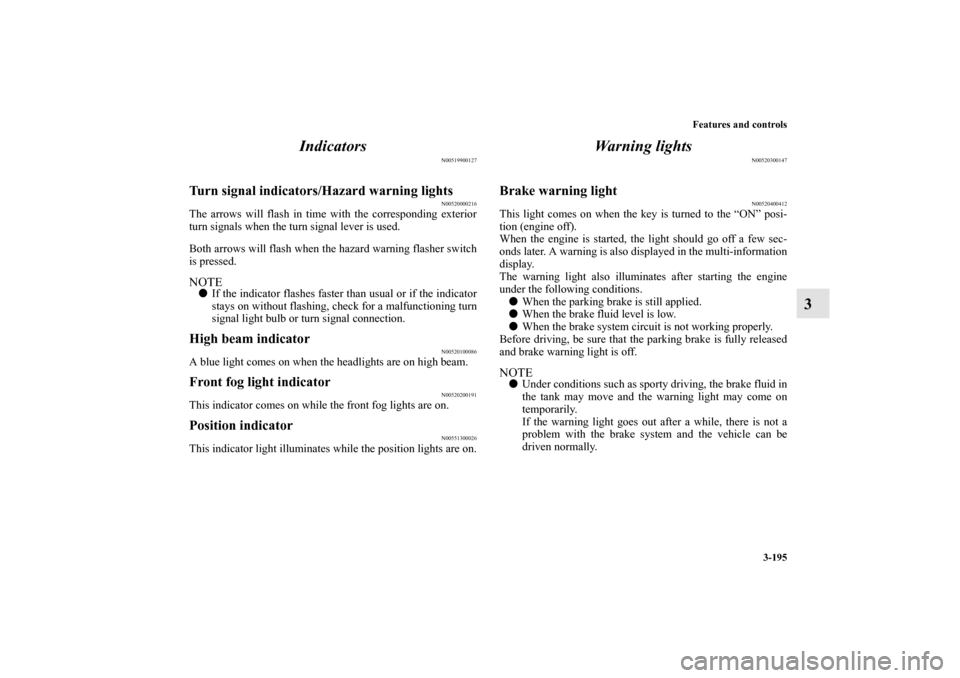

3 Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE

If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.
High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200191
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.
Warning lights
N00520300147
Brake warning light
N00520400412
This light comes on when the key is turned to the “ON” posi-
tion (engine off).
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.


When the brake fluid level is low.


When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
NOTE

Under conditions such as sporty driving, the brake fluid in
the tank may move and the warning light may come on
temporarily.
If the warning light goes out after a while, there is not a
problem with the brake system and the vehicle can be
driven normally.
BK0105501US.book 195 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-196 Features and controls
3

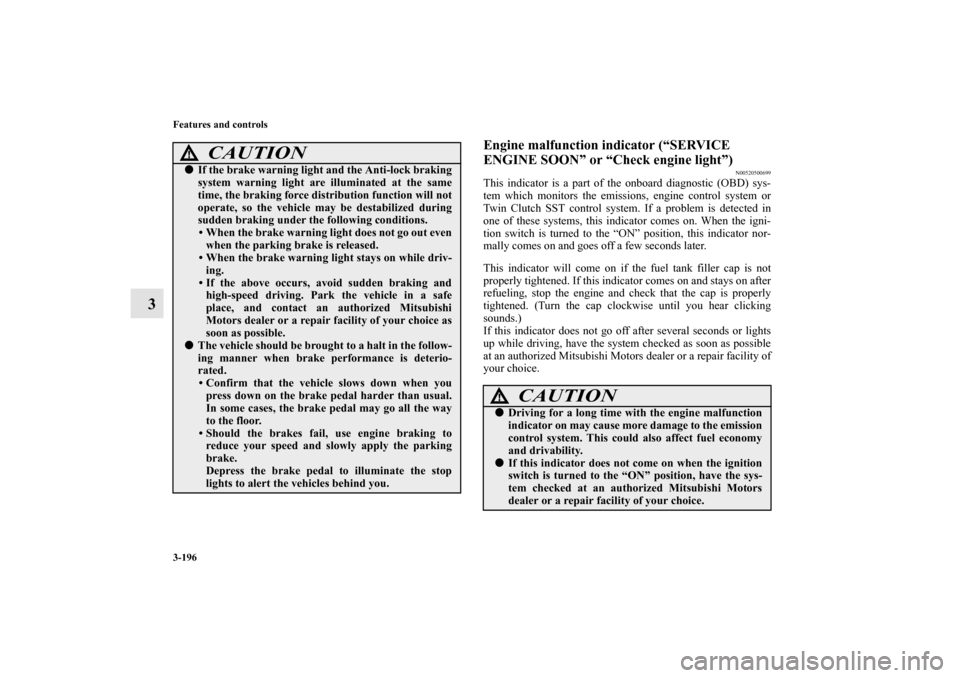

Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500699
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
Twin Clutch SST control system. If a problem is detected in
one of these systems, this indicator comes on. When the igni-
tion switch is turned to the “ON” position, this indicator nor-
mally comes on and goes off a few seconds later.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
CAUTION
!

If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, so the vehicle may be destabilized during
sudden braking under the following conditions. When the brake warning light does not go out even
when the parking brake is released.
 When the brake warning light stays on while driv-
ing.
 If the above occurs, avoid sudden braking and
high-speed driving. Park the vehicle in a safe
place, and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.


The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated. Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
 Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights to alert the vehicles behind you.
CAUTION
!

Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.


If this indicator does not come on when the ignition
switch is turned to the “ON” position, have the sys-
tem checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
BK0105501US.book 196 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-197
3
NOTE

Do not disconnect the battery cable when the engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

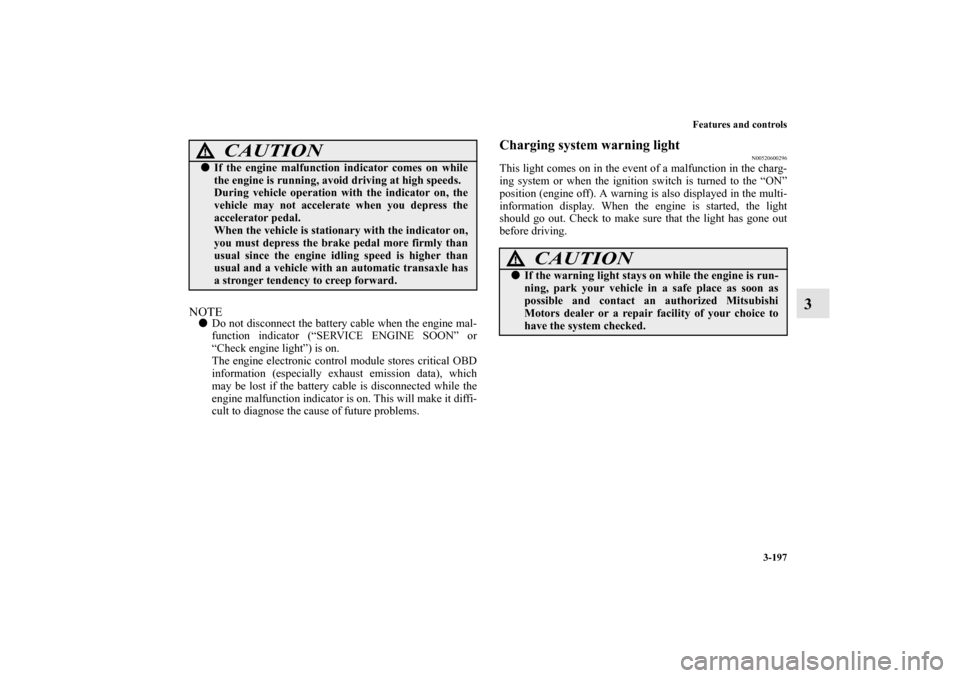

Charging system warning light
N00520600296
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off). A warning is also displayed in the multi-
information display. When the engine is started, the light
should go out. Check to make sure that the light has gone out
before driving.


If the engine malfunction indicator comes on while
the engine is running, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and a vehicle with an automatic transaxle has
a stronger tendency to creep forward.CAUTION
!
CAUTION
!

If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
BK0105501US.book 197 ページ ２００９年８月１０日　月曜日　午前１０時３２分

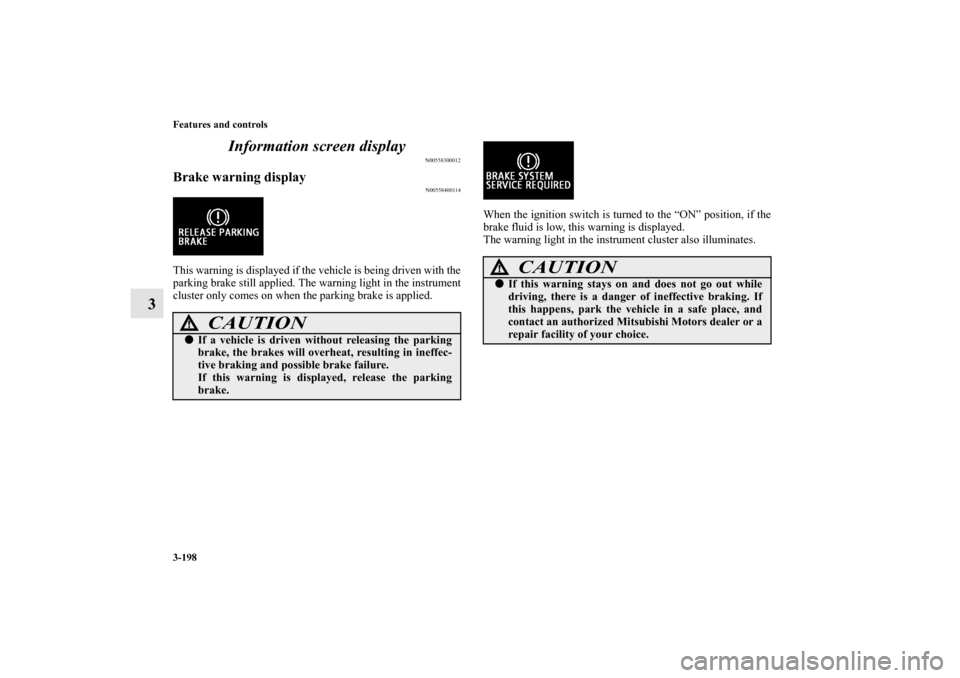

3-198 Features and controls
3Information screen display
N00558300012
Brake warning display
N00558400114
This warning is displayed if the vehicle is being driven with the
parking brake still applied. The warning light in the instrument
cluster only comes on when the parking brake is applied.When the ignition switch is turned to the “ON” position, if the
brake fluid is low, this warning is displayed.
The warning light in the instrument cluster also illuminates.
CAUTION
!

If a vehicle is driven without releasing the parking
brake, the brakes will overheat, resulting in ineffec-
tive braking and possible brake failure.
If this warning is displayed, release the parking
brake.
CAUTION
!

If this warning stays on and does not go out while
driving, there is a danger of ineffective braking. If
this happens, park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
BK0105501US.book 198 ページ ２００９年８月１０日　月曜日　午前１０時３２分
