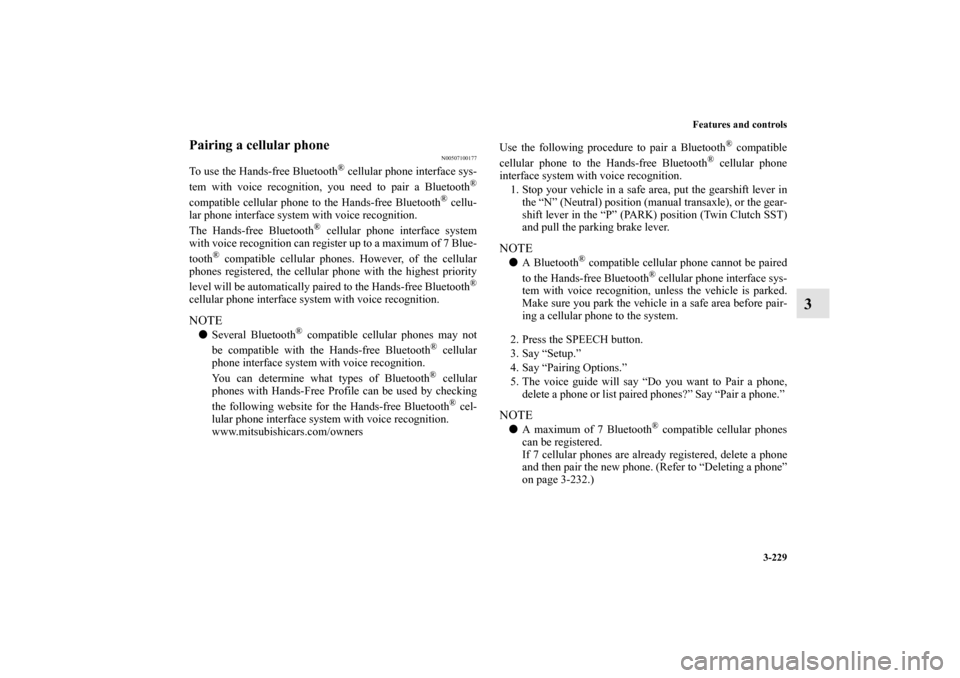

Features and control MITSUBISHI LANCER EVOLUTION 2010 10.G Owners Manual

Features and controls
3-229
3
Pairing a cellular phone
N00507100177
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you need to pair a Bluetooth
®
compatible cellular phone to the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can register up to a maximum of 7 Blue-
tooth
® compatible cellular phones. However, of the cellular
phones registered, the cellular phone with the highest priority
level will be automatically paired to the Hands-free Bluetooth
®
cellular phone interface system with voice recognition.NOTE

Several Bluetooth
® compatible cellular phones may not
be compatible with the Hands-free Bluetooth
® cellular
phone interface system with voice recognition.
You can determine what types of Bluetooth® cellular
phones with Hands-Free Profile can be used by checking
the following website for the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
www.mitsubishicars.com/ownersUse the following procedure to pair a Bluetooth
® compatible
cellular phone to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the gear-
shift lever in the “P” (PARK) position (Twin Clutch SST)
and pull the parking brake lever.
NOTE

A Bluetooth
® compatible cellular phone cannot be paired
to the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, unless the vehicle is parked.
Make sure you park the vehicle in a safe area before pair-
ing a cellular phone to the system.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Pair a phone.”
NOTE

A maximum of 7 Bluetooth
® compatible cellular phones
can be registered.
If 7 cellular phones are already registered, delete a phone
and then pair the new phone. (Refer to “Deleting a phone”
on page 3-232.)
BK0105501US.book 229 ページ ２００９年８月１０日　月曜日　午前１０時３２分

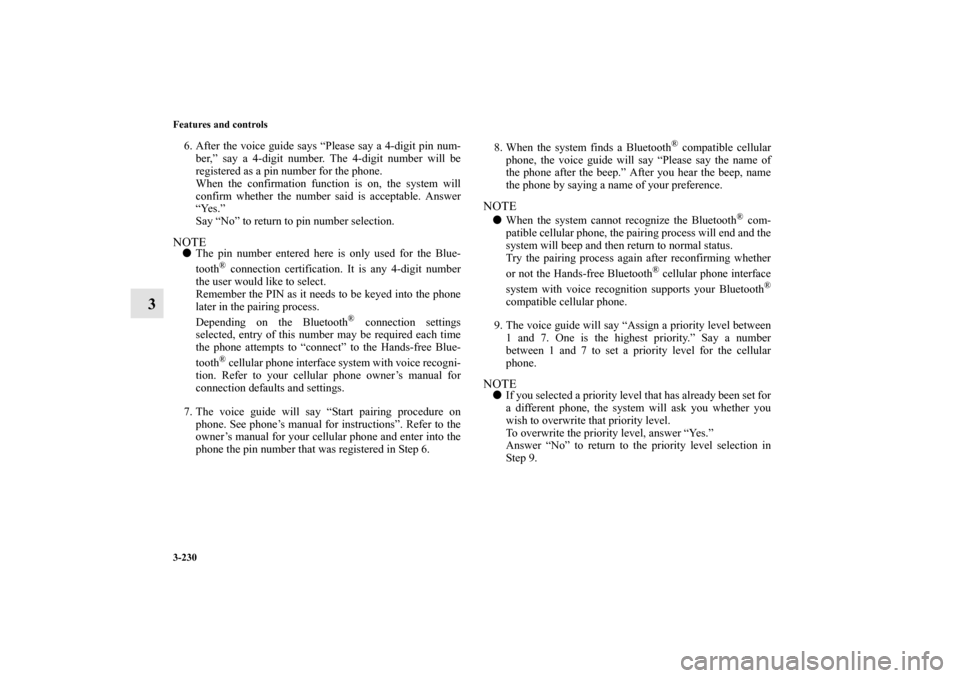

3-230 Features and controls
3
6. After the voice guide says “Please say a 4-digit pin num-
ber,” say a 4-digit number. The 4-digit number will be
registered as a pin number for the phone.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Say “No” to return to pin number selection.NOTE

The pin number entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit number
the user would like to select.
Remember the PIN as it needs to be keyed into the phone
later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this number may be required each time
the phone attempts to “connect” to the Hands-free Blue-
tooth
® cellular phone interface system with voice recogni-
tion. Refer to your cellular phone owner’s manual for
connection defaults and settings.
7. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions”. Refer to the
owner’s manual for your cellular phone and enter into the
phone the pin number that was registered in Step 6.8. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
NOTE

When the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Hands-free Bluetooth
® cellular phone interface
system with voice recognition supports your Bluetooth
®
compatible cellular phone.
9. The voice guide will say “Assign a priority level between
1 and 7. One is the highest priority.” Say a number
between 1 and 7 to set a priority level for the cellular
phone.
NOTE

If you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to overwrite that priority level.
To overwrite the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
BK0105501US.book 230 ページ ２００９年８月１０日　月曜日　午前１０時３２分

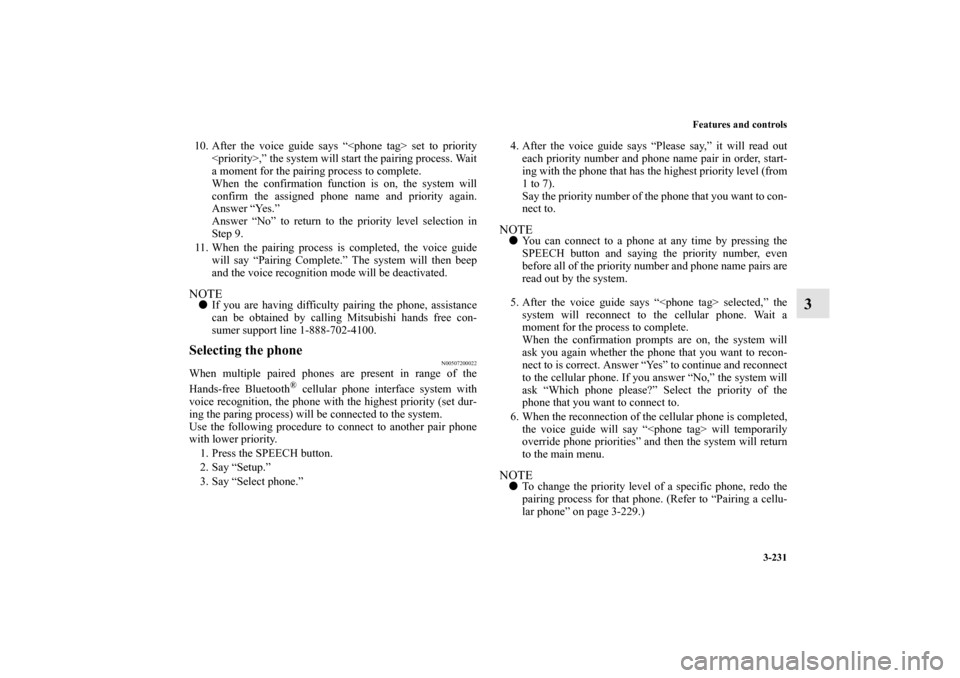

Features and controls
3-231
3
10. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
11. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be deactivated.NOTE

If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.
Selecting the phone
N00507200022
When multiple paired phones are present in range of the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition, the phone with the highest priority (set dur-
ing the paring process) will be connected to the system.
Use the following procedure to connect to another pair phone
with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE

You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.
NOTE

To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-229.)
BK0105501US.book 231 ページ ２００９年８月１０日　月曜日　午前１０時３２分

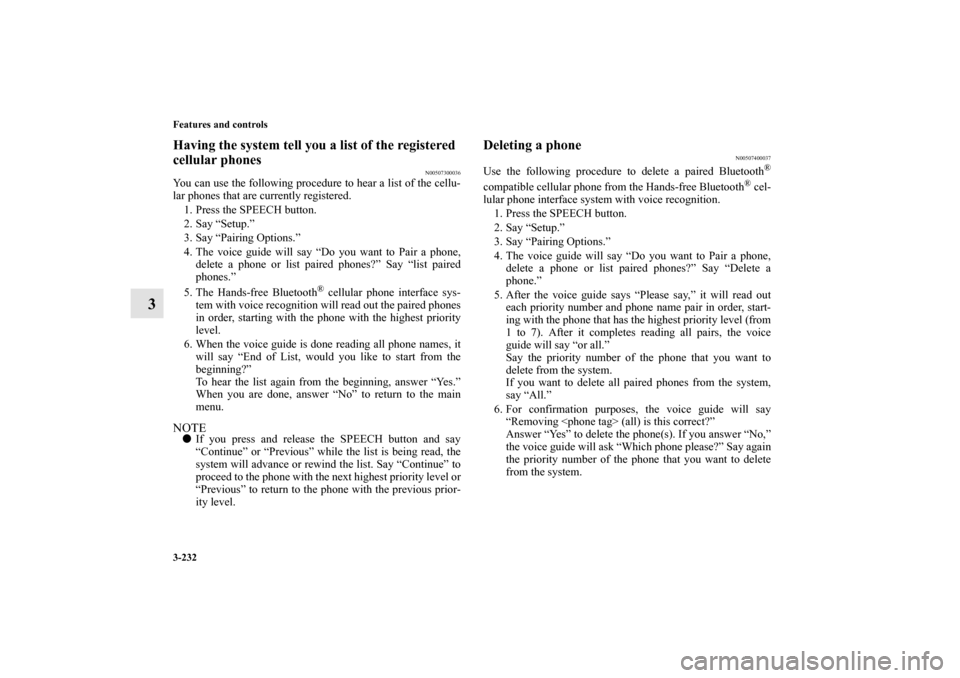

3-232 Features and controls
3
Having the system tell you a list of the registered
cellular phones
N00507300036
You can use the following procedure to hear a list of the cellu-
lar phones that are currently registered.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “list paired
phones.”
5. The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will read out the paired phones
in order, starting with the phone with the highest priority
level.
6. When the voice guide is done reading all phone names, it
will say “End of List, would you like to start from the
beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE

If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the phone with the next highest priority level or
“Previous” to return to the phone with the previous prior-
ity level.
Deleting a phone
N00507400037
Use the following procedure to delete a paired Bluetooth
®
compatible cellular phone from the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Delete a
phone.”
5. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7). After it completes reading all pairs, the voice
guide will say “or all.”
Say the priority number of the phone that you want to
delete from the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say
“Removing (all) is this correct?”
Answer “Yes” to delete the phone(s). If you answer “No,”
the voice guide will ask “Which phone please?” Say again
the priority number of the phone that you want to delete
from the system.
BK0105501US.book 232 ページ ２００９年８月１０日　月曜日　午前１０時３２分

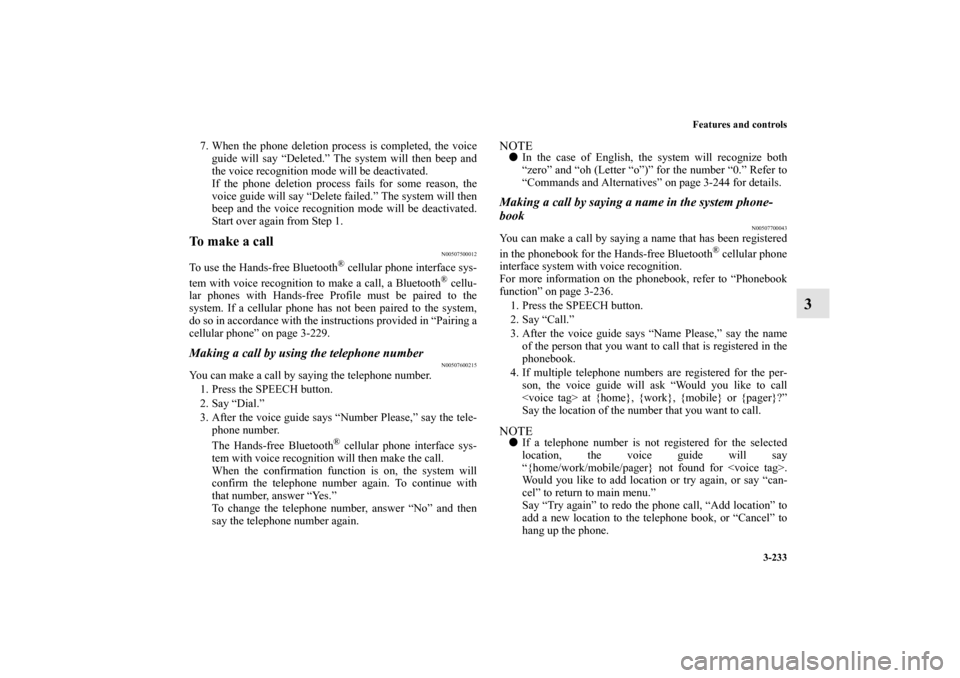

Features and controls
3-233
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be deactivated.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be deactivated.
Start over again from Step 1. To make a call
N00507500012
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the
system. If a cellular phone has not been paired to the system,
do so in accordance with the instructions provided in “Pairing a
cellular phone” on page 3-229.
Making a call by using the telephone number
N00507600215
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTE

In the case of English, the system will recognize both
“zero” and “oh (Letter “o”)” for the number “0.” Refer to
“Commands and Alternatives” on page 3-244 for details.
Making a call by saying a name in the system phone-
book
N00507700043
You can make a call by saying a name that has been registered
in the phonebook for the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
For more information on the phonebook, refer to “Phonebook
function” on page 3-236.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
at {home}, {work}, {mobile} or {pager}?”
Say the location of the number that you want to call.
NOTE

If a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for .
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0105501US.book 233 ページ ２００９年８月１０日　月曜日　午前１０時３２分

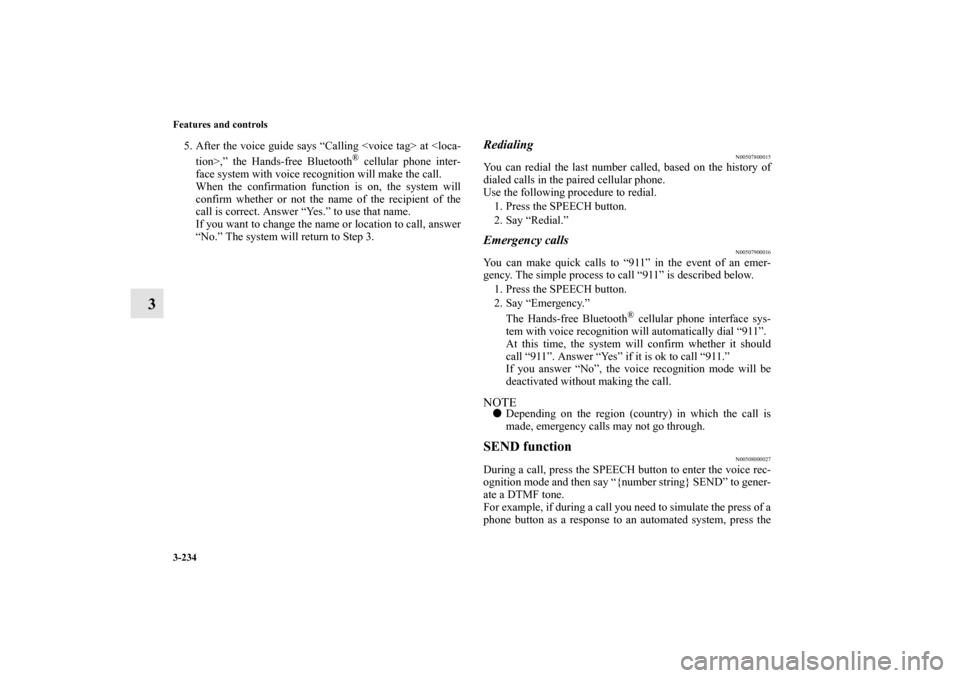

3-234 Features and controls
3
5. After the voice guide says “Calling at tion>,” the Hands-free Bluetooth
® cellular phone inter-
face system with voice recognition will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes.” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800015
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”Emergency calls
N00507900016
You can make quick calls to “911” in the event of an emer-
gency. The simple process to call “911” is described below.
1. Press the SPEECH button.
2. Say “Emergency.”
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will automatically dial “911”.
At this time, the system will confirm whether it should
call “911”. Answer “Yes” if it is ok to call “911.”
If you answer “No”, the voice recognition mode will be
deactivated without making the call.
NOTE

Depending on the region (country) in which the call is
made, emergency calls may not go through.
SEND function
N00508000027
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
phone button as a response to an automated system, press the
BK0105501US.book 234 ページ ２００９年８月１０日　月曜日　午前１０時３２分

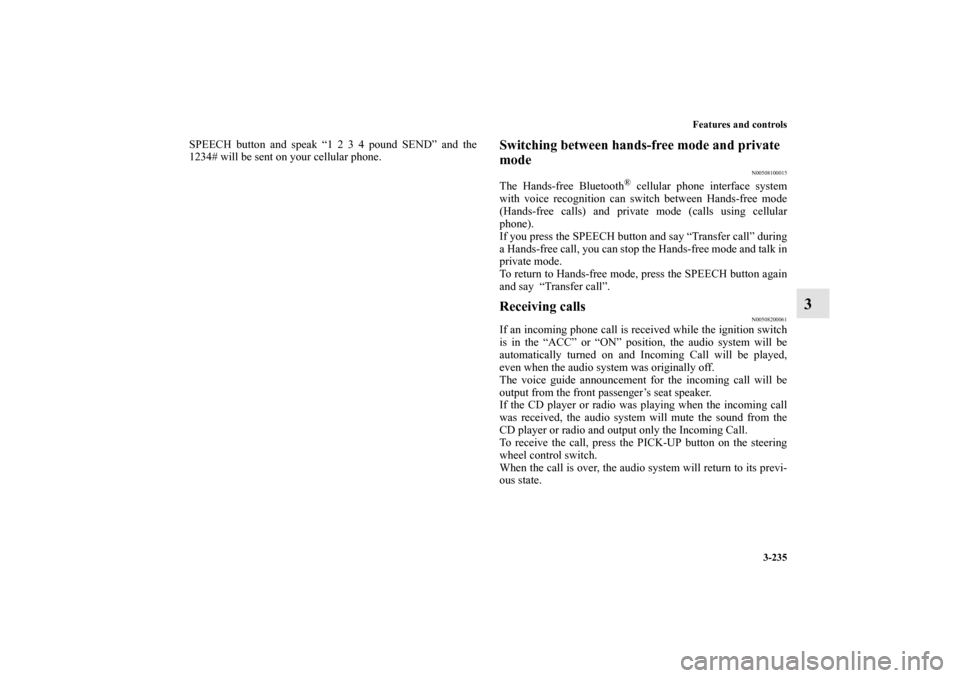

Features and controls
3-235
3
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.
Switching between hands-free mode and private
mode
N00508100015
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can switch between Hands-free mode
(Hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a Hands-free call, you can stop the Hands-free mode and talk in
private mode.
To return to Hands-free mode, press the SPEECH button again
and say “Transfer call”.
Receiving calls
N00508200061
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and Incoming Call will be played,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the Incoming Call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
BK0105501US.book 235 ページ ２００９年８月１０日　月曜日　午前１０時３２分

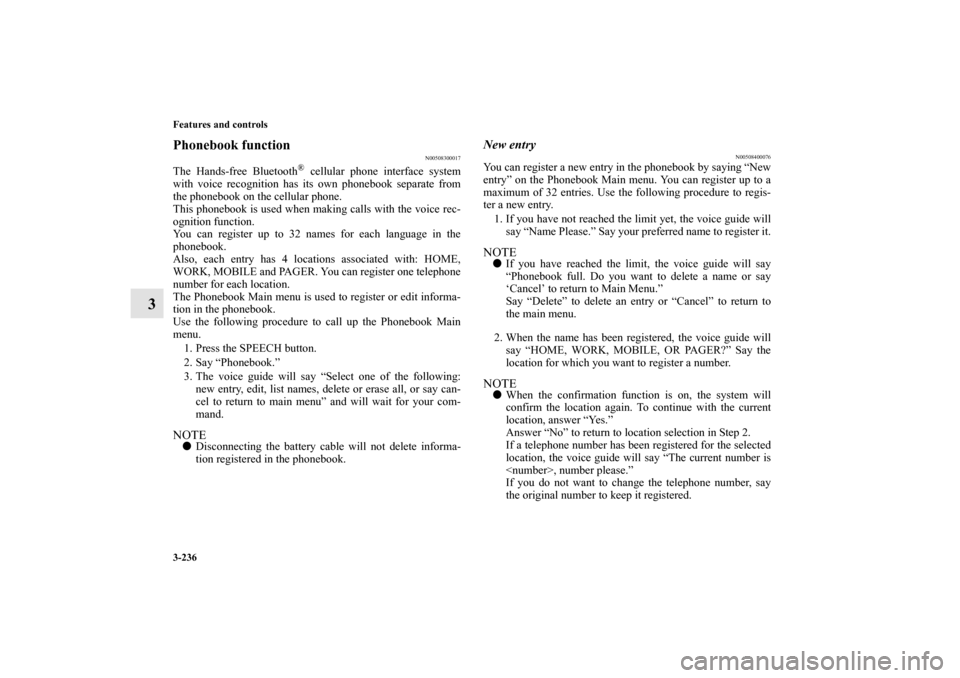

3-236 Features and controls
3
Phonebook function
N00508300017
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition has its own phonebook separate from
the phonebook on the cellular phone.
This phonebook is used when making calls with the voice rec-
ognition function.
You can register up to 32 names for each language in the
phonebook.
Also, each entry has 4 locations associated with: HOME,
WORK, MOBILE and PAGER. You can register one telephone
number for each location.
The Phonebook Main menu is used to register or edit informa-
tion in the phonebook.
Use the following procedure to call up the Phonebook Main
menu.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit, list names, delete or erase all, or say can-
cel to return to main menu” and will wait for your com-
mand.
NOTE

Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.
New entry
N00508400076
You can register a new entry in the phonebook by saying “New
entry” on the Phonebook Main menu. You can register up to a
maximum of 32 entries. Use the following procedure to regis-
ter a new entry.
1. If you have not reached the limit yet, the voice guide will
say “Name Please.” Say your preferred name to register it.NOTE

If you have reached the limit, the voice guide will say
“Phonebook full. Do you want to delete a name or say
‘Cancel’ to return to Main Menu.”
Say “Delete” to delete an entry or “Cancel” to return to
the main menu.
2. When the name has been registered, the voice guide will
say “HOME, WORK, MOBILE, OR PAGER?” Say the
location for which you want to register a number.
NOTE

When the confirmation function is on, the system will
confirm the location again. To continue with the current
location, answer “Yes.”
Answer “No” to return to location selection in Step 2.
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
the original number to keep it registered.
BK0105501US.book 236 ページ ２００９年８月１０日　月曜日　午前１０時３２分

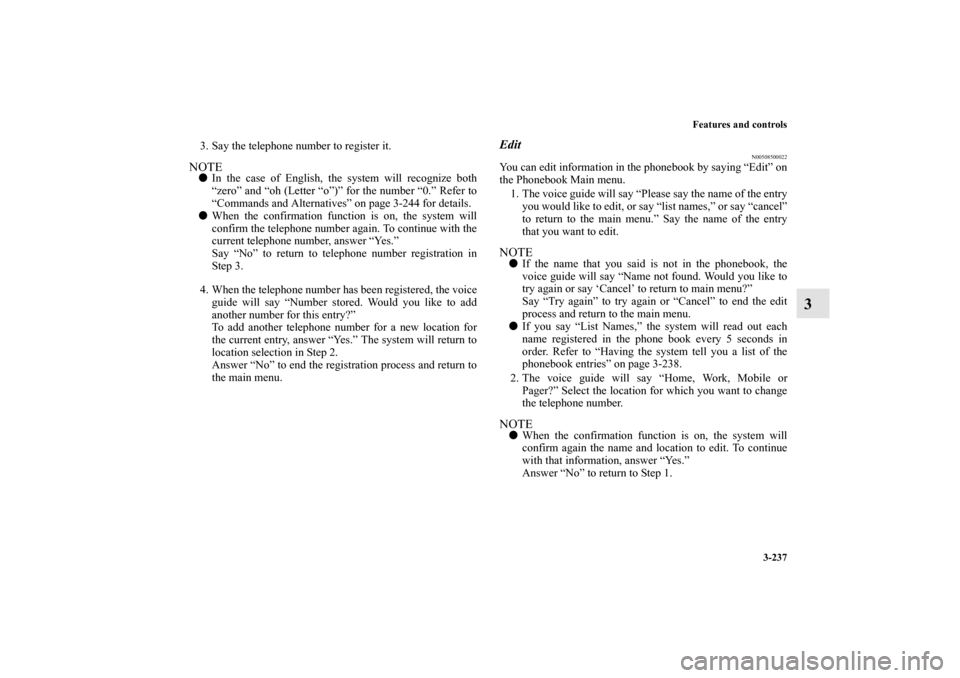

Features and controls
3-237
3
3. Say the telephone number to register it. NOTE

In the case of English, the system will recognize both
“zero” and “oh (Letter “o”)” for the number “0.” Refer to
“Commands and Alternatives” on page 3-244 for details.


When the confirmation function is on, the system will
confirm the telephone number again. To continue with the
current telephone number, answer “Yes.”
Say “No” to return to telephone number registration in
Step 3.
4. When the telephone number has been registered, the voice
guide will say “Number stored. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 2.
Answer “No” to end the registration process and return to
the main menu.
Edit
N00508500022
You can edit information in the phonebook by saying “Edit” on
the Phonebook Main menu.
1. The voice guide will say “Please say the name of the entry
you would like to edit, or say “list names,” or say “cancel”
to return to the main menu.” Say the name of the entry
that you want to edit. NOTE

If the name that you said is not in the phonebook, the
voice guide will say “Name not found. Would you like to
try again or say ‘Cancel’ to return to main menu?”
Say “Try again” to try again or “Cancel” to end the edit
process and return to the main menu.


If you say “List Names,” the system will read out each
name registered in the phone book every 5 seconds in
order. Refer to “Having the system tell you a list of the
phonebook entries” on page 3-238.
2. The voice guide will say “Home, Work, Mobile or
Pager?” Select the location for which you want to change
the telephone number.
NOTE

When the confirmation function is on, the system will
confirm again the name and location to edit. To continue
with that information, answer “Yes.”
Answer “No” to return to Step 1.
BK0105501US.book 237 ページ ２００９年８月１０日　月曜日　午前１０時３２分

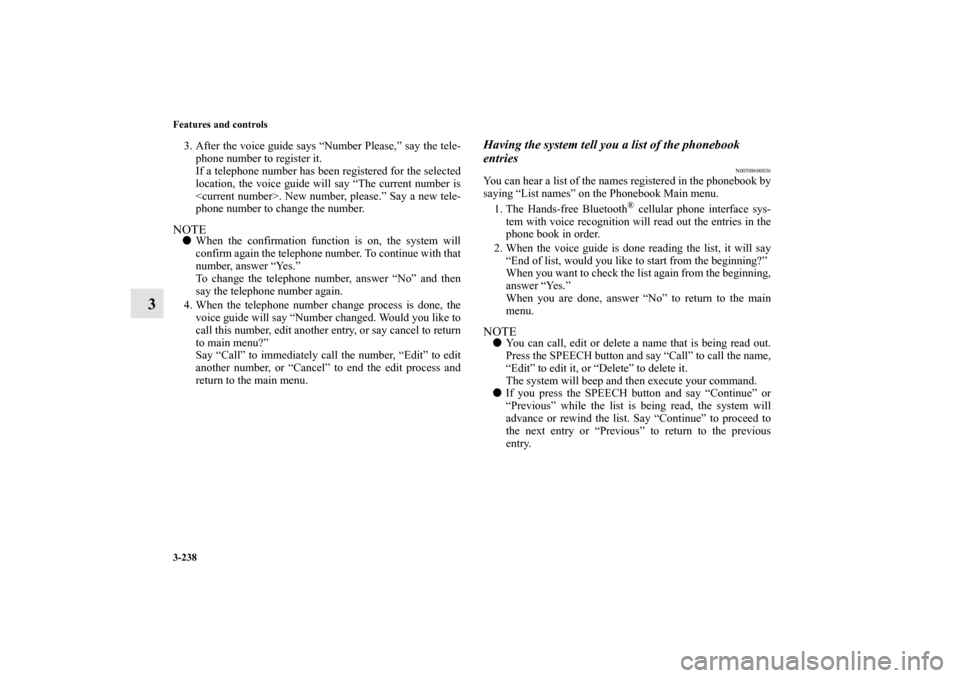

3-238 Features and controls
3
3. After the voice guide says “Number Please,” say the tele-
phone number to register it.
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
. New number, please.” Say a new tele-
phone number to change the number.NOTE

When the confirmation function is on, the system will
confirm again the telephone number. To continue with that
number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
4. When the telephone number change process is done, the
voice guide will say “Number changed. Would you like to
call this number, edit another entry, or say cancel to return
to main menu?”
Say “Call” to immediately call the number, “Edit” to edit
another number, or “Cancel” to end the edit process and
return to the main menu.
Having the system tell you a list of the phonebook
entries
N00508600036
You can hear a list of the names registered in the phonebook by
saying “List names” on the Phonebook Main menu.
1. The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will read out the entries in the
phone book in order.
2. When the voice guide is done reading the list, it will say
“End of list, would you like to start from the beginning?”
When you want to check the list again from the beginning,
answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE

You can call, edit or delete a name that is being read out.
Press the SPEECH button and say “Call” to call the name,
“Edit” to edit it, or “Delete” to delete it.
The system will beep and then execute your command.


If you press the SPEECH button and say “Continue” or
“Previous” while the list is being read, the system will
advance or rewind the list. Say “Continue” to proceed to
the next entry or “Previous” to return to the previous
entry.
BK0105501US.book 238 ページ ２００９年８月１０日　月曜日　午前１０時３２分
