MITSUBISHI LANCER EVOLUTION 2010 10.G Owner's Guide

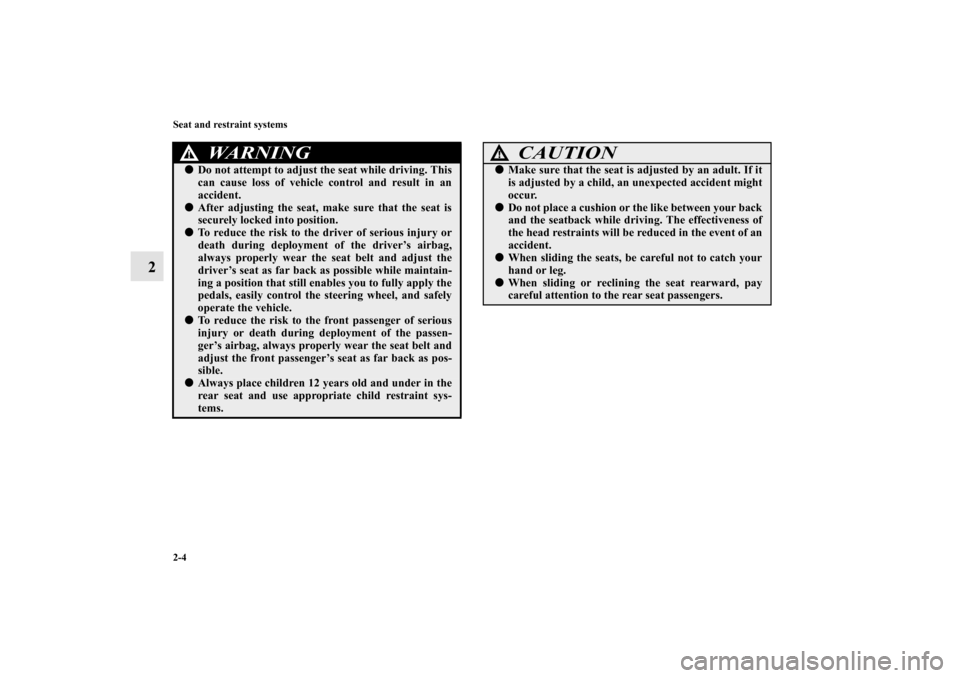

2-4 Seat and restraint systems
2
WA R N I N G
!

Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.


After adjusting the seat, make sure that the seat is
securely locked into position.


To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.


To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s airbag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.


Always place children 12 years old and under in the
rear seat and use appropriate child restraint sys-
tems.
CAUTION
!

Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.


Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.


When sliding the seats, be careful not to catch your
hand or leg.


When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
BK0105501US.book 4 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Seat and restraint systems
2-5
2

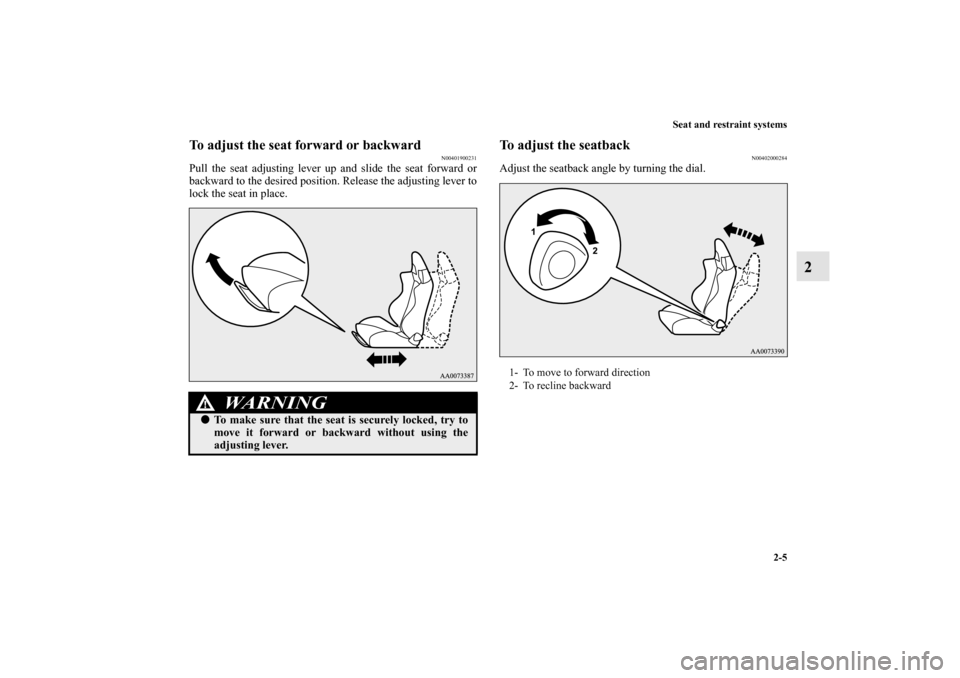

To adjust the seat forward or backward
N00401900231
Pull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
To adjust the seatback
N00402000284
Adjust the seatback angle by turning the dial.
WA R N I N G
!

To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever.
1- To move to forward direction
2- To recline backward
BK0105501US.book 5 ページ ２００９年８月１０日　月曜日　午前１０時３２分

2-6 Seat and restraint systems
2

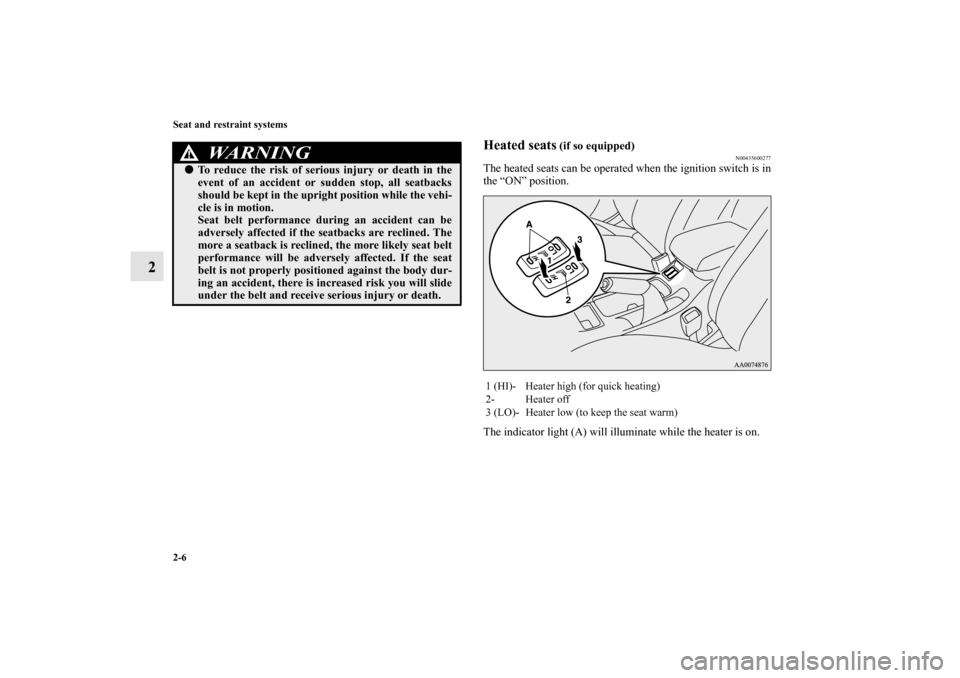

Heated seats
(if so equipped)
N00435600277
The heated seats can be operated when the ignition switch is in
the “ON” position.
The indicator light (A) will illuminate while the heater is on.
WA R N I N G
!

To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
1 (HI)- Heater high (for quick heating)
2- Heater off
3 (LO)- Heater low (to keep the seat warm)
BK0105501US.book 6 ページ ２００９年８月１０日　月曜日　午前１０時３２分

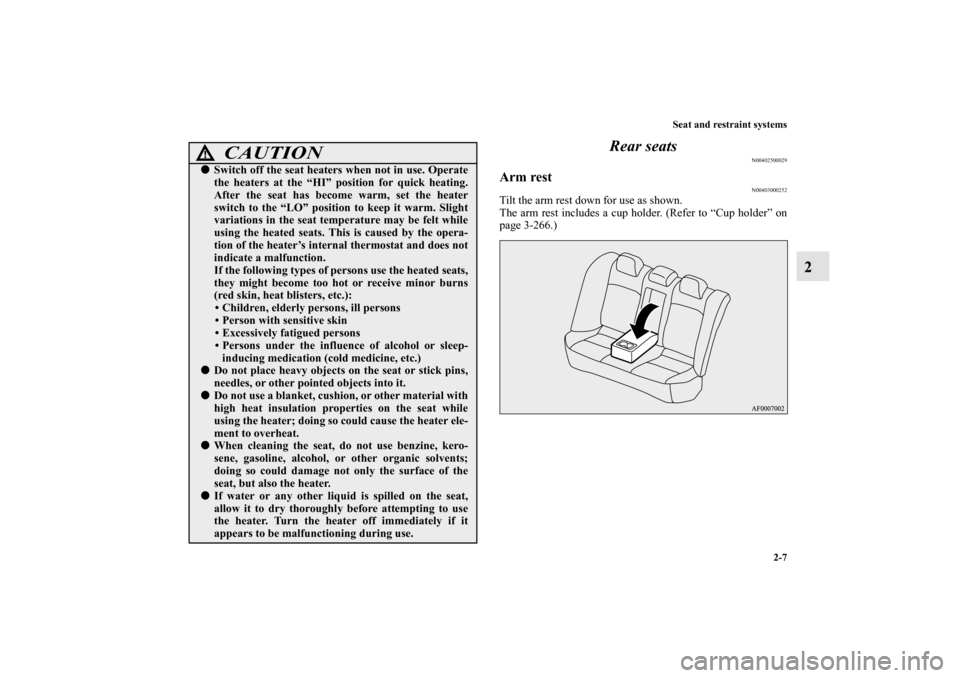

Seat and restraint systems
2-7
2 Rear seats
N00402500029
Arm rest
N00403000252
Tilt the arm rest down for use as shown.
The arm rest includes a cup holder. (Refer to “Cup holder” on
page 3-266.)
CAUTION
!

Switch off the seat heaters when not in use. Operate
the heaters at the “HI” position for quick heating.
After the seat has become warm, set the heater
switch to the “LO” position to keep it warm. Slight
variations in the seat temperature may be felt while
using the heated seats. This is caused by the opera-
tion of the heater’s internal thermostat and does not
indicate a malfunction.
If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.): Children, elderly persons, ill persons
 Person with sensitive skin
 Excessively fatigued persons
 Persons under the influence of alcohol or sleep-
inducing medication (cold medicine, etc.)


Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into it.


Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; doing so could cause the heater ele-
ment to overheat.


When cleaning the seat, do not use benzine, kero-
sene, gasoline, alcohol, or other organic solvents;
doing so could damage not only the surface of the
seat, but also the heater.


If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
BK0105501US.book 7 ページ ２００９年８月１０日　月曜日　午前１０時３２分

2-8 Seat and restraint systems
2Head restraints
N00404300500
RECARO seat
N00409500031
RECARO seats are equipped with padded head restraints inte-
grated with the seatbacks. These head restraints can reduce the
risk of a whiplash injury if your vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of your head restraint, adjust
your seatback to the upright position and sit back against the
seatback with your head close to the head restraint.
WA R N I N G
!

In order to minimize the risk of a neck injury due to
a rear impact, the driver and front passenger seat-
backs must be adjusted to the upright position
before vehicle operation. The driver should never
adjust the seat while the vehicle is in motion.


Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
BK0105501US.book 8 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Seat and restraint systems
2-9
2

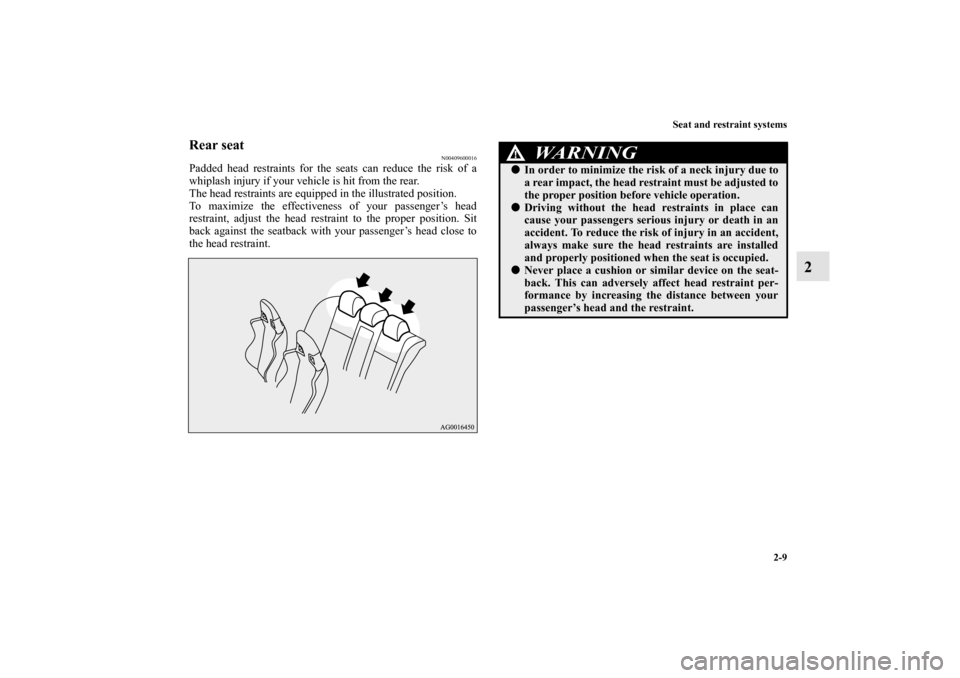

Rear seat
N00409600016
Padded head restraints for the seats can reduce the risk of a
whiplash injury if your vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of your passenger’s head
restraint, adjust the head restraint to the proper position. Sit
back against the seatback with your passenger’s head close to
the head restraint.
WA R N I N G
!

In order to minimize the risk of a neck injury due to
a rear impact, the head restraint must be adjusted to
the proper position before vehicle operation.


Driving without the head restraints in place can
cause your passengers serious injury or death in an
accident. To reduce the risk of injury in an accident,
always make sure the head restraints are installed
and properly positioned when the seat is occupied.


Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
passenger’s head and the restraint.
BK0105501US.book 9 ページ ２００９年８月１０日　月曜日　午前１０時３２分

2-10 Seat and restraint systems
2

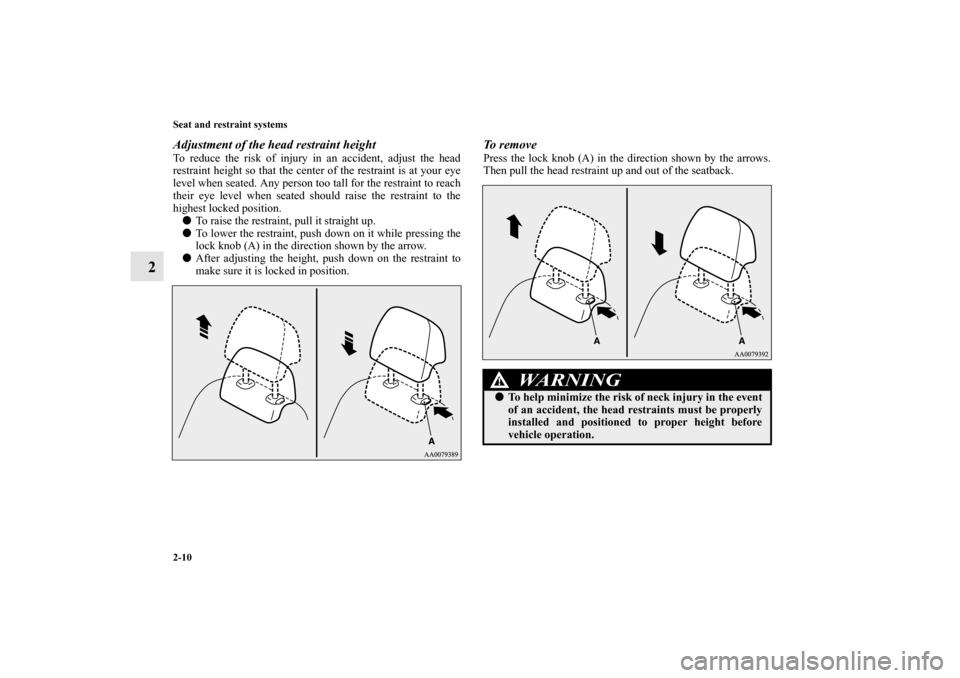

Adjustment of the head restraint heightTo reduce the risk of injury in an accident, adjust the head
restraint height so that the center of the restraint is at your eye
level when seated. Any person too tall for the restraint to reach
their eye level when seated should raise the restraint to the
highest locked position.

To raise the restraint, pull it straight up.


To lower the restraint, push down on it while pressing the
lock knob (A) in the direction shown by the arrow.


After adjusting the height, push down on the restraint to
make sure it is locked in position.
To r e m o v ePress the lock knob (A) in the direction shown by the arrows.
Then pull the head restraint up and out of the seatback.
WA R N I N G
!

To help minimize the risk of neck injury in the event
of an accident, the head restraints must be properly
installed and positioned to proper height before
vehicle operation.
BK0105501US.book 10 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Seat and restraint systems
2-11
2

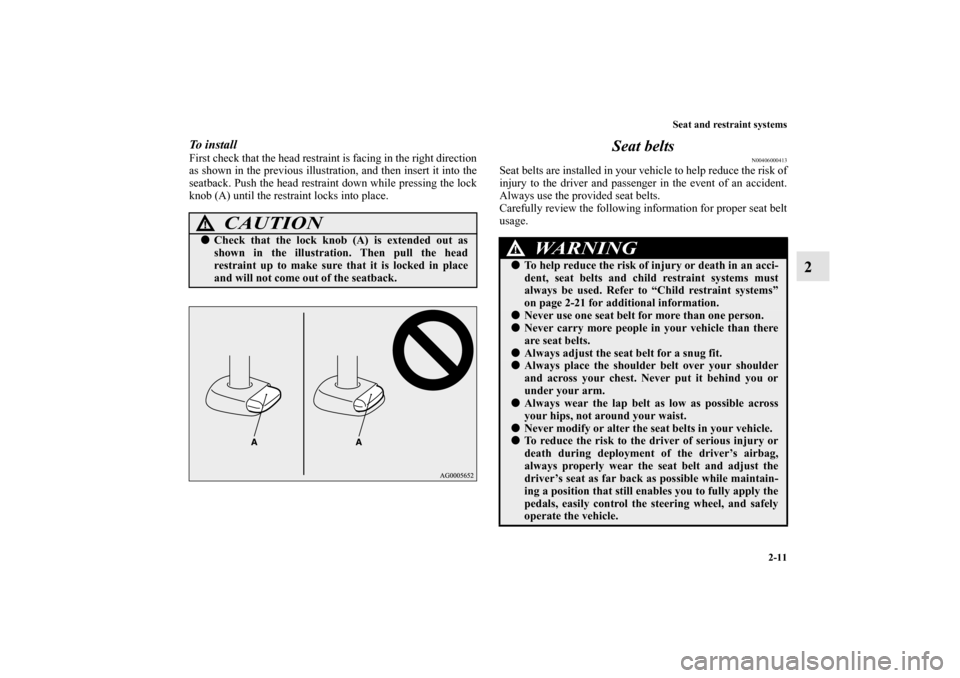

To i n s t a l lFirst check that the head restraint is facing in the right direction
as shown in the previous illustration, and then insert it into the
seatback. Push the head restraint down while pressing the lock
knob (A) until the restraint locks into place.
Seat belts
N00406000413
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
CAUTION
!

Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
WA R N I N G
!

To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraint systems must
always be used. Refer to “Child restraint systems”
on page 2-21 for additional information.


Never use one seat belt for more than one person.


Never carry more people in your vehicle than there
are seat belts.


Always adjust the seat belt for a snug fit.


Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm.


Always wear the lap belt as low as possible across
your hips, not around your waist.


Never modify or alter the seat belts in your vehicle.


To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
BK0105501US.book 11 ページ ２００９年８月１０日　月曜日　午前１０時３２分

2-12 Seat and restraint systems
2

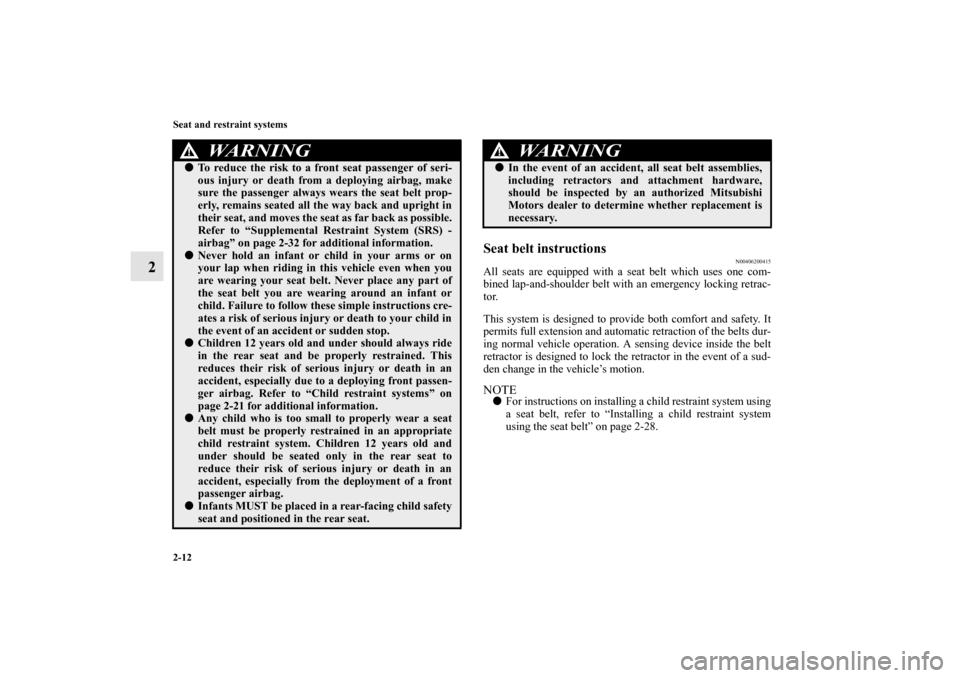

Seat belt instructions
N00406200415
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion.NOTE

For instructions on installing a child restraint system using
a seat belt, refer to “Installing a child restraint system
using the seat belt” on page 2-28.


To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying airbag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
airbag” on page 2-32 for additional information.


Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.


Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger airbag. Refer to “Child restraint systems” on
page 2-21 for additional information.


Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system. Children 12 years old and
under should be seated only in the rear seat to
reduce their risk of serious injury or death in an
accident, especially from the deployment of a front
passenger airbag.


Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.WA R N I N G
!


In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.WA R N I N G
!
BK0105501US.book 12 ページ ２００９年８月１０日　月曜日　午前１０時３２分

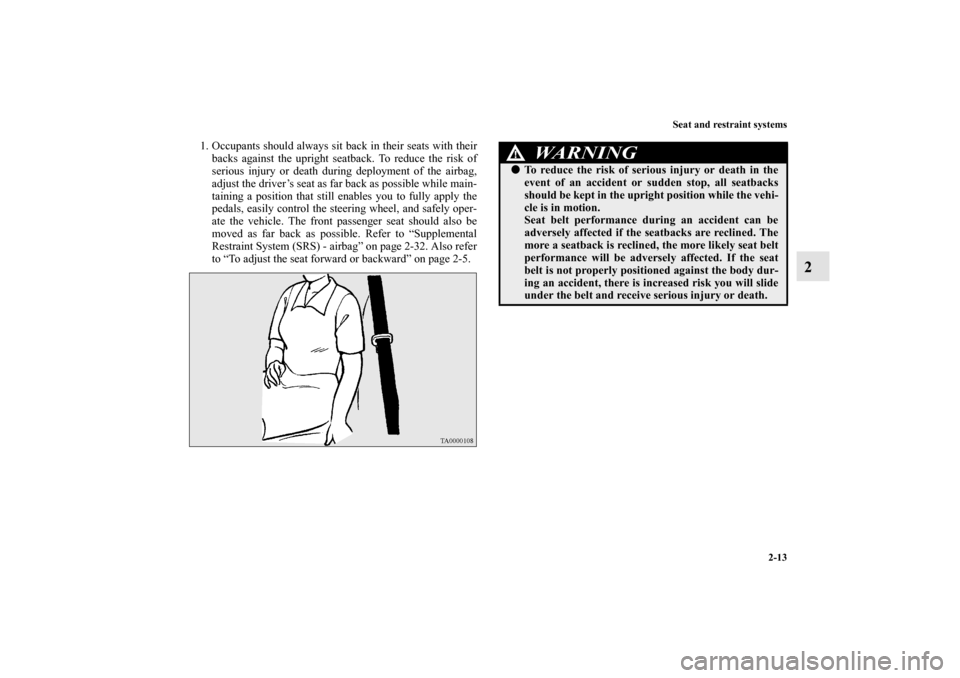

Seat and restraint systems
2-13
2
1. Occupants should always sit back in their seats with their
backs against the upright seatback. To reduce the risk of
serious injury or death during deployment of the airbag,
adjust the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely oper-
ate the vehicle. The front passenger seat should also be
moved as far back as possible. Refer to “Supplemental
Restraint System (SRS) - airbag” on page 2-32. Also refer
to “To adjust the seat forward or backward” on page 2-5.
WA R N I N G
!

To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0105501US.book 13 ページ ２００９年８月１０日　月曜日　午前１０時３２分
