MITSUBISHI LANCER EVOLUTION 2010 10.G Owners Manual

5-92 Comfort controls
5

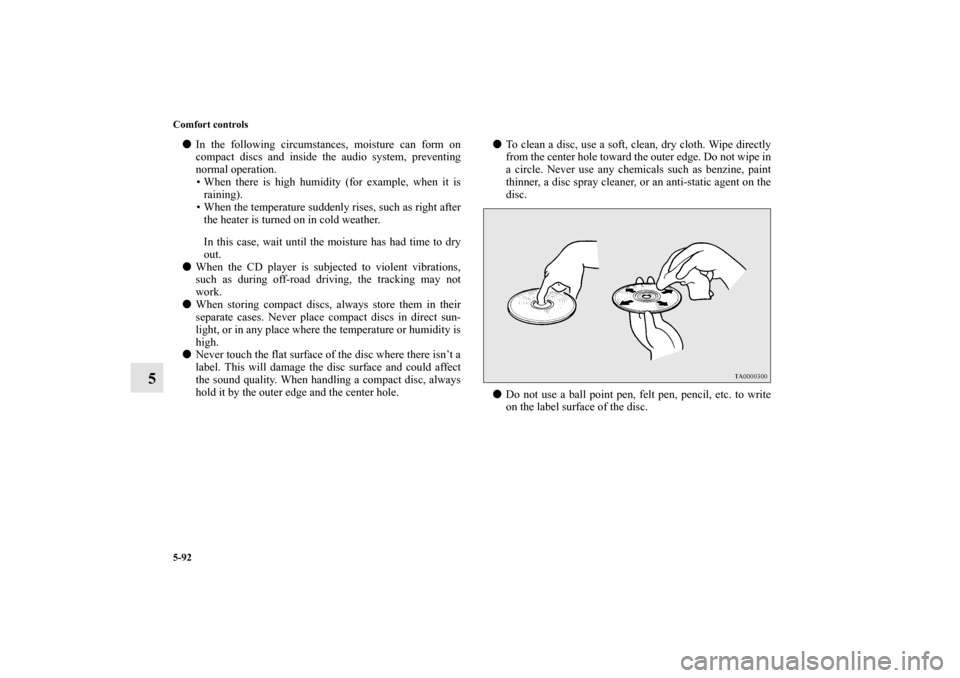

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
 When there is high humidity (for example, when it is
raining).
 When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.


When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.


When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.


Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.


To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.


Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
BK0105501US.book 92 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-93
5


Do not put additional labels (A) or stickers (B) on com-
pact discs. Also, do not use any compact disc on which a
label or sticker has started to peel off or any compact disc
that has stickiness or other contamination left by a peeled-
off label or sticker. If you use such a compact disc, the CD
player may stop working properly and you may not be
able to eject the compact disc.
Notes on CD-Rs/RWs
N00751900095


You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.


CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a vehicle for extended periods may damage them
and make playback impossible.


The unit may not successfully play back a CD-R/RW that
was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incom-
patible with one another.


This player cannot play the CD-R/RW discs if the session
is not closed.


This player cannot play CD-R/RW discs which contain
other than CD-DA or MP3 data (Video CD, etc.).


Be sure to observe the handling instructions for the CD-
R/RW disc.
WA R N I N G
!

Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure. Do not remove the cover
and attempt to repair the CD player by yourself.
There are no user serviceable parts inside. In case of
malfunction, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0105501US.book 93 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-94 Comfort controls

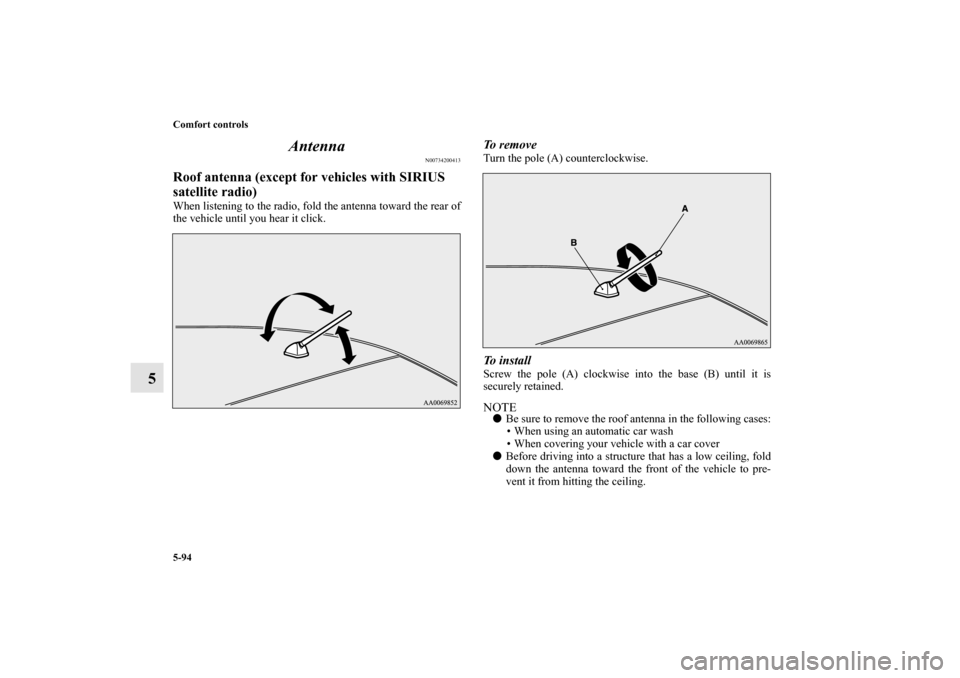

5Antenna
N00734200413
Roof antenna (except for vehicles with SIRIUS
satellite radio)When listening to the radio, fold the antenna toward the rear of
the vehicle until you hear it click.
To r e m o v eTurn the pole (A) counterclockwise.To i n s t a l lScrew the pole (A) clockwise into the base (B) until it is
securely retained.NOTE

Be sure to remove the roof antenna in the following cases:
 When using an automatic car wash
 When covering your vehicle with a car cover


Before driving into a structure that has a low ceiling, fold
down the antenna toward the front of the vehicle to pre-
vent it from hitting the ceiling.
BK0105501US.book 94 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-95
5

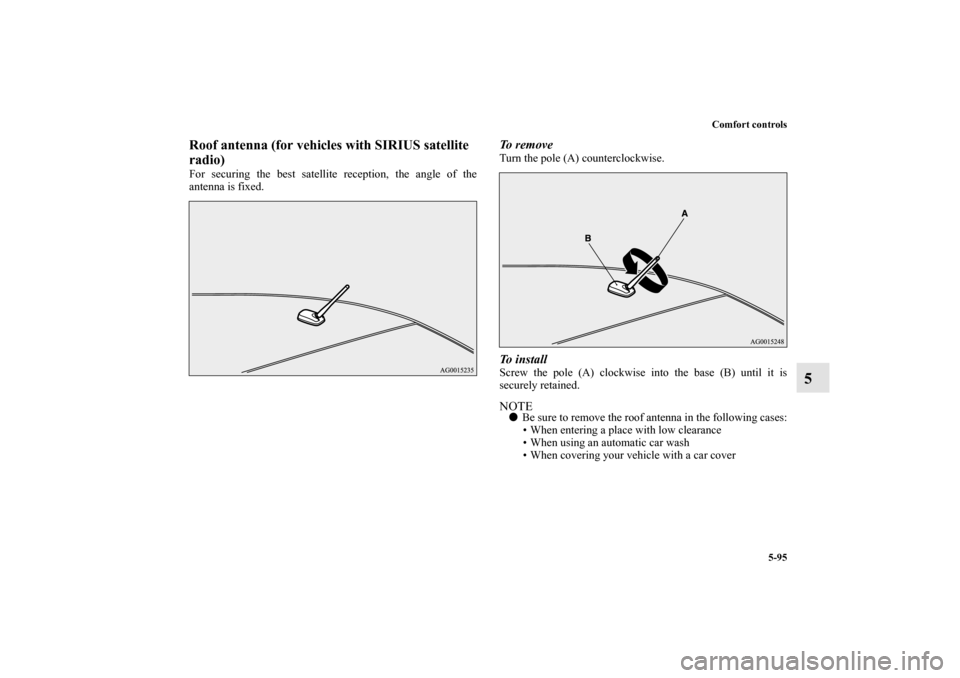

Roof antenna (for vehicles with SIRIUS satellite
radio)For securing the best satellite reception, the angle of the
antenna is fixed.
To r e m o v eTurn the pole (A) counterclockwise.To i n s t a l lScrew the pole (A) clockwise into the base (B) until it is
securely retained.NOTE

Be sure to remove the roof antenna in the following cases:
 When entering a place with low clearance
 When using an automatic car wash
 When covering your vehicle with a car cover
BK0105501US.book 95 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-96 Comfort controls
5Digital clock
(if so equipped)
N00755000049
The time is displayed when the ignition switch is in the “ON”
or “ACC” position.To set the time1. Press and hold the CLOCK button and the clock display
flashes.
2. Press the various buttons to adjust.3. When the time is set, press the DISP button to stop the
clock display from flashing. After time signal setting,
however, the clock display automatically stops flashing.
NOTE

Reset the time after the battery terminals are disconnected
and reconnected.


Seconds do not appear in the clock display, but after
adjusting the “Minutes” setting and time signal setting,
the clock begins to operate from 0 seconds.
H — “Hour” setting
Press this button to fast-forward the “hours”.
M — “Minutes” setting
Press this button to fast-forward the “minutes”.
CLOCK DISP H M :00
:00 — Time signal setting
At the same time the button is pressed, the fol-
lowing modifications are made.
10:00 - 10:29 ......Change to 10:00
10:30 - 10:59 ......Change to 11:00
BK0105501US.book 96 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-97

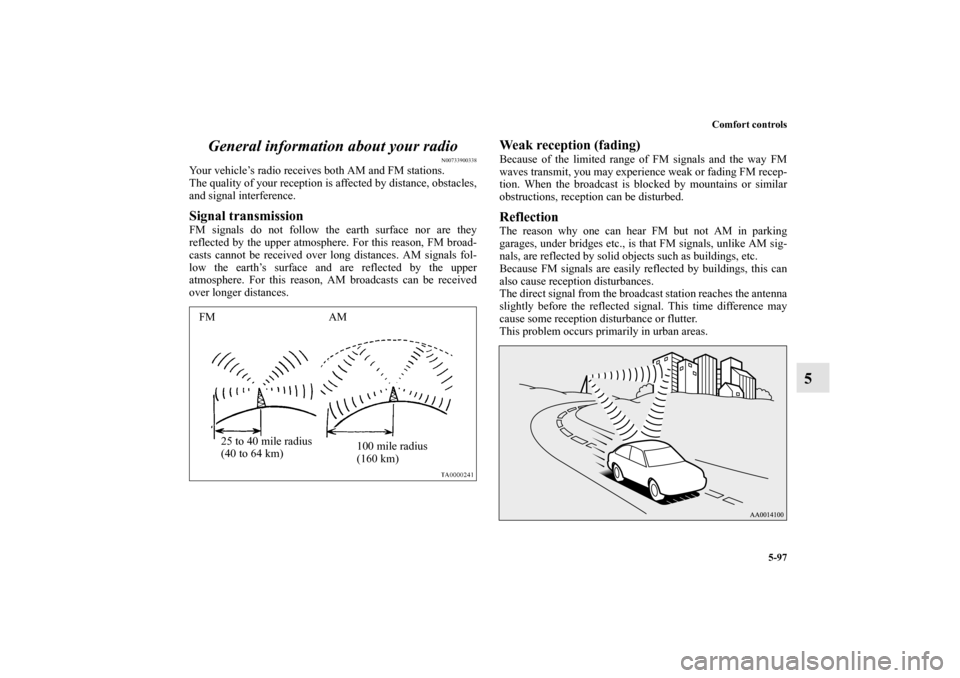

5 General information about your radio
N00733900338
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference.Signal transmissionFM signals do not follow the earth surface nor are they
reflected by the upper atmosphere. For this reason, FM broad-
casts cannot be received over long distances. AM signals fol-
low the earth’s surface and are reflected by the upper
atmosphere. For this reason, AM broadcasts can be received
over longer distances.
Weak reception (fading)Because of the limited range of FM signals and the way FM
waves transmit, you may experience weak or fading FM recep-
tion. When the broadcast is blocked by mountains or similar
obstructions, reception can be disturbed.ReflectionThe reason why one can hear FM but not AM in parking
garages, under bridges etc., is that FM signals, unlike AM sig-
nals, are reflected by solid objects such as buildings, etc.
Because FM signals are easily reflected by buildings, this can
also cause reception disturbances.
The direct signal from the broadcast station reaches the antenna
slightly before the reflected signal. This time difference may
cause some reception disturbance or flutter.
This problem occurs primarily in urban areas.
FM AM
25 to 40 mile radius
(40 to 64 km)100 mile radius
(160 km)
BK0105501US.book 97 ページ ２００９年８月１０日　月曜日　午前１０時３２分

5-98 Comfort controls
5

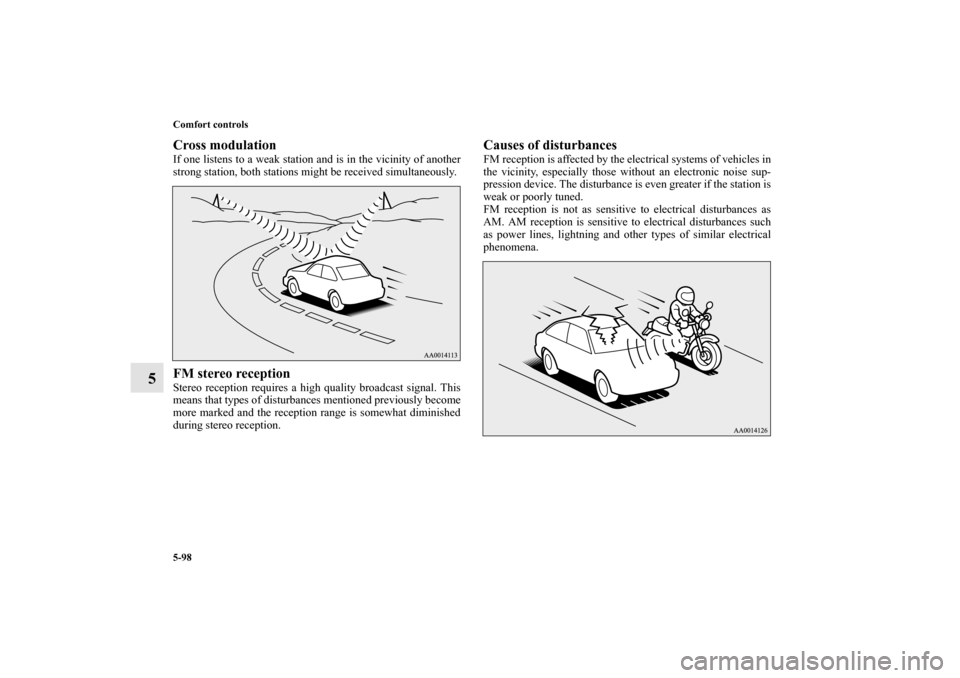

Cross modulationIf one listens to a weak station and is in the vicinity of another
strong station, both stations might be received simultaneously.FM stereo receptionStereo reception requires a high quality broadcast signal. This
means that types of disturbances mentioned previously become
more marked and the reception range is somewhat diminished
during stereo reception.
Causes of disturbancesFM reception is affected by the electrical systems of vehicles in
the vicinity, especially those without an electronic noise sup-
pression device. The disturbance is even greater if the station is
weak or poorly tuned.
FM reception is not as sensitive to electrical disturbances as
AM. AM reception is sensitive to electrical disturbances such
as power lines, lightning and other types of similar electrical
phenomena.
BK0105501US.book 98 ページ ２００９年８月１０日　月曜日　午前１０時３２分

6
For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 6
Tools and jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
How to change a tire . . . . . . . . . . . . . . . . . . . . . . .6- 9
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 18
Operation under adverse driving conditions . . . . .6- 20
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

6-2 For emergencies
6If the vehicle breaks down
N00836300073
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing. If the engine stops/fails If the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.


Since there is no power steering assist, the steering wheel
will be hard to turn. Turning the steering wheel requires
more effort than usual.
When the engine fails at the intersection Get help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400670
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables. NOTE

Although the battery in your vehicle is located in the trunk
(refer to page 7-18), use the joint terminal in the engine
compartment to jump start the engine.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
WA R N I N G
!

Follow the procedure described in this section when
using the jump cable to start the engine. Failure to
follow these instructions can cause serious injury or
death.CAUTION
!

Do not try to start your vehicle by pushing or tow-
ing. Vehicles with Twin Clutch SST cannot be
started this way. Pushing or towing a vehicle that
has a manual transaxle may overheat and damage
the catalytic converter. Also, there is more risk of an
accident when a vehicle is being pushed or towed.
BK0105501US.book 2 ページ ２００９年８月１０日　月曜日　午前１０時３２分

For emergencies
6-3
6

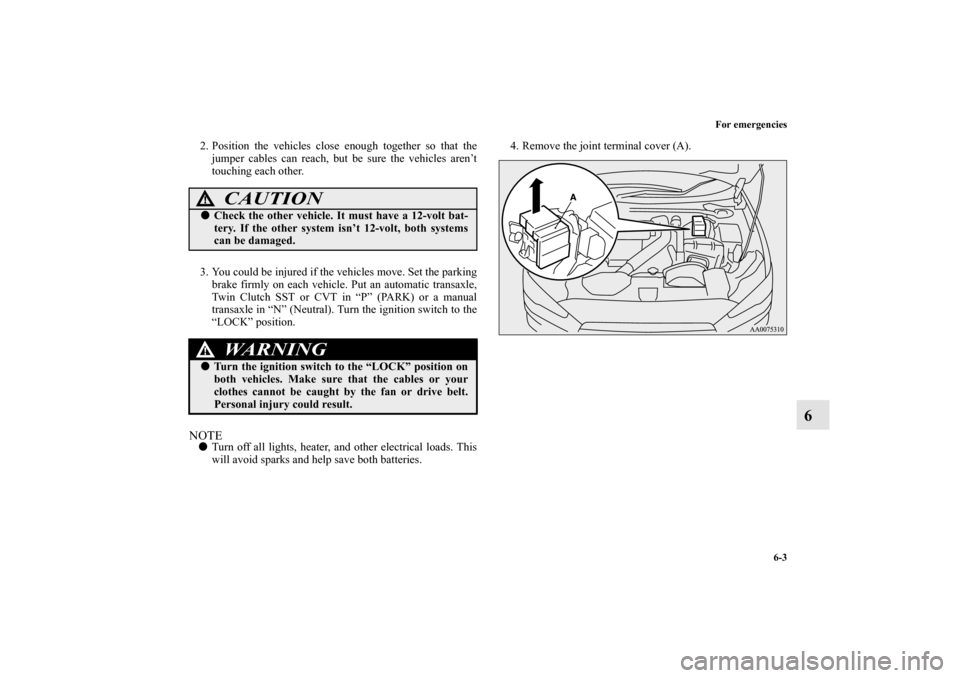

2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle,
Twin Clutch SST or CVT in “P” (PARK) or a manual
transaxle in “N” (Neutral). Turn the ignition switch to the
“LOCK” position. NOTE

Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries. 4. Remove the joint terminal cover (A).
CAUTION
!

Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.WA R N I N G
!

Turn the ignition switch to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result.
