Overview
Instruments and controls (Driver’s area)
N00100201185
Combination headlights and
dimmer switch P.3-200
Turn signal lever P.3-208
Front fog light switch P.3-210
Supplemental restraint system
- airbag (for driver’s seat) P.2-
32, 2-43
Horn switch P.3-220 Instrument cluster P.3-148
Cruise control switches
P.3-133 Wiper and washer switch
P.3-211
Fuses P.7-37
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-107
Ignition switch P.3-24, 3-34,
3-81
Steering wheel tilt lock lever
P. 3 - 7 6
Supplemental restraint system - driver’s
knee airbag P.2-43
Hands-free Bluetooth
® cellular phone interface
system with voice recognition switches (if so
equipped) P.3-220 Steering wheel audio
remote control switches
(if so equipped) P.5-84 Multi-information meter switch P.3-153
AWC switch
(if so equipped)
P. 3 - 1 1 8 Headlights leveling switch
(if so equipped) P.3-207Active stability control
OFF switch P.3-128
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

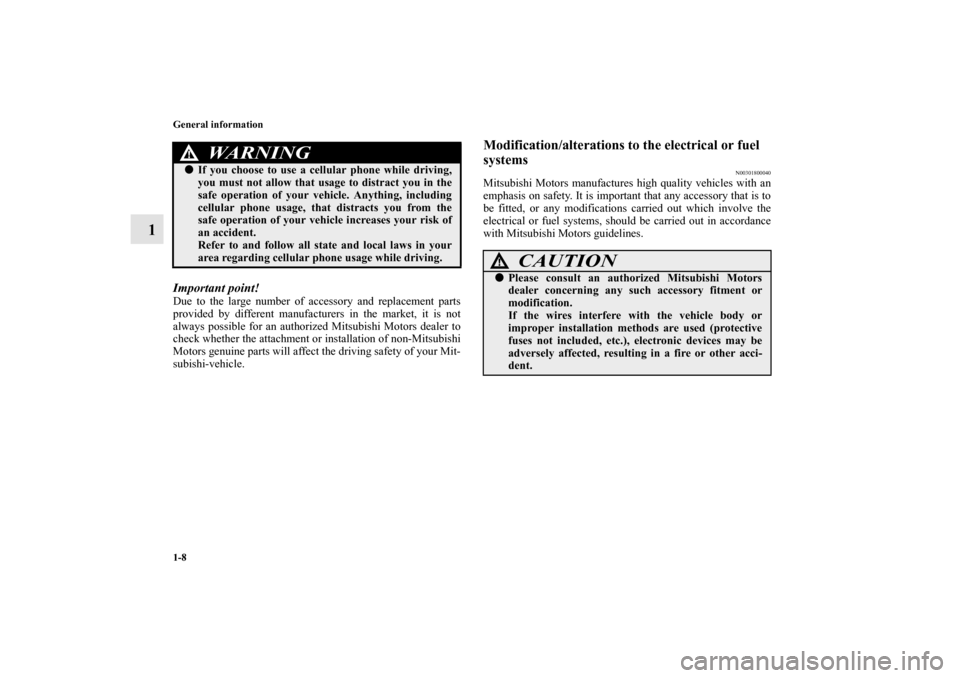

1-8 General information
1
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts will affect the driving safety of your Mit-
subishi-vehicle.
Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
WA R N I N G
!

If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
CAUTION
!

Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0105501US.book 8 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-209
3
NOTE

A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out turn signal light bulb or malfunctioning connection in
the signal.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.


The turn signal light 3-flash function for lane changes can
be deactivated.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.


You can adjust the time required to operate the lever for
the 3-flash function.
See your authorized Mitsubishi Motors dealer for details.
Hazard warning flasher switch
N00522700259
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition switch is turned off.NOTE

If the flashers are used for several hours, the battery will
run down. This could make it difficult or impossible to
restart your vehicle.
BK0105501US.book 209 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-222 Features and controls
3
SPEECH button

Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.


If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.


Pressing this button briefly during a call will enable voice
recognition and allow voice command input.
PICK-UP button

Press this button when an incoming call is received to
answer the telephone.


When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
 In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
 To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join call”.
HANG-UP button

Press this button when an incoming call is received to
refuse the call.


Press this button during a call to end the current call.
When another call is on hold or there is an incoming call,
you will switch to that call.
NOTE

When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pair-
ing a cellular phone” on page 3-229.)
*: Some cellular phones will not send this information to
the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition.


Call waiting and three-way calls can be used by the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition, only when those services can be
used with your cellular phone.
BK0105501US.book 222 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 13
Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid (if so equipped) . . . . . .7- 14
Transfer oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Rear axle oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
AWC control fluid . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 16
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Clutch pedal free play (if so equipped) . . . . . . . . .7- 28
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 29
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 29Parking brake break-in . . . . . . . . . . . . . . . . . . . . . 7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 30
Emission-control system maintenance . . . . . . . . . 7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 34
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 36
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 46
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 72
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 72
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 74
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-37
7 Fusible links
N00942700233
The fusible links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fusible link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
For the fusible links, please refer to “Fuse load capacities” on
page 7-37.
Fuses
N00942800263
Fuse block location
N00901000077
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment. Passenger compartmentThe fuse blocks in the passenger compartment are located
behind the fuse lid on the driver’s side as shown.
WA R N I N G
!

Fusible links must not be replaced by any other
device. Failing to fit the correct fusible link may
result in fire in the vehicle, property destruction and
serious or fatal injuries at any time.
A- Main fuse block
B- Sub fuse block
BK0105501US.book 37 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-38 Vehicle care and maintenance
7
1. Open the fuse lid and pull to remove it. 2. For vehicles with the bottom cover, use the puller to
loosen the 2 clips (A) and push down the bottom cover.
The puller is in the fuse block in the engine compartment.
Refer to “Fuse replacement” on page 7-44.
WA R N I N G
!

When changing fuses, do not damage the driver’s
knee airbag harness or accidentally strike the airbag
area with hard objects. Improper work methods
could result in an accidental driver’s knee airbag
deployment or could make the driver’s knee airbag
inoperable. Either of these situations could result in
serious injury or death.
BK0105501US.book 38 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-39
7
NOTE

When finished, be sure to return the puller to the fuse
block in the engine compartment.
3. To put back the fuse lid, line up the fuse lid hook (B) with
the clamp (C) on the instrument panel and push the lid
back in.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.
1. Push the lock lever.
2. Remove the fuse block cover.
BK0105501US.book 39 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-40 Vehicle care and maintenance
7
Fuse load capacities
N00954800071
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the fuse block in the
engine compartment. Always replace a blown fuse with one of
the same capacity as the original.
Passenger compartment fuse location tablePassenger compartment fuse location
Sub fuse block Main fuse block
BK0105501US.book 40 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-41
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.


The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22Heated
outside rearview mirrors7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
BK0105501US.book 41 ページ ２００９年８月１０日　月曜日　午前１０時３２分
