For emergencies

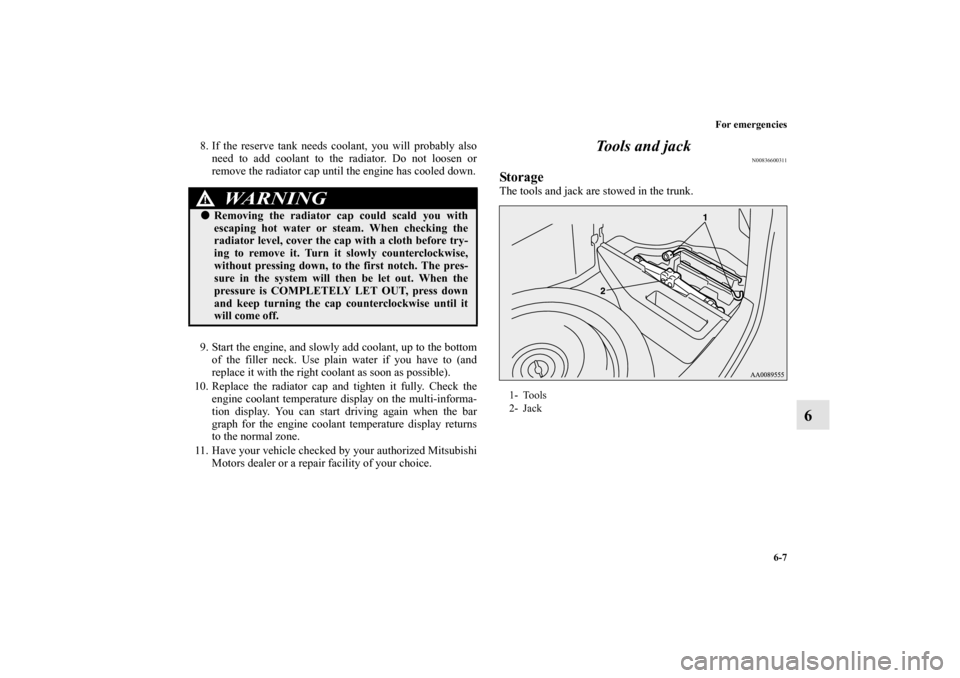

6-7
6
8. If the reserve tank needs coolant, you will probably also
need to add coolant to the radiator. Do not loosen or
remove the radiator cap until the engine has cooled down.
9. Start the engine, and slowly add coolant, up to the bottom
of the filler neck. Use plain water if you have to (and
replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it fully. Check the
engine coolant temperature display on the multi-informa-
tion display. You can start driving again when the bar
graph for the engine coolant temperature display returns
to the normal zone.
11. Have your vehicle checked by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Tools and jack
N00836600311
StorageThe tools and jack are stowed in the trunk.
WA R N I N G
!

Removing the radiator cap could scald you with
escaping hot water or steam. When checking the
radiator level, cover the cap with a cloth before try-
ing to remove it. Turn it slowly counterclockwise,
without pressing down, to the first notch. The pres-
sure in the system will then be let out. When the
pressure is COMPLETELY LET OUT, press down
and keep turning the cap counterclockwise until it
will come off.
1- Tools
2- Jack
BK0105501US.book 7 ページ ２００９年８月１０日　月曜日　午前１０時３２分

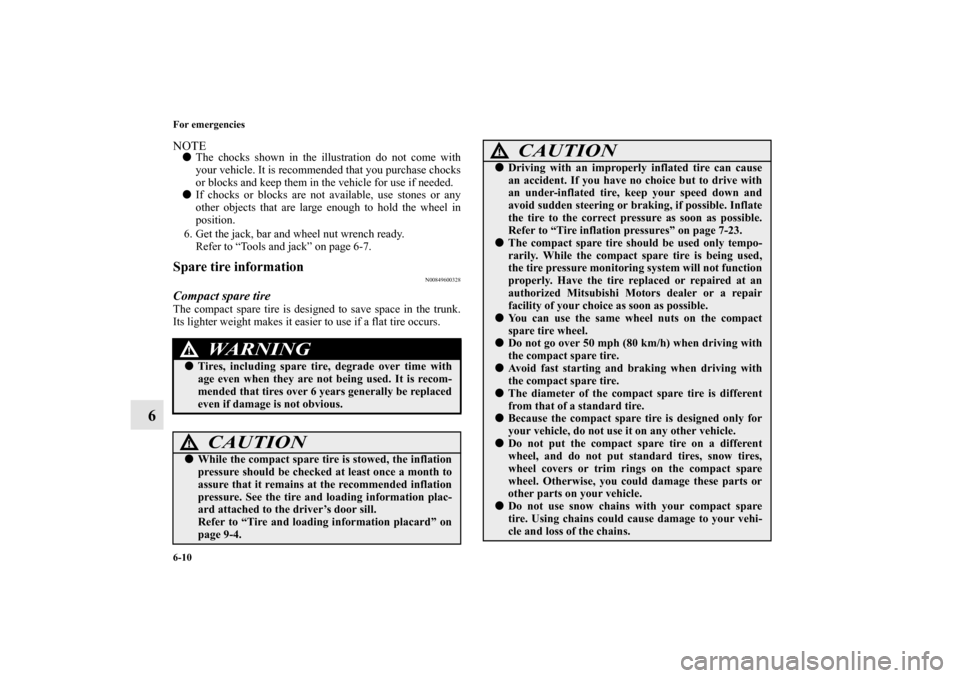

6-10 For emergencies
6
NOTE

The chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.


If chocks or blocks are not available, use stones or any
other objects that are large enough to hold the wheel in
position.
6. Get the jack, bar and wheel nut wrench ready.
Refer to “Tools and jack” on page 6-7.
Spare tire information
N00849600328
Compact spare tireThe compact spare tire is designed to save space in the trunk.
Its lighter weight makes it easier to use if a flat tire occurs.
WA R N I N G
!

Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.CAUTION
!

While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill.
Refer to “Tire and loading information placard” on
page 9-4.


Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-23.


The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.


You can use the same wheel nuts on the compact
spare tire wheel.


Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.


Avoid fast starting and braking when driving with
the compact spare tire.


The diameter of the compact spare tire is different
from that of a standard tire.


Because the compact spare tire is designed only for
your vehicle, do not use it on any other vehicle.


Do not put the compact spare tire on a different
wheel, and do not put standard tires, snow tires,
wheel covers or trim rings on the compact spare
wheel. Otherwise, you could damage these parts or
other parts on your vehicle.


Do not use snow chains with your compact spare
tire. Using chains could cause damage to your vehi-
cle and loss of the chains.CAUTION
!
BK0105501US.book 10 ページ ２００９年８月１０日　月曜日　午前１０時３２分

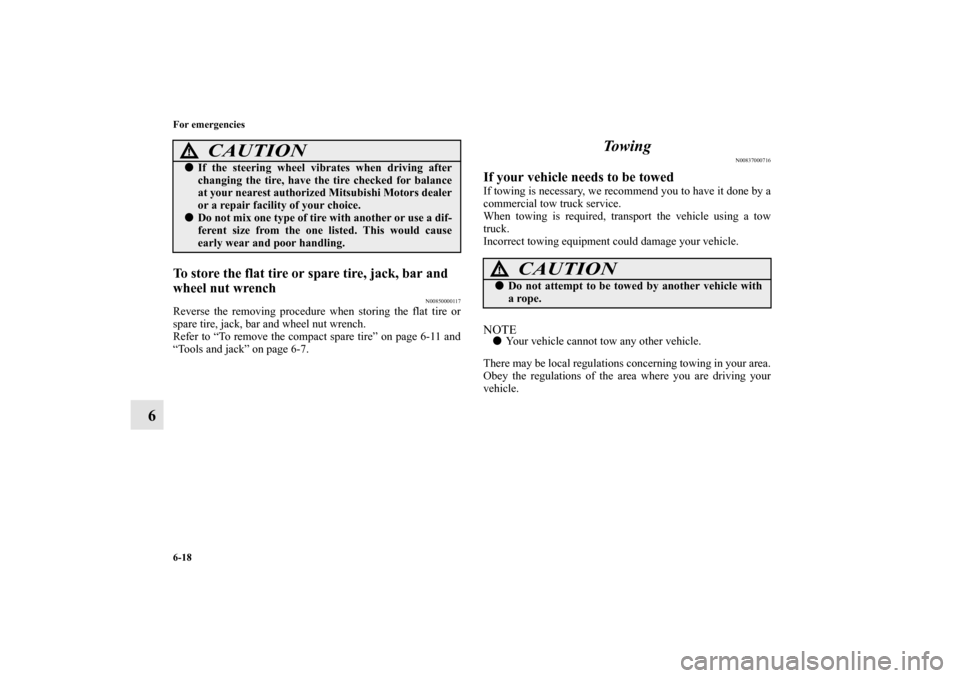

6-18 For emergencies
6
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000117
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel nut wrench.
Refer to “To remove the compact spare tire” on page 6-11 and
“Tools and jack” on page 6-7.
To w i n g
N00837000716
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorrect towing equipment could damage your vehicle.NOTE

Your vehicle cannot tow any other vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.


If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at your nearest authorized Mitsubishi Motors dealer
or a repair facility of your choice.


Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling. CAUTION
!
CAUTION
!

Do not attempt to be towed by another vehicle with
a rope.
