3-96 Features and controls
3

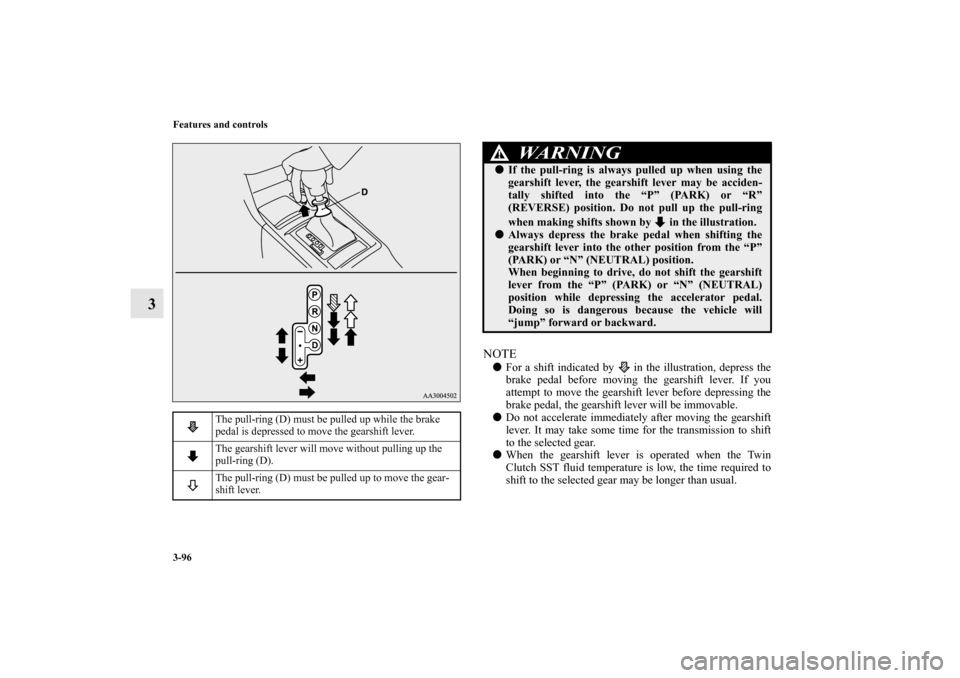

NOTE
For a shift indicated by in the illustration, depress the
brake pedal before moving the gearshift lever. If you
attempt to move the gearshift lever before depressing the
brake pedal, the gearshift lever will be immovable.

Do not accelerate immediately after moving the gearshift
lever. It may take some time for the transmission to shift
to the selected gear.

When the gearshift lever is operated when the Twin
Clutch SST fluid temperature is low, the time required to
shift to the selected gear may be longer than usual.
The pull-ring (D) must be pulled up while the brake
pedal is depressed to move the gearshift lever.
The gearshift lever will move without pulling up the
pull-ring (D).
The pull-ring (D) must be pulled up to move the gear-
shift lever.
WA R N I N G
!
If the pull-ring is always pulled up when using the
gearshift lever, the gearshift lever may be acciden-
tally shifted into the “P” (PARK) or “R”
(REVERSE) position. Do not pull up the pull-ring
when making shifts shown by in the illustration.
Always depress the brake pedal when shifting the
gearshift lever into the other position from the “P”
(PARK) or “N” (NEUTRAL) position.
When beginning to drive, do not shift the gearshift
lever from the “P” (PARK) or “N” (NEUTRAL)
position while depressing the accelerator pedal.
Doing so is dangerous because the vehicle will
“jump” forward or backward.
BK0123500US.book 96 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-97
3

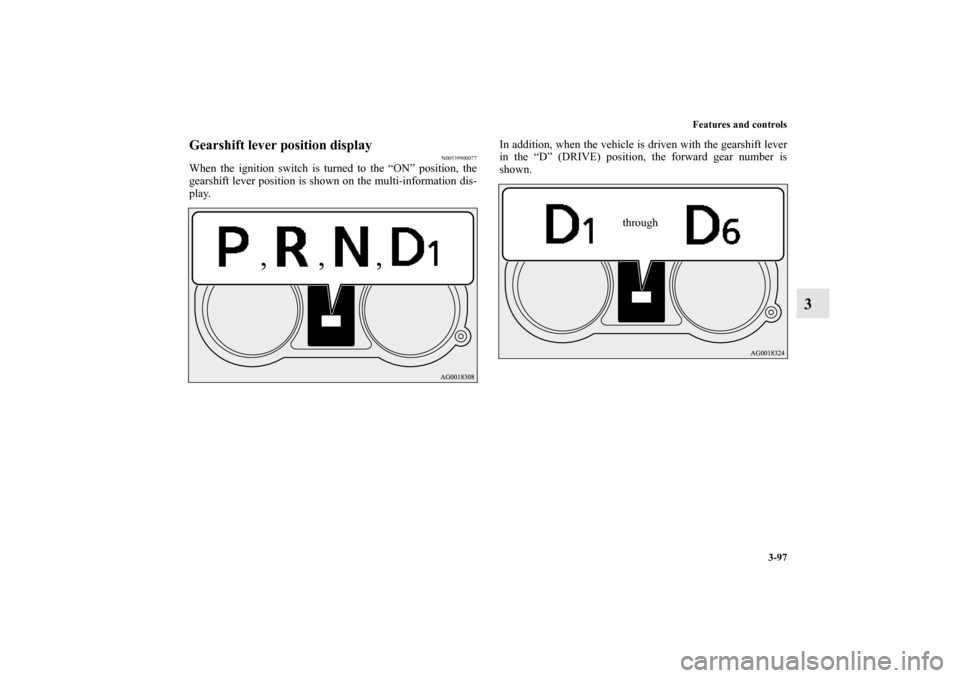

Gearshift lever position display
N00539900077
When the ignition switch is turned to the “ON” position, the
gearshift lever position is shown on the multi-information dis-
play. In addition, when the vehicle is driven with the gearshift lever
in the “D” (DRIVE) position, the forward gear number is
shown.
through
BK0123500US.book 97 ページ ２０１０年６月４日　金曜日　午後５時１分

3-98 Features and controls
3
When the gearshift lever position display blinks
N00563000017
When the gearshift lever is placed in the “R” (REVERSE)
position, the gearshift lever position display on the multi-infor-
mation display may blink and the vehicle will not move
because the gears in the transmission have not engaged.
If this occurs, perform the following procedure.
1. Depress the brake pedal with your right foot and place the
gearshift lever in the “N” (NEUTRAL) position.
2. Place the gearshift lever in the “R” (REVERSE) position,
and confirm that the gearshift lever position display stops
blinking.
3. Repeat 1 and 2 above if the gearshift lever position dis-
play continues to blink.
If the gearshift lever position display is not showing
N00562500031
There may be a problem in the Twin Clutch SST.
If this occurs, the safety device operates and prevents the vehi-
cle from moving. Therefore, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the gearshift lever position display is shown and the vehicle
can move after this procedure is performed, there is no mal-
function.
If the gearshift lever position display is not shown and the
vehicle cannot move, or if this problem occurs repeatedly, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice as soon as possible.
WA R N I N G
!
To avoid unintended vehicle movement, keep brake
pedal applied with your right foot and do not
depress the accelerator pedal, while the gearshift
lever position display is blinking.
BK0123500US.book 98 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-99
3
Warning display
N00540000065
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, take the following measures.
When warning display is showing
N00543100070
The temperature of the Twin Clutch SST fluid is high.
If this occurs, take one of the following measures.

Reduce the vehicle speed.

Stop the vehicle in a safe place, place the gearshift lever in
the “P” (PARK) position, and then open the engine hood
with the engine running to cool the engine.
After a while, check that the warning display has gone out.
If the display goes out, the vehicle can be driven normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
BK0123500US.book 99 ページ ２０１０年６月４日　金曜日　午後５時１分

3-100 Features and controls
3
NOTE
If the vehicle is continuously driven on hilly roads or in an
aggressive manner involving high engine rpm, sudden
acceleration and/or deceleration, the vehicle transmission
may vibrate.
This vibration is to alert the driver that the Twin Clutch
SST fluid temperature has risen. It does not indicate a
malfunction.
If this occurs, perform the same measures for when the
warning appears. If the vibration stops, the vehicle can be
driven normally.If vehicle is driven with warning displayed
If the vehicle continues to be driven after the warning dis-
play appears, and the temperature of the Twin Clutch SST fluid
continues to rise, the transmission protection control may oper-
ate and cause the transmission to function as if the gearshift
lever was in the “N” (NEUTRAL) position.
(At this time, the vehicle temporarily cannot be driven.)
If this occurs, take the following measures.
1. Depress the brake pedal and stop the vehicle in a safe
place.
2. Place the gearshift lever in the “P” (PARK) position, and
then open the engine hood with the engine running to cool
the engine.
3. After a while, check that the warning display has gone
out, and then stop the engine if the warning display has
gone out.
4. If the engine can be restarted, the vehicle can be driven
normally.
If the warning display remains on or comes on frequently, have
the vehicle checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
BK0123500US.book 100 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-101
3
When warning display is showing
N00543200042
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
If this occurs, perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the warning display goes out, there is no abnormal condi-
tion.
However, if the warning display remains on or comes on fre-
quently, have the vehicle checked by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as pos-
sible.
Gearshift lever positions (Main shift gate)
N00540100040
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “PARK”
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!
If the warning display is shown, such as when the
vehicle does not accelerate while traveling even if
the accelerator pedal is depressed, the vehicle may
not be able to be driven normally.
For safety, pay attention to your surroundings when
driving the vehicle.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged.
BK0123500US.book 101 ページ ２０１０年６月４日　金曜日　午後５時１分

3-102 Features and controls
3
“N” NEUTRALAt this position, the transmission is disengaged. It is the same
as the neutral position on a manual transaxle and should be
used when the vehicle is not moving for an extended length of
time during driving, such as in a traffic jam.
“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTE
For information on manual shift gate operation, please
refer to “Manual shift” on page 3-105.

When the engine is cold, upshifts occur at a higher vehicle
speed than when the engine is warm.
This control is performed to quickly warm up the engine.
It does not indicate a malfunction. After the vehicle has
been driven for a while, upshifts will occur at the regular
engine speeds.
WA R N I N G
!
Never move the gearshift lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or
“R”(REVERSE) position and the engine speed
could rise, damaging the transmission.
To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position.
Although the engine can be started when the vehicle
is in the “N” (NEUTRAL) position, for safety rea-
sons, do not start the engine in the “N” (NEUTRAL)
position.
Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL) position, or when
shifting into or out of “N” (NEUTRAL) position, to
prevent rolling.
CAUTION
!
Never shift into the “D” (DRIVE) position from the
“R” (REVERSE) position while the vehicle is in
motion.
If the lever is shifted into the “D” (DRIVE) from the
“R” (REVERSE) position while the vehicle is in
motion, the transmission may be damaged.
BK0123500US.book 102 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-103
3

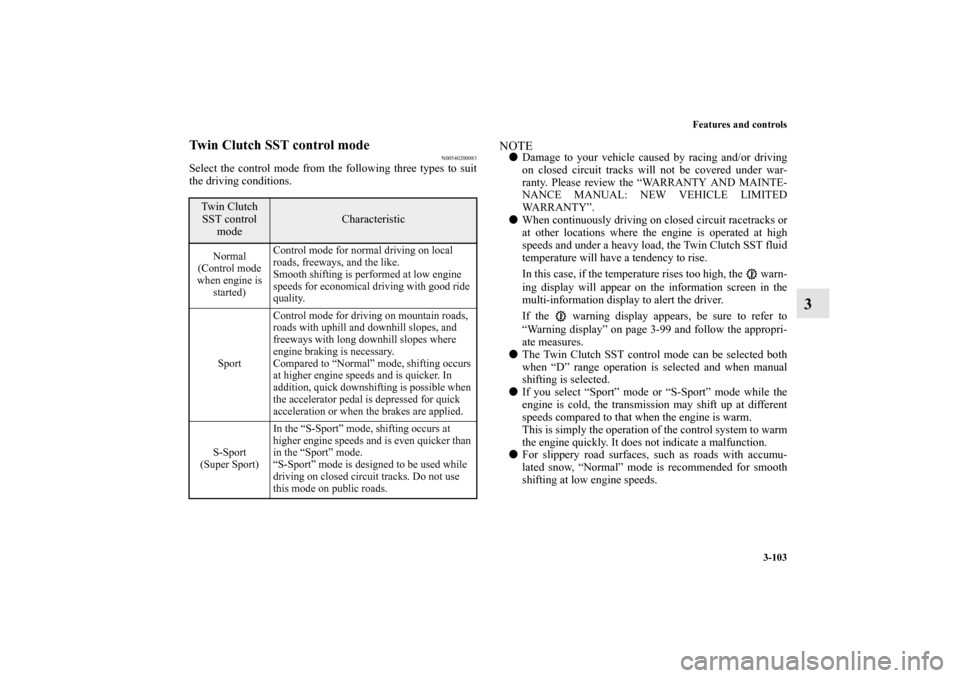

Twin Clutch SST control mode
N00540200083
Select the control mode from the following three types to suit
the driving conditions.
NOTE
Damage to your vehicle caused by racing and/or driving
on closed circuit tracks will not be covered under war-
ranty. Please review the “WARRANTY AND MAINTE-
NANCE MANUAL: NEW VEHICLE LIMITED
WARRANTY”.

When continuously driving on closed circuit racetracks or
at other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-99 and follow the appropri-
ate measures.

The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.

If you select “Sport” mode or “S-Sport” mode while the
engine is cold, the transmission may shift up at different
speeds compared to that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.

For slippery road surfaces, such as roads with accumu-
lated snow, “Normal” mode is recommended for smooth
shifting at low engine speeds.
Tw i n C l u t c h
SST control
mode
Characteristic
Normal
(Control mode
when engine is
started)Control mode for normal driving on local
roads, freeways, and the like.
Smooth shifting is performed at low engine
speeds for economical driving with good ride
quality.
SportControl mode for driving on mountain roads,
roads with uphill and downhill slopes, and
freeways with long downhill slopes where
engine braking is necessary.
Compared to “Normal” mode, shifting occurs
at higher engine speeds and is quicker. In
addition, quick downshifting is possible when
the accelerator pedal is depressed for quick
acceleration or when the brakes are applied.
S-Sport
(Super Sport)In the “S-Sport” mode, shifting occurs at
higher engine speeds and is even quicker than
in the “Sport” mode.
“S-Sport” mode is designed to be used while
driving on closed circuit tracks. Do not use
this mode on public roads.
BK0123500US.book 103 ページ ２０１０年６月４日　金曜日　午後５時１分

3-104 Features and controls
3
Twin Clutch SST control mode switch
N00540300013
When the ignition switch is set to the “ON” position, operate
the Twin Clutch SST control mode switch (A) to change the
control mode.
When the engine is started, the control mode is automatically
set to the “Normal” mode. Use the following procedures to
change the control mode.To shift from “Normal” mode to “Sport” mode
While the vehicle is stopped or being driven, push the Twin
Clutch SST control mode switch forward.
To shift from “Sport” mode to “S-Sport” mode
While the vehicle is stopped, push the Twin Clutch SST control
mode switch forward and hold it for 3 seconds or more.
To shift from “S-Sport” mode to “Sport” mode or
To shift from “Sport” mode to “Normal” mode
While the vehicle is stopped or being driven, push the Twin
Clutch SST control mode switch rearward.
NOTE
If the Twin Clutch SST control mode switch is continu-
ously pressed after a control mode has been selected, an
erroneous operation prevention function operates and the
control mode is automatically set to the “Normal” mode.
If you would like to select a control mode again, return the
ignition switch to the “ACC” or “LOCK” position and
restart the engine. Then, push the Twin Clutch SST con-
trol mode switch.
CAUTION
!
For safety reasons, shift from the “Sport” mode to
the “S-Sport” mode only when the vehicle is
stopped.
BK0123500US.book 104 ページ ２０１０年６月４日　金曜日　午後５時１分

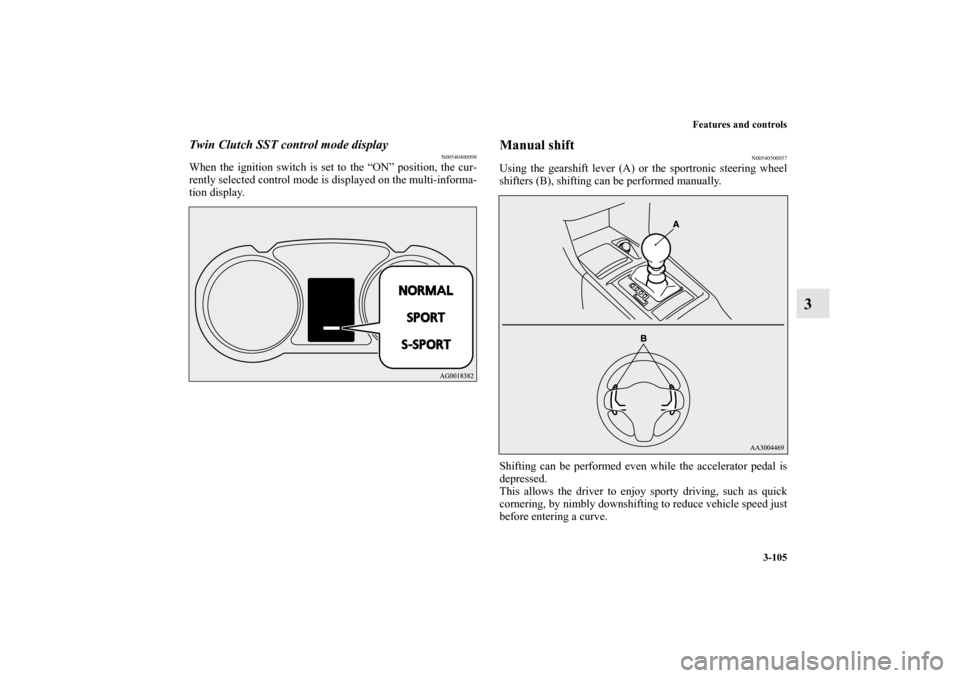

Features and controls
3-105
3
Twin Clutch SST control mode display
N00540400098
When the ignition switch is set to the “ON” position, the cur-
rently selected control mode is displayed on the multi-informa-
tion display.
Manual shift
N00540500057
Using the gearshift lever (A) or the sportronic steering wheel
shifters (B), shifting can be performed manually.
Shifting can be performed even while the accelerator pedal is
depressed.
This allows the driver to enjoy sporty driving, such as quick
cornering, by nimbly downshifting to reduce vehicle speed just
before entering a curve.
BK0123500US.book 105 ページ ２０１０年６月４日　金曜日　午後５時１分
