Features and controls
3-227
3
Confirmation function setting
N00564500019
The Bluetooth
® 2.0 interface is equipped with a confirmation
function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® 2.0 interface. This allows
you to decrease the possibility that a setting is accidentally
changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00564600052
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® 2.0 interface.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® 2.0 interface, except for reception. Setting the passcode
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.”
Say a 4-digit number which you want to set as a passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu.
NOTE
Passcode will be required to access the system after the
next ignition cycle.

It is required for a little time after engine stop that the
entered passcode is actually recorded in the system.
If the ignition switch is made to “ACC” or “ON” or the
engine is started immediately after engine stop, there is a
case when the entered passcode is not recorded in the sys-
tem. At this time, please try to enter the passcode again.
BK0123500US.book 227 ページ ２０１０年６月４日　金曜日　午後５時１分

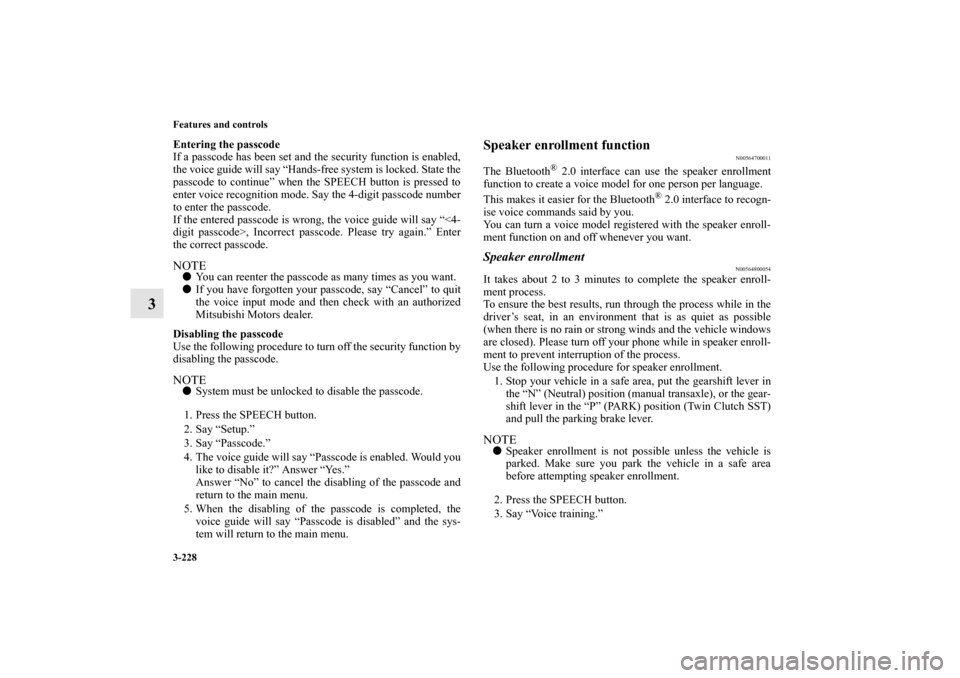

3-228 Features and controls
3
Entering the passcode
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free system is locked. State the
passcode to continue” when the SPEECH button is pressed to
enter voice recognition mode. Say the 4-digit passcode number
to enter the passcode.
If the entered passcode is wrong, the voice guide will say “<4-
digit passcode>, Incorrect passcode. Please try again.” Enter
the correct passcode. NOTE
You can reenter the passcode as many times as you want.

If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.
Disabling the passcode
Use the following procedure to turn off the security function by
disabling the passcode. NOTE
System must be unlocked to disable the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled” and the sys-
tem will return to the main menu.
Speaker enrollment function
N00564700011
The Bluetooth
® 2.0 interface can use the speaker enrollment
function to create a voice model for one person per language.
This makes it easier for the Bluetooth
® 2.0 interface to recogn-
ise voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
Speaker enrollment
N00564800054
It takes about 2 to 3 minutes to complete the speaker enroll-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed). Please turn off your phone while in speaker enroll-
ment to prevent interruption of the process.
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the gear-
shift lever in the “P” (PARK) position (Twin Clutch SST)
and pull the parking brake lever.NOTE
Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.
2. Press the SPEECH button.
3. Say “Voice training.”
BK0123500US.book 228 ページ ２０１０年６月４日　金曜日　午後５時１分

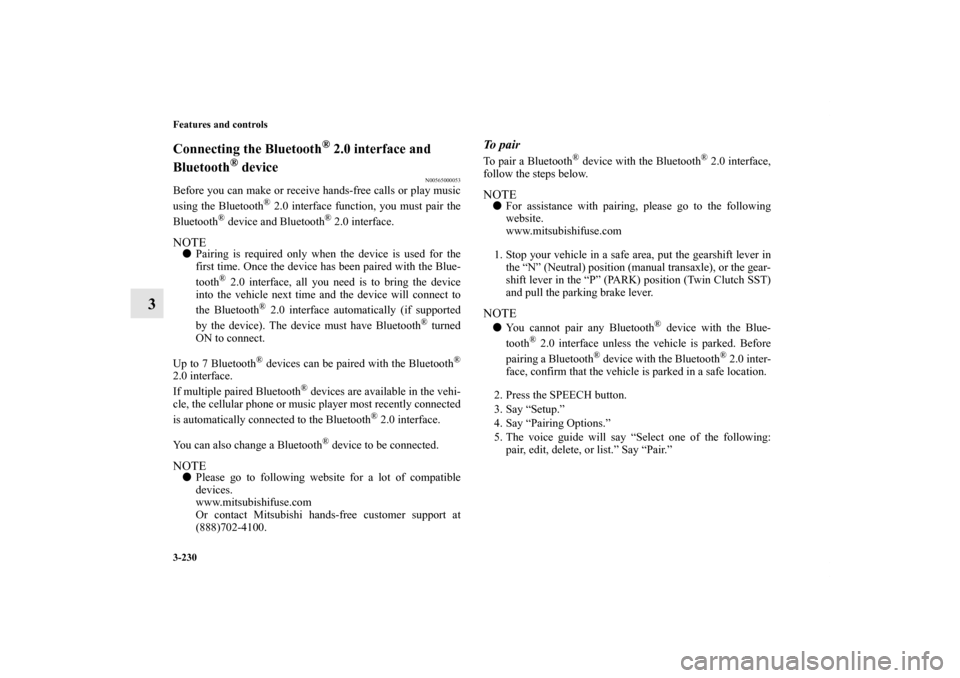

3-230 Features and controls
3
Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device
N00565000053
Before you can make or receive hands-free calls or play music
using the Bluetooth
® 2.0 interface function, you must pair the
Bluetooth
® device and Bluetooth
® 2.0 interface.
NOTE
Pairing is required only when the device is used for the
first time. Once the device has been paired with the Blue-
tooth
® 2.0 interface, all you need is to bring the device
into the vehicle next time and the device will connect to
the Bluetooth
® 2.0 interface automatically (if supported
by the device). The device must have Bluetooth
® turned
ON to connect.
Up to 7 Bluetooth
® devices can be paired with the Bluetooth
®
2.0 interface.
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can also change a Bluetooth
® device to be connected.
NOTE
Please go to following website for a lot of compatible
devices.
www.mitsubishifuse.com
Or contact Mitsubishi hands-free customer support at
(888)702-4100.
To pairTo pair a Bluetooth
® device with the Bluetooth
® 2.0 interface,
follow the steps below.
NOTE
For assistance with pairing, please go to the following
website.
www.mitsubishifuse.com
1. Stop your vehicle in a safe area, put the gearshift lever in
the “N” (Neutral) position (manual transaxle), or the gear-
shift lever in the “P” (PARK) position (Twin Clutch SST)
and pull the parking brake lever.NOTE
You cannot pair any Bluetooth
® device with the Blue-
tooth
® 2.0 interface unless the vehicle is parked. Before
pairing a Bluetooth
® device with the Bluetooth
® 2.0 inter-
face, confirm that the vehicle is parked in a safe location.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Pair.”
BK0123500US.book 230 ページ ２０１０年６月４日　金曜日　午後５時１分

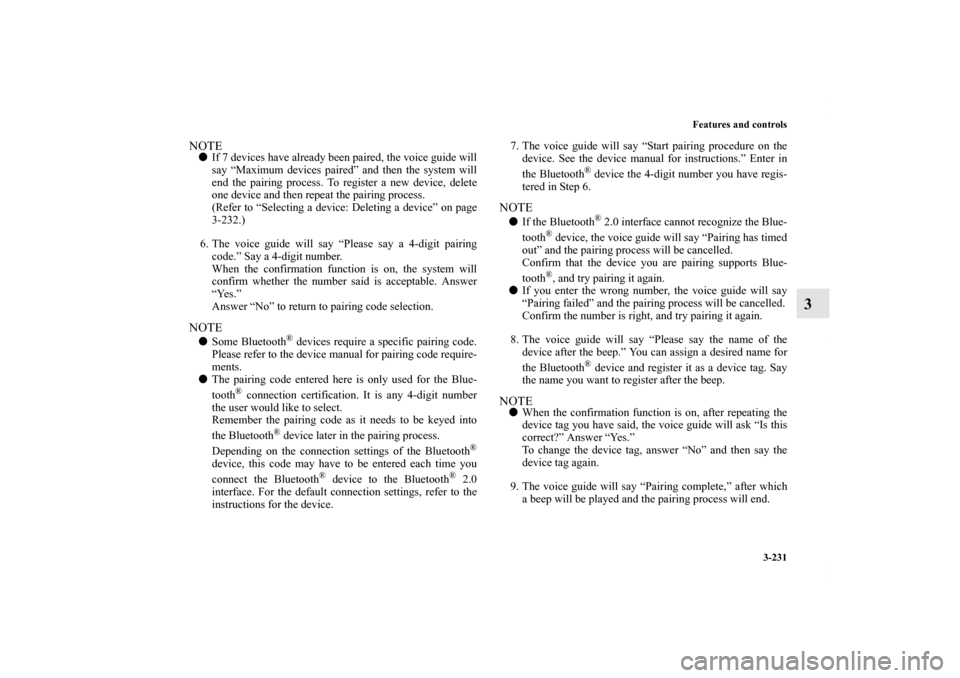

Features and controls
3-231
3
NOTE
If 7 devices have already been paired, the voice guide will
say “Maximum devices paired” and then the system will
end the pairing process. To register a new device, delete
one device and then repeat the pairing process.
(Refer to “Selecting a device: Deleting a device” on page
3-232.)
6. The voice guide will say “Please say a 4-digit pairing
code.” Say a 4-digit number.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Answer “No” to return to pairing code selection.NOTE
Some Bluetooth
® devices require a specific pairing code.
Please refer to the device manual for pairing code require-
ments.

The pairing code entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit number
the user would like to select.
Remember the pairing code as it needs to be keyed into
the Bluetooth
® device later in the pairing process.
Depending on the connection settings of the Bluetooth
®
device, this code may have to be entered each time you
connect the Bluetooth
® device to the Bluetooth
® 2.0
interface. For the default connection settings, refer to the
instructions for the device.7. The voice guide will say “Start pairing procedure on the
device. See the device manual for instructions.” Enter in
the Bluetooth
® device the 4-digit number you have regis-
tered in Step 6.
NOTE
If the Bluetooth
® 2.0 interface cannot recognize the Blue-
tooth
® device, the voice guide will say “Pairing has timed
out” and the pairing process will be cancelled.
Confirm that the device you are pairing supports Blue-
tooth®, and try pairing it again.

If you enter the wrong number, the voice guide will say
“Pairing failed” and the pairing process will be cancelled.
Confirm the number is right, and try pairing it again.
8. The voice guide will say “Please say the name of the
device after the beep.” You can assign a desired name for
the Bluetooth
® device and register it as a device tag. Say
the name you want to register after the beep.
NOTE
When the confirmation function is on, after repeating the
device tag you have said, the voice guide will ask “Is this
correct?” Answer “Yes.”
To change the device tag, answer “No” and then say the
device tag again.
9. The voice guide will say “Pairing complete,” after which
a beep will be played and the pairing process will end.
BK0123500US.book 231 ページ ２０１０年６月４日　金曜日　午後５時１分

3-232 Features and controls
3
Selecting a device
N00565100041
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can connect to the other paired cellular phone or music
player by following setting change procedures.
To select a cellular phone
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”
4. After the voice guide says “Please say,” the numbers of
the cellular phones and device tags of corresponding cel-
lular phones will be read out in order, starting with the cel-
lular phone that has been most recently connected.
Say the number of the cellular phone that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the phone that you want to connect to
is correct. Answer “Yes” to continue and connect to the
cellular phone.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the phone that you want to connect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the number, even before all of
the paired numbers and device tags of corresponding cel-
lular phones are read out by the system.5. The selected phone will be connected to the Bluetooth
®
2.0 interface. The voice guide will say “
selected” and then the system will return to the main
menu.
To select a music player
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select music player.”
4. After the voice guide says “Please say,” the numbers of
the music players and device tags of corresponding music
players will be read out in order, starting with the music
player that has been most recently connected.
Say the number of the music player that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the music player that you want to con-
nect to is correct. Answer “Yes” to continue and connect
to the music player.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the music player that you want to con-
nect to.
NOTE
You can connect to a music player at any time by pressing
the SPEECH button and saying the number, even before
all of the paired numbers and device tags of corresponding
music players are read out by the system.
BK0123500US.book 232 ページ ２０１０年６月４日　金曜日　午後５時１分

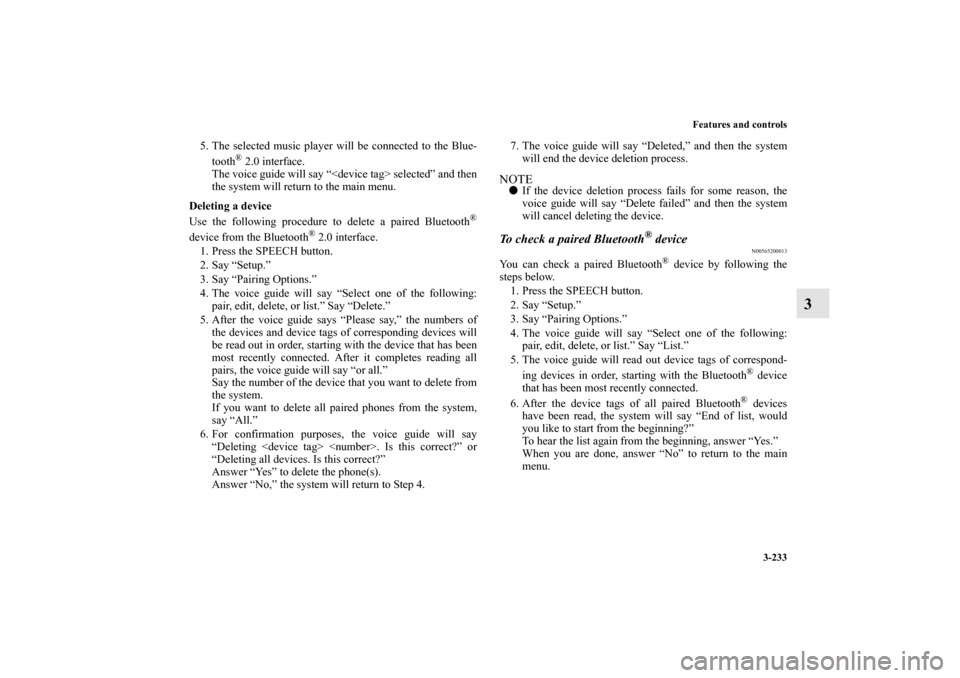

Features and controls
3-233
3
5. The selected music player will be connected to the Blue-
tooth
® 2.0 interface.
The voice guide will say “ selected” and then
the system will return to the main menu.
Deleting a device
Use the following procedure to delete a paired Bluetooth
®
device from the Bluetooth
® 2.0 interface.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Delete.”
5. After the voice guide says “Please say,” the numbers of
the devices and device tags of corresponding devices will
be read out in order, starting with the device that has been
most recently connected. After it completes reading all
pairs, the voice guide will say “or all.”
Say the number of the device that you want to delete from
the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say
“Deleting . Is this correct?” or
“Deleting all devices. Is this correct?”
Answer “Yes” to delete the phone(s).
Answer “No,” the system will return to Step 4.7. The voice guide will say “Deleted,” and then the system
will end the device deletion process.
NOTE
If the device deletion process fails for some reason, the
voice guide will say “Delete failed” and then the system
will cancel deleting the device.To check a paired Bluetooth
® device
N00565200013
You can check a paired Bluetooth
® device by following the
steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “List.”
5. The voice guide will read out device tags of correspond-
ing devices in order, starting with the Bluetooth
® device
that has been most recently connected.
6. After the device tags of all paired Bluetooth
® devices
have been read, the system will say “End of list, would
you like to start from the beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
BK0123500US.book 233 ページ ２０１０年６月４日　金曜日　午後５時１分

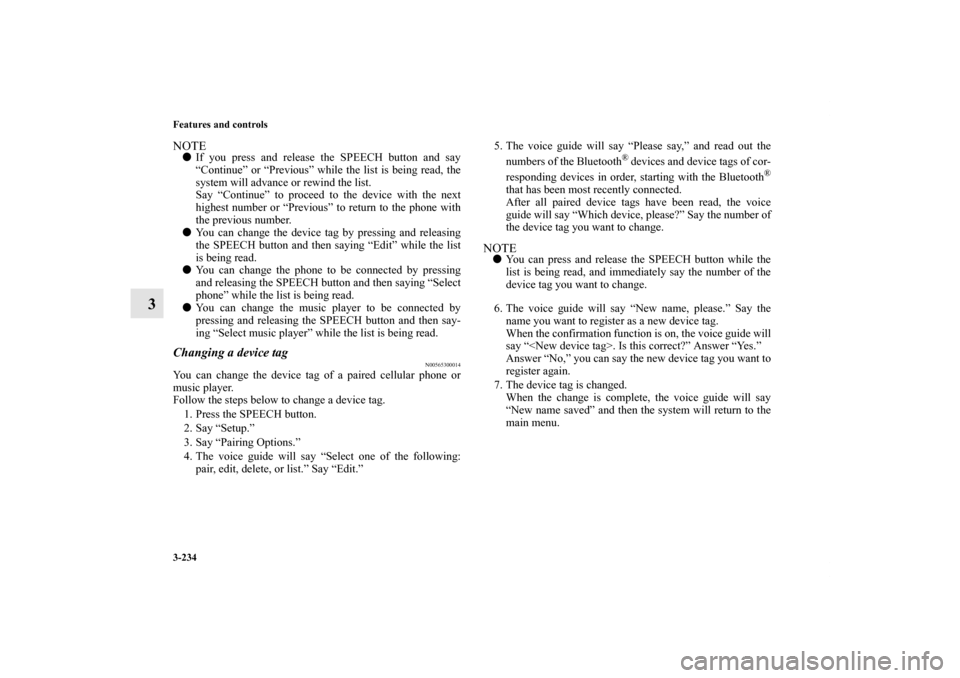

3-234 Features and controls
3
NOTE
If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list.
Say “Continue” to proceed to the device with the next
highest number or “Previous” to return to the phone with
the previous number.

You can change the device tag by pressing and releasing
the SPEECH button and then saying “Edit” while the list
is being read.

You can change the phone to be connected by pressing
and releasing the SPEECH button and then saying “Select
phone” while the list is being read.

You can change the music player to be connected by
pressing and releasing the SPEECH button and then say-
ing “Select music player” while the list is being read.Changing a device tag
N00565300014
You can change the device tag of a paired cellular phone or
music player.
Follow the steps below to change a device tag.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Edit.”5. The voice guide will say “Please say,” and read out the
numbers of the Bluetooth
® devices and device tags of cor-
responding devices in order, starting with the Bluetooth
®
that has been most recently connected.
After all paired device tags have been read, the voice
guide will say “Which device, please?” Say the number of
the device tag you want to change.
NOTE
You can press and release the SPEECH button while the
list is being read, and immediately say the number of the
device tag you want to change.
6. The voice guide will say “New name, please.” Say the
name you want to register as a new device tag.
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
Answer “No,” you can say the new device tag you want to
register again.
7. The device tag is changed.
When the change is complete, the voice guide will say
“New name saved” and then the system will return to the
main menu.
BK0123500US.book 234 ページ ２０１０年６月４日　金曜日　午後５時１分

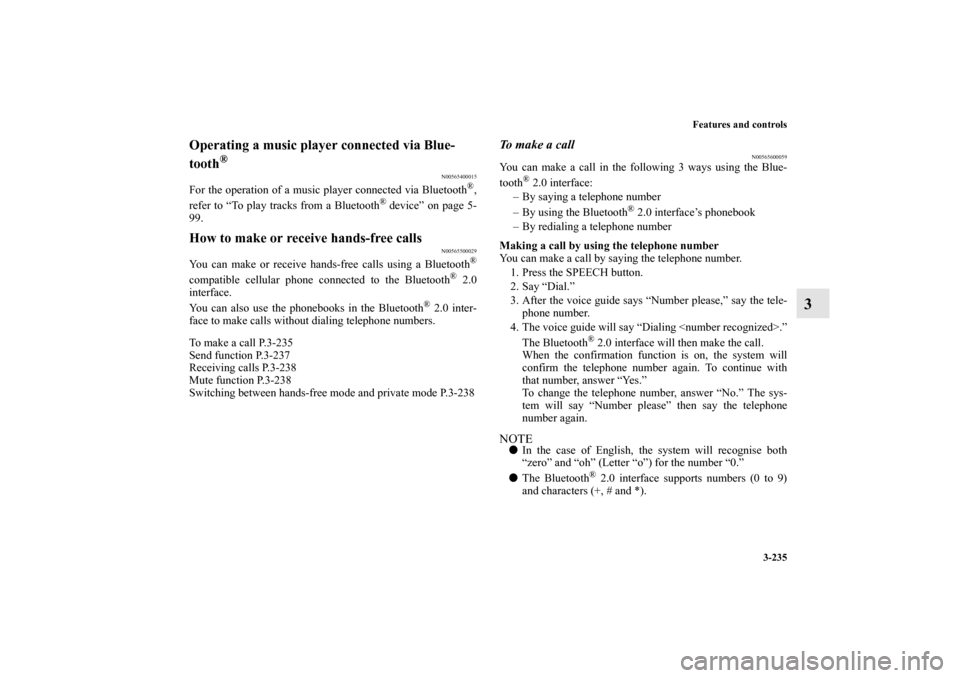

Features and controls
3-235
3
Operating a music player connected via Blue-
tooth
®
N00565400015
For the operation of a music player connected via Bluetooth
®,
refer to “To play tracks from a Bluetooth
® device” on page 5-
99.
How to make or receive hands-free calls
N00565500029
You can make or receive hands-free calls using a Bluetooth
®
compatible cellular phone connected to the Bluetooth
® 2.0
interface.
You can also use the phonebooks in the Bluetooth
® 2.0 inter-
face to make calls without dialing telephone numbers.
To make a call P.3-235
Send function P.3-237
Receiving calls P.3-238
Mute function P.3-238
Switching between hands-free mode and private mode P.3-238
To make a call
N00565600059
You can make a call in the following 3 ways using the Blue-
tooth
® 2.0 interface:
– By saying a telephone number
– By using the Bluetooth
® 2.0 interface’s phonebook
– By redialing a telephone number
Making a call by using the telephone number
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number please,” say the tele-
phone number.
4. The voice guide will say “Dialing .”
The Bluetooth
® 2.0 interface will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No.” The sys-
tem will say “Number please” then say the telephone
number again.
NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”

The Bluetooth
® 2.0 interface supports numbers (0 to 9)
and characters (+, # and *).
BK0123500US.book 235 ページ ２０１０年６月４日　金曜日　午後５時１分

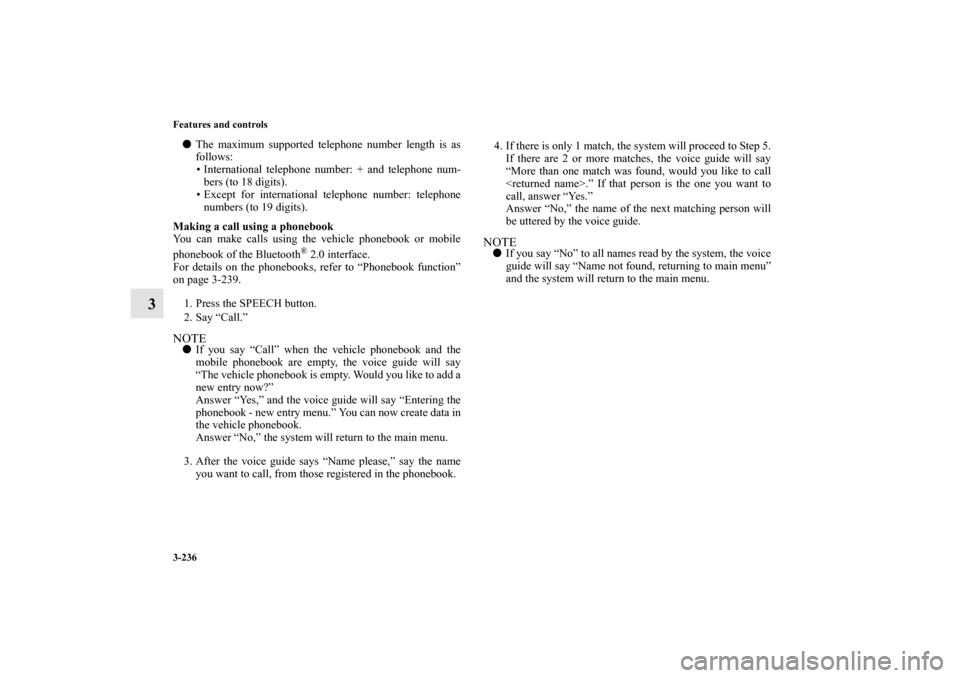

3-236 Features and controls
3

The maximum supported telephone number length is as
follows:
• International telephone number: + and telephone num-
bers (to 18 digits).
• Except for international telephone number: telephone
numbers (to 19 digits).
Making a call using a phonebook
You can make calls using the vehicle phonebook or mobile
phonebook of the Bluetooth
® 2.0 interface.
For details on the phonebooks, refer to “Phonebook function”
on page 3-239.
1. Press the SPEECH button.
2. Say “Call.”
NOTE
If you say “Call” when the vehicle phonebook and the
mobile phonebook are empty, the voice guide will say
“The vehicle phonebook is empty. Would you like to add a
new entry now?”
Answer “Yes,” and the voice guide will say “Entering the
phonebook - new entry menu.” You can now create data in
the vehicle phonebook.
Answer “No,” the system will return to the main menu.
3. After the voice guide says “Name please,” say the name
you want to call, from those registered in the phonebook.4. If there is only 1 match, the system will proceed to Step 5.
If there are 2 or more matches, the voice guide will say
“More than one match was found, would you like to call
.” If that person is the one you want to
call, answer “Yes.”
Answer “No,” the name of the next matching person will
be uttered by the voice guide.
NOTE
If you say “No” to all names read by the system, the voice
guide will say “Name not found, returning to main menu”
and the system will return to the main menu.
BK0123500US.book 236 ページ ２０１０年６月４日　金曜日　午後５時１分

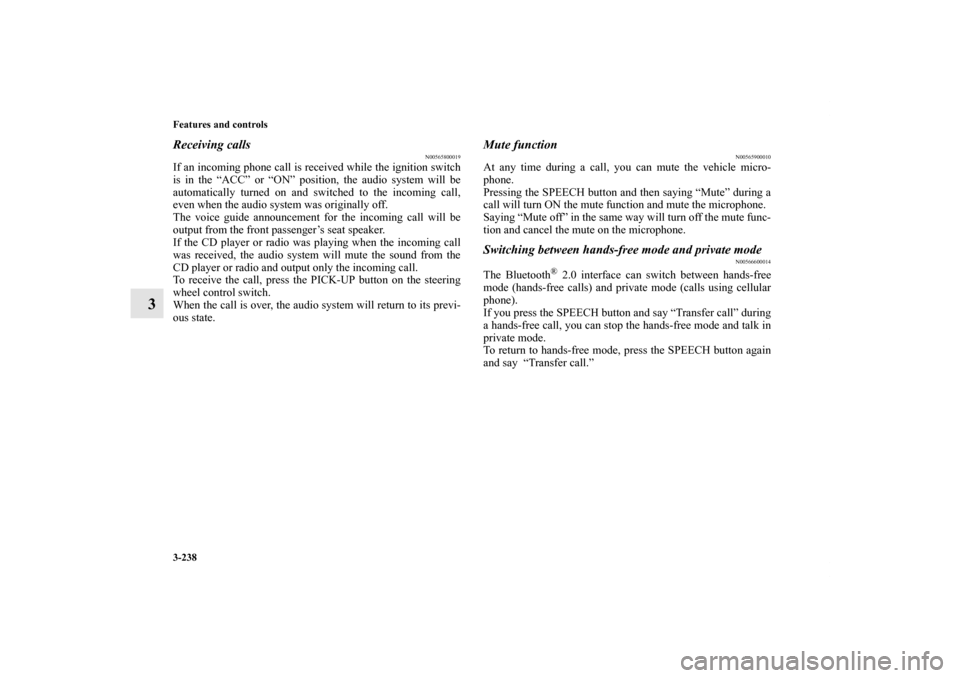

3-238 Features and controls
3
Receiving calls
N00565800019
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and switched to the incoming call,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the incoming call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
Mute function
N00565900010
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the mute function and mute the microphone.
Saying “Mute off” in the same way will turn off the mute func-
tion and cancel the mute on the microphone.Switching between hands-free mode and private mode
N00566600014
The Bluetooth
® 2.0 interface can switch between hands-free
mode (hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a hands-free call, you can stop the hands-free mode and talk in
private mode.
To return to hands-free mode, press the SPEECH button again
and say “Transfer call.”
BK0123500US.book 238 ページ ２０１０年６月４日　金曜日　午後５時１分
