bluetooth MITSUBISHI LANCER EVOLUTION 2011 10.G Owner's Manual

Features and controls
3-239
3

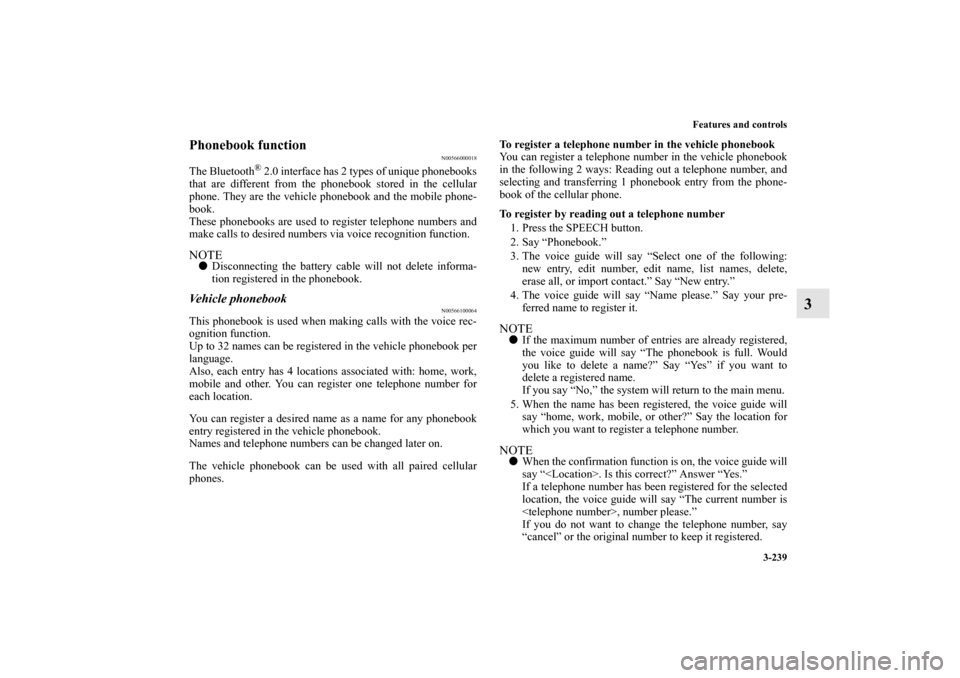

Phonebook function
N00566000018
The Bluetooth
® 2.0 interface has 2 types of unique phonebooks
that are different from the phonebook stored in the cellular
phone. They are the vehicle phonebook and the mobile phone-
book.
These phonebooks are used to register telephone numbers and
make calls to desired numbers via voice recognition function.
NOTE
Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.Vehicle phonebook
N00566100064
This phonebook is used when making calls with the voice rec-
ognition function.
Up to 32 names can be registered in the vehicle phonebook per
language.
Also, each entry has 4 locations associated with: home, work,
mobile and other. You can register one telephone number for
each location.
You can register a desired name as a name for any phonebook
entry registered in the vehicle phonebook.
Names and telephone numbers can be changed later on.
The vehicle phonebook can be used with all paired cellular
phones.To register a telephone number in the vehicle phonebook
You can register a telephone number in the vehicle phonebook
in the following 2 ways: Reading out a telephone number, and
selecting and transferring 1 phonebook entry from the phone-
book of the cellular phone.
To register by reading out a telephone number
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “New entry.”
4. The voice guide will say “Name please.” Say your pre-
ferred name to register it.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. When the name has been registered, the voice guide will
say “home, work, mobile, or other?” Say the location for
which you want to register a telephone number.NOTE
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
“cancel” or the original number to keep it registered.
BK0123500US.book 239 ページ ２０１０年６月４日　金曜日　午後５時１分

3-240 Features and controls
3

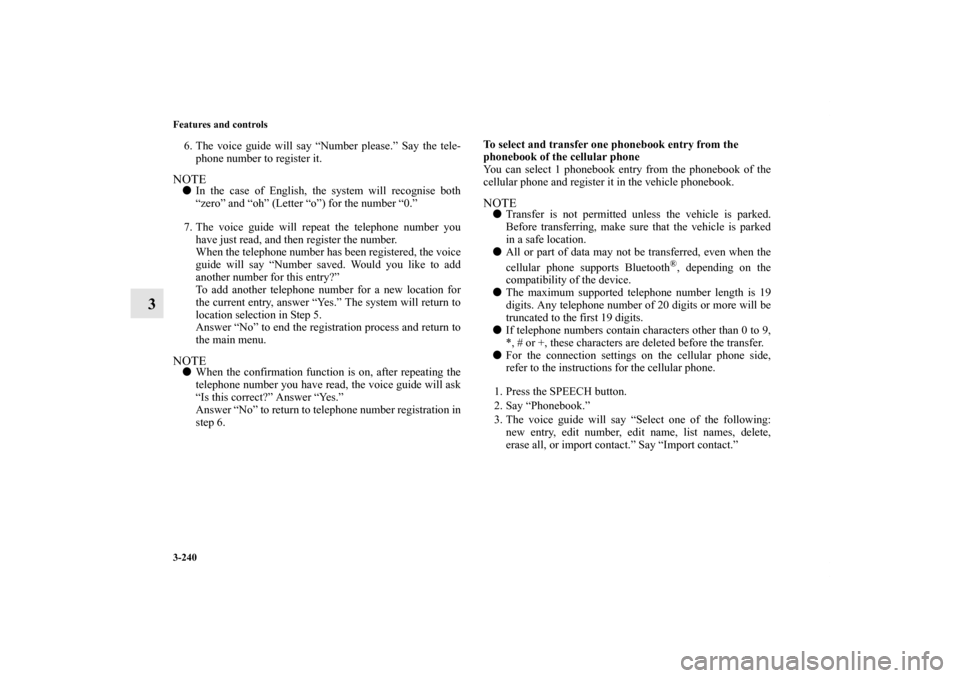

6. The voice guide will say “Number please.” Say the tele-
phone number to register it.NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the telephone number you
have just read, and then register the number.
When the telephone number has been registered, the voice
guide will say “Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 5.
Answer “No” to end the registration process and return to
the main menu.NOTE
When the confirmation function is on, after repeating the
telephone number you have read, the voice guide will ask
“Is this correct?” Answer “Yes.”
Answer “No” to return to telephone number registration in
step 6.To select and transfer one phonebook entry from the
phonebook of the cellular phone
You can select 1 phonebook entry from the phonebook of the
cellular phone and register it in the vehicle phonebook.
NOTE
Transfer is not permitted unless the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
BK0123500US.book 240 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-241
3

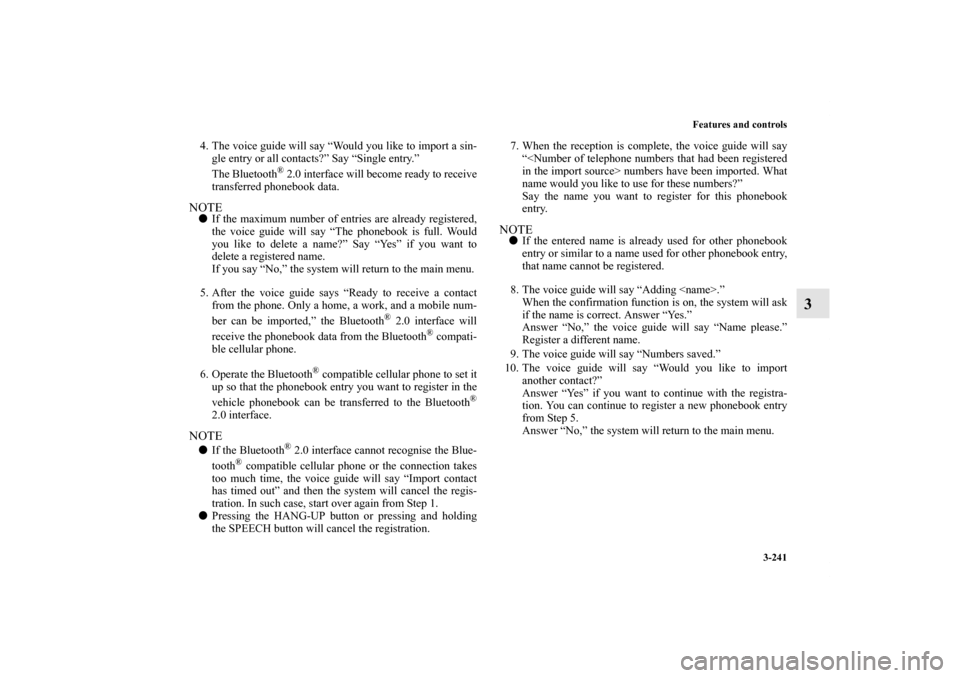

4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “Single entry.”
The Bluetooth
® 2.0 interface will become ready to receive
transferred phonebook data.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. After the voice guide says “Ready to receive a contact
from the phone. Only a home, a work, and a mobile num-
ber can be imported,” the Bluetooth
® 2.0 interface will
receive the phonebook data from the Bluetooth
® compati-
ble cellular phone.
6. Operate the Bluetooth
® compatible cellular phone to set it
up so that the phonebook entry you want to register in the
vehicle phonebook can be transferred to the Bluetooth
®
2.0 interface.
NOTE
If the Bluetooth
® 2.0 interface cannot recognise the Blue-
tooth
® compatible cellular phone or the connection takes
too much time, the voice guide will say “Import contact
has timed out” and then the system will cancel the regis-
tration. In such case, start over again from Step 1.

Pressing the HANG-UP button or pressing and holding
the SPEECH button will cancel the registration.7. When the reception is complete, the voice guide will say
“ in the import source> numbers have been imported. What
name would you like to use for these numbers?”
Say the name you want to register for this phonebook
entry.
NOTE
If the entered name is already used for other phonebook
entry or similar to a name used for other phonebook entry,
that name cannot be registered.
8. The voice guide will say “Adding .”
When the confirmation function is on, the system will ask
if the name is correct. Answer “Yes.”
Answer “No,” the voice guide will say “Name please.”
Register a different name.
9. The voice guide will say “Numbers saved.”
10. The voice guide will say “Would you like to import
another contact?”
Answer “Yes” if you want to continue with the registra-
tion. You can continue to register a new phonebook entry
from Step 5.
Answer “No,” the system will return to the main menu.
BK0123500US.book 241 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-243
3
[Editing a name]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Edit name.”
4. The voice guide will say “Please say the name of the entry
you would like to edit, or say list names.” Say the name
you want to edit.NOTE
Say “List names,” and the names registered in the phone-
book are read out in order. Refer to “Vehicle phonebook:
Listening to the list of registered names” on page 3-239.
5. The voice guide will say “Changing .”
When the confirmation function is on, the system will
check if the name is correct. Answer “Yes” if you want to
continue with the editing based on this information.
Answer “No,” the system will return to Step 4.
6. The voice guide will say “Name please.” Say the new
name you want to register.
7. The registered name will be changed.
When the change is complete, the system will return to the
main menu.[Listening to the list of registered names]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “List names.”
4. Bluetooth
® 2.0 interface will read out the entries in the
phonebook in order.
5. When the voice guide is done reading the list, it will say
“End of list, would you like to start from the beginning?”
When you want to check the list again from the beginning,
answer “Yes.”
When you are done, answer “No” to return to the previous
or main menu.
NOTE
You can call, edit or delete a name that is being read out.
Press the SPEECH button and say “Call” to call the name,
“Edit name” to edit it, or “Delete” to delete it.
The system will beep and then execute your command.

If you press the SPEECH button and say “Continue” or
“Previous” while the list is being read, the system will
advance or rewind the list. Say “Continue” to proceed to
the next entry or “Previous” to return to the previous
entry.
BK0123500US.book 243 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-245
3
Erasing the phonebook
You can delete all registered information from the vehicle
phonebook.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Erase all.”
4. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
5. The voice guide will say “You are about to delete every-
thing from your hands-free system phonebook. Do you
want to continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
6. The voice guide will say “Please wait, erasing the hands-
free system phonebook” and then the system will delete
all data in the phonebook.
When the deletion is complete, the voice guide will say
“Hands-free system phonebook erased” and then the sys-
tem will return to the main menu.
Mobile phonebook
N00566200010
All entries in the phonebook stored in the cellular phone can be
transferred in a batch and registered in the mobile phonebook.
Up to 7 mobile phonebooks, each containing up to 1,000
names, can be registered.
The Bluetooth
® 2.0 interface automatically converts from text
to voice the names registered in the transferred phonebook
entries, and creates names.
NOTE
Only the mobile phonebook transferred from the con-
nected cellular phone can be used with that cellular phone.

You cannot change the names and telephone numbers in
the phonebook entries registered in the mobile phone-
book. You cannot select and delete specific phonebook
entries, either.
To change or delete any of the above, change the applica-
ble information in the source phonebook of the cellular
phone and then transfer the phonebook again.
BK0123500US.book 245 ページ ２０１０年６月４日　金曜日　午後５時１分

3-246 Features and controls
3

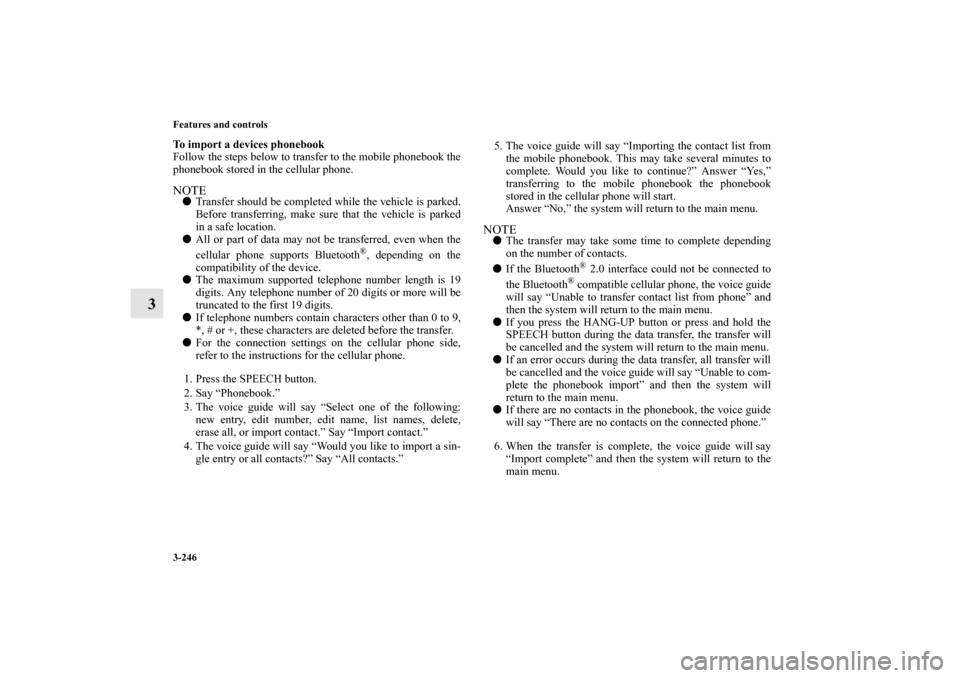

To import a devices phonebook
Follow the steps below to transfer to the mobile phonebook the
phonebook stored in the cellular phone.NOTE
Transfer should be completed while the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “All contacts.”5. The voice guide will say “Importing the contact list from
the mobile phonebook. This may take several minutes to
complete. Would you like to continue?” Answer “Yes,”
transferring to the mobile phonebook the phonebook
stored in the cellular phone will start.
Answer “No,” the system will return to the main menu.
NOTE
The transfer may take some time to complete depending
on the number of contacts.

If the Bluetooth
® 2.0 interface could not be connected to
the Bluetooth
® compatible cellular phone, the voice guide
will say “Unable to transfer contact list from phone” and
then the system will return to the main menu.

If you press the HANG-UP button or press and hold the
SPEECH button during the data transfer, the transfer will
be cancelled and the system will return to the main menu.

If an error occurs during the data transfer, all transfer will
be cancelled and the voice guide will say “Unable to com-
plete the phonebook import” and then the system will
return to the main menu.

If there are no contacts in the phonebook, the voice guide
will say “There are no contacts on the connected phone.”
6. When the transfer is complete, the voice guide will say
“Import complete” and then the system will return to the
main menu.
BK0123500US.book 246 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-247
3
General information
N00566300037
MODEL: MMC FCC ID: CB2MDGMY10 IC: 279B-
MDGMY10
Your Bluetooth
® 2.0 interface operates on a radio frequency
subject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
Enrollment Commands
N00566400067
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0123500US.book 247 ページ ２０１０年６月４日　金曜日　午後５時１分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 12
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 22
Important air conditioning operating tips . . . . . . .5- 32
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 33
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible) (if so equipped) .5- 33
AM/FM electronically tuned radio with 6 CD
autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 82
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 99
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5-103
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5-105Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 108
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 110
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 112
Error codes (USB memory device) . . . . . . . . . . . . 5- 114
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 116
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 119
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 5- 119
General information about your radio . . . . . . . . . . 5- 120
BK0123500US.book 1 ページ ２０１０年６月４日　金曜日　午後５時１分

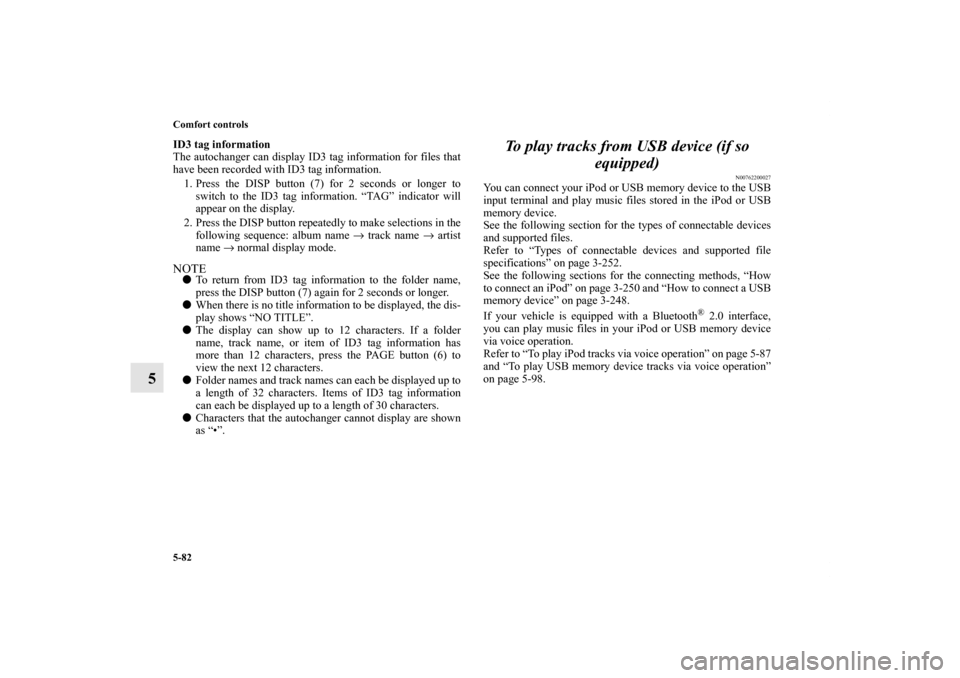

5-82 Comfort controls
5
ID3 tag information
The autochanger can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button (7) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will
appear on the display.
2. Press the DISP button repeatedly to make selections in the
following sequence: album name → track name → artist
name → normal display mode.NOTE
To return from ID3 tag information to the folder name,
press the DISP button (7) again for 2 seconds or longer.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the PAGE button (6) to
view the next 12 characters.

Folder names and track names can each be displayed up to
a length of 32 characters. Items of ID3 tag information
can each be displayed up to a length of 30 characters.

Characters that the autochanger cannot display are shown
as “•”.
To play tracks from USB device (if so
equipped)
N00762200027
You can connect your iPod or USB memory device to the USB
input terminal and play music files stored in the iPod or USB
memory device.
See the following section for the types of connectable devices
and supported files.
Refer to “Types of connectable devices and supported file
specifications” on page 3-252.
See the following sections for the connecting methods, “How
to connect an iPod” on page 3-250 and “How to connect a USB
memory device” on page 3-248.
If your vehicle is equipped with a Bluetooth
® 2.0 interface,
you can play music files in your iPod or USB memory device
via voice operation.
Refer to “To play iPod tracks via voice operation” on page 5-87
and “To play USB memory device tracks via voice operation”
on page 5-98.
BK0123500US.book 82 ページ ２０１０年６月４日　金曜日　午後５時１分

5-84 Comfort controls
5
To play from an iPod
N00762400061
1. Press the PWR button (3) to turn on the audio system. The
system turns on in the last mode used.
2. Connect your iPod to the USB input terminal.
Refer to “How to connect an iPod” on page 3-250.
3. Press the CD button (2) several times to switch to the iPod
mode. The input mode changes every time the CD button
is pressed.
CD mode → iPod mode → Bluetooth
® mode (if so
equipped)
NOTE
If your vehicle is equipped with audio/video input RCA
terminals, pressing and holding the CD button for 2 sec-
onds or more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “i”
appears on the display.NOTE
Depending on the condition of your iPod, it may take a
longer time before the playback starts.5. To stop the playback, press the RADIO button (1) or CD
button (2) to switch to a different mode.
NOTE
Buttons on the iPod are disabled while the iPod is con-
nected to the audio system.

To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-35, 5-55 and “To adjust the tone” on page
5-35, 5-55.To fast-forward/reverse the track
N00762500017
To fast-forward/reverse the current track, press the button
(9) or button (8).
Fast-forward
To fast-forward the current track, press the button (9).
While the button is pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button (8). While
the button is pressed, the track will be fast-reversed.
BK0123500US.book 84 ページ ２０１０年６月４日　金曜日　午後５時１分
