MITSUBISHI LANCER EVOLUTION 2011 10.G Owners Manual

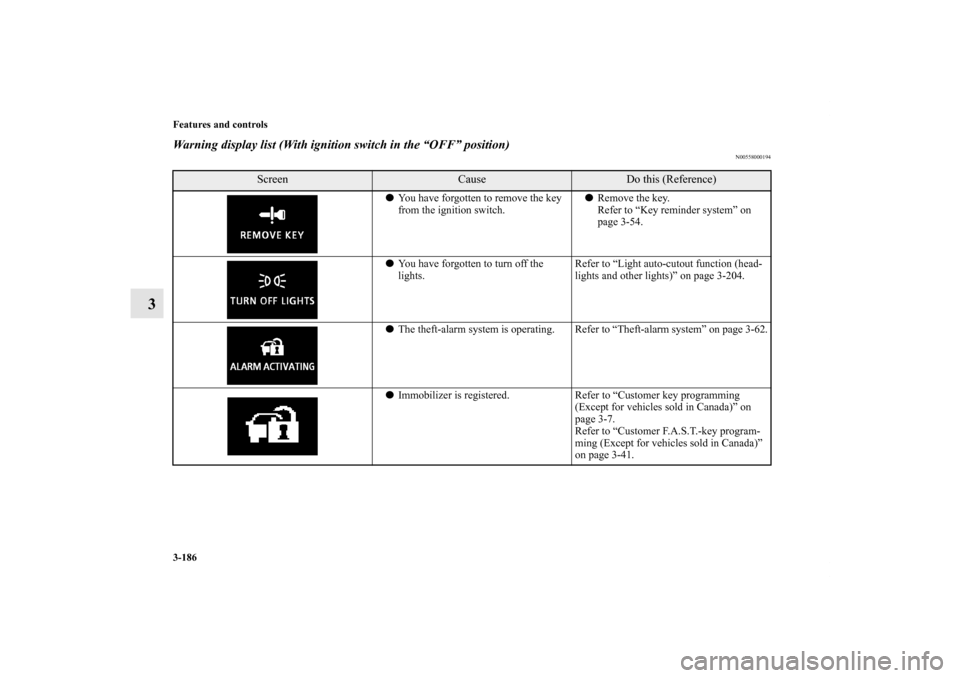

3-186 Features and controls
3
Warning display list (With ignition switch in the “OFF” position)
N00558000194
Screen
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-54.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-204.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-62.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-41.
BK0123500US.book 186 ページ ２０１０年６月４日　金曜日　午後５時１分

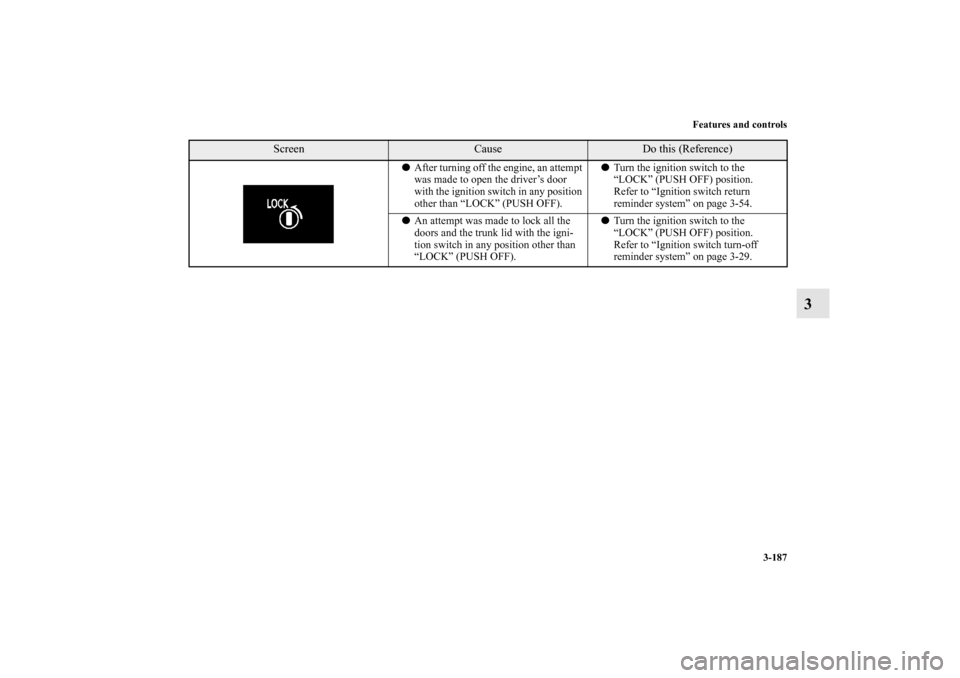

Features and controls
3-187
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-54.

An attempt was made to lock all the
doors and the trunk lid with the igni-
tion switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
Screen
Cause
Do this (Reference)
BK0123500US.book 187 ページ ２０１０年６月４日　金曜日　午後５時１分

3-188 Features and controls
3

There is a fault in the F. A. S. T. -key. Refer to “F. A. S. T. -key” on page 3-17.
Screen
Cause
Do this (Reference)
BK0123500US.book 188 ページ ２０１０年６月４日　金曜日　午後５時１分

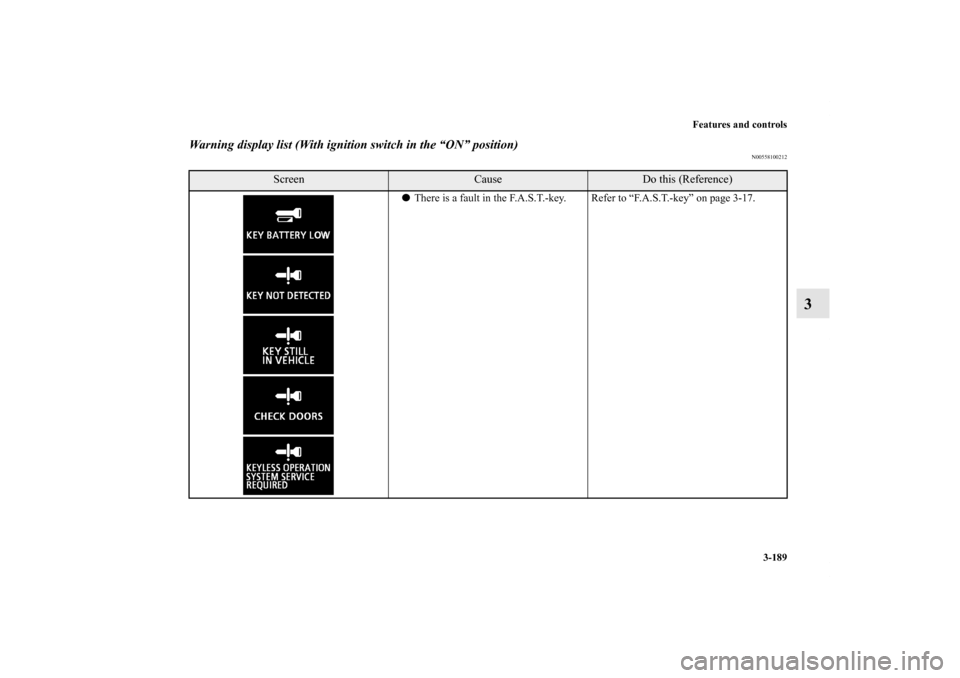

Features and controls
3-189
3
Warning display list (With ignition switch in the “ON” position)
N00558100212
Screen
Cause
Do this (Reference)

There is a fault in the F.A.S.T.-key. Refer to “F.A.S.T.-key” on page 3-17.
BK0123500US.book 189 ページ ２０１０年６月４日　金曜日　午後５時１分

3-190 Features and controls
3

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-41.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-199.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light / display” on page 3-125.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire pressure monitoring system
warning light / display” on page 3-144.

There is a fault in the Tire pressure
monitoring system.Refer to “Tire pressure monitoring system
warning light / display” on page 3-144.
Screen
Cause
Do this (Reference)
BK0123500US.book 190 ページ ２０１０年６月４日　金曜日　午後５時１分

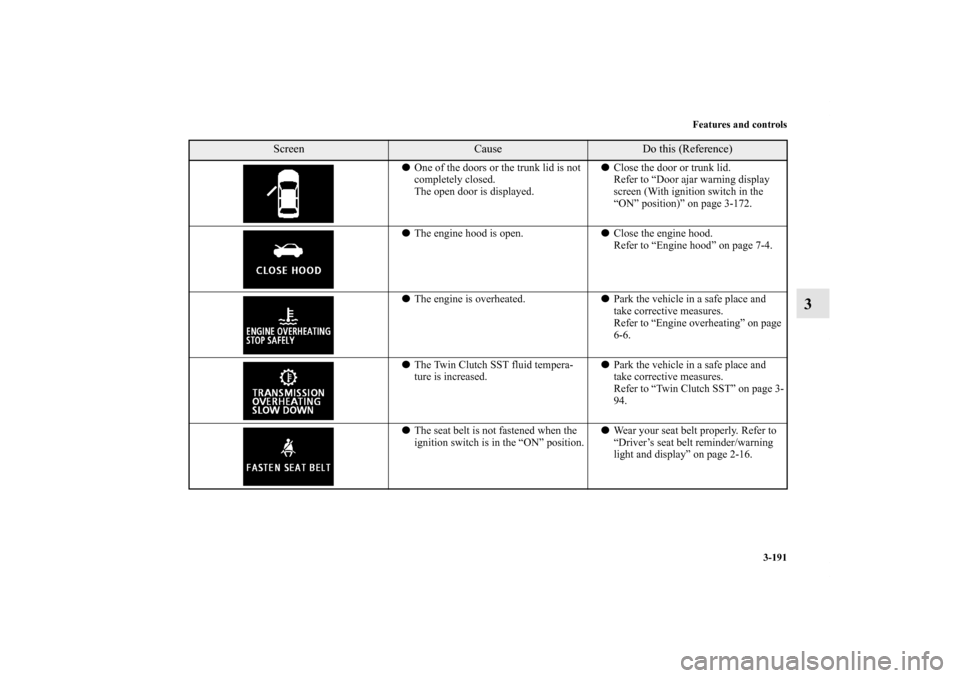

Features and controls
3-191
3

One of the doors or the trunk lid is not
completely closed.
The open door is displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-172.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-6.

The Twin Clutch SST fluid tempera-
ture is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Twin Clutch SST” on page 3-
94.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly. Refer to
“Driver’s seat belt reminder/warning
light and display” on page 2-16.
Screen
Cause
Do this (Reference)
BK0123500US.book 191 ページ ２０１０年６月４日　金曜日　午後５時１分

3-192 Features and controls
3

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
199.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning” on
page 3-201.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
display” on page 3-198.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/display”
on page 2-42.
Screen
Cause
Do this (Reference)
BK0123500US.book 192 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-193
3

There is a fault in the Active stability
control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active stability control
(ASC)” on page 3-128.

There is a fault in the S-AWC (Super-
All Wheel Control).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “S-AWC (Super-All Wheel
Control)” on page 3-118.

A safety device in the Twin Clutch SST
has been activated due to a possible
malfunction in the Twin Clutch SST or
in the engine electronic control mod-
ule.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Twin Clutch SST” on page 3-
94.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining warning display” on
page 3-168.

The outside temperature is 37°F (3°C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen
Cause
Do this (Reference)
BK0123500US.book 193 ページ ２０１０年６月４日　金曜日　午後５時１分

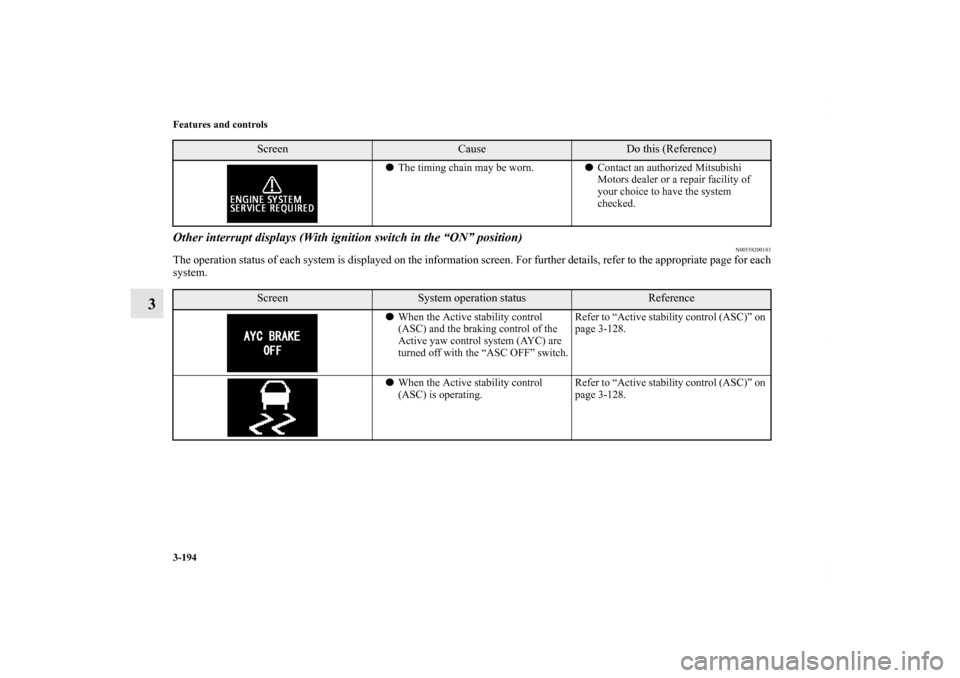

3-194 Features and controls
3
Other interrupt displays (With ignition switch in the “ON” position)
N00558200183
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen
System operation status
Reference

When the Active stability control
(ASC) and the braking control of the
Active yaw control system (AYC) are
turned off with the “ASC OFF” switch.Refer to “Active stability control (ASC)” on
page 3-128.

When the Active stability control
(ASC) is operating.Refer to “Active stability control (ASC)” on
page 3-128.
Screen
Cause
Do this (Reference)
BK0123500US.book 194 ページ ２０１０年６月４日　金曜日　午後５時１分

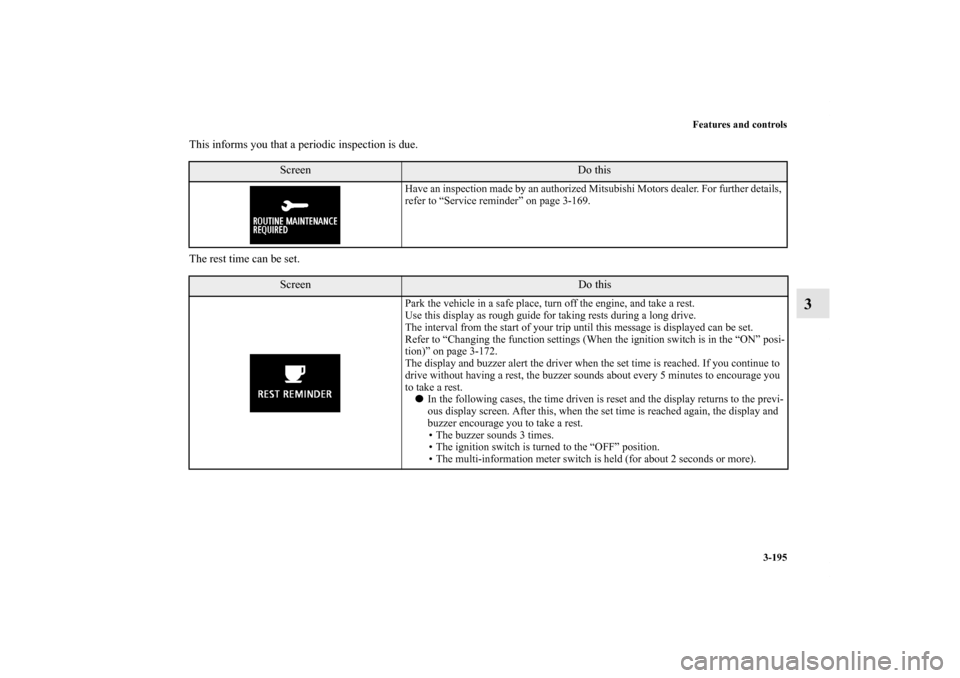

Features and controls
3-195
3
This informs you that a periodic inspection is due.
The rest time can be set.
Screen
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-169.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (When the ignition switch is in the “ON” posi-
tion)” on page 3-172.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.

In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position.
• The multi-information meter switch is held (for about 2 seconds or more).
