Features and controls
3-153

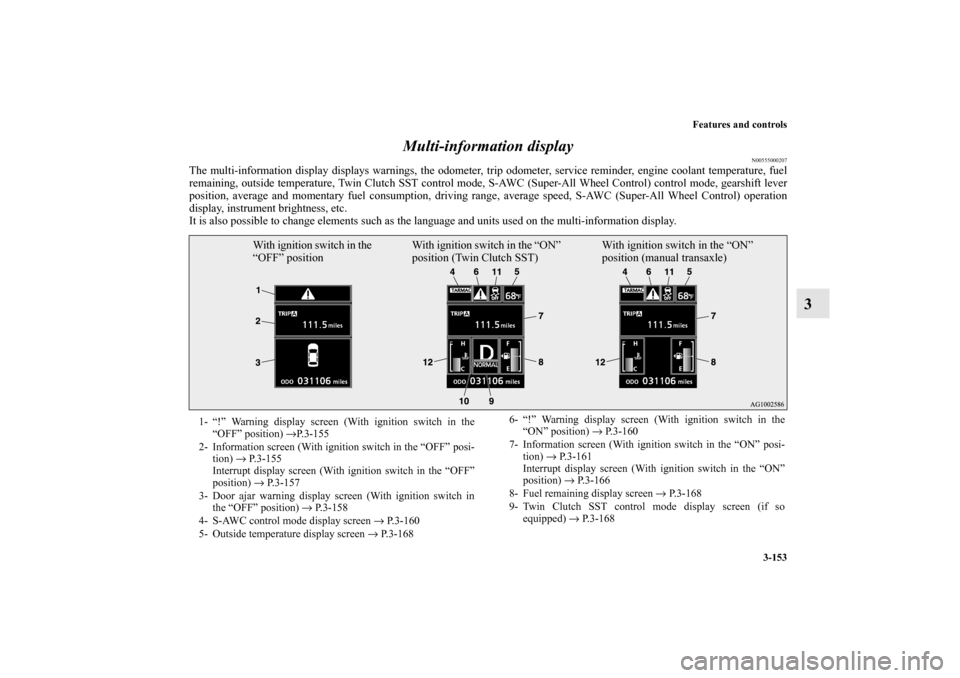

3 Multi-information display
N00555000207
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, S-AWC (Super-All Wheel Control) control mode, gearshift lever
position, average and momentary fuel consumption, driving range, average speed, S-AWC (Super-All Wheel Control) operation
display, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position (Twin Clutch SST)With ignition switch in the “ON”
position (manual transaxle)
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 5 5
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-155
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-157
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-158
4- S-AWC control mode display screen → P.3-160
5- Outside temperature display screen → P.3-1686- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-160
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-161
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3 - 1 6 6
8- Fuel remaining display screen → P.3-168
9- Twin Clutch SST control mode display screen (if so
equipped) → P. 3 - 1 6 8
BK0123500US.book 153 ページ ２０１０年６月４日　金曜日　午後５時１分

3-154 Features and controls
3
NOTE
The trip computer function fuel units, temperature units,
display language, and other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-186.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-159.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-189.

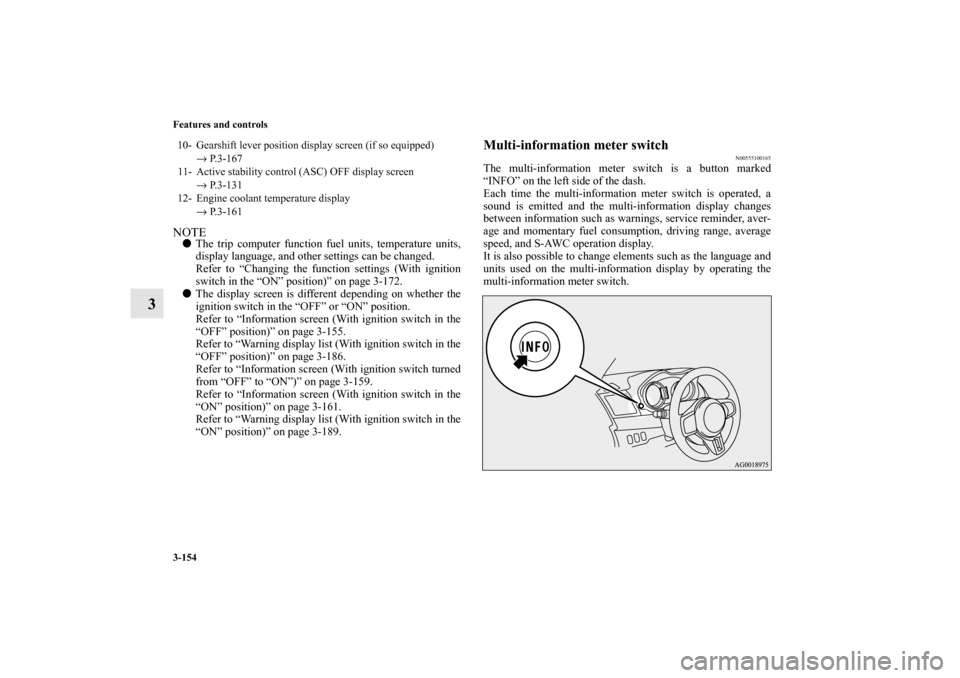

Multi-information meter switch
N00555100165
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed, and S-AWC operation display.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Gearshift lever position display screen (if so equipped)
→ P. 3 - 1 6 7
11- Active stability control (ASC) OFF display screen
→ P. 3 - 1 3 1
12- Engine coolant temperature display
→ P. 3 - 1 6 1BK0123500US.book 154 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-161
3

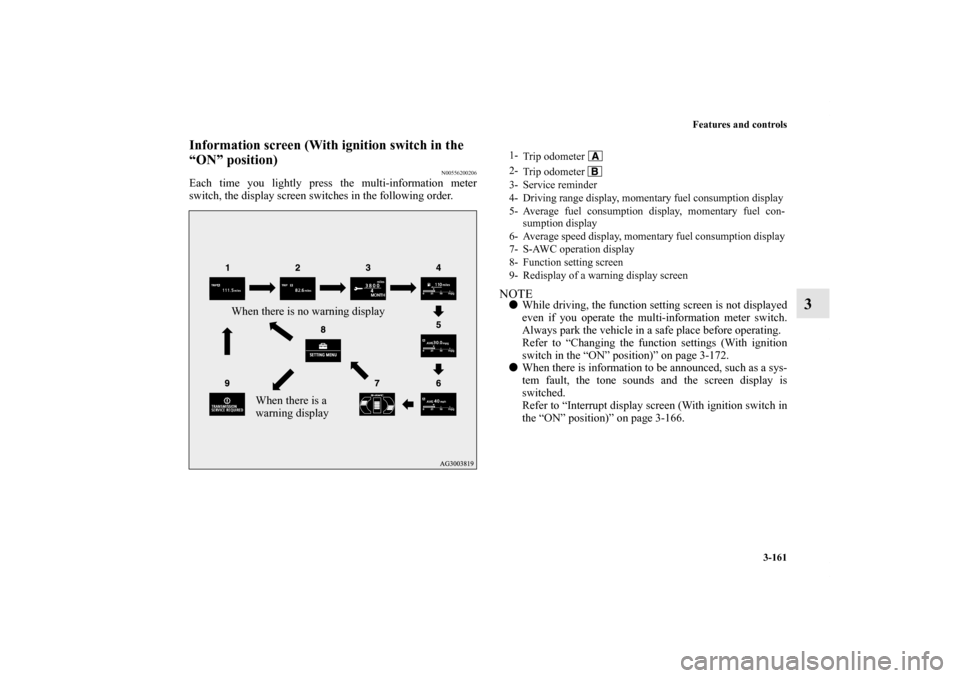

Information screen (With ignition switch in the
“ON” position)
N00556200206
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
NOTE
While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.

When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-166.
When there is no warning display
When there is a
warning display
1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Driving range display, momentary fuel consumption display
5- Average fuel consumption display, momentary fuel con-
sumption display
6- Average speed display, momentary fuel consumption display
7- S-AWC operation display
8- Function setting screen
9- Redisplay of a warning display screen
BK0123500US.book 161 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-163
3

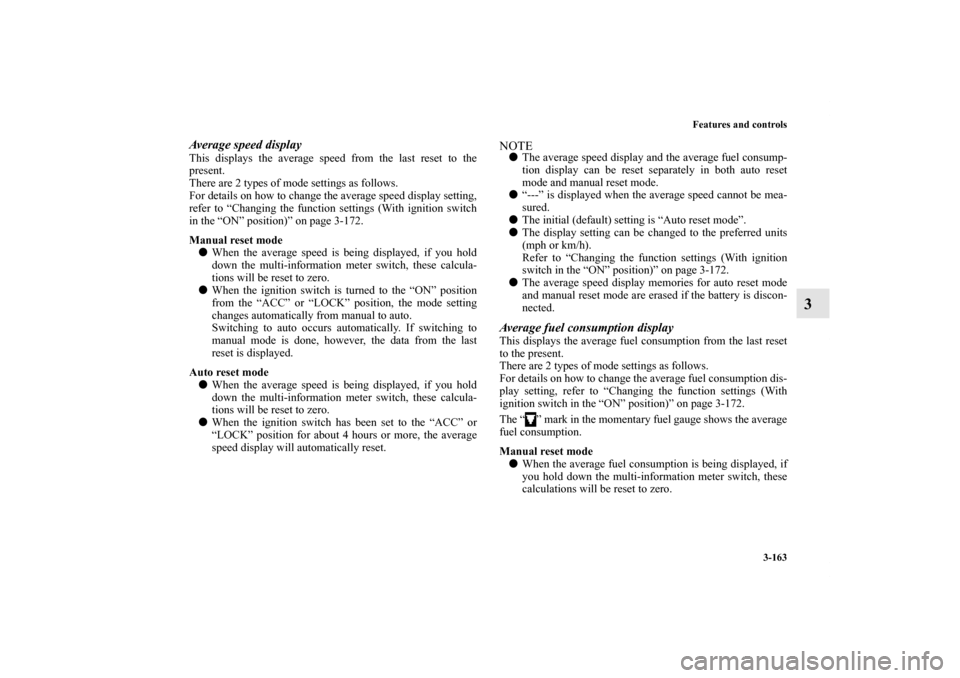

Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
in the “ON” position)” on page 3-172.
Manual reset mode

When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode

When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.
NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average speed cannot be mea-
sured.

The initial (default) setting is “Auto reset mode”.

The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.

The average speed display memories for auto reset mode
and manual reset mode are erased if the battery is discon-
nected.Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch in the “ON” position)” on page 3-172.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption.
Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
BK0123500US.book 163 ページ ２０１０年６月４日　金曜日　午後５時１分

3-164 Features and controls
3

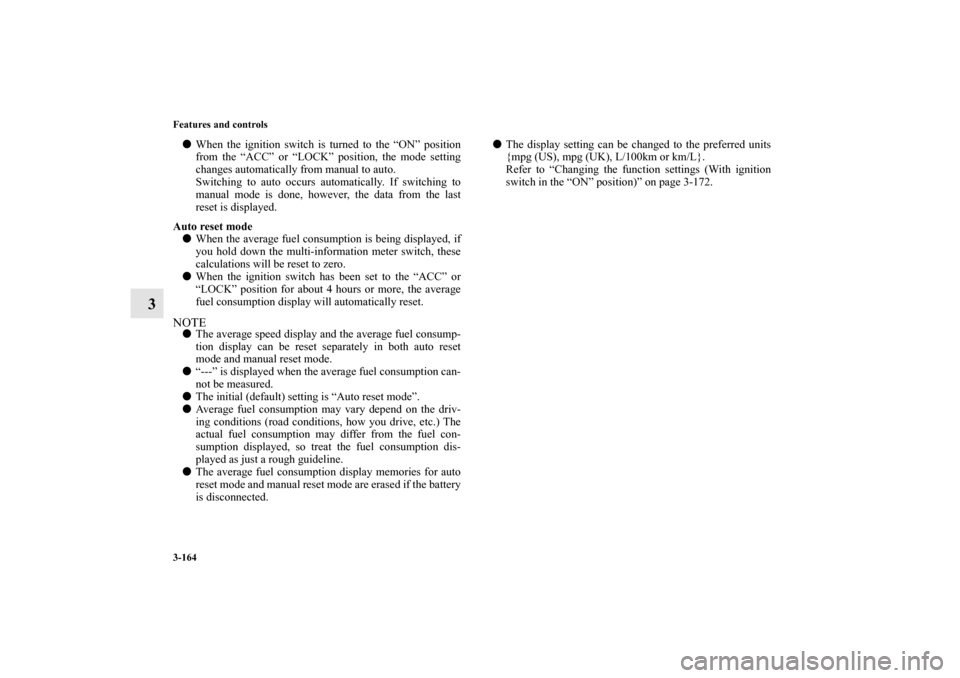

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display will automatically reset. NOTE
The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.

“---” is displayed when the average fuel consumption can-
not be measured.

The initial (default) setting is “Auto reset mode”.

Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.

The average fuel consumption display memories for auto
reset mode and manual reset mode are erased if the battery
is disconnected.
The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
BK0123500US.book 164 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-165
3

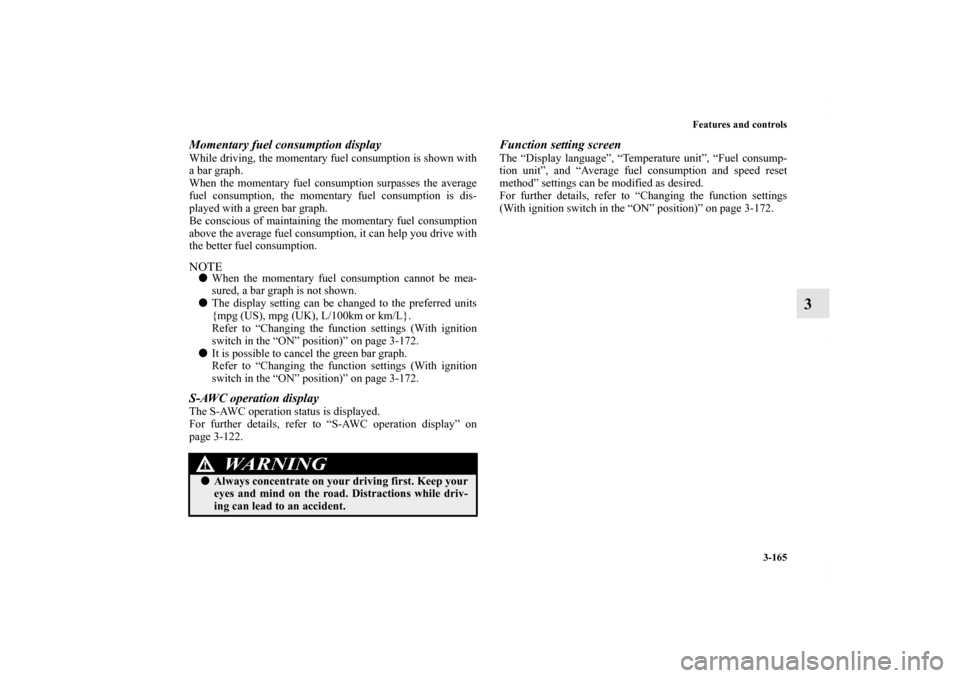

Momentary fuel consumption displayWhile driving, the momentary fuel consumption is shown with
a bar graph.
When the momentary fuel consumption surpasses the average
fuel consumption, the momentary fuel consumption is dis-
played with a green bar graph.
Be conscious of maintaining the momentary fuel consumption
above the average fuel consumption, it can help you drive with
the better fuel consumption.NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.S-AWC operation displayThe S-AWC operation status is displayed.
For further details, refer to “S-AWC operation display” on
page 3-122.
Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-172.
WA R N I N G
!
Always concentrate on your driving first. Keep your
eyes and mind on the road. Distractions while driv-
ing can lead to an accident.
BK0123500US.book 165 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-173
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-174.
Refer to “Changing the fuel consumption display unit” on
page 3-175.
Refer to “Changing the temperature unit” on page 3-176.
Refer to “Changing the display language” on page 3-177.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-178.
Refer to “Operation sound setting” on page 3-179.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-180.
Refer to “Changing the turn signal sound” on page 3-181.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-182.
Refer to “Returning to the factory settings” on page 3-
182.
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
BK0123500US.book 173 ページ ２０１０年６月４日　金曜日　午後５時１分

3-174 Features and controls
3
Changing the reset mode for average fuel consumption
and average speed
N00557000155
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.
Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode

When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTE
The average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.

The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.

The initial (default) setting is “Auto reset mode”.
BK0123500US.book 174 ページ ２０１０年６月４日　金曜日　午後５時１分

Features and controls
3-175
3
Changing the fuel consumption display unit
N00557100101
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
BK0123500US.book 175 ページ ２０１０年６月４日　金曜日　午後５時１分

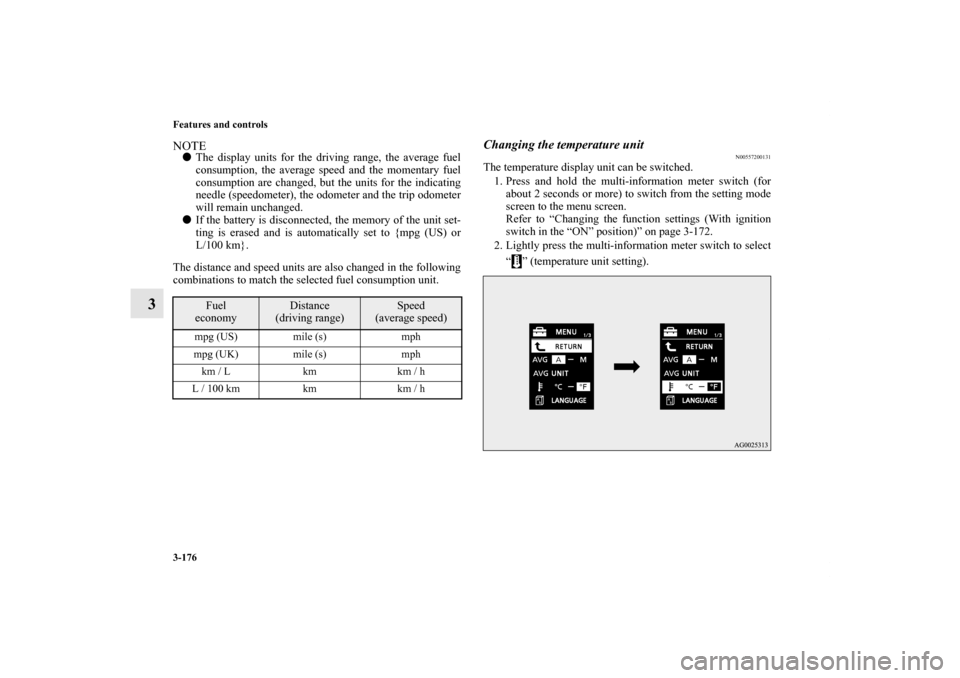

3-176 Features and controls
3
NOTE
The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Changing the temperature unit
N00557200131
The temperature display unit can be switched.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).
Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0123500US.book 176 ページ ２０１０年６月４日　金曜日　午後５時１分
