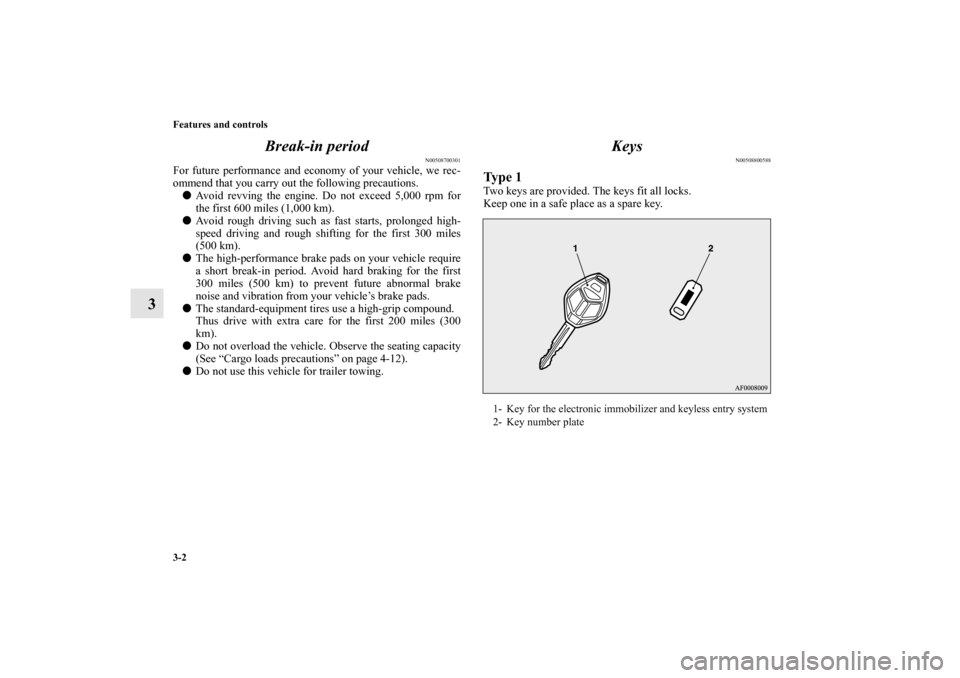

3-2 Features and controls
3Break-in period
N00508700301
For future performance and economy of your vehicle, we rec-
ommend that you carry out the following precautions.

Avoid revving the engine. Do not exceed 5,000 rpm for
the first 600 miles (1,000 km).

Avoid rough driving such as fast starts, prolonged high-
speed driving and rough shifting for the first 300 miles
(500 km).

The high-performance brake pads on your vehicle require
a short break-in period. Avoid hard braking for the first
300 miles (500 km) to prevent future abnormal brake
noise and vibration from your vehicle’s brake pads.

The standard-equipment tires use a high-grip compound.
Thus drive with extra care for the first 200 miles (300
km).

Do not overload the vehicle. Observe the seating capacity
(See “Cargo loads precautions” on page 4-12).

Do not use this vehicle for trailer towing.
Keys
N00508800588
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0123500US.book 2 ページ ２０１０年６月４日　金曜日　午後５時１分

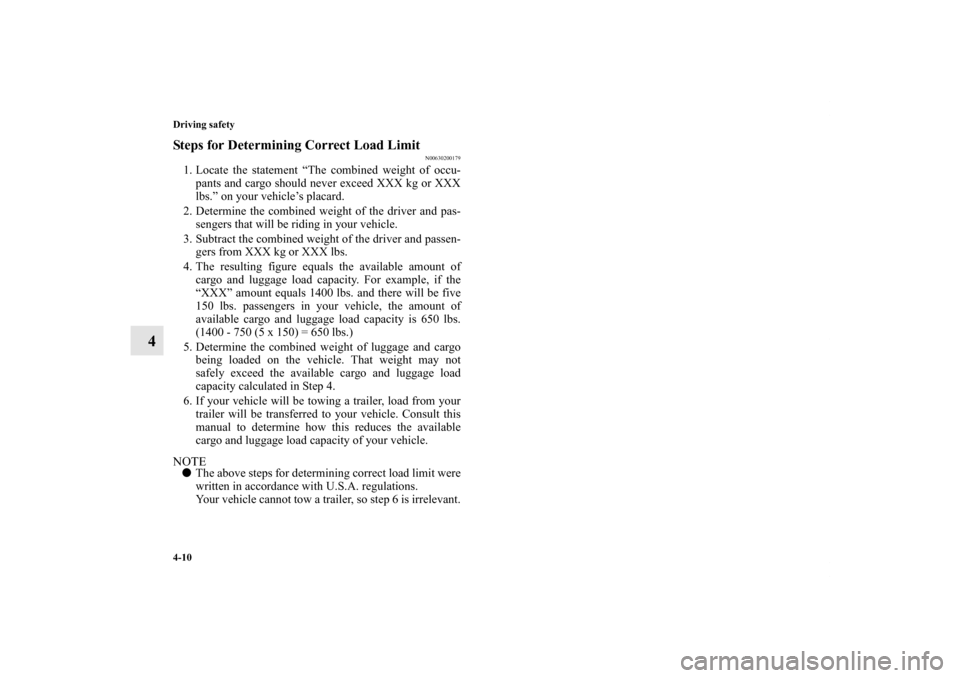

4-10 Driving safety
4
Steps for Determining Correct Load Limit
N00630200179
1. Locate the statement “The combined weight of occu-
pants and cargo should never exceed XXX kg or XXX
lbs.” on your vehicle’s placard.
2. Determine the combined weight of the driver and pas-
sengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passen-
gers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
“XXX” amount equals 1400 lbs. and there will be five
150 lbs. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not
safely exceed the available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.NOTE
The above steps for determining correct load limit were
written in accordance with U.S.A. regulations.
Your vehicle cannot tow a trailer, so step 6 is irrelevant.
BK0123500US.book 10 ページ ２０１０年６月４日　金曜日　午後５時１分

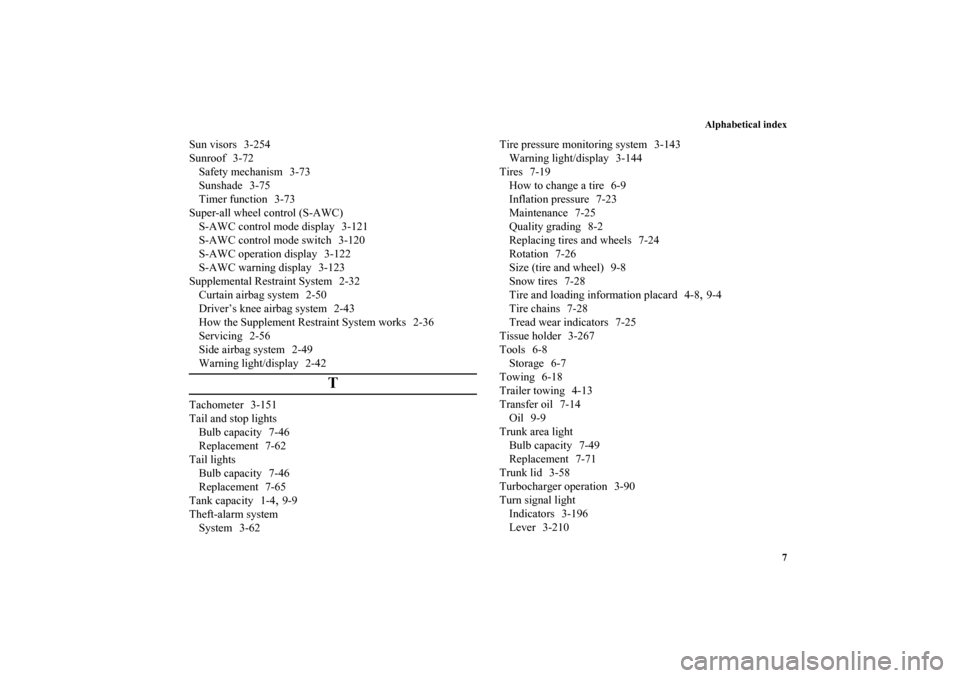

Alphabetical index
7
Sun visors 3-254
Sunroof 3-72
Safety mechanism 3-73
Sunshade 3-75
Timer function 3-73
Super-all wheel control (S-AWC)
S-AWC control mode display 3-121
S-AWC control mode switch 3-120
S-AWC operation display 3-122
S-AWC warning display 3-123
Supplemental Restraint System 2-32
Curtain airbag system 2-50
Driver’s knee airbag system 2-43
How the Supplement Restraint System works 2-36
Servicing 2-56
Side airbag system 2-49
Warning light/display 2-42
T
Tachometer 3-151
Tail and stop lights
Bulb capacity 7-46
Replacement 7-62
Tail lights
Bulb capacity 7-46
Replacement 7-65
Tank capacity 1-4
,9-9
Theft-alarm system
System 3-62Tire pressure monitoring system 3-143
Warning light/display 3-144
Tires 7-19
How to change a tire 6-9
Inflation pressure 7-23
Maintenance 7-25
Quality grading 8-2
Replacing tires and wheels 7-24
Rotation 7-26
Size (tire and wheel) 9-8
Snow tires 7-28
Tire and loading information placard 4-8
,9-4
Tire chains 7-28
Tread wear indicators 7-25
Tissue holder 3-267
Tools 6-8
Storage 6-7
Towing 6-18
Trailer towing 4-13
Transfer oil 7-14
Oil 9-9
Trunk area light
Bulb capacity 7-49
Replacement 7-71
Trunk lid 3-58
Turbocharger operation 3-90
Turn signal light
Indicators 3-196
Lever 3-210
BK0123500US.book 7 ページ ２０１０年６月４日　金曜日　午後５時１分
