Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the

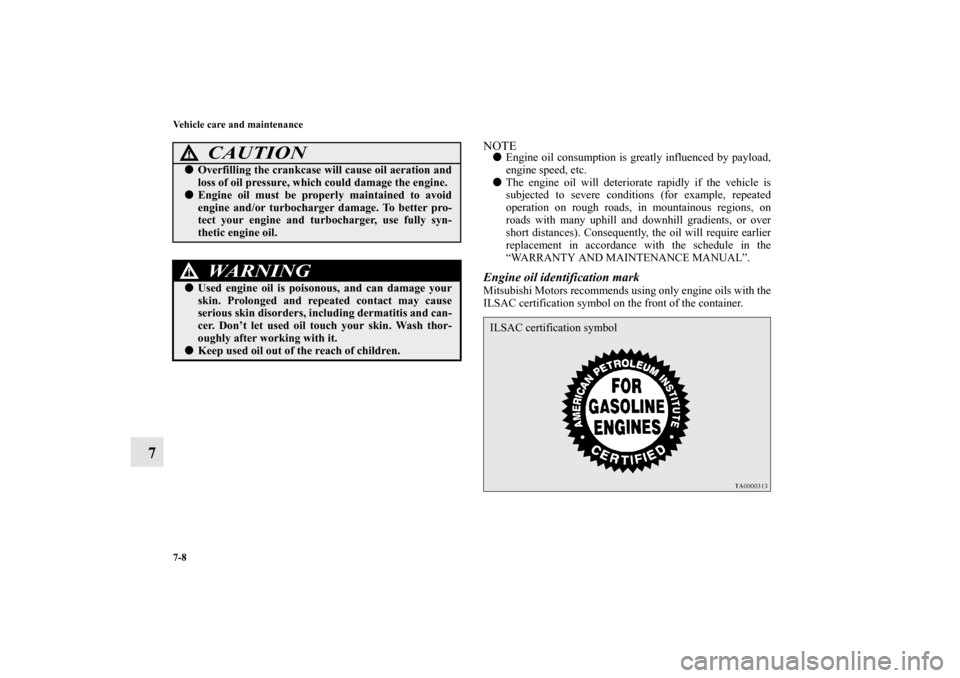

“WARRANTY AND MAINTENANCE MANUAL”.Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!
Overfilling the crankcase will cause oil aeration and
loss of oil pressure, which could damage the engine.
Engine oil must be properly maintained to avoid
engine and/or turbocharger damage. To better pro-
tect your engine and turbocharger, use fully syn-
thetic engine oil.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Don’t let used oil touch your skin. Wash thor-
oughly after working with it.
Keep used oil out of the reach of children.
ILSAC certification symbol
BK0142300US.book 8 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-9
7
If you cannot find oils with the ILSAC certification symbol,
use an API classification SN or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.

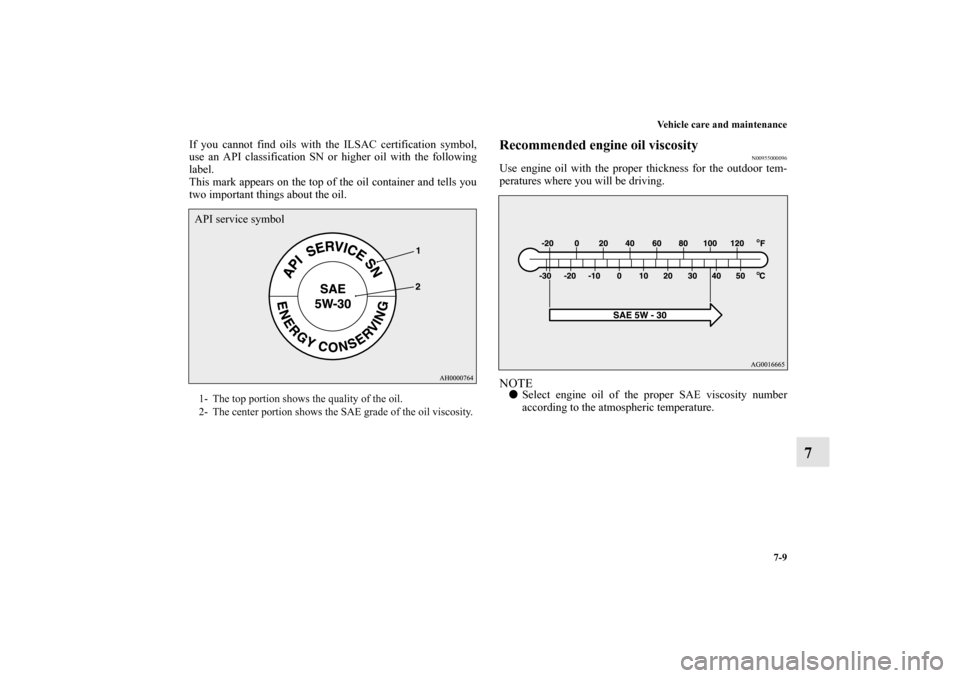

Recommended engine oil viscosity
N00955000096
Use engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.NOTE
Select engine oil of the proper SAE viscosity number
according to the atmospheric temperature.
1- The top portion shows the quality of the oil.
2- The center portion shows the SAE grade of the oil viscosity.API service symbol
BK0142300US.book 9 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-10 Vehicle care and maintenance
7

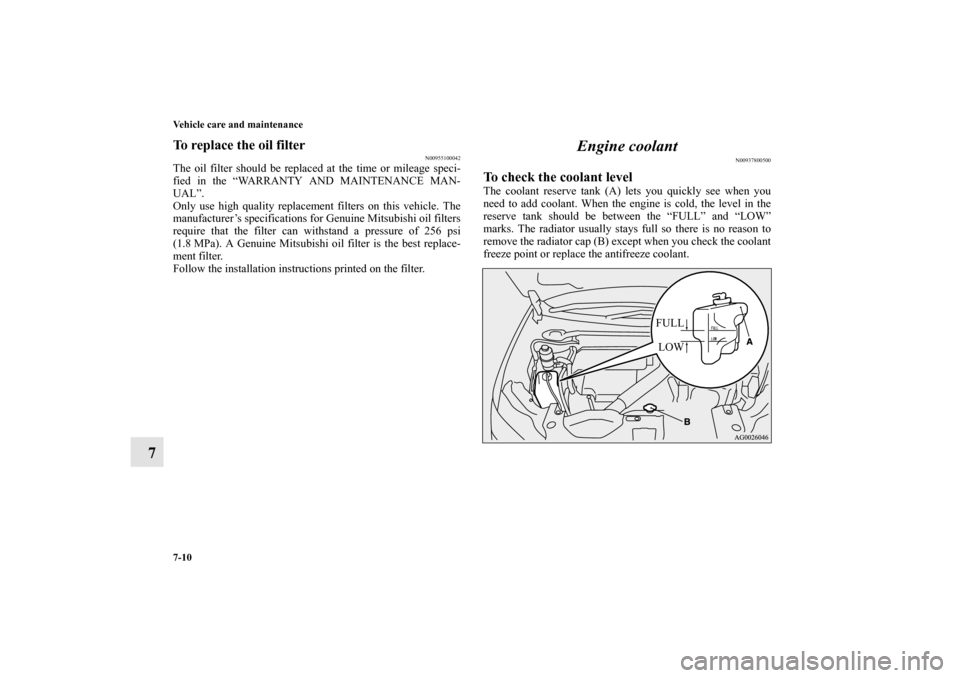

To replace the oil filter
N00955100042
The oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi
(1.8 MPa). A Genuine Mitsubishi oil filter is the best replace-
ment filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800500
To check the coolant level The coolant reserve tank (A) lets you quickly see when you
need to add coolant. When the engine is cold, the level in the
reserve tank should be between the “FULL” and “LOW”
marks. The radiator usually stays full so there is no reason to
remove the radiator cap (B) except when you check the coolant
freeze point or replace the antifreeze coolant.
FULL
LOW
BK0142300US.book 10 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-11
7

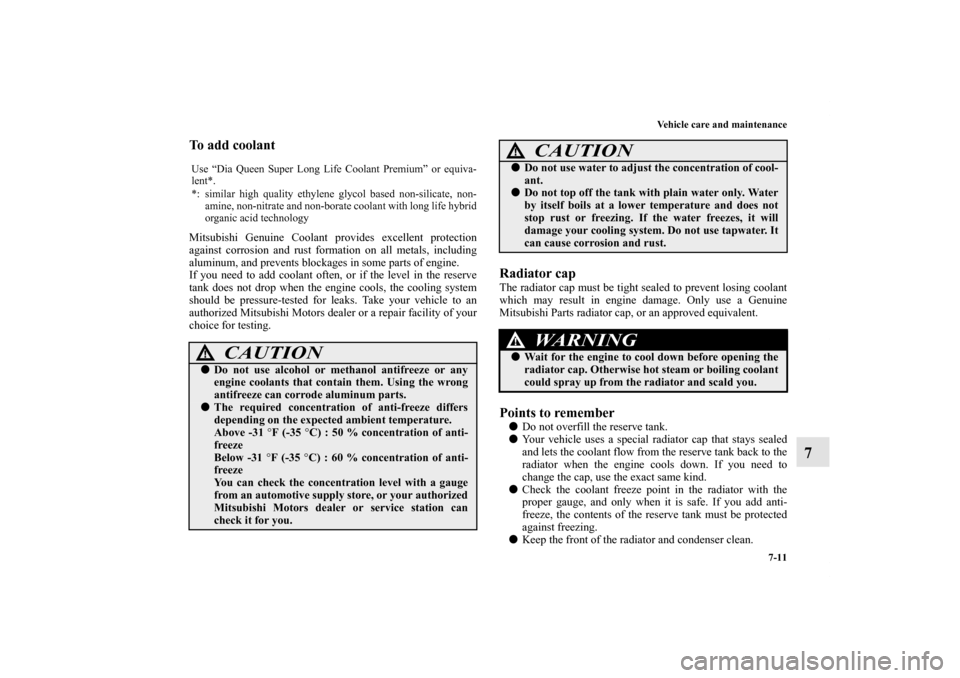

To add coolant Mitsubishi Genuine Coolant provides excellent protection
against corrosion and rust formation on all metals, including
aluminum, and prevents blockages in some parts of engine.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
Radiator capThe radiator cap must be tight sealed to prevent losing coolant
which may result in engine damage. Only use a Genuine
Mitsubishi Parts radiator cap, or an approved equivalent.Points to remember
Do not overfill the reserve tank.

Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.

Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.

Keep the front of the radiator and condenser clean.
Use “Dia Queen Super Long Life Coolant Premium” or equiva-
lent*.
*: similar high quality ethylene glycol based non-silicate, non-
amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
CAUTION
!
Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.
The required concentration of anti-freeze differs
depending on the expected ambient temperature.
Above -31 °F (-35 °C) : 50 % concentration of anti-
freeze
Below -31 °F (-35 °C) : 60 % concentration of anti-
freeze
You can check the concentration level with a gauge
from an automotive supply store, or your authorized
Mitsubishi Motors dealer or service station can
check it for you.

Do not use water to adjust the concentration of cool-
ant.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
WA R N I N G
!
Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.
CAUTION
!
BK0142300US.book 11 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-12 Vehicle care and maintenance
7

If the temperature of the engine coolant does not rise after
the engine is warmed-up, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.
Air cleaner filter
N00937900309
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.

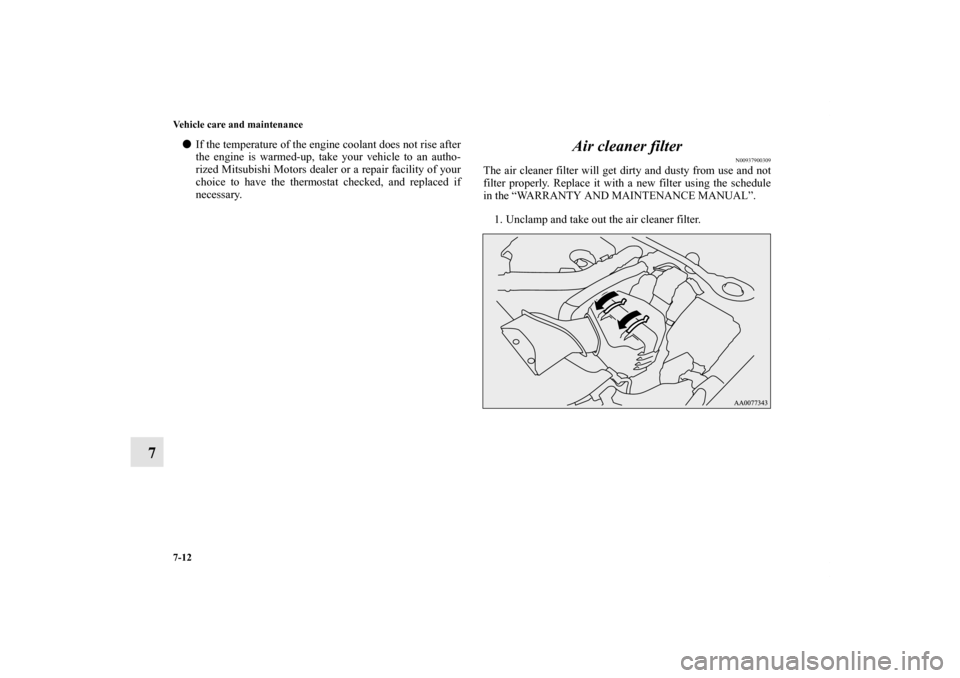

1. Unclamp and take out the air cleaner filter.
BK0142300US.book 12 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-13
7

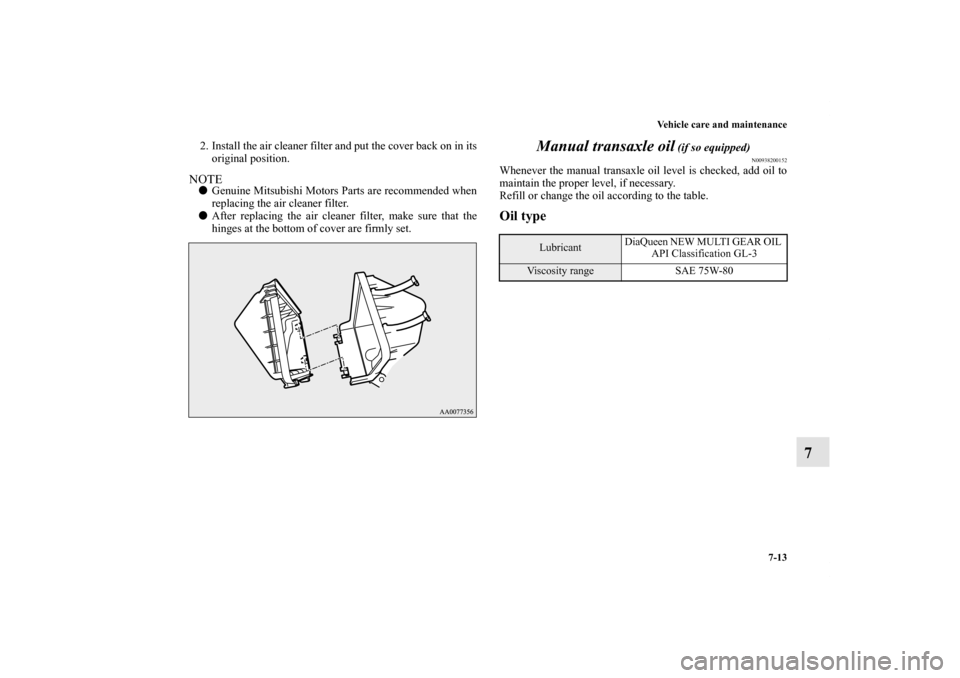

2. Install the air cleaner filter and put the cover back on in its
original position. NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.
Manual transaxle oil
(if so equipped)
N00938200152
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0142300US.book 13 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-14 Vehicle care and maintenance

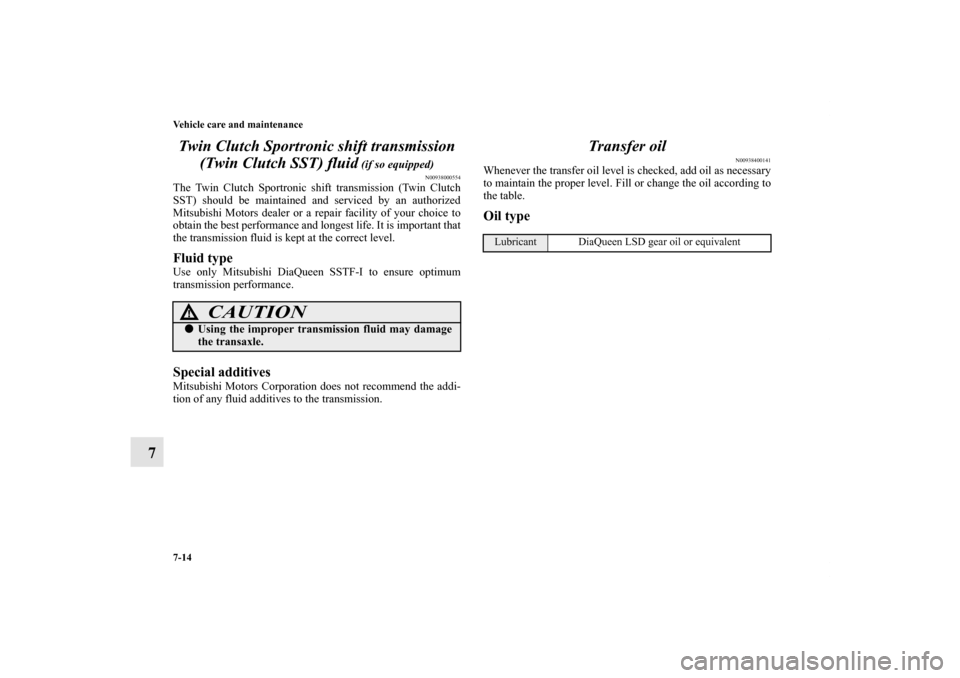

7Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid
(if so equipped)
N00938000554
The Twin Clutch Sportronic shift transmission (Twin Clutch
SST) should be maintained and serviced by an authorized
Mitsubishi Motors dealer or a repair facility of your choice to
obtain the best performance and longest life. It is important that
the transmission fluid is kept at the correct level. Fluid typeUse only Mitsubishi DiaQueen SSTF-I to ensure optimum
transmission performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
Transfer oil
N00938400141
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level. Fill or change the oil according to
the table.Oil type
CAUTION
!
Using the improper transmission fluid may damage
the transaxle.
Lubricant DiaQueen LSD gear oil or equivalent
BK0142300US.book 14 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-15

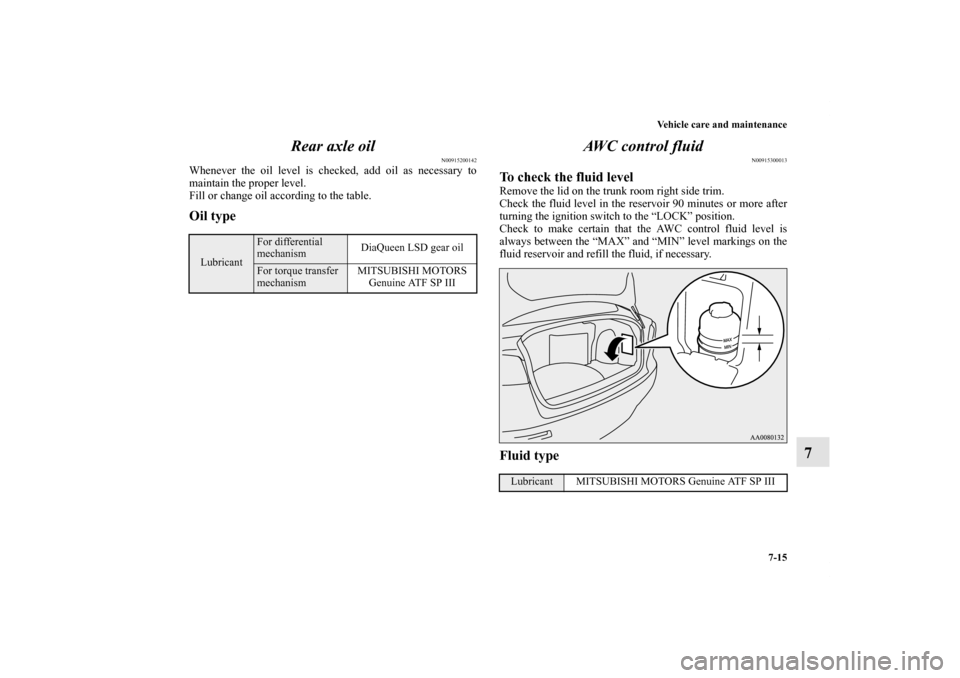

7 Rear axle oil
N00915200142
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Oil type
AWC control fluid
N00915300013
To check the fluid levelRemove the lid on the trunk room right side trim.
Check the fluid level in the reservoir 90 minutes or more after
turning the ignition switch to the “LOCK” position.
Check to make certain that the AWC control fluid level is
always between the “MAX” and “MIN” level markings on the
fluid reservoir and refill the fluid, if necessary.Fluid type
Lubricant
For differential
mechanismDiaQueen LSD gear oilFor torque transfer
mechanismMITSUBISHI MOTORS
Genuine ATF SP III
Lubricant MITSUBISHI MOTORS Genuine ATF SP III
BK0142300US.book 15 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-16 Vehicle care and maintenance

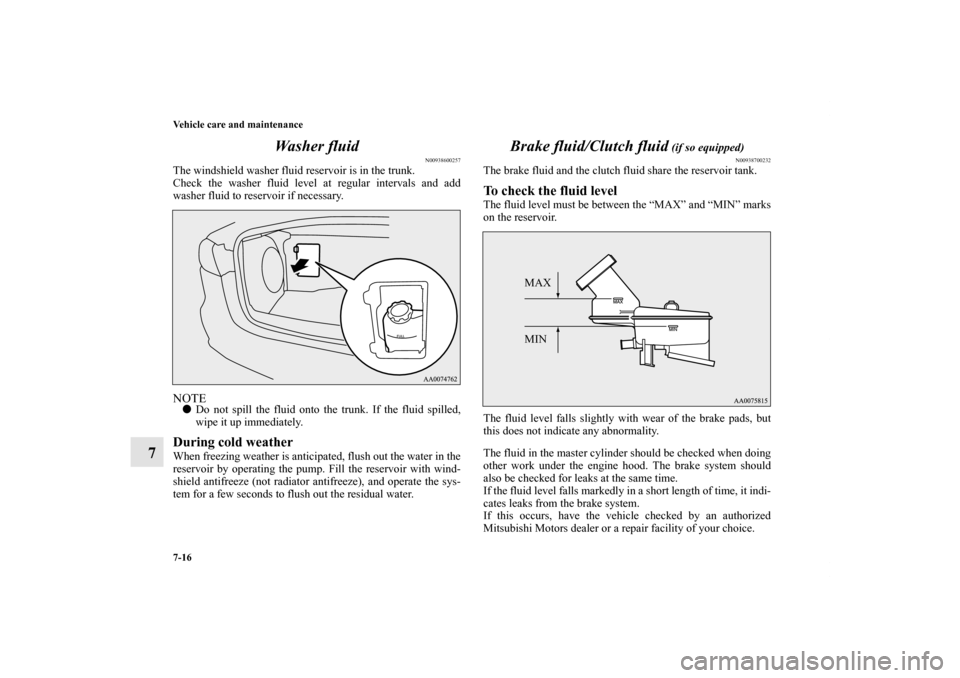

7Wa s h e r f l u i d
N00938600257
The windshield washer fluid reservoir is in the trunk.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary. NOTE
Do not spill the fluid onto the trunk. If the fluid spilled,
wipe it up immediately.During cold weatherWhen freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid/Clutch fluid
(if so equipped)
N00938700232
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
MAX
MIN
BK0142300US.book 16 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-17
7

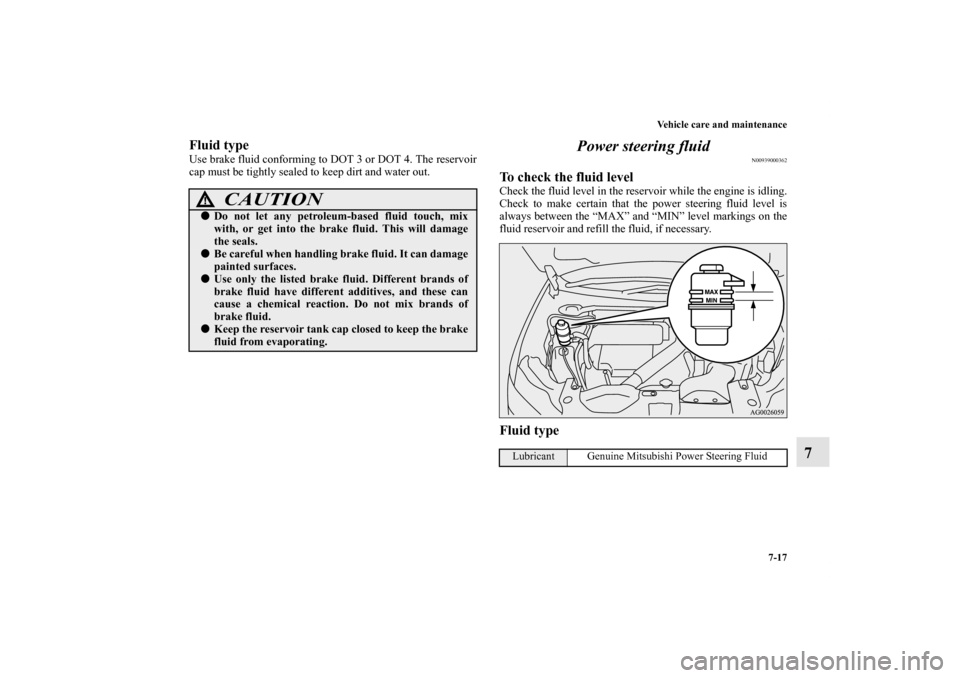

Fluid typeUse brake fluid conforming to DOT 3 or DOT 4. The reservoir
cap must be tightly sealed to keep dirt and water out.
Power steering fluid
N00939000362
To check the fluid levelCheck the fluid level in the reservoir while the engine is idling.
Check to make certain that the power steering fluid level is
always between the “MAX” and “MIN” level markings on the
fluid reservoir and refill the fluid, if necessary.Fluid type
CAUTION
!
Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.
Be careful when handling brake fluid. It can damage
painted surfaces.
Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.
Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
Lubricant Genuine Mitsubishi Power Steering Fluid
