7-48 Vehicle care and maintenance
7

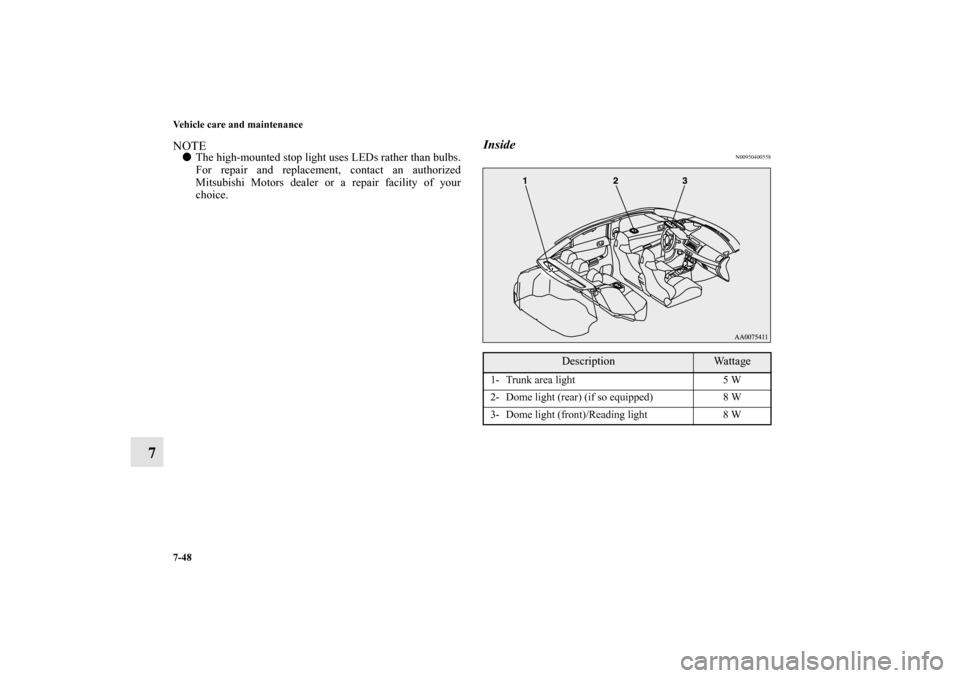

NOTE
The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Inside
N00950400558
Description
Wa t t a g e
1- Trunk area light 5 W
2- Dome light (rear) (if so equipped) 8 W
3- Dome light (front)/Reading light 8 W
BK0142300US.book 48 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-49
7

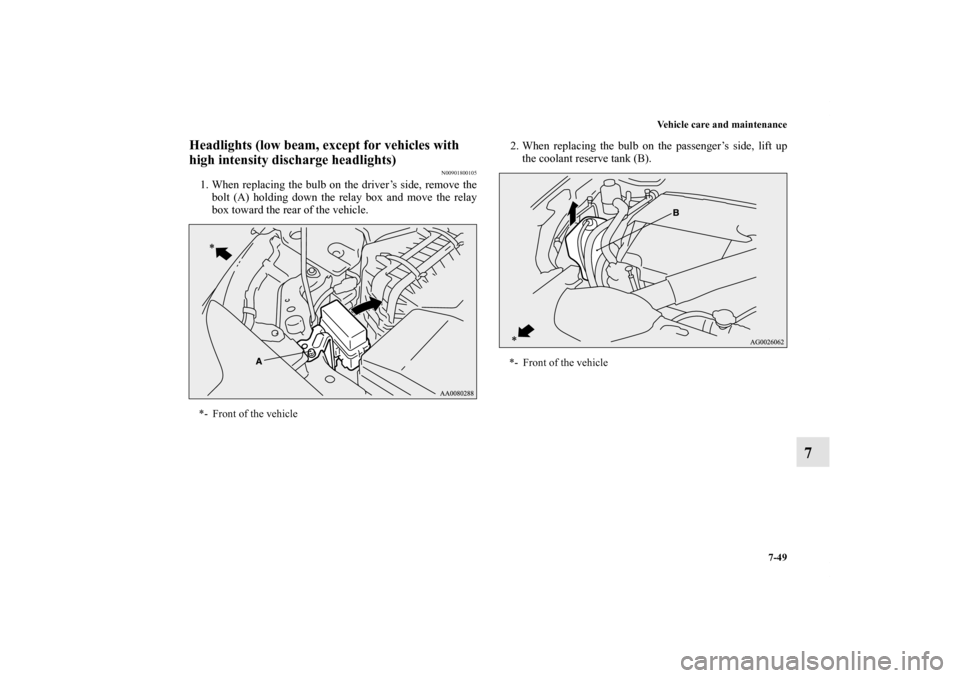

Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00901800105
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).*- Front of the vehicle
*- Front of the vehicle
BK0142300US.book 49 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-50 Vehicle care and maintenance
7

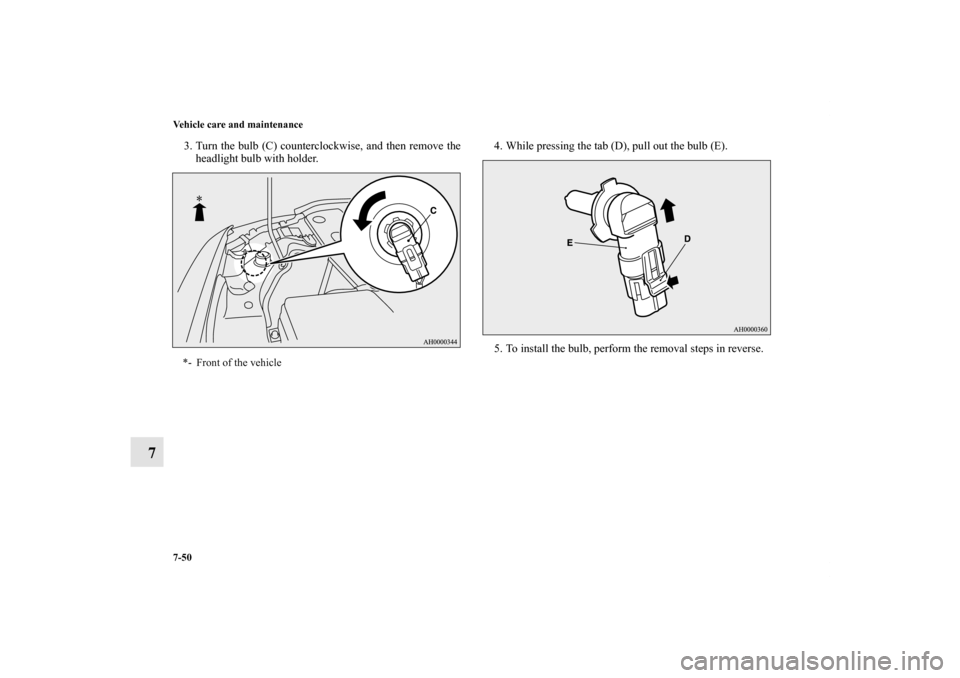

3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.4. While pressing the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0142300US.book 50 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-51
7

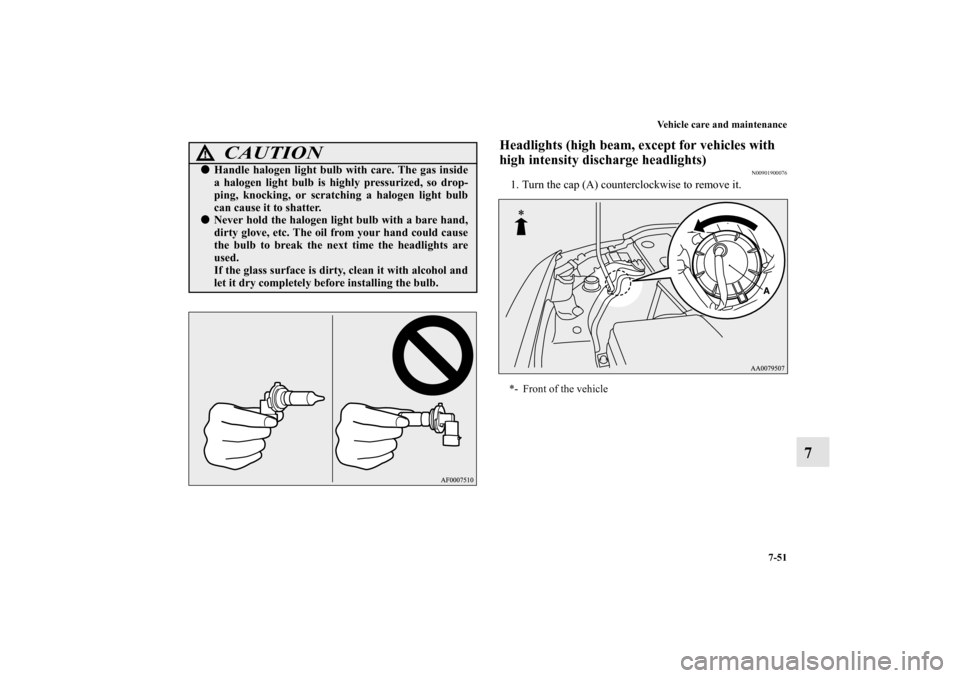

Headlights (high beam, except for vehicles with
high intensity discharge headlights)
N00901900076
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0142300US.book 51 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-52 Vehicle care and maintenance
7

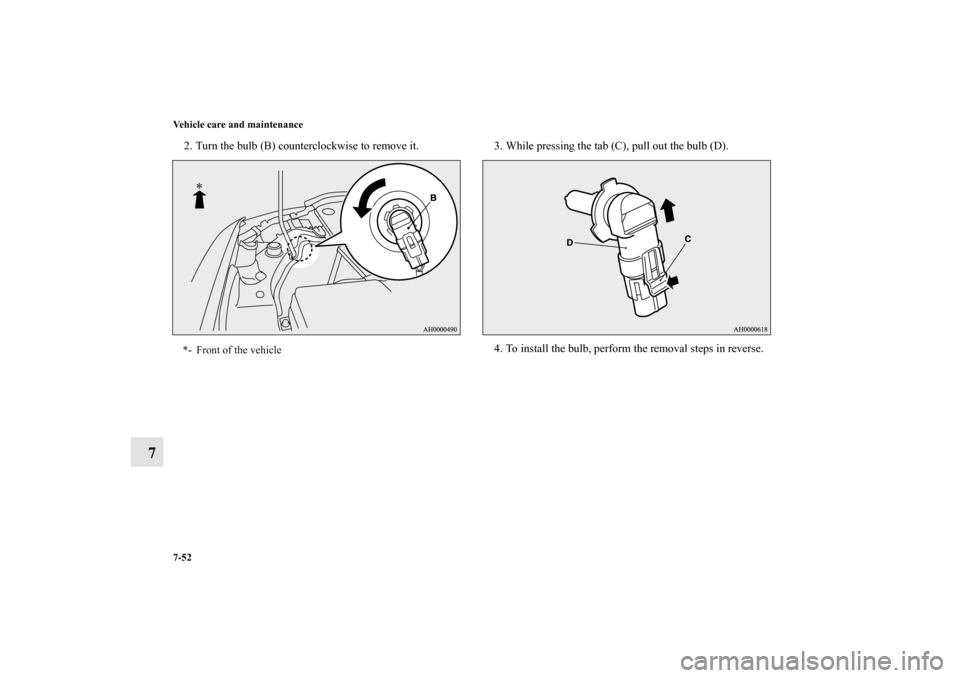

2. Turn the bulb (B) counterclockwise to remove it. 3. While pressing the tab (C), pull out the bulb (D).
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0142300US.book 52 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-53
7
Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00902000016
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice
whenever repair or replacement is necessary.
BK0142300US.book 53 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-54 Vehicle care and maintenance
7

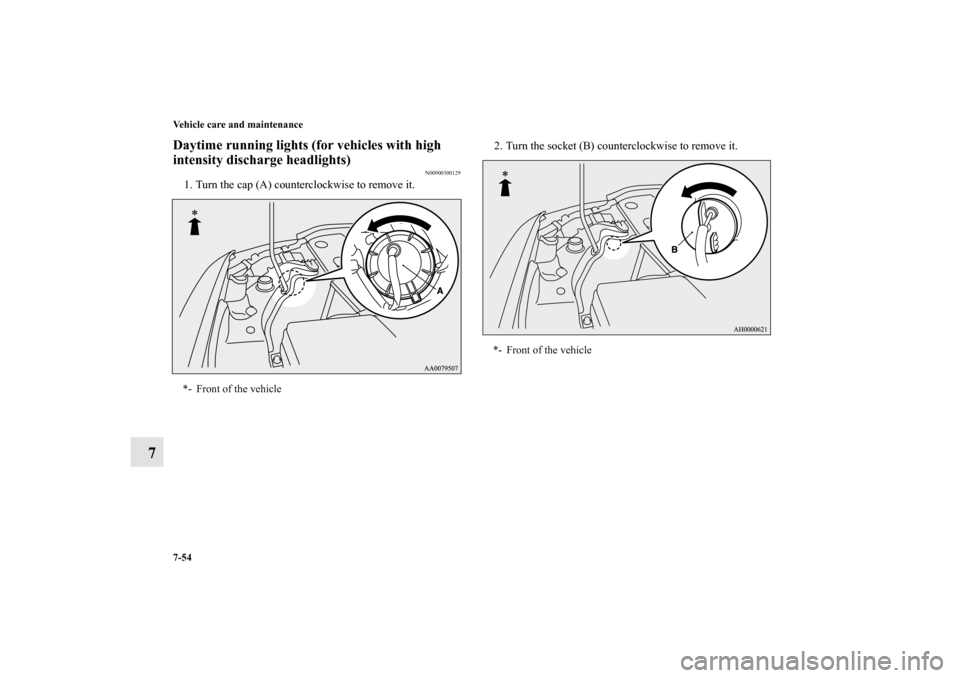

Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300129
1. Turn the cap (A) counterclockwise to remove it.2. Turn the socket (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0142300US.book 54 ページ ２０１１年８月７日　日曜日　午前１０時４４分

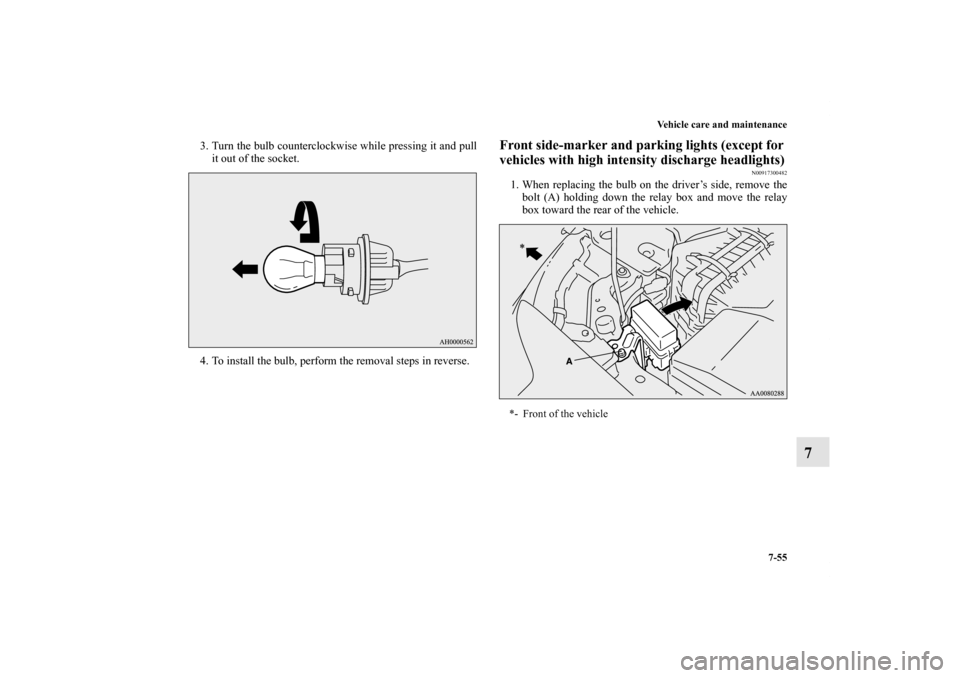

Vehicle care and maintenance
7-55
7
3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (except for
vehicles with high intensity discharge headlights)
N00917300482
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.*- Front of the vehicle
BK0142300US.book 55 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-56 Vehicle care and maintenance
7

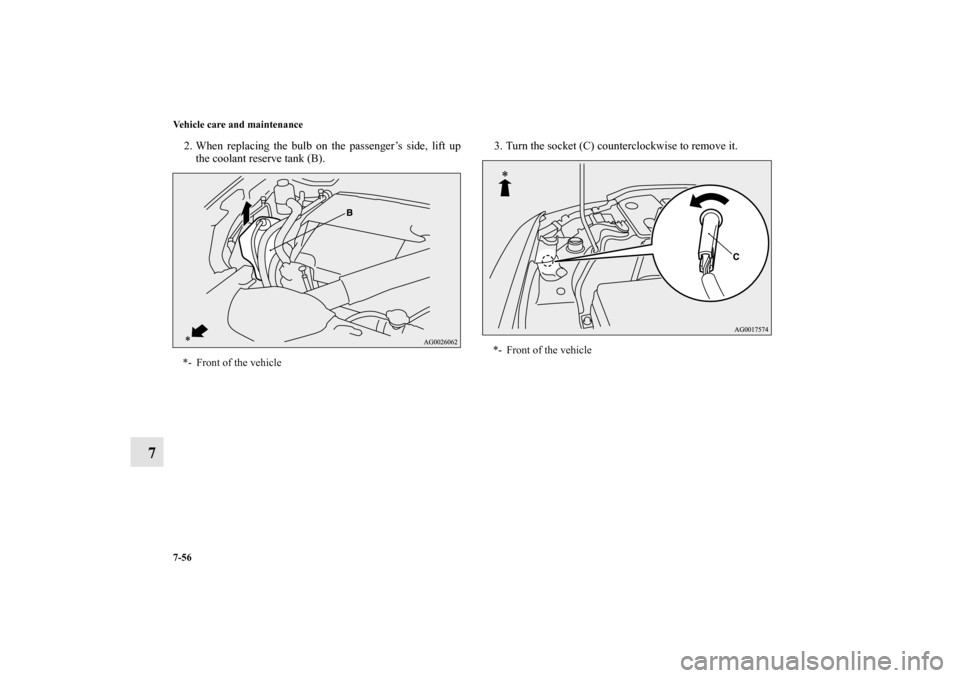

2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0142300US.book 56 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-57
7

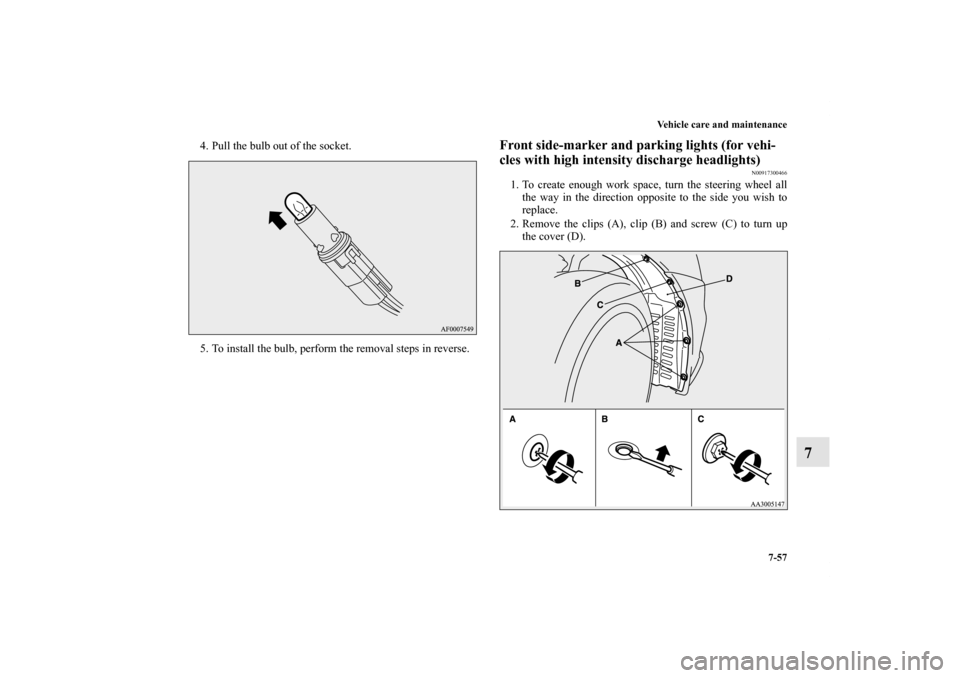

4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (for vehi-
cles with high intensity discharge headlights)
N00917300466
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), clip (B) and screw (C) to turn up
the cover (D).
