Keyless entry system (if so equipped) 5-10 Features and controls
5
ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button. The
answerback function informs you thatthe ID code registra
tion of the transmit-
ter is completed.
5. To register the ID codes of additionalremote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the registration mode is can- celed and the normal mode returns.
N0054610
1111
Your keyless entry system operates on a radio frequency subject to Federal Communica- tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules(For vehicles sold in Canada). This device
complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s). Operation is subject to the following two con-ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00544100107
1. Before replacing the battery, remove static electricity from your body by touching ametal grounded object.
NOTE
 For verification purposes, try to lock and unlock the doors after the registration iscompleted.  The indicator light (5) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power sta- tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors are locked and no doors are opened within about 30 seconds, the doors will auto-matically re-lock.
 If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced. • The doors cannot be locked or unlocked. • The trunk lid cannot be opened.• The panic alarm cannot be operated. • The indicator light (5) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho-rized Mitsubishi Motors dealer. A maximum of eight remote control transmitters can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-6.
General information

NOTE
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat- tery

BK0200800US.bo
ok 10 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-11
5
2. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to openthe case.
3. Remove the remote control transmitter from the remote control transmitter case. Then, open the remote control transmitter using the method described in step 2. 4. Remove the old battery. 5. Install a new battery with the + side (A)down. 6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control transmitter case, then securely close the remote control trans- mitter case.8. Check the keyless entry system to see that it works.
N00503100108
The Free-hand Advanced Security Transmit- ter (F.A.S.T.-key) enables the doors to be locked and unlocked, the trunk lid to be opened, and the engine to be started simplyby carrying it.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open the remote control transmitter case, the buttons may come out.
+ side - side
Coin type battery CR1620
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
BK0200800US.bo
ok 11 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-12 Features and controls
5
The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key)”: “Keyless entry system” on page 5-29.
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorized Mitsubi-shi Motors dealer. • Enabling only the locking and unlocking of the doors and the opening of the trunklid • Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors, opening the trunk lid, and starting the engine. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lock the vehi-cle.
WA R N I N G Individuals who use implantable pace- makers or implantable cardiovascular- defibrillators should keep away from the external and internal
transmitters. The
electromagnetic waves used in the F.A.S.T.-key may affect the operation of implantable pacemakers and implantablecardiovascular-defibrillators.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using other electrical medical apparatuses besides implantable pace-makers and implantable cardiovascular- defibrillators should check with the manu- facturer of the apparatus to confirm the effect of the electromagnetic waves used by the F.A.S.T.-key. The electromagneticwaves may affect the operations of the electro-medical apparatus.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves.In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic waves, such as a TV transmitting tower, a power station, a radiostation or an airport • The key is carried together with other com- munication devices such as cellular phones or radios, or electrical appliances such as computers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down• The vehicle is in a location with strong electromagnetic waves or noise
BK0200800US.bo
ok 12 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00503200141
When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.- key and presses the driver’s or front passen-ger’s door lock/unlock switch or the OPEN switch on the trunk lid, verification of the ID code is performed.The F.A.S.T.-key enables the doors to be locked and unlocked, the trunk lid to be opened and the engine to be started only

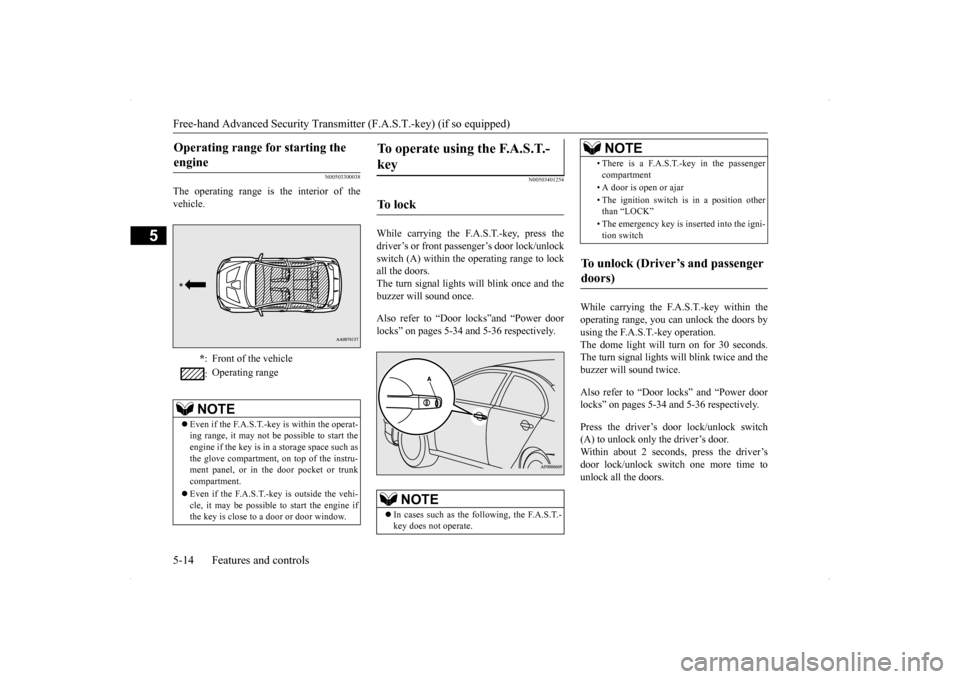

when the ID codes of the vehicle and F.A.S.T.-key match. The operating range is within about 2.3 feet (70 cm) of the driver’s and front passenger’s door lock/unlock switches and the center of the trunk lid.
Use the emergency key in such circum- stances. Refer to “To operate using the emergency key” on page 5-21.  The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 3 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not placenear electrical appliances such as televisions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
NOTE
 When the battery of the F.A.S.T.-key has run down or there are strong electromagnetic waves or noise in the area, the operating range could decrease or operations couldbecome unstable.
Operating range for locking and unlocking the doors and for open- ing the trunk lid

* : Front of the vehicle : Operating range
NOTE
 Only the F.A.S.T.-key that is detectable by the doors and the trunk lid can lock and unlock the doors and open the trunk lid.  The system may not operate if the F.A.S.T.- key is too close to the windshield, door win- dows or trunk lid.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the driver’s and front passen-ger’s door lock/unlock switches and center of the trunk lid, the system may not operate if the key is close to the ground or in a highposition.  If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doors or open the trunk lid by pressing the driver’sor front passenger’s door lock/unlock switch, or the OPEN switch on the trunk lid.
BK0200800US.bo
ok 13 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-14 Features and controls
5
N00503300038
The operating range is the interior of the vehicle.
N00503401254

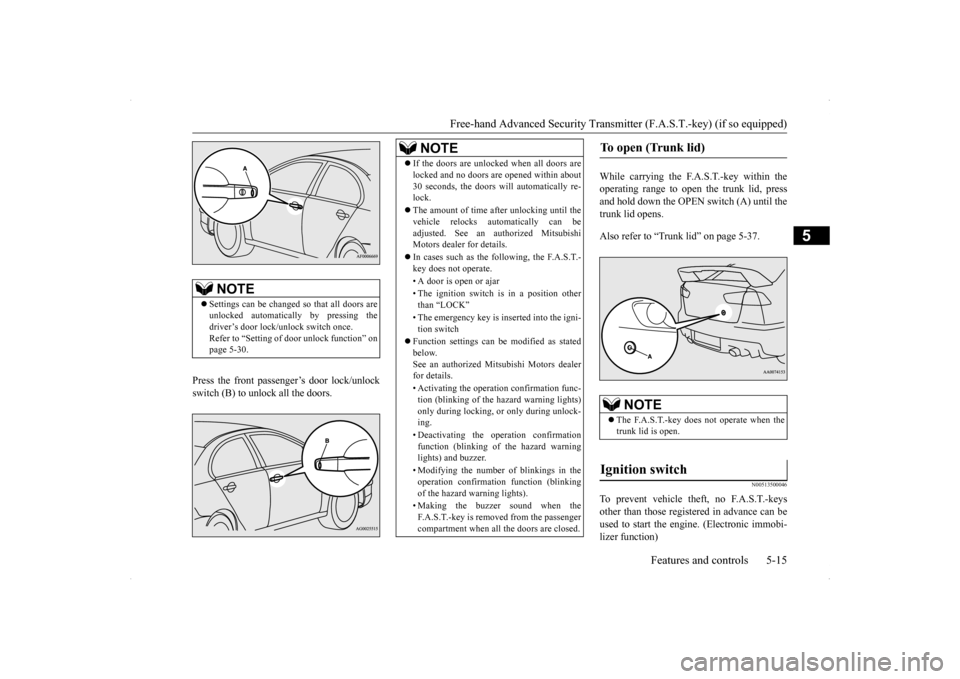

While carrying the F.A.S.T.-key, press the driver’s or front passenger’s door lock/unlock switch (A) within the operating range to lock all the doors.The turn signal lights will blink once and thebuzzer will sound once. Also refer to “Door locks”and “Power door locks” on pages 5-34 and 5-36 respectively.
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors byusing the F.A.S.T.-key operation. The dome light will turn on for 30 seconds. The turn signal lights will blink twice and thebuzzer will sound twice. Also refer to “Door locks” and “Power door locks” on pages 5-34 and 5-36 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors.
Operating range for starting the engine
* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start the engine if the key is in a storage space such asthe glove compartment, on top of the instru- ment panel, or in the door pocket or trunk compartment.  Even if the F.A.S.T.-key is outside the vehi- cle, it may be possible
to start the engine if
the key is close to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
 In cases such as the following, the F.A.S.T.- key does not operate.
• There is a F.A.S.T.-key in the passenger compartment • A door is open or ajar • The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
To unlock (Driver’s and passenger doors)
NOTE
BK0200800US.bo
ok 14 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
Press the front passenger’s door lock/unlock switch (B) to unlock all the doors.
While carrying the F.A.S.T.-key within the operating range to open the trunk lid, pressand hold down the OPEN
switch (A) until the
trunk lid opens. Also refer to “Trunk lid” on page 5-37.
N00513500046
To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can be used to start the engine. (Electronic immobi-lizer function)
NOTE
 Settings can be changed so that all doors are unlocked automatically by pressing the driver’s door lock/unlock switch once. Refer to “Setting of door unlock function” onpage 5-30.
NOTE
 If the doors are unlocked when all doors are locked and no doors are opened within about 30 seconds, the doors will automatically re- lock.  The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized MitsubishiMotors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • A door is open or ajar• The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
 Function settings can be modified as stated below.See an authorized Mitsubishi Motors dealer for details. • Activating the operation confirmation func- tion (blinking of the hazard warning lights) only during locking, or only during unlock-ing. • Deactivating the operation confirmation function (blinking of the hazard warning lights) and buzzer. • Modifying the number of blinkings in the operation confirmation function (blinking of the hazard warning lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors are closed.
To open (Trunk lid)

NOTE
 The F.A.S.T.-key does not operate when the trunk lid is open.
Ignition switch

BK0200800US.bo
ok 15 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-16 Features and controls
5
While carrying the F.A.S.T.-key, the ignition switch can be turned to start the engine. The position where the steering wheel is locked. When the ID code verification inside the vehicle produces a match, the ignition switchcan be turned. Allows operation of electrical accessories with the engine off.
The engine runs and all electrical accessories can be used. Engages the starter. Release the ignition switch when the engine starts. The ignitionswitch returns automatically to the “ON”position.
N00513600047
Turn slowly after pressing the ignition switch.
LOCK (PUSH OFF)

LOCK (PUSH ON)

ACC

ON

START

NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-27)  If the ignition switch is not turned to the “LOCK (PUSH OFF)” position when the engine is not running, the ID code cannot beverified and the engine will not start even if the ignition switch is turned to the “START” position. If this happens, fully return the ignition switch to the “LOCK (PUSH OFF)” position, and start the engine again.
To turn from “LOCK (PUSH OFF)” to “ACC”

A- Steering wheel locked B- Steering wheel lock released
NOTE
 To turn the ignition switch from the “LOCK (PUSH OFF)” position to the “ACC” posi- tion, push the ignition switch again, turn the steering wheel in both directions and thenturn the ignition switch.  The ignition switch cannot be turned unless the F.A.S.T.-key is inside the vehicle. Refer to “Operating range for starting the engine” on page 5-14.
BK0200800US.bo
ok 16 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00513700077
Slowly turn the ignition switch to the “LOCK” position while pressing it. First, set the gearshift lever to the “P” (PARK) position, and then slowly turn theignition switch to the “LOCK” position while pressing it.
N00503500199
With the F.A.S.T.-key, warnings are given through buzzers and displays on the informa-tion screen in the multi-information display in order to prevent mistaken operations or vehicle theft.When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning is also displayed if there is a problem in theF. A . S . T. - k e y. If the following warning displays, contact an authorized Mitsubishi Motors dealer.
If the following warning display, the display goes off if corrective action is taken.  The ID codes of the F.A.S.T.-key and the vehicle cannot be verified  A door cannot be locked even when the driver’s or front passenger’s door lock/unlock switch is pressed
To turn from “ACC” to “LOCK”

For vehicles with manual transaxle For vehicles with Twin Clutch SST (spor- tronic shift transmission)
NOTE
 For vehicle with Twin Clutch SST, the igni- tion switch cannot be turned to the “LOCK” position unless the gearshift lever is in the“P” (PARK) position.
CAUTION If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will be required. Also, the power steering system will not function and it will require greatereffort to manually steer the vehicle. Do not leave the ignition switch in the “ON” or “ACC” position for a long time when the engine is not running. Doing so could lead to a dead battery. Do not turn the ignition switch to the “START” position when the engine is run-ning. It will damage the starter motor.
Warning activation

There is a problem in the F. A . S . T. - k e y Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the oper- ating range Refer to “F.A.S.T.-key take- out monitoring system” on page 5-18. The battery of the F.A.S.T.- key is run down Refer to “Key lock-in pre- vention system” on page 5-18. Refer to “Door ajar preven- tion system” on page 5-18.
BK0200800US.bo
ok 17 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-18 Features and controls
5
N00559801167
When the ignition switch is in a position other than the “LOCK (PUSH OFF)”, if thedoor(s) are opened, the F.A.S.T. - key is removed from the passenger compartment, and then the door(s) are closed, the warningdisplay is displayed and the buzzer sounds 4 times as a warning since it’s impossible to verify the ID codes of the F.A.S.T.-key andvehicle.
N00559900132
When the ignition switch is in the “LOCK(PUSH OFF)” position, the F.A.S.T.-key isleft in the passenger compartment, all the doors are closed, and someone tries to lock the vehicle by pressing the driver’s or frontpassenger’s door lock/unlock switch, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, andthe doors cannot be locked.If all the doors are manually locked and closed while the ignition switch is in the “LOCK (PUSH OFF)” position and theF.A.S.T.-key is left in the car, the doors will automatically unlock and a buzzer will sound for about 3 seconds.
N00560000133
When the ignition switch is in the “LOCK(PUSH OFF)” position, and someone tries tolock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch while one of the doors is not fully closed, thewarning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors cannot be locked.
N00560100134
When the ignition switch is in a position other than “LOCK (PUSH OFF)”, all the doors are closed, and someone tries to lockthe vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, the warning display is displayed and the buzzer
Refer to “Ignition switch turn-off reminder system” on page 5-18.
F.A.S.T.-key take-out monitoring system

NOTE
 The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key is removed through a window without openinga door. This setting can be changed. See an authorized Mitsubishi Motors dealer for details.
 The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine. The surrounding envi- ronment or electromagnetic waves may make it impossible to verify the ID codes ofthe F.A.S.T.-key and vehicle.
Key lock-in prevention system

NOTE
Door ajar prevention system

Ignition switch turn-off reminder system

BK0200800US.bo
ok 18 ページ ２０１３年２月１４日　木曜日　午後２時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
sounds for about 3 seconds as a warning, and the doors cannot be locked.
N00514300054

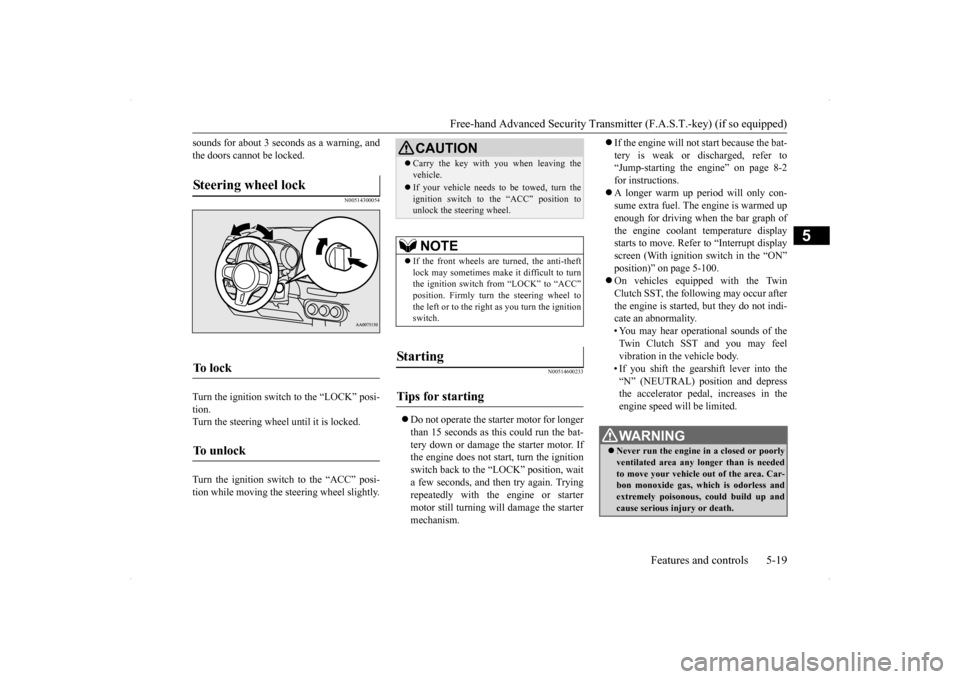

Turn the ignition switch to the “LOCK” posi- tion. Turn the steering wheel until it is locked. Turn the ignition switch to the “ACC” posi- tion while moving the steering wheel slightly.
N00514600233
 Do not operate the starter motor for longer than 15 seconds as this could run the bat- tery down or damage the starter motor. Ifthe engine does not start, turn the ignition switch back to the “LOCK” position, wait a few seconds, and then try again. Tryingrepeatedly with the engine or starter motor still turning will damage the starter mechanism.
 If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2 for instructions. A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driving when the bar graph ofthe engine coolant temperature display starts to move. Refer to “Interrupt display screen (With ignition switch in the “ON”position)” on page 5-100. On vehicles equipped with the Twin Clutch SST, the following may occur after the engine is started, but they do not indi-cate an abnormality. • You may hear operational sounds of the Twin Clutch SST and you may feelvibration in the vehicle body. • If you shift the gearshift lever into the “N” (NEUTRAL) position and depressthe accelerator pedal, increases in the engine speed will be limited.
Steering wheel lock

To l o c k

To u n l o c k

CAUTION Carry the key with you when leaving the vehicle. If your vehicle needs to be towed, turn the ignition switch to the “ACC” position tounlock the steering wheel.NOTE
 If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turnthe ignition switch from “LOCK” to “ACC” position. Firmly turn the steering wheel to the left or to the right
as you turn the ignition
switch.
St arting

Tips for starting

WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car- bon monoxide gas, which is odorless andextremely poisonous, could build up and cause serious injury or death.
BK0200800US.bo
