Thank you for buying a MITSUBISHI LANCER EVOLUTION. We are confident you will enjoy your vehicle. It has been engineered for optimum performance, durabi
lity and comfort. By thoroughly
reading this Owner’s Manual, you
will gain an understanding of the
many features that are included in the LANCER EVOLUTION. TheOwner’s Manual contains descriptions and illustrations that will assist in the operation and maintenance of your vehicle. Your Authorized Mitsubishi Motors
Dealer will be happy to assist you
with any further questions you may have regarding the operation ofyour vehicle. Please note that this manual applies to all LANCER EVOLUTION models and explains all features including options. Some featuresexplained in this manual may no
t be installed on your vehicle.
Please leave this Owner’s Manual in th
e vehicle at the time of resale.
The next owner will appreciate having access to the information con- tained here. This manual includes instructions fo
r standard and optional equipment
available at the time of printing
. Mitsubishi Motors Corporation
reserves the right to make changes in design and specifications and to make additions or improvements in
its product without assuming any
obligation to install these on previously manufactured products.Introduction
Throughout this manual the words
WARNING
and
CAUTION
appear. These are reminders to be especia
lly careful. Failure to follow the
instructions could result in persona
l injury or damage to your vehi-
cle. Indicates a strong possibility of se
vere personal injury or death if
instructions are not followed. Points out hazards or unsafe pr
actices that could cause minor
personal injury or damage to your vehicle. You will see another important symbol: NOTE Gives helpful information.
WA R N I N G Engine exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals kn
own to the State of California to
cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicl
es and certain products of compo-
nent wear contain or emit chemicals known to the State of Califor- nia to cause cancer and birth defe
cts or other reproductive harm.
©2013 Mitsubishi Motors Corp
oration Printed in Japan
BK0200800US.bo
ok 1 ページ 2013年2月11日 月曜日 午後12時21分
Page 2 of 338

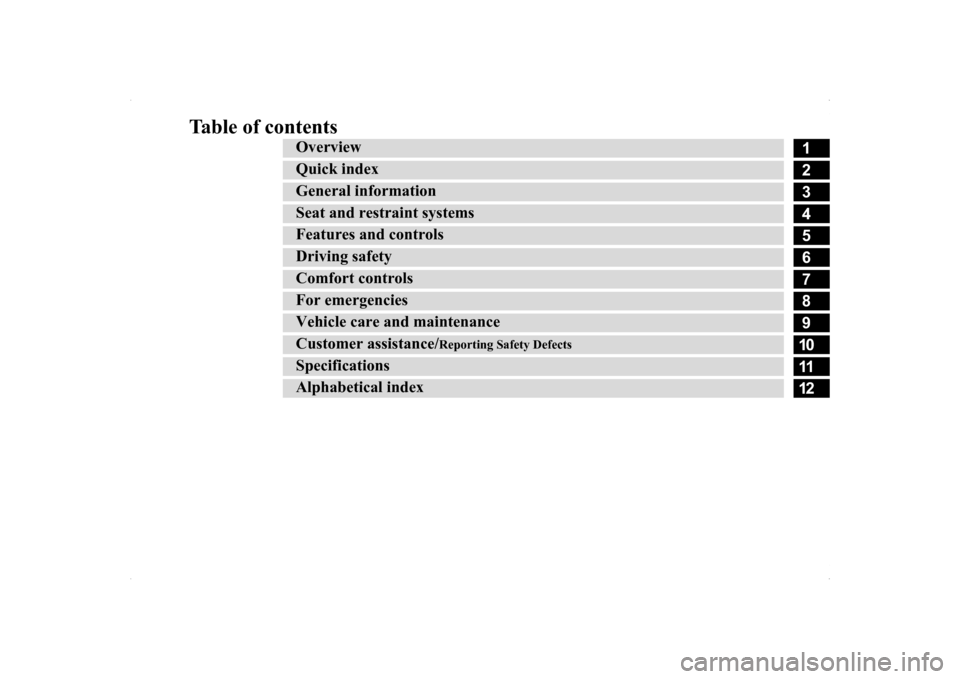

Table of contents
123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care and maintenance Customer assistance/
Reporting Safety Defects
Specifications Alphabetical index
BK0200800US.bo
ok 1 ページ 2013年2月14日 木曜日 午後2時28分
Page 3 of 338
Instruments and controls (Driver’s area) 1-1
1
Overview
N00100202515

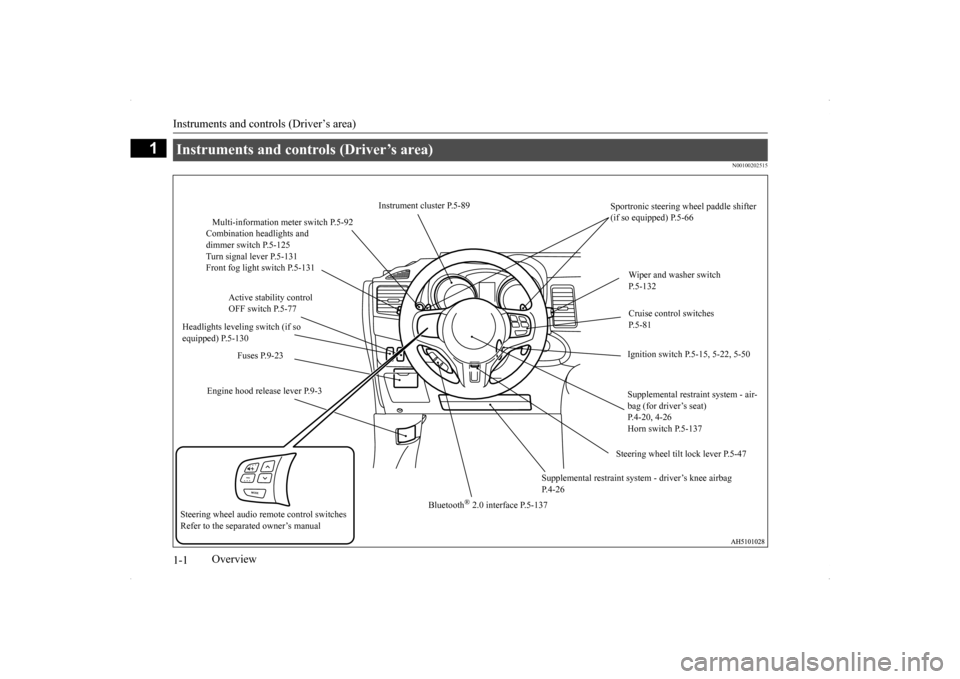

Instruments and controls (Driver’s area)
Instrument cluster P.5-89
Sportronic steering wheel paddle shifter (if so equipped) P.5-66
Multi-information meter switch P.5-92 Combination headlights and dimmer switch P.5-125Turn signal lever P.5-131 Front fog light switch P.5-131
Wiper and washer switch P.5-132
Active stability control OFF switch P.5-77
Cruise control switches P. 5 - 8 1
Headlights leveling switch (if so equipped) P.5-130
Ignition switch P.5-15, 5-22, 5-50
Fuses P.9-23
Engine hood release lever P.9-3
Supplemental restraint system - air- bag (for driver’s seat) P.4-20, 4-26Horn switch P.5-137
Steering wheel tilt lock lever P.5-47
Supplemental restraint system
- driver’s knee airbag
P.4-26
Bluetooth
® 2.0 interface P.5-137
Steering wheel audio remote control switches Refer to the separa
ted owner’s manual
BK0200800US.bo
ok 1 ページ 2013年2月14日 木曜日 午後2時28分
Page 4 of 338
Instruments and controls (Instrument panel)
Overview 1-2
1
N00100202528

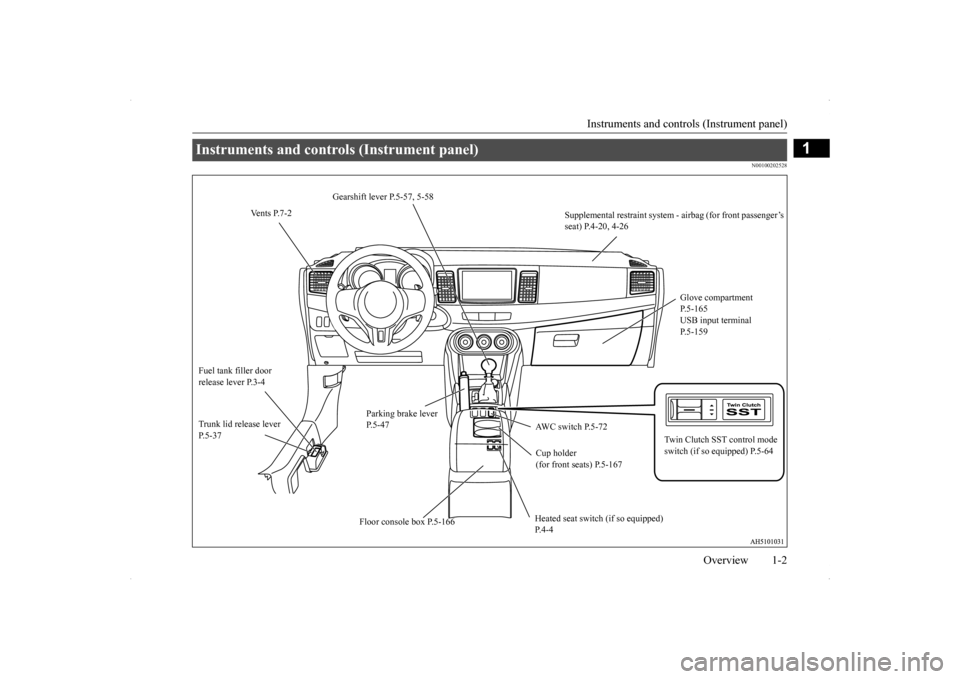

Instruments and controls (Instrument panel)
Gearshift lever P.5-57, 5-58
Vents P.7-2
Supplemental restraint system - airbag (for front passenger’s seat) P.4-20, 4-26
Glove compartment P.5-165USB input terminal P.5-159
Fuel tank filler door release lever P.3-4
Parking brake lever P.5-47
Trunk lid release lever P.5-37
AWC switch P.5-72
Twin Clutch SST control mode switch (if so equipped) P.5-64
Cup holder (for front seats) P.5-167 Heated seat switch (if so equipped) P.4-4
Floor console box P.5-166
BK0200800US.bo
ok 2 ページ 2013年2月14日 木曜日 午後2時28分
Page 5 of 338

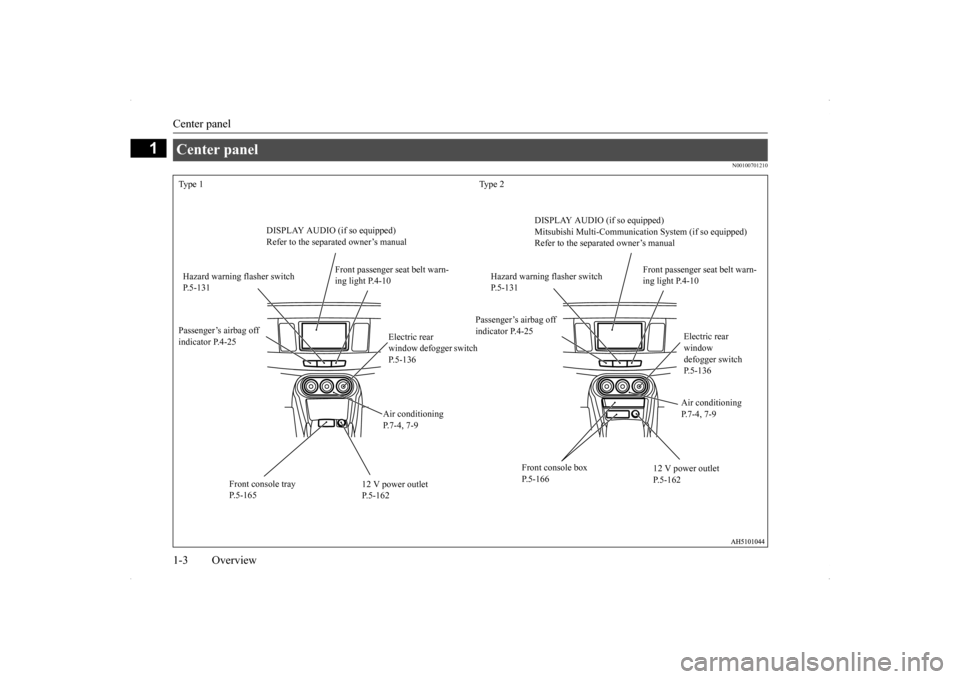

Center panel 1-3 Overview
1
N00100701210
Center panel Type 1 Type 2
DISPLAY AUDIO (if so equipped) Refer to the separated owner’s manual
DISPLAY AUDIO (if so equipped) Mitsubishi Multi-Communicati
on System (if so equipped)
Refer to the separated owner’s manual
Hazard warning flasher switch P.5-131
Front passenger seat belt warn- ing light P.4-10
Hazard warning flasher switch P.5-131
Front passenger seat belt warn- ing light P.4-10
Passenger’s airbag off indicator P.4-25
Passenger’s airbag off indicator P.4-25
Electric rear window defogger switch P.5-136
Electric rear window defogger switch P.5-136
Front console box P.5-166
Air conditioning P.7-4, 7-9
Air conditioning P.7-4, 7-9
12 V power outlet P.5-162
12 V power outlet P.5-162
Front console tray P.5-165
BK0200800US.bo
ok 3 ページ 2013年2月14日 木曜日 午後2時28分
Page 6 of 338
Interior
Overview 1-4
1
N00100302255

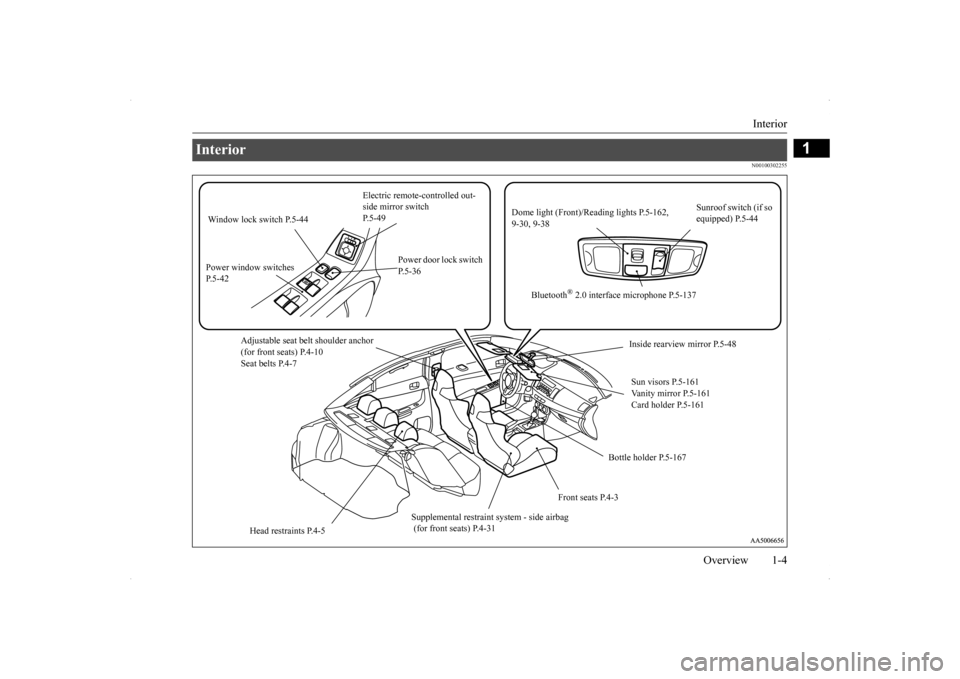

Interior
Electric remote-controlled out- side mirror switch P.5-49
Sunroof switch (if so equipped) P.5-44
Dome light (Front)/R
eading lights P.5-162,
9-30, 9-38
Window lock switch P.5-44 Power window switches P.5-42
Power door lock switch P.5-36
Bluetooth
® 2.0 interface microphone P.5-137
Adjustable seat belt shoulder anchor (for front seats) P.4-10 Seat belts P.4-7
Inside rearview mirror P.5-48 Sun visors P.5-161 Vanity mirror P.5-161Card holder P.5-161
Bottle holder P.5-167
Front seats P.4-3
Supplemental restraint
system - side airbag
(for front seats) P.4-31
Head restraints P.4-5
BK0200800US.bo
ok 4 ページ 2013年2月14日 木曜日 午後2時28分
Page 7 of 338

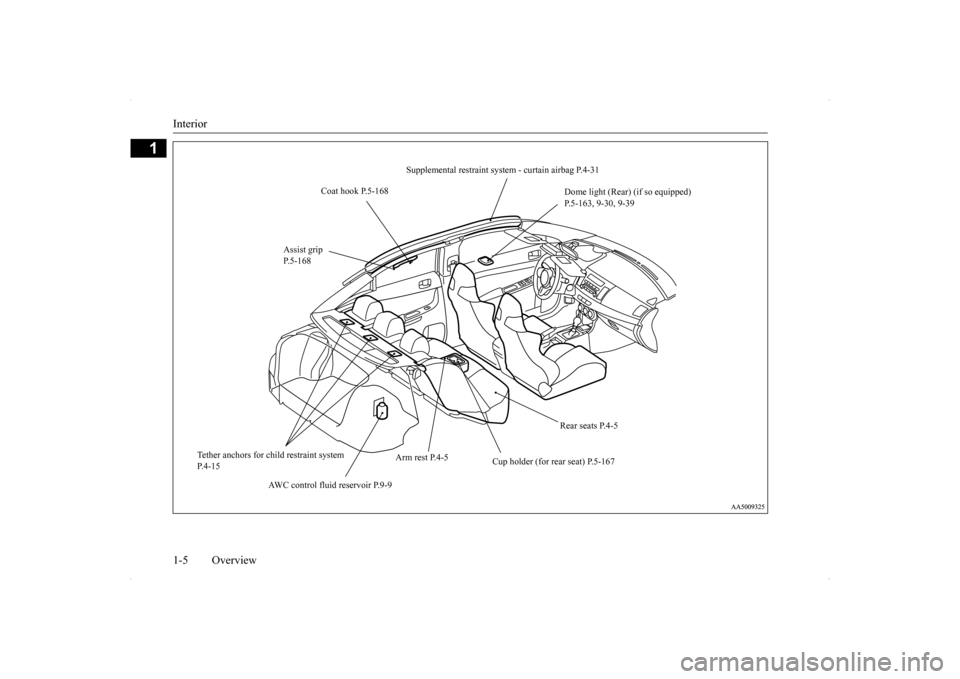

Interior 1-5 Overview
1
Supplemental restraint system - curtain airbag P.4-31
Coat hook P.5-168
Dome light (Rear) (if so equipped) P.5-163, 9-30, 9-39
Assist grip P.5-168
Rear seats P.4-5
Tether anchors for child restraint system P.4-15
Arm rest P.4-5
Cup holder (for rear seat) P.5-167
AWC control fluid reservoir P.9-9
BK0200800US.bo
ok 5 ページ 2013年2月14日 木曜日 午後2時28分
Page 8 of 338
Trunk area
Overview 1-6
1
N00100400249

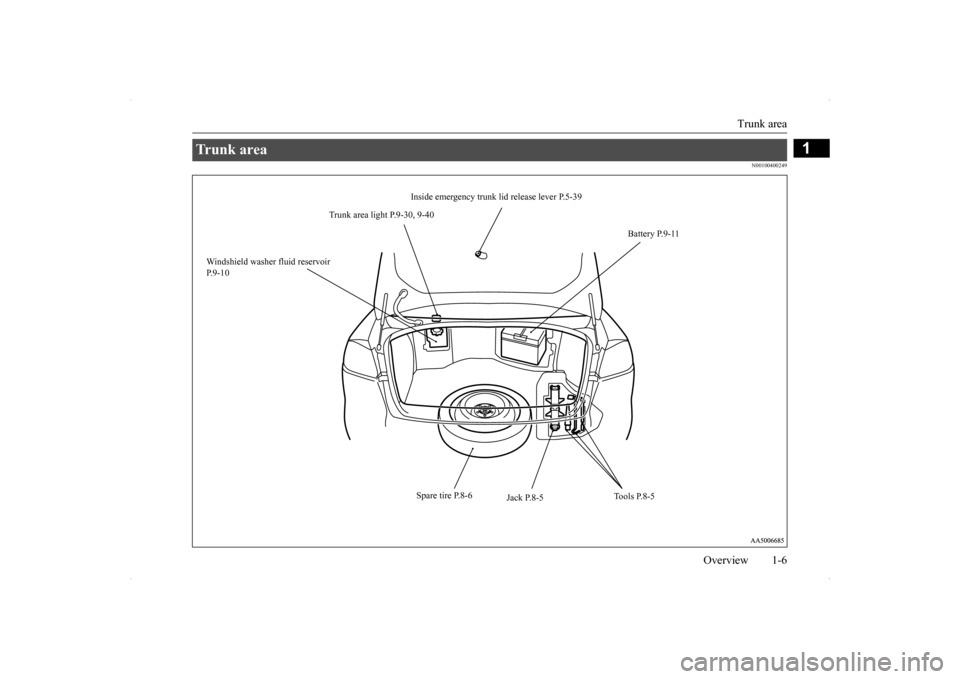

Trunk area
Inside emergency trunk lid release lever P.5-39
Trunk area light P.9-30, 9-40
Battery P.9-11
Windshield washer fluid reservoir P.9-10
Spare tire P.8-6
Tools P.8-5
Jack P.8-5
BK0200800US.bo
ok 6 ページ 2013年2月14日 木曜日 午後2時28分
Page 9 of 338
Outside (Front) 1-7 Overview
1
N00100601235

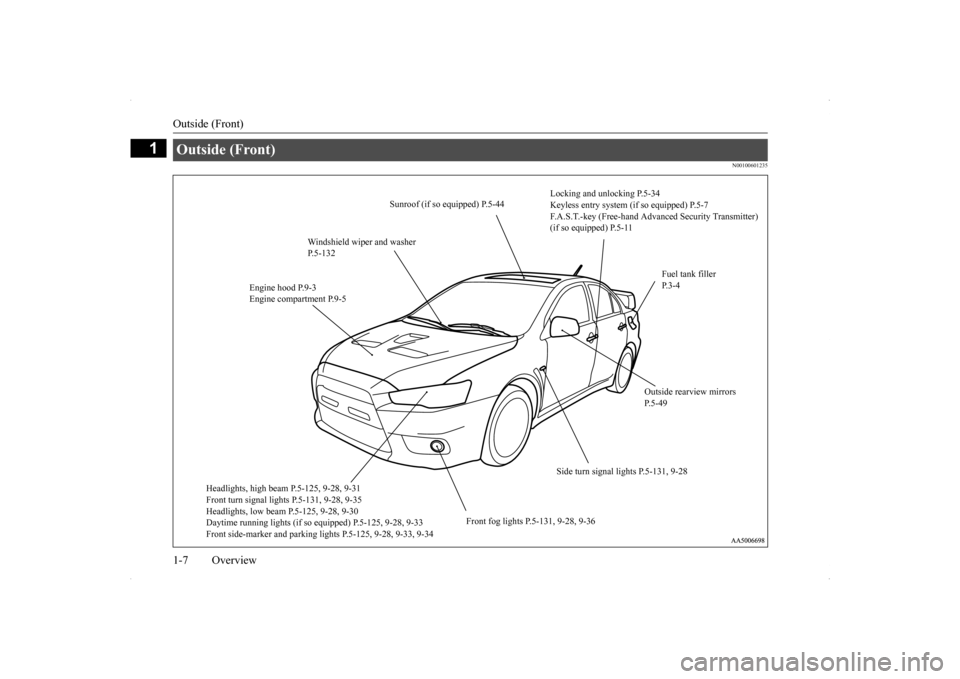

Outside (Front)
Locking and unlocking P.5-34 Keyless entry system (if so equipped) P.5-7F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-11
Sunroof (if so equipped) P.5-44
Windshield wiper and washer P.5-132
Fuel tank filler P.3-4
Engine hood P.9-3 Engine compartment P.9-5
Outside rearview mirrors P.5-49
Side turn signal
lights P.5-131, 9-28
Headlights, high beam
P.5-125, 9-28, 9-31
Front turn signal light
s P.5-131, 9-28, 9-35
Headlights, low beam P.5-125, 9-28, 9-30Daytime running lights (if so
equipped) P.5-125, 9-28, 9-33
Front side-marker and parking lig
hts P.5-125, 9-28, 9-33, 9-34
Front fog lights P.5-131, 9-28, 9-36
BK0200800US.bo
ok 7 ページ 2013年2月14日 木曜日 午後2時28分
Page 10 of 338

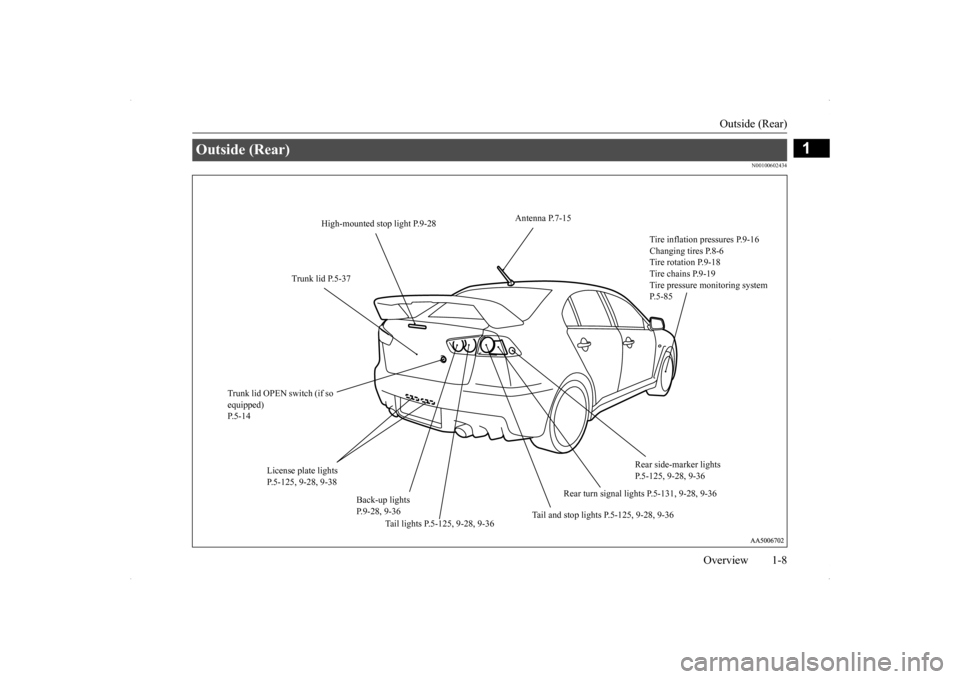

Outside (Rear)
Overview 1-8
1
N00100602434
Outside (Rear)
Antenna P.7-15
Tire inflation pressures P.9-16 Changing tires P.8-6Tire rotation P.9-18 Tire chains P.9-19 Tire pressure monitoring system P.5-85
High-mounted stop light P.9-28
Trunk lid P.5-37
Trunk lid OPEN switch (if so equipped) P.5-14
Rear side-marker lights P.5-125, 9-28, 9-36
License plate lights P.5-125, 9-28, 9-38
Rear turn signal light
s P.5-131, 9-28, 9-36
Back-up lights P.9-28, 9-36
Tail and stop lights P.5-125, 9-28, 9-36
Tail lights P.5-125, 9-28, 9-36
BK0200800US.bo
