USB MITSUBISHI LANCER EVOLUTION 2015 10.G MMCS Manual

Change the Route ........................... 61
Change Search Conditions .......................... 61
Set and Change a Waypoint ........................ 61
Select from Four Routes .............................. 64
Search for a Detour Route ........................... 64
Searching for a Different Route ................... 65
Pause Route Guidance ............................... 65
Delete a Route ............................................. 65
Select the DRG route .................................. 66
Register an Avoid Area ................................ 66
Set an Address in the Address Book 68
Register a Home Location .............. 68
Change the Home Location ......................... 69
Erase Your Home Registration .................... 69
Set a Frequently Used Location in the Address Book .........70
Change a Frequently Used Location ........... 71
Delete a Frequently Used Location ............. 71
Set an Address in the Address Book ......72
Register the Current Location ...................... 72
Register a Searched for Location ................ 72
Change the List Order ................................. 73
Delete an Address from the Address Book ......73
Change Address Book Information ....74
Address Book Information Screen ............... 74
RTT 77
RTT .................................................. 77
Display Contents ......................................... 78
Checking the RTT Traffi c Messages .....79
Registering the RTT Sur veillance Map .....80
Registering from RTT Traffi c Messages ...... 80
Registering from Scroll Menu ...................... 80
AV
Audio Functions 81
Basic Operation .............................. 81
Switch Audio ON/OFF ................................. 81
Adjust Volume .............................................. 81
Insert/Eject Discs ......................................... 82
AV Icons ...................................................... 83
Steering Remote Control Switch Operation ......84
Handling of Discs ............................ 85
Types of Disc That Can Be Played Back ..... 86
Audio Files(MP3/WMA/AAC/WAV) .....87
Folder Structure ........................................... 88
What Is MP3? .............................................. 89
What Is WMA? ............................................. 90
What Is AAC? .............................................. 91
What Is WAV? .............................................. 92
Radio 93
Listen to Radio ................................ 93
Display Contents ......................................... 94
Register Your Favorite Broadcast Stations ......96
Search for Broadcast Stations
with Strong Signals ...................................... 96
Search for Broadcast Stations from the Station List .......97
Emergency Broadcasts ............................... 98
Set Reception Mode .................................... 98
P side P Display Screen .............................. 98
Listen to Satellite Radio ................. 99
Display Contents ....................................... 100
Search for Your Favorite Channel. ............ 101
Register Your Favorite Channel ................. 102
Setting Listening Restrictions .................... 102
Set the channel skip. ................................. 105
The SIRIUS ID is displayed. ...................... 106
Updating Broadcast Information ................ 106
P side P Display Screen ............................ 106
DISC 107
Listen to CDs ................................. 107
Display a List ............................................. 107
Display Contents ....................................... 108
Switch Playback Mode .............................. 109
P side P Display Screen ............................ 109
Listen to Audio Files on a Disc ..... 110
Display a List ..............................................110
Display Contents ........................................ 111
Switch Playback Mode ...............................112
P side P Display Screen .............................113
iPod/USB/SD 114
Play iPod ....................................... 114
Switch Playback Mode ...............................115
Display Contents ........................................116
Search by List .............................................117
P side P Display Screen .............................118
Listen to Audio Files on
a USB Device/SD Card .................. 119
Switch Playback Mode .............................. 120
Display Contents ....................................... 121
Display a List ............................................. 122
Display the Music Menu ............................ 123
P side P Display Screen ............................ 124
External Input Devices 125
Use Bluetooth Audio ..................... 125
Connect a Bluetooth-capable
Audio Device ............................................. 126
Listen to a Bluetooth-capable
Audio Device ............................................. 126
Display Contents ....................................... 127
Switch Playback Mode .............................. 128
P side P Display Screen ............................ 128
Use AUX ........................................ 130
Outputting Audio ........................................ 130

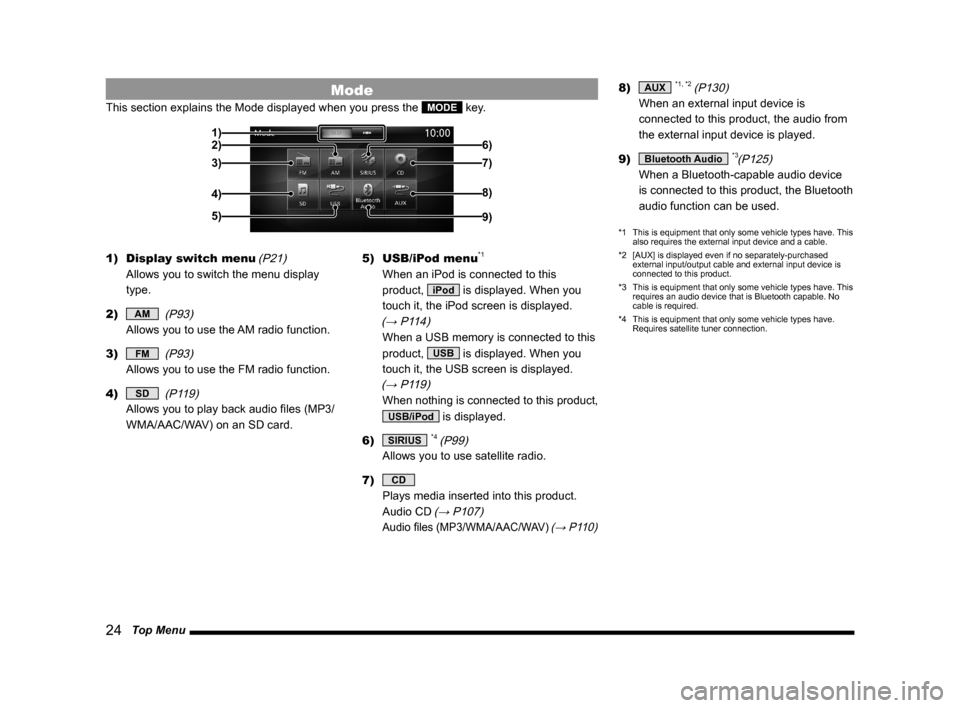

24 Top Menu
Mode
This section explains the Mode displayed when you press the MODE key.
2)
3)
4)
5) 1)
6)
7)
8)
9)
1) Display switch menu
(P21)
Allows you to switch the menu display
type.
2)
AM
(P93)
Allows you to use the AM radio function.
3)
FM
(P93)
Allows you to use the FM radio function.
4)
SD
(P119)
Allows you to play back audio fi les (MP3/
WMA/AAC/WAV) on an SD card.5) USB/iPod menu
*1
When an iPod is connected to this
product,
iPod is displayed. When you
touch it, the iPod screen is displayed.
(→ P114)
When a USB memory is connected to this
product,
USB is displayed. When you
touch it, the USB screen is displayed.
(→ P119)
When nothing is connected to this product,
USB/iPod is displayed.
6)
SIRIUS *4 (P99)
Allows you to use satellite radio.
7)
CD
Plays media inserted into this product.
Audio CD
(→ P107)
Audio fi les (MP3/WMA/AAC/WAV) (→ P110)
8) AUX *1, *2 (P130)
When an external input device is
connected to this product, the audio from
the external input device is played.
9)
Bluetooth Audio *3(P125)
When a Bluetooth-capable audio device
is connected to this product, the Bluetooth
audio function can be used.
*1 This is equipment that only some vehicle types have. This
also requires the external input device and a cable.
*2 [AUX] is displayed even if no separately-purchased
external input/output cable and external input device is
connected to this product.
*3 This is equipment that only some vehicle types have. This
requires an audio device that is Bluetooth capable. No
cable is required.
*4 This is equipment that only some vehicle types have.
Requires satellite tuner connection.

Basic Operation
83
AV Audio Functions
Forcing Disc Ejection
Usually, when the disc loading ends normally,
the inserted disc can be ejected with the
method in the
“Ejecting the Disc”, but if disc
loading fails and the playback information
screen can be displayed, you can forcibly
eject the disc with the following method.
1To start this product,
hold down the
OPEN key.
▼
The disc is forcibly ejected from this product.
AV Icons
During audio playback, an icon is displayed
on the navigation screen as below in order to
show the audio source being played back.
AV Icon
Icon Audio source
Audio OFF state
Radio (Example: FM)
Disc (Example: MP3)
Audio fi le on SD card (Example: MP3)
iPod/iPhone
Audio fi le on USB memory (Example:
MP3)
Bluetooth Audio
AUX
ADVICE
• It is necessary to set the [Screen] “AV
Icon” “Show”.
→“Navi Settings”(P196)
NOTE
• The audio screen currently being played
can be displayed by touching the AV icon
depending on the model.

84 Basic Operation
Steering Remote Control Switch Operation
í.0%&
µ
í
5)
1)
1) 3)2)6)
1)
2)
3)5) 6)
3) 1) 2)
5) 4)
4)
6)6)
5)
2)
3)
A typeC typeD typeB type
4)4)
1) “SPEECH” key
Starts voice control of this product.
2) “OFF HOOK” key
*1
Used to receive a telephone call.
Other than during incoming calls, voice
control (hands-free) for Bluetooth
® 2.0
interface will start.
3) “ON HOOK” key
*1
Used to end a telephone call.4) Vol
key, key
Adjust audio functions and the telephone
function volume.
5)
key, key
Allows you to select CD and other audio
source tracks and radio stations.
Hold down for fast forward and rewind.6)
MODE key
Hold down to turn the audio function
ON/OFF. Additionally, each time this is
pressed, this switches the audio source.
The order of switching is as shown below.
If devices are not connected, then these
are to be skipped, and the next source
selected.

FM
AM
Sirius*6
CD
SD
*2
iPod*3 or USB device*3
Bluetooth Audio*1,*4
AUX*5
*1 Can be used with vehicles equipped with a Bluetooth® 2.0
interface.
*2 First, it is necessary to insert an audio SD card into this
product.
*3 An iPod or USB connection cable (available separately) is
required.
*4 This requires an audio device that is Bluetooth capable
(available separately).
*5 This is equipment that only some vehicle types have. It
cannot be used with vehicles that do not support AUX
devices.
*6 Can be used with vehicles equipped with a Satellite tuner.

Audio Files(MP3/WMA/AAC/WAV)
87
AV Audio Functions
Audio Files(MP3/
WMA/AAC/WAV)
This product can play back MP3/WMA/
AAC/WAV format*2 audio fi les recorded on
CD-ROM, CD-R/RW, USB devices, and SD
cards
*1.
*1 SD card inserted into user slot
*2 WAV fi les recorded on CD-ROMs and audio fi les in
AAC format that have “.aac” fi le extension cannot be
played.
There are limitations on the fi les and media
that can be used, therefore read the following
prior to recording MP3/WMA/AAC/WAV format
audio fi les on any medium.
Additionally, ensure you read the user
manuals for your CD-R/RW drive and the
writing software, and ensure these are used
correctly.
If the MP3/WMA/AAC/WAV format audio fi les
include title information or other data, then this
can be displayed.
CAUTION
• Actions such as copying audio CDs or
fi les and either distributing these to others
for free or for charge, or uploading fi les
via the Internet or other means to servers
is an infringement of the law.
• Do not append the fi le extensions “.mp3”,
“.wma”, “.m4a”, “.aac”, or “.wav” to other
than MP3/WMA/AAC/WAV format fi les.
Playing back discs with fi les whose
contents do not match their fi le extension
may cause the fi les to be incorrectly
identifi ed for playback, which may lead to
loud noise, resulting in speaker damage
or accident.
ADVICE
• Depending on the condition of the disc
recorder or recording software used,
correct playback may not be possible. In
these cases, refer to the user manual for
your product or software.
• Depending on your computer's operating
system, version, software, or settings,
fi les may not have a fi le extension
appended. In these cases, append the
fi le extensions “.mp3”, “.wma”, “.m4a”,
“.aac”, or “.wav” when copying the fi les to
the medium.
• Files larger than 2GB in size cannot be
played back.
• This product can also play back discs
that mix audio fi les in different formats,
MP3, WMA, and AAC.

88 Audio Files(MP3/WMA/AAC/WAV)
Folder Structure
Up to 8 folder levels can be recognized.
You can create a folder structure such as
Genre - Artist - Album - Track (MP3/WMA/
AAC/WAV format audio fi les) for management
of tracks.
Folder
Audio file
♪
♪
♪
♪
1 level 2 level 3 level 4 level 5 level
ROOT
Name Specifi cation Explanation
For mat
specifi cationsISO9660 Level 1 Maximum 8 character fi le name, and 3 character fi le
extension.
(single-byte alphanumeric capital letters, numerals, “_” may
be used)
ISO9660
extensionJoliet Files names up to a maximum 64 characters can be used.
Multisession
Not supported (only fi rst session supported)
Maximum number
of levels8 levels (if the root is the 1st level)
Maximum folder
number100 folders (including root)
Maximum fi le
number
*1255 fi les (total number on media. Other than MP3, WMA, AAC, and WAV fi les not
included)
File name and
folder name
restrictionsMaximum 128 bytes (for Unicode, 64 characters), fi les/folders with fi le/folder names
longer than this will not be displayed or played back.
USB, SD card
supported
for matsThe recommended fi le system is FAT32.
1 partition only
The maximum supported capacity for an SD card is 32GB (SDHC standard
supported).
The recommended class for an SD card is Class 4 or higher.
*1 Do not include other than MP3/WMA/AAC/WAV fi les. However, if storing many tracks within the same
folder, these may not be recognized even if less than the maximum number of tracks. In these cases,
divide the tracks up into multiple folders.
NOTE
• The order in which folders and audio fi les are displayed on this product may be different to
how they are displayed on a computer.

11 4 Play iPod
iPod/USB/SD
Equipment by type
Play iPod
By connecting commercially-available iPod/
iPhone devices to this product, you can play
back tracks on these through the product.
CAUTION
• Never hold an iPod/iPhone in your hand
and operate it while driving, as this is
dangerous.
• Do not leave the iPod/iPhone unattended
in the vehicle.
• No indemnifi cation for data loss resulting
when the iPod/iPhone is connected to the
product will be possible.
• Depending on how the devices are
handled, audio fi les being damaged or
lost, therefore it is recommended that
data be backed up.
NOTE
• This function can only be used in vehicles
that have a USB port.
• Please refer to your vehicle's user
manual regarding how to connect the
iPod/iPhone.
NOTE
• For information regarding details such
as types of iPod/iPhone that can be
connected to and types of fi les that can
be played back, if your car is equipped
with a Bluetooth
® 2.0 interface, refer to
the vehicle's user manual; if your car
is not equipped with a Bluetooth
® 2.0
interface, refer to this manual (→ P8).
Also, sometimes playback as explained
in this document may not be possible.
• Usage of iPod/iPhone hardware with the
latest software version is recommended.
• Updating your software sometimes
changes the functions that can be used
connected with this product.
• Operate the iPod/iPhone while connected
to this product.
• Depending on the generation, model,
or software version of the iPod/iPhone,
playback on this product may not be
possible.
(→P8)Additionally, playback as
explained in this document may not be
possible.
• If the iPod/iPhone is connected via
Bluetooth as a Bluetooth-capable audio
device, then do not connect the iPod/
iPhone using an iPod cable. Connection
using both methods will result in
erroneous operation.
• If an iPod/iPhone does not operate
correctly, then remove the iPod/iPhone
from the product, reset, then reconnect.
• This product does not support video
playback.
NOTE
• When connecting an iPod/iPhone, use
the connection cable included in the iPod/
iPhone.
• Set up the device in order that no
unsafe actions, such as plugging in the
connection cable are taken while driving.
• When inserting and removing the iPod/
iPhone, for safety's sake fi rst stop the
vehicle.
• Depending on the status of the iPod/
iPhone, it may take some time until the
device is recognized, or playback starts.
• Buttons on the product will not operate
while iPod/iPhone is connected.
• iPod/iPhone specifi cations and settings
may mean that connection is not
possible, or result in differences in
operation or display.
• Depending on audio data in the iPod/
iPhone, track information may not be
displayed correctly.
• Depending on the status of the vehicle
and device, the iPod/iPhone may not play
back after starting the engine.
• Data containing copyright information
may not play back.
• It is recommended that the iPod/iPhone
equalizer settings be set to fl at.

Play iPod
11 5
AV iPod/USB/SD
1Press the MODE key.
This displays the mode.
2Touch iPod .
The iPod playback information screen is
displayed.
3Press the key
or
key to select
the track.
▼
The selected track is played back.
ADVICE
• You can fast forward or rewind the
track being played by holding down the
key or
key.
• By pressing the [AUDIO] key, you can
display the navigation screen while using
the audio function.
Pressing the [AUDIO] key again returns
the display to the audio screen.
Switch Playback Mode
Repeat playback, random playback, etc. are
possible.
1On the iPod playback
information screen,
touch
▲ .
This displays the sub-menu.
2Touch the “mode” to change to.
3Touch ▼ .
▼
Playback in the selected mode starts.
Play Mode
Repeat
Each time this is touched, the
mode switches between “Repeat”
and “Cancel”.
Repeat:
Repeat playback of the
track currently being played.
When repeating is cancelled, the
tracks on the current level are
repeated.
Random
Each time this is touched, the
mode switches in the order
“Random”, “Album random”, and
“Cancel”.
Random:
Play tracks on the
current level in a random order.
Album random:
Play all the
albums on the current level in a
random order. However, the order
within albums is not changed.
Database
For vehicles equipped with a
Bluetooth
® 2.0 interface, the
Gracenote version can be
checked.
ADVICE
• During repeat play, even if random or
album random play is started, repeat play
continues.

Play iPod
11 7
AV iPod/USB/SD
iPod Menu
Touching [Menu] on the iPod playback
information screen will display the iPod menu.
Lists of various categories can be displayed
from the iPod menu.
Categorymenu
Categor y
menuDisplays the list of categories.→“Search by List”(P117)
Playback
Returns to the playback
information screen.
→“iPod Playback Information
Screen”(P116)
▲Displays a submenu and changes
the playback mode.
→“Switch Playback Mode”(P115)
Search by List
Touching a category on the iPod menu (P117)
displays a list of the categories. By touching
the list, you can check album names and track
names while searching for the tracks you
want.
1On the iPod playback
information screen, touch
Menu .
The iPod menu is displayed.
2Touch “category”.
Categorymenu
▼
A list of the selected category is displayed.
3Touch the “item” to play from
the list.
▼
This displays a list of the selected item.
Repeat Step 3 to search for songs (tracks).
When you touch the song (track) to play from
the list, playback starts.
ADVICE
• The level of items operated on in Step 3
depends on which category you selected
in Step 2.
• The title information recorded into the
iPod is displayed on the list.

Listen to Audio Files on a USB Device/SD Card
11 9
AV iPod/USB/SD
Equipment by type
Listen to Audio Files
on a USB Device/SD
Card
By connecting commercially-available
USB devices such as USB memory to this
product, you can play back audio fi les on
these through the product.
By loading an audio SD card into the user
slot, you can play back audio fi les recorded
onto the SD card through the product.
CAUTION
• Never hold the USB device or SD card
in your hand to operate while driving, as
this is dangerous.
• Do not leave the USB device/SD card
unattended in the car.
• Do not use hard discs, card readers, or
memory readers, as damage may occur
to these or to the data contained therein.
If these are erroneously connected,
then turn the engine ignition “OFF”, then
remove.
• No indemnifi cation for USB device or
audio SD card data loss will be possible.
• Depending on how the devices are
handled, audio fi les being damaged or
lost, therefore it is recommended that
data be backed up.
NOTE
• USB devices can be used in vehicles that
have a USB port.
• For information regarding details such
as types of USB devices, usage of USB
input ports, and types of fi les that can be
played back, if your car is equipped with
a Bluetooth
® 2.0 interface, refer to the
vehicle's user manual; if your car is not
equipped with a Bluetooth
® 2.0 interface,
refer to this manual.
• Please refer to your vehicle's user
manual regarding how to connect USB
devices.
• Depending on the type of USB device or
SD card, usage may not be possible or
the functions that can be used may be
restricted.
• The recommended fi le system for USB
memory and SD cards is FAT32.
• The maximum supported capacity for
USB memory or an SD card is 32GB
(SDHC standard supported).
• Operate the USB device containing
recorded audio fi les while connected to
this product or the SD card containing
audio fi les while inserted into this product.
• This manual refers to SD cards inserted
into the user slot as “audio SD cards”.
• When connecting a USB device, use a
commercially-available connection cable.
Failure to use a connection cable when
connecting may place undue load on, or
damage the USB connector.
NOTE
• Set up the device in order that no
unsafe actions, such as plugging in the
connection cable are taken while driving.
• When inserting or removing a USB
device or an SD card, for safety's sake
fi rst stop the car.
• Do not insert other than audio devices
into the USB port. Damage to the device
or equipment may result.
• Depending on the status of the USB
device or SD card, it may take some time
until the device is recognized, or playback
starts.
• Depending on USB devices, buttons on
the product will not operate while the
USB device is connected.
• Data containing copyright information
may not play back.
• USB device/SD card specifi cations and
settings may mean that connection is
not possible, or result in differences in
operation or display.
• Depending on audio data in the
USB device or on the SD card, track
information may not be displayed
correctly.
• Depending on the status of the vehicle
and device, the iPod/iPhone may not play
back after starting the engine.
Continued on the next page
