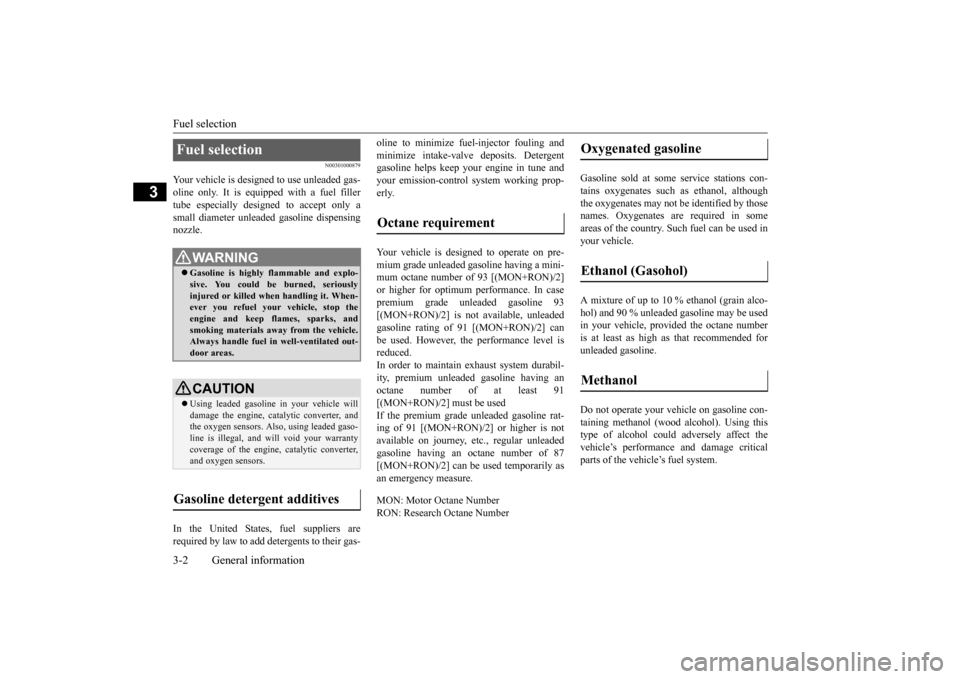

Fuel selection 3-2 General information
3
N00301000879
Your vehicle is designed to use unleaded gas- oline only. It is equipped with a fuel fillertube especially designed to accept only a small diameter unlead
ed gasoline dispensing
nozzle. In the United States, fuel suppliers are required by law to add detergents to their gas-
oline to minimize fuel-injector fouling and minimize intake-valve deposits. Detergent gasoline helps keep your engine in tune and your emission-control system working prop-erly. Your vehicle is designed to operate on pre- mium grade unleaded gasoline having a mini-mum octane number of 93 [(MON+RON)/2] or higher for optimum performance. In case premium grade unleaded gasoline 93[(MON+RON)/2] is not available, unleaded gasoline rating of 91 [(MON+RON)/2] can be used. However, the performance level isreduced. In order to maintain exhaust system durabil- ity, premium unleaded gasoline having anoctane number of at least 91 [(MON+RON)/2] must be used If the premium grade unleaded gasoline rat-ing of 91 [(MON+RON)/2] or higher is not available on journey, etc., regular unleaded gasoline having an octane number of 87[(MON+RON)/2] can be used temporarily as an emergency measure. MON: Motor Octane Number RON: Research Octane Number
Gasoline sold at some service stations con- tains oxygenates such as ethanol, althoughthe oxygenates may not be identified by those names. Oxygenates are required in some areas of the country. Such fuel can be used inyour vehicle. A mixture of up to 10 % ethanol (grain alco- hol) and 90 % unleaded gasoline may be usedin your vehicle, provided the octane number is at least as high as that recommended for unleaded gasoline. Do not operate your vehicle on gasoline con- taining methanol (wood alcohol). Using thistype of alcohol could adversely affect the vehicle’s performance and damage critical parts of the vehicle’s fuel system.
Fuel selection
WA R N I N G Gasoline is highly flammable and explo- sive. You could be burned, seriouslyinjured or killed when handling it. When- ever you refuel your vehicle, stop the engine and keep flames, sparks, andsmoking materials away from the vehicle. Always handle fuel in well-ventilated out- door areas.CAUTION Using leaded gasoline in your vehicle will damage the engine, catalytic converter, and the oxygen sensors. Also, using leaded gaso-line is illegal, and will void your warranty coverage of the engine, catalytic converter, and oxygen sensors.
Gasoline detergent additives
Octane requirement
Oxygenated gasoline Ethanol (Gasohol) Methanol
BK0210800US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１１時２８分

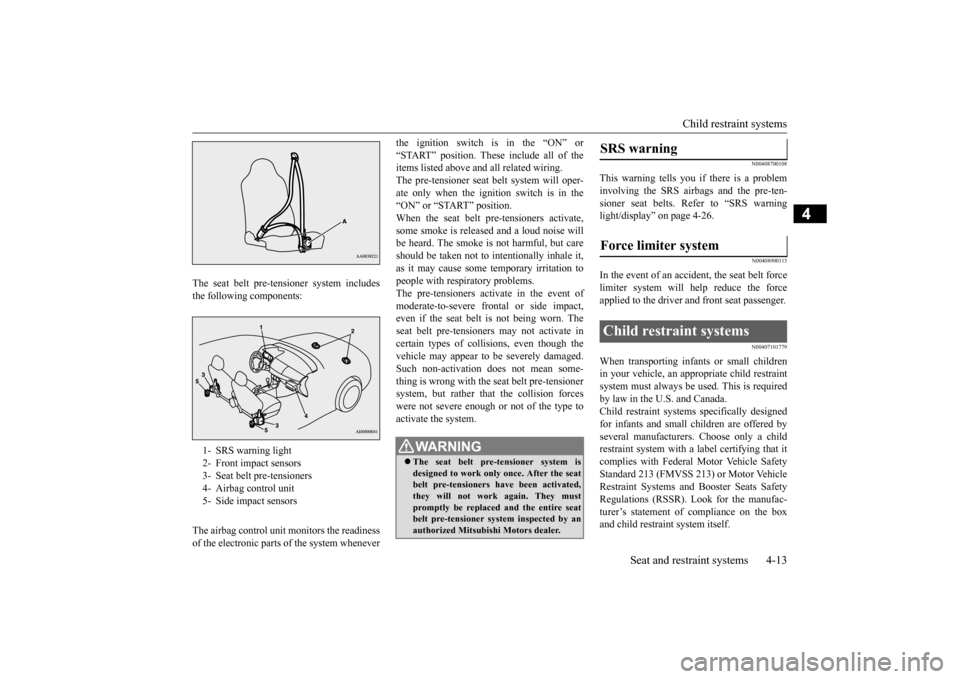

Child restraint systems
Seat and restraint systems 4-13
4
The seat belt pre-tensioner system includes the following components: The airbag control unit monitors the readiness of the electronic parts of the system whenever
the ignition switch is in the “ON” or “START” position. These include all of the items listed above and all related wiring. The pre-tensioner seat belt system will oper-ate only when the ignition switch is in the “ON” or “START” position. When the seat belt pre-tensioners activate,some smoke is released and a loud noise will be heard. The smoke is not harmful, but care should be taken not to intentionally inhale it,as it may cause some temporary irritation topeople with respiratory problems. The pre-tensioners activate in the event of moderate-to-severe frontal or side impact,even if the seat belt is not being worn. The seat belt pre-tensioners may not activate in certain types of collisions, even though thevehicle may appear to be severely damaged. Such non-activation does not mean some- thing is wrong with the seat belt pre-tensionersystem, but rather that the collision forces were not severe enough or not of the type to activate the system.
N00408700108
This warning tells you if there is a probleminvolving the SRS airbags and the pre-ten-sioner seat belts. Refer to “SRS warning light/display” on page 4-26.
N00408900113
In the event of an accident, the seat belt force limiter system will help reduce the force applied to the driver and front seat passenger.
N00407101779
When transporting infants or small childrenin your vehicle, an appropriate child restraint system must always be used. This is requiredby law in the U.S. and Canada. Child restraint systems specifically designed for infants and small children are offered byseveral manufacturers. Choose only a child restraint system with a label certifying that it complies with Federal Motor Vehicle SafetyStandard 213 (FMVSS 213) or Motor Vehicle Restraint Systems and Booster Seats Safety Regulations (RSSR). Look for the manufac-turer’s statement of compliance on the box and child restraint system itself.
1- SRS warning light 2- Front impact sensors 3- Seat belt pre-tensioners 4- Airbag control unit 5- Side impact sensors
WA R N I N G The seat belt pre-tensioner system is designed to work only once. After the seatbelt pre-tensioners have been activated, they will not work again. They must promptly be replaced and the entire seatbelt pre-tensioner system inspected by an authorized Mitsubishi Motors dealer.
SRS warning Force limiter system Child restraint systems
BK0210800US.bo
ok 13 ページ ２０１４年４月８日　火曜日　午前１１時２８分

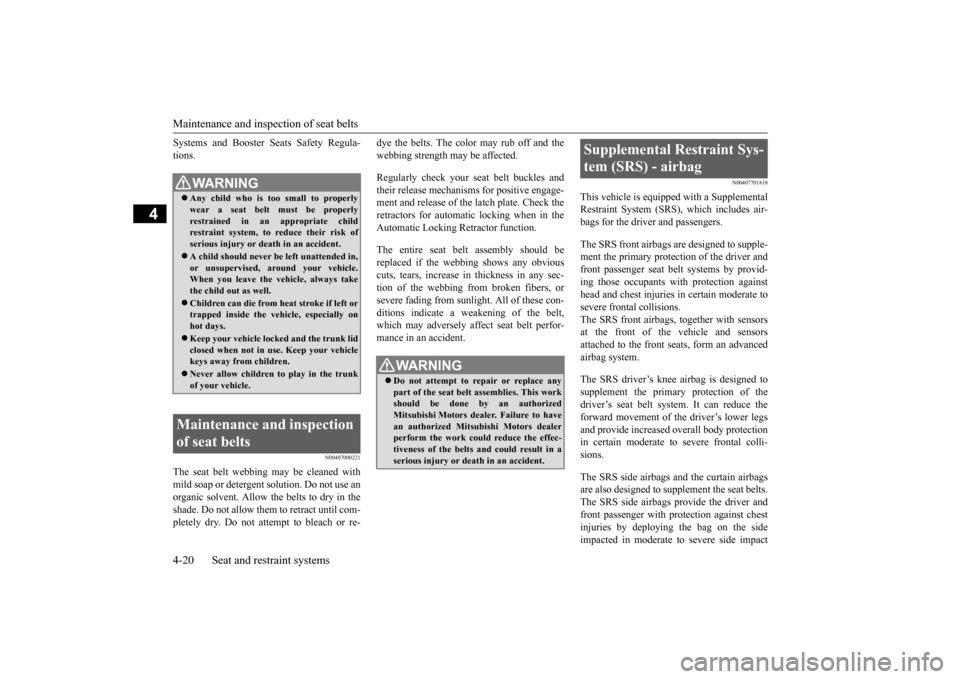

Maintenance and inspection of seat belts 4-20 Seat and restraint systems
4
Systems and Booster Seats Safety Regula- tions.
N00407000221
The seat belt webbing may be cleaned withmild soap or detergent solution. Do not use an organic solvent. Allow the belts to dry in the shade. Do not allow them to retract until com-pletely dry. Do not attempt to bleach or re-
dye the belts. The color may rub off and the webbing strength may be affected. Regularly check your seat belt buckles and their release mechanisms for positive engage- ment and release of the latch plate. Check theretractors for automatic locking when in the Automatic Locking Retractor function. The entire seat belt assembly should be replaced if the webbing shows any obviouscuts, tears, increase in thickness in any sec-tion of the webbing from broken fibers, or severe fading from sunlight. All of these con- ditions indicate a weakening of the belt,which may adversely affect seat belt perfor- mance in an accident.
N00407701818
This vehicle is equipped with a Supplemental Restraint System (SRS), which includes air-bags for the driver and passengers. The SRS front airbags are designed to supple- ment the primary protection of the driver and front passenger seat belt systems by provid-ing those occupants with protection againsthead and chest injuries in certain moderate to severe frontal collisions. The SRS front airbags, together with sensorsat the front of the vehicle and sensors attached to the front seats, form an advanced airbag system. The SRS driver’s knee airbag is designed to supplement the primary protection of the driver’s seat belt system. It can reduce the forward movement of the driver’s lower legsand provide increased overall body protection in certain moderate to severe frontal colli- sions. The SRS side airbags and the curtain airbags are also designed to supplement the seat belts. The SRS side airbags provide the driver and front passenger with protection against chestinjuries by deploying the bag on the side impacted in moderate to severe side impact
WA R N I N G Any child who is too small to properly wear a seat belt must be properly restrained in an appropriate childrestraint system, to reduce their risk of serious injury or death in an accident. A child should never be left unattended in, or unsupervised, around your vehicle. When you leave the vehicle, always takethe child out as well. Children can die from heat stroke if left or trapped inside the vehicle, especially on hot days. Keep your vehicle locked and the trunk lid closed when not in use. Keep your vehicle keys away from children. Never allow children to play in the trunk of your vehicle.
Maintenance and inspection of seat belts
WA R N I N G Do not attempt to repair or replace any part of the seat belt assemblies. This workshould be done by an authorized Mitsubishi Motors dealer. Failure to have an authorized Mitsubishi Motors dealerperform the work could reduce the effec- tiveness of the belts and could result in a serious injury or death in an accident.
Supplemental Restraint Sys- tem (SRS) - airbag
BK0210800US.bo
ok 20 ページ ２０１４年４月８日　火曜日　午前１１時２８分

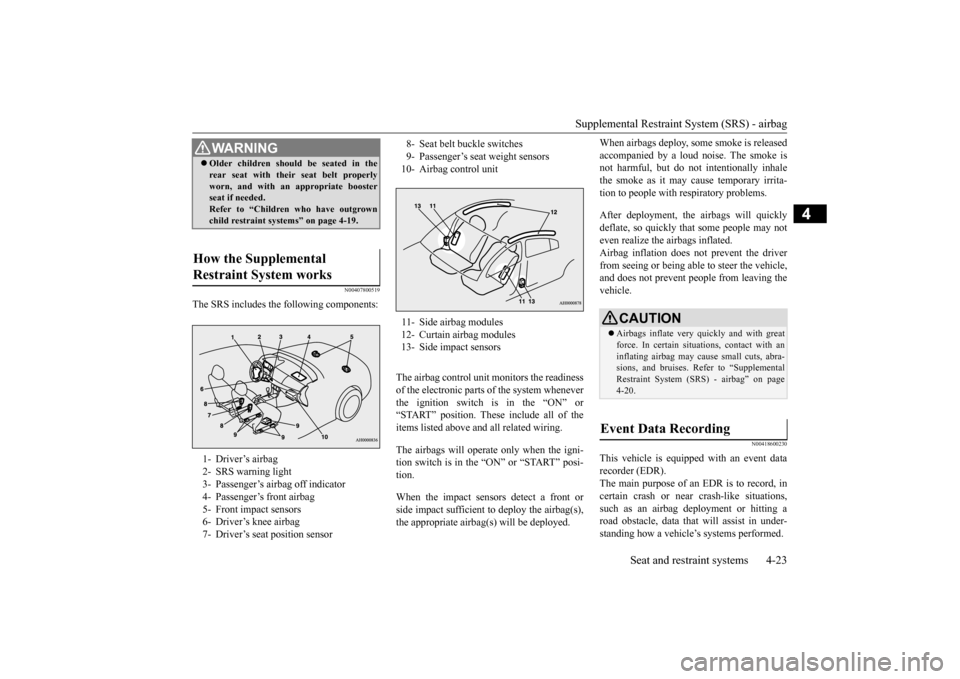

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-23
4
N00407800519
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic parts of the system whenever the ignition switch is in the “ON” or “START” position. These include all of theitems listed above and all related wiring. The airbags will operate only when the igni- tion switch is in the “ON” or “START” posi- tion. When the impact sensors detect a front or side impact sufficient to deploy the airbag(s), the appropriate airbag(s) will be deployed.
When airbags deploy, some smoke is released accompanied by a loud noise. The smoke is not harmful, but do not intentionally inhale the smoke as it may cause temporary irrita-tion to people with respiratory problems. After deployment, the airbags will quickly deflate, so quickly that some people may not even realize the airbags inflated.Airbag inflation does not prevent the driver from seeing or being able to steer the vehicle, and does not prevent people from leaving thevehicle.
N00418600230
This vehicle is equipped with an event datarecorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations,such as an airbag deployment or hitting a road obstacle, data that will assist in under- standing how a vehicle’s systems performed.
WA R N I N G Older children should be seated in the rear seat with their seat belt properly worn, and with an appropriate booster seat if needed. Refer to “Children who have outgrownchild restraint systems” on page 4-19.
How the Supplemental Restraint System works 1- Driver’s airbag 2- SRS warning light 3- Passenger’s airbag off indicator 4- Passenger’s front airbag5- Front impact sensors 6- Driver’s knee airbag 7- Driver’s seat position sensor
8- Seat belt buckle switches9- Passenger’s seat weight sensors10- Airbag control unit 11- Side airbag modules 12- Curtain airbag modules 13- Side impact sensors
CAUTION Airbags inflate very quickly and with great force. In certain situations, contact with an inflating airbag may cause small cuts, abra-sions, and bruises. Refer to “Supplemental Restraint System (SRS) - airbag” on page 4-20.
Event Data Recording
BK0210800US.bo
ok 23 ページ ２０１４年４月８日　火曜日　午前１１時２８分

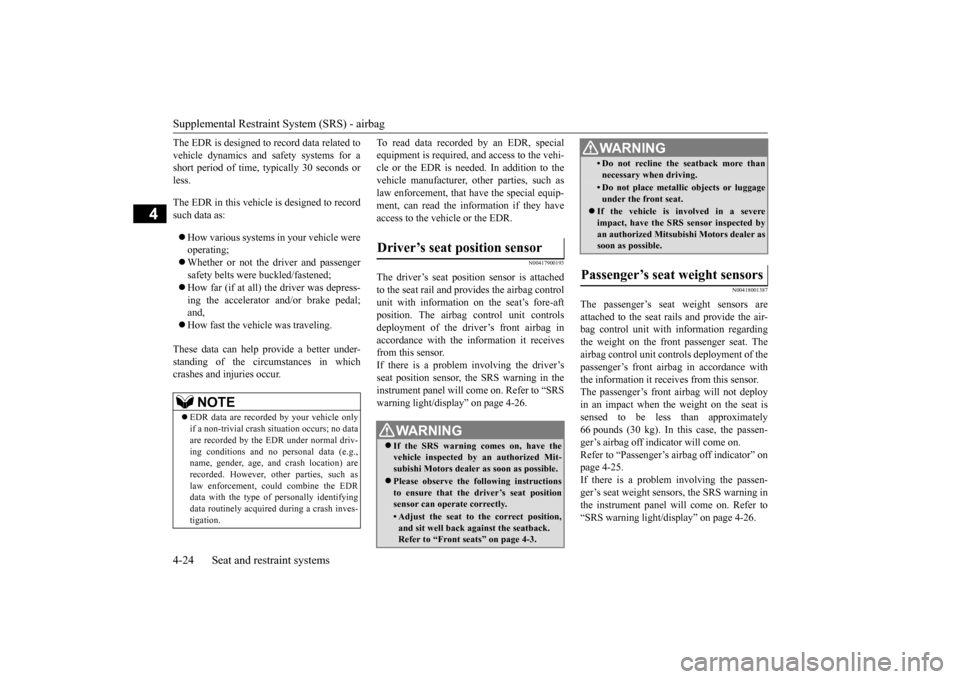

Supplemental Restraint System (SRS) - airbag
4-24 Seat and restraint systems
4
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as: How various systems in your vehicle were
operating;
 Whether or not the driver and passenger
safety belts were buckled/fastened;
 How far (if at all) the driver was depress-
ing the accelerator and/or brake pedal;
and,
 How fast the vehicle was traveling.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur. To read data recorded by an EDR, special
equipment is required, and access to the vehi-
cle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as
law enforcement, that have the special equip-
ment, can read the information if they have
access to the vehicle or the EDR.
N00417900193
The driver’s seat position sensor is attached
to the seat rail and provides the airbag control
unit with information on the seat’s fore-aft
position. The airbag control unit controls
deployment of the driver’s front airbag in
accordance with the information it receives
from this sensor.
If there is a problem involving the driver’s
seat position sensor, the SRS warning in the
instrument panel will come on. Refer to “SRS
warning light/display” on page 4-26.
N00418001387
The passenger’s seat weight sensors are
attached to the seat rails and provide the air-
bag control unit with information regarding
the weight on the front passenger seat. The
airbag control unit controls deployment of the
passenger’s front airbag in accordance with
the information it receives from this sensor.
The passenger’s front airbag will not deploy
in an impact when the weight on the seat is
sensed to be less than approximately
66 pounds (30 kg). In this case, the passen-
ger’s airbag off indicator will come on.
Refer to “Passenger’s airbag off indicator” on
page 4-25.
If there is a problem involving the passen-
ger’s seat weight sensors, the SRS warning in
the instrument panel will come on. Refer to
“SRS warning light/display” on page 4-26.
NOTE

EDR data are recorded by your vehicle only
if a non-trivial crash situation occurs; no data
are recorded by the EDR under normal driv-
ing conditions and no personal data (e.g.,
name, gender, age, and crash location) are
recorded. However, other parties, such as
law enforcement, could combine the EDR
data with the type of personally identifying
data routinely acquired during a crash inves-
tigation.
Driver’s seat position sensor
WA R N I N G If the SRS warning comes on, have the
vehicle inspected by an authorized Mit-
subishi Motors dealer as soon as possible.Please observe the following instructions
to ensure that the driver’s seat position
sensor can operate correctly.• Adjust the seat to the correct position,
and sit well back against the seatback.
Refer to “Front seats” on page 4-3.
• Do not recline the seatback more than
necessary when driving.• Do not place metallic objects or luggageunder the front seat. If the vehicle is involved in a severe
impact, have the SRS sensor inspected by
an authorized Mitsubishi Motors dealer as
soon as possible.Passenger’s seat weight sensors
WA R N I N G
SC00000500-2.fm 24 ページ ２０１４年４月１８日　金曜日　午後５時４９分

Supplemental Restraint System (SRS) - airbagSeat and restraint systems 4-25
4
N00418100251

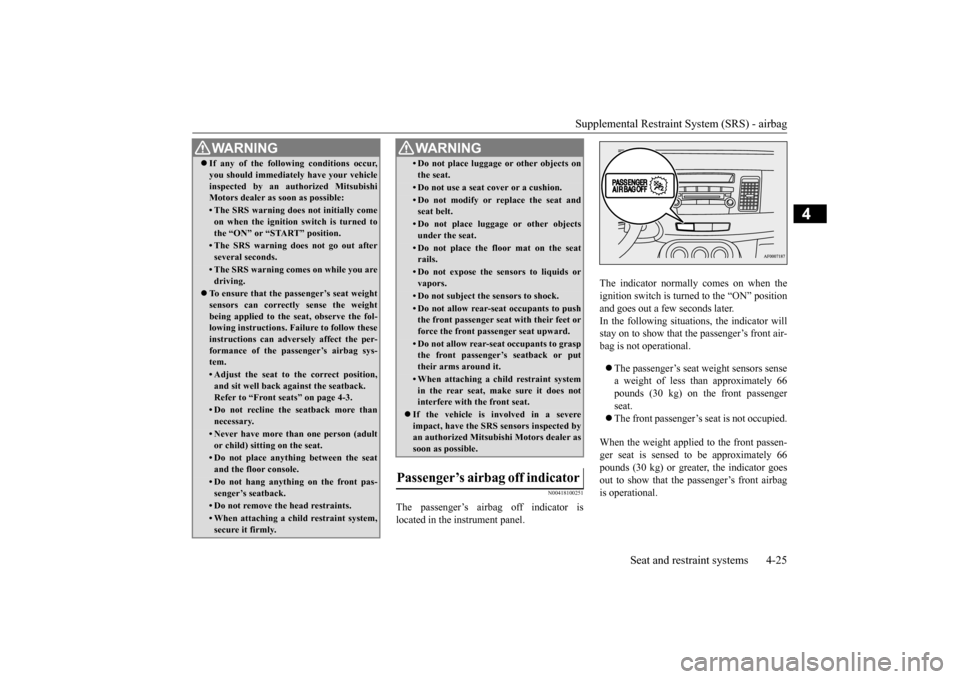

The passenger’s airbag off indicator is
located in the instrument panel. The indicator normally comes on when the
ignition switch is turned to the “ON” position
and goes out a few seconds later.
In the following situations, the indicator will
stay on to show that the passenger’s front air-
bag is not operational.
 The passenger’s seat weight sensors sense
a weight of less than approximately 66
pounds (30 kg) on the front passenger
seat.
 The front passenger’s seat is not occupied.
When the weight applied to the front passen-
ger seat is sensed to be approximately 66
pounds (30 kg) or greater, the indicator goes
out to show that the passenger’s front airbag
is operational.
WA R N I N G If any of the following conditions occur,
you should immediately have your vehicle
inspected by an authorized Mitsubishi
Motors dealer as soon as possible:• The SRS warning does not initially come
on when the ignition switch is turned to
the “ON” or “START” position.• The SRS warning does not go out afterseveral seconds.• The SRS warning comes on while you aredriving. To ensure that the passenger’s seat weight
sensors can correctly sense the weight
being applied to the seat, observe the fol-
lowing instructions. Failure to follow these
instructions can adversely affect the per-
formance of the passenger’s airbag sys-
tem.• Adjust the seat to the correct position,
and sit well back against the seatback.
Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary.• Never have more than one person (adultor child) sitting on the seat.• Do not place anything between the seatand the floor console.• Do not hang anything on the front pas-senger’s seatback.• Do not remove the head restraints.• When attaching a child restraint system,secure it firmly.
• Do not place luggage or other objects on
the seat.• Do not use a seat cover or a cushion.• Do not modify or replace the seat andseat belt.• Do not place luggage or other objectsunder the seat.• Do not place the floor mat on the seatrails.• Do not expose the sensors to liquids orvapors.• Do not subject the sensors to shock.• Do not allow rear-seat occupants to pushthe front passenger seat with their feet or
force the front passenger seat upward.• Do not allow rear-seat occupants to grasp
the front passenger’s seatback or put
their arms around it.• When attaching a child restraint systemin the rear seat, make sure it does not
interfere with the front seat. If the vehicle is involved in a severe
impact, have the SRS sensors inspected by
an authorized Mitsubishi Motors dealer as
soon as possible.Passenger’s airbag off indicator
WA R N I N G
SC00000500-2.fm 25 ページ ２０１４年４月１８日　金曜日　午後５時４９分

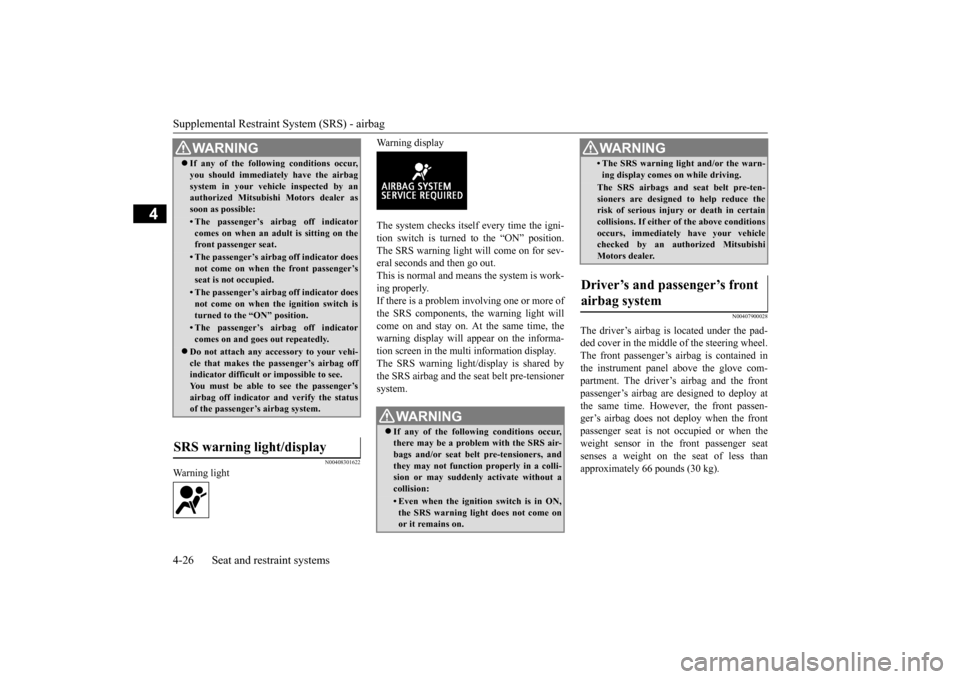

Supplemental Restraint System (SRS) - airbag 4-26 Seat and restraint systems
4
N00408301622
Warning light
Warning display The system checks itself every time the igni- tion switch is turned to the “ON” position. The SRS warning light will come on for sev-eral seconds and then go out. This is normal and means the system is work- ing properly.If there is a problem involving one or more of the SRS components, the warning light will come on and stay on. At the same time, thewarning display will appear on the informa- tion screen in the multi information display. The SRS warning light/display is shared bythe SRS airbag and the seat belt pre-tensioner system.
N00407900028
The driver’s airbag is located under the pad-ded cover in the middle of the steering wheel. The front passenger’s airbag is contained inthe instrument panel above the glove com- partment. The driver’s airbag and the front passenger’s airbag are designed to deploy atthe same time. However,
the front passen-
ger’s airbag does not deploy when the front passenger seat is not occupied or when theweight sensor in the front passenger seat senses a weight on the seat of less than approximately 66 pounds (30 kg).
WA R N I N G If any of the following conditions occur, you should immediately have the airbag system in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The passenger’s airbag off indicatorcomes on when an adult is sitting on thefront passenger seat.• The passenger’s airbag off indicator doesnot come on when the front passenger’s seat is not occupied.• The passenger’s airbag off indicator doesnot come on when the ignition switch is turned to the “ON” position.• The passenger’s airbag off indicatorcomes on and goes out repeatedly.
 Do not attach any accessory to your vehi- cle that makes the passenger’s airbag offindicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the statusof the passenger’s airbag system.
SRS warning light/display
WA R N I N G If any of the following conditions occur, there may be a problem with the SRS air- bags and/or seat belt pre-tensioners, and they may not function properly in a colli-sion or may suddenly activate without a collision:• Even when the ignition switch is in ON,the SRS warning light does not come on or it remains on.
• The SRS warning light and/or the warn- ing display comes on while driving.The SRS airbags and seat belt pre-ten- sioners are designed to help reduce therisk of serious injury or death in certain collisions. If either of the above conditions occurs, immediately have your vehiclechecked by an authorized Mitsubishi Motors dealer.
Driver’s and passenger’s front airbag system
WA R N I N G
BK0210800US.bo
ok 26 ページ ２０１４年４月８日　火曜日　午前１１時２８分

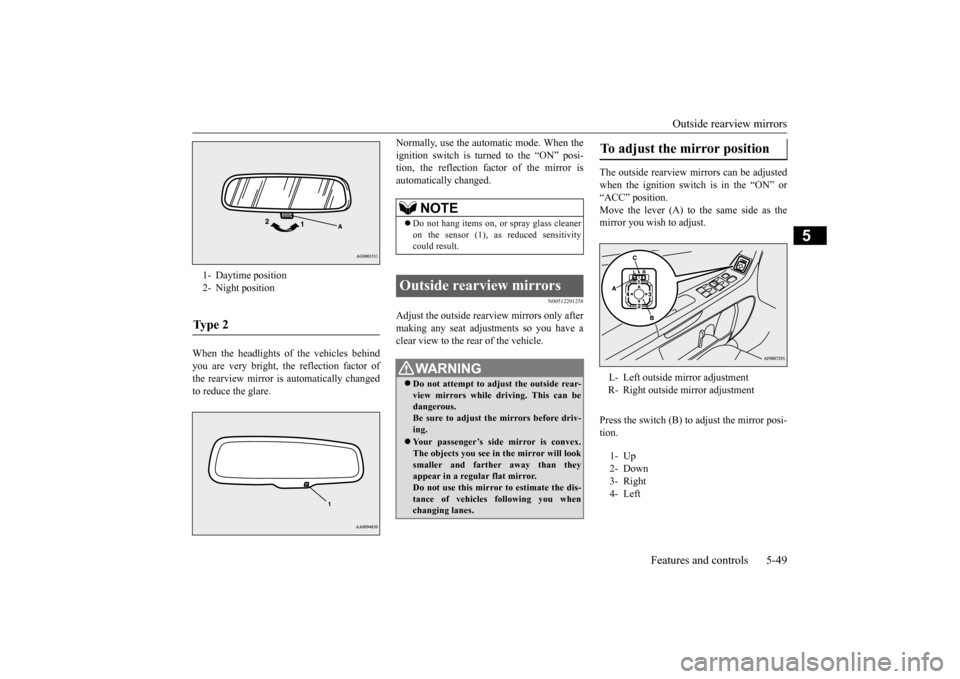

Outside rearview mirrors
Features and controls 5-49
5
When the headlights of the vehicles behind you are very bright, the reflection factor of the rearview mirror is automatically changedto reduce the glare.
Normally, use the automatic mode. When the ignition switch is turned to the “ON” posi- tion, the reflection fact
or of the mirror is
automatically changed.
N00512201258
Adjust the outside rearview mirrors only aftermaking any seat adjustments so you have aclear view to the rear of the vehicle.
The outside rearview mirrors can be adjusted when the ignition switch is in the “ON” or “ACC” position.Move the lever (A) to the same side as the mirror you wish to adjust. Press the switch (B) to adjust the mirror posi- tion.
1- Daytime position 2- Night positionTy p e 2
NOTE
 Do not hang items on, or spray glass cleaner on the sensor (1), as reduced sensitivitycould result.
Outside rearview mirrors
WA R N I N G Do not attempt to adjust the outside rear- view mirrors while driving. This can be dangerous. Be sure to adjust the mirrors before driv-ing. Your passenger’s side mirror is convex. The objects you see in the mirror will look smaller and farther away than theyappear in a regular flat mirror. Do not use this mirror to estimate the dis- tance of vehicles following you whenchanging lanes.
To adjust the mirror position L- Left outside mirror adjustment R- Right outside mirror adjustment 1- Up 2- Down 3- Right4- Left
BK0210800US.bo
ok 49 ページ ２０１４年４月８日　火曜日　午前１１時２８分

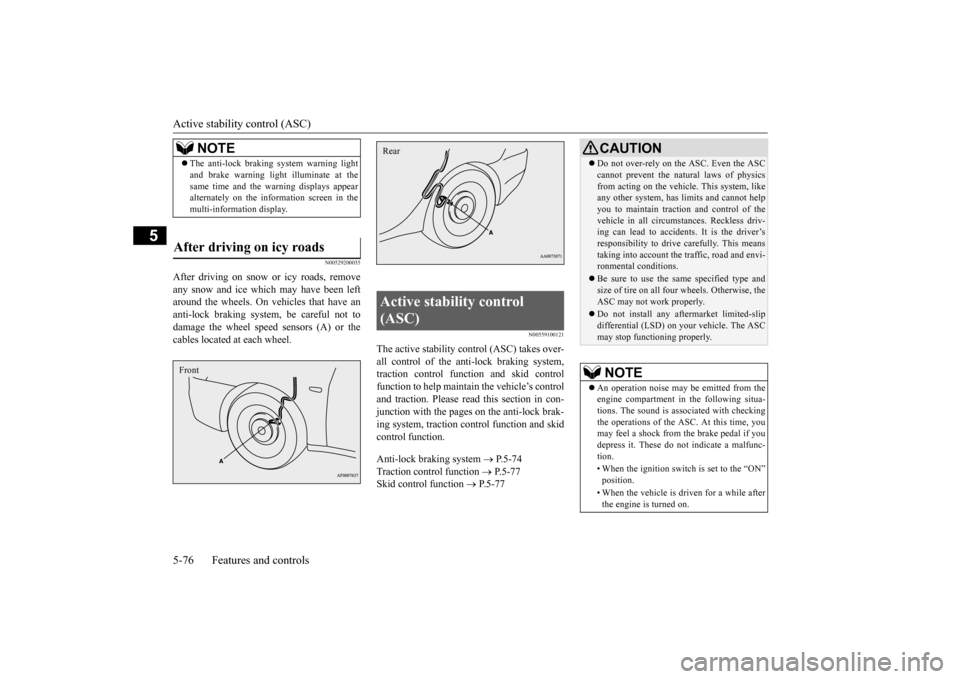

Active stability control (ASC) 5-76 Features and controls
5
N00529200035
After driving on snow or icy roads, remove any snow and ice which may have been left around the wheels. On vehicles that have an anti-lock braking system, be careful not todamage the wheel speed sensors (A) or the cables located at each wheel.
N00559100121
The active stability control (ASC) takes over- all control of the anti-lock braking system, traction control function and skid control function to help maintain the vehicle’s controland traction. Please read
this section in con-
junction with the pages on the anti-lock brak- ing system, traction control function and skid control function. Anti-lock braking system
 P.5-74
Traction control function
 P.5-77
Skid control function
 P.5-77
NOTE
The anti-lock braking system warning light and brake warning light illuminate at the same time and the warning displays appear alternately on the information screen in the multi-information display.
After driving on icy roads Front
Active stability control (ASC) Rear
CAUTION Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physics from acting on the vehicl
e. This system, like
any other system, has limits and cannot help you to maintain traction and control of thevehicle in all circumstances. Reckless driv- ing can lead to accidents. It is the driver’s responsibility to drive carefully. This meanstaking into account the traffic, road and envi- ronmental conditions. Be sure to use the same specified type and size of tire on all four wheels. Otherwise, the ASC may not work properly. Do not install any aftermarket limited-slip differential (LSD) on your vehicle. The ASCmay stop functioning properly.NOTE
 An operation noise may be emitted from the engine compartment in the following situa-tions. The sound is associated with checking the operations of the ASC. At this time, you may feel a shock from the brake pedal if youdepress it. These do not indicate a malfunc- tion. • When the ignition switch is set to the “ON” position. • When the vehicle is driven for a while after the engine is turned on.
BK0210800US.bo
ok 76 ページ ２０１４年４月８日　火曜日　午前１１時２８分

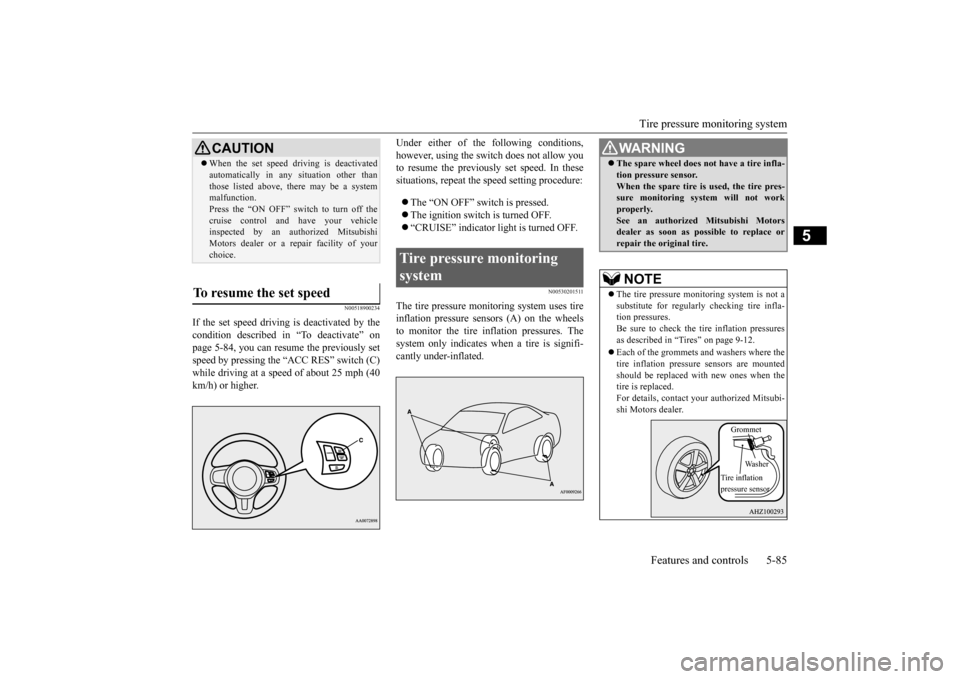

Tire pressure monitoring system
Features and controls 5-85
5
N00518900234
If the set speed driving is deactivated by the condition described in “To deactivate” onpage 5-84, you can resume the previously set speed by pressing the “ACC RES” switch (C) while driving at a speed of about 25 mph (40km/h) or higher.
Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In these situations, repeat the speed setting procedure:  The “ON OFF” switch is pressed.  The ignition switch is turned OFF.  “CRUISE” indicator light is turned OFF.
N00530201511
The tire pressure monitoring system uses tire inflation pressure sensors (A) on the wheels to monitor the tire inflation pressures. The system only indicates when a tire is signifi-cantly under-inflated.
CAUTION When the set speed driving is deactivated automatically in any situation other than those listed above, there may be a system malfunction. Press the “ON OFF” switch to turn off thecruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
To resume the set speed
Tire pressure monitoring system
WA R N I N G The spare wheel does not have a tire infla- tion pressure sensor. When the spare tire is used, the tire pres- sure monitoring system will not work properly.See an authorized Mitsubishi Motors dealer as soon as possible to replace or repair the original tire.NOTE
 The tire pressure monitoring system is not a substitute for regularly checking tire infla- tion pressures. Be sure to check the tire inflation pressures as described in “Tires” on page 9-12.  Each of the grommets and washers where the tire inflation pressure sensors are mounted should be replaced with new ones when thetire is replaced. For details, contact your authorized Mitsubi- shi Motors dealer.
Grommet
Wa s h e r
Tire inflation pressure sensor
