ENGINE – CYLINDER HEAD GASKET
11-15

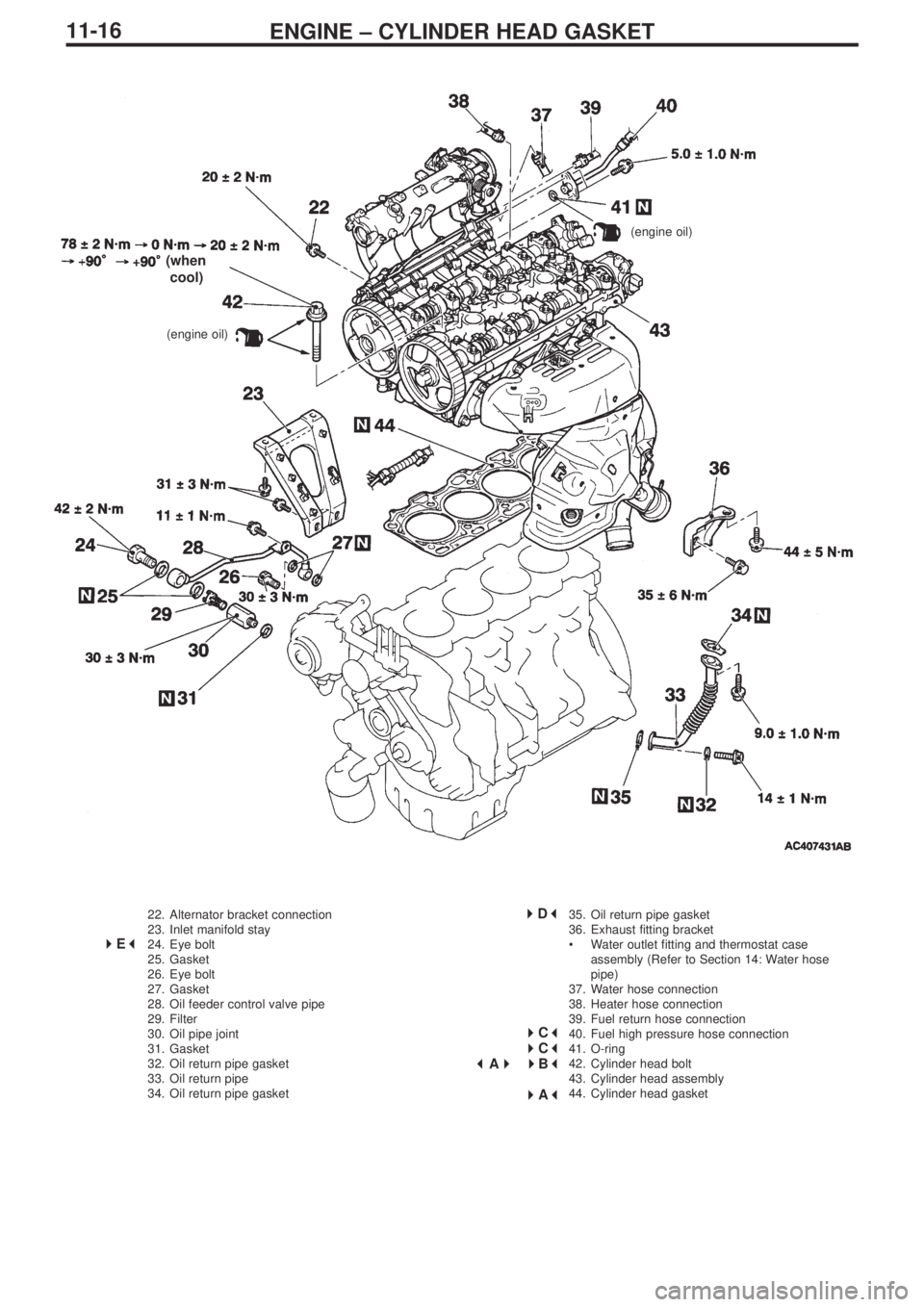

Removal procedure
1. Ignition coil connector
2. O
2sensor connector
3. Oil feeder control valve connector
4. Crank angle sensor connector
5. Manifold absolute pressure sensor
connector
6. Fuel pressure solenoid valve connector
7. Knock sensor connector
8. Purge control solenoid valve connector
9. Throttle position sensor connector
10. Injector connector
11.Exhaust camshaft position sensor
connector12. Inlet camshaft position sensor
connector
13. Water temperature gauge unit
connector
14. Joint control harness and transmission
harness
15. Water temperature sensor connector
16. Secondary air control solenoid valve
connector
17. Vacuum tank, solenoid valve, vacuum
pipe and hose assembly
18. Brake booster vacuum hose connection
19. Oil level gauge and guide assembly
20. O-ring
21. Purge hose connection
(engine oil)

ENGINE – CYLINDER HEAD GASKET11-16
22. Alternator bracket connection
23. Inlet manifold stay
24. Eye bolt
25. Gasket
26. Eye bolt
27. Gasket
28. Oil feeder control valve pipe
29. Filter
30. Oil pipe joint
31. Gasket
32. Oil return pipe gasket
33. Oil return pipe
34. Oil return pipe gasket35. Oil return pipe gasket
36. Exhaust fitting bracket
•Water outlet fitting and thermostat case
assembly (Refer to Section 14: Water hose
pipe)
37. Water hose connection
38. Heater hose connection
39. Fuel return hose connection
40. Fuel high pressure hose connection
41. O-ring
42. Cylinder head bolt
43. Cylinder head assembly
44. Cylinder head gasket
(when
cool)
(engine oil)
(engine oil)



E




D




C



C

A






B



A

ENGINE – CYLINDER HEAD GASKET
11-17
Removal guidelines



A
Removing the cylinder head bolts
Use the special wrench for cylinder head bolts (MB991654) to turn
the bolts 2~3 times in order to loosen them, before removing them
in the numerical order as shown in the diagram.
Fitting guidelines



A
Fitting the cylinder head gasket
1. Remove the gaskets which have been stuck onto the surface of
the gasket.
Caution
Do not allow any foreign matter to get into the channels for
coolant or oil, or into the cylinder.
2. Fit the cylinder head gasket to the cylinder head, so that the
holes in the cylinder head gasket match up with the holes in the
cylinder head.



B
Fitting the cylinder head bolts
1. Check that the length of the body of cylinder head bolts is less
than the maximum permitted. If the length is in excess of the
maximum permitted, replace the bolt with a brand new one.
Maximum length (A): 99.4mm
2. Apply a small amount of engine oil to the screw thread of the
bolt, and to the washer.
Front of engine
(engine oil)

ENGINE – CYLINDER HEAD GASKET11-18
3. Use the special wrench for cylinder head bolts (MB991654) to
(loosely) tighten the bolts in the following order.
(1) In the order shown in the diagram, tighten the bolts to
78 ± 2 N•m.
(2) In reverse order to that shown in the diagram, completely loosen
the bolts.
(3) In the order shown in the diagram, tighten the bolts to
20 ± 2 N•m.
(4) Make a paint mark on the top of the cylinder head bolt, and on
the cylinder head, and tighten them to 90° as shown in the
diagram.
(5) Tighten the bolts to 90° as shown in the diagram, and check that
the paint mark on the top of the cylinder head bolt and the paint
mark on the cylinder head are in line.
Caution
1) If a bolt is tightened to an angle of less than 90° it has not
been tightened sufficiently.
2) If the angle of tightening exceeds the regulation level,
remove the bolt and start again from procedure number (1).



C
Fitting the O-ring/fuel high pressure hose
1. Apply a little fresh engine oil to the O-ring.
Caution
Ensure that engine oil does not get inside the delivery pipe.
2. Without damaging the O-ring, twist the fuel high pressure hose
to fit it to the delivery pipe, making sure that it is twisted
smoothly.
3. If the hose cannot be twisted smoothly, there is a possibility that
it may be biting into the O-ring, so remove the fuel high pressure
hose, and check for any damage to the O-ring. If the O-ring is
undamaged, reinsert it into the delivery pipe and check once
more whether the hose can be turned smoothly.
4. Tighten the mounting bolts for the fuel high pressure hose to the
specified torque.
Tightening torque: 5.0 ± 1.0 N•m.
Front of engine
Procedure number (4)Procedure number (5)
paint markpaint mark

ENGINE – CYLINDER HEAD GASKET
11-19



D
Fitting the oil return pipe gasket

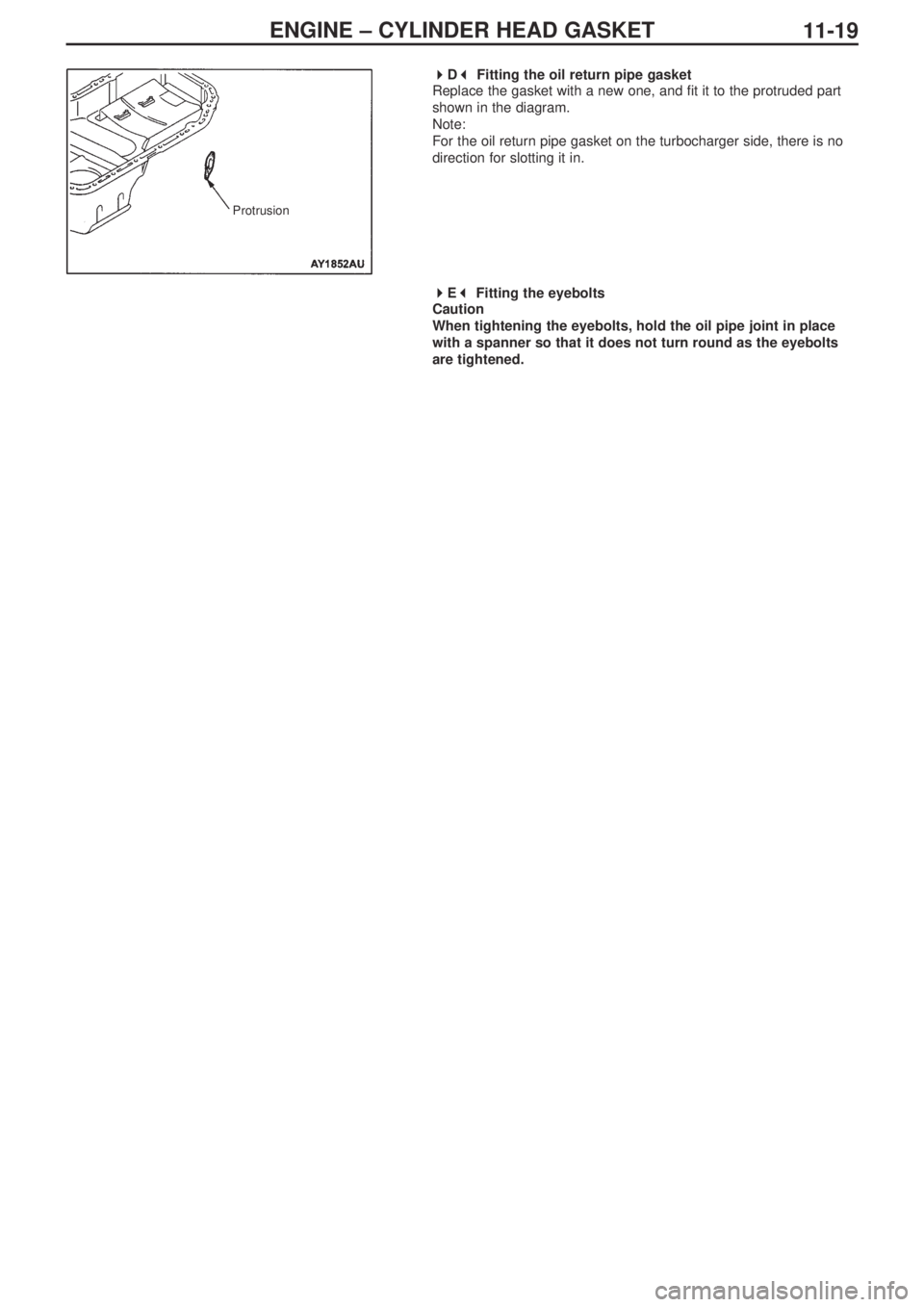

Replace the gasket with a new one, and fit it to the protruded part
shown in the diagram.
Note:
For the oil return pipe gasket on the turbocharger side, there is no
direction for slotting it in.



E
Fitting the eyebolts
Caution
When tightening the eyebolts, hold the oil pipe joint in place
with a spanner so that it does not turn round as the eyebolts
are tightened.
Protrusion

ENGINE – TIMING BELT, TIMING BELT B11-20
TIMING BELT, TIMING BELT B

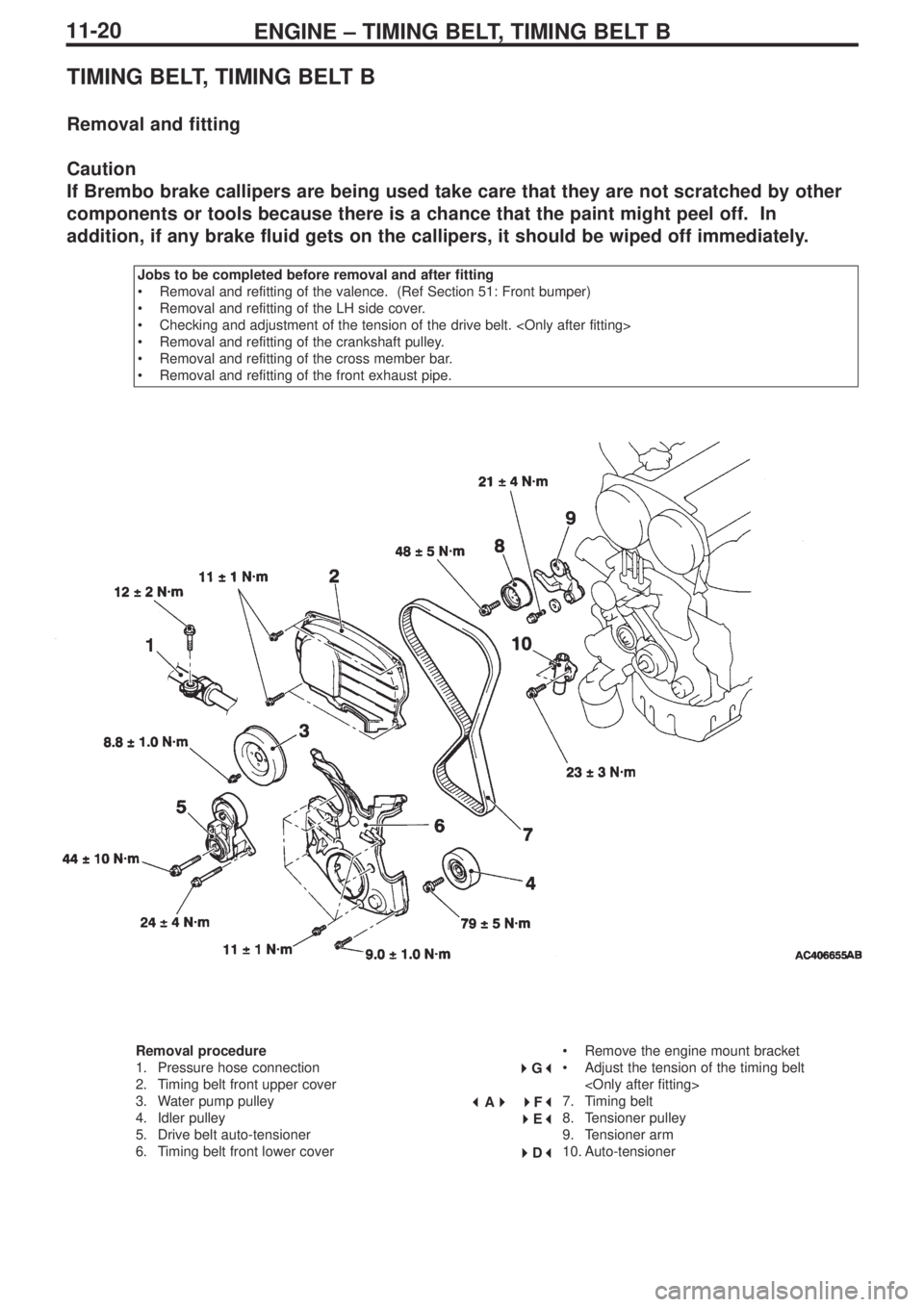

Removal and fitting
Caution
If Brembo brake callipers are being used take care that they are not scratched by other
components or tools because there is a chance that the paint might peel off. In
addition, if any brake fluid gets on the callipers, it should be wiped off immediately.
Jobs to be completed before removal and after fitting
•Removal and refitting of the valence. (Ref Section 51: Front bumper)
•Removal and refitting of the LH side cover.
•Checking and adjustment of the tension of the drive belt.
•Removal and refitting of the crankshaft pulley.
•Removal and refitting of the cross member bar.
•Removal and refitting of the front exhaust pipe.
Removal procedure
1. Pressure hose connection
2. Timing belt front upper cover
3. Water pump pulley
4. Idler pulley
5. Drive belt auto-tensioner
6. Timing belt front lower cover•Remove the engine mount bracket
•Adjust the tension of the timing belt

7. Timing belt
8. Tensioner pulley
9. Tensioner arm
10. Auto-tensioner



G

A






F



E



D

ENGINE – TIMING BELT, TIMING BELT B
11-21
10. Power steering oil pressure switch connector
11.Heat protector
12. Power steering oil pump ASSY
13. Power steering oil pump bracket
14. Idler pulley
15. Crank angle sensor16. Crankshaft sprocket
17. Crankshaft sensing blade
•Adjust the tension of the timing belt B

18. Timing belt B tensioner
19. Timing belt B
Removal guidelines

A


Removing the timing belt
1. Turn the crankshaft in a clockwise direction, and match up all
the timing marks until the No.1 cylinder is in the compressor top
dead centre position.
Caution
Turn the crankshaft in the normal way.
2. Remove the rubber plug from the rear cover of the timing belt,
and prepare the special tool for adjusting bolts (MD998738).

C






C



C



B



A

D






A


B


(engine oil)
Timing marks
Timing belt
valence

ENGINE – TIMING BELT, TIMING BELT B11-22

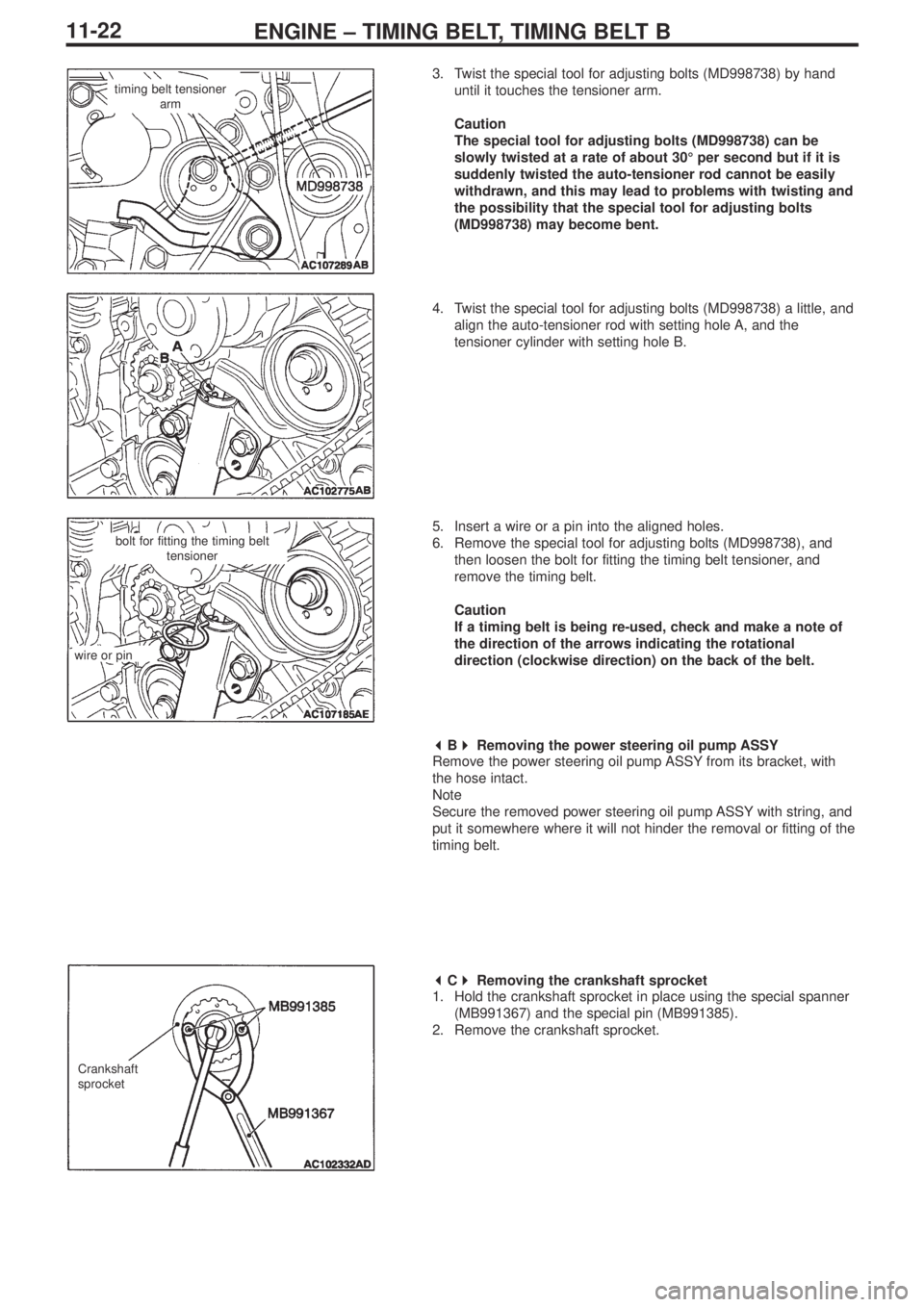

3. Twist the special tool for adjusting bolts (MD998738) by hand
until it touches the tensioner arm.
Caution
The special tool for adjusting bolts (MD998738) can be
slowly twisted at a rate of about 30° per second but if it is
suddenly twisted the auto-tensioner rod cannot be easily
withdrawn, and this may lead to problems with twisting and
the possibility that the special tool for adjusting bolts
(MD998738) may become bent.
4. Twist the special tool for adjusting bolts (MD998738) a little, and
align the auto-tensioner rod with setting hole A, and the
tensioner cylinder with setting hole B.
5. Insert a wire or a pin into the aligned holes.
6. Remove the special tool for adjusting bolts (MD998738), and
then loosen the bolt for fitting the timing belt tensioner, and
remove the timing belt.
Caution
If a timing belt is being re-used, check and make a note of
the direction of the arrows indicating the rotational
direction (clockwise direction) on the back of the belt.

B


Removing the power steering oil pump ASSY
Remove the power steering oil pump ASSY from its bracket, with
the hose intact.
Note
Secure the removed power steering oil pump ASSY with string, and
put it somewhere where it will not hinder the removal or fitting of the
timing belt.

C


Removing the crankshaft sprocket
1. Hold the crankshaft sprocket in place using the special spanner
(MB991367) and the special pin (MB991385).
2. Remove the crankshaft sprocket.timing belt tensioner
arm
bolt for fitting the timing belt
tensioner
wire or pin
Crankshaft
sprocket

ENGINE – TIMING BELT, TIMING BELT B
11-23

D


Removing timing belt B
Caution
If planning to re-use a timing belt B, ensure that it will be
refitted the same way round, by marking the back of the belt
with chalk arrows indicating the direction of movement.
Fitting guidelines



A

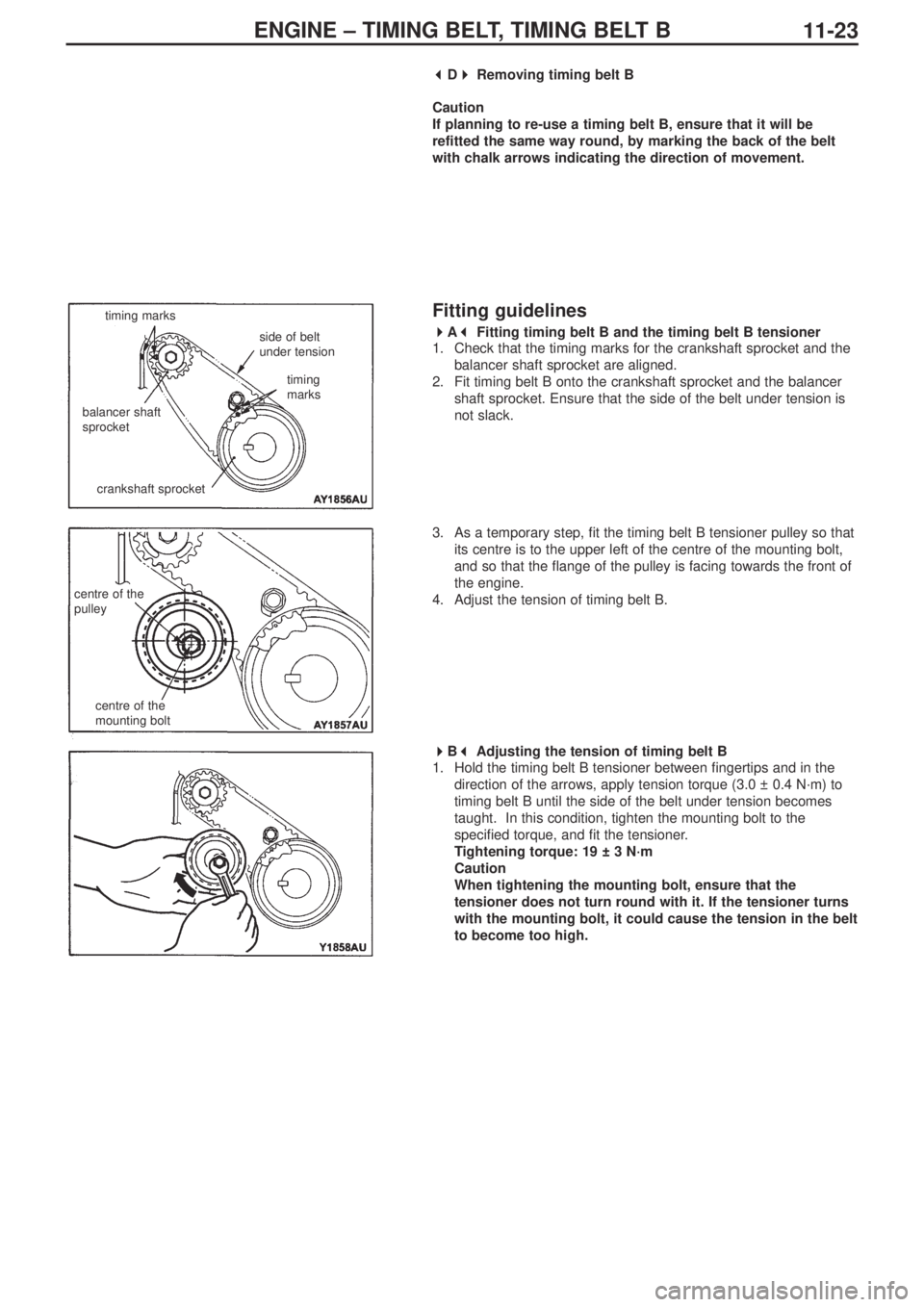

Fitting timing belt B and the timing belt B tensioner
1. Check that the timing marks for the crankshaft sprocket and the
balancer shaft sprocket are aligned.
2. Fit timing belt B onto the crankshaft sprocket and the balancer
shaft sprocket. Ensure that the side of the belt under tension is
not slack.
3. As a temporary step, fit the timing belt B tensioner pulley so that
its centre is to the upper left of the centre of the mounting bolt,
and so that the flange of the pulley is facing towards the front of
the engine.
4. Adjust the tension of timing belt B.



B
Adjusting the tension of timing belt B
1. Hold the timing belt B tensioner between fingertips and in the
direction of the arrows, apply tension torque (3.0 ± 0.4 N·m) to
timing belt B until the side of the belt under tension becomes
taught. In this condition, tighten the mounting bolt to the
specified torque, and fit the tensioner.
Tightening torque: 19 ± 3 N·m
Caution
When tightening the mounting bolt, ensure that the
tensioner does not turn round with it. If the tensioner turns
with the mounting bolt, it could cause the tension in the belt
to become too high.
timing marks
balancer shaft
sprocket
crankshaft sprocket
side of belt
under tension
timing
marks
centre of the
pulley
centre of the
mounting bolt

ENGINE – TIMING BELT, TIMING BELT B11-24
2.

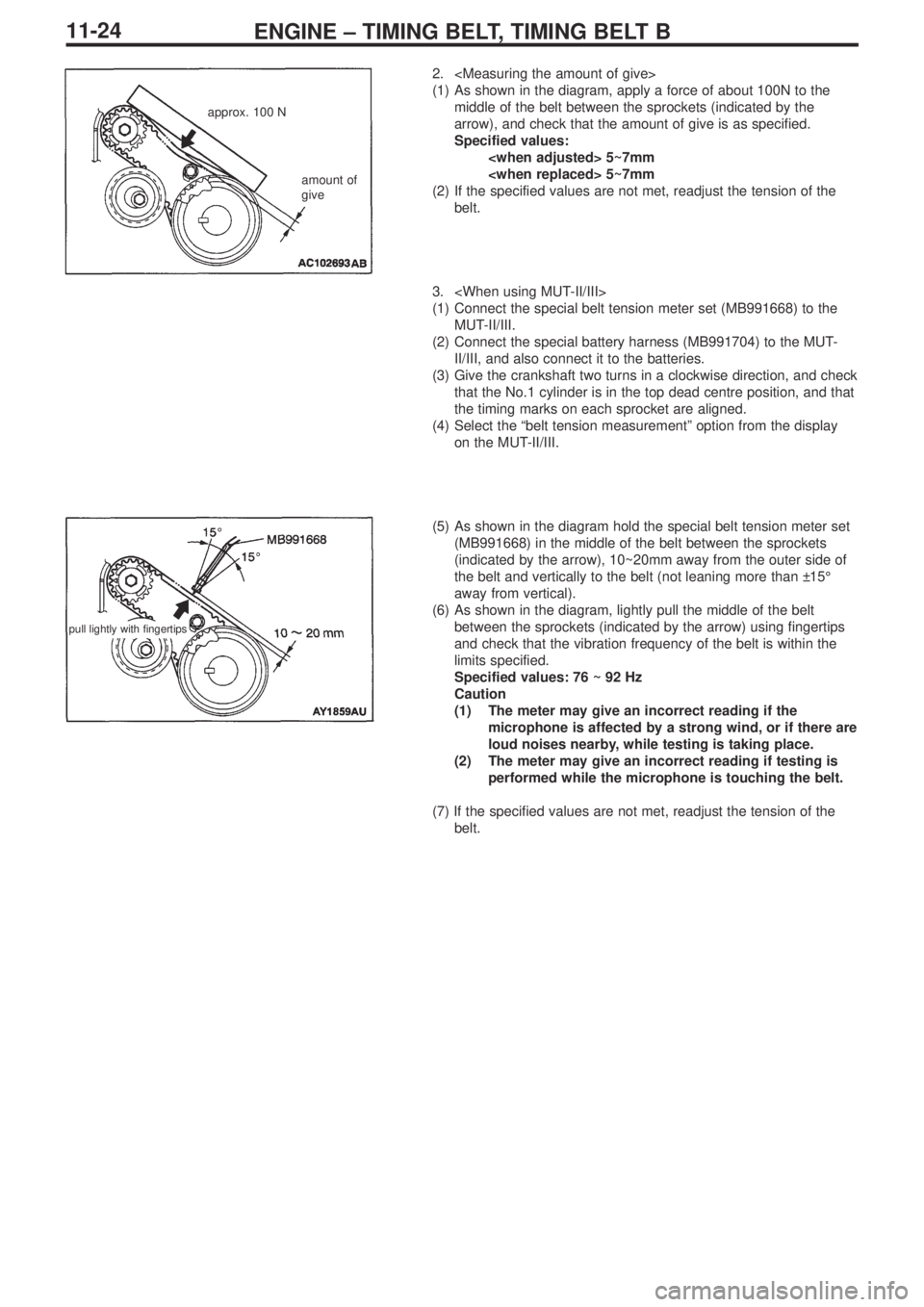

(1) As shown in the diagram, apply a force of about 100N to the
middle of the belt between the sprockets (indicated by the
arrow), and check that the amount of give is as specified.
Specified values:
5~7mm
5~7mm
(2) If the specified values are not met, readjust the tension of the
belt.
3.
(1) Connect the special belt tension meter set (MB991668) to the
MUT-II/III.
(2) Connect the special battery harness (MB991704) to the MUT-
II/III, and also connect it to the batteries.
(3) Give the crankshaft two turns in a clockwise direction, and check
that the No.1 cylinder is in the top dead centre position, and that
the timing marks on each sprocket are aligned.
(4) Select the “belt tension measurement” option from the display
on the MUT-II/III.
(5) As shown in the diagram hold the special belt tension meter set
(MB991668) in the middle of the belt between the sprockets
(indicated by the arrow), 10~20mm away from the outer side of
the belt and vertically to the belt (not leaning more than ±15°
away from vertical).
(6) As shown in the diagram, lightly pull the middle of the belt
between the sprockets (indicated by the arrow) using fingertips
and check that the vibration frequency of the belt is within the
limits specified.
Specified values: 76 ~ 92 Hz
Caution
(1) The meter may give an incorrect reading if the
microphone is affected by a strong wind, or if there are
loud noises nearby, while testing is taking place.
(2) The meter may give an incorrect reading if testing is
performed while the microphone is touching the belt.
(7) If the specified values are not met, readjust the tension of the
belt.
approx. 100 N
amount of
give
pull lightly with fingertips
