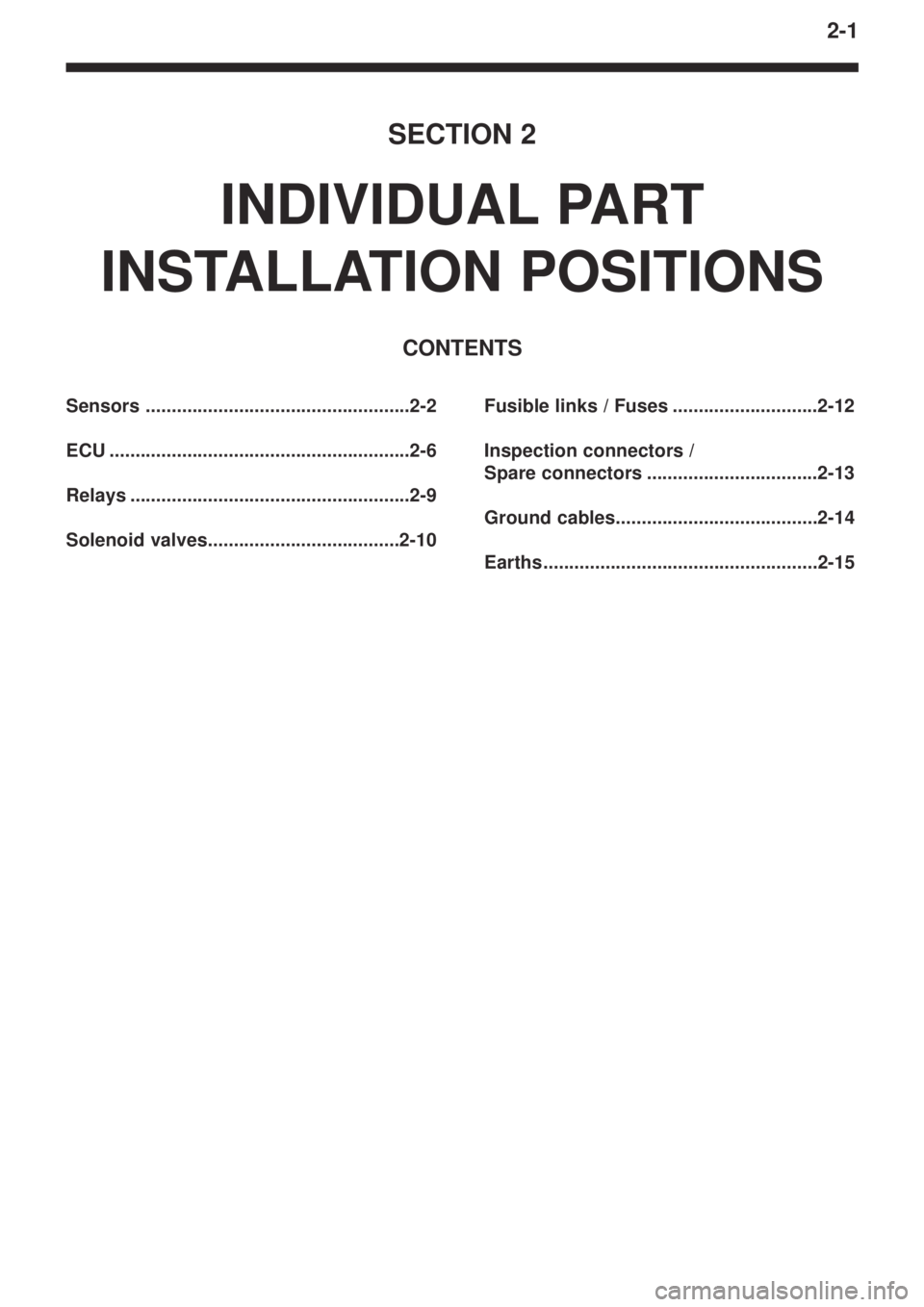

2-1
SECTION 2
INDIVIDUAL PART
INSTALLATION POSITIONS
CONTENTS
Sensors ...................................................2-2
ECU ..........................................................2-6
Relays ......................................................2-9
Solenoid valves.....................................2-10Fusible links / Fuses ............................2-12
Inspection connectors /
Spare connectors .................................2-13
Ground cables.......................................2-14
Earths.....................................................2-15

PART INSTALLATION POSITIONS - FUSIBLE LINKS / FUSE2-12

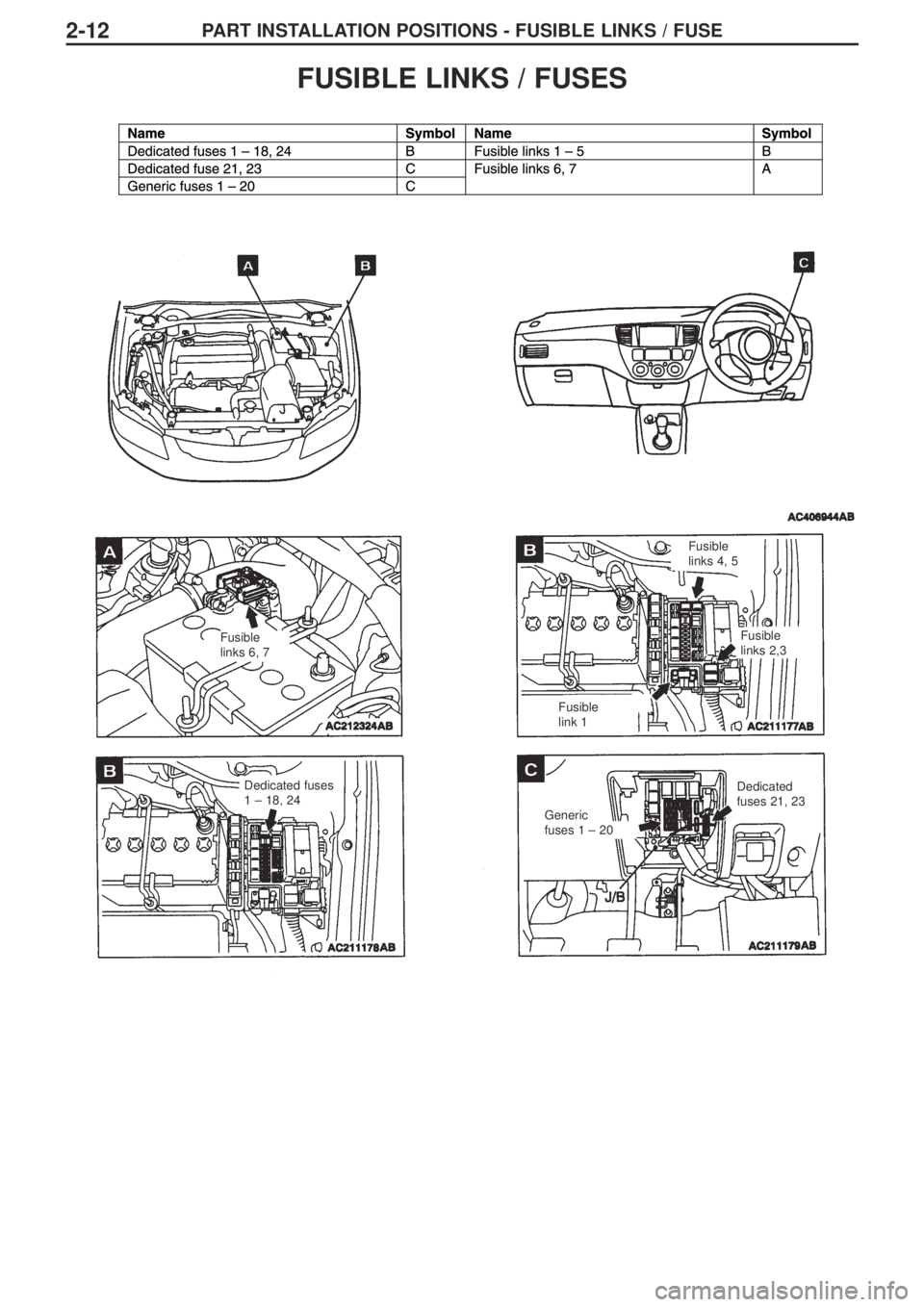

FUSIBLE LINKS / FUSES
Fusible
links 6, 7
Dedicated fuses
1 – 18, 24
Generic
fuses 1 – 20 Dedicated
fuses 21, 23 Fusible
links 4, 5
Fusible
links 2,3
Fusible
link 1

CIRCUIT DIAGRAMS - J/B3-5

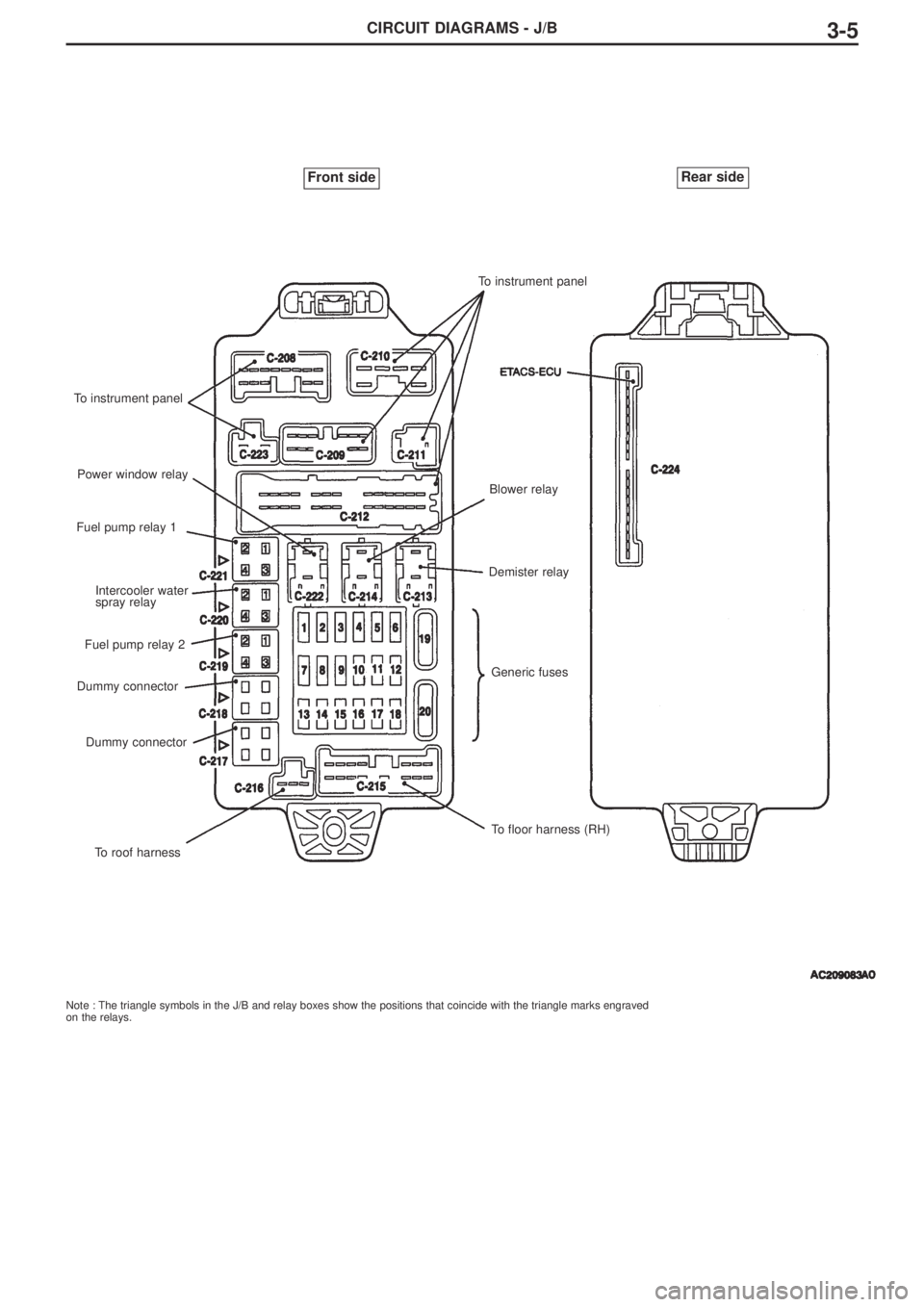

Note : The triangle symbols in the J/B and relay boxes show the positions that coincide with the triangle marks engraved
on the relays.
Front sideRear side
To instrument panel
Power window relay
Fuel pump relay 1
Intercooler water
spray relay
Fuel pump relay 2
Dummy connector
Dummy connector
To roof harnessTo instrument panel
Blower relay
Demister relay

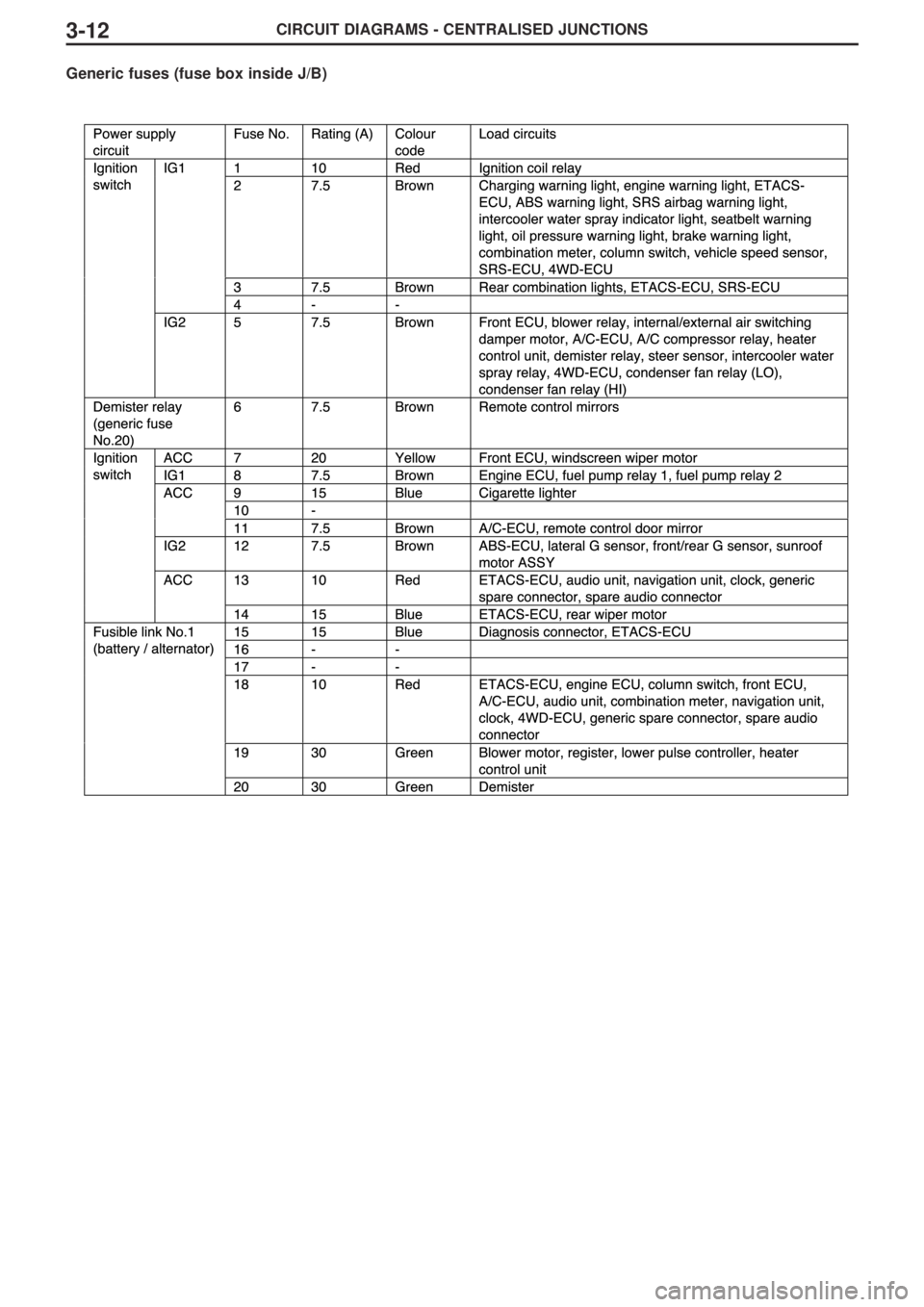

Generic fuses
To floor harness (RH)

CIRCUIT DIAGRAMS - CENTRALISED JUNCTIONS3-12
Generic fuses (fuse box inside J/B)

CIRCUIT DIAGRAMS - CENTRAL JUNCTION3-15

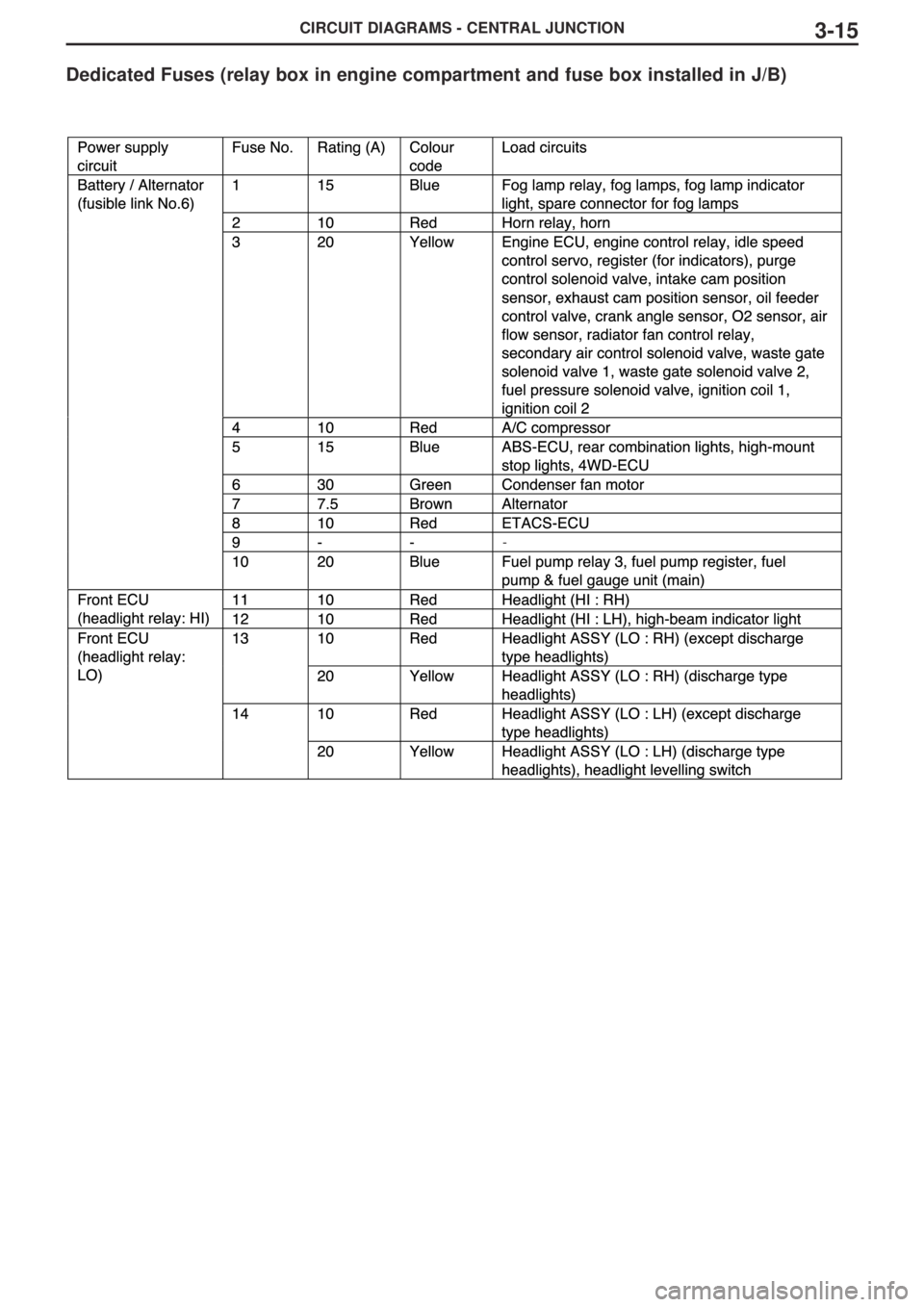

Dedicated Fuses (relay box in engine compartment and fuse box installed in J/B)
-

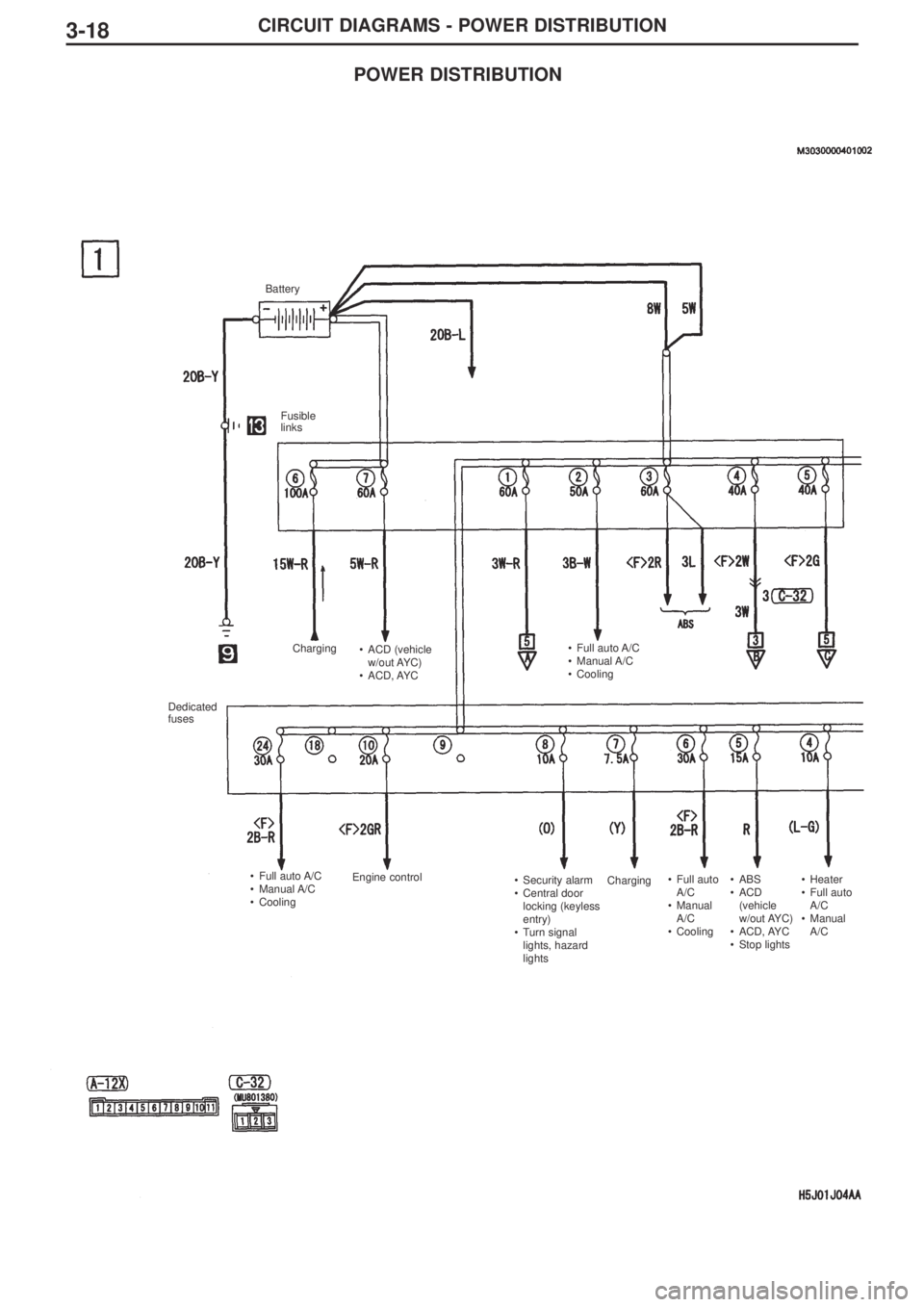

3-18CIRCUIT DIAGRAMS - POWER DISTRIBUTION
Battery
Fusible
links
Charging
Charging •ACD (vehicle
w/out AYC)
•ACD, AYC•Full auto A/C
•Manual A/C
•Cooling
Dedicated
fuses
•Full auto A/C
•Manual A/C
•CoolingEngine control
•Security alarm
•Central door
locking (keyless
entry)
•Turn signal
lights, hazard
lights•Full auto
A/C
•Manual
A/C
•Cooling•ABS
•ACD
(vehicle
w/out AYC)
•ACD, AYC
•Stop lights•Heater
•Full auto
A/C
•Manual
A/C
POWER DISTRIBUTION
