ENGINE (4G6) – BASE ENGINE (6 M/T)15
6. Camshaft
Output at high engine speeds has been improved by altering the cam profile of the intake camshaft, and optimizing the valve
timing.
Evolution VIII MREvolution VIII
Cam height mm35.9635.79
Evolution VIII MR Evolution VIII
T.D.C (top dead centre) T.D.C (top dead centre)
Intake valve open
Intake valve
closedExhaust
valve closed
Exhaust
valve openIntake valve open
Intake valve
closedExhaust
valve closed
Exhaust
valve open
B.D.C (Bottom dead centre) B.D.C (Bottom dead centre)

ENGINE (4G6) – INTAKE / EXHAUST SYSTEM (6 M/T)16
Intake / Exhaust System (6 M/T)
1. Exhaust system
11 Turbocharger

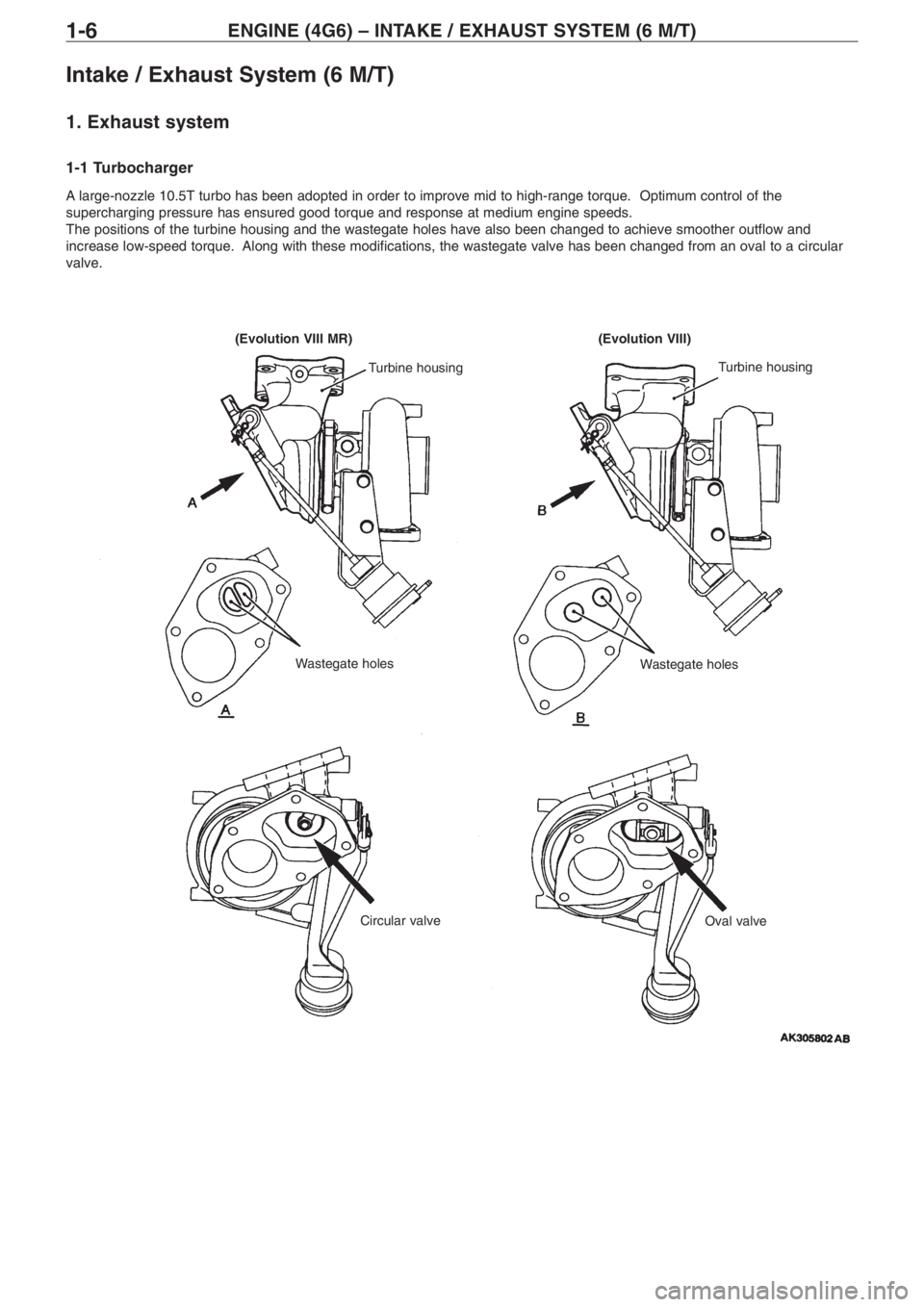

A largenozzle 10.5T turbo has been adopted in order to improve mid to highrange torque. Optimum control of the
supercharging pressure has ensured good torque and response at medium engine speeds.The positions of the turbine housing and the wastegate holes have also been changed to achieve smoother outflow and
increase lowspeed torque. Along with these modifications, the wastegate valve has been changed from an oval to a circular
valve.
(Evolution VIII MR) (Evolution VIII)
Turbine housingTurbine housing
Wastegate holes Wastegate holes
Oval valve Circular valve

ENGINE (4G6) – INT
AKE / EXHAUST SYSTEM (6 M/T)17
12 Exhaust silencer
A tailpipe with builtin soundabsorbing material has been adopted, in order to increase the silencing effect.
Structural diagram
Main exhaust
silencer
Tailpipe
(with builtin soundabsorbing material)Crosssection
A–A
Sound
absorbing
material

ENGINE (4G6) – GENERAL, BASE ENGINE (6 M/T)18
Control system (6M/T)
The following changes have been made, based on the control system in the 4G63DOHCT/C engine fitted in the current
Lancer Evolution VIII.
* Addition of wastegate solenoid valve (1 valve –> 2 valves)

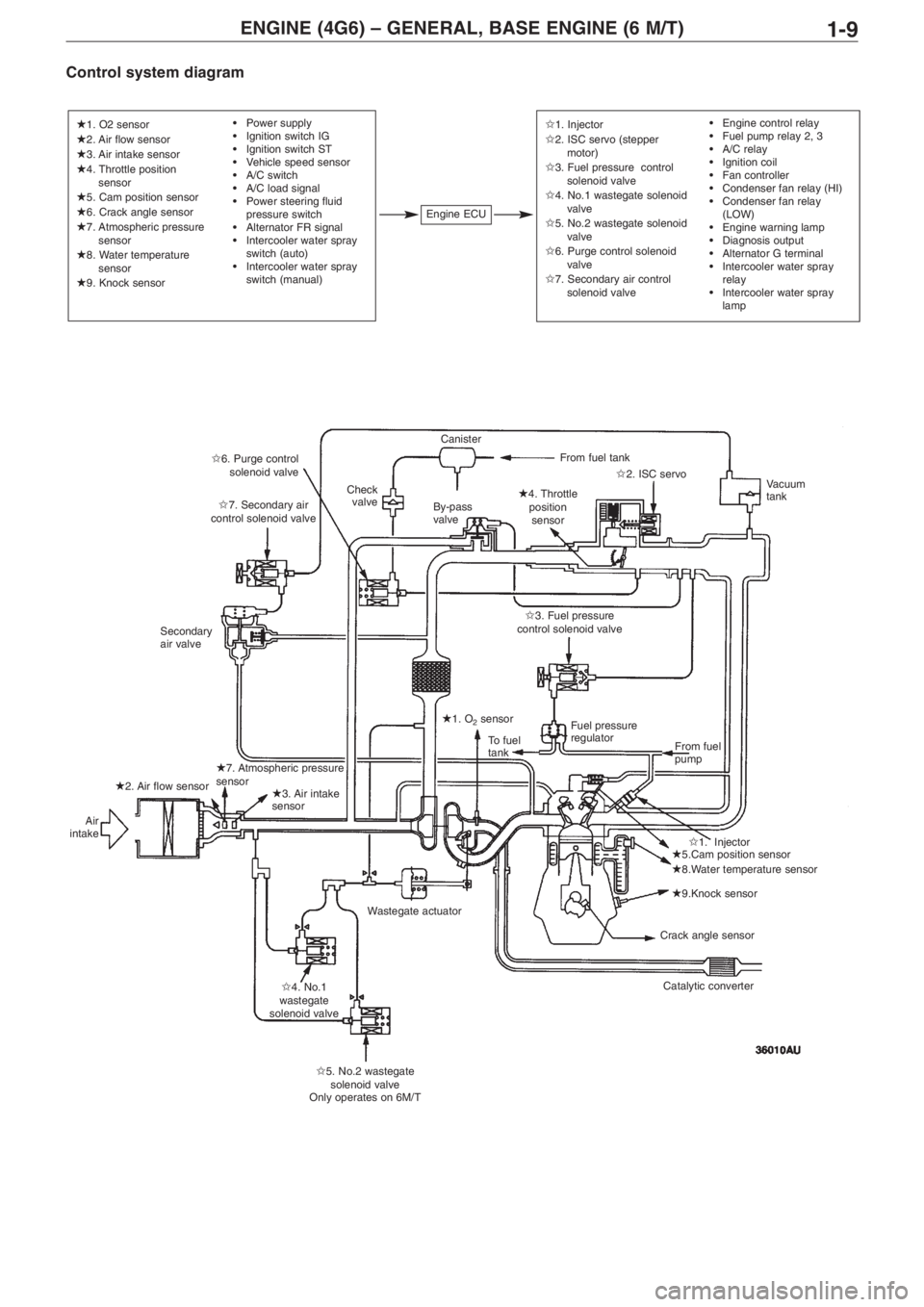

System Block Diagram
Air flow sensor (AFS)
Air temperature sensor
Atmospheric pressure sensor
Water temperature sensor
Throttle position sensor (TPS)
A/C switch
A/C load signal
Cam position sensor
Crank angle sensor
Alternator FR terminal
Vehicle speed sensor
Power steering fluid pressure
switch
Knock sensor
Intercooler water spray (auto)
Intercooler water spray (manual)
O
2sensor
Ignition switch –IG
Ignition switch –STPower supplyEngine ECU
Fuel injection control
Idle speed control (ISC)
Ignition timing control
Engine control relay control
Fuel pump relay control
A/C relay control
Fan motor control (radiator)
Fan relay control (A/C
condenser)
Alternator control
Air flow sensor filter reset
control
Fuel pressure control
Supercharging pressure
control
Secondary air controlIntercooler water spay control
Engine warning light control
O
2sensor heater control
Purge control
Diagnosis output
RAM data transmissionNo. 1 indicator
No. 2 indicator
No. 3 indicatorNo. 4 indicator
ISC servo (stepper motor)
Ignition coil A (No.1 – No.4)
Ignition coil B (No.2 – No.3)
Engine control relay
Fuel pump relay 2
Fuel pump relay 3
A/C relay
Fan controller (radiator fan)
Fan motor relay (HI, LOW)
(A/C condenser)
Alternator G terminal
Air flow sensor
Fuel pressure control valve
No. 1 wastegate solenoid valve
No. 2 wastegate solenoid valve
Secondary air control solenoid
valve
Intercooler water spray relay
Intercooler water spray lamp
Tachometer
Engine warning lights O
2sensor heater
Purge control solenoid valve
Diagnosis output terminal
Diagnosis output terminal (for
MUTII)

ENGINE (4G6) – GENERAL, BASE ENGINE (6 M/T)19
1. O2 sensor2. Air flow sensor3. Air intake sensor4. Throttle position
sensor
5. Cam position sensor6. Crack angle sensor7. Atmospheric pressure
sensor
8. Water temperature
sensor
9. Knock sensor•Power supply
• Ignition switch IG
•Ignition switch ST
•Vehicle speed sensor
• A/C switch
1. Injector2. ISC servo (stepper
motor)
3. Fuel pressure control
solenoid valve
4. No.1 wastegate solenoid
valve
5. No.2 wastegate solenoid
valve
6. Purge control solenoid
valve
7. Secondary air control
solenoid valve•Engine control relay
•Fuel pump relay 2, 3
•A/C relay
•Ignition coil
• Fan controller
Engine ECU
6. Purge control
solenoid valveCanister
7. Secondary air
control solenoid valveFrom fuel tank
Secondary
air valveBypass
valve
1. O2sensor
3. Fuel pressure
control solenoid valve
4. Throttle
position
sensor
7. Atmospheric pressure
sensor
3. Air intake
sensor2. Air flow sensor
4. No.1
wastegate
solenoid valve
5. No.2 wastegate
solenoid valve
Only operates on 6M/TWastegate actuatorFuel pressure
regulator
1. Injector5.Cam position sensor8.Water temperature sensor
9.Knock sensor
Crack angle sensor
Catalytic converter Air
intakeCheck
valve
2. ISC servo
Vacuum
tank
From fuel
pump To fuel
tank
Control system diagram

ENGINE (4G6) – CONTROL SYSTEM (6 M/T)110

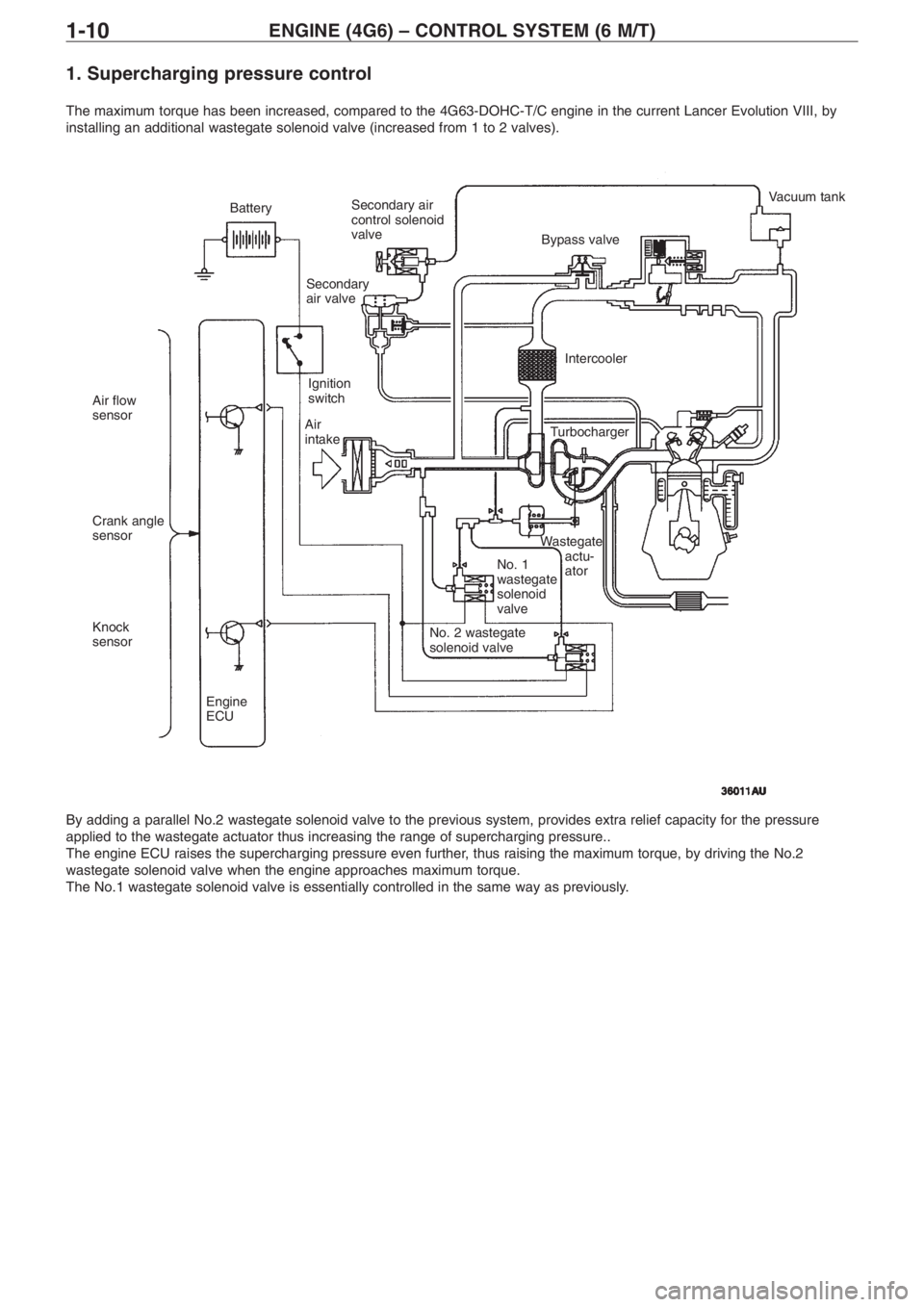

1. Supercharging pressure control
The maximum torque has been increased, compared to the 4G63DOHCT/C engine in the current Lancer Evolution VIII, by
installing an additional wastegate solenoid valve (increased from 1 to 2 valves).
By adding a parallel No.2 wastegate solenoid valve to the previous system, provides extra relief capacity for the pressure
applied to the wastegate actuator thus increasing the range of supercharging pressure..
The engine ECU raises the supercharging pressure even further, thus raising the maximum torque, by driving the No.2
wastegate solenoid valve when the engine approaches maximum torque.
The No.1 wastegate solenoid valve is essentially controlled in the same way as previously.
Air flow
sensor
Knock
sensor
Engine
ECUBatterySecondary air
control solenoidvalve
Secondary
air valve
Ignition
switch
Air
intakeBypass valveVacuum tank
Intercooler
Turbocharger
Wastegate
actu
ator No. 1
wastegate
solenoid
valve
No. 2 wastegate
solenoid valve Crank angle
sensor

21Power Train – Differential
SECTION 2
POWER TRAIN
CONTENTS
Differential ..............................................21
Differential

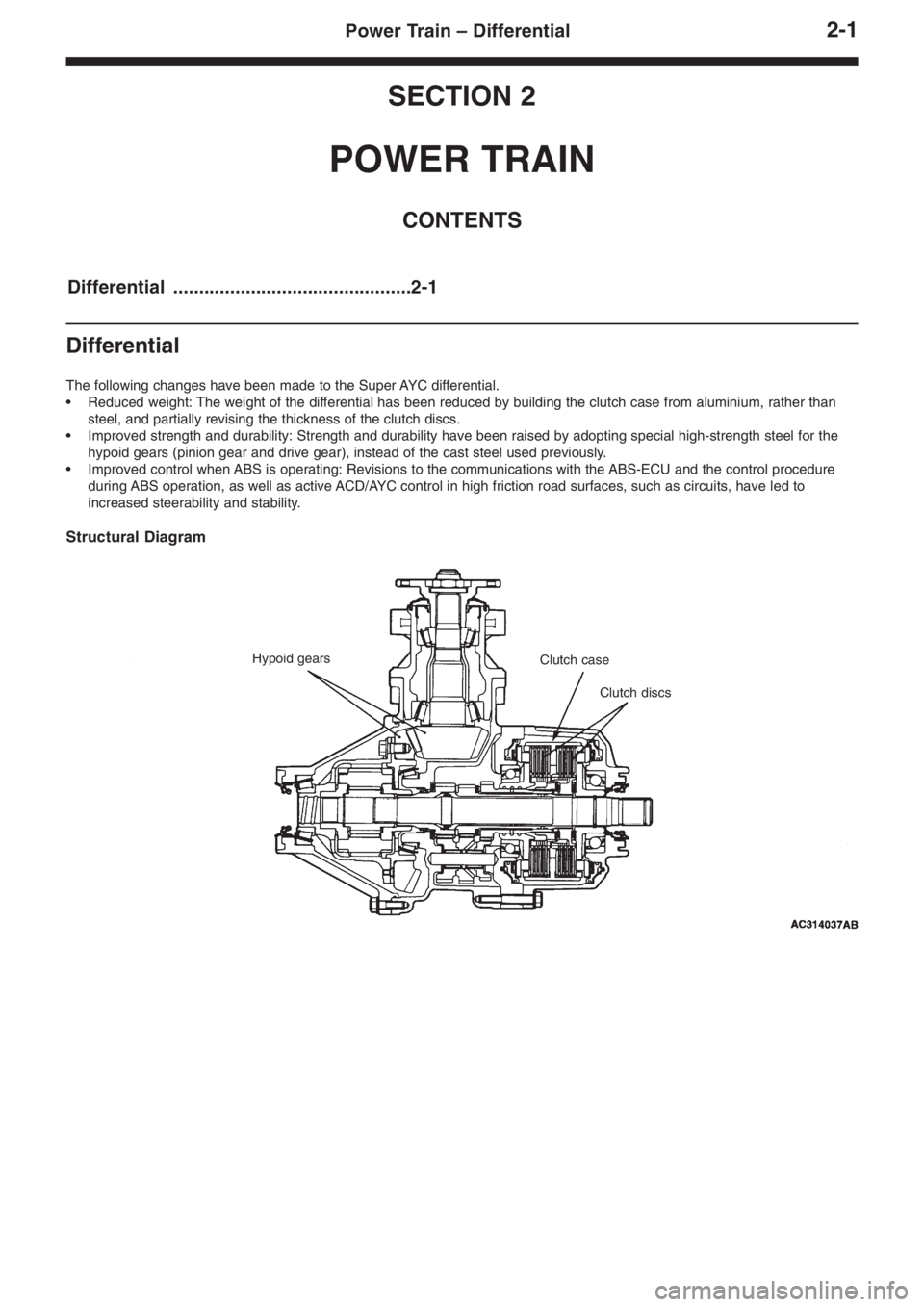

The following changes have been made to the Super AYC differential.
• Reduced weight: The weight of the differential has been reduced by building the clutch case from aluminium, rather than
steel, and partially revising the thickness of the clutch discs.
• Improved strength and durability: Strength and durability have been raised by adopting special highstrength steel for the
hypoid gears (pinion gear and drive gear), instead of the cast steel used previously.
• Improved control when ABS is operating: Revisions to the communications with the ABSECU and the control procedure
during ABS operation, as well as active ACD/AYC control in high friction road surfaces, such as circuits, have led to
increased steerability and stability.
Structural Diagram
Hypoid gears
Clutch case
Clutch discs

31DRIVE CONTROL – Front suspension, Rear suspension, Wheels, Tyres
SECTION 3
DRIVE CONTROL
CONTENTS
Front suspension....................................31
Rear suspension .....................................31Wheels and Tyres ...................................31
Front suspension
Roadholding has been improved by the adoption of Bilstein shock absorbers.
(GRS: Standard; RS: Optional)
Notes :
* Bilstein are one of the world’s leading manufacturers of shock absorbers, and their products are used in racing vehicles
worldwide.
Rear suspension
• Roadholding has been improved by the adoption of Bilstein shock absorbers.
(GRS: Standard; RS: Optional)
•The specifications of the coil springs have been changed. (GSR)
Specifications
ItemLancer Evolution VIII MR GSRLancer Evolution VIII GSR
Wire diameter mm12
Average diameter mm88
Free length mm277287
Wheels and Tyres
BBS lightweight forged alloy wheels are provided as an option,
which reduces the unsprung weight. Fitting these BBS lightweight
wheels allows the Bilstein shock absorbers to display their fullrange of performance.
Note:
See “Section 8 Main Equipment” for detailed specifications.

41BODY – MAIN BODY
SECTION 4
BODY
CONTENTS
Main Body................................................41
Body Panels .....................................................41
Paintwork.................................................41
Body colour chart ............................................41
Main Body
Body Panels

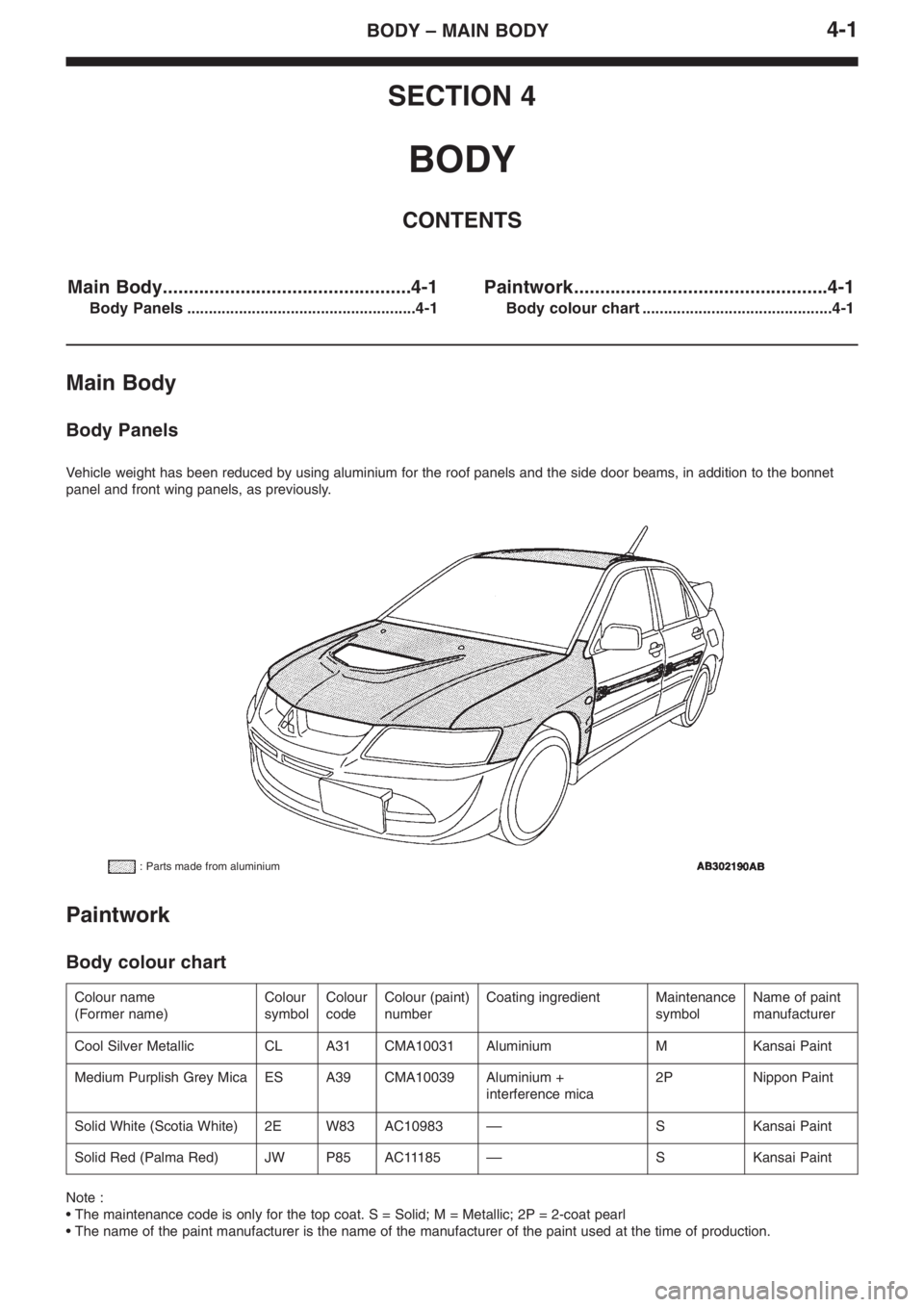

Vehicle weight has been reduced by using aluminium for the roof panels and the side door beams, in addition to the bonnet
panel and front wing panels, as previously.
: Parts made from aluminium
Paintwork
Body colour chart
Colour name
(Former name)Colour
symbolColour
codeColour (paint)
numberCoating ingredientMaintenance
symbolName of paint
manufacturer
Cool Silver Metallic CLA31CMA10031AluminiumMKansai Paint
Medium Purplish Grey MicaESA39CMA10039Aluminium +
interference mica2PNippon Paint
Solid White (Scotia White)2EW83AC10983––SKansai Paint
Solid Red (Palma Red)JWP85AC11185––SKansai Paint
Note :
• The maintenance code is only for the top coat. S = Solid; M = Metallic; 2P = 2coat pearl
• The name of the paint manufacturer is the name of the manufacturer of the paint used at the time of production.

51EXTERIOR – MARKINGS
SECTION 5
EXTERIOR
CONTENTS
Markings ..................................................53
Markings

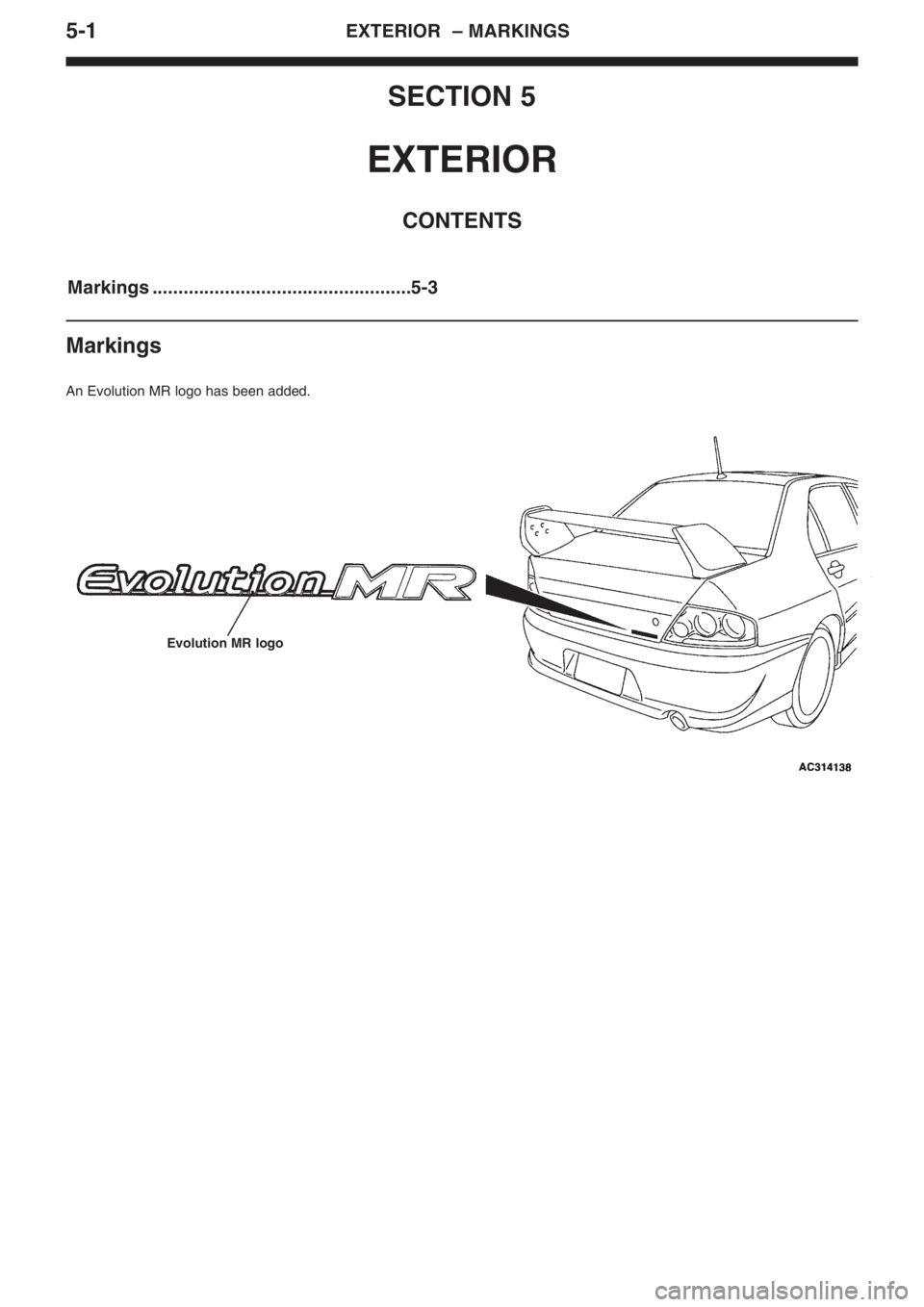

An Evolution MR logo has been added.
Evolution MR logo
